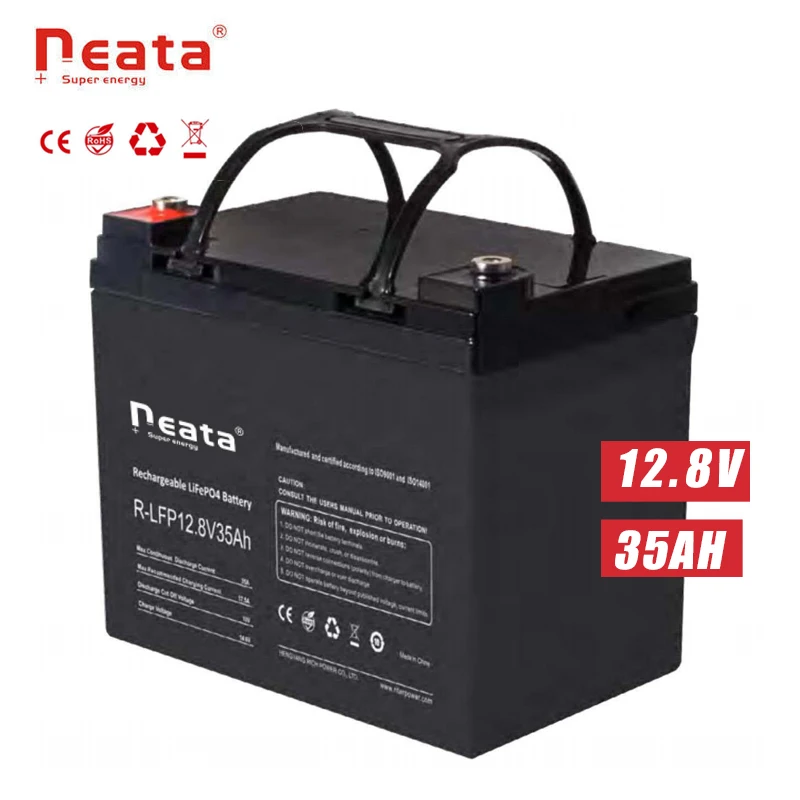

Neata Deep Cycle Built in BMS 12V 35ah Lifepo4 Lithium Iron lto battery pack 12v
- Category: >>>
- Supplier: Zhongshan Neata New Energy Technology Co. Ltd.
Share on (1600878794792):
Product Overview
Description
【High-quality battery cell】: Adopts high-quality A-grade battery cell, full capacity without false labeling to support the test
【Competitive price】: 500,000+ pieces produced annually, branded battery source production factory with competitive price
【Wide range of products】: Lead acid replacement battery, Rack mount battery, Wall-mounted energy storage, Stacked batteries....
【Competitive price】: 500,000+ pieces produced annually, branded battery source production factory with competitive price
【Wide range of products】: Lead acid replacement battery, Rack mount battery, Wall-mounted energy storage, Stacked batteries....
Product Catalog
Related Products
12.8V Series | ||||||||||||||
Model | Rated Voltage [v] | Rated Capacity [Ah] | Length [mm] | Width [mm] | Height [mm] | Weight [Kg] | Terminal | |||||||
N-LFP12.8V10OAh | 12.8 | 100 | 260 | 168 | 211 | 12.7 | F12(Φ17.5,M8) | |||||||
N-LFP12.8V135Ah | 12.8 | 135 | 330 | 172 | 214 | 19 | F12(Φ17.5,M8) | |||||||
N-LFP12.8V15OAh | 12.8 | 150 | 483 | 170 | 241 | 20 | F12(Φ17.5,M8) | |||||||
N-LFP12.8V200Ah | 12.8 | 200 | 522 | 240 | 219 | 25.6 | F10(Φ20,M8) | |||||||
N-LFP12.8V300Ah | 12.8 | 300 | 522 | 268 | 220 | 32 | F10(Φ20,M8) | |||||||
Products Description

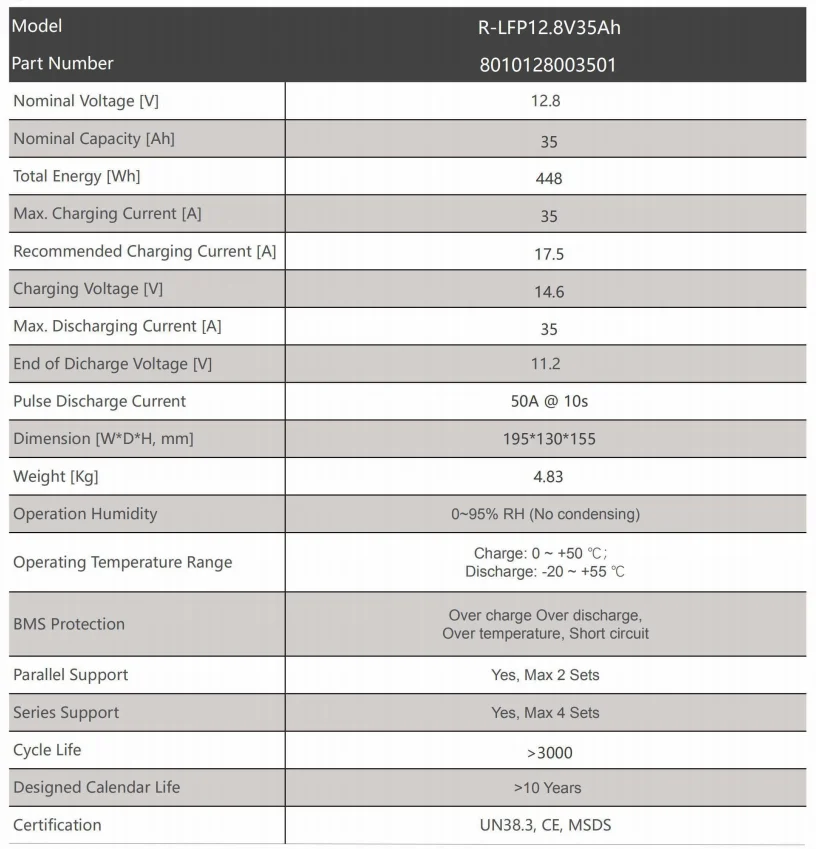

Parameter
Nominal Voltage [V] | 12.8 |
Nominal Capacity [Ah] | 35 |
Total Energy [Wh] | 448 |
Max.Charging Current[A] | 35 |
Recommended Charging Current[A] | 17.5 |
Charging Voltage [V] | 14.6 |
Max.Discharging Current [A] | 35 |
End of Dicharge Voltage [V] | 11.2 |
Pulse Discharge Current | 5OA@10s |

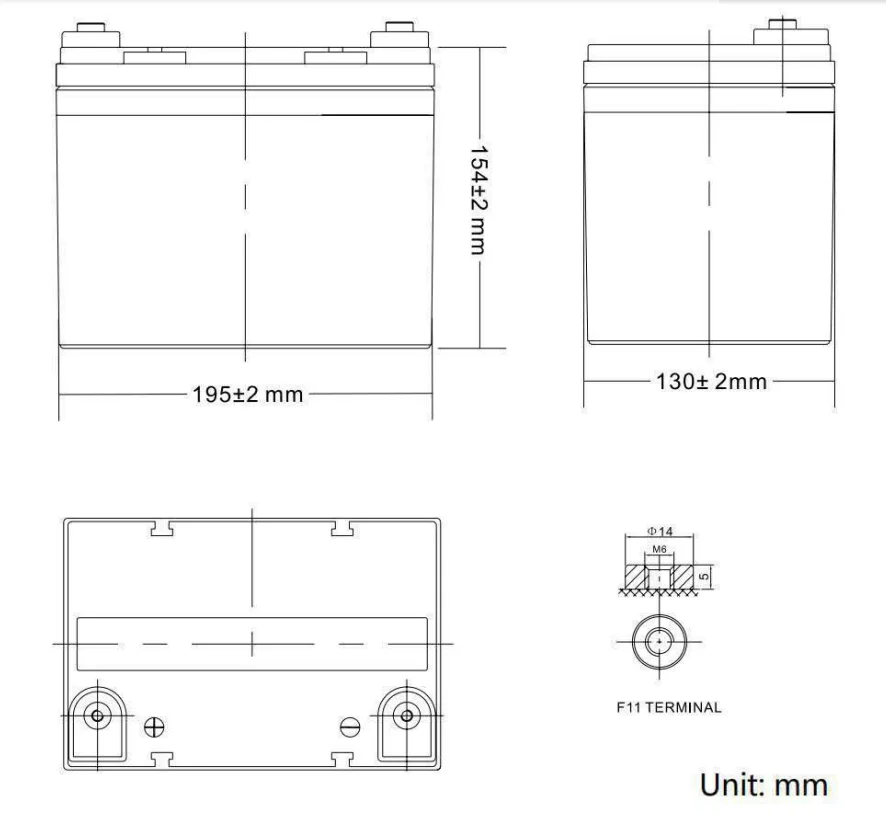

Dimension [W*D*H,mm] | 195*130*155 |
Weight [Kg] | 4.83 |
peration Humidity | 0~95% RH(No condensing) |
Operating Temperature Range | Charge: 0~ +50 °℃; Discharge:-20~ +55 ℃ |
BMS Protection | over charge Over discharge, Over temperature,Short circuit |
Parallel Support | Yes,Max 2 Sets |
Series Support | Yes,Max 4 Sets |
Cycle Life | >3000 |
Designed Calendar Life | >10 Years |
Certification | UN38.3,CE,MSDS |
Certification | UN38.3,CE,MSDS |
● SAFETY
+Prismatic LiFePO4cells(40Ah)High consistencylong cycle life and much more safety.
+UN38.3CE certification for system.
+The cycle life over 3000 times @80%DOD
+The cycle life over 3000 times @80%DOD
●DESIGN
+ABS container,replace VRLA battery perfectly
+Fast charge performance.
+-20~+55°C widely temperature range.
+Maintenance free.
+Fast charge performance.
+-20~+55°C widely temperature range.
+Maintenance free.
●BATTERY MANAGEMENT SYSTEM (BMS)
+ Integrated hardware BMS inside.
+ Independent protection for charge and discharge
+Over voltage, low voltage, over temperature and short circuit protection.
+ Independent protection for charge and discharge
+Over voltage, low voltage, over temperature and short circuit protection.
