5 modes led cordless cap lamp with 25000lux brightness

Product Overview

Description

BRANDO Recommend You

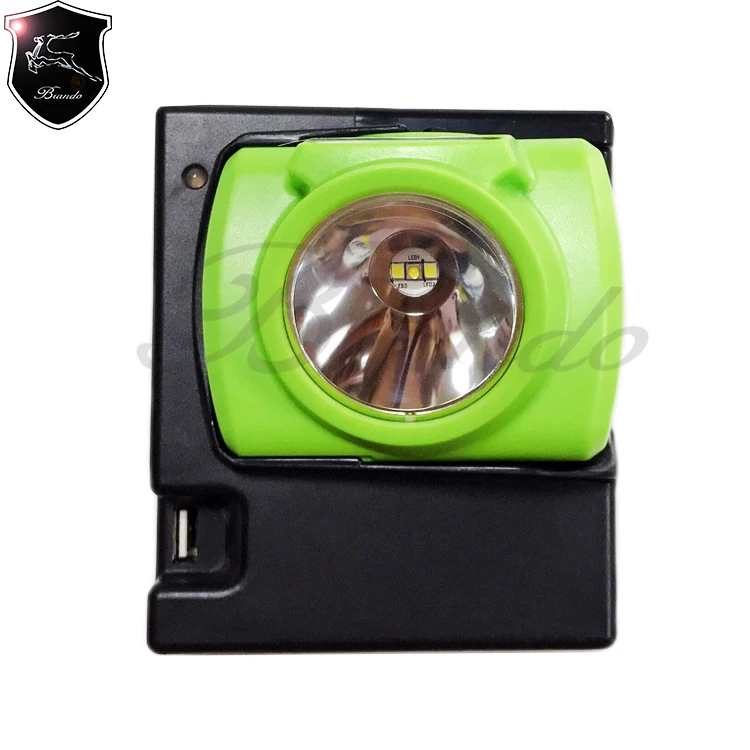

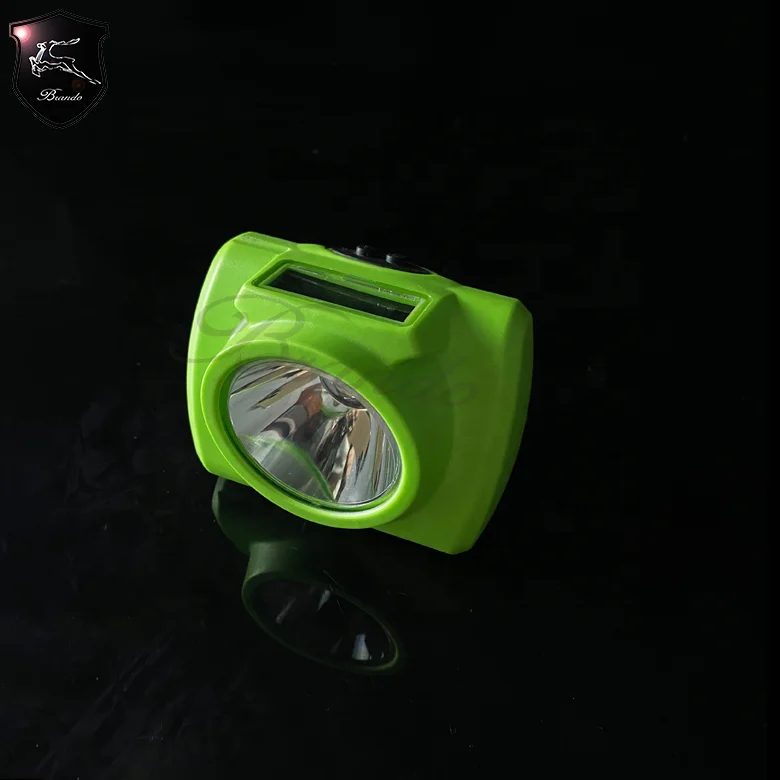

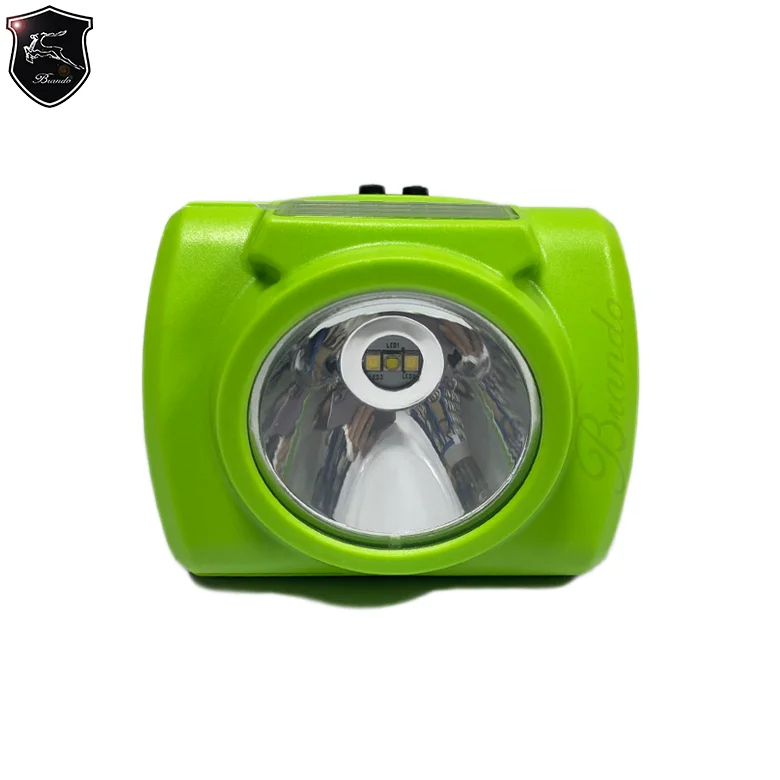

 BRANDO KL6-C led rechargeable cap lamp with stong water proof and explosion proof

The KL6-C Cordless Cap Lamp features a compact, low-fuss click-and-go design,

and offers over 14 hours of constant use.

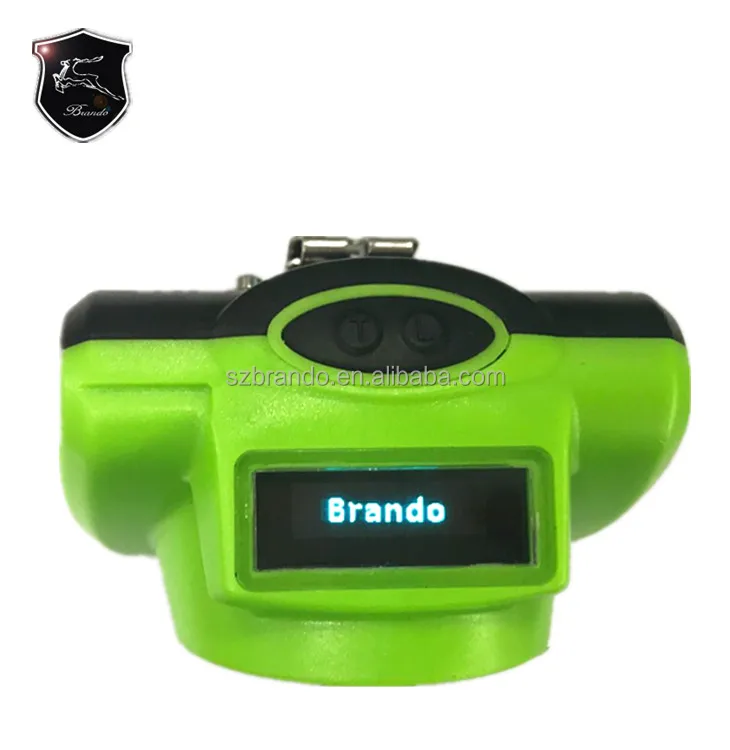

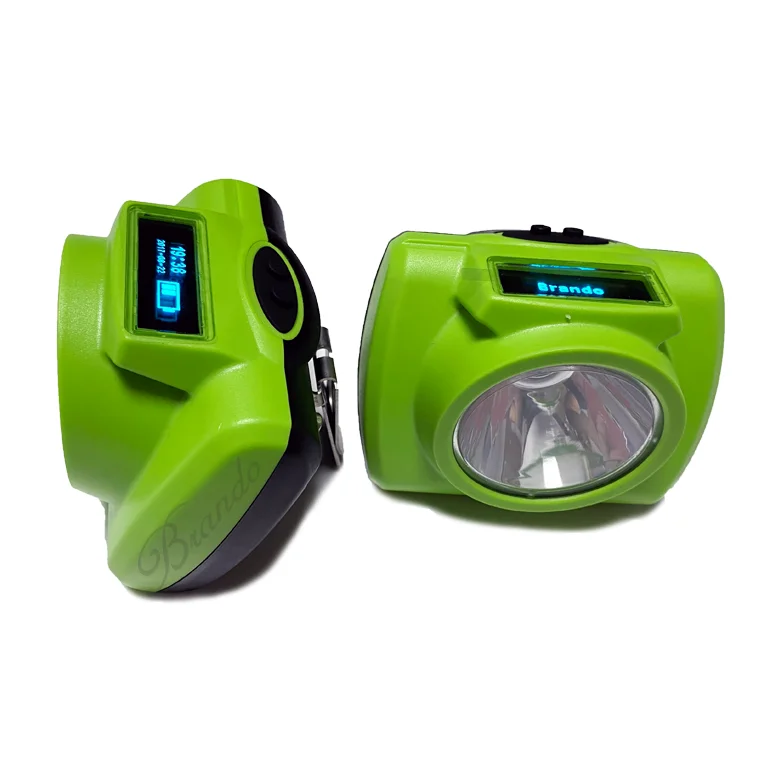

Unique to the cordless model is a back-lit display screen with battery life indication,

providing clear warning when recharge is required.





• OLED: Display the battery status, time, date and client's company information


•  Bring you "USE AGAIN"

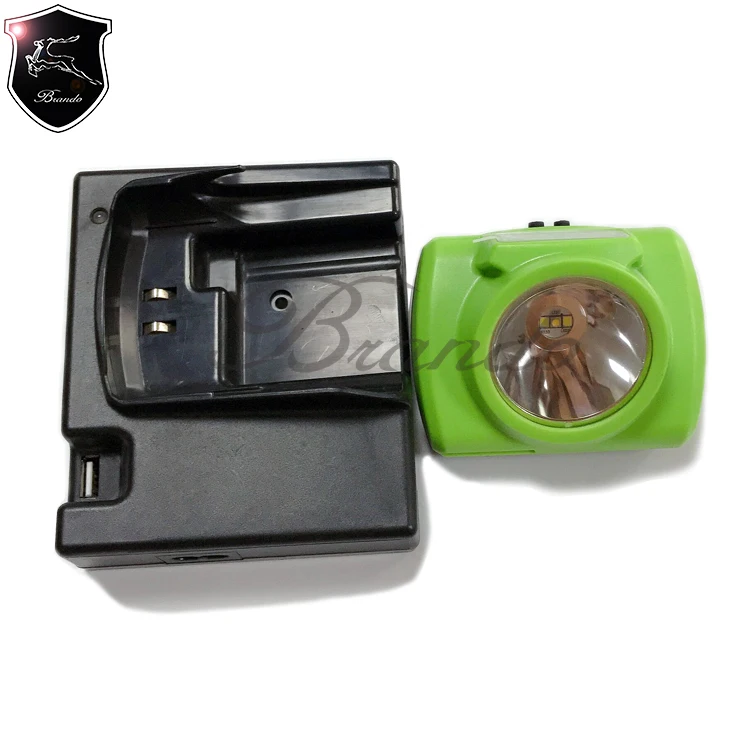

•  Magnetic USB charger or cradles


• Brightness 13000lux


•  Three Level: 1 higher, 2 normal, 3 SOS light











Technical Specs



Name		KL6-C
Item		Unit			Data
Rated capacity		Ah			6.8
Nominal voltage		V			3.7
Lighting time		h			15
Rated voltage		V			4.2
Power of main light		W			2.22
Illminous of main light		Lum			222
Beging lighting		Lx			13000
Charging time		Hrs			4
Weight		g			205
Battery cycle		times			1200
Water-proof grade					IP68





Feature

* Compact design

* Long life li-ion battery

* Easy push-button operation

* Anti-static durable housing

* Water resistant (IP68)

* Electrical short circuit protection











Spare Part No.with Item Name







Item	Part Number	Decription
1	BO-SP-001	FRONT CASE, OLED SCREEN, FPC
2	BO-SP-002	LED,REFLECTOR,PCB
3	BO-SP-003	6.2Ah BATTERY PACK
4	BO-SP-004	BUTTON SWITCH





5	BO-SP-005	SEAL RING
6	BO-SP-006	BACK CASE
7	BO-SP-007	CLIP, SCREW







 Correct Use:

The BRANDO cordless cap lamp is a mobile miner’s safety lamp.

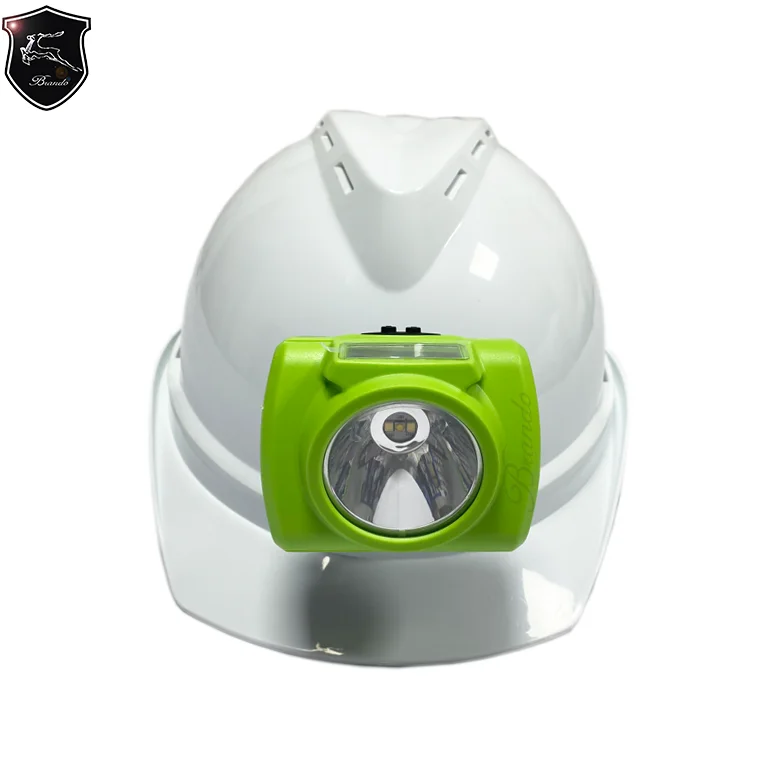

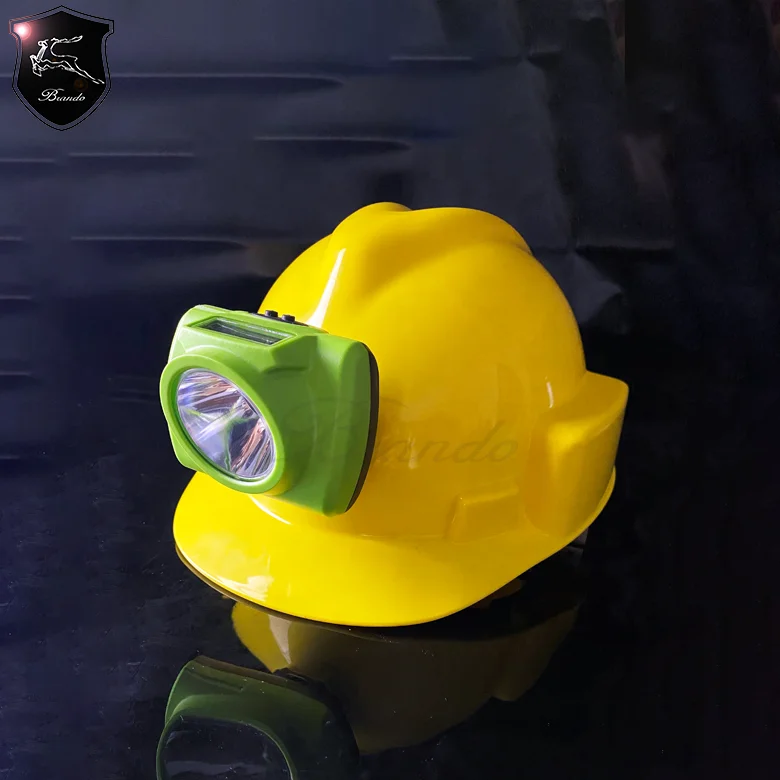

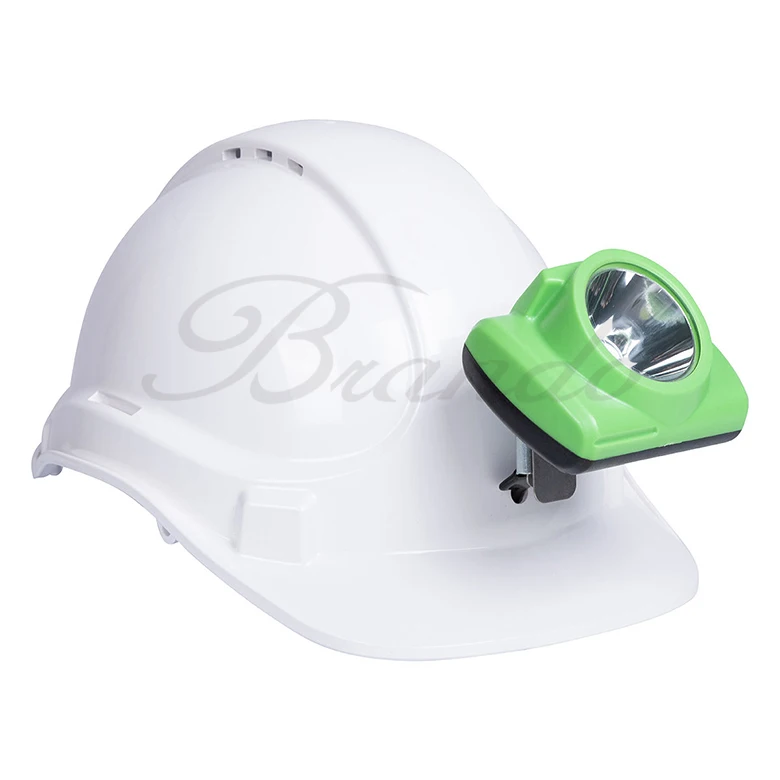

The device is attached to a safety helmet, designed to accommodate front mounted attachments, and its power source, battery and housing, is integreted into the cap lamp housing.

The device is primarily designed for underground mining activities and emergency services.



CAUTION:

This product supports life and health in an underground environment.
Inappropriate use, maintenance or tampering may affect the function of the device and
therefore compromise the product’s ability to support life and protect against harm



ATTENTION:

When using the BRANDO Cordless Cap Lamp the following safety instructions must be observed:
•  Device shall be operated by qualified personnel.
•  Before each use, check the functionality of the device.
•  Be aware of the procedures for handling electrostatically sensitive electronics, which include BRANDO cap lamps.
•  This device contains electrostatically sensitive components. Do not open or repair the device without using appropriate electrostatic protection.
•  Be aware of the warranty regulations.
•  Do not charge in hazardous areas.
•  Charge only with approved charging devices.









Waterproof, Fireproof and Drop Resistance Cap Lamp











Charger input power:

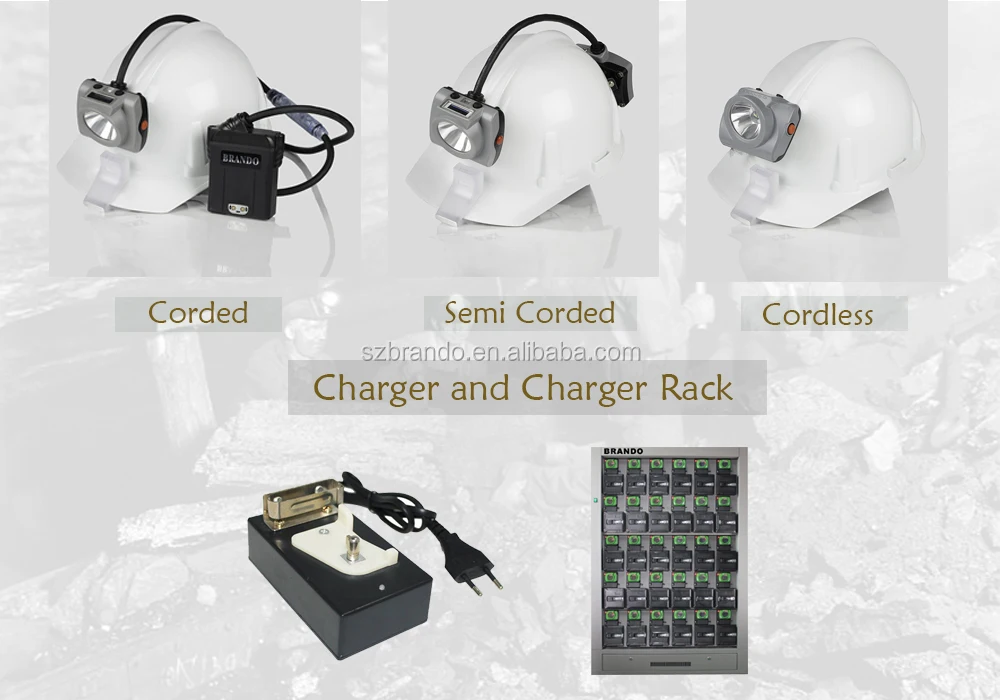

USB Charger: 5 VDC @ 2 Amp Single Charger (optional): 12VDC – 24VDC @ 2 Amp Charger Rack Available

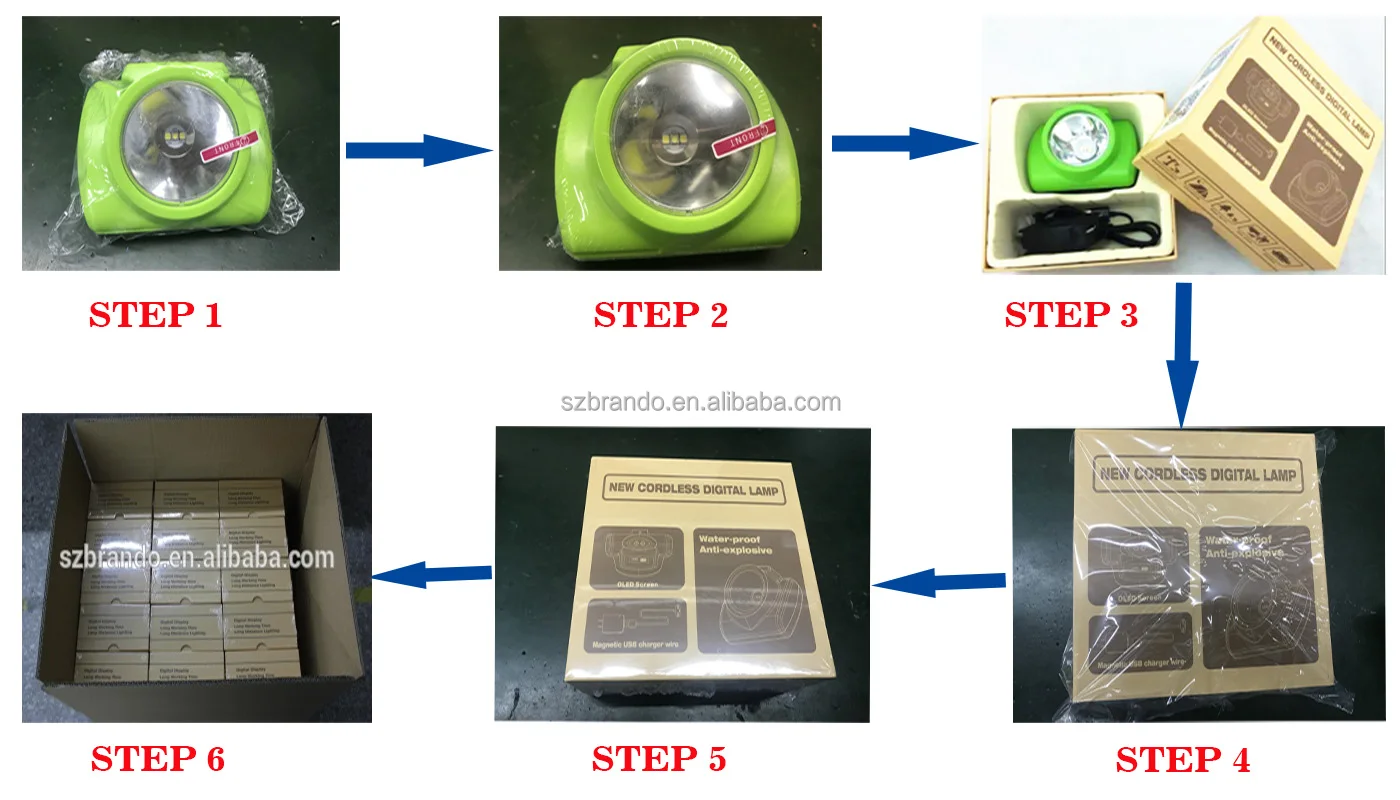

Packaging:



One set each gift box with 1pc head lamp, 1pc USB charger / Single Charger and Manual







 Application of Brando Miner Lamp



Suitable for explosive gas environment zone 1, zone 2 locations;

Suitable for combustible dust environment 20 zone, 21 zone and 22 zone places;

Suitable for A, II B, II C explosive gas environment;

Suitable for: indoor, outdoor 1.8-3.5 meters in height;



Widely used in petrochemical, chemical, nuclear power, military automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project , Mountian-climbing,hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine , Military, Police, Fire Fighting, Dockyard and other hazardous locations ect..
