High Production 2000BPH PET Bottle Blowing Machine Price
- Category: >>>
- Supplier: Taizhou Huangyan Yuanda Machinery Manufacture Co. Ltd.
Share on (1600878956120):
Product Overview
Description
20 Years Experience(Since 1998)
Can be customized and processed according to customer requirements
Product Description
2 Cavity -1.5L Bottle Blow Molding Machine
- Overall appearance -
| General Information | YD-2000 |
| Clamping Force | 50T |
| Clamping Stroke | 125MM |
| Max. Stretching Stroke | 400MM |
| Bottom Moving Stroke | 0-50MM |
| Number of Cavities | 2 cavity |
| Theoretical Output | 2000-2500 BPH(500ml) |
| Max. Mould Thickness | 300MM |
| Electrical System | |
| Voltage Standard | 380v/3PH/50Hz or special order |
| Number of Heating Zone | 4Sections |
| Total Power (Full Loaded) | 35KW |
| Container | |
| Max. Container Volume | 1.5L |
| Neck Diameter Range | 16---38mm |
| Max. Container Diameter | 106mm |
| Max. Container Height | 360mm |
| Air system | |
| Low Air compressor | 10Bar |
| High Air compressor | 30-40Bar |
| Dimension & Weight | |
| Blow molding machine | 250*200*200m |
| Preform Autoloader | 110*120*260cm |
| Net Weight | 2.8T |
Component List
Component List
NO. | NAME | BRAND |
1 | MAIN CHAIN SERVO MOTOR | XINJE |
2 | AIR CYLINDER | SMC |
3 | SOLENOID VALVE | CKD |
4 | PLC & TOUCH SCREEN | MITSUBISHI |
5 | FREQUENCY CONVERTER | CHINA DOVE |
6 | RELAY | SCHNEIDER |
7 | MEGNETIC INDUCTION SWITCH | FESTO |
8 | ELECTRIC | SCHNEIDER |
9 | LINEAR GUIDE | CHINA TAIWAN HIWIN |
Our Services
Company Information

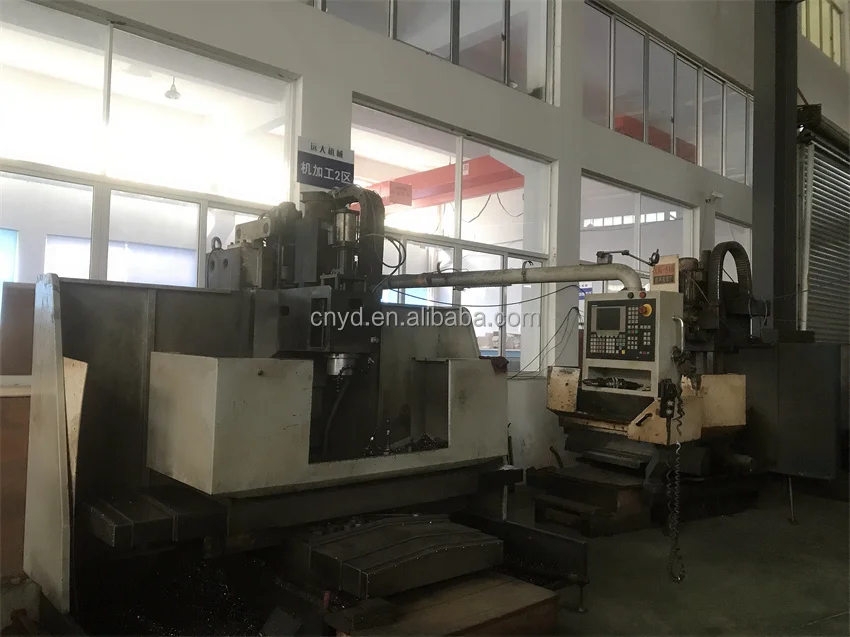

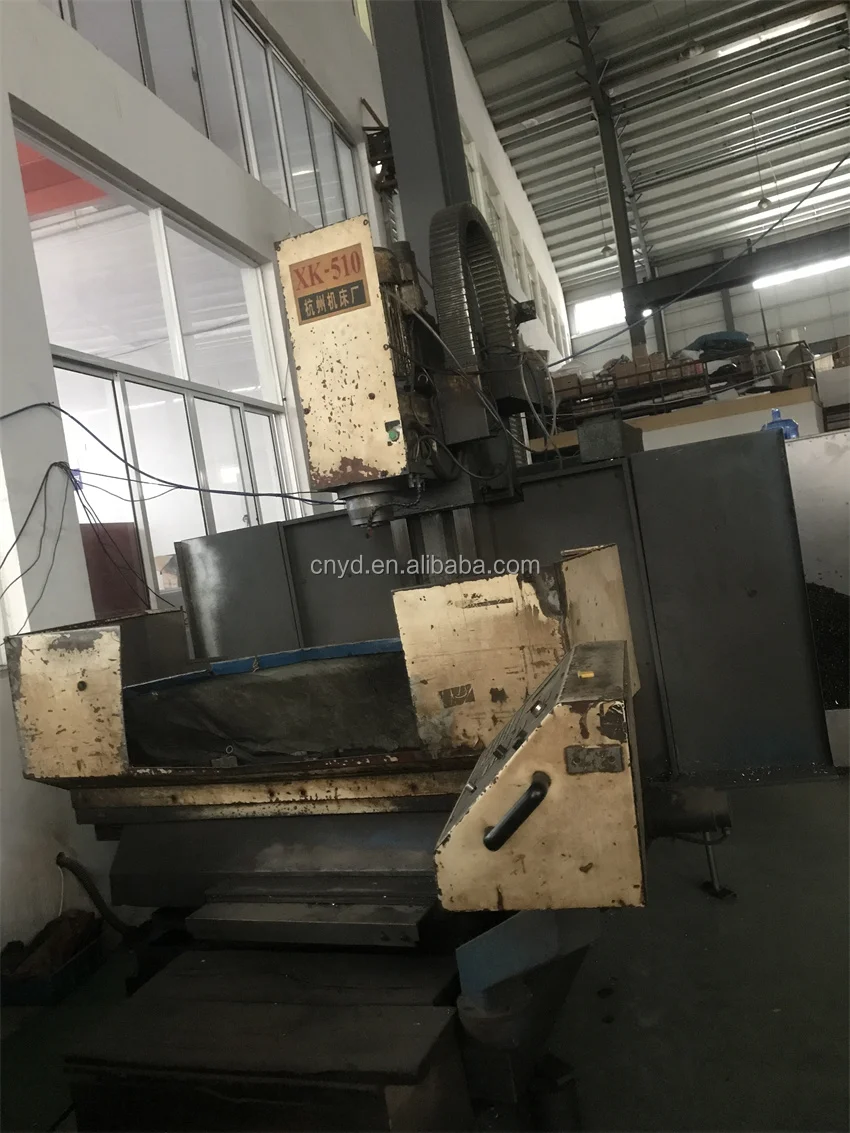

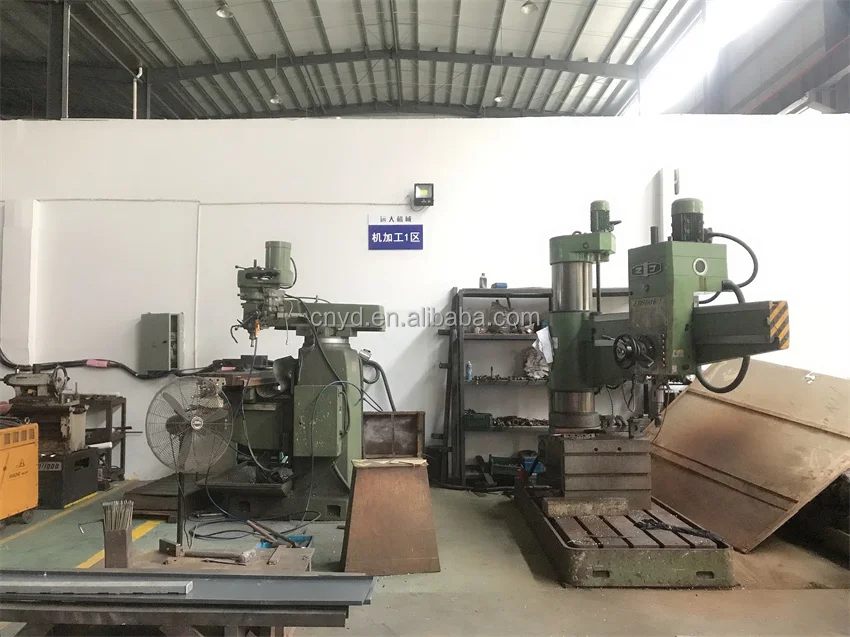

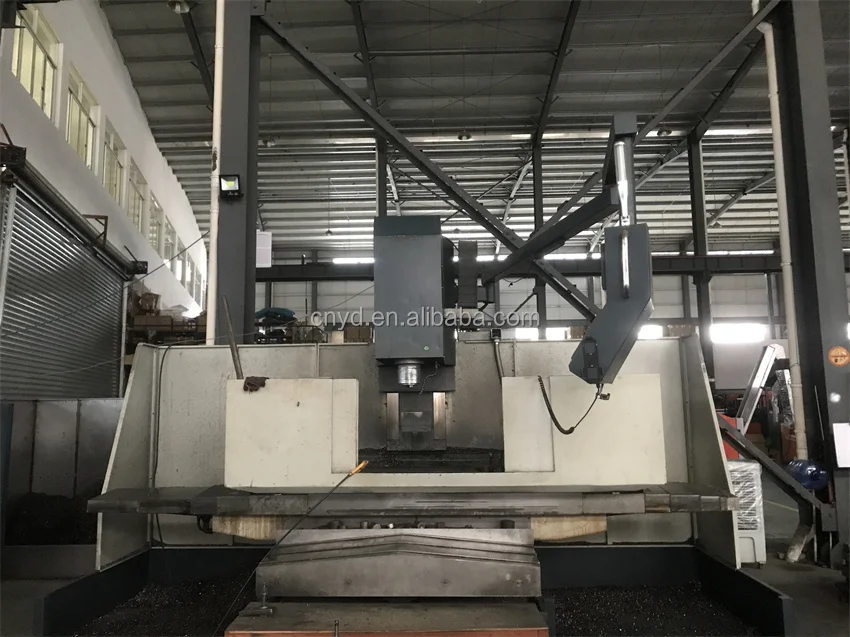

Processing Machine
Packaging & Shipping
FAQ
Q: Are you a factory or trading company?
A: We are factory.
Q: How long the warranty period?
A: All of products have one year warranty.
Q: What is your delivery time and payment term?
A: About 30 days after payment ,the payment term is 30% as deposit and 70% should pay before shipment.
Q: How about the quality of machine?
A: Yuanda have been focusing on quality issues,quality control from beginning to the end ,and we will test machine strictly before packing and delivery.
Q: Can we visit your factory?
A: Yes, you are welcome to visit our factory.
Q: Where is your factory located,how do we get there?
A: We are in NO.32 huachang road shidaren industry zone,Huangyan district,Taizhou city, Zhejiang province,China.
You can by air to Luqiao airport and then we will go to pick you.
