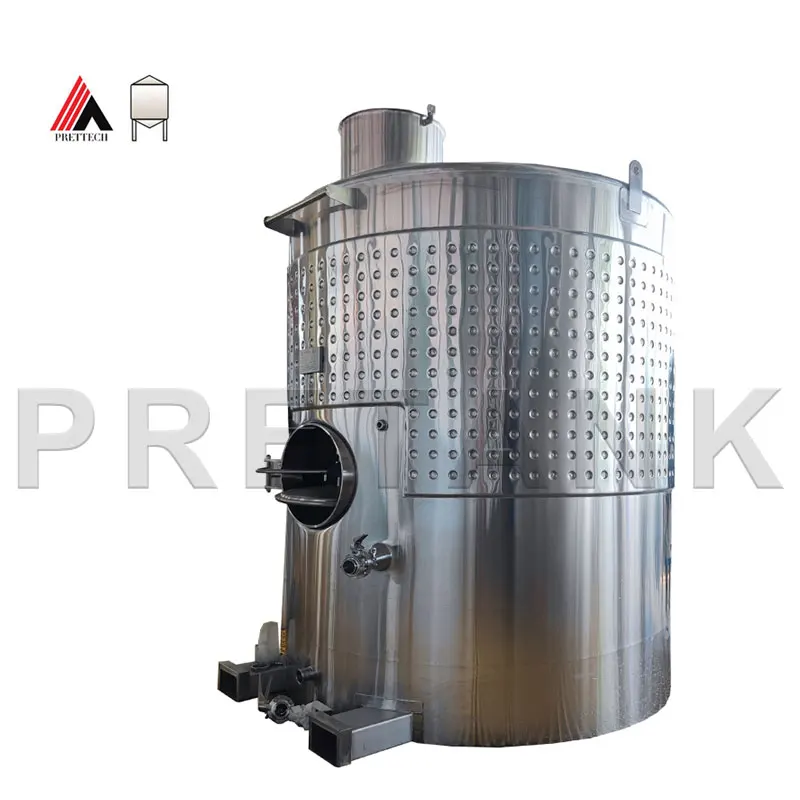

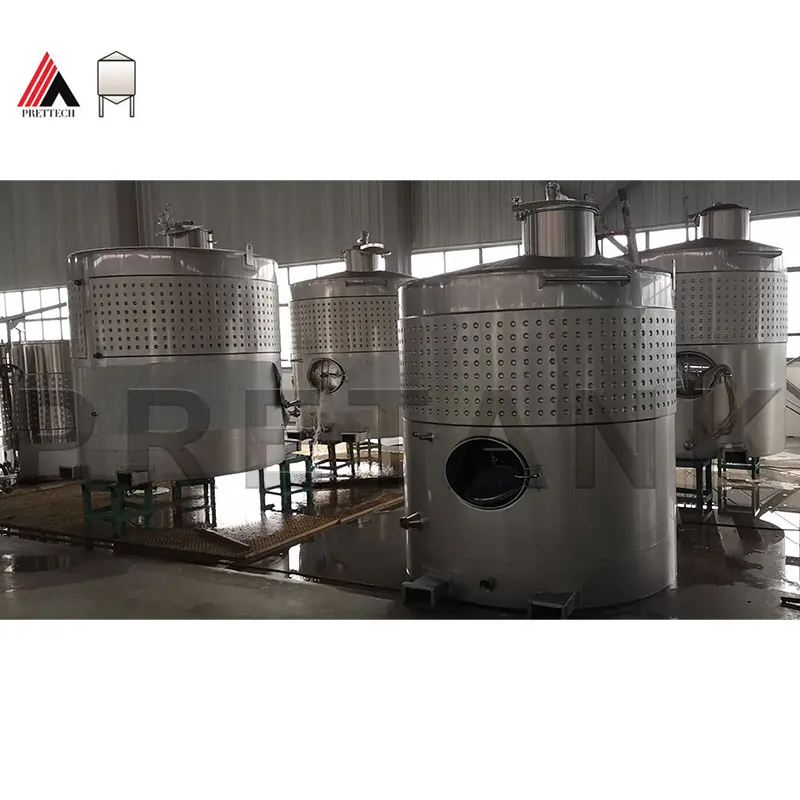

Portable Fermentation Tank suppliers open top forklit stainless steel wine fermenter tank
- Category: >>>
- Supplier: Jiangsu Pretank Process Co. Ltd
Share on (1600878973767):
Product Overview
Description
Product Introduction
Product Display

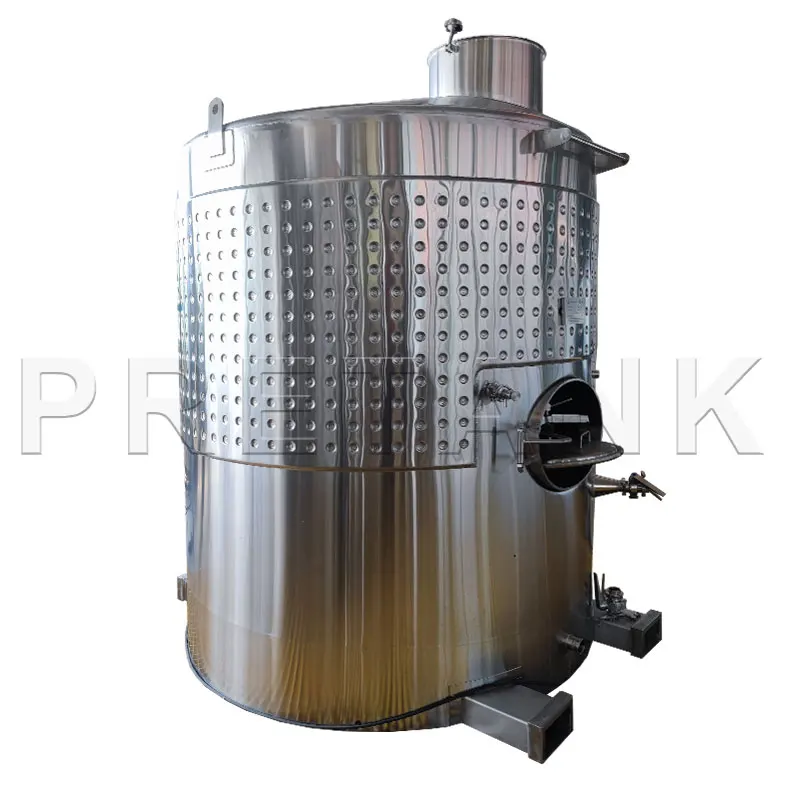

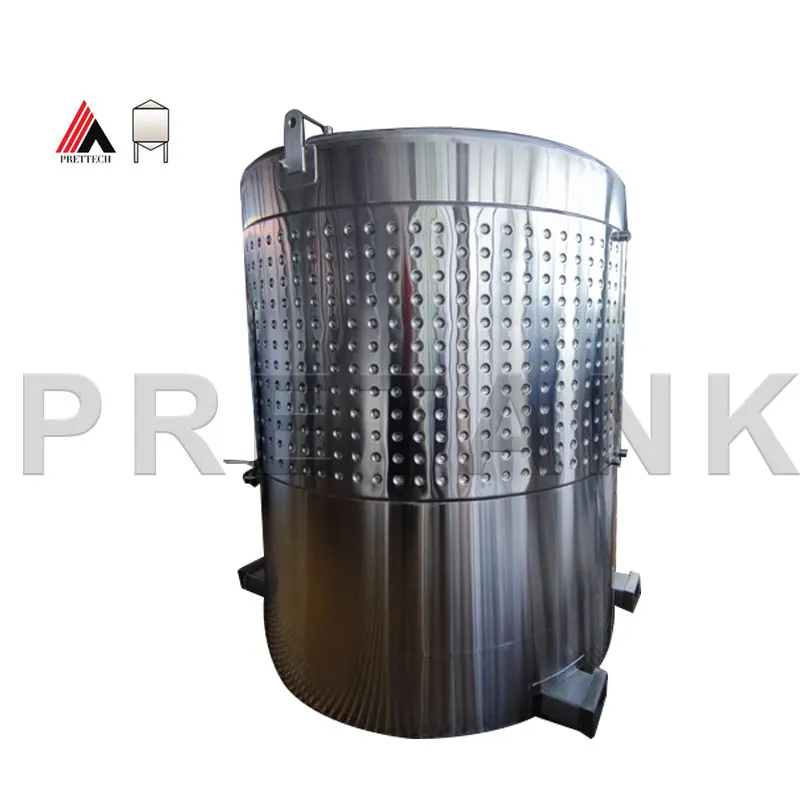

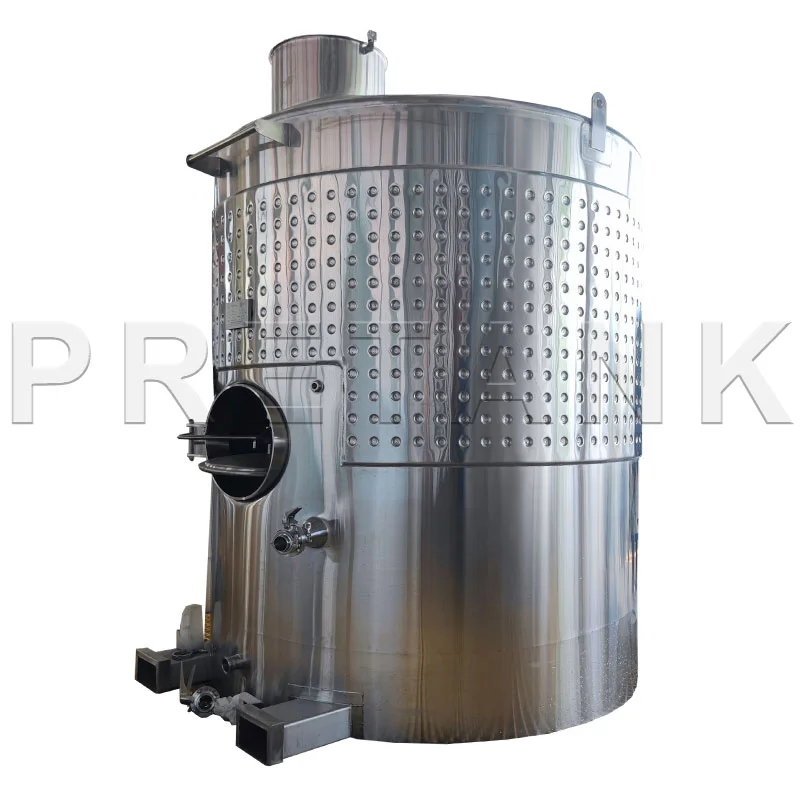

FORKABLE WINE TANK
(TOP CLOSED)
Features
1. Closed top is used for anaerobic fermentation or storage.
2. Forklift make the tank easy to move and transport.
3. Tanks are supported by forklift channel,reduce the total height, particularly work well for low-ceiling cellars.

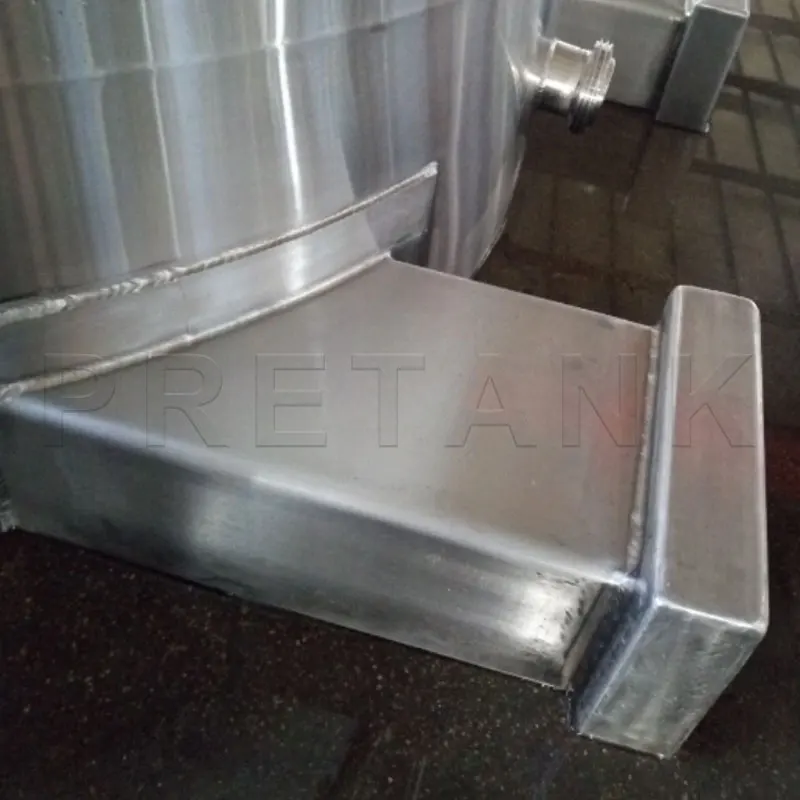

4. Forklift ports are reinforced by strong channel, no cracking or variation.
Application
Configurations
• Material: SS304 grade Stainless steel(SS316L optional)
• Exterior brushed finish; interior 2B finish
• Internal welds to be ground,pickled&passivated
• Cylindrical shell; Offset conical top; sloped flat bottom
• Heavy-duty forklift pocketx2, operated both from frontwards&backwards
• Dimple jacket optional
• Exterior brushed finish; interior 2B finish
• Internal welds to be ground,pickled&passivated
• Cylindrical shell; Offset conical top; sloped flat bottom
• Heavy-duty forklift pocketx2, operated both from frontwards&backwards
• Dimple jacket optional

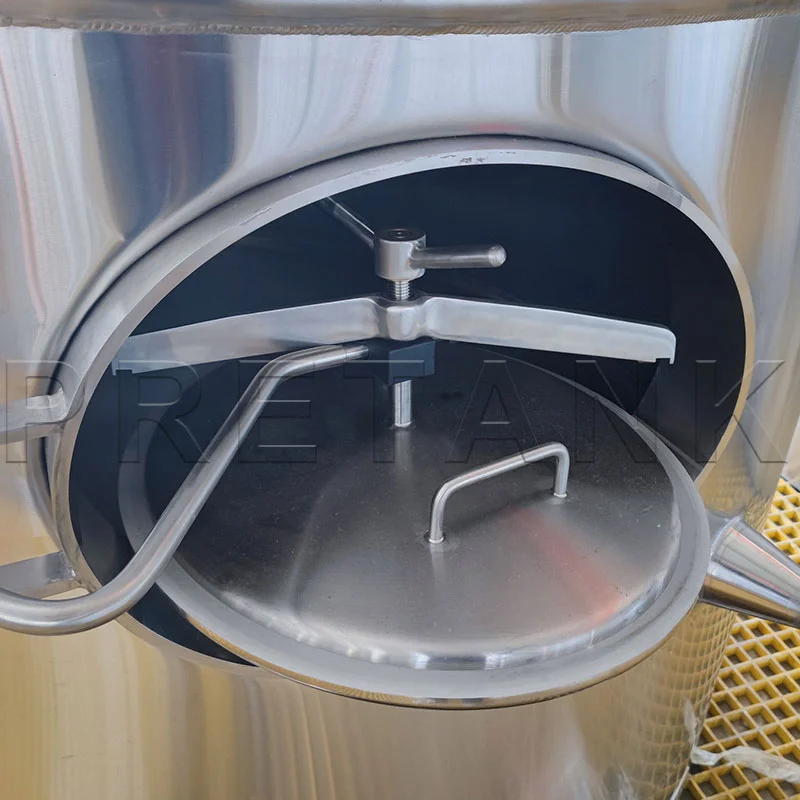

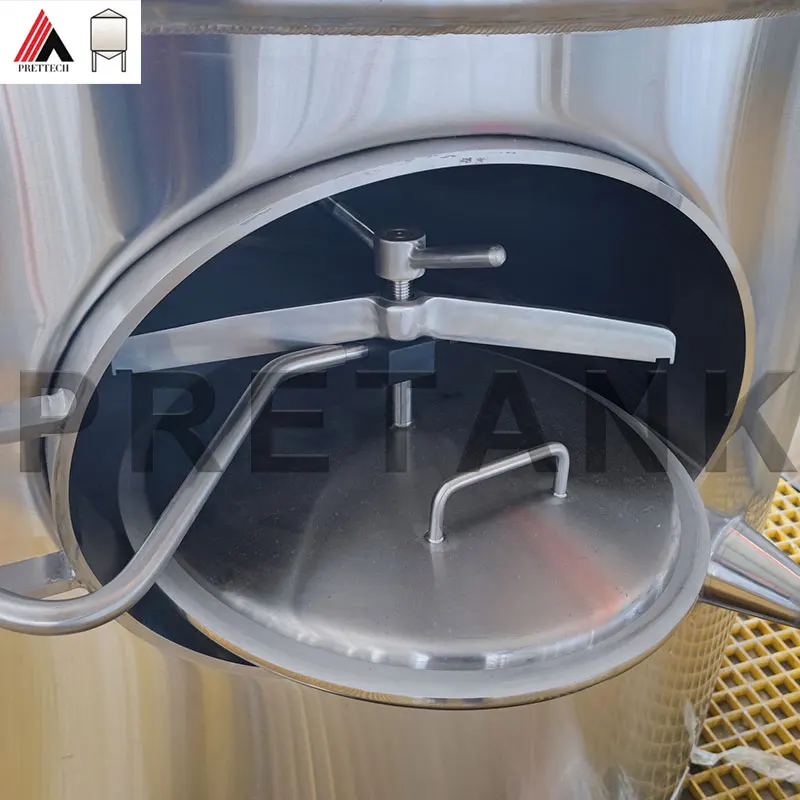

• Round mandoor and air vent on the top, oval inwards, outwards opening mandoor at side
• Racking outlet with ball valve and clamp

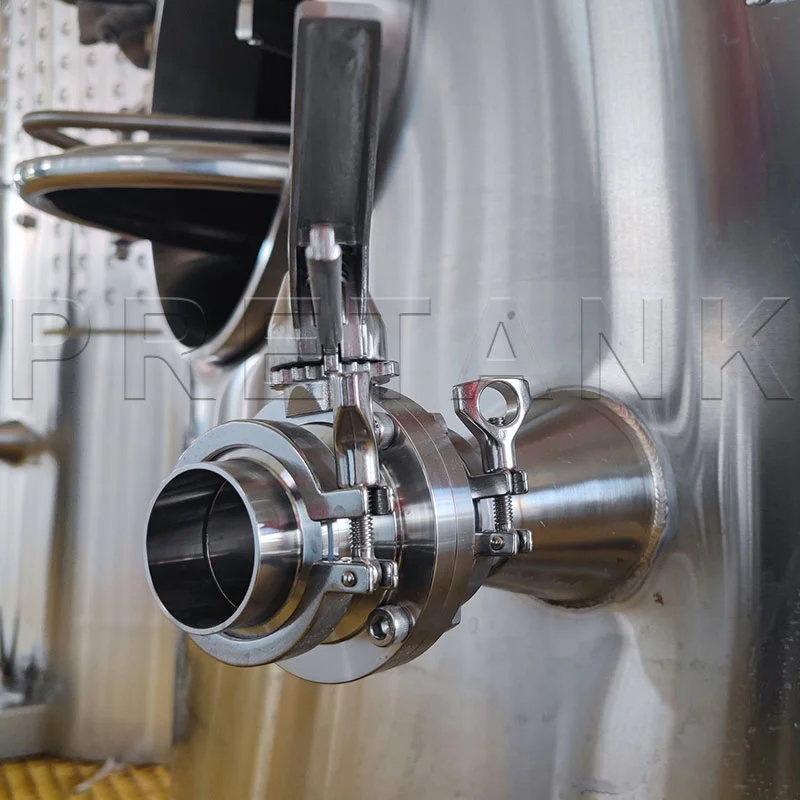

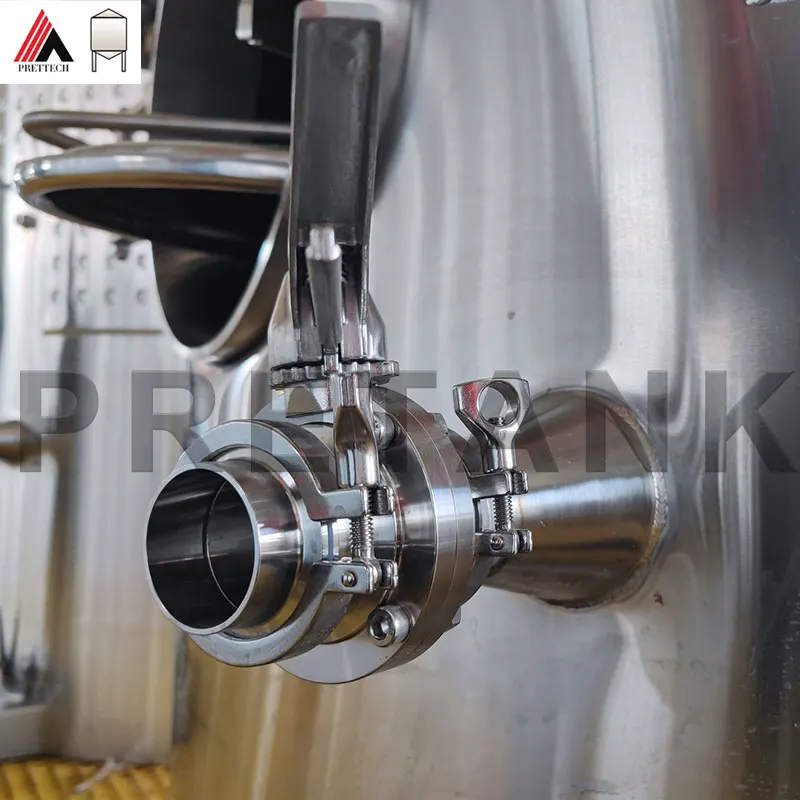

• Sump with drain outlet 2" with butterfly valve and clamp
• Sampler port 1"
• Lifting lugs x 2
• Ladder Rack x 1
• Racking outlet with ball valve and clamp
• Sump with drain outlet 2" with butterfly valve and clamp
• Sampler port 1"
• Lifting lugs x 2
• Ladder Rack x 1
Model | Volume(L) | Inner dia. (mm) | Total height H(mm) | Shell height H1 (mm) | Cooling area(H) |
FK-CT 1.0 | 1000 | 950 | 2250 | 1720 | 700 |
FK-CT 2.0 | 2000 | 1310 | 2280 | 1720 | 1000 |
FK-CT 2.5 | 2500 | 1500 | 2280 | 1720 | 1000 |
FK-CT 3.0 | 3000 | 1600 | 2300 | 1720 | 1000 |
FK-CT 3.5 | 3500 | 1600 | 2580 | 2000 | 1000 |
FK-CT 4.0 | 4000 | 1700 | 2580 | 2000 | 1000 |
FK-CT 4.5 | 4500 | 1800 | 2580 | 2000 | 1000 |
FK-CT5.0 | 5000 | 1920 | 2550 | 2000 | 1000 |
FK-CT 10 | 10000 | 2050 | 3850 | 3220 | 1500 |
FK-CT 15 | 15000 | 2200 | 4850 | 4220 | 2000 |
FK-CT 20 | 20000 | 2200 | 6100 | 5440 | 2000 |
All of tanks have the characteristics as below.
1.Made by sanitary stainless steel AlSI 304 orAISI316L.
2.Exterior brushed finish for beautiful looking andeasy cleaning, interior 2B finish or polished.
3.Cylindricals are butt welded onto the ends andports, easy for washing.
4.Internal welds are grounded and acid passivation.
5.All accessories have high quality, butterflyvalvehave multi-position to adjust liquid flow, sanitaryEPDM sealing gasket is wear proof.
For other dimension and volumes please inquire individually
Why Choose Us
About Us
Jiangsu Pretank Process CoLtd(called PRT below) has been in designing and fabricatingsanitary stainless steel tanks for 20s years, we have the most advantage technology R& D capability in the industry, adopt PDM, 3D and FEM to design vessels according to standard ofGB,API,UL,AS and NZS, and provide relative certificates, Laser and auto. Machines are used forimproving quality and shorten construction period,all welders are certified, every PRT'stanks aretested and inspected strictly before delivery,all of such works make sure the tanks are made infirst quality and delivered to the clients in perfect conditions.
The over engineered and heavy-duty made stainless steel vessels are used to solve materialtransferring, boiling, mashing, fermenting, processing, mixing and distilling in following industries
1.Food& Beverage,inclding all kinds of juice(wine)liquir, spirits and other non-alcohol drinks.
2.Chemicals& Daily chemicals(shampoo,soap,detergent)
3.Agricultural product deep processing, such as corn starch, isolated soy protein, flavorings
4.Pharmaceuticals and biological products
5.Environment protection, such as water treatmen.
6.Flavorings, such as vinegar, soy saucev
7.Low-pressure vessel, thermal oil, paper making equipment.
8.Oil& Fats
2.Chemicals& Daily chemicals(shampoo,soap,detergent)
3.Agricultural product deep processing, such as corn starch, isolated soy protein, flavorings
4.Pharmaceuticals and biological products
5.Environment protection, such as water treatmen.
6.Flavorings, such as vinegar, soy saucev
7.Low-pressure vessel, thermal oil, paper making equipment.
8.Oil& Fats
PRT have served for 100, 000 customers home and abroad, the sanitary stainless steel tanks areexported to over 100 countries of Asia, Europe, America, Africa, our excellent product quality andservices get most favorable praise and notices, the whole of Prettech group wish to offer furtherconstructive solutions for fluid processing.
