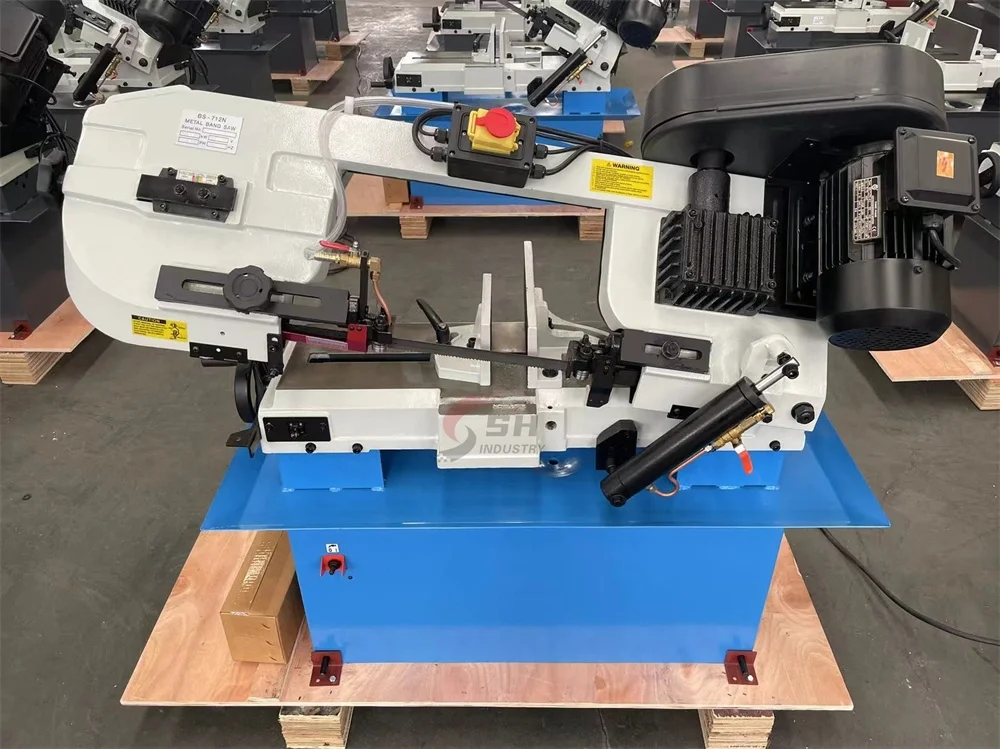

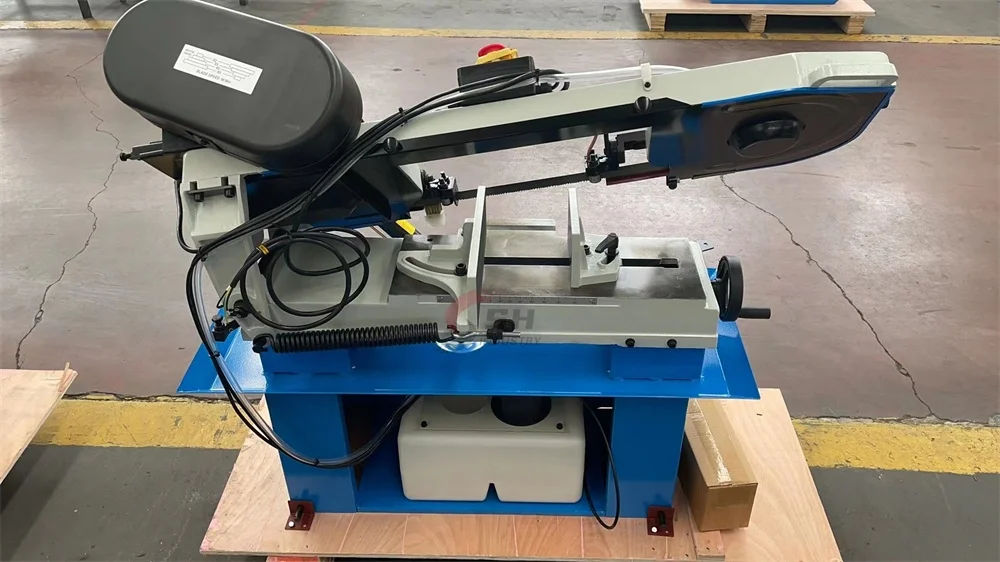

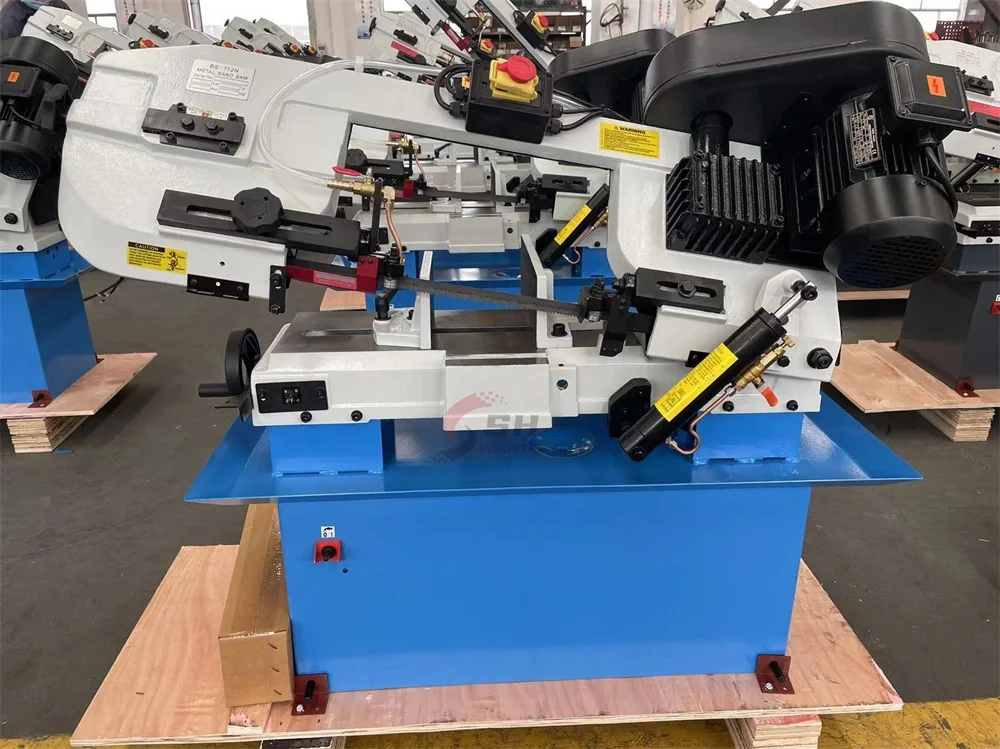

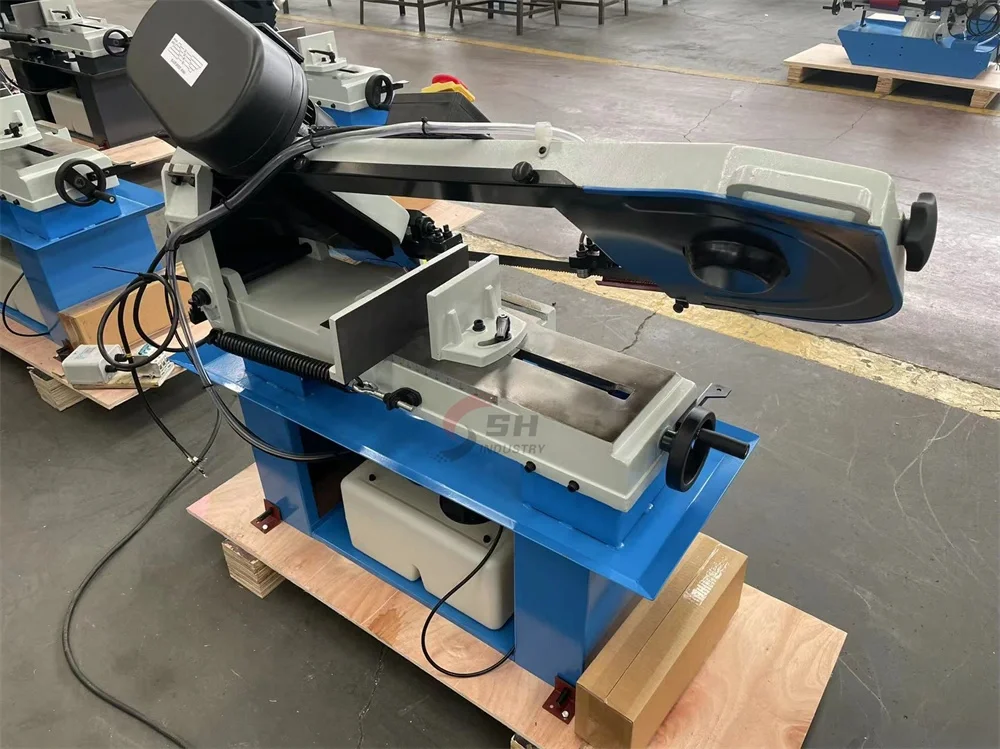

BS 712N/ BS 712 metal band sawing machine portable band saws for sale
- Category: >>>
- Supplier: Zaozhuang Shenghuan Cnc Machine Tool Co. Ltd.
Share on (1600879008325):
Product Overview
Description
Characteristics:
1. The maximum processing capacity is 7",
2. The belt drive has fourth gear cutting speed (indicated by the letter N);
3. The belt drive has third th gear cutting speed (indicated by the letter G);
4. The Fast clamp, clamp the rotary of (0 degrees ~45 degrees) cutting (BS-712N);
5. With a locking handle, a saw bow rotary (0 degrees ~45 degrees ) cutting (BS-712GR);
6. Can the vertical horizontal dual-use ;
7. The fall speed of the saw bow is controlled by the hydraulic cylinder;
8. The machinery with base a roller, can be free to move ;
9. With stop device (After the machine sawing and cutting will automatically stop );
10. With a open the door power-off protection device (rear protection cover open when the machine will automatically power off),
11. The cooling system can prolong the service life of the saw blade, can improve the accuracy of the work piece;
12. Block device (fixed sawing length);
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
1. The maximum processing capacity is 7",
2. The belt drive has fourth gear cutting speed (indicated by the letter N);
3. The belt drive has third th gear cutting speed (indicated by the letter G);
4. The Fast clamp, clamp the rotary of (0 degrees ~45 degrees) cutting (BS-712N);
5. With a locking handle, a saw bow rotary (0 degrees ~45 degrees ) cutting (BS-712GR);
6. Can the vertical horizontal dual-use ;
7. The fall speed of the saw bow is controlled by the hydraulic cylinder;
8. The machinery with base a roller, can be free to move ;
9. With stop device (After the machine sawing and cutting will automatically stop );
10. With a open the door power-off protection device (rear protection cover open when the machine will automatically power off),
11. The cooling system can prolong the service life of the saw blade, can improve the accuracy of the work piece;
12. Block device (fixed sawing length);
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Specification
Main technical parameters | BS-712N | ||
Machining capacity | @90°Round steel | 178mm(7″) | |
@90°Square steel | 178×305mm(7″×12″) | ||
@45°Round steel | 127mm(5″) | ||
@45°Square steel | 120×125mm(4.75″×4.88″) | ||
Saw cutting speeds | @ 50HZ | 22,34,49,64MPM | |
@ 60HZ | 27,41,59,78MPM | ||
Saw blade size | 20×0.9×2362mm | ||
Motor power | 750W1HP(3PH),1.1Kw1.5HP(1PH) | ||
Drive | Belt | ||
Package size | 125×45×115cm | ||
NW/GW | 145/178kg | ||
Product Description
Company Profile
Exhibition
Customer visit
Packing Delivery
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
