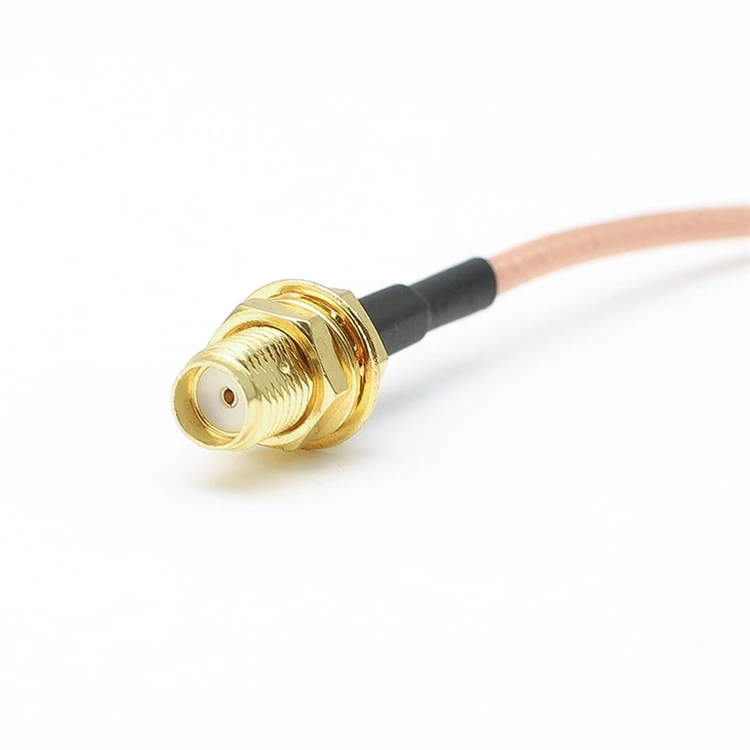

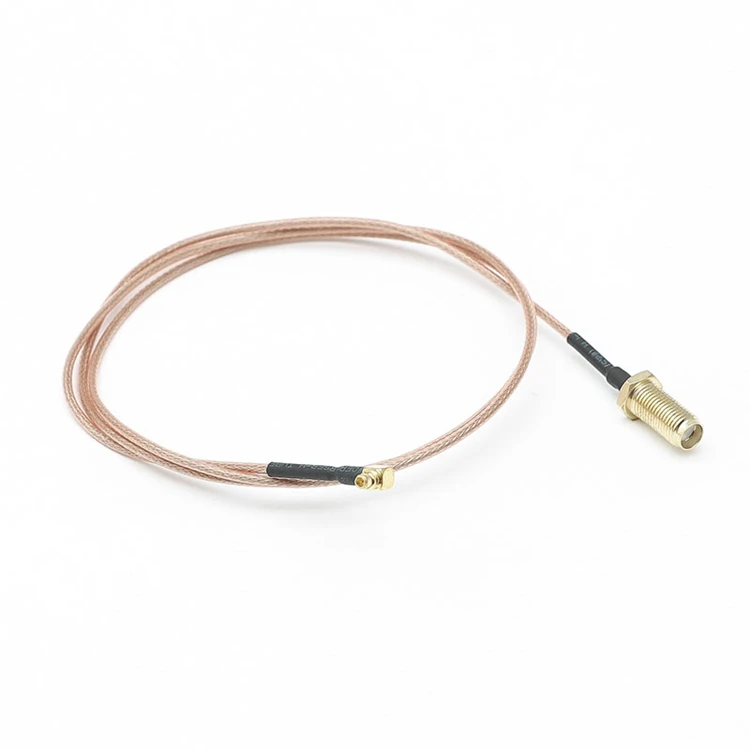

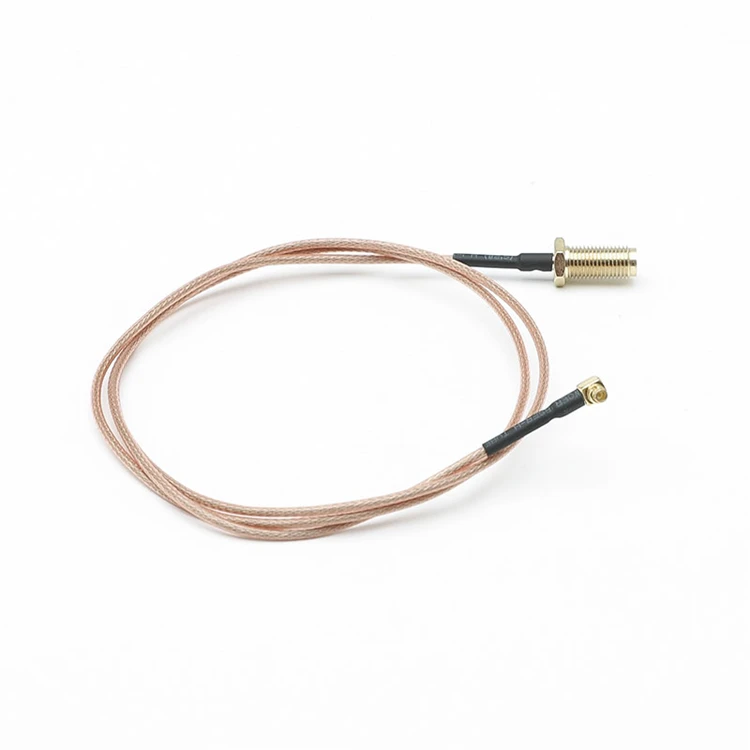

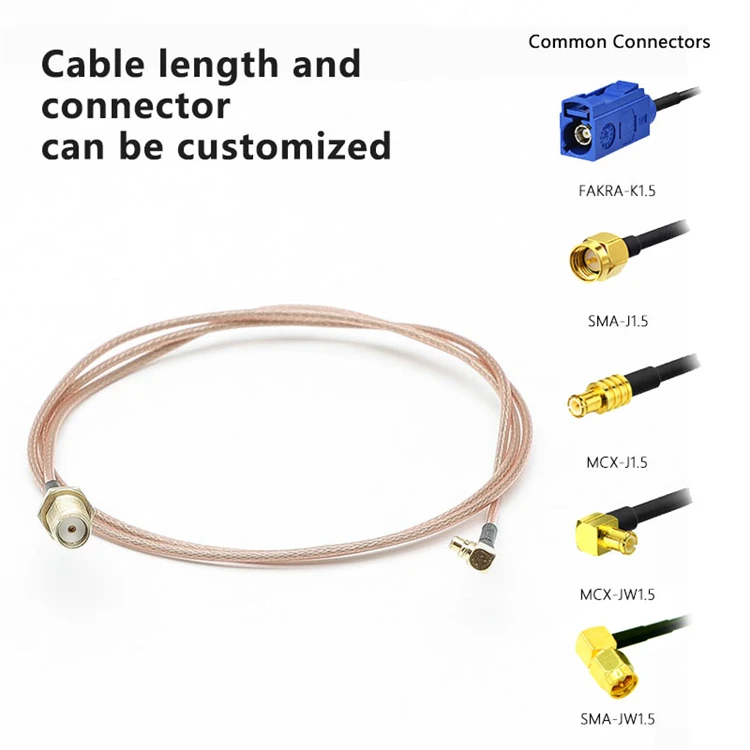

RG178 RG316 SMA Female to MCX Male Right Angle adapter pigtail cable
- Category: >>>
- Supplier: Shenzhen Bojia Communication Equipment Co. Ltd.
Share on (1600879059335):
Product Overview
Description
HOT CATEGORY
Products Description
SMA-C-KY | |||
Product part name | material | coating | illustrate |
1 shell | Brass rod HPb59-1 | customer specified | |
2 pins | Brass rod HPb59-1 | Gold plated D.L2N15/Au2 | Putin has no special requirements |
3 Insulators | Polytetrafluoroethylene PTFE | ||
4 Nuts | Brass rod HPb59-1 | customer specified | |
5 Internal teeth, spring washer | Iron Fe | customer specified | |
6 Dust cap | PVC | red |
Test items | technical indicators |
Characteristic impedance | 50Ω |
temperature range | -40~+85℃ |
Frequency Range | DC-3GHz |
medium pressure | 500V(rms) |
Contact resistance | Inner conductor≤3mΩ, outer conductor≤2.5mΩ |
Insulation resistance | ≥5000 MΩ |
VSWR | ≤1.5 |
tensile strength | >15N |
Mechanical durability | ≥100次 |

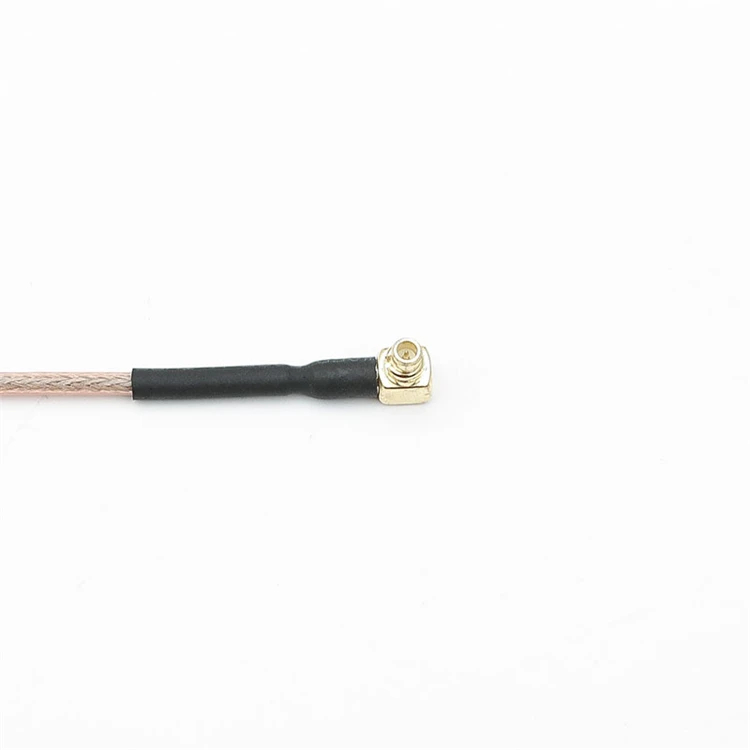

MMCX-C-JW | |||
Product part name | material | coating | illustrate |
1 shell | Brass rod HPb59-1 | customer specified | |
2 pins | Brass rod HPb59-1 | Gold plated D.L2N15/Au2 | Putin has no special requirements |
3 Insulators | Polytetrafluoroethylene PTFE | ||
4 Elastic contact body | Beryllium Bronze | customer specified |
Test items | technical indicators |
Characteristic impedance | 50Ω |
temperature range | -40~+85℃ |
Frequency Range | DC-3GHz |
medium pressure | 500V(rms) |
Contact resistance | Inner conductor≤5mΩ, outer conductor≤2.5mΩ |
Insulation resistance | ≥1000 MΩ |
VSWR | ≤1.5 |
tensile strength | >15N |
Mechanical durability | ≥100 times |
