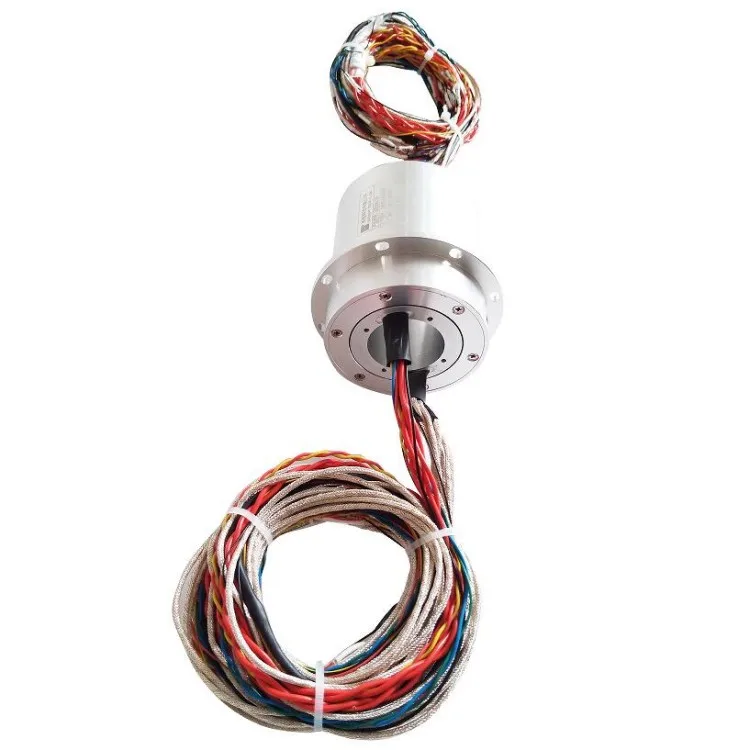

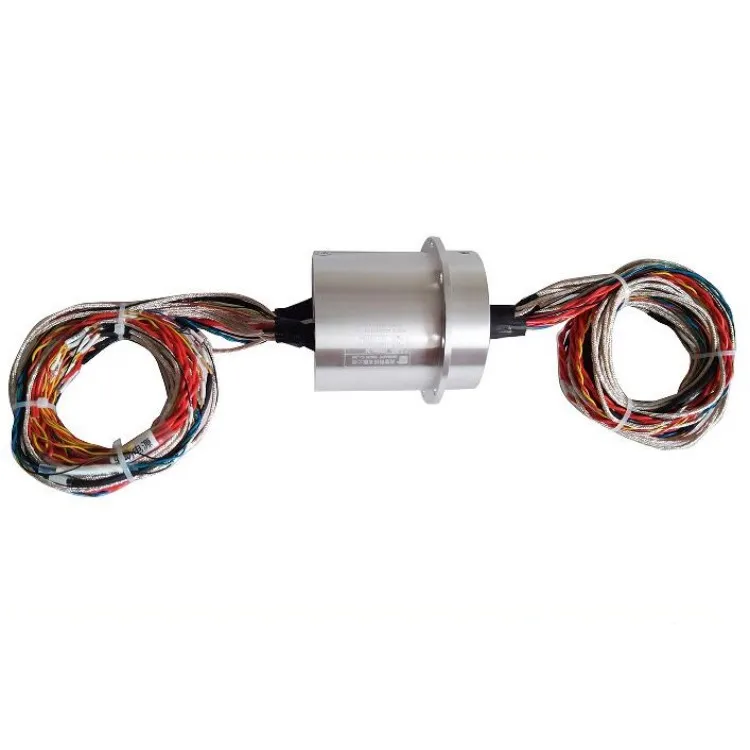

Ingiant slip rings 81mm diameter 34 circuits with flange installation

Product Overview

Description



DHS081-34
The main parameters
Number of circuits	34	Working temperature	“-40℃~+65℃"
Rated current	310A,160A	Working humidity	<70%
Rated voltage	0~240 VAC/VDC	Protection level	IP65
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	<10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

Electrical Slip Ring Parameters
Rings	1-200 (or more)	Current	2A,5A,10A,20A,25A
Rated Voltage	0~600VDC/VAC	Max speed	15000RPM
Housing Material	Aluminum Alloy, engineering plastic, stainless steel, etc	Torque	0.02N.m;+0.01N.m/ 6rings
Working life	>80 million	Contact Material	Precious Material
Electrical Noise	<5mΩ	Contact resistance:	<5mΩ
Dielectric Strength	2500VAC@50Hz	Lead Wire	UL Teflon@Awg22,Awg16
Insulation Resistance	1000 MΩ / 500VDC	Lead Length	300mm (per required)
Working Temperature	-40℃~ 80℃	Protection Grade	IP51 – IP68
Operating Humidity	10% to 95% RH	Material	RoHs

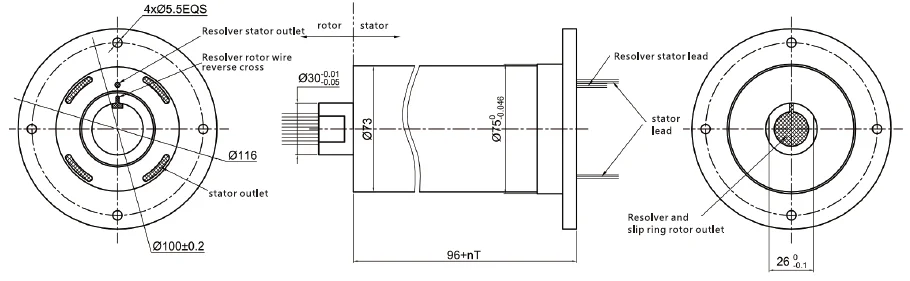

Product drawing:



Advantages of the hollow shaft slip rings

     Hollow shaft slip rings are suitable for both directions of rotation. They are designed in such a way that both the inner or the outer ring can be rotated or blocked. This makes their use very flexible. These modules are so robustly constructed that they can withstand speeds of up to 1200 revolutions per minute. This makes them easy to use for demanding applications, such as wheel hub motors. With protection class IP51, the slip rings are sufficiently tight against penetrating splash water or dust. The maximum operating temperature is 80 °C. This makes them suitable for hot water lines, hydraulic applications or compressed air ducts.

    If the hollow shaft slip rings are to be installed on hot steam lines, an additional sleeve made of heat-insulating material is recommended. Hollow shaft slip rings are maintenance-free and have a precisely defined service life. As they are very inexpensive and easy to replace, their use ensures long-term operational reliability. In summary, hollow shaft slip rings offer the following advantages:



Impact-resistant housing, also made of metal on request



Maintenance-free and durable

Acid- and corrosion-resistant outer material



Reliable transmission of all power and control currents up to 690V



    Slip rings are moving components. As a result, they are exposed to high mechanical loads. Even the smaller plastic housings are sufficiently impact-resistant against normal loads. In the metallic version, the hollow shaft slip rings can also withstand powerful lateral impacts. The slip rings can also be used in critical environments, for example in the vicinity of chemical or cooling lines. The transmission reliability of the currents is always guaranteed even at maximum temperature and highest speed. Our hollow-shaft slip rings are also sufficiently radio-interference suppressed so that they do not emit any interfering signals in the vicinity of transmitting and receiving equipment.
