Product Overview

Description



Product Overview

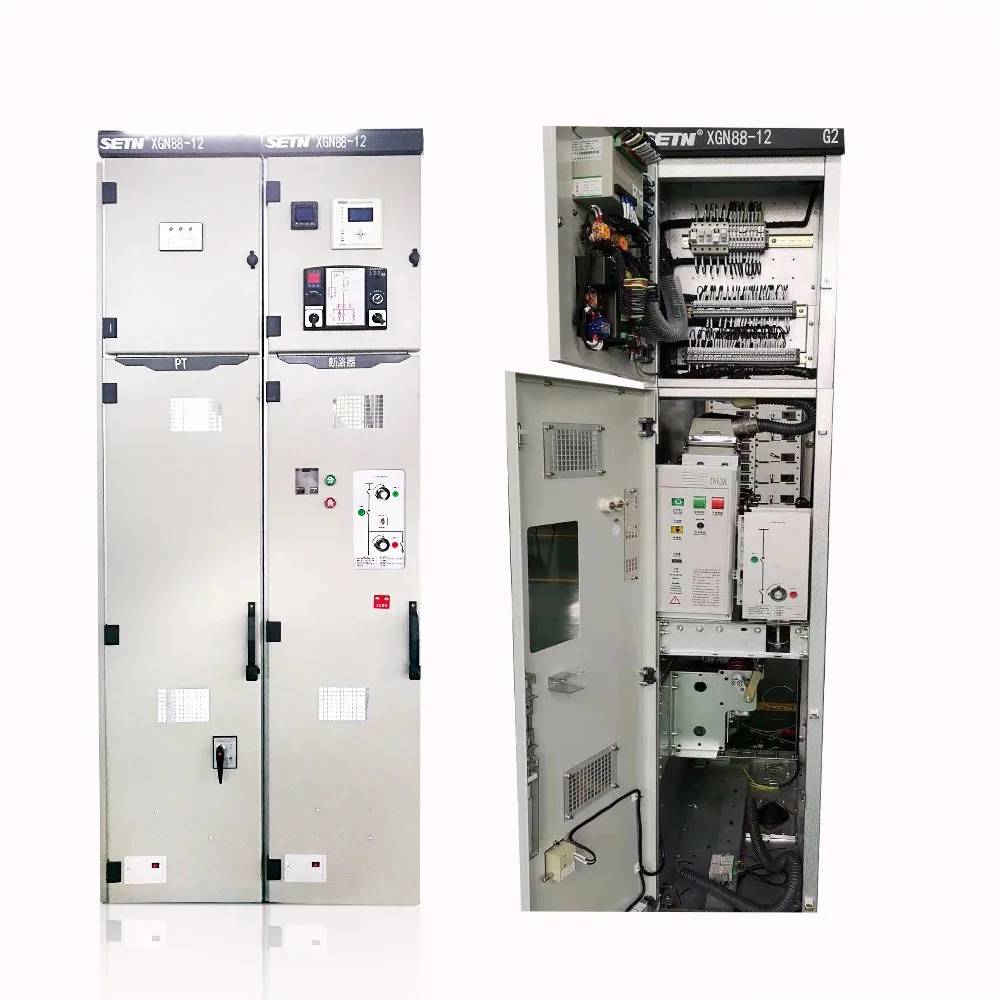

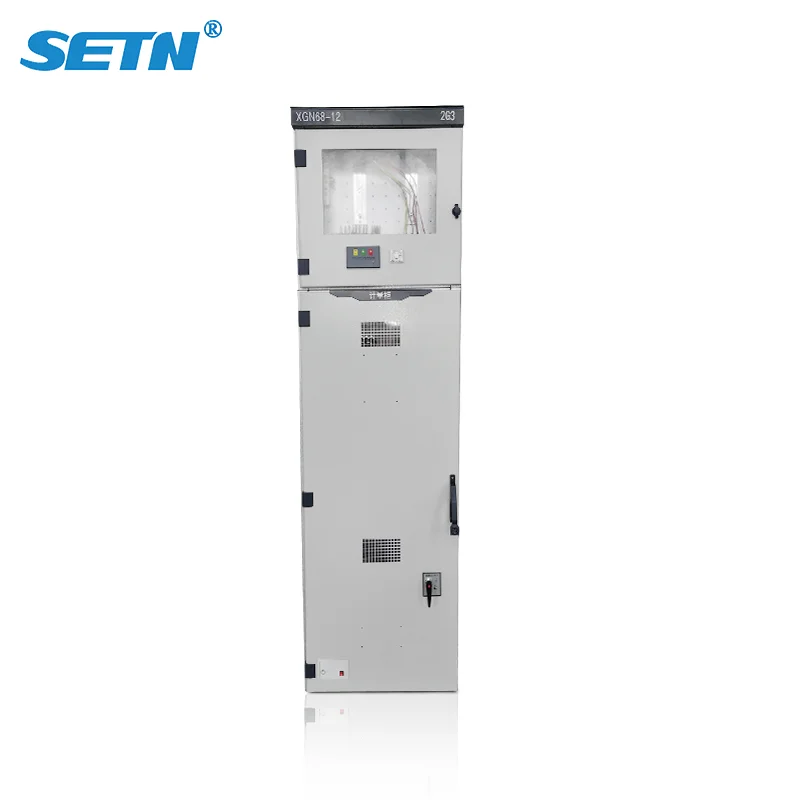

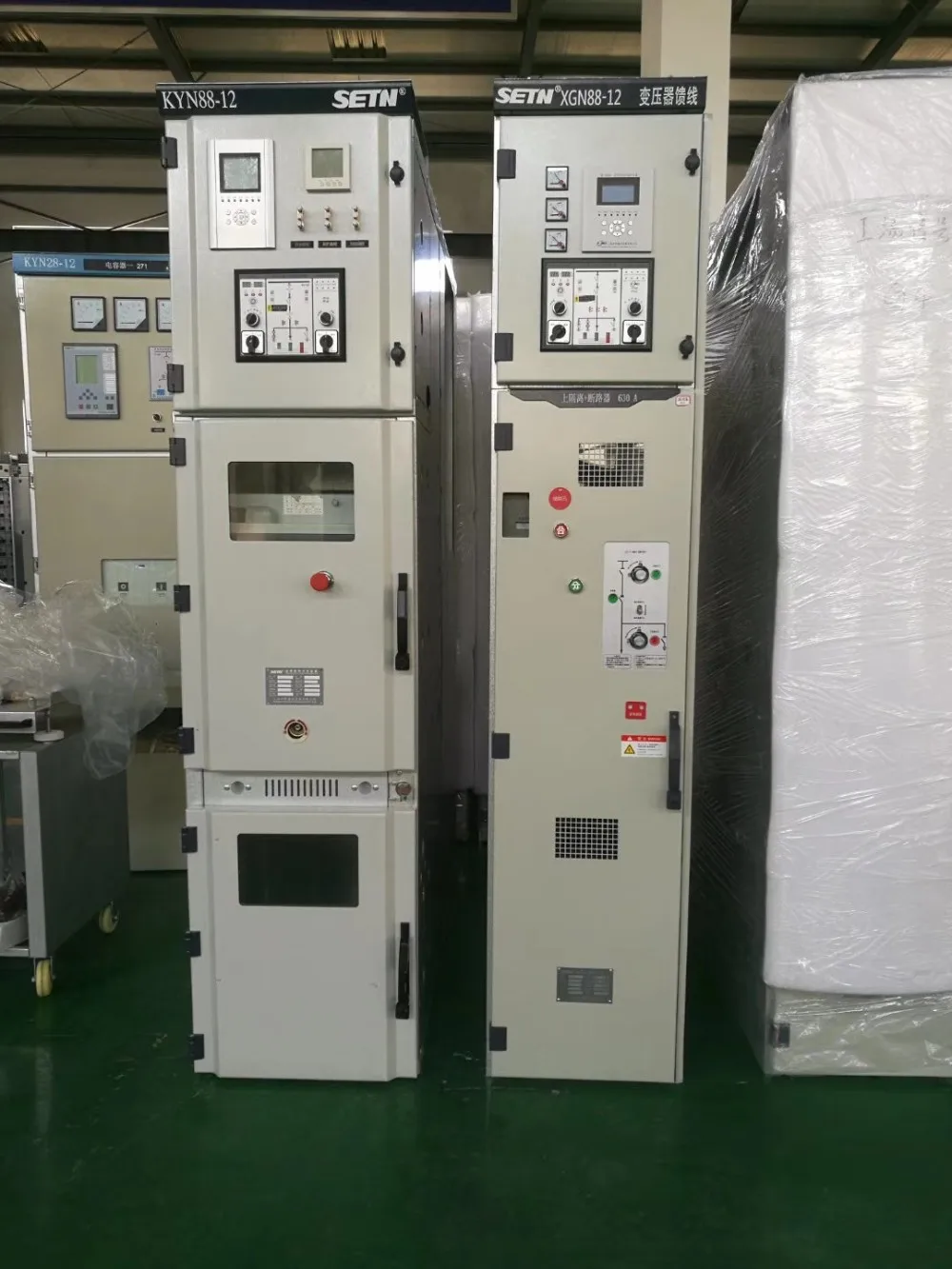

XGN88-12
XGN88-12(EAG450) Cubicle Fixed Type Metal-enclosed Switchgear is a new generation of product developed by the company with smart
and environmentally friendly features and compact structure.

This product is applicable for ring main units, power plants and transformer substations, specially suitable for power distribution ontrol and protection in industrial and mining nterprises, residential communities and high buildings. It can meet the distribution automation and other requirements of equipment assemblies such as power substations, box-type substations, switching stations and cable distribution boxes.




Product Detail








Outline dim. (Unit:mm)


Height
1800,2000,2200
Width
Rated current up to and including 1250A
450,500,550
Depth
Cable incoming and outgoing
1000

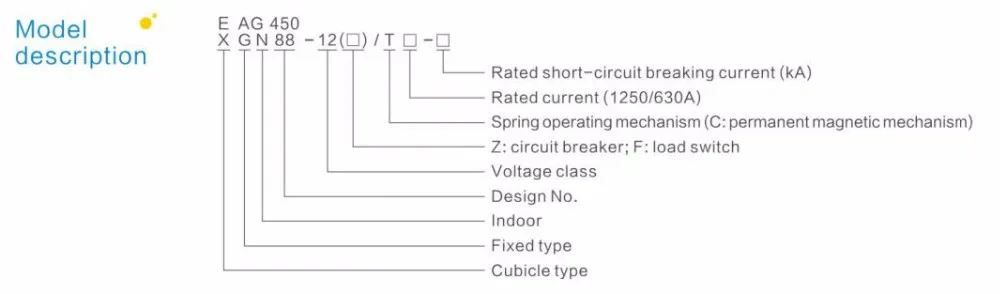

Model description


No.
Item
Unit
Parameter
1
Rated voltage
kV
12
2
Rated frequency
HZ
50
3
Rated current
A
630,1250
4
Rated short-time withstand current (4s)

20,25,31.5
5
Rated peak withstand current (peak)

50,63,80
6
Rated short-circuit breaking current
kA
20,25,31.5
7
Rated short-circuit making current (peak)

50,63,80


8




Rated insulation level
Power frequency withstand voltage (phase-to-phase, phase-to-ground/ between open contacts)


kV


42/48

Impulse withstand voltage (phase-to-phase, phase-to-ground/ between open contacts)


kV


75/85
9
Rated operating sequence

O-0.3s-CO-180s-CO
10
Rated short-circuit breaking current breaking times

50
11
Mechanical life
times
10000

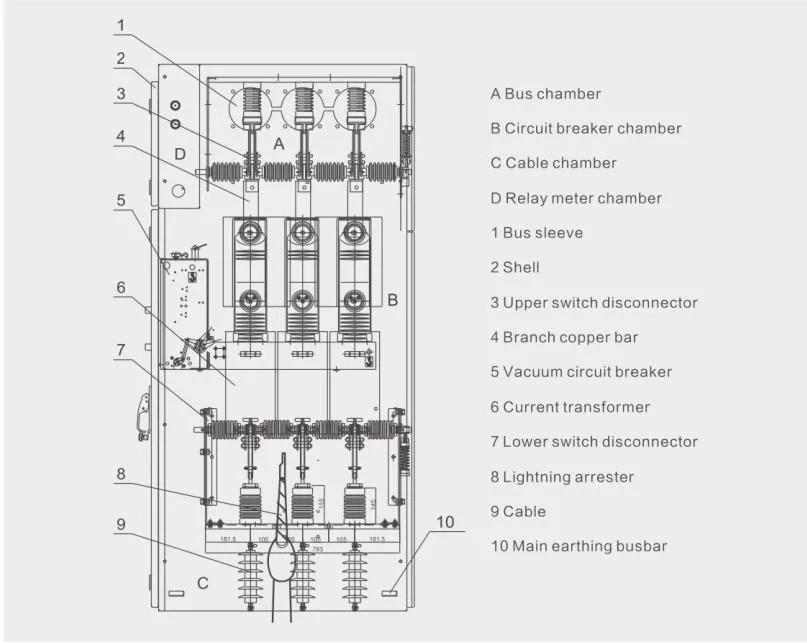

Right elevation
Front elevation
Left elevation




Company Introduction

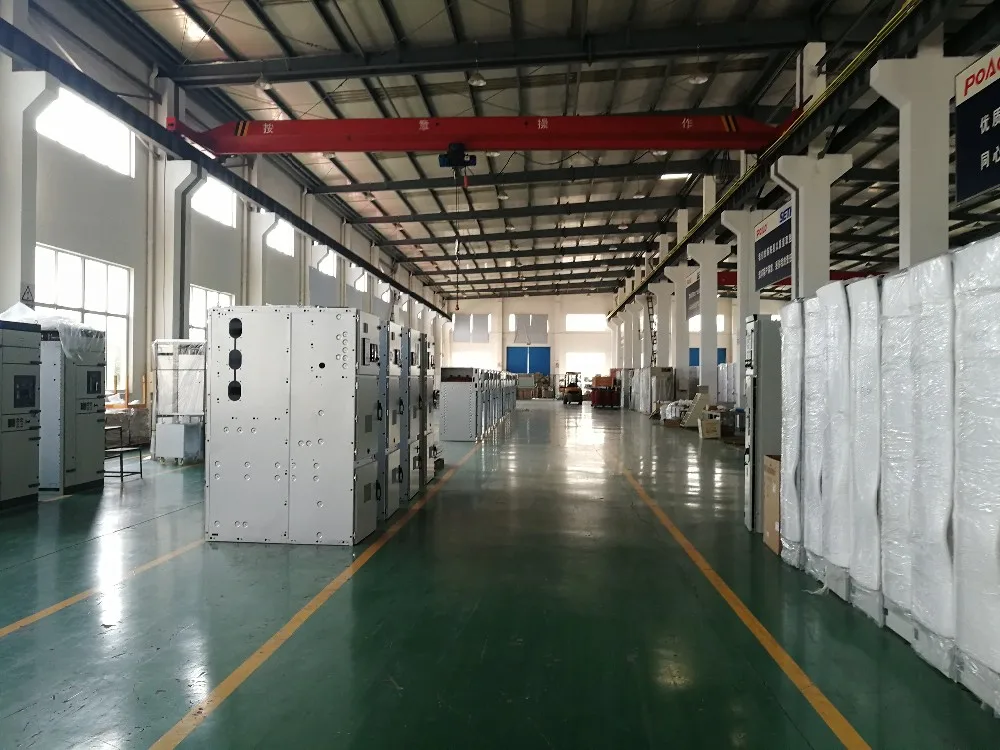

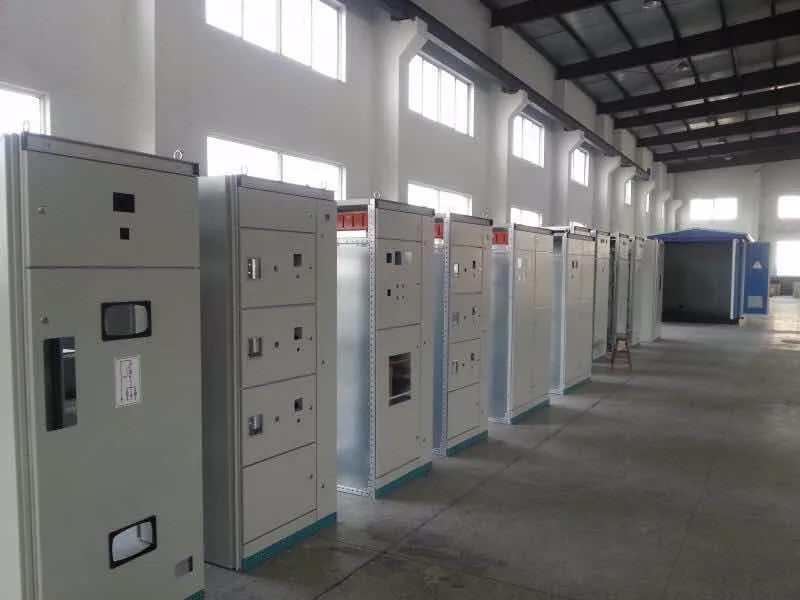

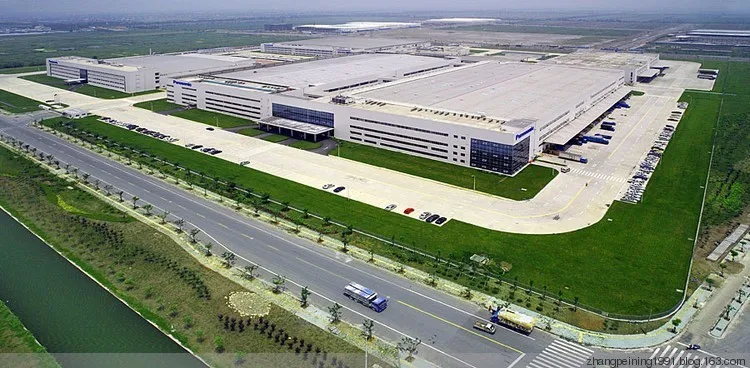

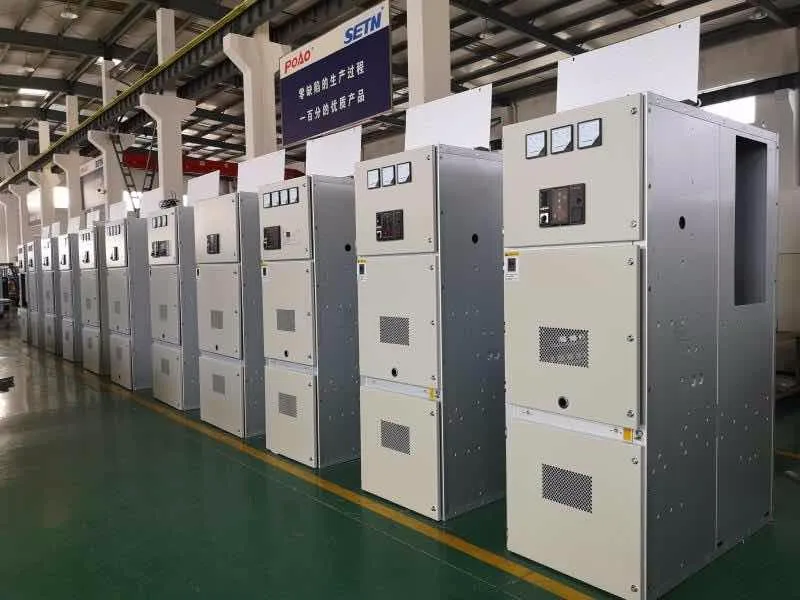

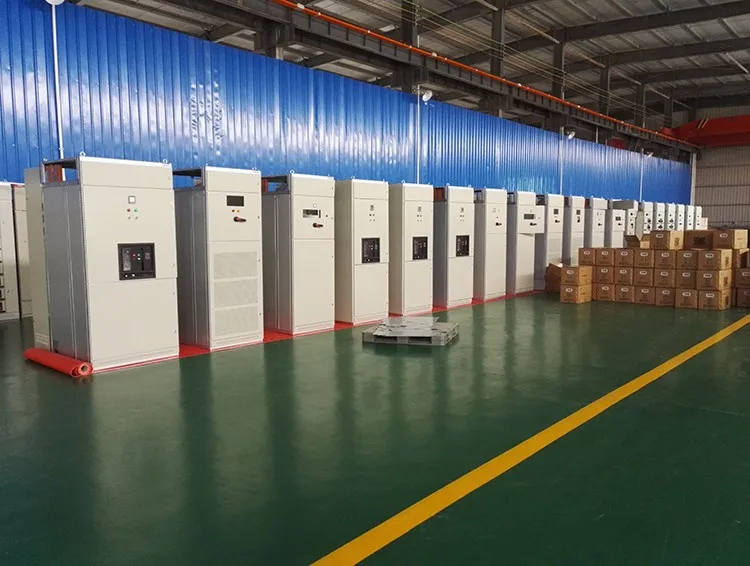

Factory Introduction






Cetificates








Successful Project

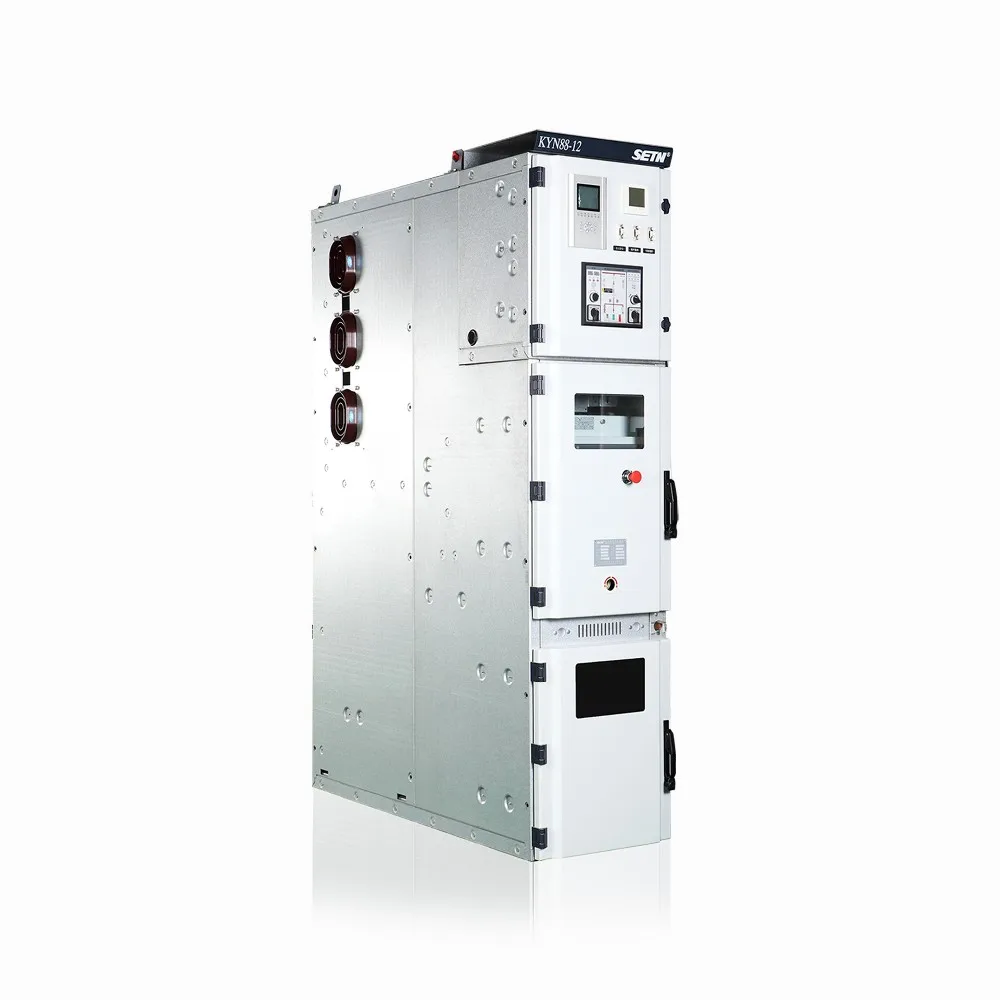

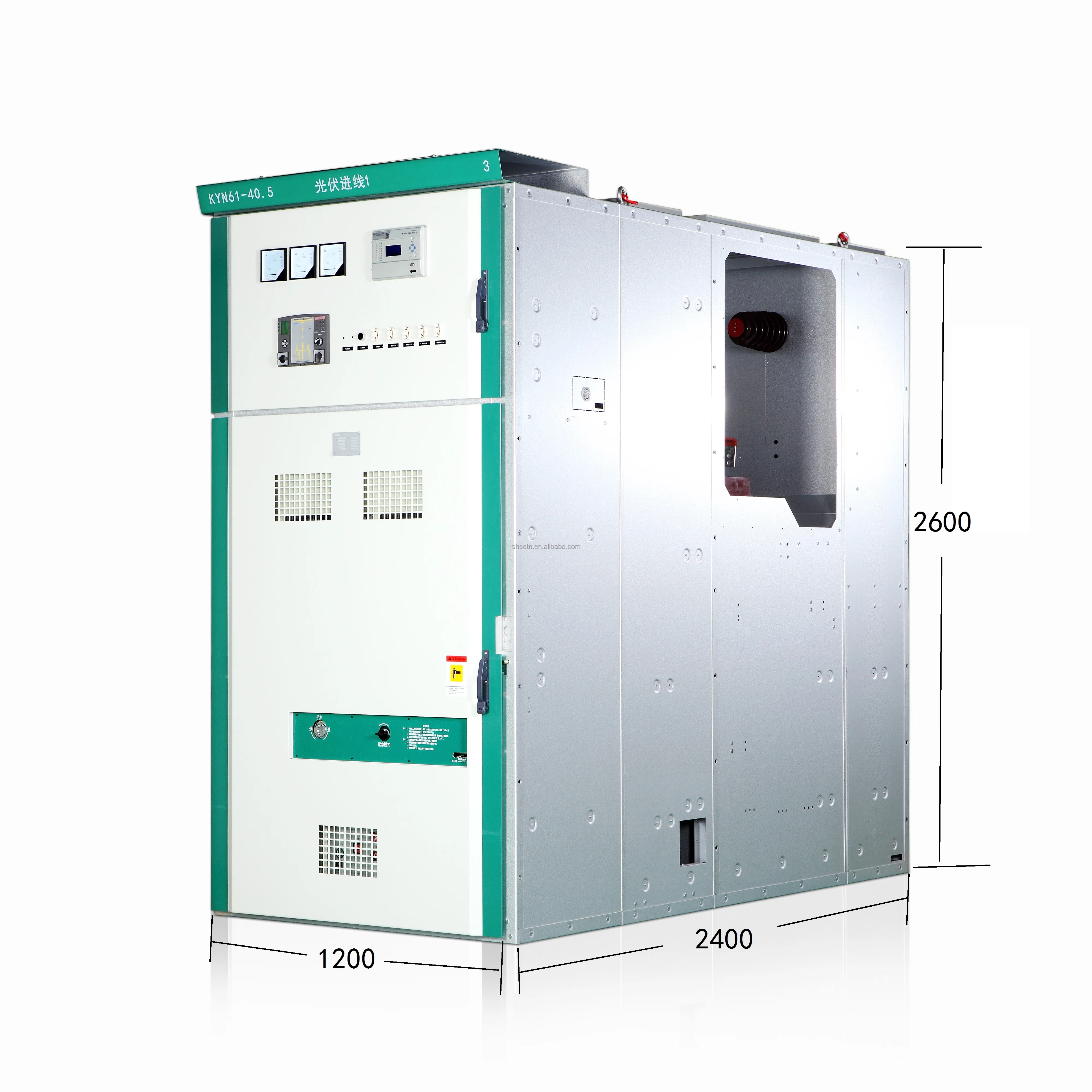

Similar Products
