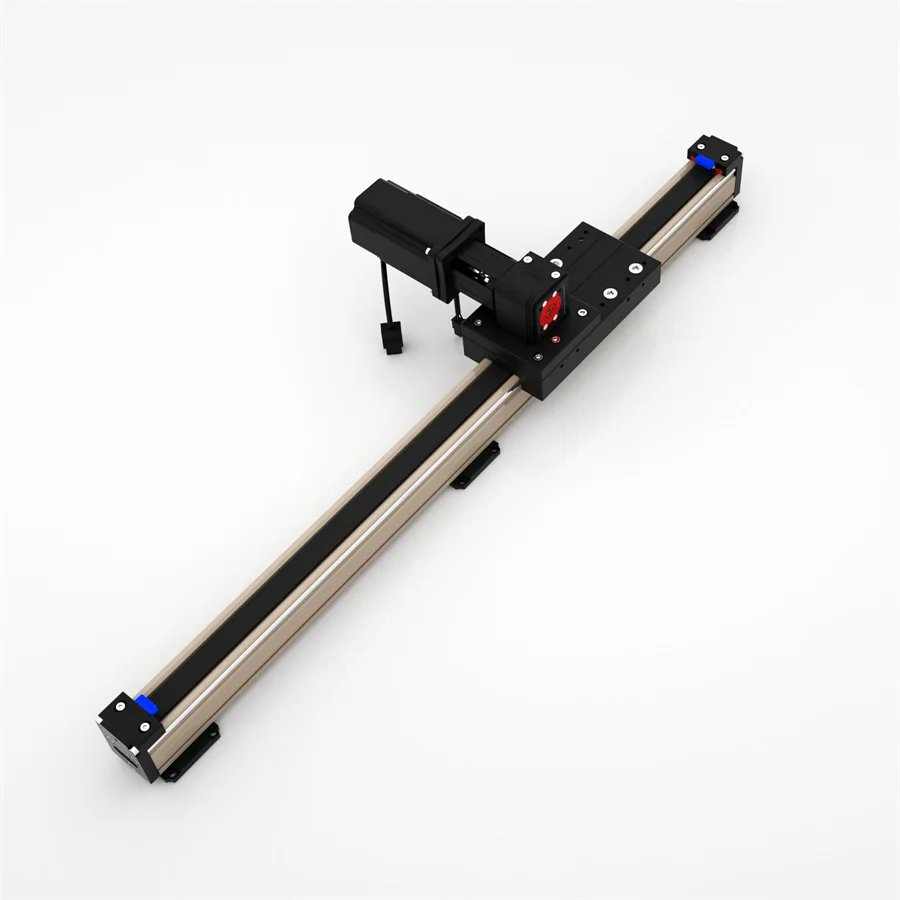

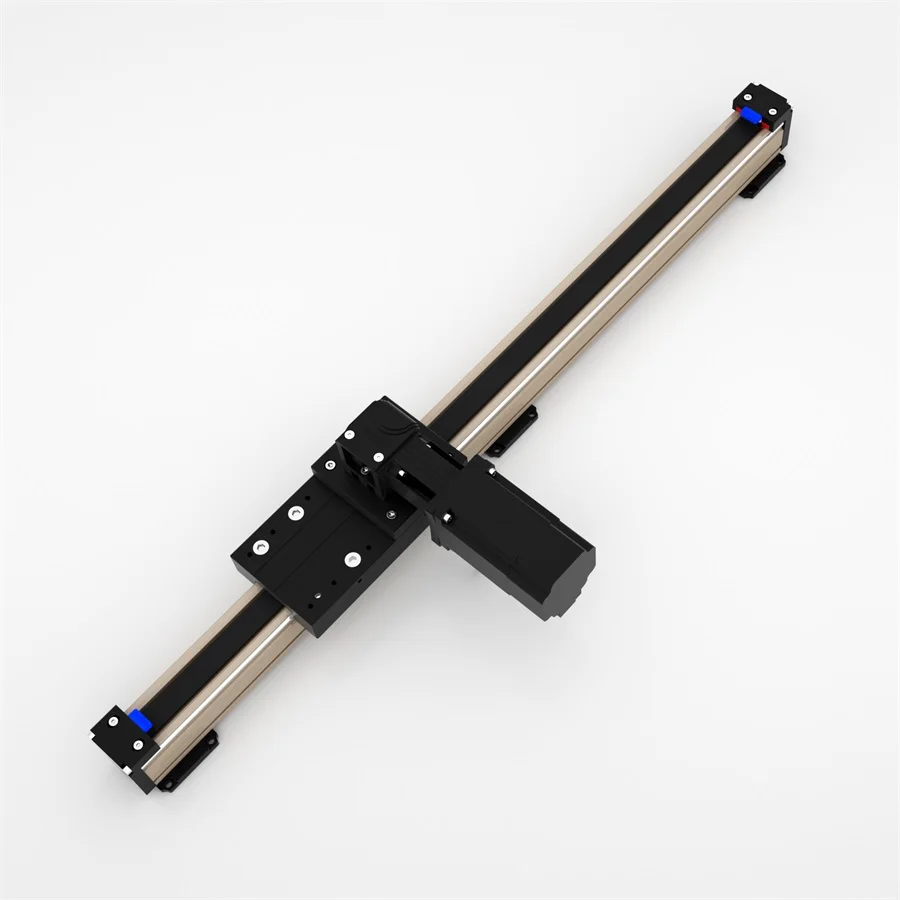

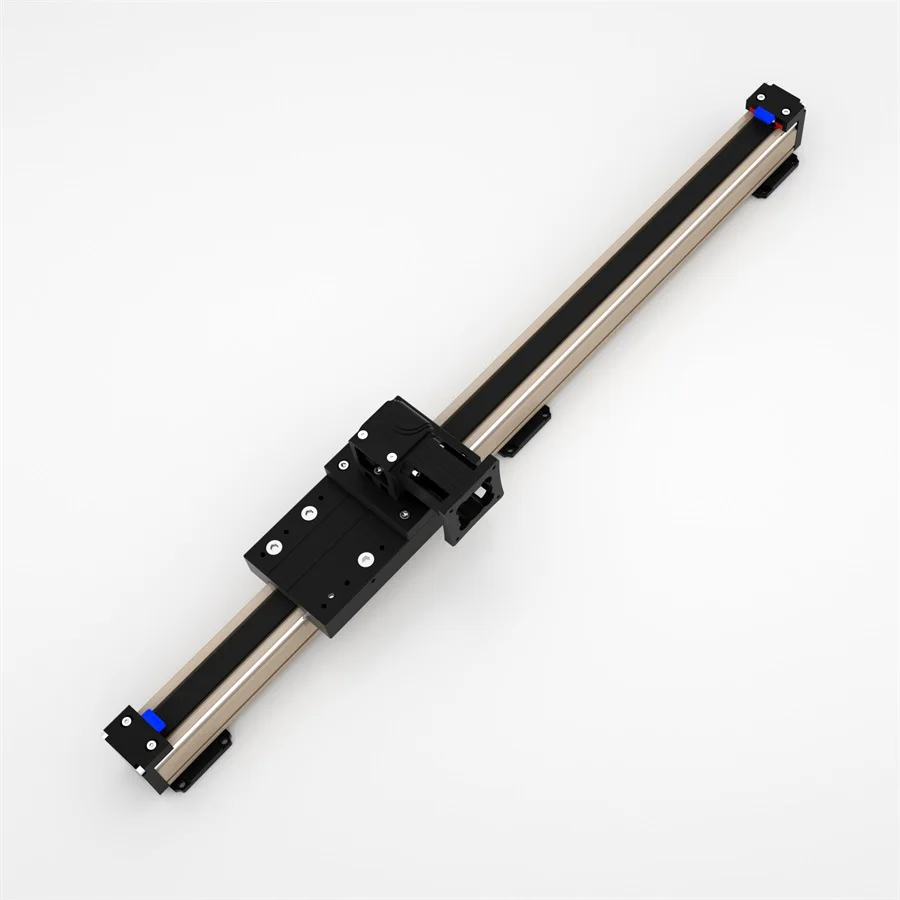

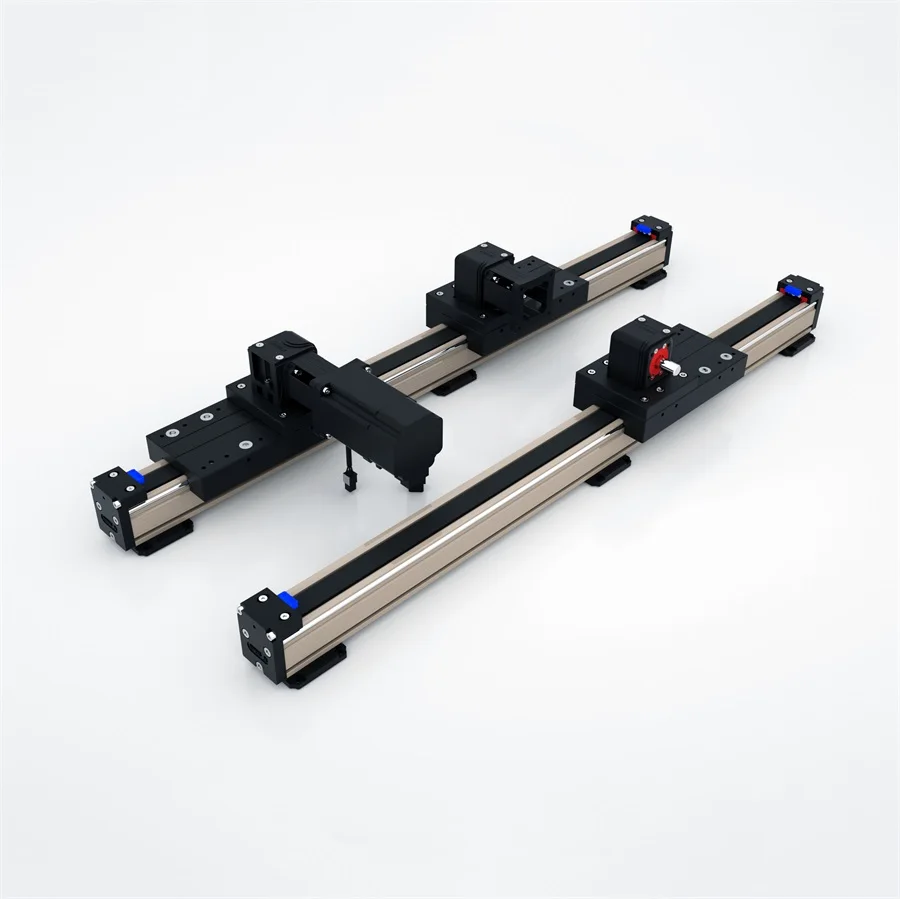

Effective stroke 800mm high speed linear CNC motion slide table
- Category: >>>
- Supplier: Shenzhen Jufeng Jingke Automation Technology Co. Ltd.
Share on (1600879110825):
Product Overview
Description
Regarding shipping costs
The shipping cost varies depending on the length and quantity you require. Please contact us for shipping calculation before placing an order.
The price of the product does not include accessories. Please contact us for more detailed quotation, delivery time and logistics cost calculation.

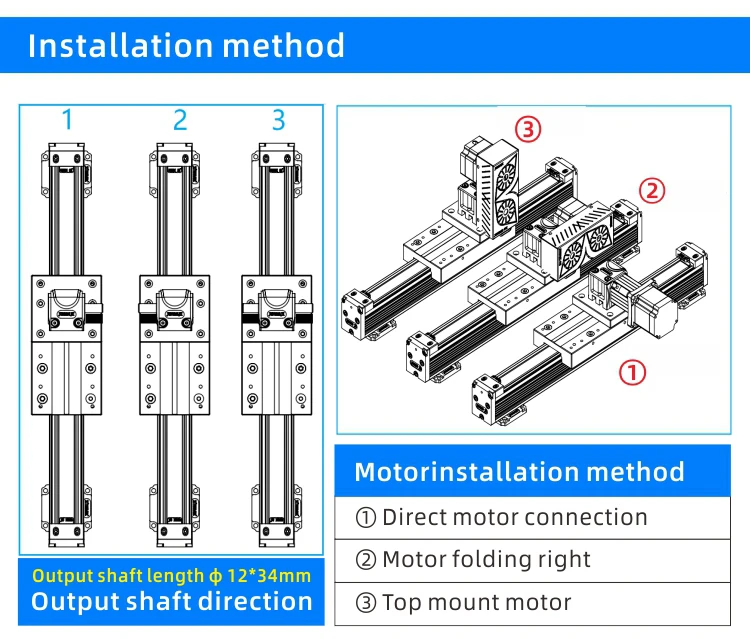

If you need to install an additional motor, please provide the motor drawing and we will customize a dedicated motor mounting bracket for you.
About Choosing More Models

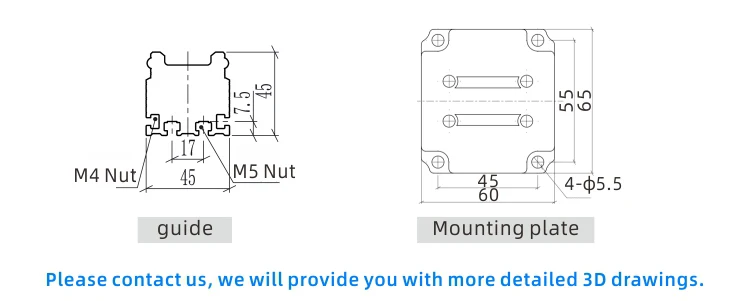

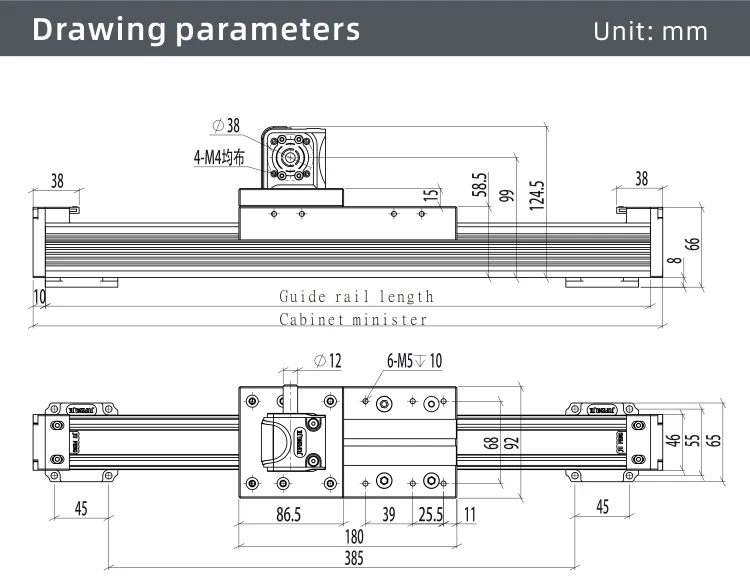

Please contact us, we will provide you with more detailed 3D drawings
trip(mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 |
Totallength(mm) | 390 | 490 | 590 | 690 | 790 | 890 | 990 |
Weight(kg) | 3.19 | 3.43 | 3.67 | 3.91 | 4.15 | 4.39 | 4.63 |
trip(mm) | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 |
Totallength(mm) | 1090 | 1190 | 1290 | 1390 | 1490 | 1590 | 1690 |
Weight(kg) | 4.87 | 5.11 | 5.35 | 5.59 | 5.83 | 6.07 | 6.31 |

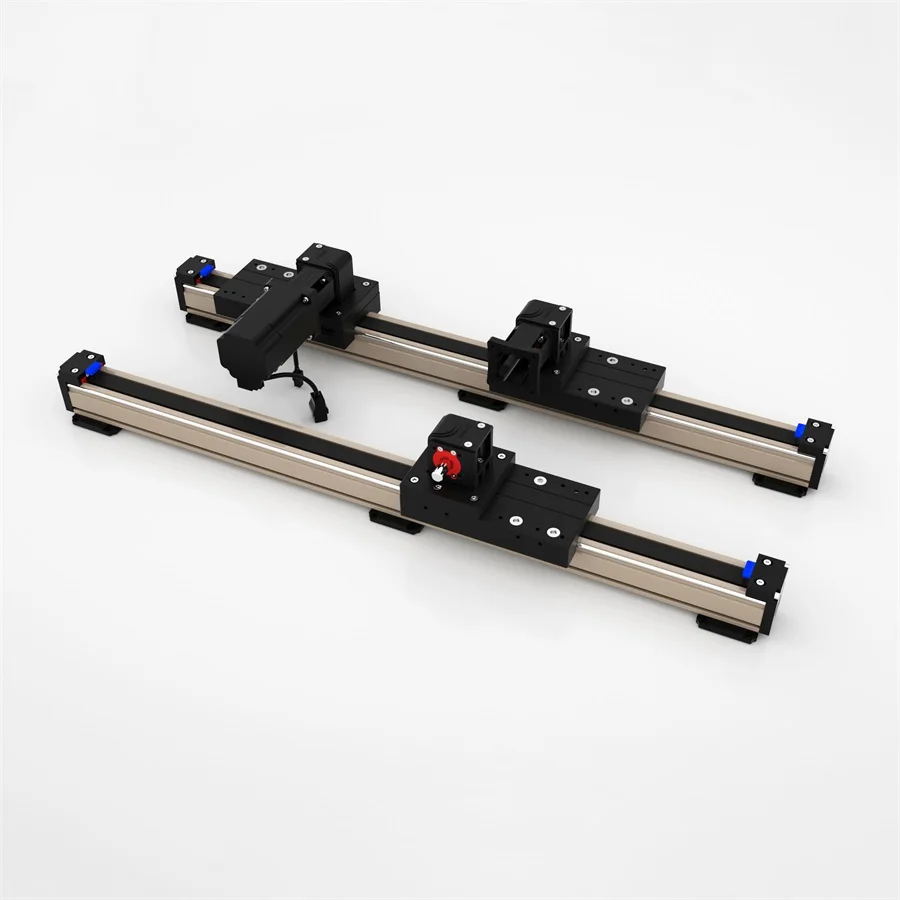

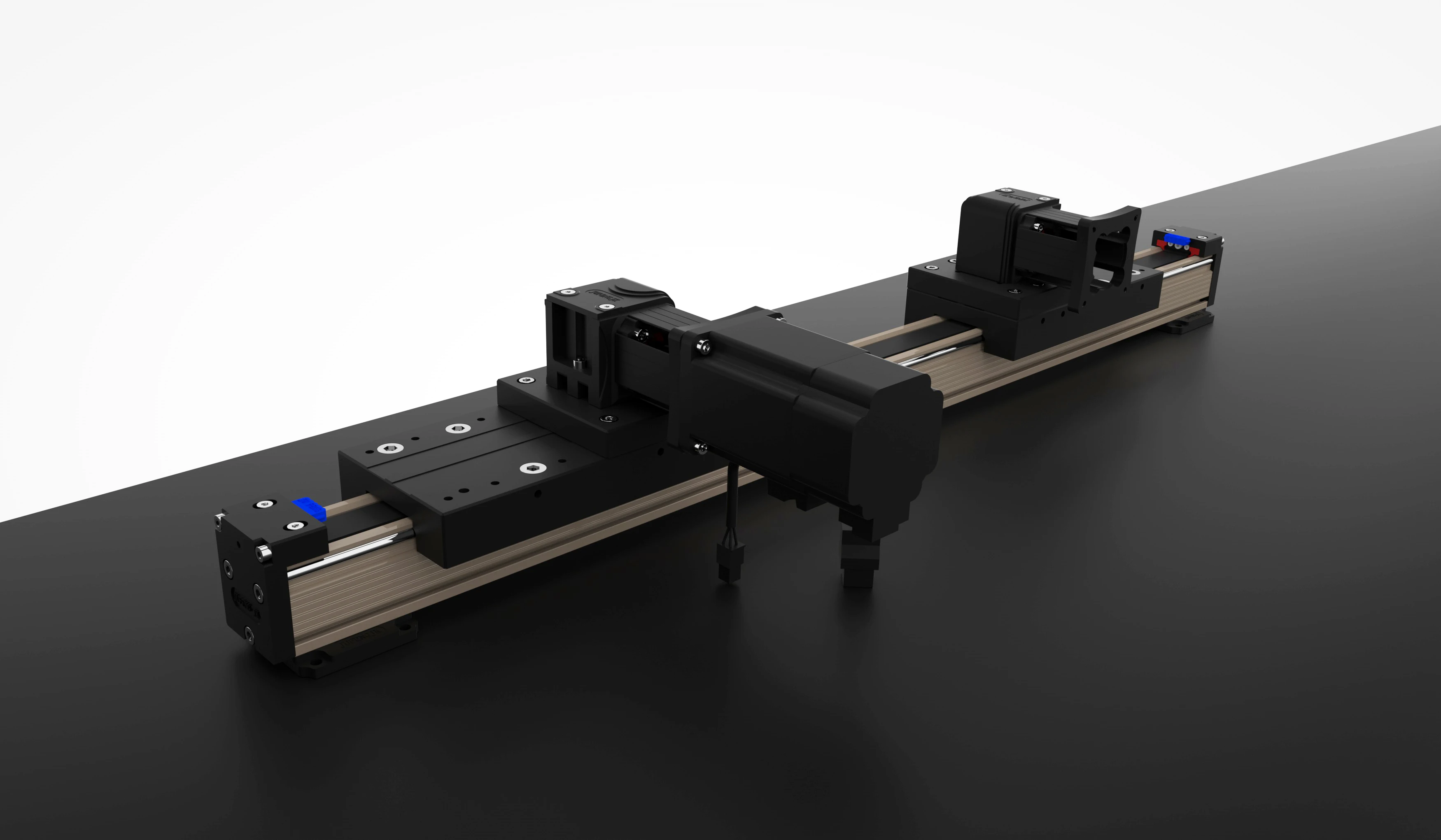

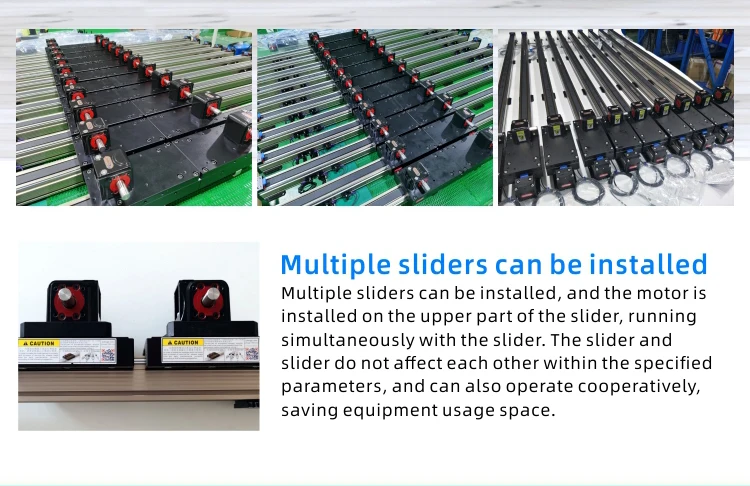

Multiple sliders can be installed

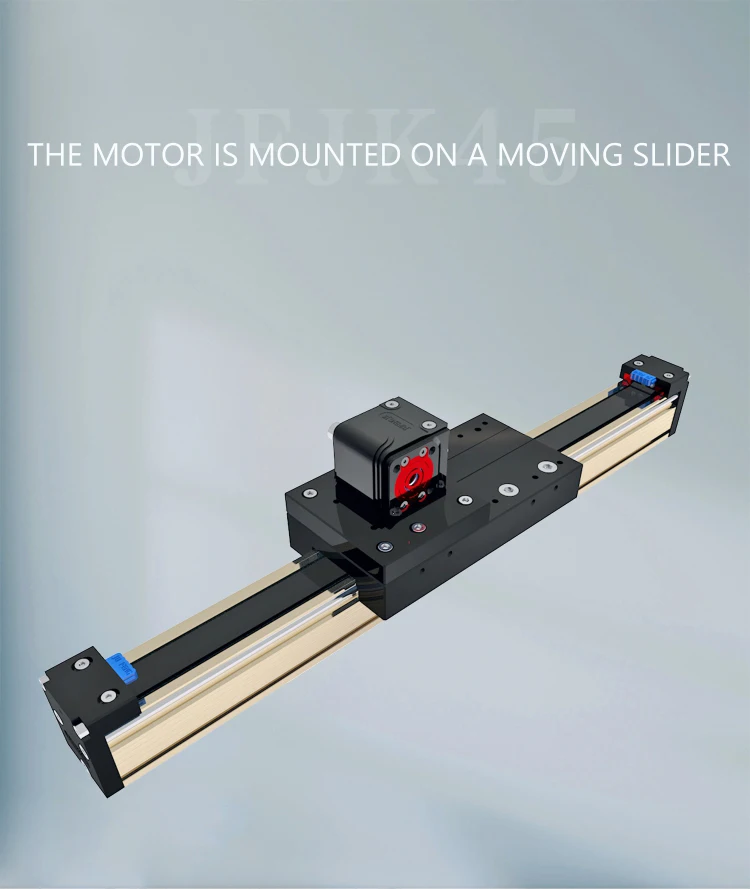

Multiple sliders can be installed, and the motor is installed on the upper part of the slider, running simultaneously with the slider. The slider and slider do not affect each other within the specified parameters, and can also operate cooperatively, saving equipment usage space.

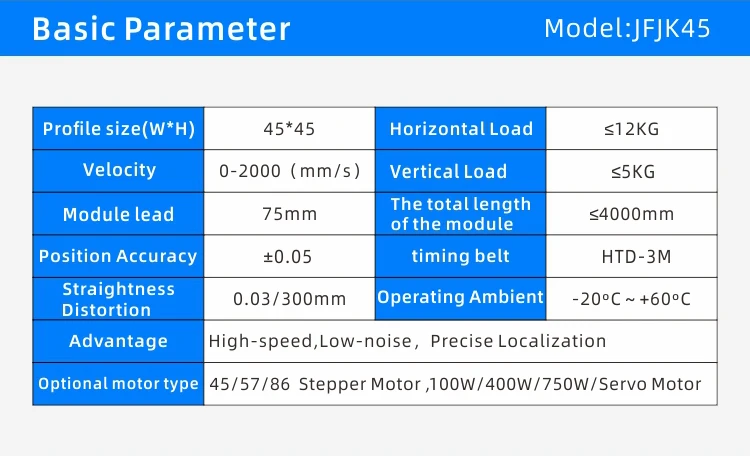

More specifications selection | ||||||
Model | JFJK45 | JFJK50 | JFJK60 | |||
W*H(mm) | 45*45 | 50*50 | 60*60 | |||
Maximum horizontal load | 12kg | 15kg | 20kg | |||
Maximum vertical load | 5kg | 8kg | 12kg | |||

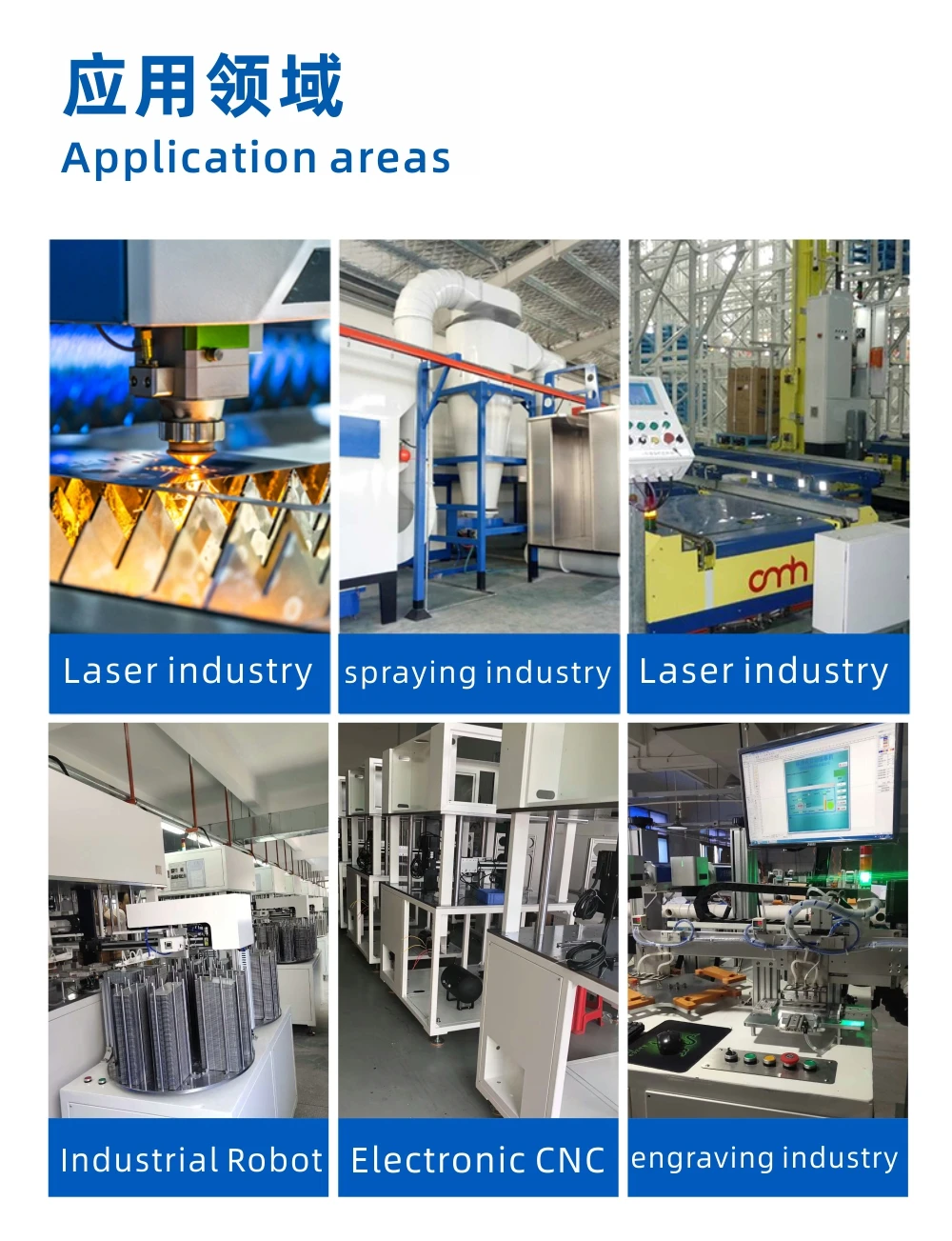

application area

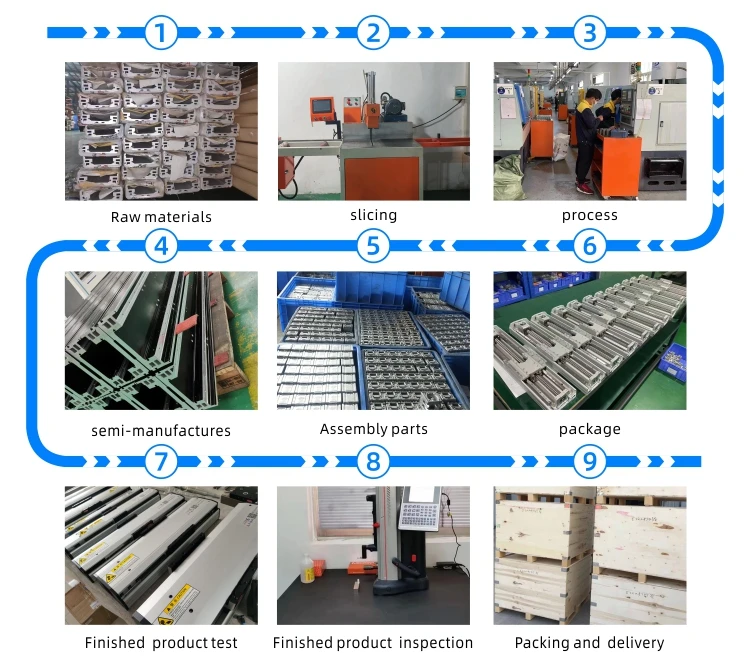

Production process diagram
Regarding shipping costs
Customized products vary in length and weight, please contact us to calculate the shipping costs separately.
FAQ:
Q:Are you a trading company or a factory?

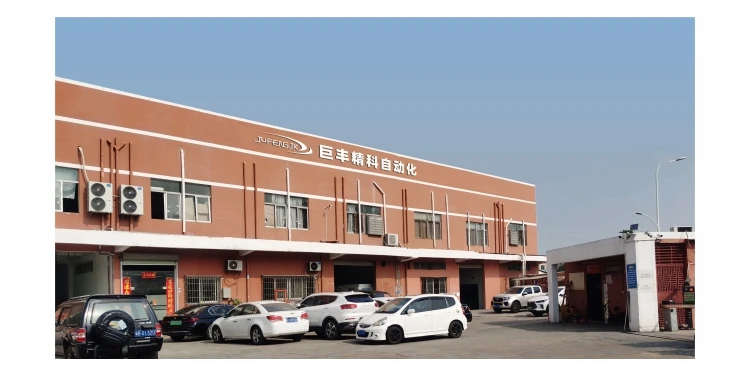

A：We are a factory integrating development, production, sales and service.
Q:What is your delivery time？
A:3-5 days for standard products and 7-15 days for customized products
Q:What should I pay attention to before placing an order?
A:Please check the drawings in detail to confirm the length you need and whether the parameters can meet your needs.
Q:How to make an order
A:The customer confirms the drawings or samples, pays the deposit for production on the official order, and settles the remaining payment before shipment.
Q: Do you guarantee the products?
A: One-year warranty and lifelong technical support.
