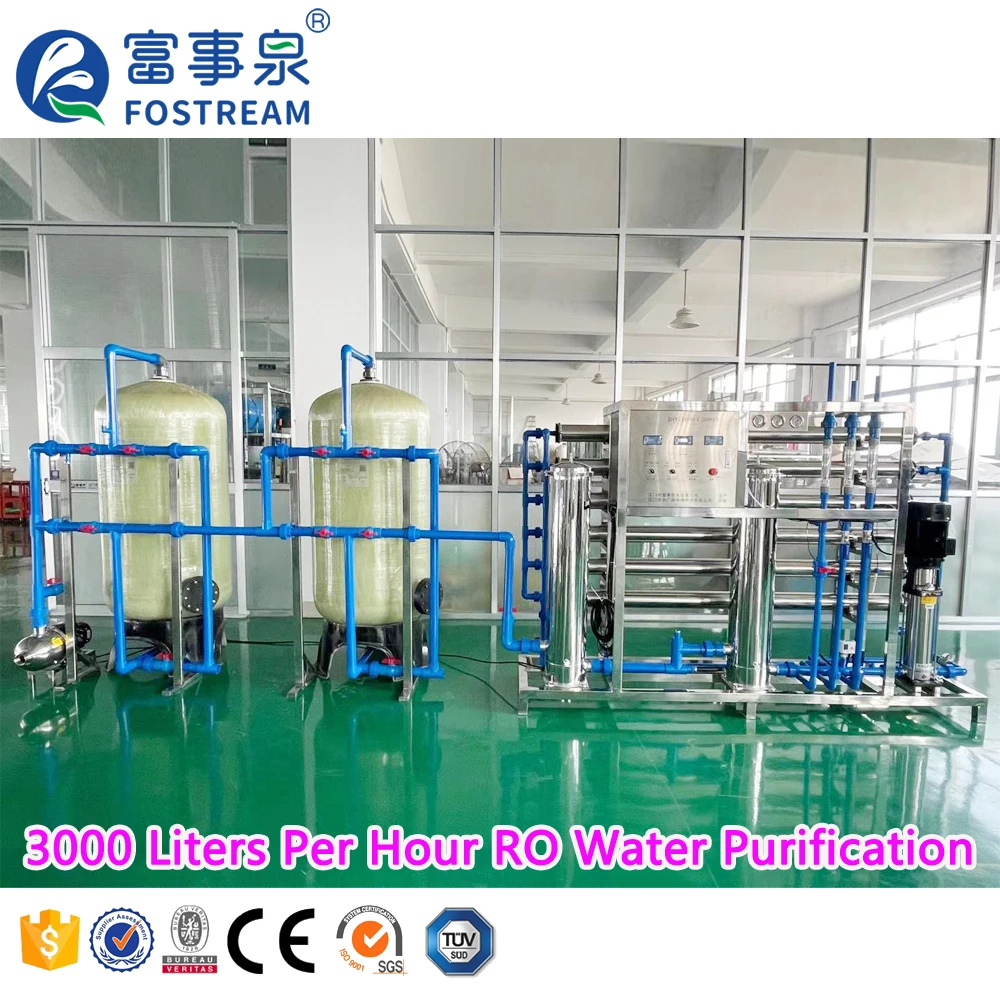

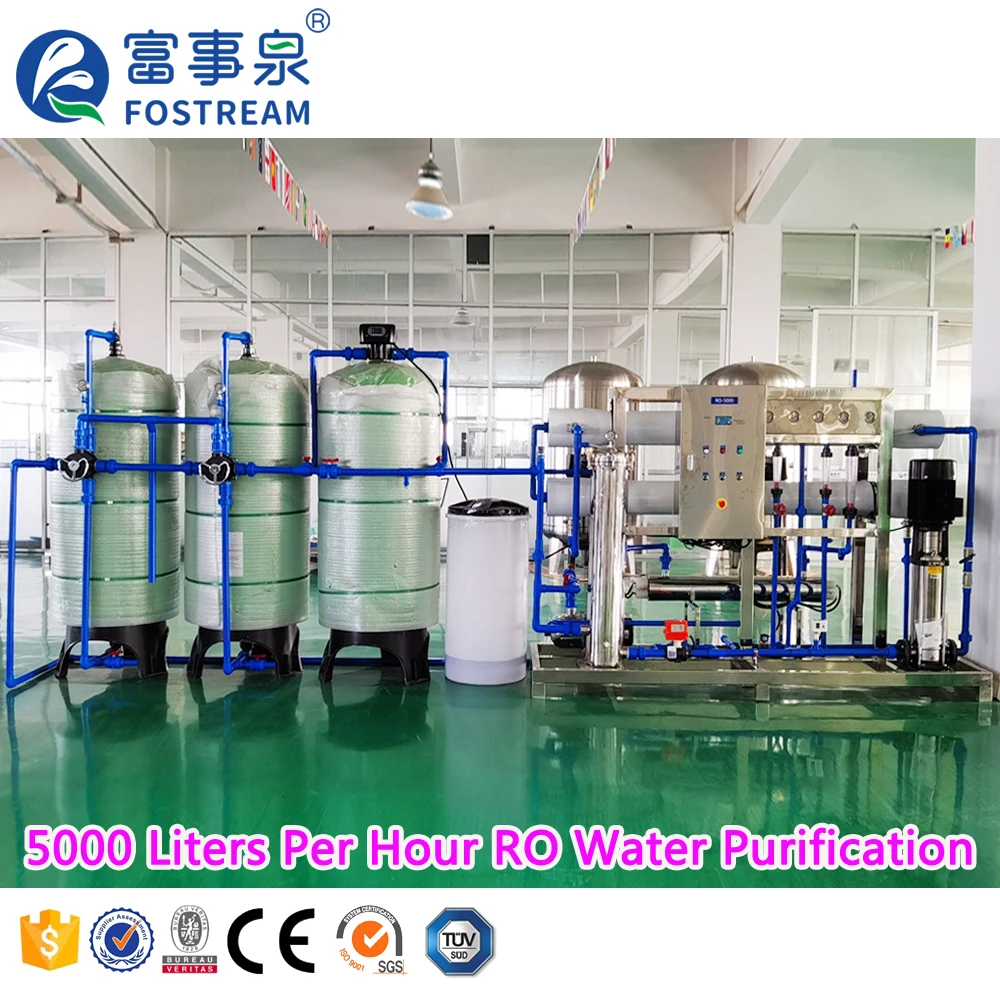

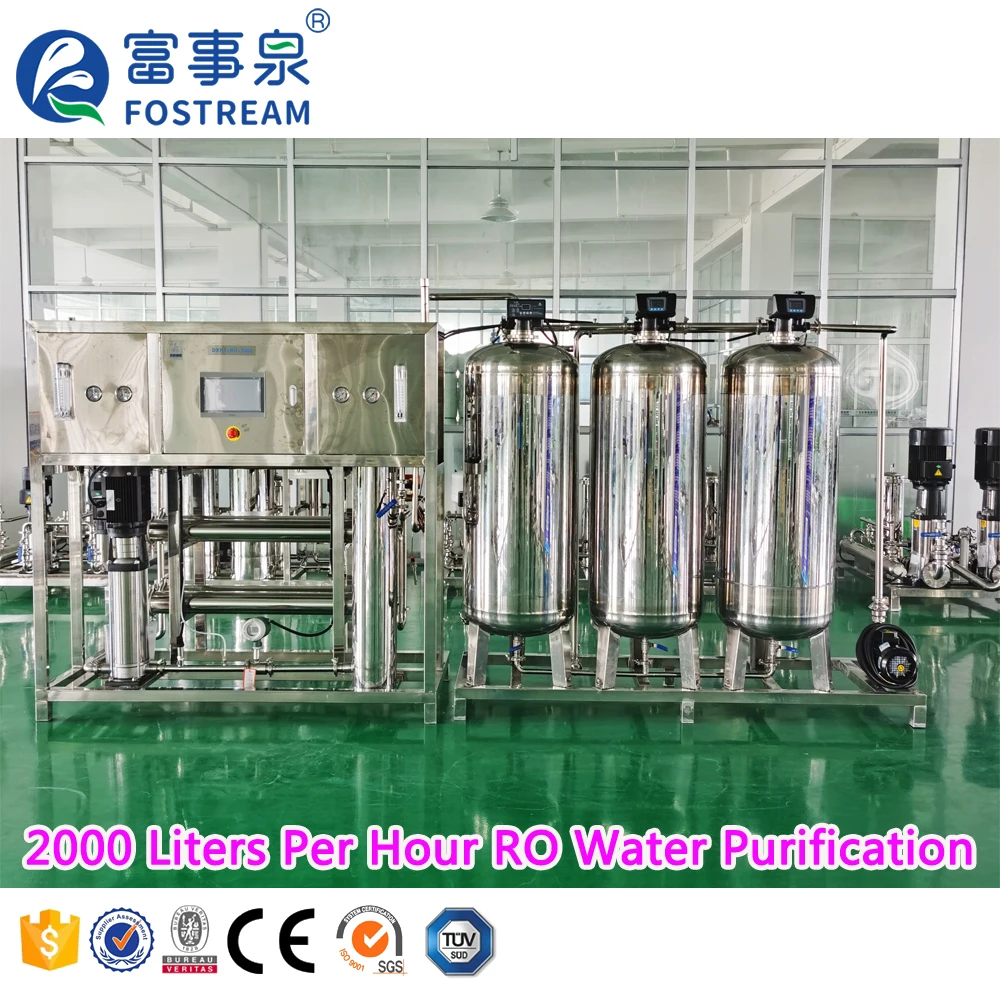

China Guangzhou Factory Cost UV RO Pure Water Treatment Plant Reverse Osmosis System For Industrial
- Category: >>>
- Supplier: Guangdong First Intelligent Drinking Water Equipment Co. Ltd.
Share on (1600879187264):
Product Overview
Description
Fostream Reverse Osmosis RO Water Treatment System
Products Description
What is Reverse Osmosis (RO)?
RO water purification system is raw water through precision filter, granular activated carbon filters, activated carbon filters, compression, and then through the pump pressure, the use of reverse osmosis membrane pore size 1/10000 m make a higher concentration of water into low concentration of water, while the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed with a large number of full isolation, to achieve the required physical and chemical indicators for
drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish water quality. It is key equipment of pure water plant
drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish water quality. It is key equipment of pure water plant
How Does Reverse Osmosis Work?

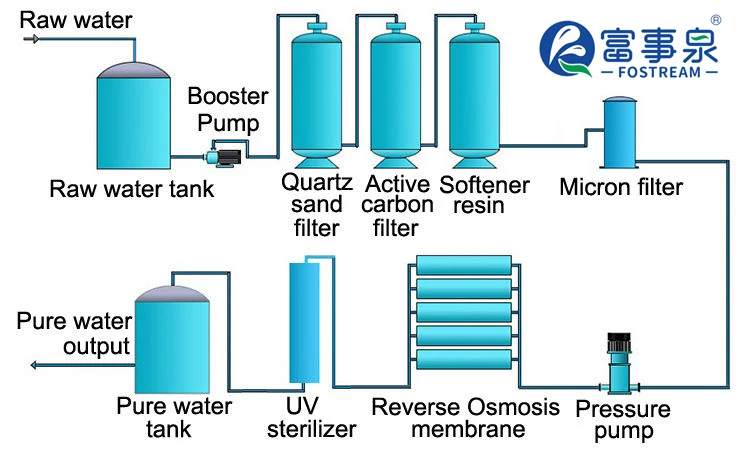

Raw water----Raw water tank----Booster pump-----Quartz sand filter-----Activated carbon filter----Softener resin----Micron filter --- High pressure pump------RO membrane system--------UV sterilizer------Pure water tank ----- Pure water output
Working Process:
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener resin --exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump--Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener resin --exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump--Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
8.UV sterilizer-In the UV disinfection process, water is purified as it runs through a stainless steel chamber that contains a special UV- producing lamp.
Fostream RO Water Treatment Plant
Functions:
1.RO membranes auto wash and manual wash
1.RO membranes auto wash and manual wash
2.RO membranes manual wash with medicine
3.Pure water high water level auto stop, low waterlevel auto start
4.Multi-phases pump protected without water
5.Protected when no power, poor power, larger electrical current, short circuit, creepage of electricity.

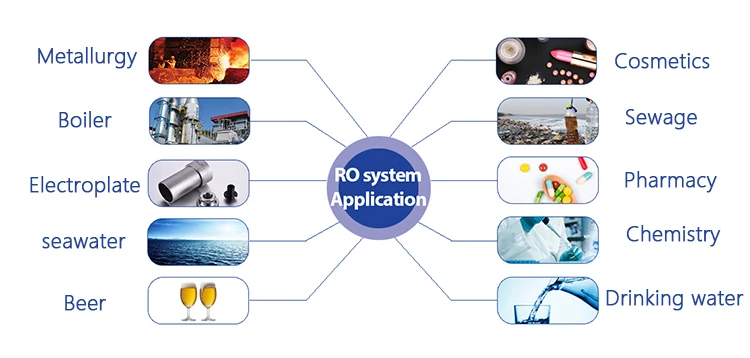

Application fields of water treatment:
1.Pure water, mineral water. (Bottled water, Barrel water)
2.Water for food and beverage production. (Ice maker)
3.Water for chemical industry, electronic industry, such as Hotel, Schools, Hospital, Restaurant, Boiler, Factory.
4.Water for medical use, high purity water for electronics industry.
Our advantages:
1. Rate of desalination up to 98%~99%
2. Pure water obtaining rate is up to 75%
3. Continuously purifying water for 24 hours
4. PLC control automatic flushing function.
5. Optional UV sterlilizer & Ozone generator
6. Low operating cost and long life span.
2. Pure water obtaining rate is up to 75%
3. Continuously purifying water for 24 hours
4. PLC control automatic flushing function.
5. Optional UV sterlilizer & Ozone generator
6. Low operating cost and long life span.
Main Technical Parameters
Model | Capacity (LPH) | Membrane Quantity | Size(L*W*H) (mm) | Weight (Kg) |
FSQ-RO-250 | 1500 GPD (250LPH) | 4040*1 | 1550*900*1820 | 150 |
FSQ-RO-500 | 3000 GPD (500LPH) | 4040*2 | 1550*900*1820 | 250 |

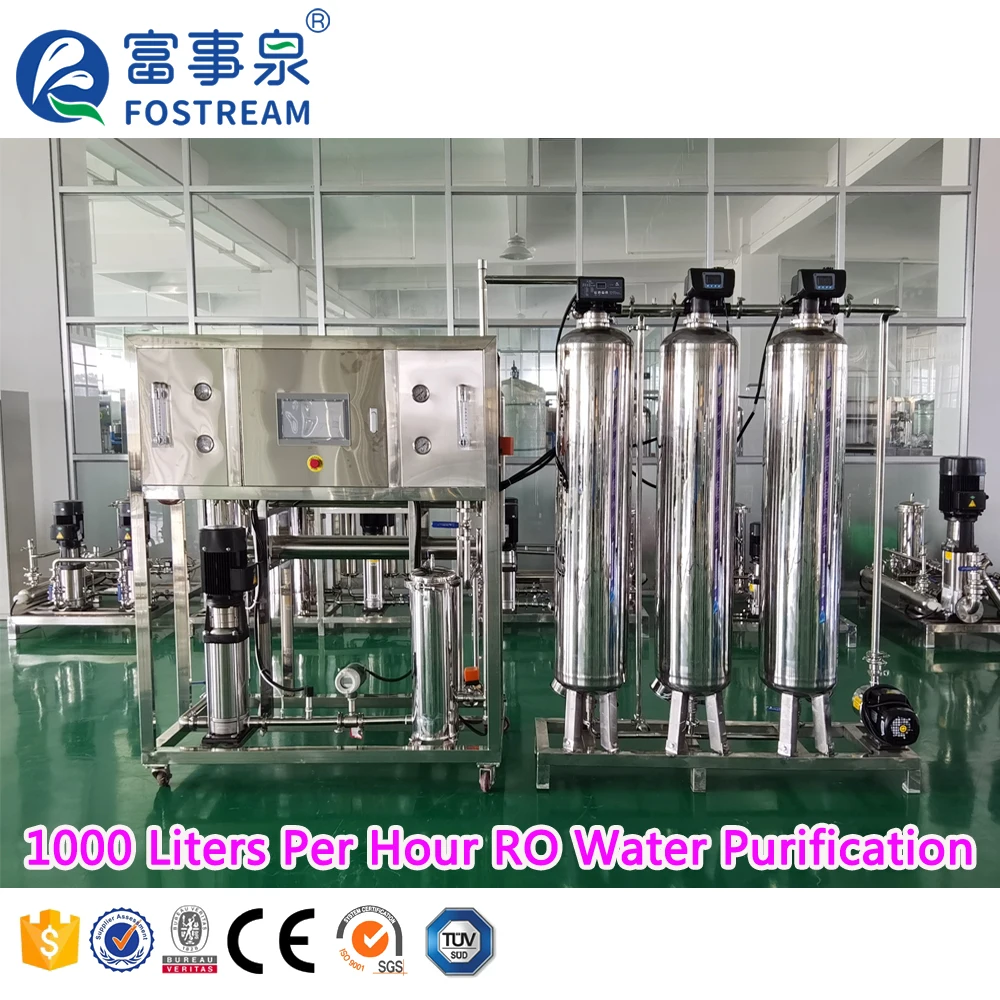

FSQ-RO-1000 | 6000 GPD (1000LPH) | 4040*4 | 1980*900*1940 | 450 |
FSQ-RO-2000 | 2000LPH | 4040*7 | 4800*700*2050 | 700 |
FSQ-RO-3000 | 3000LPH | 4040*10 | 6000*800*2200 | 800 |

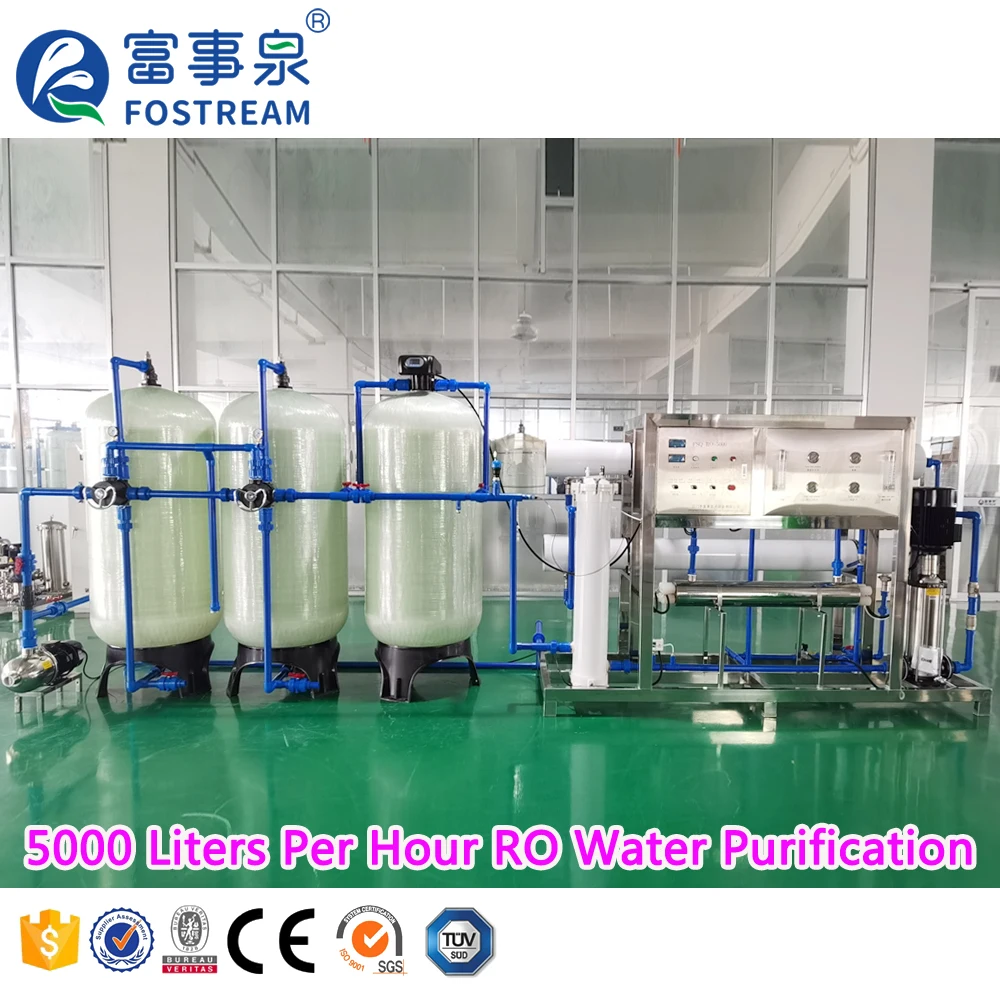

FSQ-RO-5000 | 5000LPH | 8040*4 | 7000*900*2400 | 1000 |
FSQ-RO-8000 | 8000LPH | 8040*8 | 8000*1000*2700 | 1600 |
FSQ-RO-10000 | 10000LPH | 8040*9 | 8200*1600*3000 | 2200 |
FSQ-RO-15000 | 15000LPH | 8040*15 | 8600*1700*3100 | 2800 |
FSQ-RO-20000 | 20000LPH | 8040*20 | 10000*1700*3200 | 3500 |
FSQ-RO-25000 | 25000LPH | 8040*25 | 5000*1800*3300 | 4200 |
FSQ-RO-30000 | 30000LPH | 8040*30 | 7000*1900*3500 | 5000 |

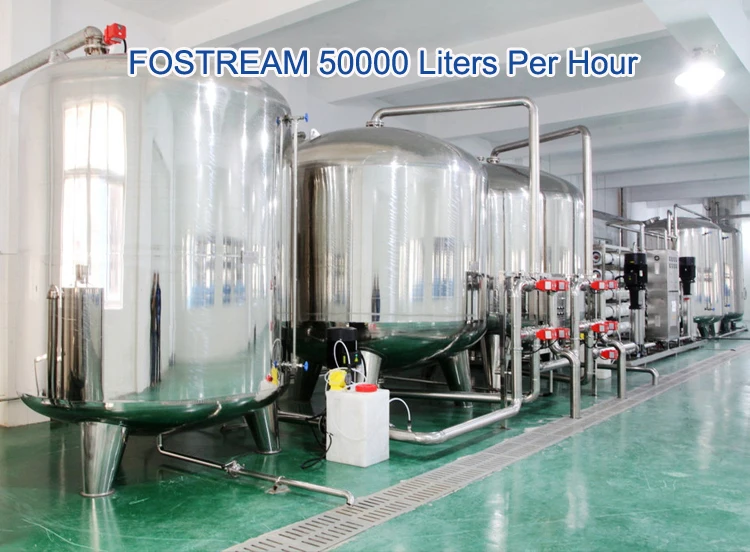

FSQ-RO-50000 | 50000LPH | 8040*50 | 7000*2300*3800 | 8500 |
Details Images

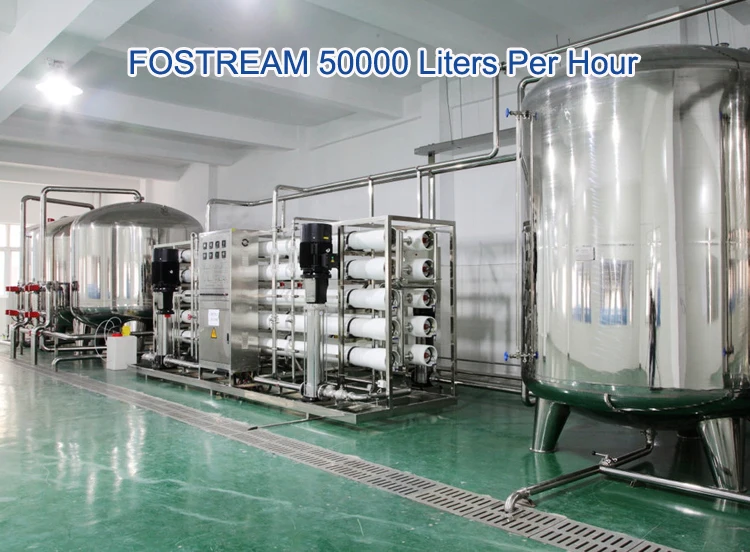

Production Capacity: 250 Liters Per Hour - 50,000 Liters Per Hour
RO (Reverse Osmosis) for pure water
Which machine should I choose?
It depends on your raw water quality ,pure water or mineral water requirement and the water production you need.

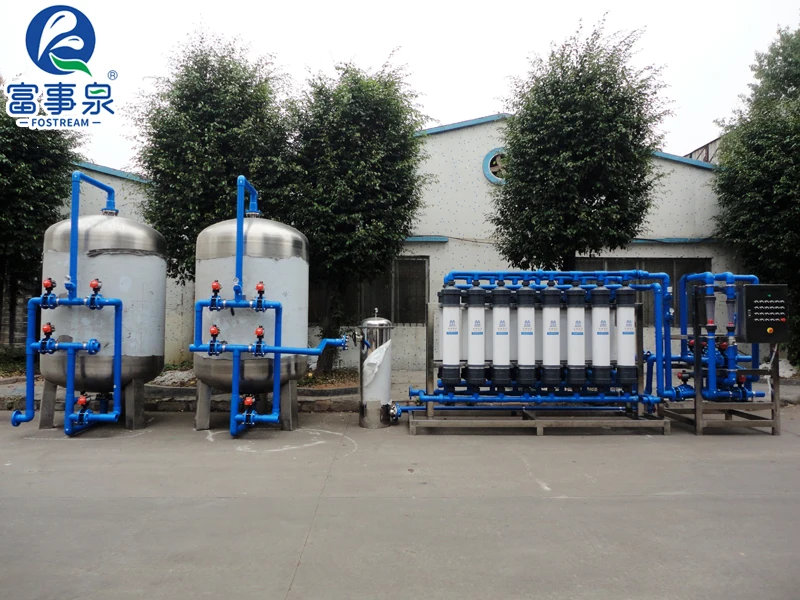

Production Capacity: 1000 Liters Per Hour - 50,000 Liters Per Hour

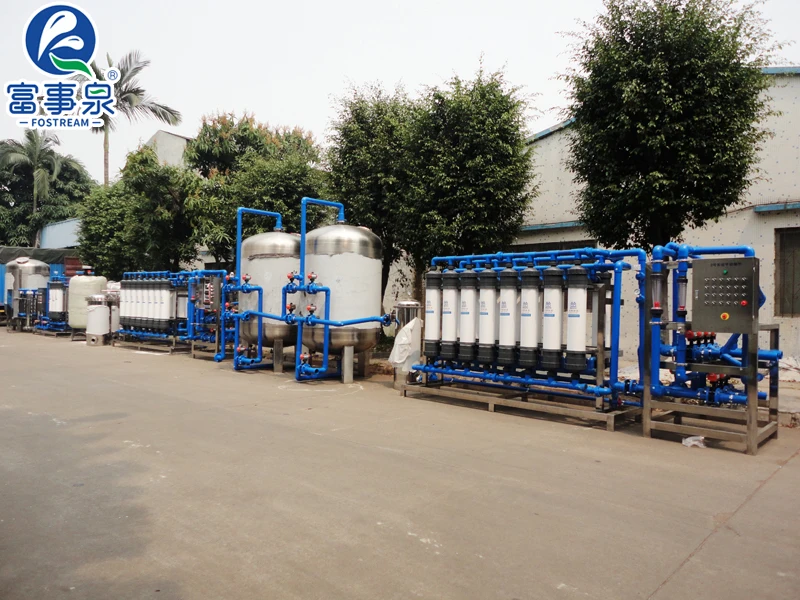

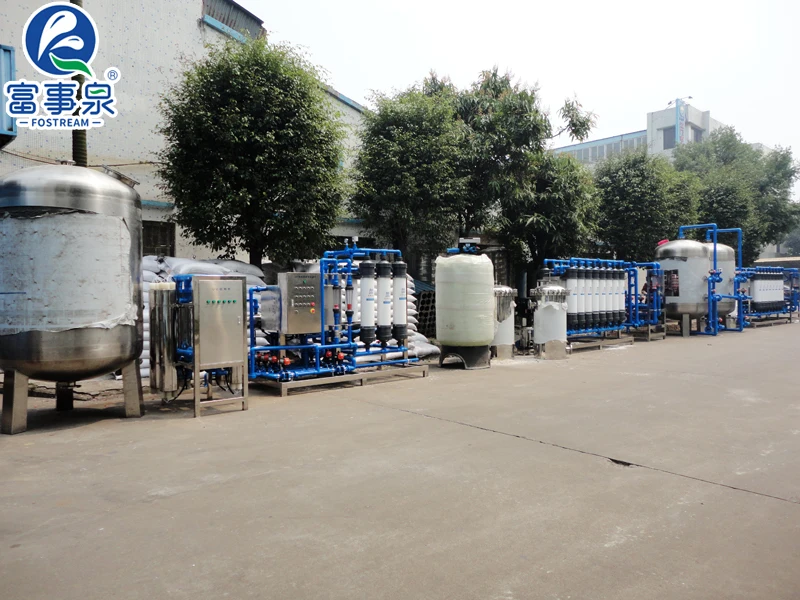

UF (Hollow Fiber Ultrafiltration for mineral water)
Real Scene Shoots
Guangdong First Intelligent Drinking Water Equipment Co., Ltd.
Factory Address : No.141 Plant, Qingnian Road, Chaolian Town,
Pengjiang District, Jiangmen City, Guangdong Province, China
Pengjiang District, Jiangmen City, Guangdong Province, China
19 Years Alibaba Verified Gold Supplier.
25 Years Production Experience.129 Online Transactions Completed.
12,500 Square Meters Standard Factory.
12,500 Square Meters Standard Factory.
304,000 USD Alibaba Trade Assurance.
1,750,000 USD Online Transaction Volume.
7800000 Yuan RMB Registered Capital.
7800000 Yuan RMB Registered Capital.
ISO 9001:2008 Quality Management System.
CE Certified & TUV SUD Capability Assessment.
VR
Certification Verified

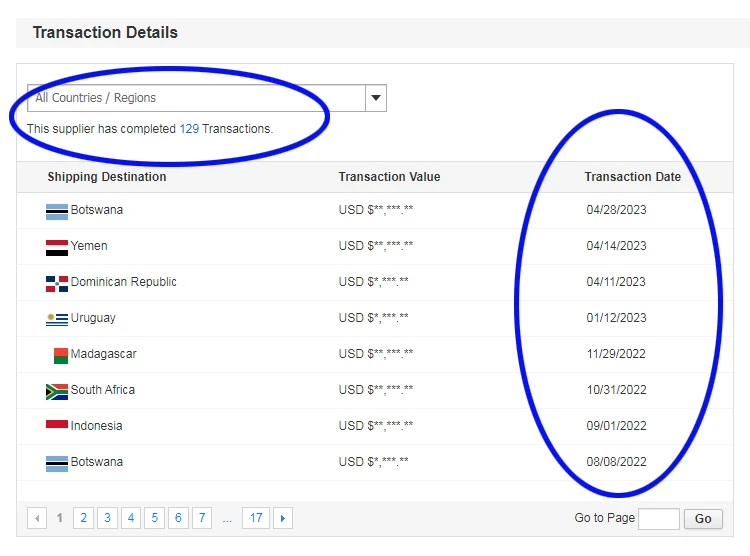

Transaction History Verified
Production Verified
FAQ
6 professional sales engineers and technicians are waiting for your inquiry.
Q1.Are you a factory or trading company?
A1.We are a professional water treatment and filling machine manufacturing factory that set up for 25 years.We always pay attention to the development of the industry !.We can give a discount according to the quantity of machine you purchase. (20 years Alibaba Gold supplier)
B1.At the same time,we take effective measures to control the production process for ensuring the quality of products.
Q5: When can I get my machine after I paid?
A5: Normally production time is around 15-25 working days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.
Q6:How long of your warranty?
A6:Regarding warranty, normally we offer 1 year warranty, and we also offer lifetime maintenance.
A1.We are a professional water treatment and filling machine manufacturing factory that set up for 25 years.We always pay attention to the development of the industry !.We can give a discount according to the quantity of machine you purchase. (20 years Alibaba Gold supplier)
B1.At the same time,we take effective measures to control the production process for ensuring the quality of products.
Our products are certified.And we can supply SGS, BV, TUV, ISO9001, ISO14001, OHSAS18001, CE certification.
C1,Website: www.fostream.com and www.fostream.com.cn
Website on alibaba: https://jmangel.en.alibaba.com
Q2.Where is your factory located? How can I visit there?
A2:Our factory is located in No.141 plant, Qingnian Road, Chaolian Town, Pengjiang District, Jiangmen, Guangdong, China, All our clients, from home or abroad, are warmly welcome to visit us!
Q3.What products does your company offer by yourself?
A3:We are specialized in RO water treatment machines, UF water treatment machines,small bottle filling machines and 5 gallon filling machines.
Q4: How can I know your machine works well?
A4: Before delivery, we shall test the machine working condition for you.
C1,Website: www.fostream.com and www.fostream.com.cn
Website on alibaba: https://jmangel.en.alibaba.com
Q2.Where is your factory located? How can I visit there?
A2:Our factory is located in No.141 plant, Qingnian Road, Chaolian Town, Pengjiang District, Jiangmen, Guangdong, China, All our clients, from home or abroad, are warmly welcome to visit us!
Q3.What products does your company offer by yourself?
A3:We are specialized in RO water treatment machines, UF water treatment machines,small bottle filling machines and 5 gallon filling machines.
Q4: How can I know your machine works well?
A4: Before delivery, we shall test the machine working condition for you.
Q5: When can I get my machine after I paid?
A5: Normally production time is around 15-25 working days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.
Q6:How long of your warranty?
A6:Regarding warranty, normally we offer 1 year warranty, and we also offer lifetime maintenance.
Q7: Is this machine easy to install? Will you arrange engineer to help me install?
A7: This machine is very easy for install. The machine you received is assembled. You will only need to follow steps on our English instruction and video. If big capacity of machines, we can arrange engineer to help installation.
A7: This machine is very easy for install. The machine you received is assembled. You will only need to follow steps on our English instruction and video. If big capacity of machines, we can arrange engineer to help installation.
