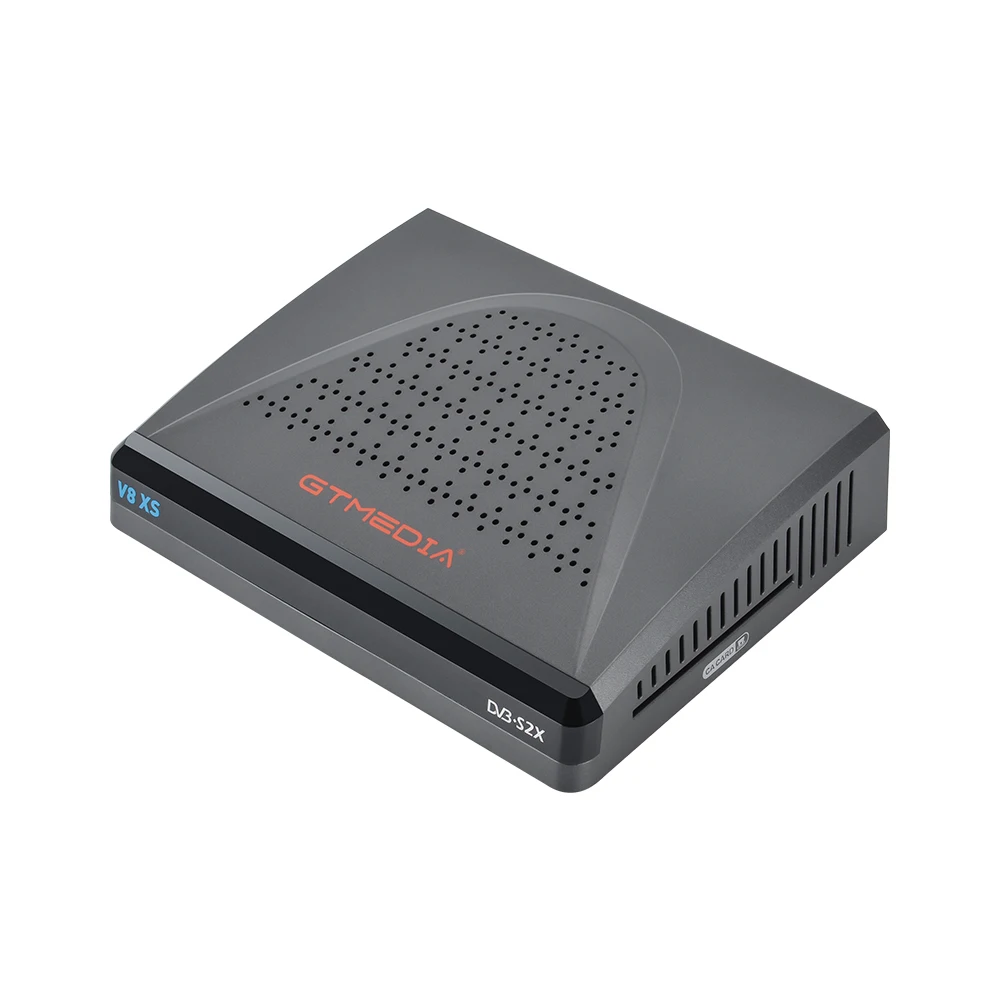

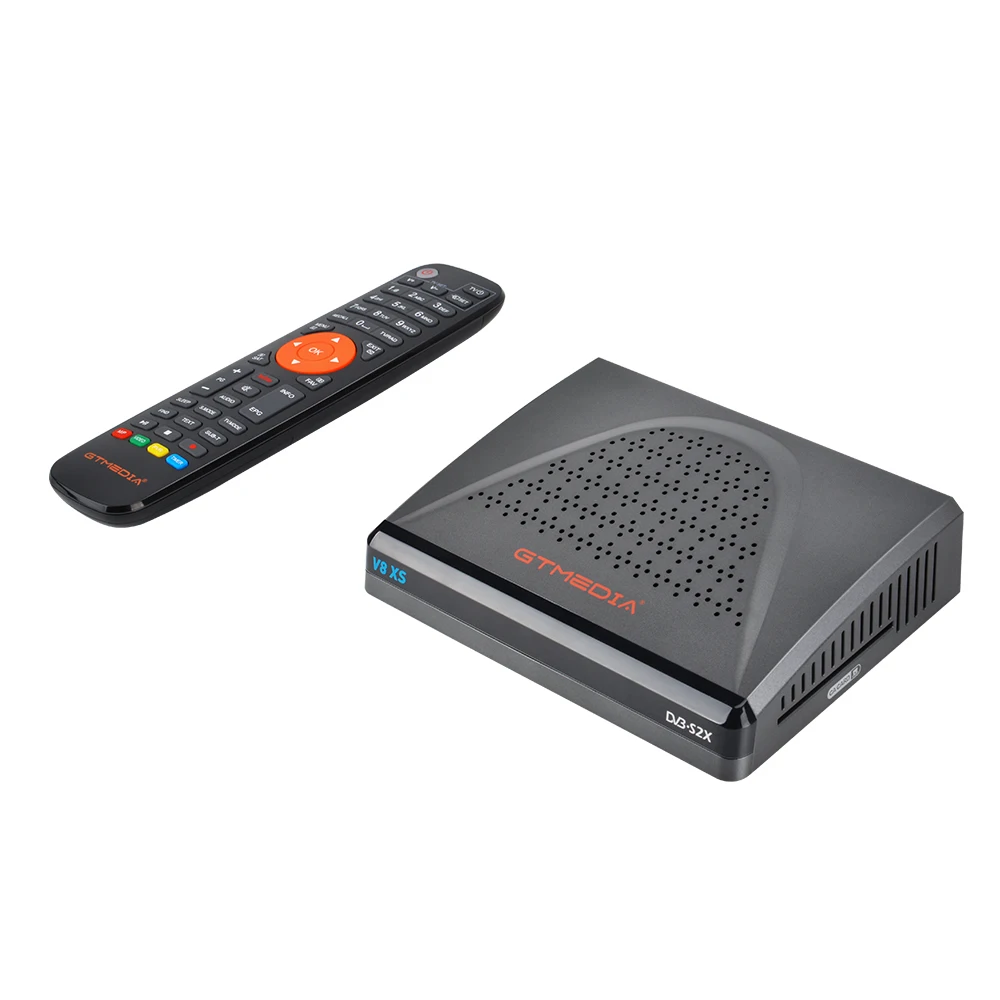

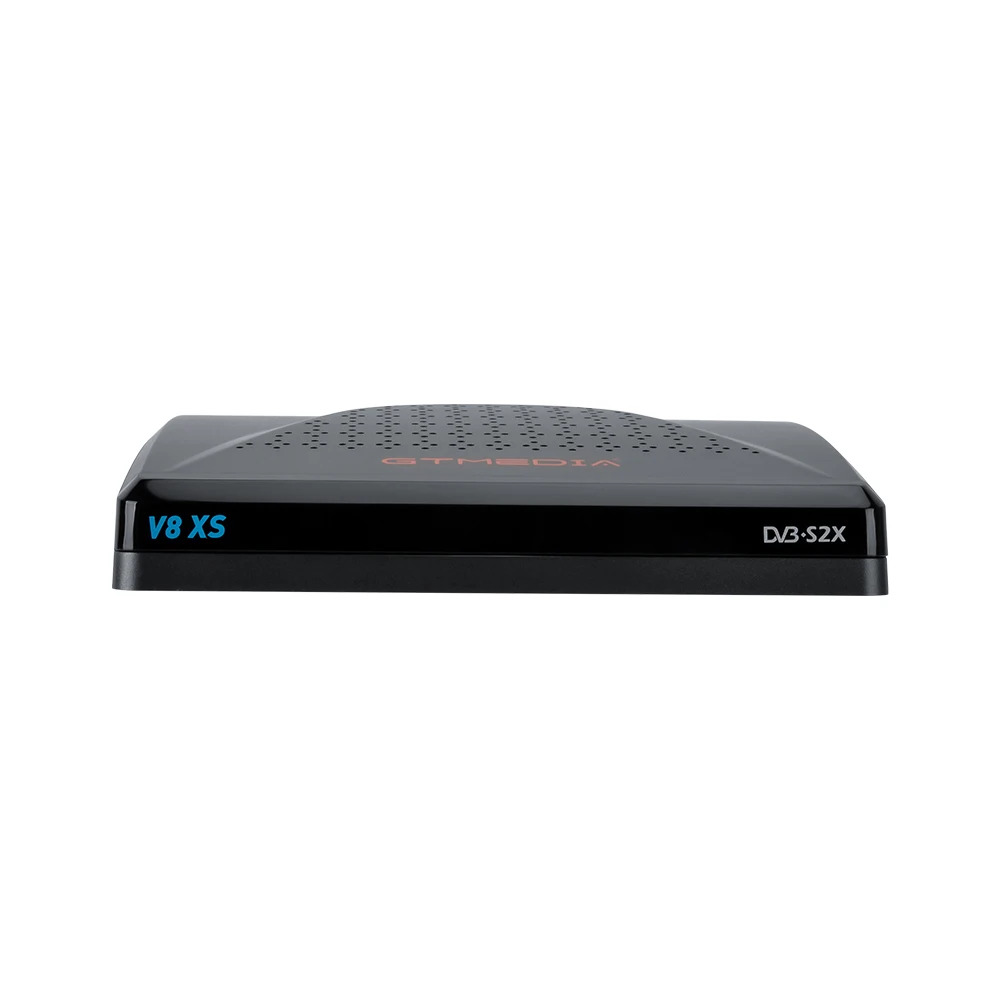

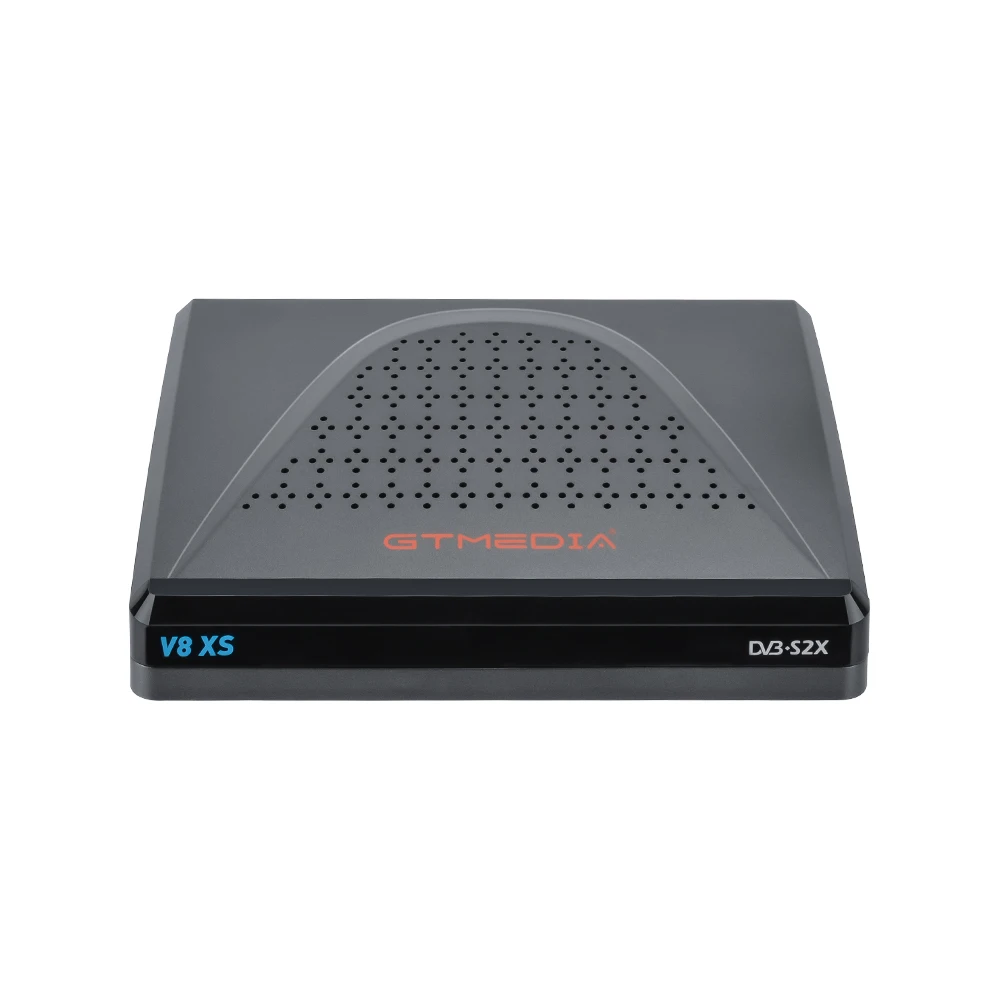

2023 New Original GTmedia V8XS H.265 FTA DVB S/S2/S2X Satellite TV Receiver VCM/ACM/multi stream/T2 MI, AVS , H.265 8bit 10bit
- Category: >>>
- Supplier: Cheersfly CO. LTD.
Share on (1600879201853):
Product Overview
Description
2023 New Arrival GTmedia V8XS H.265 FTA DVB-S/S2/S2X Satellite TV Receiver VCM/ACM/multi-stream/T2-MI, AVS+, H.265 8bit 10bit
my whats_app: +886906982803
Product Description
1.Support DVB-S/S2/S2X, VCM/ACM/multi-stream/T2-MI, AVS+, H.265 8bit 10bit
2.Support smart card CA
3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support;
"6.Support Online Movie
MEGOGO, TED,You porn, Porn hub, REDTUBE,Porn Tu be,Youtube,allplay, I TV,Tik Tok,Football World...."
7.Support APPS ( stalker You tu be IPTV Weather;);
8.Support Network Sharing Cccam,Newcam,Mgcam;
9.Technical support website : www.freesat.cn;
| 1.Support DVB-S/S2/S2X, VCM/ACM/multi-stream/T2-MI, AVS+, H.265 8bit 10bit | ||||||
| 2.Support smart card CA | ||||||
| 3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support; | ||||||
| 6.Support Online Movie MEGOGO, TED,You porn, Porn hub, REDTUBE,Porn Tu be,Youtube,allplay, I TV,Tik Tok,Football World.... | ||||||
| 7.Support APPS ( stalker You tu be IPTV Weather;); | ||||||
| 8.Support Network Sharing Cccam,Newcam,Mgcam; | ||||||
| 9.Technical support website : www.freesat.cn; | ||||||
| Note: We reserve the right to change the design and OEM/ODM supported | ||||||
| Panel display | 4-digit white LED display | |||||
| LED Indicator | Power ON :Green; Standby :Red | |||||
| Button | NOT | |||||
| LAN | 10/100 Ethernet with EPHY | |||||
| IR | Exit IR for 38KHz,Infra Remote control | |||||

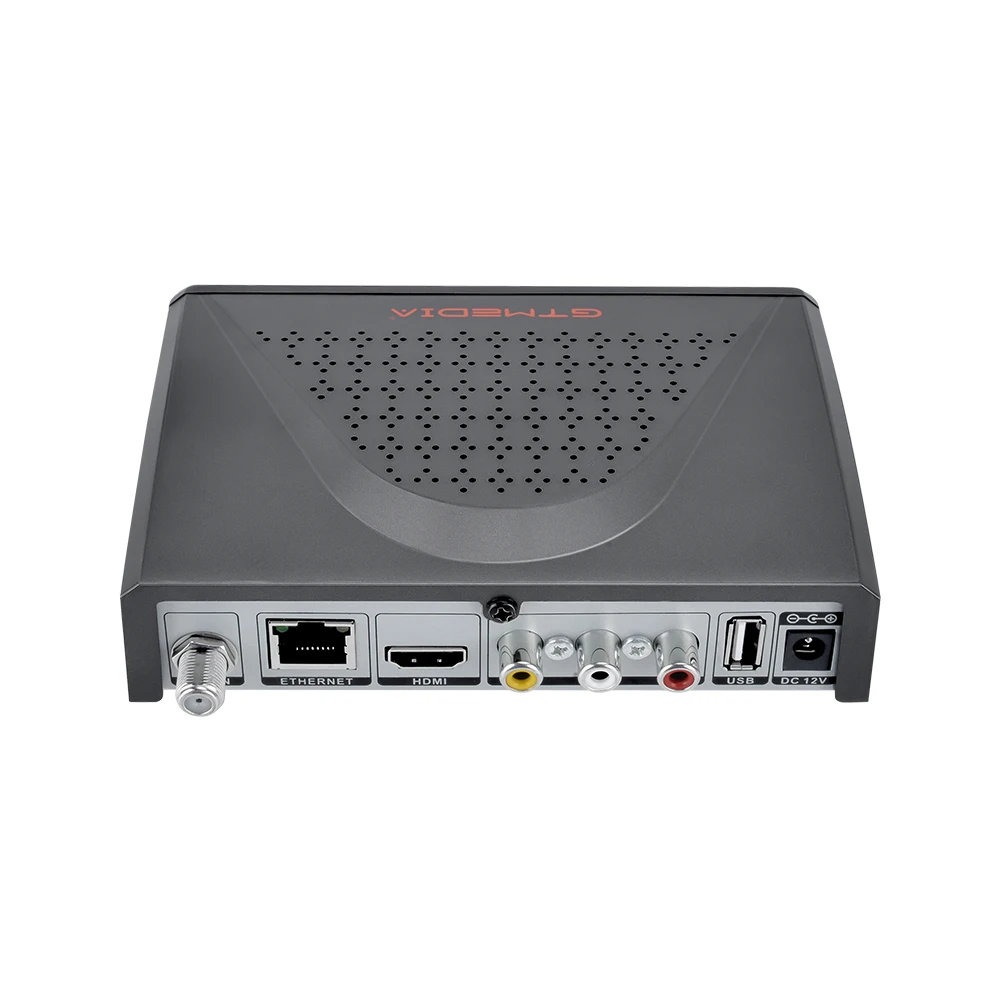

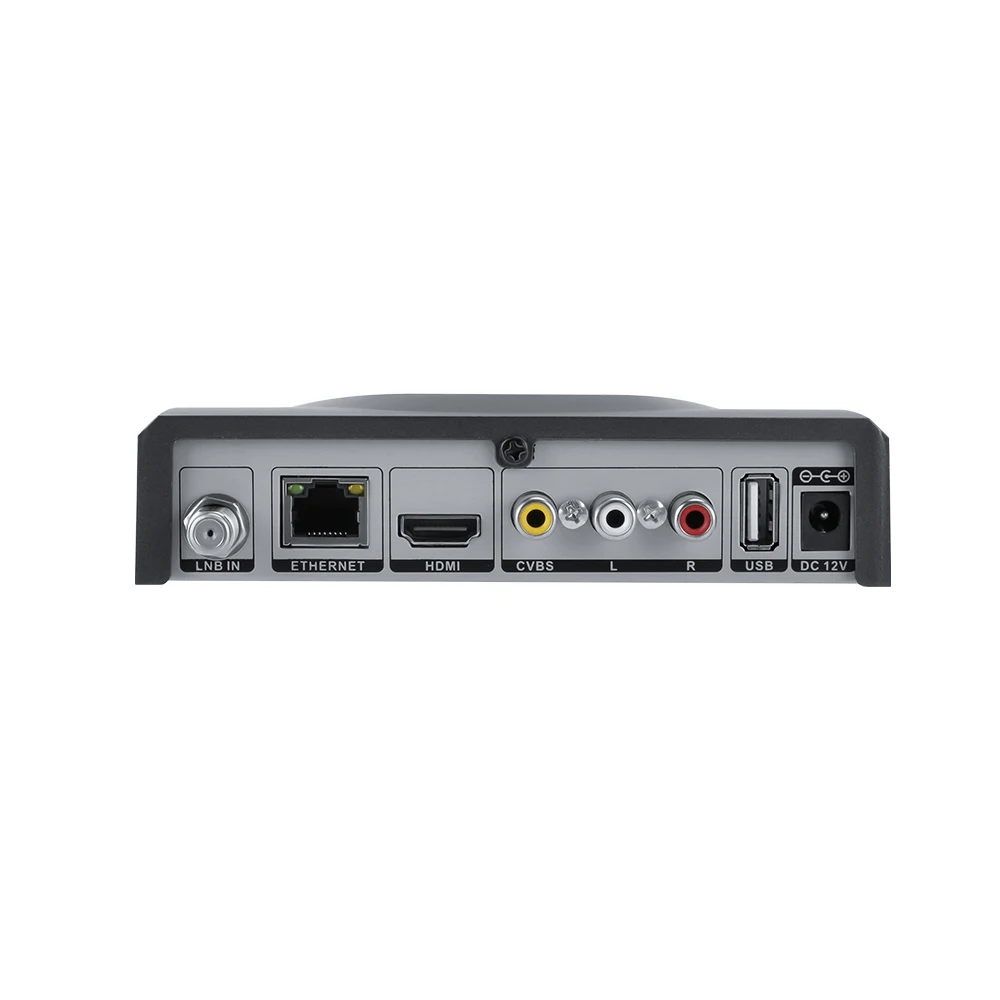

| Rear Panel | LNB IN (Frequency Range950MHz to 2150MHz) | |||||
| HD OUT (HD 1.4) | ||||||
| AV OUT (RCA*3) | ||||||
| 2*USB HOST | ||||||
| 1*RJ45 | ||||||
| 1*CA Card | ||||||
| DC IN (DC12V/1.5A) | ||||||
| CPU | NRX8600 | |||||
| Flash Memory | 64Mb SPI Flash | |||||
| DDR2 Memory | 1G bit SDRAM | |||||
| Demultiplexer | ISO/IEC 13818-1 | |||||
| Sampling rate | Up to 122MHz | |||||
| Video Decode | Advanced High Definition video decoding MPEG1/MPEG2/MPEG4/H264/H265/AVS/AV S+/VC1,MPEG1, MPEG2, MPEG4, H.264/MPEG4 AVC, VC1, H.265/HEVC on both and HD sources | |||||
| TV System | Automatic PAL/NTSC conversion | |||||
| Aspect Mode | 4:3 PS 4:3LB 16:9 Full Screen | |||||
| Audio Decode | Embedded high performance audio digital signal processor supports MPEG-1 Layer I/II/III, MPEG-2 Layer II and WMA udio playback and processing. | |||||
| Sound Mode | LEFT/RIGHT/STEREO/MONO | |||||
| Sampling Frequency | 32KHz,44.1KHz,48KHz | |||||
| Audio | PCM Mute | |||||
| System standard | EN300421,ETS 302 307 | |||||
| Frequency Range | 950~2150MHz for DVB-S/S2/S2X baseband demodulator | |||||
| LNB Power and Polarization | DiSEqC1.0/1.1/1.2/USALS Motor fully support, Support Unicable, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload | |||||
| Input Level Range | -80dBm ~ -20dBm (average power) | |||||
| Symbol Rates | DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK | |||||
| DVBS2Demodulator | Support constant coding and modulation (CCM) | |||||
| Carrier frequency acquisition range | ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates | |||||
| Symbol Rates | 1-55 MSps | |||||
| Roll-off factors | Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35 | |||||
| Code Rates | 1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6 ,8/9,9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates | |||||
| ANT. Connector | Connector:IEC TYPE F Input Impedance:75 Ω | |||||
| Standard | Embedded high performance DVB-S/S2/S2X demodulator. | |||||
| Channel Search | Support automatic network search for new added transponders | |||||
| Channels Number | 5000+ channels TV and Radio programmable | |||||
| Channel | Recording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort) | |||||
| Favorites | 8 different favorite groups selection | |||||
| OSD Language | English,French,Deutsch,Italian,Spanish,Portuguese,Russian,Polish,Swedish,Thai,Indonesia... | |||||
| OSD Color | 32-bits OSD with anti-flickering | |||||
| OSD Setting | Support OSD Timeout and Transparency, Subtitle Display, | |||||
| Other Setting | Sets up multiple habitual operation Settings | |||||
| Parental Ctrl | Parental control for channels | |||||
| Easy Menu | Plug and Play installation, with an easy to use Menu System | |||||
| EPG | Fully support to 7 days Electronic Program Guide(EPG) | |||||
| Subtitle | support DVB EN300743 and EBU | |||||
| Teletext | support DVB ETS300472 by VBI | |||||
| SoftUpgrade | Software upgrades through USB port | |||||
| Time Set | Time set by offset automatic and manual,Summer Time support | |||||
| Timer | 5 event timers,off/Once/Daily/Weekly Mode | |||||
| USB 1.0/2.0 | Support FAT/FAT32/NTFS big capacity hard disk | |||||
| PVR Option | USB 2.0 for PVR,TIMESHIFT,media files playback | |||||
| Media Codec | TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files | |||||
| Audio Codec | WMA,MP3 | |||||
| Photo Codec | JPG, BMP, PNG, GIF | |||||
| Product Dimension | 140*105*32MM(L*W*H) | |||||
| Packaged Size | 240*185*48MM | |||||
| Carton Size | 500*500*390MM (20pcs/ctn) | |||||
| Unit Weight | 0.6 Kg with gift box | |||||
| Carton Qty&Weight | 20 pcs/Carton, 13 kgs | |||||

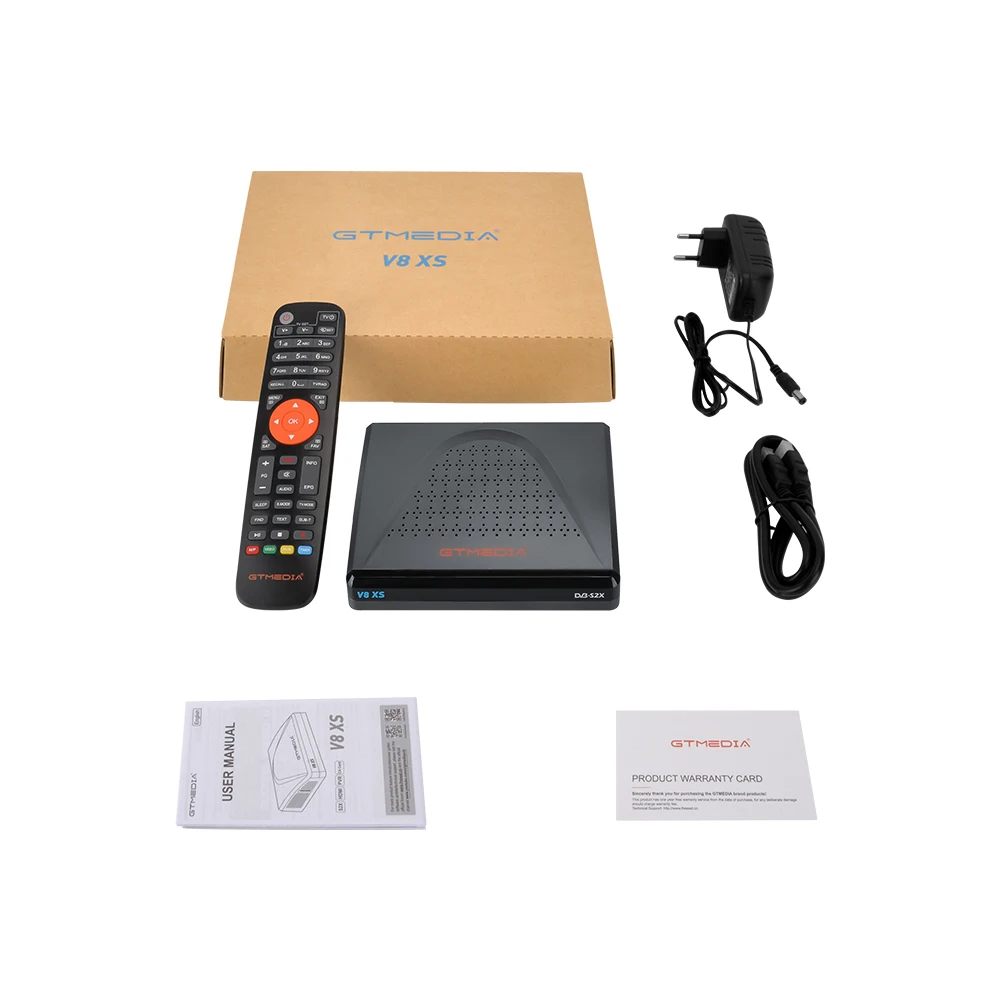

| Accessories | Gift Box, Adapter, IR remote control, Cable, User Manual,Warranty card | |||||
| Power Supply | AC 100V ~250V, 50/60Hz | |||||
| Power Consumption | 10W in operation <1 Standby Power Mode | |||||
| Temperature | Operation 0~+45℃; Storage -10~+60℃ | |||||
| Humidity | 20~90%, non-condensed | |||||
my whats_app: +886906982803
Packaging & Shipping
Our Services
NO.1---Trade Assurance
NO.2---Guarantee Superior Quality,2 Years warranty
NO.3---Promise Most Competitive Price
NO.4---Ensure Adequate Supply
NO.5---On time Delivery
NO.6---5 Times Testing Before Shipment
NO.7---Keep Tracking for Customers
NO.8---TOP After-Sale Service
NO.9---Regularly Notification About New Products
NO.10---OEM Supported
OEM:
1. Logo printing on housing (silk screening, gold blocking or laser carving)
2. Customized package box
3. Software Customization: Boot image, Boot animation, Launcher, UI, APP, Function… and so on
ODM:
1. PCBA design
2. Housing design: ID(Industrial Design),MD(Mechanic Design),Produce molding
3. Software Customization
Company Information

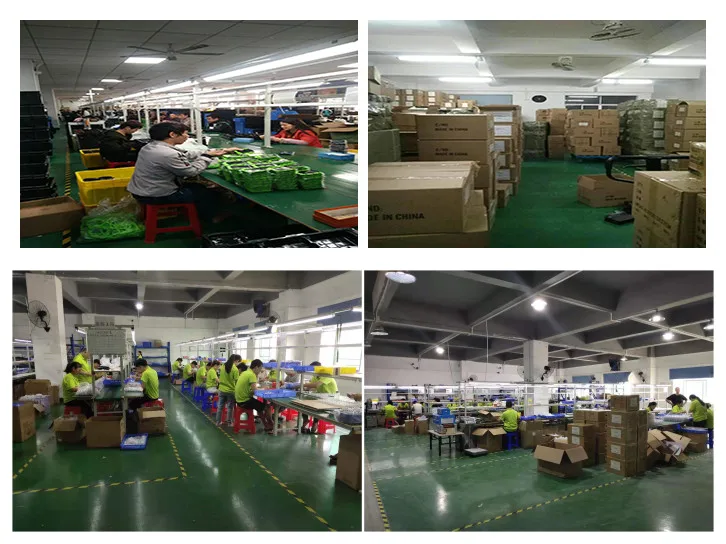

We are a professional manufacturer of android tv box with well-equipped testing equipment and strong technical force.
