Product Overview
Description

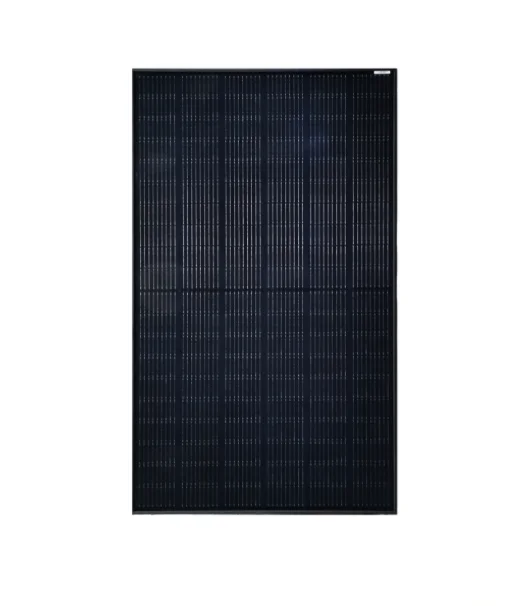

Tongwei TW All Black New-Tech 390W 400W 405W 410W suitable for European market Solar Home roof solar water pump
Specification
Electrical Parameters of Mono PERC solar panel: | ||||||||||
Maximum Power at STC (Pmax) | 390W | 395W | 400W | 405W | 550W | |||||
Optimum Operating Voltage (Vmp) | 33.8V | 34.0V | 34.2V | 34.4V | 41.96V | |||||
Optimum Operating Current (Imp) | 11.54A | 11.62A | 11.70A | 11.77A | 13.11A | |||||
Open Circuit Voltage (Voc) | 40.8V | 41.0V | 41.2V | 41.4V | 49.90V | |||||
Short Circuit Current (Isc) | 12.14A | 12.21A | 12.28A | 12.34A | 14.00A | |||||
Operating Module Temperature | -40 °C to +85 °C | |||||||||
Maximum System Voltage | 1000V/1500V DC (IEC) | |||||||||
Maximum Series Fuse Rating | 20 A | |||||||||
Power Tolerance | 0/+5 W | |||||||||
Temperature Coefficient of Pmax | -0.34%/℃ | |||||||||
Temperature Coefficient of Voc | -0.25%/℃ | |||||||||
Temperature Coefficient of Isc | 0.04%/℃ | |||||||||

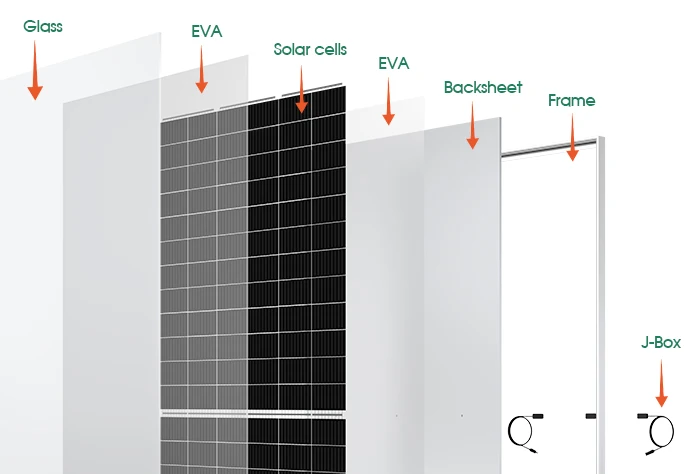

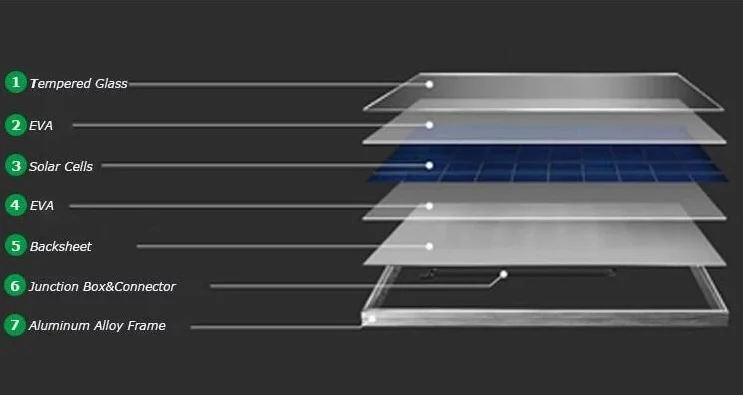

* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength

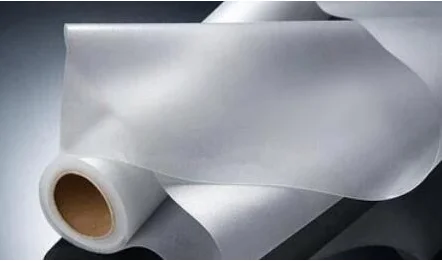

* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And
Protect Cells From Vibration With Longer
Durability
* Higher GEL Content To Provide Good Encapsulation And
Protect Cells From Vibration With Longer
Durability

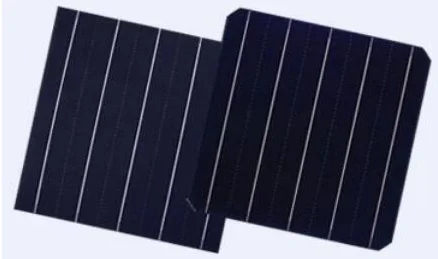

Solar cells
* A Grade Trina Solar Cells
* 93 Fingers PV Cells, Anti-Pid
* Appearance Consistency
* 93 Fingers PV Cells, Anti-Pid
* Appearance Consistency

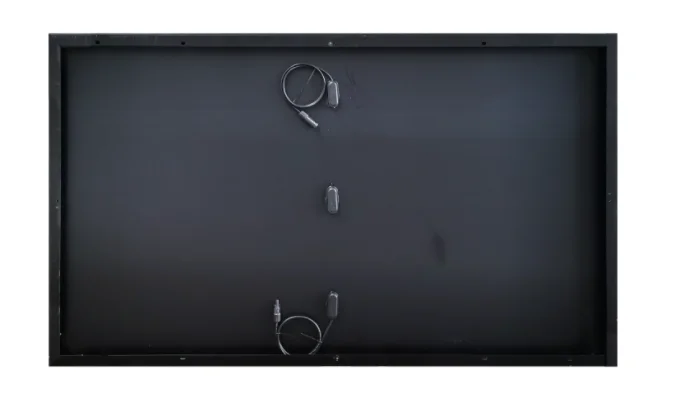

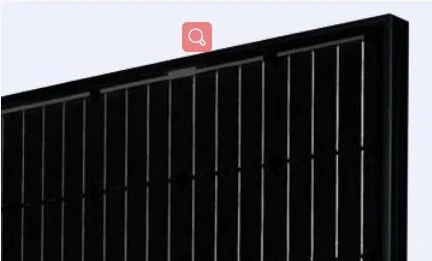

Black Frame&Black Backsheet
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black Color
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black Color

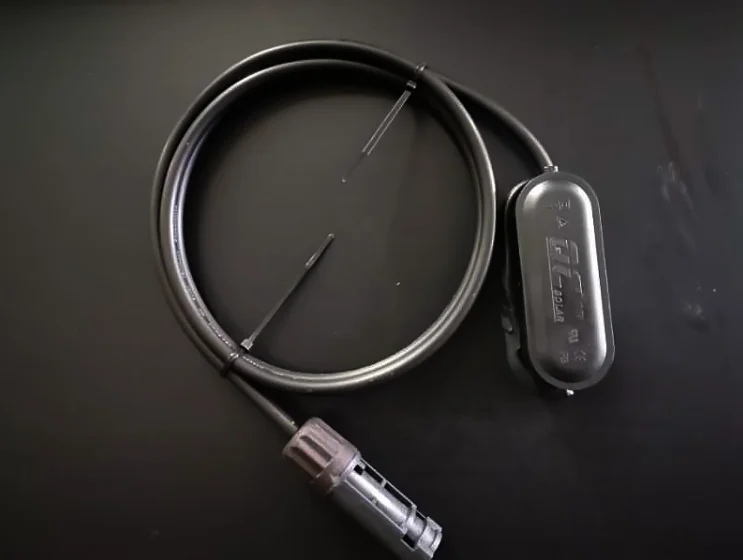

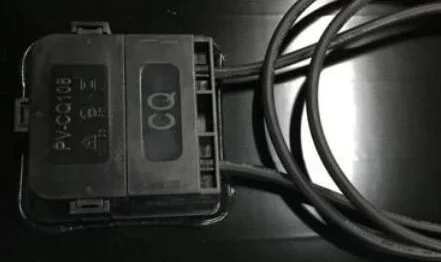

Solar Juction Box
* IP67 Waterproof, Closed
* 4mm2, 6mm2 Wire Size Range
* -40 ℃ to +85 ℃ Temperature Range
* Innovative full-glue-filled junction box
Outstanding sealability
* 4mm2, 6mm2 Wire Size Range
* -40 ℃ to +85 ℃ Temperature Range
* Innovative full-glue-filled junction box
Outstanding sealability

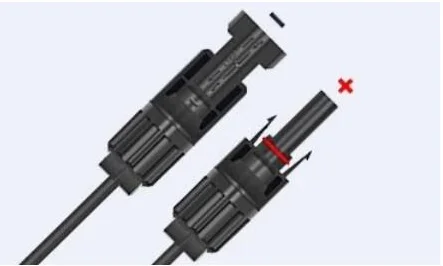

* 4mm2 Qualified cable with MC4
* 500N Tensile Strength

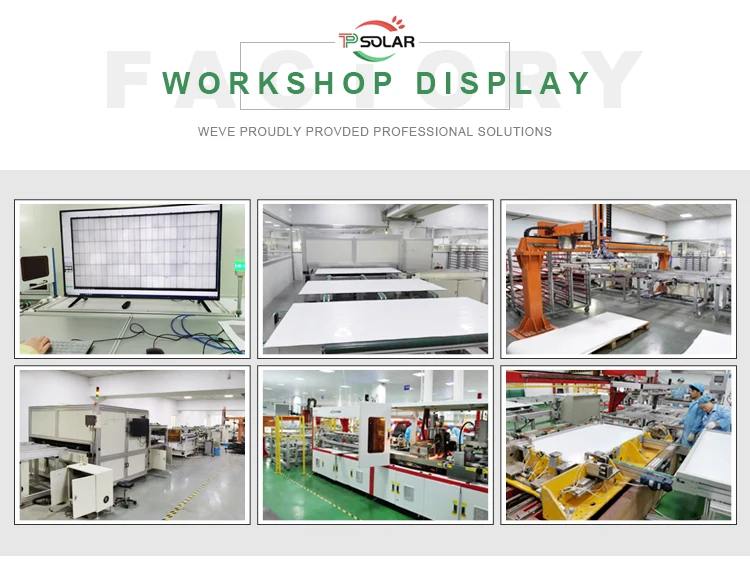

Company Profile
TOPSKY ENERGY specializes in solar industry for providing solar cells,solar poly panels, solar mono panels and solar application products and Solar PV system solutions with experience over 10 years.
TOPSKY has set up two sole-funded companies in SHENZHEN ,two operating companies in HONGKONG and one Jointed Venture in JIANGSU province successively since 2005.TOPSKY is able to provide customers with annual capacity of 300MW solar cells,400MW solar panels and 60,000 sets of solar power systems.
Main products are as follows:
*125mm 2BB mono solar cell, back-contact sunpower solar cells, 156.75/157mm poly solar cell, 158.75mm/166mm/182mm/210mm monocrystallline solar cells.
*3W-600W standard monocrystalline and polycrystalline silicon solar panel, Mono PERC half-cell solar panels, Bifacial dual glass panel solar, HJT BIFI dual glass panels.
*Solar PET/Epoxy resin/Glass panels, small mini solar panels are offered OEM and ODM service as per customers’ request.
*Exclusive channel to get solar cells and solar panels from top quality brand at more competitive price,they are Risen solar,Trina solar, Longi, Jinko solar, Csun solar, SUN POWER ,URE,MOTECH,QCELLS, SUNTECH, LONGI,BYD, GCL,etc.
TOPSKY always pursues the philosophy of people -oriented and energy-saving as well as cost effectiveness to create long term value for customers.

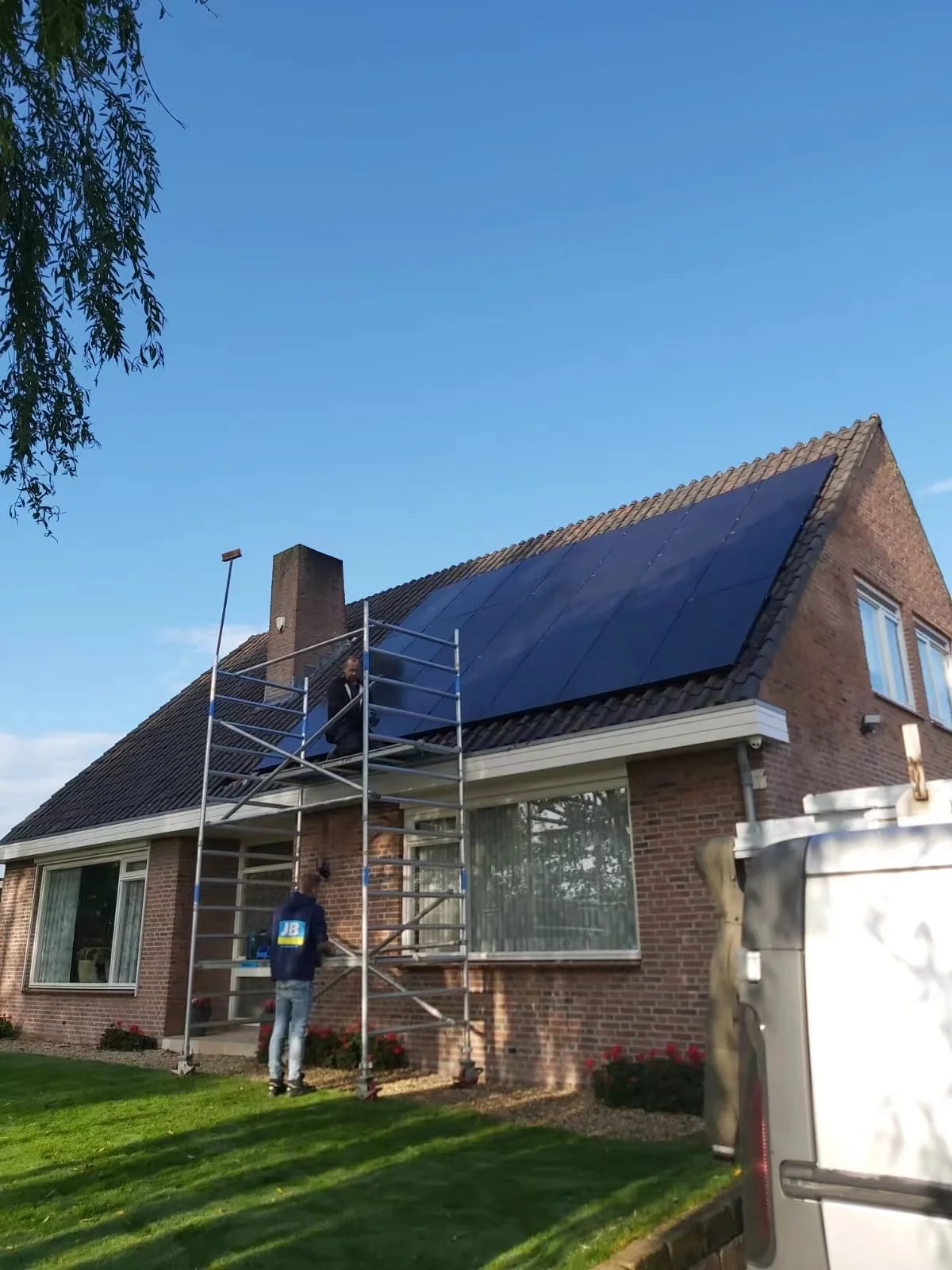

Project Case
Packing & Delivery
FAQ
Q: What kind of certification of solar cell panel do you have?
A: Power from 3W to 550w panel solar with TUV,IEC61215/IEC61730,CEC,CE,UL,ETL,PID,ISO.MCS,etc.
Q: What is the warranty of solar panels?
A: 10 years warranty on material and workmanship, 25 years power warranty (90% power output in 10 years,80% in 25 years)
Q: Can you quote me the best price of solar cells solar panel?
A: We need more information about your demands, such as the power/material/Qty/etc, then We can suggest the suitable type and quote the best price for you.
Q: Can I just order some samples of small quantity?
A: Sample order in small quantity is acceptable.
A: Power from 3W to 550w panel solar with TUV,IEC61215/IEC61730,CEC,CE,UL,ETL,PID,ISO.MCS,etc.
Q: What is the warranty of solar panels?
A: 10 years warranty on material and workmanship, 25 years power warranty (90% power output in 10 years,80% in 25 years)
Q: Can you quote me the best price of solar cells solar panel?
A: We need more information about your demands, such as the power/material/Qty/etc, then We can suggest the suitable type and quote the best price for you.
Q: Can I just order some samples of small quantity?
A: Sample order in small quantity is acceptable.
