Energy Saving 300l all in one air source heat pump hot water heater
- Category: >>>
- Supplier: Guangzhou Sunshine New Energy Co. ltd.Guangzhou ltd.
Share on (1600879409824):
Product Overview
Description
Product Description
HEAT PUMP TYPE | Sunshine All in one Hot Water Heat Pump |
MANUFACTURER | Guangzhou Sunshine New Energy Co., Ltd. |

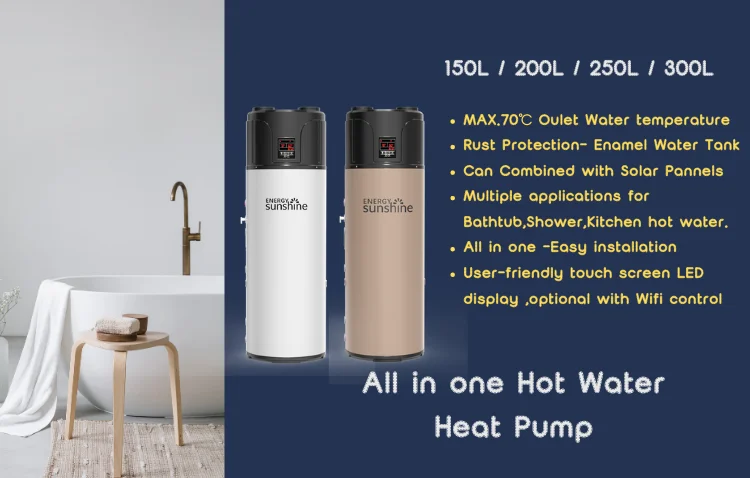

Water tank Volume: | 150liter /200 liter /250liter /300 liter available Please kindly contact us for more details. |
FACTORY SCALE | 380,000m2 workshop , 500,000 units producing ability, 210,000 units sold in 2019 |
HEAT PUMP FUNCTION | Domestic Hot Water multipoint supply for Bath / Shower /Kitchen |
EFFICIENCY | Cop 3.82 - 3.85 at Ambient temperature ﹣7～45℃ |
EXTRA SERVICES | OEM / ODM Service available. |
SUNSHINE Energy All in one Hot Water Heat Pump.
2. Tank-Wrapped condenser coil ,Keeping the condenser coil outside the tank allows efficient heat transfer while avoiding contamination of the water.
3. Compressor and tank all in one ,Compact structure and space saving ,Easy to Install
4. R134a refrigerant ,reductions in greenhouse gas emissions.
5. Energy-Efficient ,saving electricity 75%.
6. Max.output 75℃ hot Water.
7. High recovery rate for fast heating and 2kW back-up element for emergency heating
8. Suitable for cold climates (-7 to 43+ degrees)
9. user-friendly touch screen LED display ,optional with Wifi control
10. Optional connect with solar thermal panels (solar PV / solar collector) ,best energy saving .

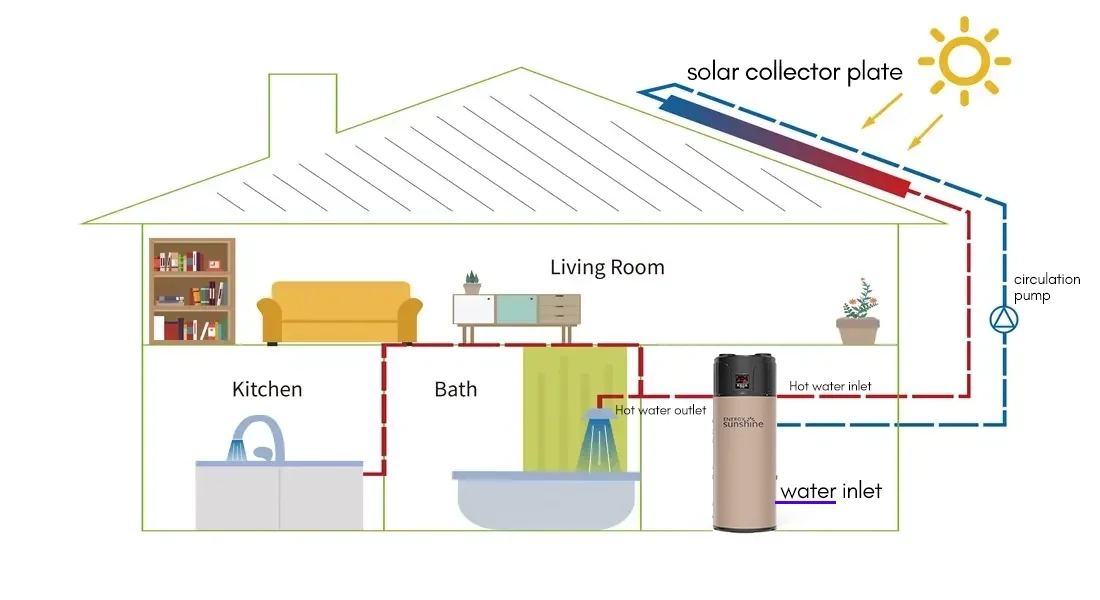

Application Diagram
The heat pump water heater can cambine with Solar panel.
The Solar pannel is optional ,it's up to you , the price not including the solar panel.
The Solar pannel is optional ,it's up to you , the price not including the solar panel.
Product Parameter
SS-RW/150 | SS-RW/200 | SS-RW/250 | SS-RW/300 | |
Water tank Volume: | 150L | 200L | 250L | 300L |
Heating capacity | 1.8KW | 1.8KW | 2.42KW | 2.42KW |
Hot Water Volume(L/h) | 39L/h | 39L/h | 52L/h | 52L/h |
Rated outlet water temperature: | 55℃ | 55℃ | 55℃ | 55℃ |
Maximum outlet temperature: | 70°C | 70°C | 70°C | 70°C |
Auxiliary electric heating | 2000W | 2000W | 2000W | 2000W |
Ambient temperature: | ﹣7～45℃ | ﹣7～45℃ | ﹣7～45℃ | ﹣7～45℃ |
Power Supply | 220～240V/50Hz | 220～240V/50Hz | 220～240V/50Hz | 220～240V/50Hz |
Rated input power | 470W | 470W | 623W | 623W |
Maximum input power including Auxiliary electric heating | 2685W | 2685W | 2890W | 2890W |
Waterproof protection level: | IPX4 | IPX4 | IPX4 | IPX4 |
Maximum operating current | 12.2A | 12.2A | 13.4A | 13.4A |
COP | 3.82 | 3.82 | 3.88 | 3.88 |
Refrigerant | R134a | R134a | R134a | R134a |
Compressor | 12.5 CC (GMCC/rotor type) | 12.5 CC (GMCC/rotor type) | 17.4 CC (Panasonic/Rotor) | 17.4 CC (Panasonic/Rotor) |
Shell type | Galvanized sheet spraying | Galvanized sheet spraying | Galvanized sheet spraying | Galvanized sheet spraying |
Liner type | Enamel | Enamel | Enamel | Enamel |
Heat Exchange Tube Type | Two-way φ7 copper tube 50 meters | Two-way φ7 copper tube 50 meters | Two-way φ7 copper tube 69 meters | Two-way φ7 copper tube 69 meters |
Inlet and outlet pipe size | G1/2" | G1/2" | G3/4" | G3/4" |
Built-in pressure protection | 0.8MPa | 0.8MPa | 0.8MPa | 0.8MPa |
Noise: | ≤52dB(A) | ≤52dB(A) | ≤53dB(A) | ≤53dB(A) |
Product Dimensions(mm) | φ570*1521 | φ570*1803 | φ640*1810 | φ640*2015 |
Net Weight (KGS) | 75kg | 96kg | 123kg | 141kg |
Our Advantages

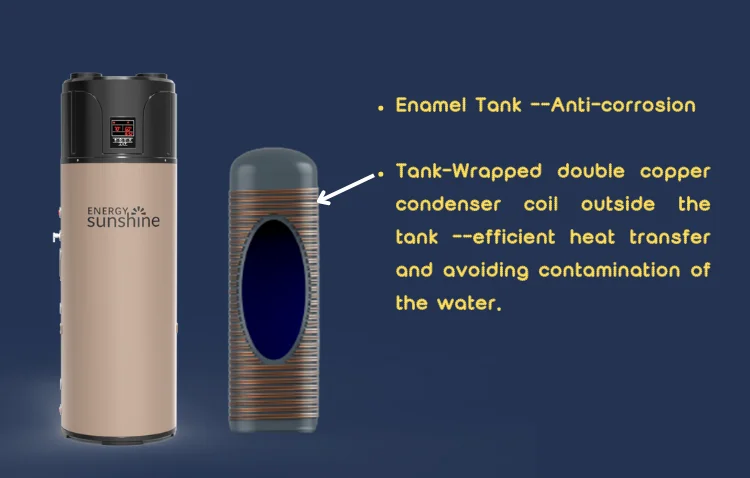

Enamel Tank,resistant to rust and no furring ,Suitable for harsh water conditions.
Tank-Wrapped condenser coil ,Keeping the condenser coil outside the tank allows efficient heat transfer while avoiding contamination of the water.
Tank-Wrapped condenser coil ,Keeping the condenser coil outside the tank allows efficient heat transfer while avoiding contamination of the water.
R134a refrigerant ,reductions in greenhouse gas emissions.
Energy-Efficient ,saving electricity 75%.
Max.output 70℃ hot Water.
High recovery rate for fast heating and 2kW back-up element for emergency heating

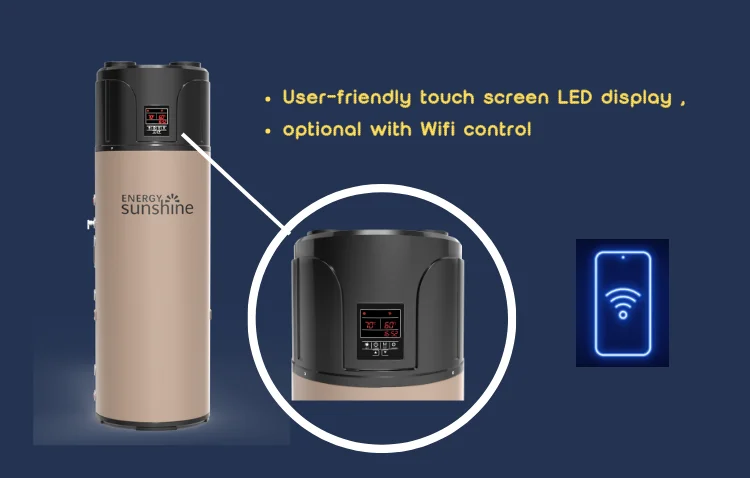

User-friendly touch screen LED display ,optional with Wifi control
Installation

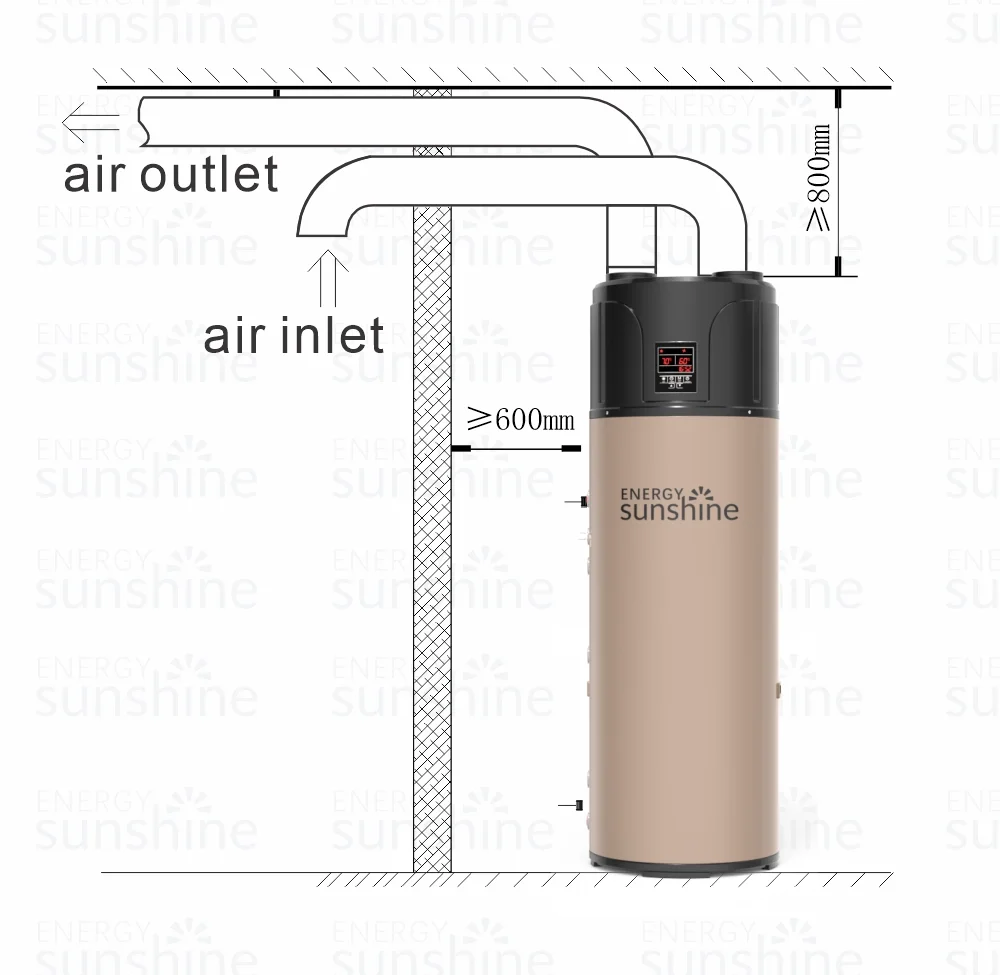

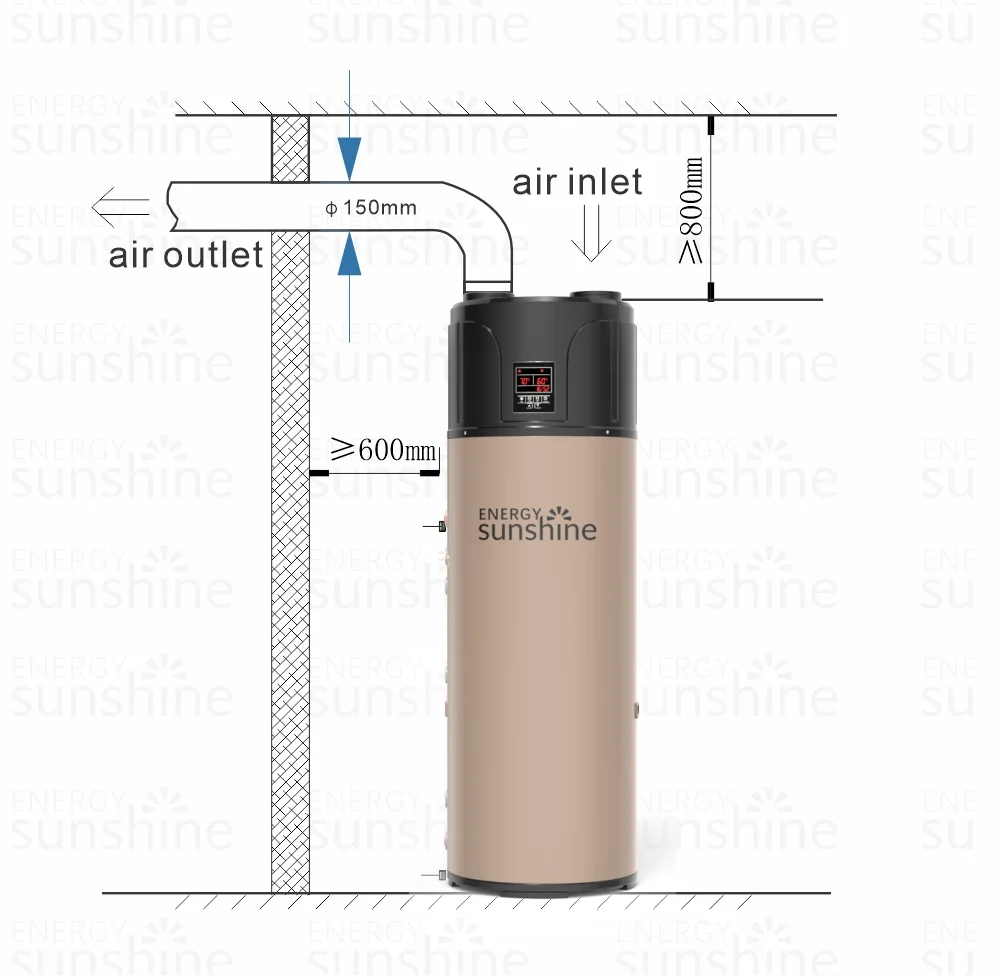

This heat pump unit can be installed at veranda, hallway or other place where is easy to install and stable. The air inlet and outlet are at the top side, main unit should not be placed at an open air. Avoid the rain or debris to enter the vents. As below ,

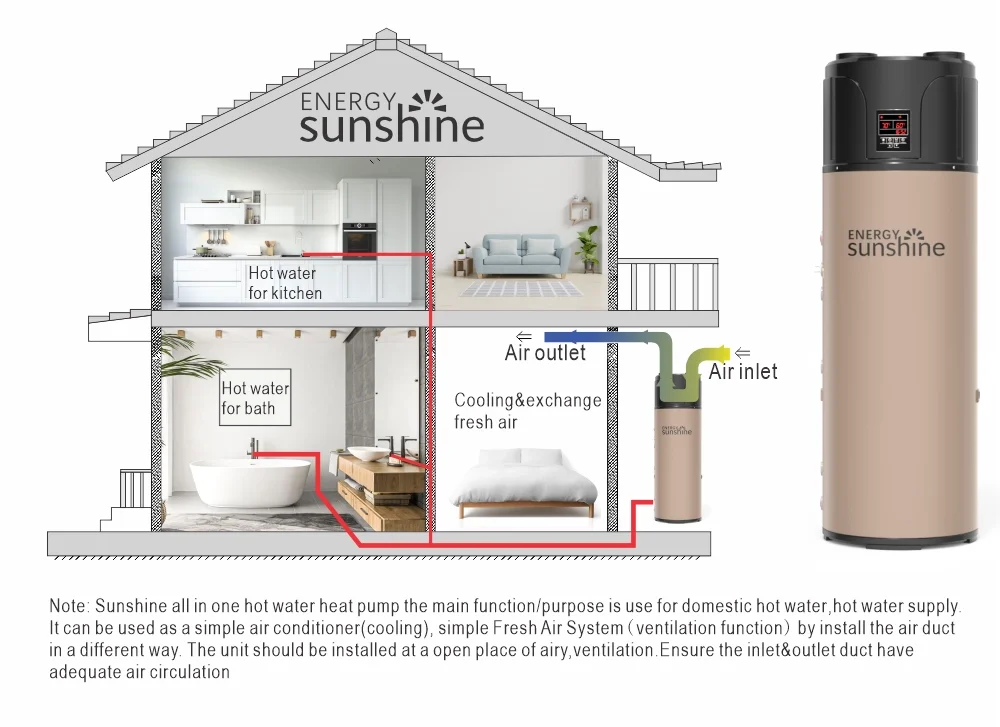

When install as above， only connect the air inlet or outlet, the unit should be installed at a place of ventilation, and the side connected with water pipes should has enough space. Then, if the unit is installed besides the room, it can be connected the air outlet duct to the room for exchange fresh air and cooling function; If the unit is installed in the room, it can be pulled out room’s air for ventilation function

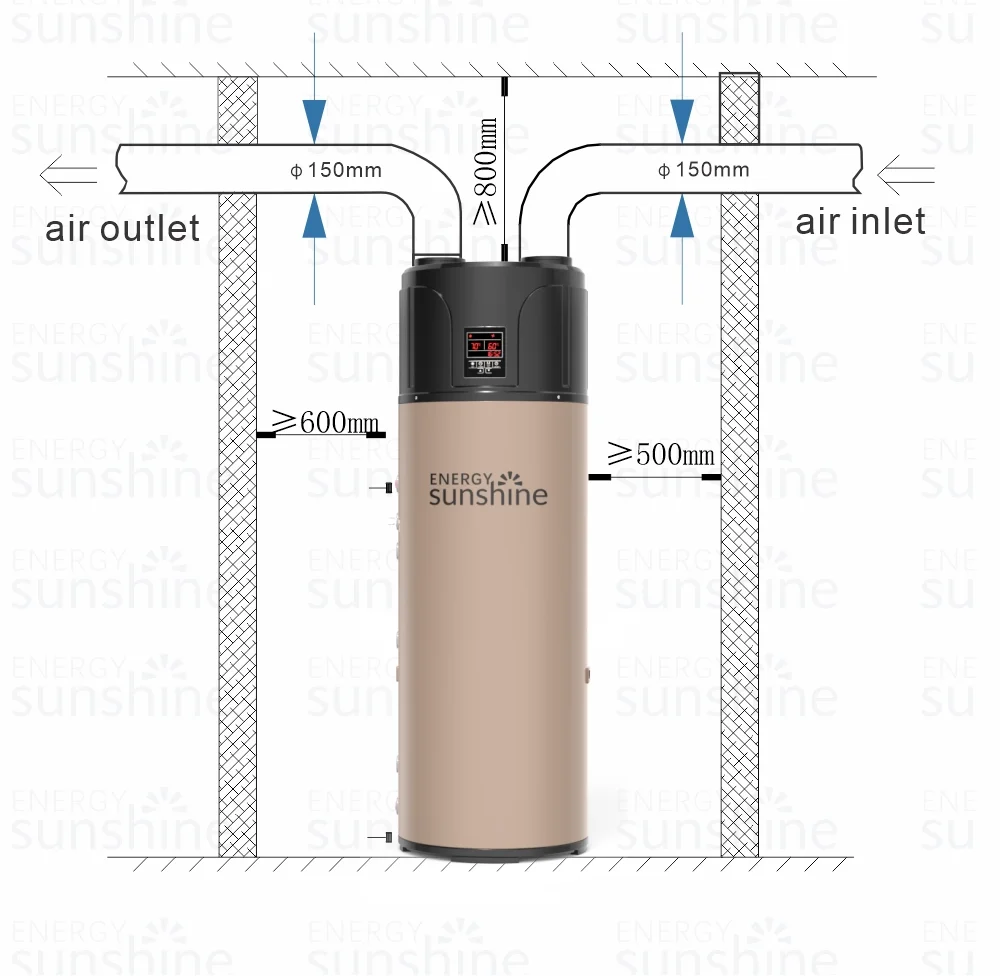

If install as above , the unit can be installed by the middle of the wall, and connect the air inlet and outlet
pipe for air exchange. The distance of the unit and wall or other obstacle should not be too short. Keep
a certain distance.
pipe for air exchange. The distance of the unit and wall or other obstacle should not be too short. Keep
a certain distance.

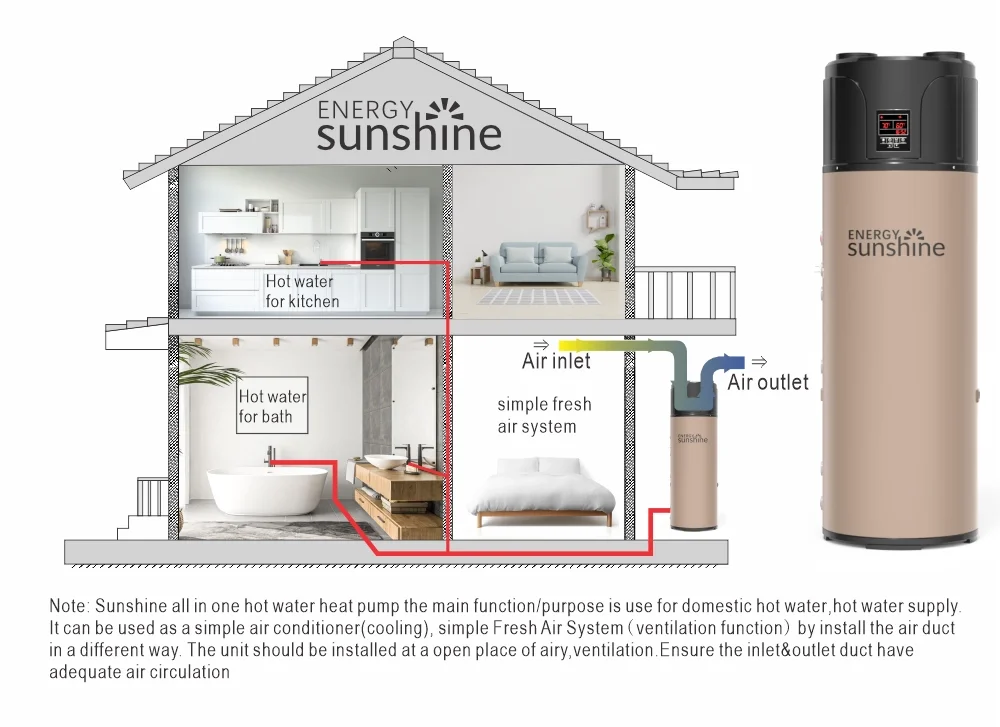

If install as above, the unit is installed outside the room, the
air inlet and outlet is connected indoor for air exchange
(and cooling). In this way, the indoor air inlet and outlet
should have a distance ≥2m to avoid mix air.
air inlet and outlet is connected indoor for air exchange
(and cooling). In this way, the indoor air inlet and outlet
should have a distance ≥2m to avoid mix air.

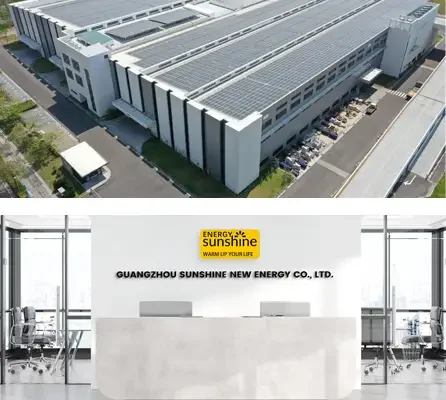

About Sunshine
Sunshine is one of the most professional manufacturers of heat pumps in Guangzhou, China, and targeting the global market. We are
specialized in research and development, manufacturing and marketing of Pool Heat Pumps, DHW Heat pumps and Multifunctional Heat Pumps for house hot
water, heating and cooling, which largely used in integrated energy-saving solutions of Residence, Commerce and Industry.
specialized in research and development, manufacturing and marketing of Pool Heat Pumps, DHW Heat pumps and Multifunctional Heat Pumps for house hot
water, heating and cooling, which largely used in integrated energy-saving solutions of Residence, Commerce and Industry.
In last years we have sold over 6,800,000 units to Europe, North America, Southeast Asia and South Africa
RESEARCH AND DEVELOPMENT
We focus on the latest heat pump search and development base on the latest market trend and clients needs.
Your inspiration & fantasy idea are so important to us we cherish, long for to know every thought on the products
Your inspiration & fantasy idea are so important to us we cherish, long for to know every thought on the products
RESEARCH AND DEVELOPMENT
We offer OEM solutions for clients to let our clients have their own product appearance, packages, brand, even any DIY thoughts here would be about come true. Your idea, we are the implementer.
RESEARCH AND DEVELOPMENT
We also offer ODM service for you.
If you have any special needs to have your own totally new heat pump, such as new functions, redesign solution that make your product are the different. the unique dream machine.
Packages and shipping
FAQ
Q: What 's your shipping method and how can I get my goods ?
A: We can ship the goods to your door via sea, air, train, such as LCL sea to port, air freight to air port, or DDP(Deliver to your door with clearance done, duties paid )/DDU(Deliver to your door with duties unpaid)
Q: Can you do OEM for me? What about ODM?
A:Yes sure we can offer OEM & ODM service for you, for more details please kindly contact our staff:)
Q: Are you heat pump supplier of trading company or manufacturer ?A: We are R&D and manufacturer factory. With 480,000 sq meters modern factory in Guangzhou City, Foshan city & Dongguan City. For OEM service, MOQ> 20 Units; ODM services MOQ 60units
Q: How long is your Heat Pump leading time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q: Do you also provide other kind of heat pump?
A: ASHP of EVI(9KW-132KW) | SWIM POOL(5KW-150KW) I Domestic heat pump(80L-300L tank size) I etc...
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shipment.
AIibaba trade assurance payment available. L/C Payment available only with 1 million+ USD dealing amount.
A: ASHP of EVI(9KW-132KW) | SWIM POOL(5KW-150KW) I Domestic heat pump(80L-300L tank size) I etc...
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shipment.
AIibaba trade assurance payment available. L/C Payment available only with 1 million+ USD dealing amount.
Q:How to choice Sunshine heat pump according to my house area?
A: Here is the data for reference. For different purpose and different environment application, the capacity may be different.
DC Inverter Monoblock Heat Pump 10KW (60-100m2) SS-R32/3P-10 DC Inverter Monoblock Heat Pump 15KW (100-150m2) SS-R32/5P-15 DC
Inverter Monoblock Heat Pump 20KW (150-200m2) SS-R32/6P-20 DC Inverter Monoblock Heat Pump 26KW (190-250m2) SS-R32/8P-26 DC
Inverter Monoblock Heat Pump 31KW (300-350m2) SS-R32/10P-31For more details please kindly check with our staff ;)
Inverter Monoblock Heat Pump 20KW (150-200m2) SS-R32/6P-20 DC Inverter Monoblock Heat Pump 26KW (190-250m2) SS-R32/8P-26 DC
Inverter Monoblock Heat Pump 31KW (300-350m2) SS-R32/10P-31For more details please kindly check with our staff ;)
