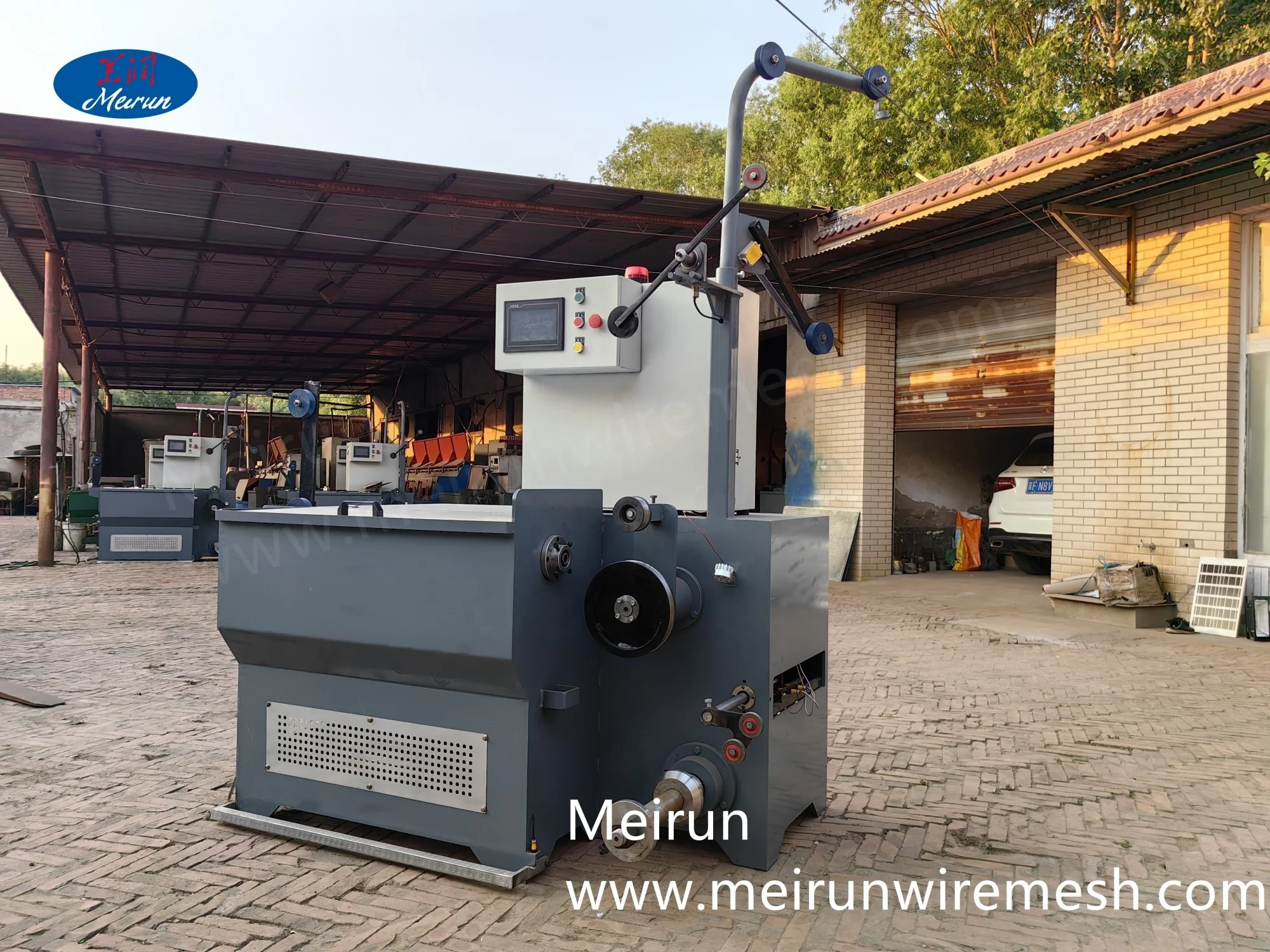

CNC Machine Equipment Copper Wire Drawing Machine
- Category: >>>
- Supplier: Hebei Meirun Wire Mesh Products Co. Ltd.
Share on (1600879413165):
Product Overview
Description
Product Description
Wire drawing making machine
1.This type of machine under finished product line has high quality, smooth surface and thickness evenly, which take good cooling system, water cooling and air cooling, good quality high reliability, low shutdown.
2.This type uses PLC with frequency conversion speed regulation, converient operation.
3.Structure includes hydraulic pay-off, hydraulic descaler, brshes descaler, main blocks, hydraulic take-up machine.
4.Detail part can be design and require by your detail need.
2.This type uses PLC with frequency conversion speed regulation, converient operation.
3.Structure includes hydraulic pay-off, hydraulic descaler, brshes descaler, main blocks, hydraulic take-up machine.
4.Detail part can be design and require by your detail need.
5. Suitable for drawing stainless steel, copper, iron and other materials
Specification
es./Type | MR9-900 | MR9-800 | MR9-700 | MR10-600 | MR10-400 |
Drum Dia./mm | 900 | 800 | 700 | 600 | 400 |
Drawing Passes/time | 9 | 9 | 9 | 10 | 10 |
Max.Inlet Wire Dia./mm | 8-14 | 8-10 | 6.5-8 | 5.5-6.5 | 1.8-2.5 |
Min.Outlet Wire Dia./mm | 3-5 | 3-4 | 2.5-3 | 1.8-2 | 0.75-1 |
Drawing Speed m/min | 300 | 360 | 480 | 750 | 840 |
Inlet Wire Strength/kg/mm2 | Max.1300 | Max.1300 | Max.1300 | Max.1300 | Max.1300 |
Total Compressibility% | 85.94-87.24 | 84-85.94 | 85.21-85.94 | 89.29-90.53 | 87.24 |
Average Compressibility% | 19.58-20.48 | 18.42-19.58 | 19.13-19.58 | 21.00-21.02 | 18.61 |
Motor Power/kW | 90-110 | 55-90 | 55-75 | 22-37 | 7.5-15 |
