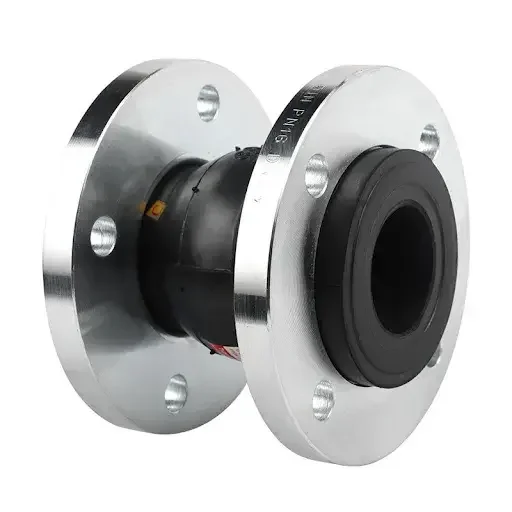

3inch Single Ball Sphere Flexible Rubber Expansion Joint with PN16 flange
3inch Single Ball Sphere Flexible Rubber Expansion Joint with PN16 flange
3inch Single Ball Sphere Flexible Rubber Expansion Joint with PN16 flange
3inch Single Ball Sphere Flexible Rubber Expansion Joint with PN16 flange
3inch Single Ball Sphere Flexible Rubber Expansion Joint with PN16 flange
3inch Single Ball Sphere Flexible Rubber Expansion Joint with PN16 flange
3inch Single Ball Sphere Flexible Rubber Expansion Joint with PN16 flange

3inch Single Ball Sphere Flexible Rubber Expansion Joint with PN16 flange

Share on (1600879516082):


Price:$4.00 - $5.00

Quantity:


Product Overview

Description

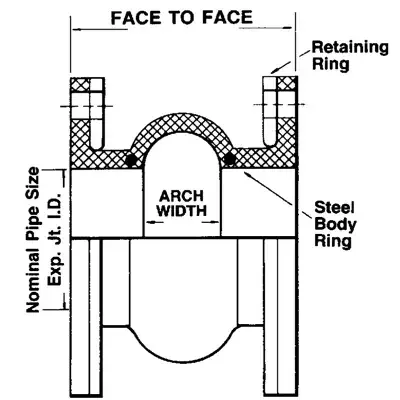

Product Presentation


DN
Lamp cap
Length
Axial displacement
Axial displacement
Horizontal
Deflexion angle
mm
inch
mm
Extension(mm)
compression(mm)
displacement(mm)
32
1 1/4''
95
130
150

6
9
9
15°
40
1 1/2''
95
130
150
200
6
10
9
15°
50
2''
105
130
150

7
10
10
15°
65
2 1/2'''
115
130
150

7
13
12
15°
80
3''
130
130
150

8
15
12
15°
100
4''
150
130
150

10
19
13
15°
125
5''
165
130
150

12
19
13
15°
150
6''
180
130
150
200
12
20
14
15°
200
8''
210
130
150
200
16
25
22
15°
250
10''
230
130
150
200
16
25
22
15°
300
12''
245
130
150
200
16
25
22
15°
350
14''
255
130
150
200
16
25
22
15°
400
16''
255
130
150
200
16
25
22
15°
450
18''
255
200
16
25
22
15°
500
20''
255
200
16
25
22
15°
600
24''
260
200
16
25
22
15°
700
28''
260

16
25
22
15°
800
32''
260

16
25
22
15°
900
36''
260

16
25
22
15°
1000
40''
260

18
26
24
15°
1200
48''
260

18
26
24
15°
1400
56''
350

20
28
26
15°
1600
64''
350

25
35
30
10°
1800
72''
350

25
35
30
10°
2000
80''
420

25
35
30
10°
2200
88''
420

25
35
30
10°
2400
96''
420

25
35
30
10°
2600
104''
450

25
35
30
10°
2800
112''
450

25
35
30
10°
3000
120''
500

25
35
30
10°


Product Description




FEATURES:

1.Floating flanges, with either standard threaded holes for easy installation,drilled holes
2.Available in multiple rubber elastomers from stock

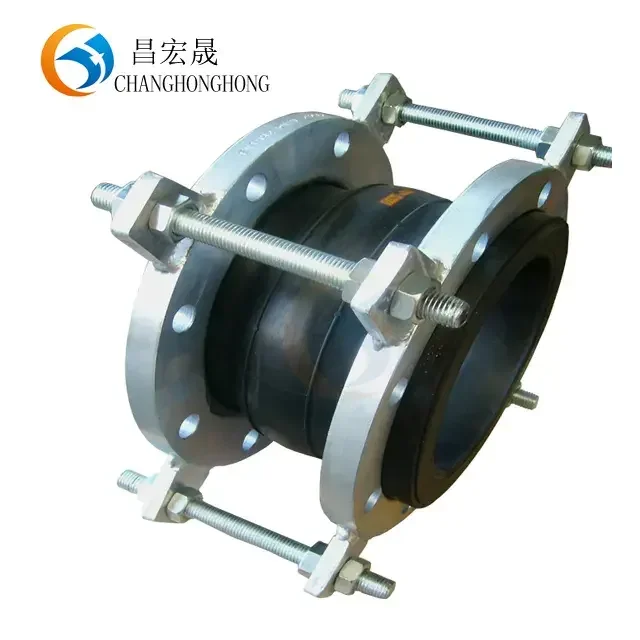

3.Available with optional control unit tie rods to prevent overextension
Moves in both axial and lateral offset directions

APPLICATIONS:

1.Flexible pump and other equipment connectors

2.Thermal expansion and settlement for lower temperature, chemically compatible systems



1.Outer/inner Rubber
EPDM,CR,NBR,BR,BR+CR,FKM ,IIR,PTFE,Neoprene

2.Lining
EPDM,CR,NBR,IIR,PTFE,Neoprene

3.Frame
Hard steel wire Strand

4.Flange material
ANSI150,JIS10K,JIS5K,DIN,UNI,BS4504,EN1092

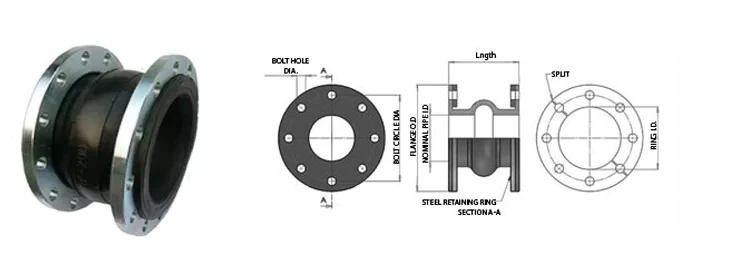

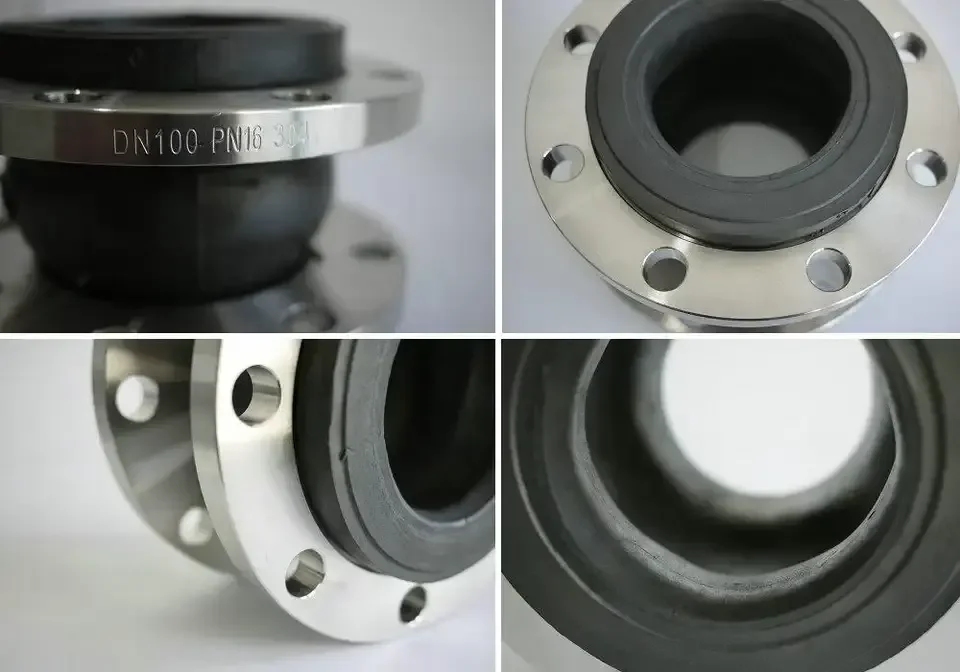

Details Images


Advantage of the rubber :

1.More than 55% rubber content
3.Enough nylon layers to ensure high pressure resistance
2.Cooper plated steel wire 10 layer of Nylon cord
4.Smooth sealing surface

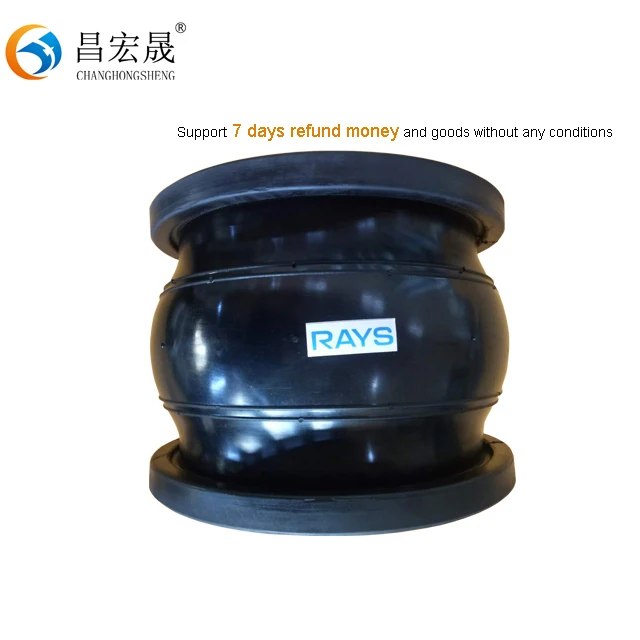

Advantage of the rubber ball:

1.Mirror-like appearance
2.Have special lengths.Different length molds for every size
3.No leakage.
4.EPDM,NR,NBR,PTFE,BR,CR,BR+CR,FKM,Sylopute.


Advantage of flange:

1.Hot-dip galvanizing floating flanges
2.Flange material:Carbon steel,Low Temp carbon steel,SS,Duples SS,Low Alloy Steel,Cast Iron,Ductile Iron
3.Have a certain corrosion resistance
4.No rust,No thin,No sand holes,


Advantage of rubber joint:


1.Service life up to 3 years.
2.Strong acid and alkali resistance,wear resistance,oil resistance,over food
3.More than 1600 sets of molds with diameter from DN15-DN4000,can meets customized need 100%.

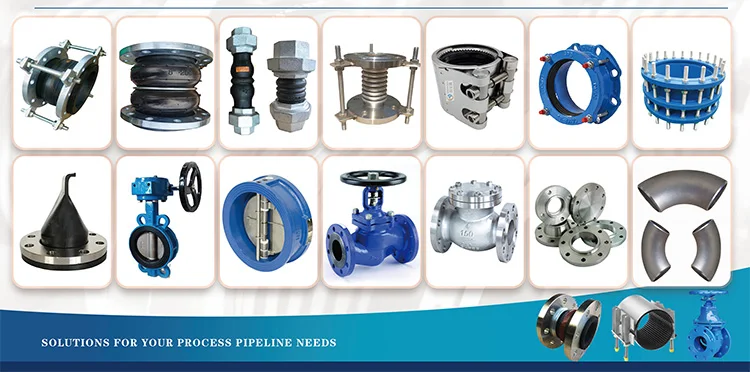

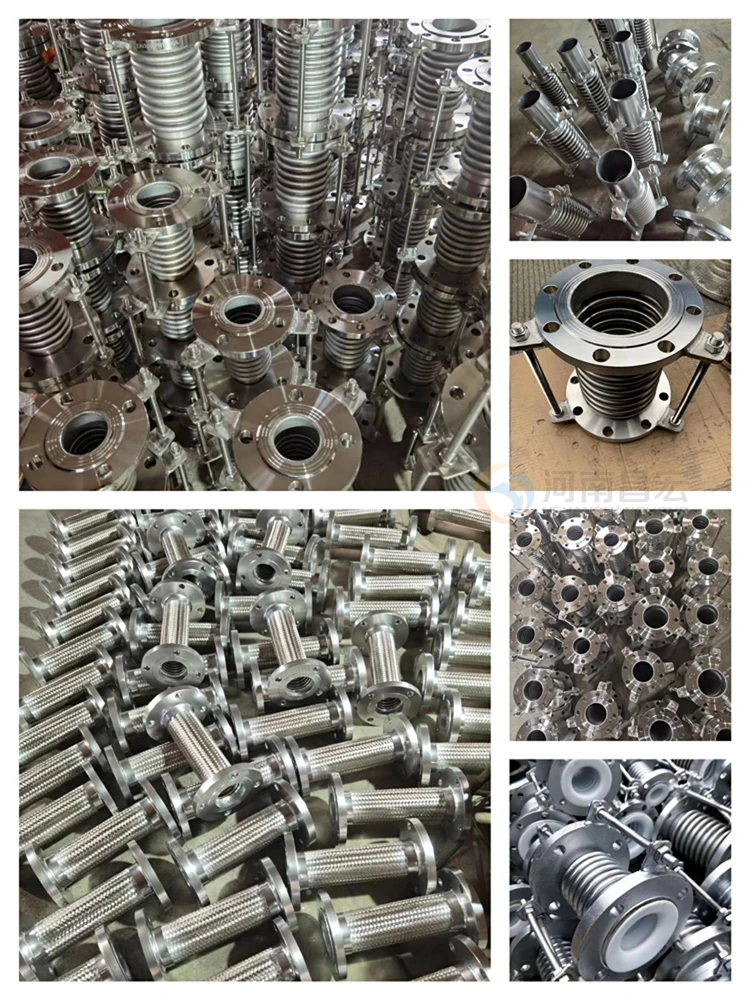

Related Products




WHY CHOOSE US




Company Introduction


Henan Changhong Mechanical&Electrical Equipment Co., Ltd. is a professional manufacturer of pipe connectors, compensators,telescopes and other pipe fittings. It is located in the Pipeline Industrial Park of Xicun Town, Gongyi City, Henan Province. It covers an area of more than 1000 square meters and has complete production equipment. It has its own R&D team and professional technical team. our own sales team of domestic and foreign trade, customer first, quality first is our enterprise's purpose. It is our goal to provide high quality fittings for global users. Welcome your consultation and cooperation.




Packing&Shipping




FAQ


1. Is the flange galvanized?
Yes, carbon steel flange not painting anticorrosive paint must be galvanized in order to avoid rusting. Usually, we choose
electronic galvanized and hot dip galvanized, and most of our customers will choose hot galvanizing.


2 Can the inner layer rubber and outside layer rubber be made using different rubber?
Yes, we can produce the rubber joint according to the environment the rubber joint is used in, and we will choose different rubber
for the inner layer and outside layer.

3. Can I only buy ball without the flange?
Yes, and the price will be cheaper. For small diameter rubber joint, we have goods in stock and we can offer you a free for your test,but for large diameter rubber joint you need order.

4. How long is your product’s warranty?
24 month. From the day the customer receiving the goods, we grant a free replacement if the products have any problems during the guarantee period.

5. Does the rubber joint have inspection report?
Yes, all of our product will be conducted hydro test and leave the factory with a qualified inspection report.

6. Can you offer the drawing?
Yes, we have a excellent engineer team, and they will offer your professional drawing and technical support.
