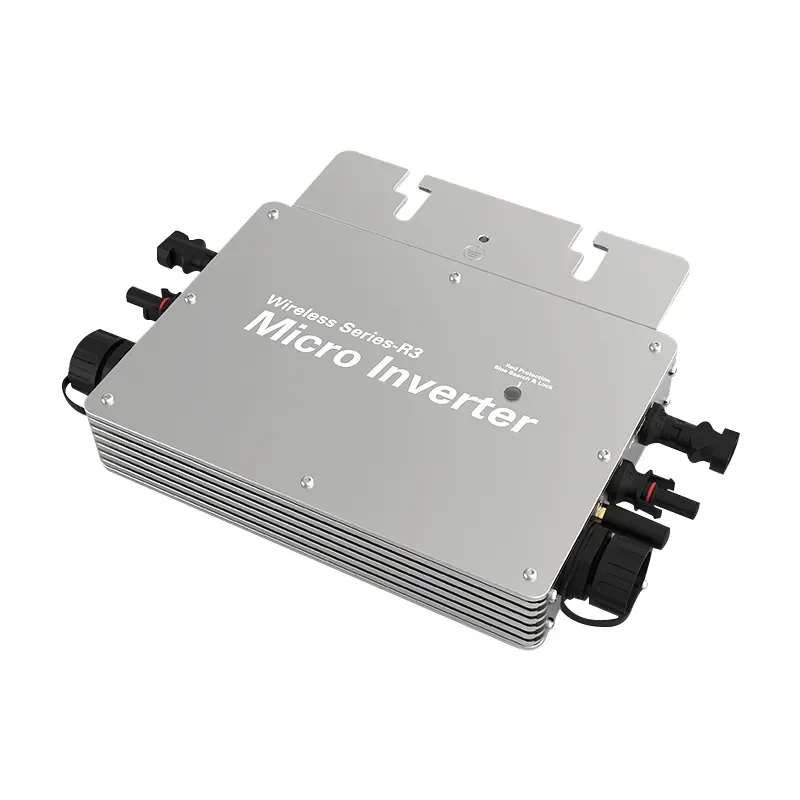

Gyopo 600w MPPT IP65 Waterproof Solar Grid Tie Inverter DC to AC 220V Micro Inverter
- Category: >>>
- Supplier: Wuhan Guanyou New Energy Technology Co. Ltd.
Share on (1600879650684):
Product Overview
Description

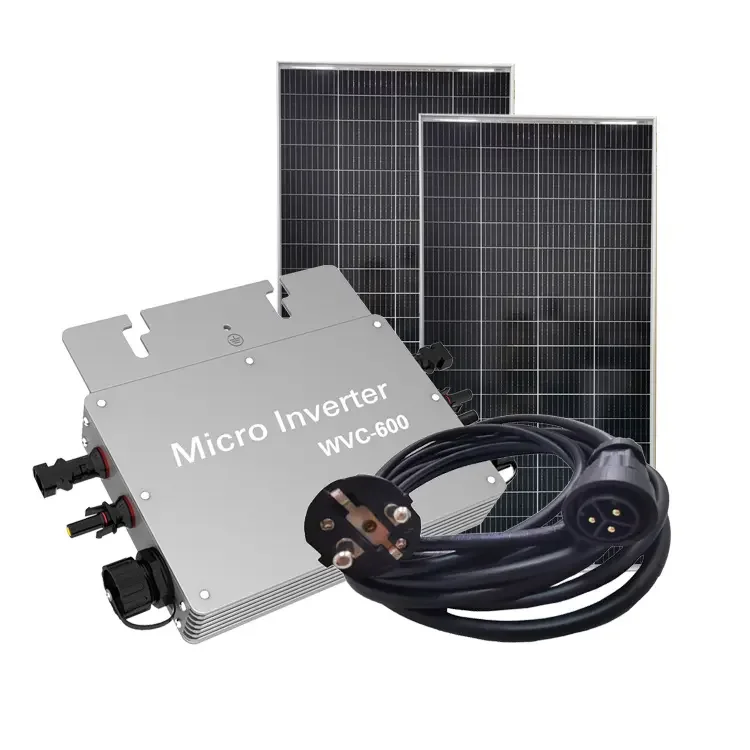

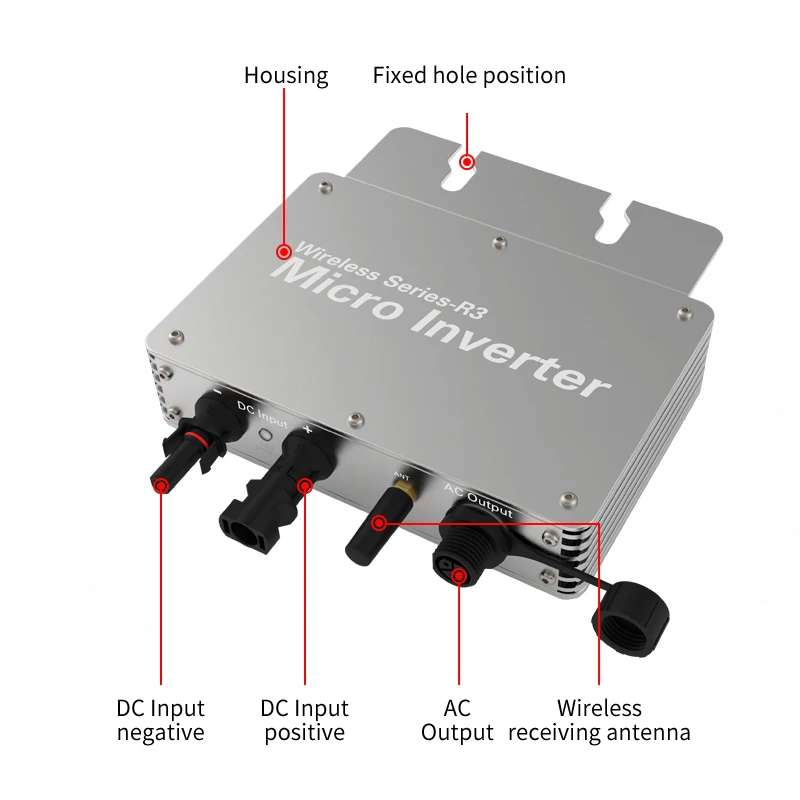

Gyopo 600w MPPT IP65 Waterproof Solar Grid Tie Inverter DC to AC 220V Micro Inverter
Model | GY-OMI-350W | GY-OMI-400W | GY-OMI-600W |
Recommended components | 1*435 watt | 1*435 watt | 2*375 watt |
Output voltage model | 120/230V Adaptive | 120/230V Adaptive | 120/230V Adative |
Open circuit voltage range | 30-54VOC | 30-54VOC | 33-60VOC |
Peak power tracking voltage | 22-60v | 22-60v | 22-60v |
Mini/max starting voltage | 22-60v | 20A | 22-60v |
Max DC Short-circuit current | 18A | 20A | 2*15A |
Max input working current | 16A | 18A | 2*12A |
Output peak power | 350 Watt | 400 Watt | 600Watt |
Rated output power | 330 Watt | 380 Watt | 580Watt |
Power factor | >95% | >95% | >95% |

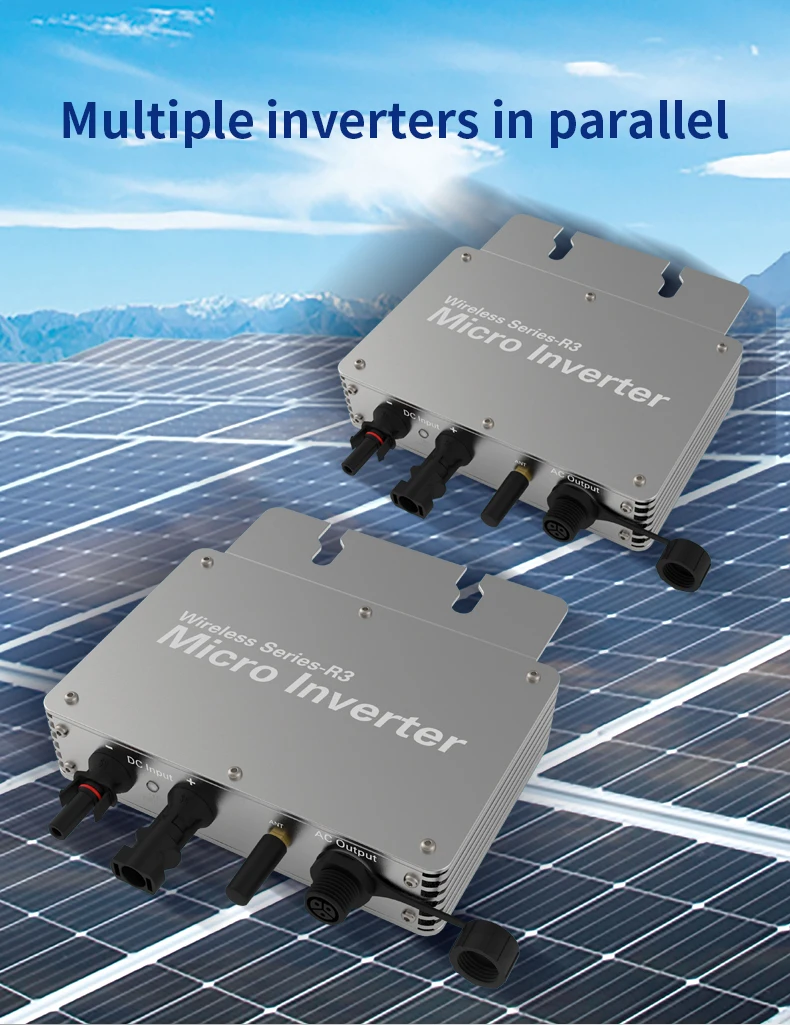

Number of units connected per string circuit | 15/30 units (single phase) | 15/30 units (single phase) | 15/30 units (single phase) |
Heat disspipation method | self-cooling | self-cooling | self-cooling |
Static MPPT efficiency | 99.50% | 99.50% | 99.50% |
Night power less | <0.5W | <0.5W | <0.5W |
Total harmonic distortion | <5% | <5% | <5% |
Working temperature | -40℃ - 65℃ | -40℃ - 65℃ | -40℃ - 65℃ |
Waterproof level | Ip65 | Ip65 | Ip65 |
Commnunication mode | Wi-fi | Wi-fi | Wi-fi |
Power transmission mode | reverse transmission,load priority | reverse transmission,load priority | reverse transmission,load priority |

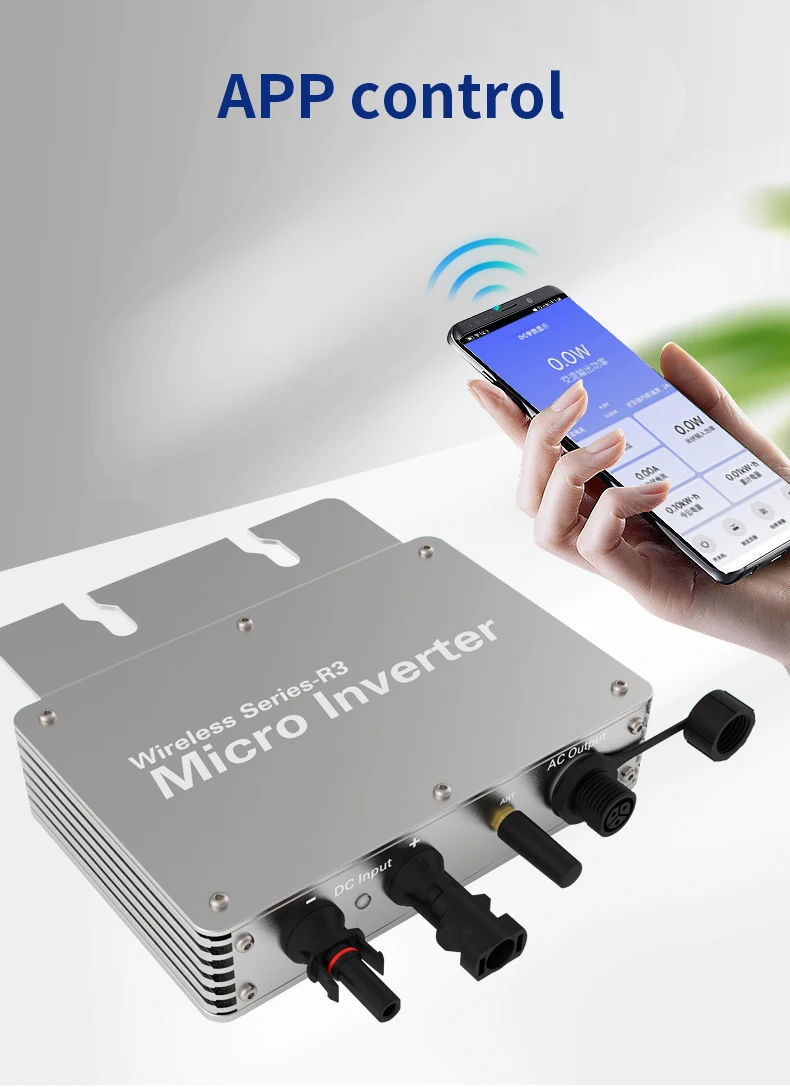

Monitor system | Mobile App | Mobile App | Mobile App |
Net/Gross weight | 0.82/1.28kg | 0.82/1.28kg | 1.56/2.8kg |
Package Size | 245*202*60mm | 245*202*60mm | 342*240*115mm |
* Solar Microinverters turn the power from your solar panels into usable electricity. Support single-phase or three-phase
connection.
* 99.5% HIGH EFFICIENCY Grid tie inverter --Maximum Power Point Tracking(MPPT)---high-precision (MPPT)operation power automatic and immediate adjust the solar panels output power at the maximum output point,made the inverter discharge power with the highest efficiency.
* IP65 waterproof inverter with Exactly and timely automatic lsland Effect Protection, Adopt complementary PWM to push-pull pure sine wave, Constant Current, Constant Power---constant current and output power without any overload, over-current phenomenon.
* Aluminum alloy material Acid and alkali resistance Antioxidant, Solar Photovoltaic Power System for Roof Outdoor 30V 36V PV Panel.
* Welcome customized logo and package of solar micro inverter wvc 300wW350W 400w 600W 700W 800w 1200W 1400W 1600W 2000W 2400W 2800W with VCE CE full certification.
connection.
* 99.5% HIGH EFFICIENCY Grid tie inverter --Maximum Power Point Tracking(MPPT)---high-precision (MPPT)operation power automatic and immediate adjust the solar panels output power at the maximum output point,made the inverter discharge power with the highest efficiency.
* IP65 waterproof inverter with Exactly and timely automatic lsland Effect Protection, Adopt complementary PWM to push-pull pure sine wave, Constant Current, Constant Power---constant current and output power without any overload, over-current phenomenon.
* Aluminum alloy material Acid and alkali resistance Antioxidant, Solar Photovoltaic Power System for Roof Outdoor 30V 36V PV Panel.
* Welcome customized logo and package of solar micro inverter wvc 300wW350W 400w 600W 700W 800w 1200W 1400W 1600W 2000W 2400W 2800W with VCE CE full certification.
