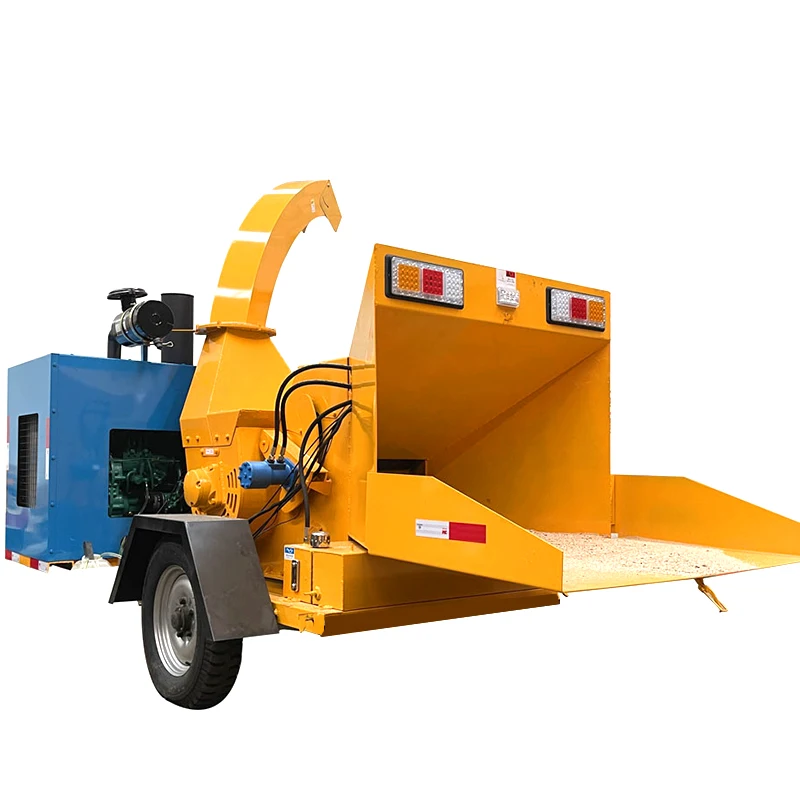

Banana Tree Branch Chipper Wood Pellet Mill Crusher Machine Chips Machines For Horses Bed
- Category: >>>
- Supplier: Hebei Donghenghuayao Trade Co. Ltd.
Share on (1600879718513):
Product Overview
Description

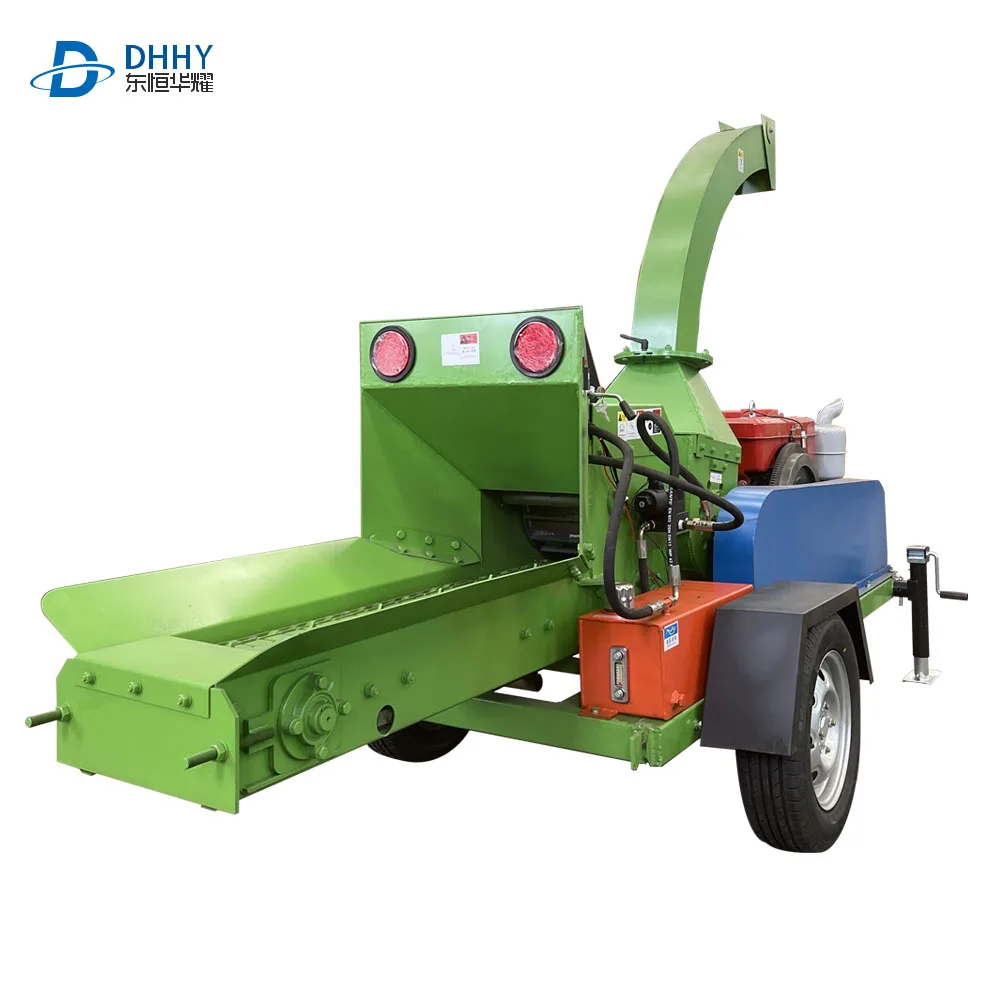

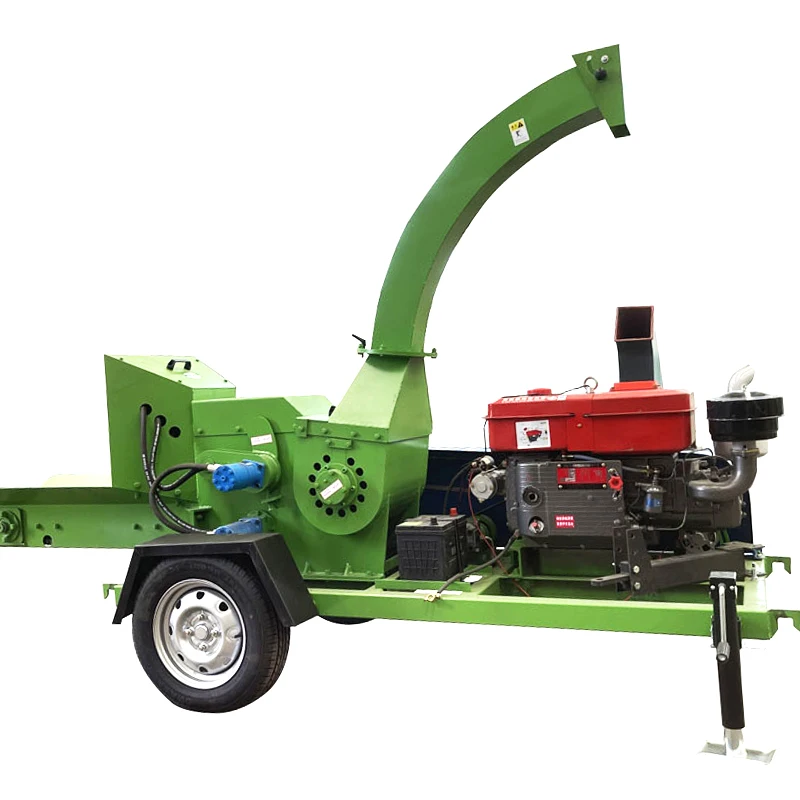

Diesel wood chipper machine shredder tree branch
This machine can crush branches, leaves, logs, bamboo and other plants up to diameter of 25cm, and can quickly cut raw materials into small wood chips, with a maximum output of 5 tons/h. The hydraulic forced feeding system saves labor and increases the feeding speed; the machine uses A8 blades, which have a service life three times that of conventional blades; the chain plate design can make work more efficient. There are two power modes: electric and diesel. There is no problem in working in the field.The discharge port can be rotated 360 degrees. The tires are equipped with high-quality tires and thickened steel plates, so the quality is reliable!

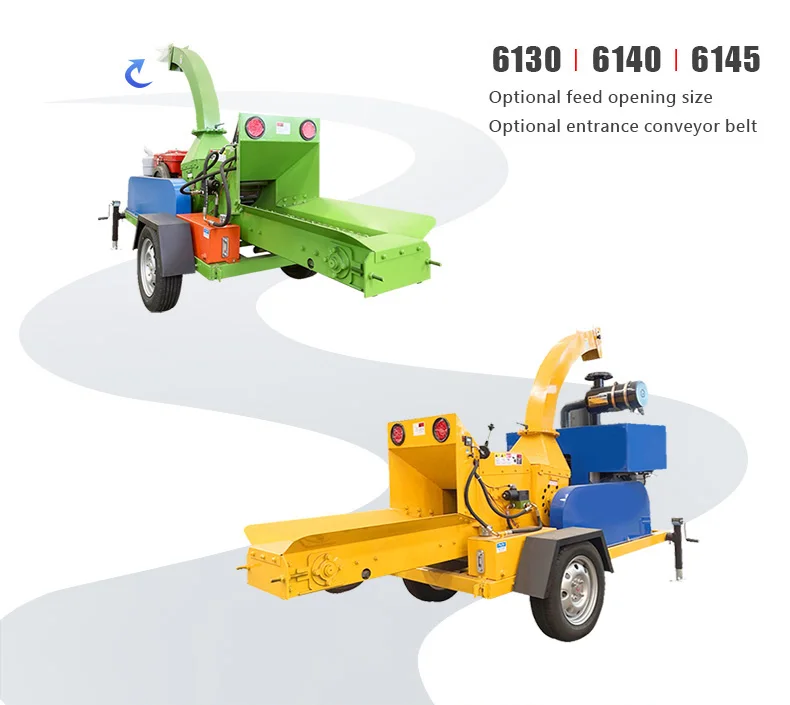

Model NO. | HY-6130 | HY6140 | HY-6145 | ||
Diesel Engine Power | 32HP | 65HP | 102HP | ||
Starting Method | Electrical Starting | Electrical Starting | Electrical Starting | ||
Number of Blades | 3pcs Moving Knives and 1cs Fixed Knives | 6pcs Moving Knives and 1cs Fixed Knives | 6pcs Moving Knives and 1cs Fixed Knives | ||
Feeding Press Roller Dia | 280mm | 325mm | 600mm | ||
Feeding Gear | Get in-stop-inverted Three Gear Manual Control | Get in-stop-inverted Three Gear Manual Control | Get in-stop-inverted Three Gear Manual Control | ||
Feeding Inlet Size | 300*200mm | 300*400mm | 400*500mm | ||
Battery Specification | 12V105aH | 24V105aH | 24V105aH | ||
Discharge Direction | Free 360 Rotation Automatically Jet Discharge | Free 360 Rotation Automatically Jet Discharge | Free 360 Rotation Automatically Jet Discharge | ||
Cutting System | Rolling Vertical Cutting | Rolling Vertical Cutting | Rolling Vertical Cutting | ||
Capacity | 1-2t/h | 1-4t/h | 3-5t/h | ||
Walking Form | Foldable Hand Jack, Towing Type | Foldable Hand Jack, Towing Type | Foldable Hand Jack, Towing Type | ||
Discharge Height | 2.5m | 3m | 4m | ||
Net Weight | 800KG | 1200kg | 1900kg | ||
The wood chips crushed by the wood crusher can be used for composting, making mulch, returning to the field, or provided to the sawdust crusher for further crushing.

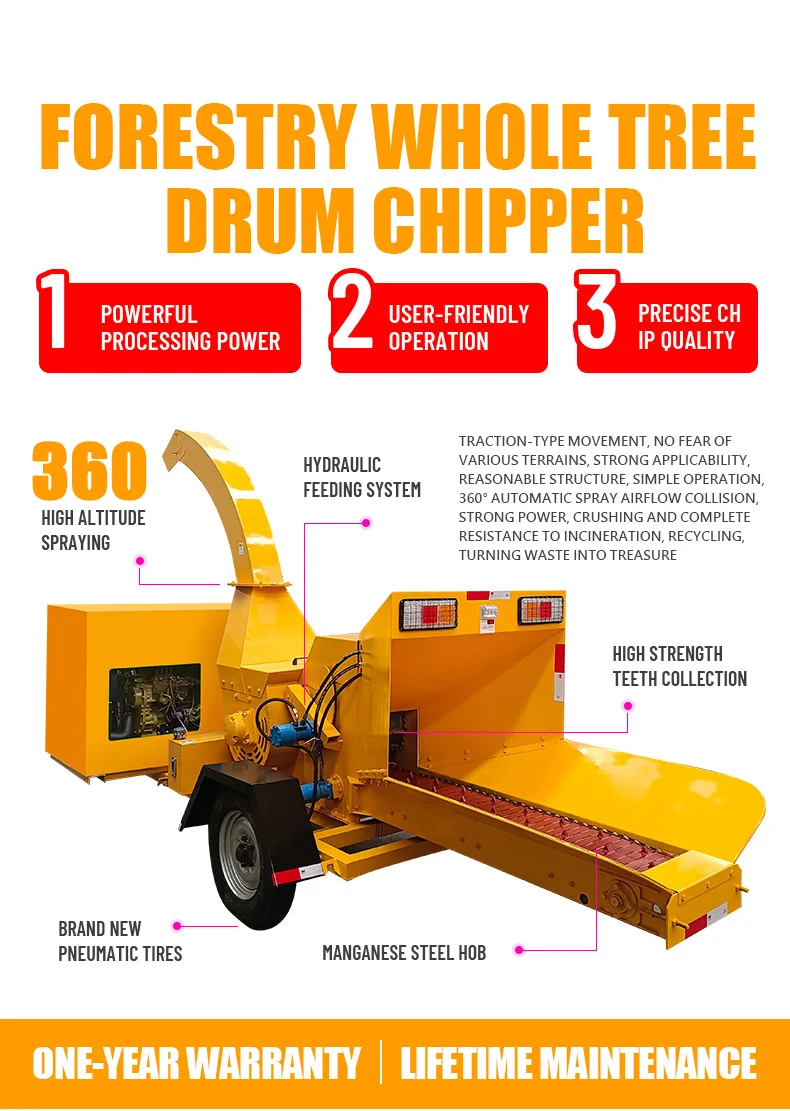

DHHY wood chipper:
The forestry whole tree drum chipper entire series is equipped with a hydraulic automatic feeding system, which can intelligently control the feeding speed without jamming materials and is safer.
Others:
It is not equipped with an automatic feeding system, so it is easy to get stuck and is unsafe.

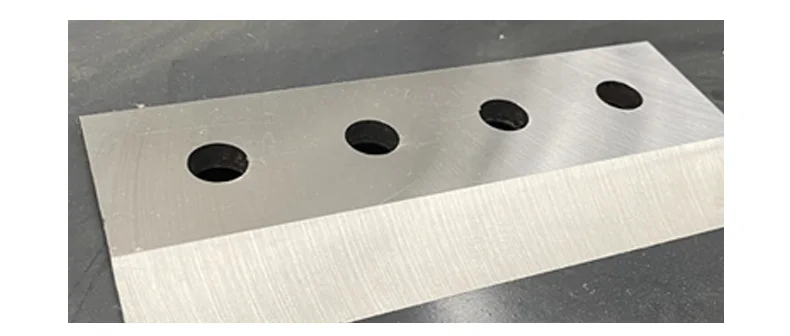

A8 Blade:
DHHY wood chipper machine use tungsten steel, wear-resistant,lifespan 3 times longer than conventionalblades, one-piece molding
without breakage.
without breakage.
Others:
Use Alloy settle blade, easy to wear, short life, not one-piece molding, easy to break.
Premium Tires:
This drum wood chipper has new inflated rubber tires, making it stable for outdoor climbing and walking. Customized brand tires are available.
Others:
Inferior solid tires, Secondary processing and synthesis, not durable.

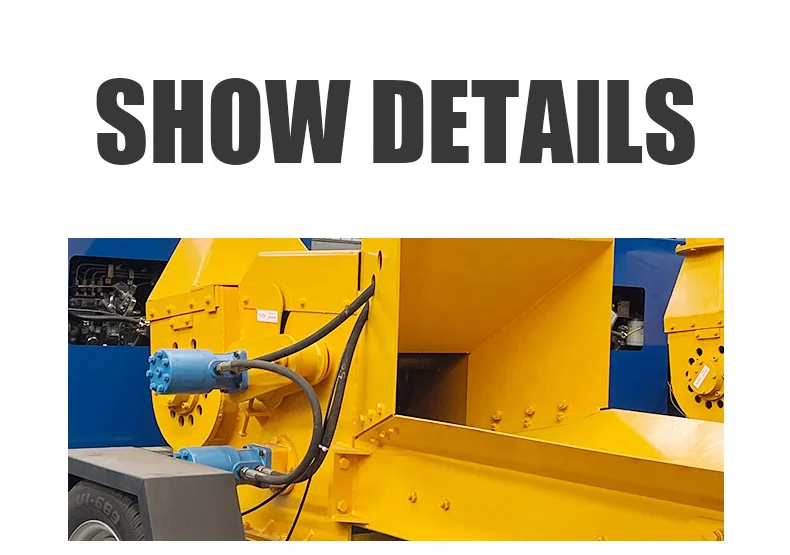

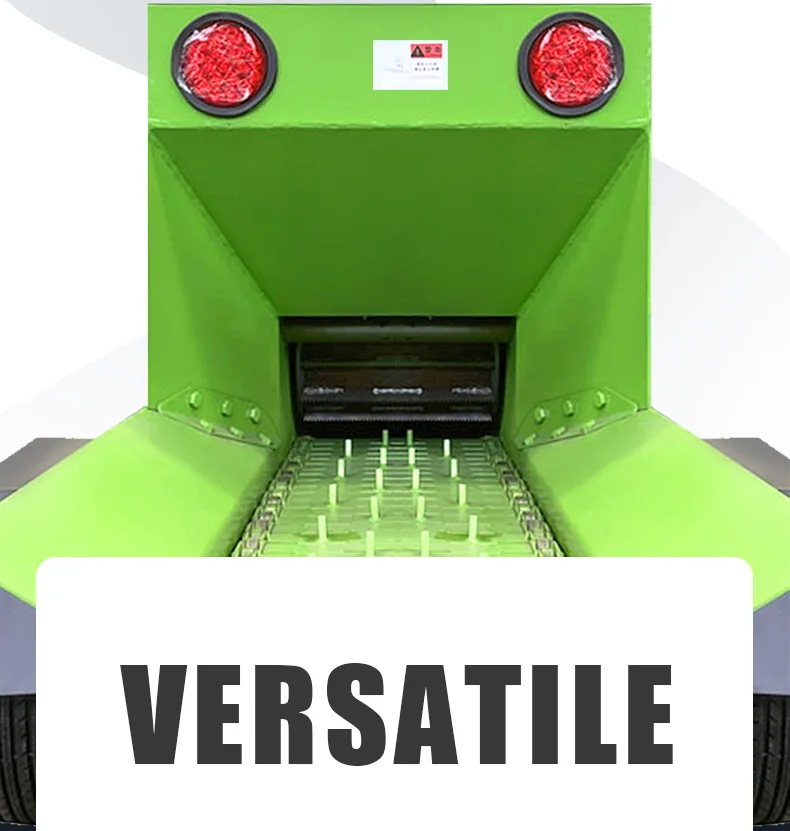

Extra large hydraulic forced feeding
This mobile wood chipper comes with a hydraulic automatic feeding system, It intelligently controls the feeding speed to prevent jamming of materials, such as retracting and then feeding.

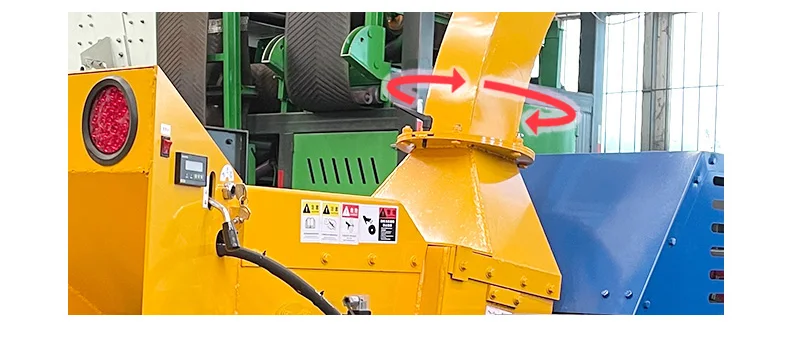

360° High ejection material
This wood chipper has a high discharge design, and the discharge direction is 360° adjustable. The crushed wood chips can be directly loaded onto the vehicle, saving manpower and time.
Repeatable sharpening of A8 blades
Our wood chipper ues A8 Blade, Lifespan Is 3 Times Longer Than Conventional Blades.
One-Piece Molding Does Not Break, And The Blade Can Be Sharpened.
One-Piece Molding Does Not Break, And The Blade Can Be Sharpened.

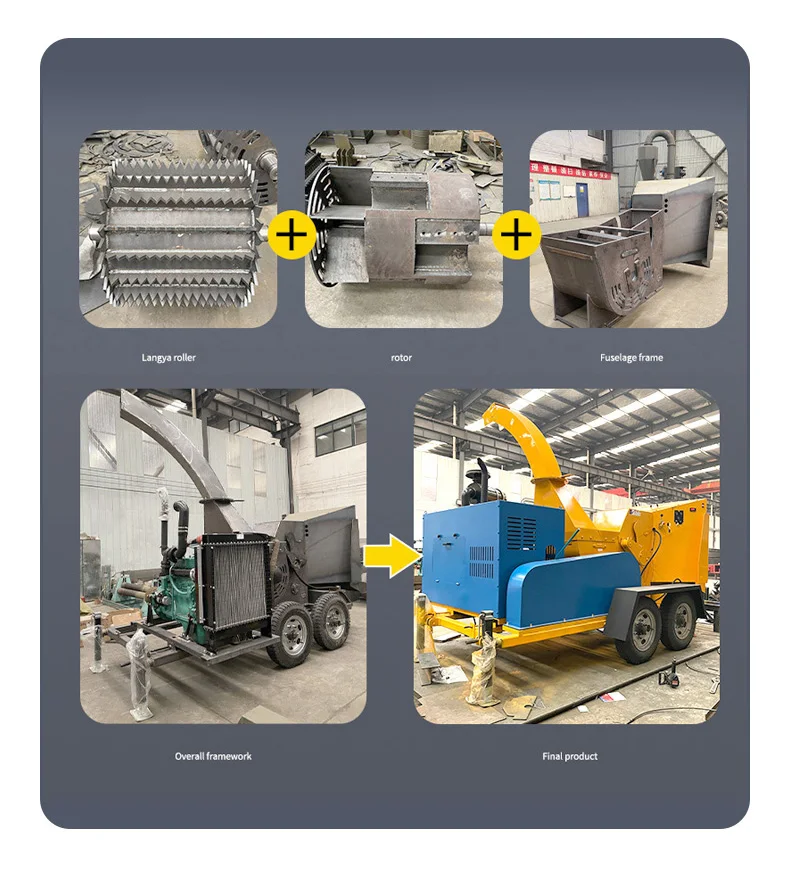

Internal structure
This is the internal structure of a wood crusher. This machine is a hydraulic drum chipper. It consists of a hydraulic system, a rotor and a wolf tooth roller for forced feeding.
This drum wood chipper is available in two power types: electric wood chipper and diesel wood chipper, which can be customized according to your needs.
The machine can be pulled by a tractor and is easy to move, suitable for forestry and agricultural use.
The machine can be pulled by a tractor and is easy to move, suitable for forestry and agricultural use.
