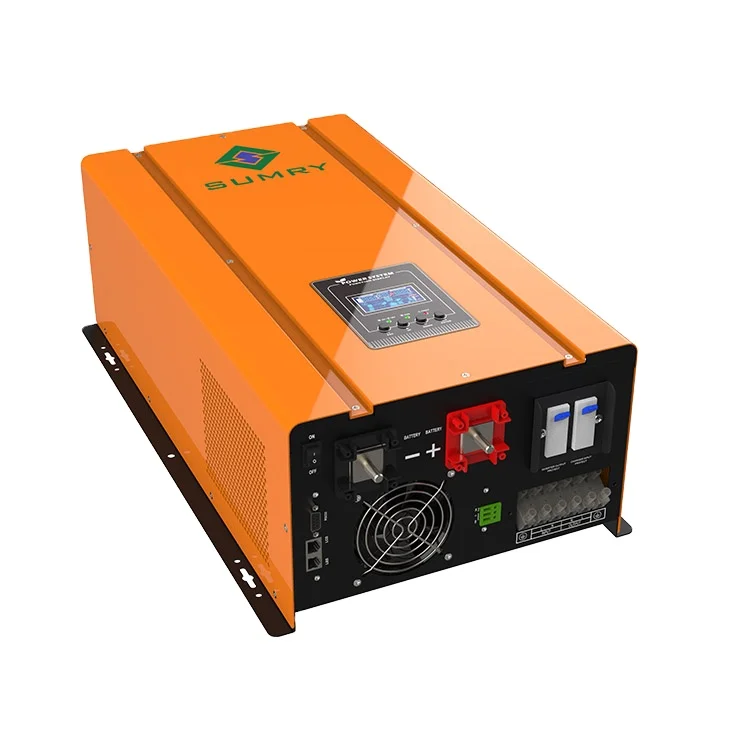

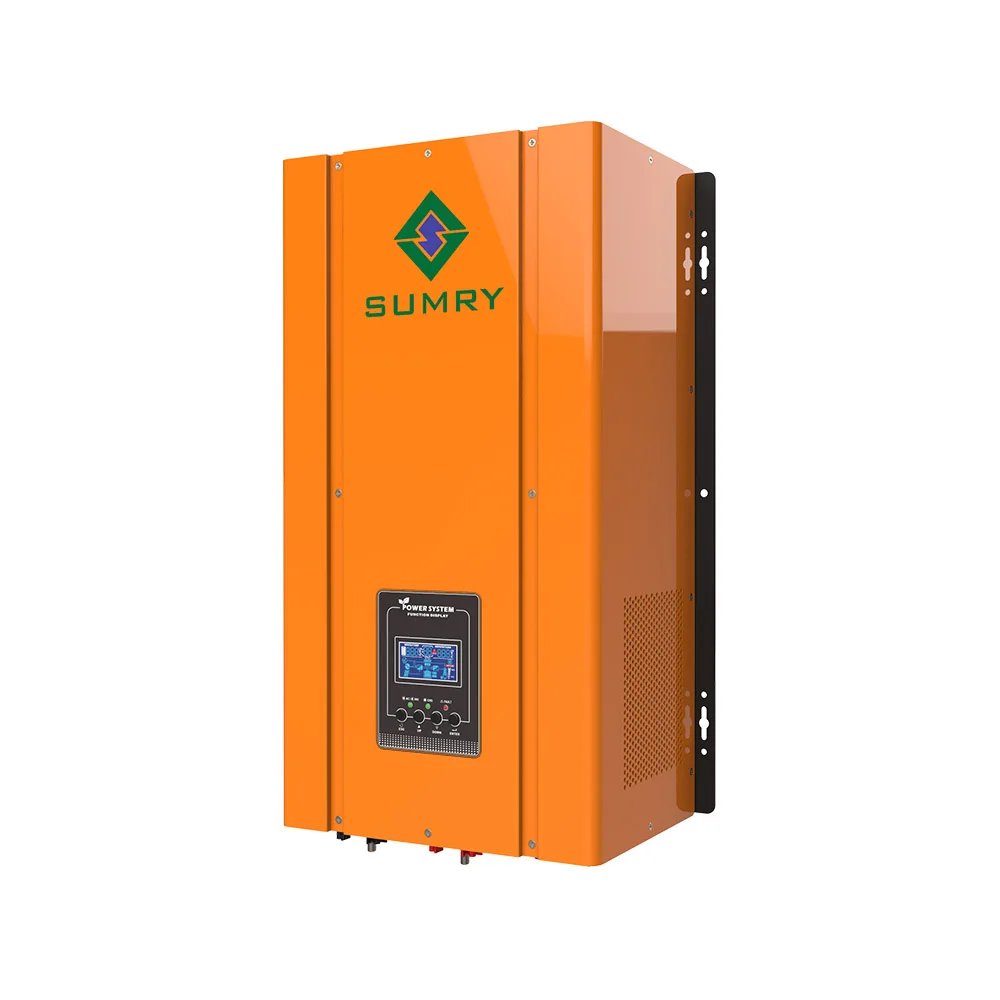

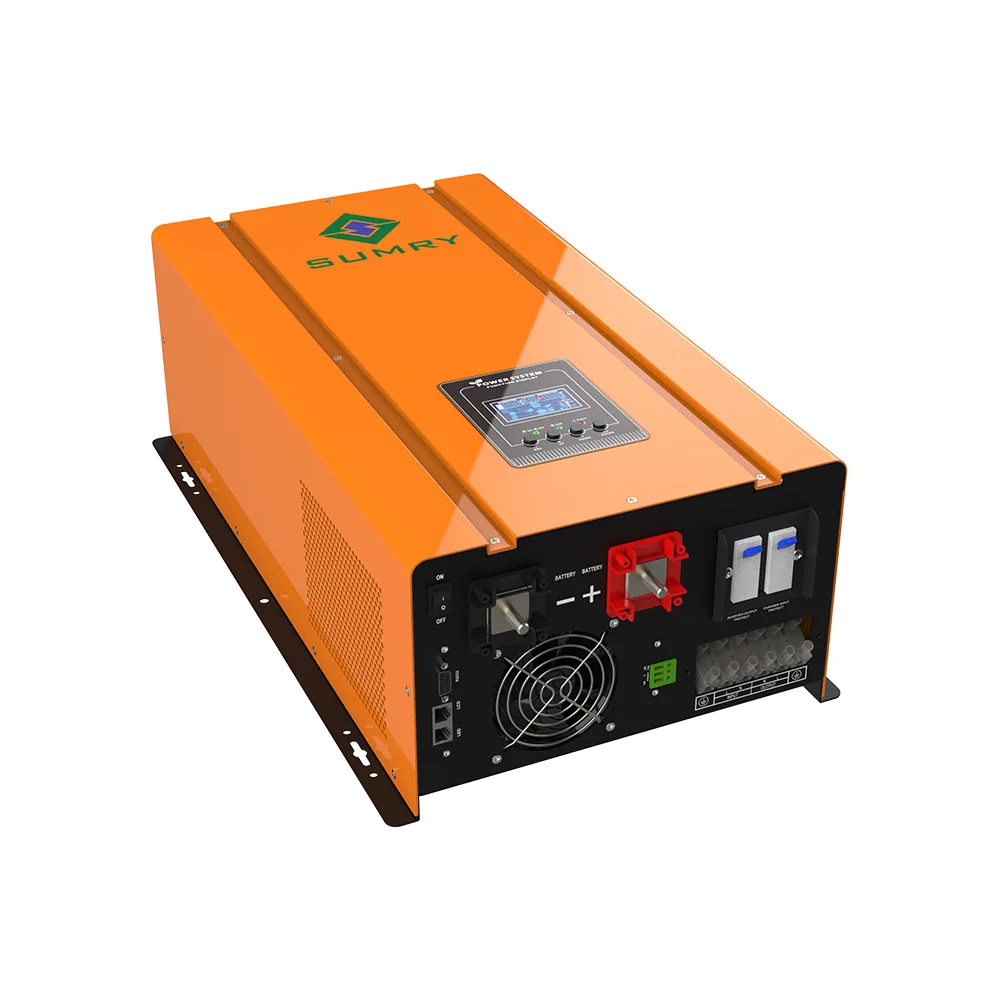

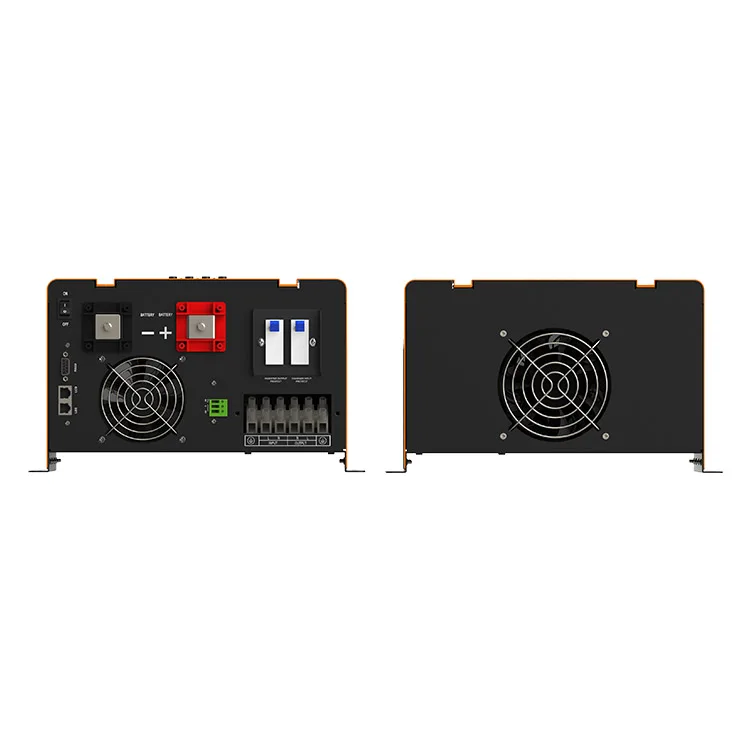

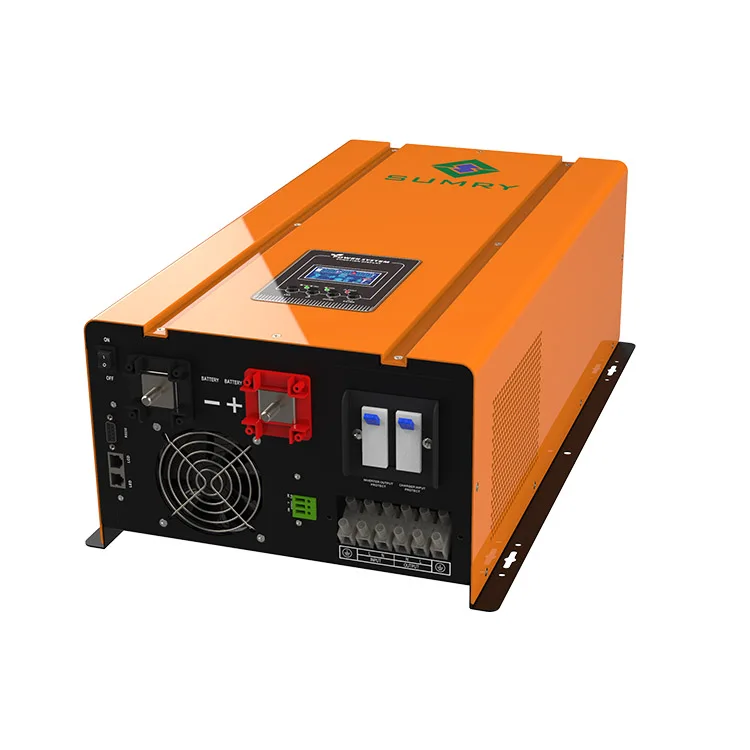

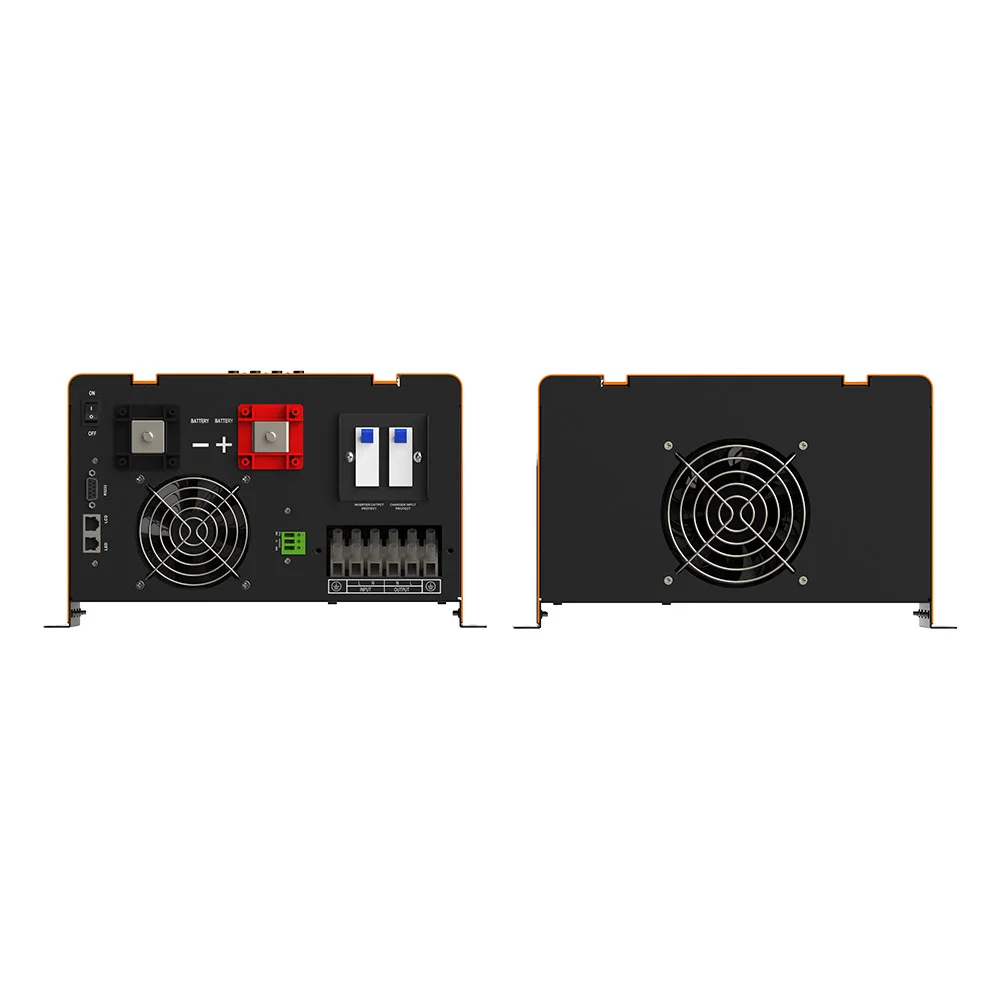

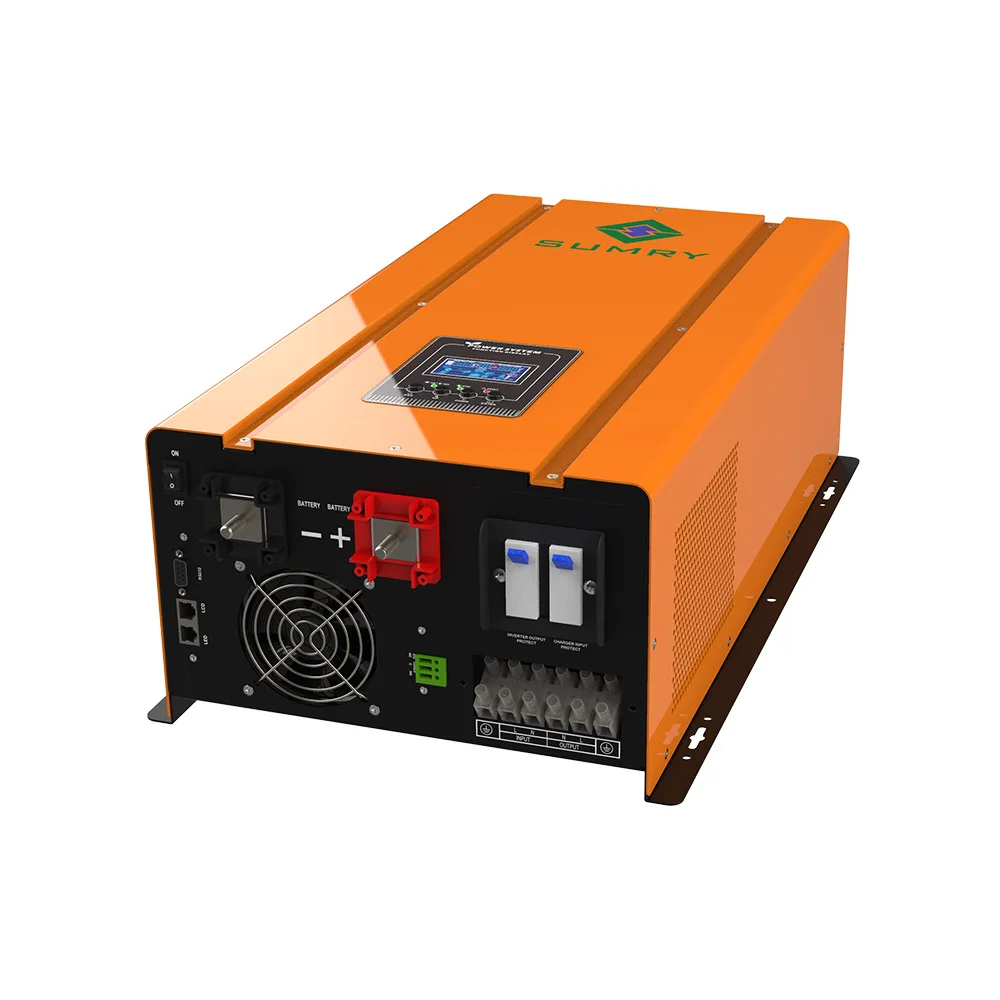

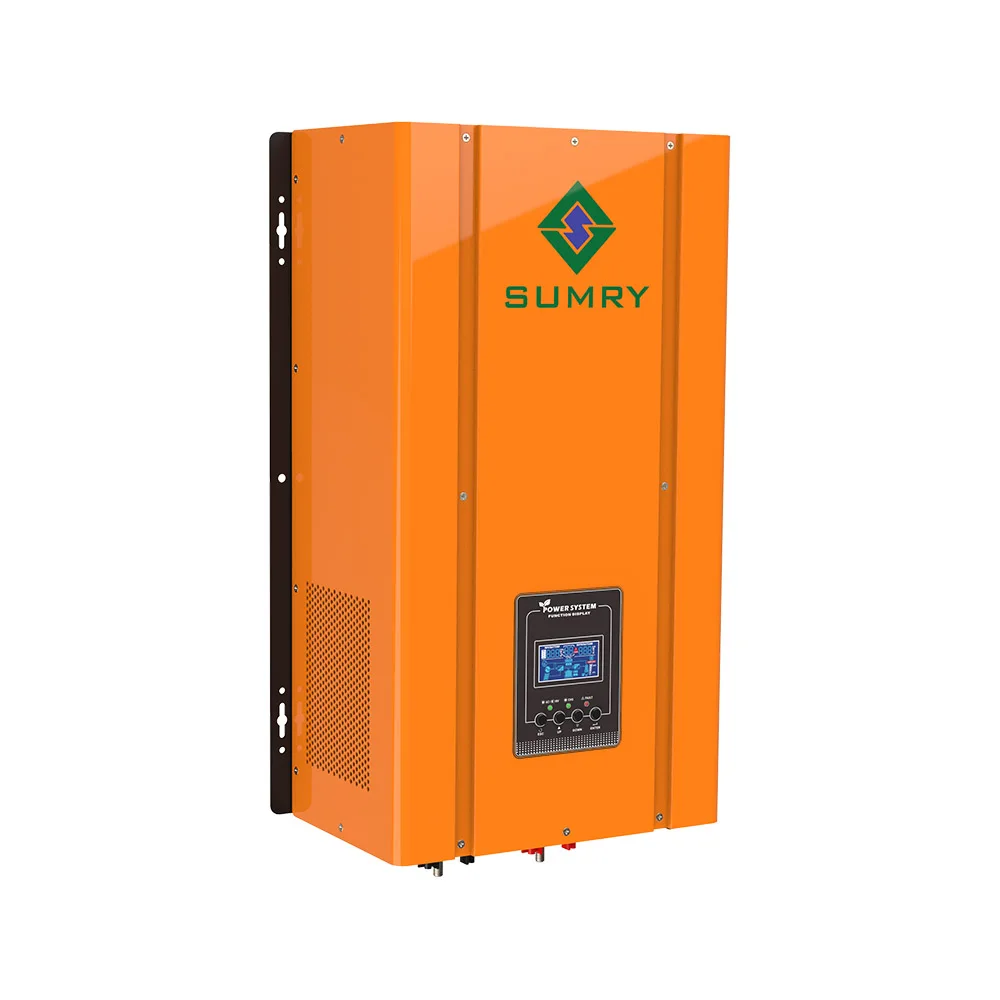

Pure Sine Wave Inverter 3000w 6000w 12000w Dc12v 24v To Ac 220v 50/60hz Inverter Power Converter&transformer

Product Overview

Description



Pure sine wave inverter

Output power factor 1

Selectable high power charging current

Selectable input voltage range for home appliances and personal computers

Configurable AC/battery input priority via LCD setting

Compatibe with generator power

Auto restart while AC is recovering

Overload and short circuit protection

Smart battery charger design for optimized battery performance

Cold start function

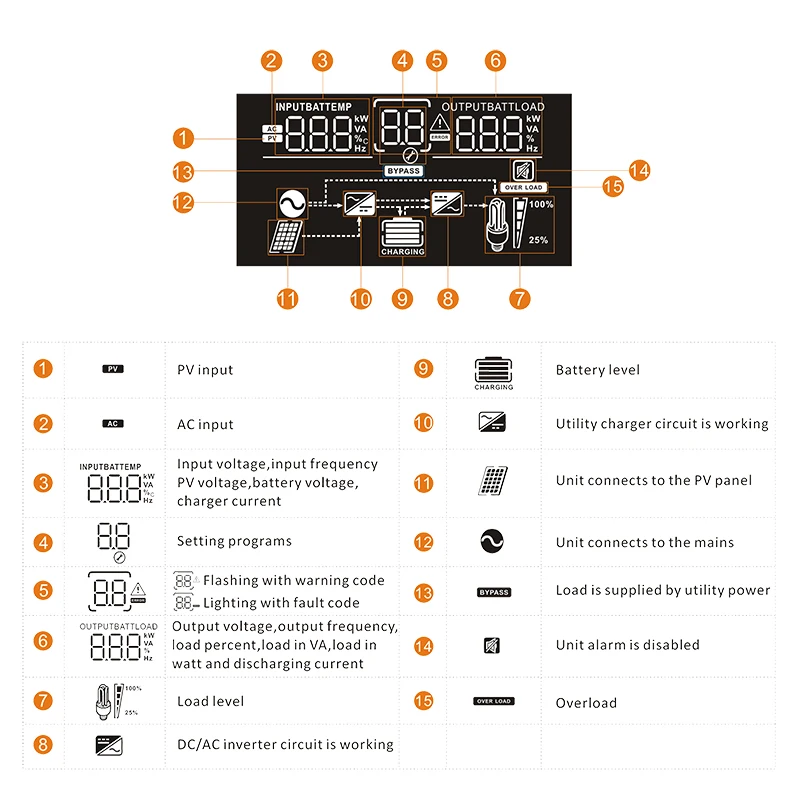

Color LCD display

Support the use lithium batteries

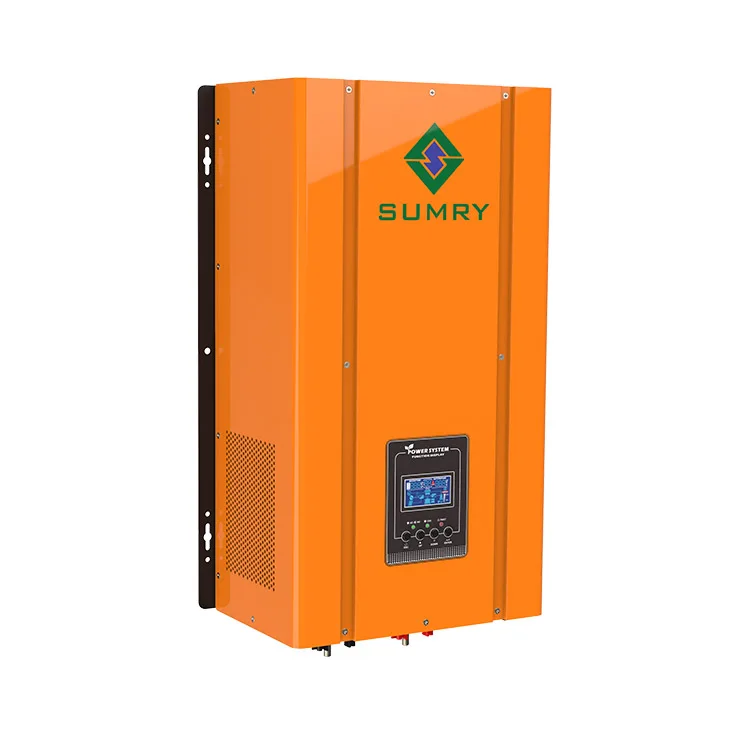

MODEL	RP 4000	RP 5000	RP 6000
Rated Power	4000W	5000W	6000W
INPUT
Voltage	100/110120Vac;220/230/240Vac
Selectable Voltage Range	Wide Range:75Vac-138Vac; 170-280VAC(for personal computers) Narrow Range:82Vac-138Vac; 90-280VAC(for home appliances)
Frequency Range	40-70Hz(50Hz/60Hz)
OUTPUT
AC Voltage Regulation (Batt.Mode)	100/110/120Vac(±5V);220/230/240Vac(±10V)
Surge power	12000VA	15000VA	18000VA
Efficiency(Peak)	91%
Transfer Time	<10ms
Wave form	Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage	24V/48V	24V/48V	24V/48V
Charge Current	75A/35A	75A/45A	75A/50A
Fast Charge Voltage	14.3VDC for 12V(*2 for 24V,*4 for 48V)
Floating Charge Voltage	13.7VDC for 12V(*2 for 24V,*4 for 48V)
Battery Low Voltage Alarm	16.5VDC for 12V(*2 for 24V,*4 for 48V)
Over Voltage Protect	10.5VDC for 12V(*2 for 24V,*4 for 48V)
Battery Low Voltage Shutdown	10.0VDC for 12V(*2 for 24V,*4 for 48V)
Protection	Over charging,over temp,over battery voltage,over load,short-circuit
Operating Enviroment Temperature	55°C
Cooling	Intelligent Fan
Display	LCD
Specification Setting	By LCD or position machine Charging current ,battery type,input voltage,output frequency,wide and narrow of AC input voltage,power-saver model,AC priority or battery priorty
PHYSICAL
Dimension.D*W*H(mm)	607*345*198mm
Net Weight (kgs)	34.4/33.8kg	37.9/38.2kg	41.6/40.5
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(No-condensing)
Operating Temperature	-10℃ to 50℃
Storage Temperature	-10℃ to 60℃



Q1: Why you should choose us?
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1years warranty and 2% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~30pcs sample order is available. Low MOQ,1 pc
for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
