Product Overview

Description

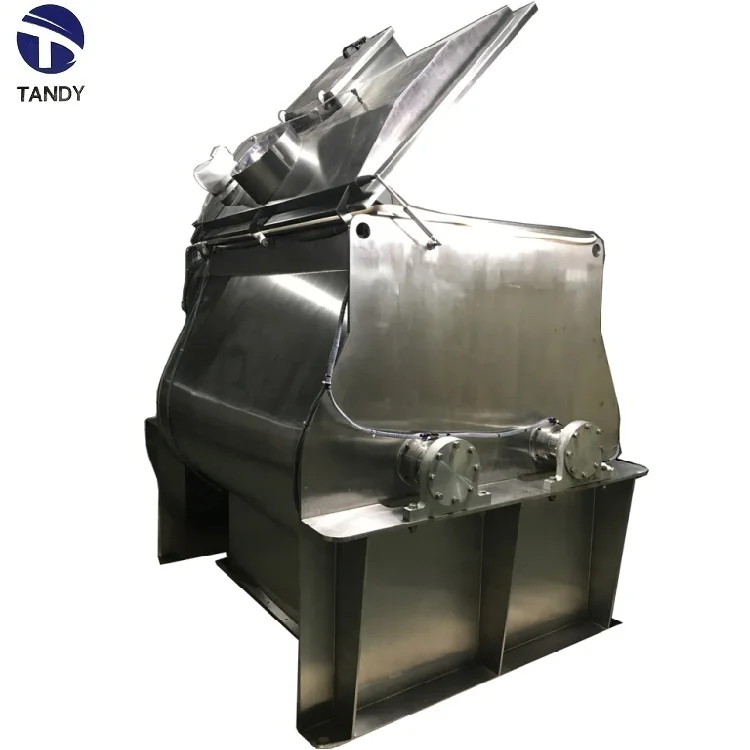

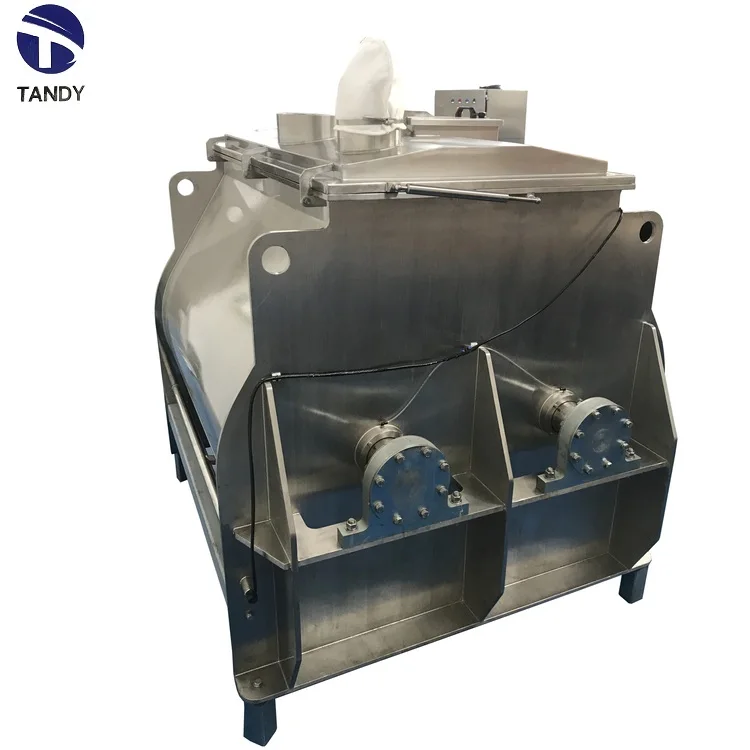

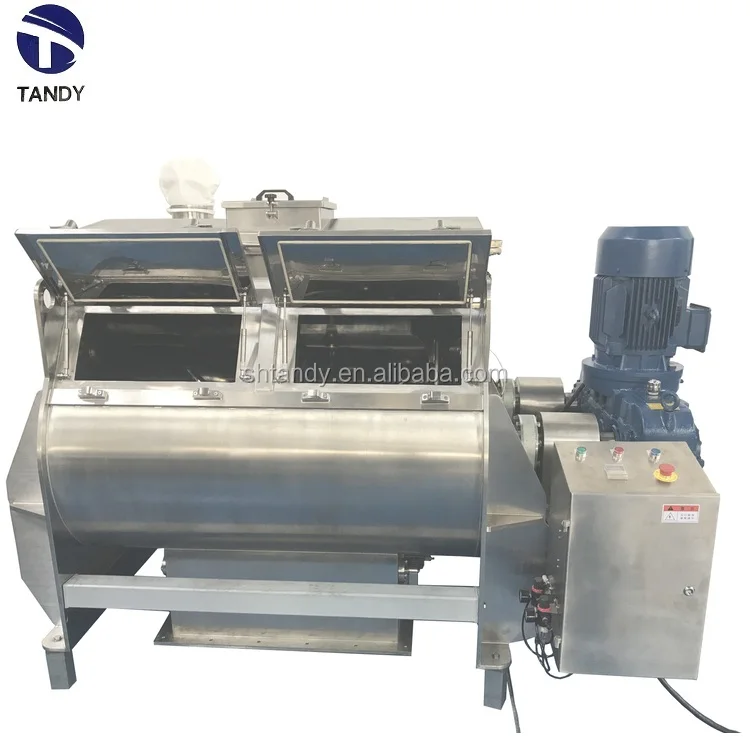

High performance dry powder mortar mixer horizontal double shaft paddle mixer

Features of multifunctional food mixer distributor:

Double shafts paddle mixer  is called no gravity mixer, too; it is widely applied in mixing powder and powder, granular and granular, granular and powder, and few liquid; it is used for food, chemical, pesticide, feeding stuff, and battery ect. It is high precision mixing equipment and adapts to mixing; it is evenly mixing on materials with gravity, proportion, particle size different. It makes part fragmentation with adding fragmentation equipment. The mixer quality can be from 316L, 304.





Principle of working:

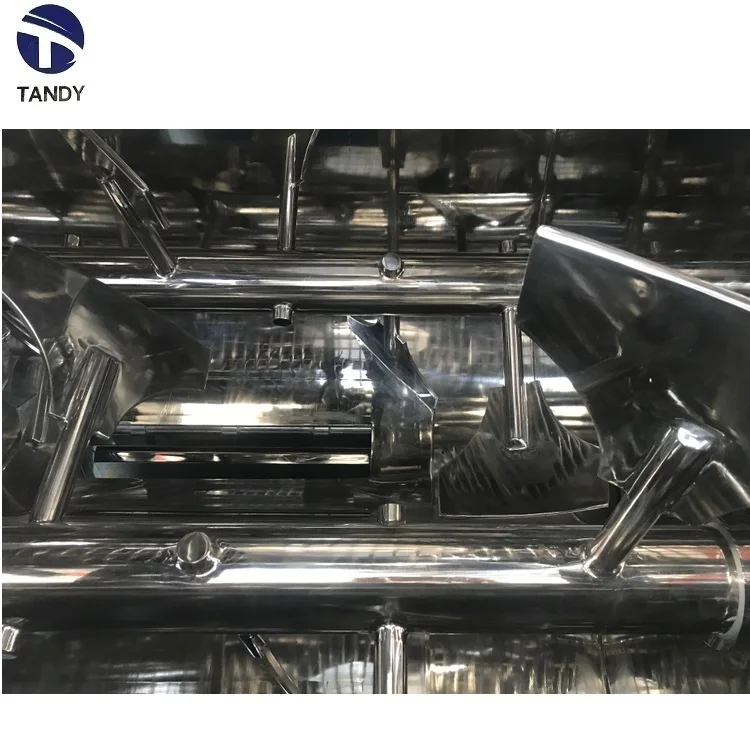

1. Double shaft paddle mixer is with 2 horizontal paddle shaft; there is the paddle on each shaft;

2. with the driven equipment, two cross paddle shafts moves intersection and patho-occlusion.

3. Driven equipment makes paddle rotating fast; the rotating paddle generates centrifugal force during high speed rotation, spilling the material to the upper part in the barrel, then material falling down (the vertex of material is in a so-called instant non-gravity state). Driven by the blades, material is mixed back and forth; also sheared and separated by the meshing space between the twin shafts; fast and evenly mixed.



Model no.	Effective Volume(L)	Loading coefficient	Power(KW)	Rotation speed(r/min)	Dimension (mm)	Weight(kg)
TDW-300	300	0.6-0.8	4	53	1330X1130X1030	560
TDW-500	500	0.6-0.8	7.5	53	1480X1350X1220	810
TDW-1000	1000	0.6-0.8	11	45	1730X1590X1380	1230
TDW-1500	1500	0.6-0.8	15	45	2030X1740X1480	1680
TDW-2000	2000	0.6-0.8	18.5	39	2120X2000X1630	2390
TDW-3000	3000	0.6-0.8	22	31	2420X2300X1780	3320
Pls feel free to contact us if you need more technical parameters!

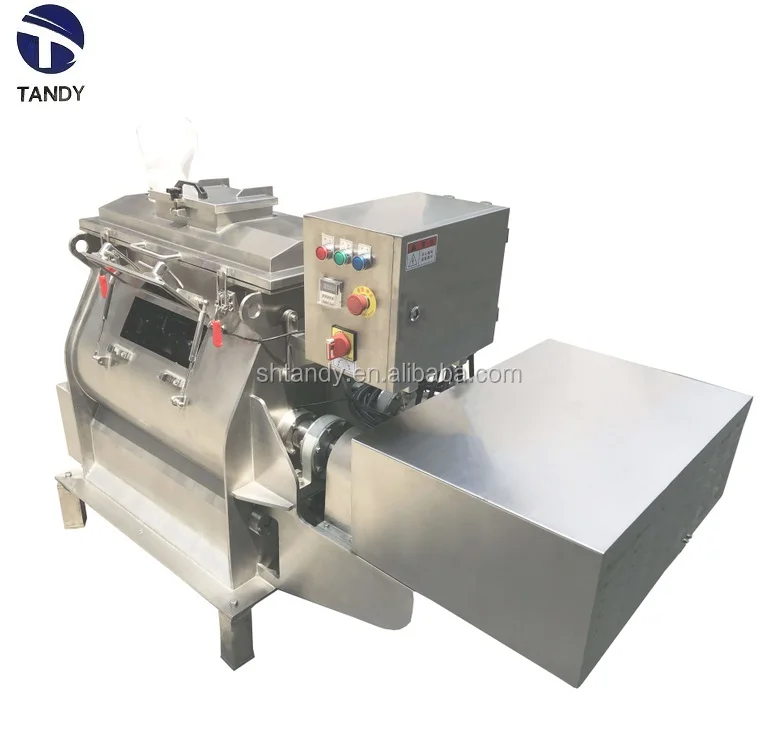

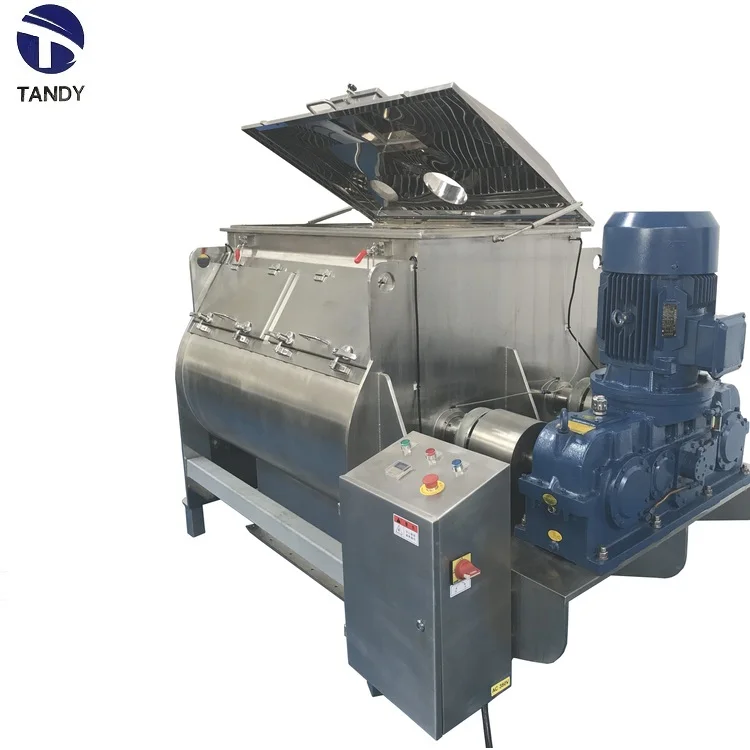

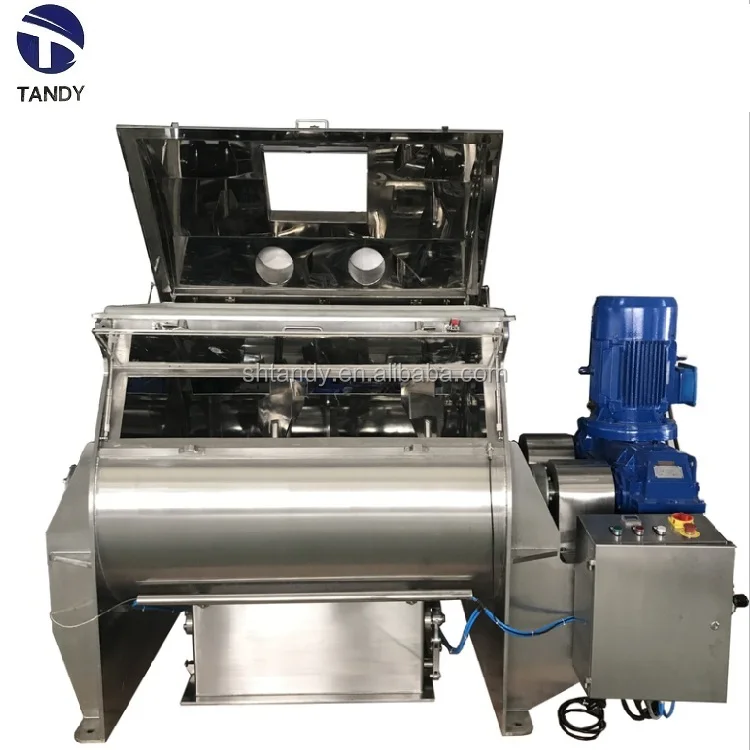

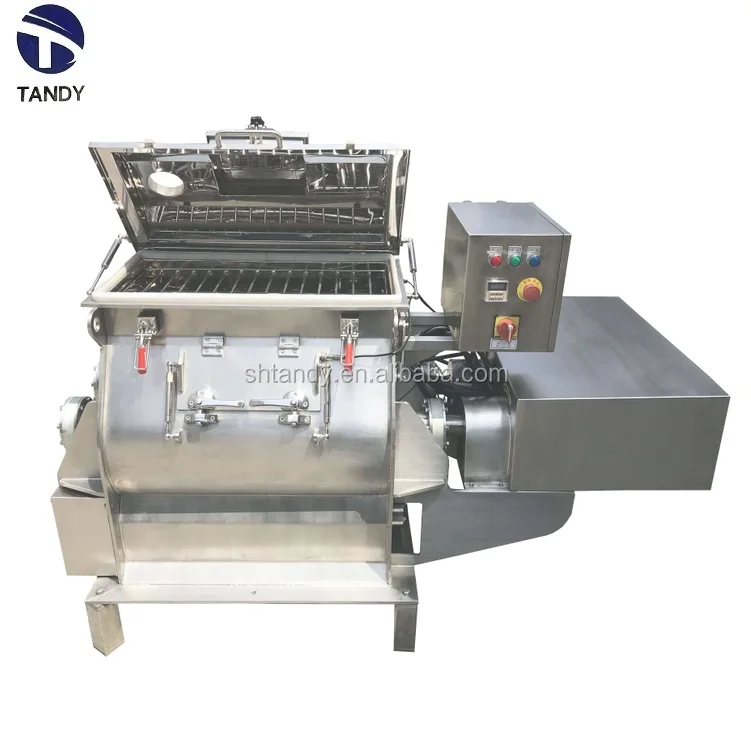

More Pictures Show:
