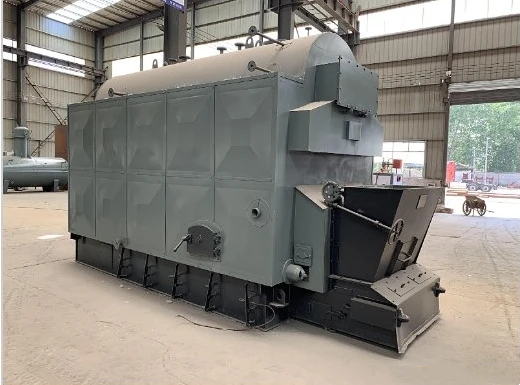

Factory Price Horizontal 1 2 3 4 5 6 8 10 12 15 20 25 30 35 40 Ton Industrial Coal Biomass Wood Fired Steam Boiler For Sale

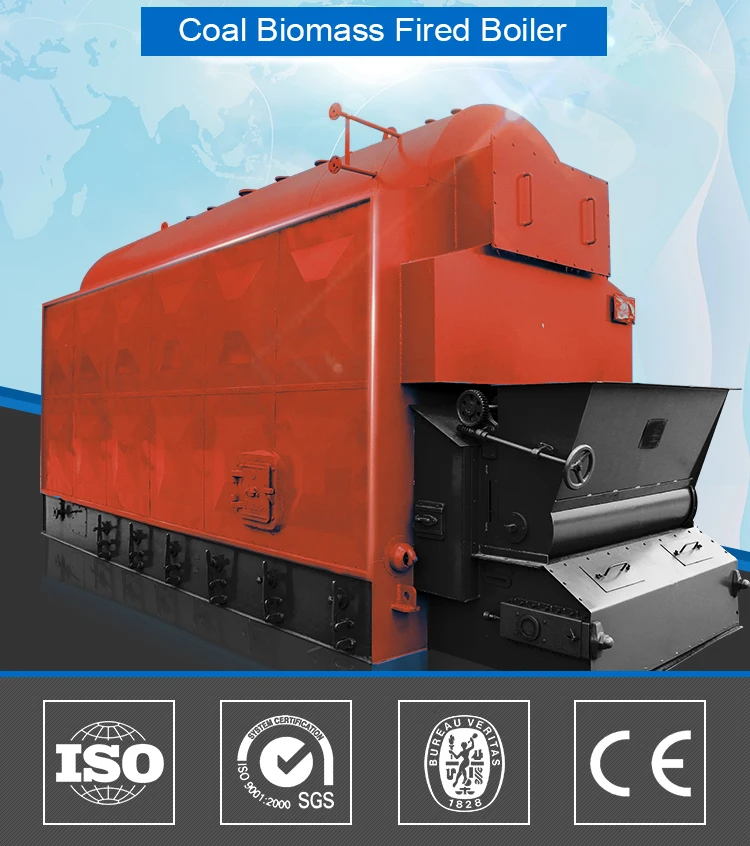

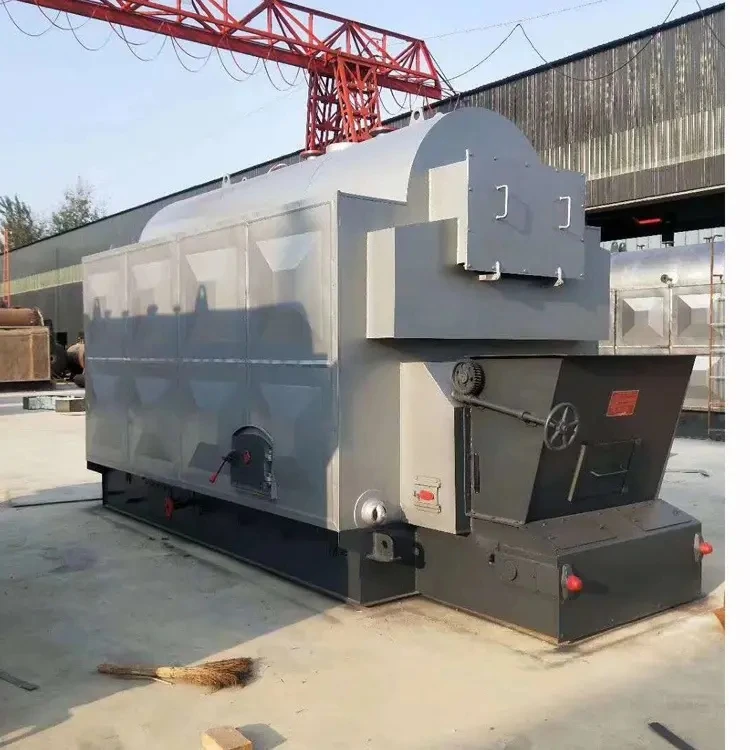

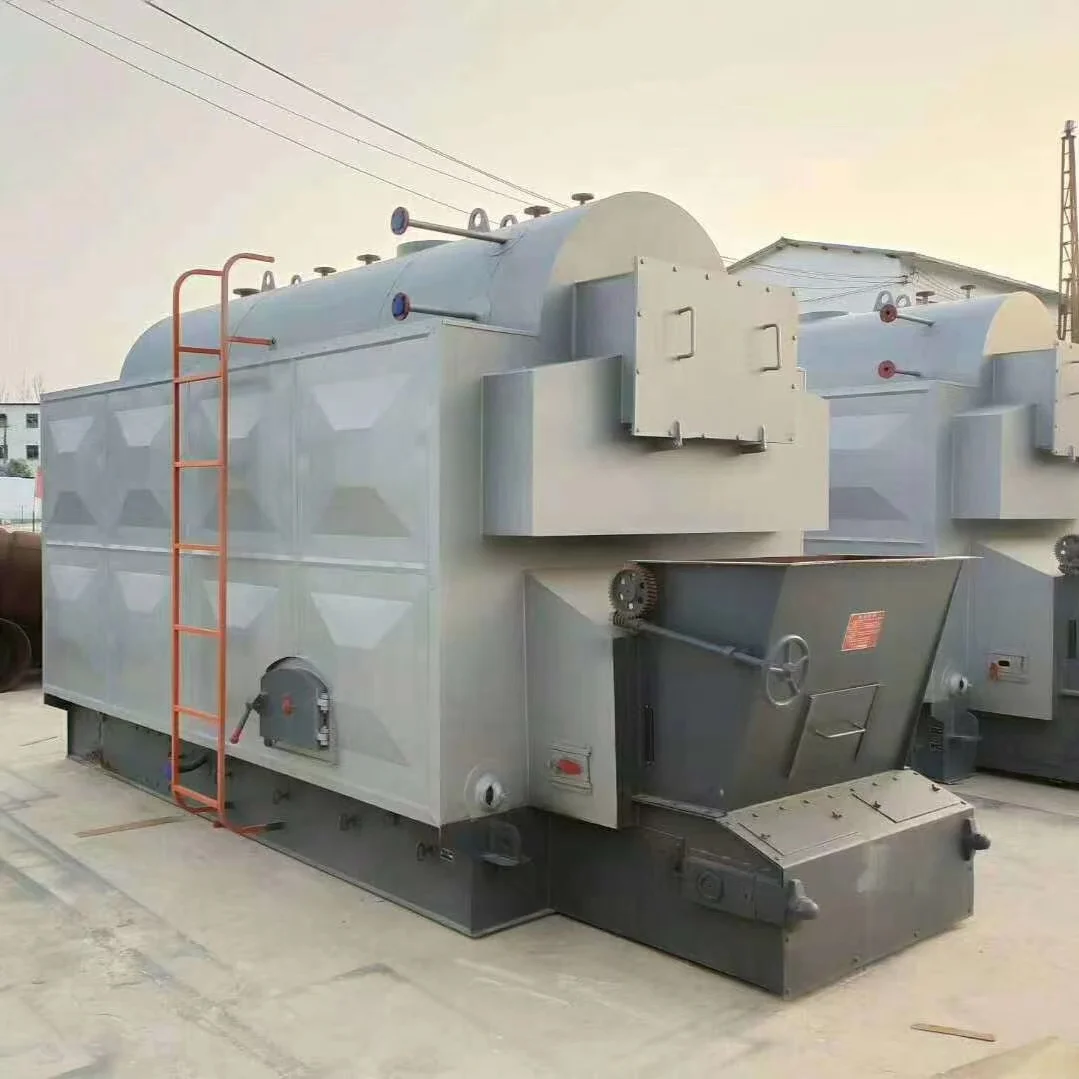

DZL series biomass steam boiler description: DZL single drum chain grate biomass boiler structure is compact, compared with the same type of boiler, small size, save the boiler room infrastructure investment. The boiler adopts threaded smoke pipe to strengthen heat transfer and improve heat transfer coefficient and thermal efficiency. Because the flue gas in the pipe has a disturbance effect. The smoke pipe is not easy to accumulate ash, play the role of self-cleaning. The double-layer secondary air design improves the ignition conditions of biomass fuel. The independent air chamber is adopted to achieve reasonable air distribution, so that an aerodynamic field conducive to combustion is formed in the furnace and the combustion temperature is high.
No | Item | Data |
1 | Fuel | Coal-fired, biomass, wood. |
2 | Capacity | 100-600kg/h |
3 | Pressure | 0.4/0.7/1.0 Mpa |
4 | Temperature | 100-184 C |
5 | Control | Automatic |
6 | Voltage | 220/380 |
7 | Package | Wooden box |
DZL series biomass steam boiler performance:
(1) It can realize simulated controlled combustion without deflagration.
(2) The combustion and ignition speed can be controlled by adjusting and controlling the secondary air volume.
(3) Secondary air is arranged in front and back arches, and secondary combustion of fly ash after particle decomposition.
(4) The scale type chain grate, mechanized feeding. The feed is uniform, the combustion is stable, the control is convenient, the tempering is not easy, the mechanical cleaning is convenient.
(5) Stable operation, convenient adjustment, sufficient output.
(6) The pigeonhole wall in the furnace and the outlet chimney have dust removal effect, so that the original dust emission concentration of the boiler is controlled below the standard
Technical Parameters
Type | Rated capacity | Rated Pressure | Temperature | Active grate area | Design efficiency | Fuel consumption |
t/h | MPa | ℃ | ㎡ | % | kg/h | |
DZL1-1.0-All | 1 | 1 | 184 | 1.85 | 80 | 118 |
DZL2-1.25-All | 2 | 1.25 | 194 | 3.4 | 80 | 238 |
DZL4-1.25-All | 4 | 1.25 | 194 | 5.18 | 80 | 472 |
DZL6-1.25-All | 6 | 1.25 | 194 | 7.55 | 80 | 685 |
DZL10-1.25-All | 10 | 1.25 | 194 | 12 | 80 | 1128 |
SZL15-1.25-All | 15 | 1.25 | 194 | 18 | 80 | 1698 |
SZL20-1.25-All | 20 | 1.25 | 194 | 22.9 | 80 | 2241 |
SZL30-1.25-All | 30 | 1.25 | 194 | 27.5 | 81 | 3380 |
SZL40-1.25-All | 40 | 1.25 | 194 | 34.5 | 81 | 4481 |
Accessories

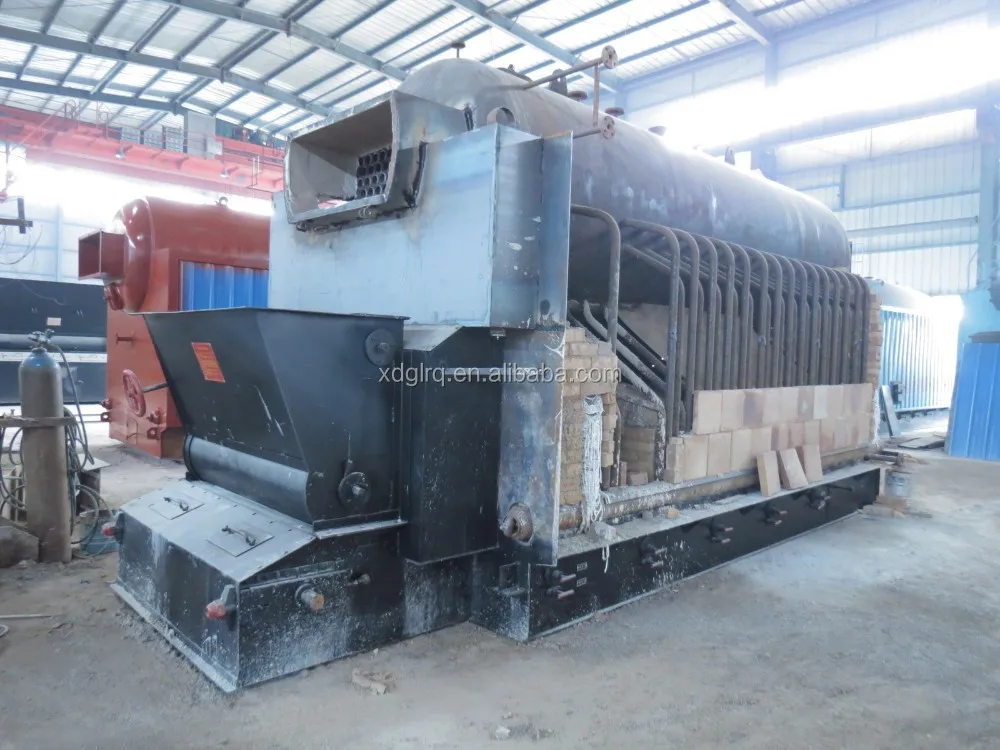

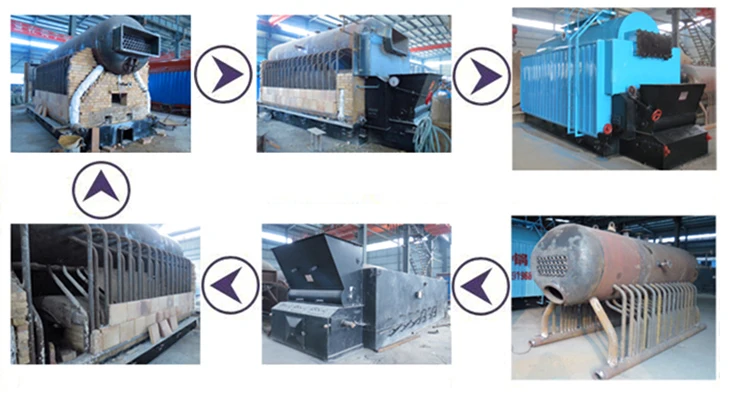

Productive Process

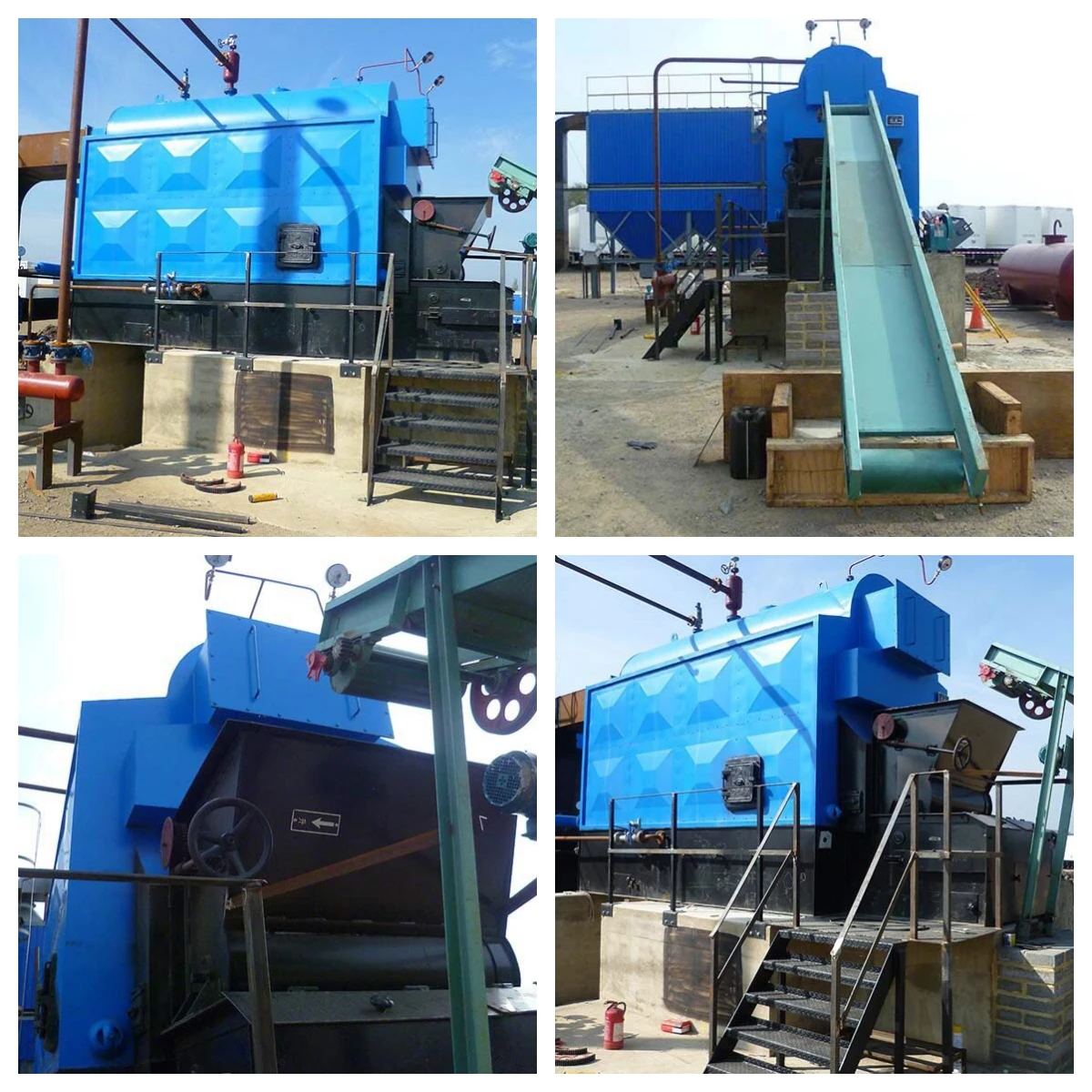

Application

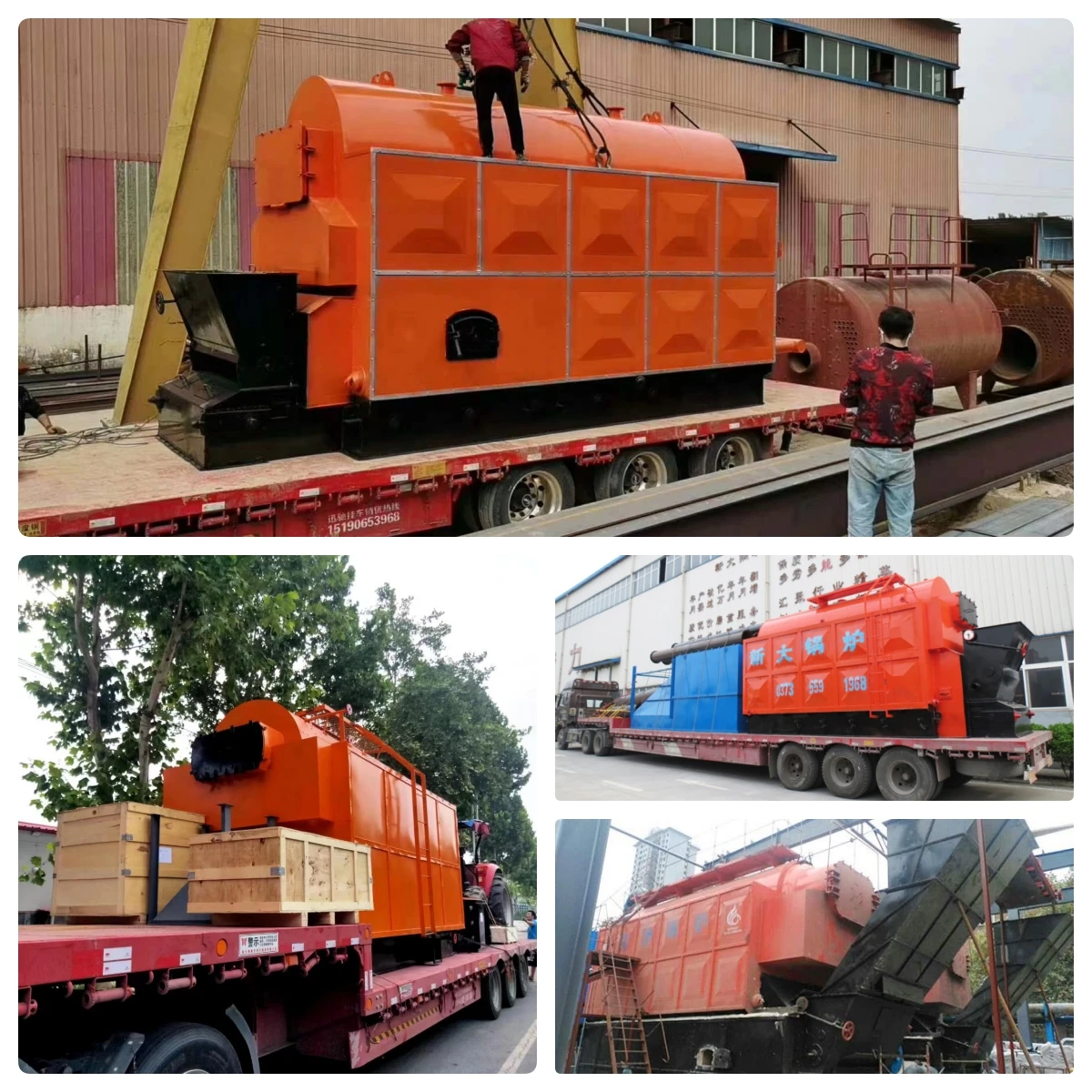

Packing&Shipping
Company Profile
Henan Xinda Boiler Co., Ltd., a Grade A boiler manufacturer, specializes in the design, production, sales, installation and maintenance services of environmental protection and energy saving products. The factory floor covers an area of 12,000 square meters and is equipped with the latest technology production facilities.
After years of continuous development and progress, we have obtained more than ten invention patents and a number of national energy-saving and environmental protection product honors, and passed the ISO9001 international quality management system certification. The company also has professional research and development capabilities, providing efficient, stable and long-life products that meet CE and ASME standards.
By the end of 2018, we have exported to 67 countries around the world and have successfully provided tailor-made solutions to more than 100,000 customers. Our main products are:
(1) LHS/LSS vertical gas oil steam boiler and hot water boiler
(2) LHG vertical biomass steam boiler and hot water boiler
(3) WNS gas steam boiler and hot water boiler
(4) DZL/DZH biomass/wood/coal steam boiler and hot water boiler
(5) SZL biomass steam boiler and hot water boiler
(6) LDR electric steam generator and hot water boiler
(7) Various types of pressure vessels
Xinda Boiler has been committed to improving the efficiency and safety of boilers and providing safe, energy-saving and environmentally friendly products. We look forward to working with you to create a brilliant future.
