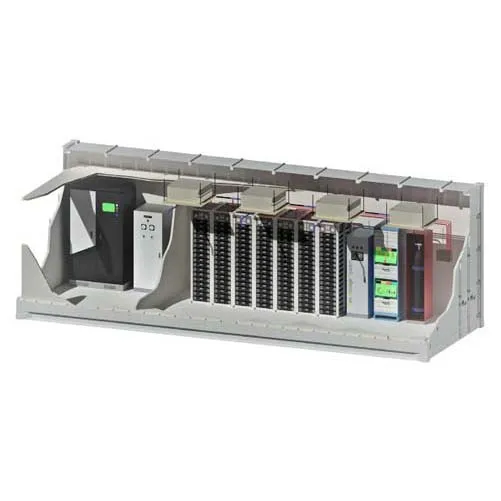

500KW 1MW off grid solar power system lithium storage solar energy battery systems utility energy storage container
- Category: >>>
- Supplier: Henan Livefun Solar Tech Co. Ltd.
Share on (1600879793882):
Product Overview
Description
Product Details

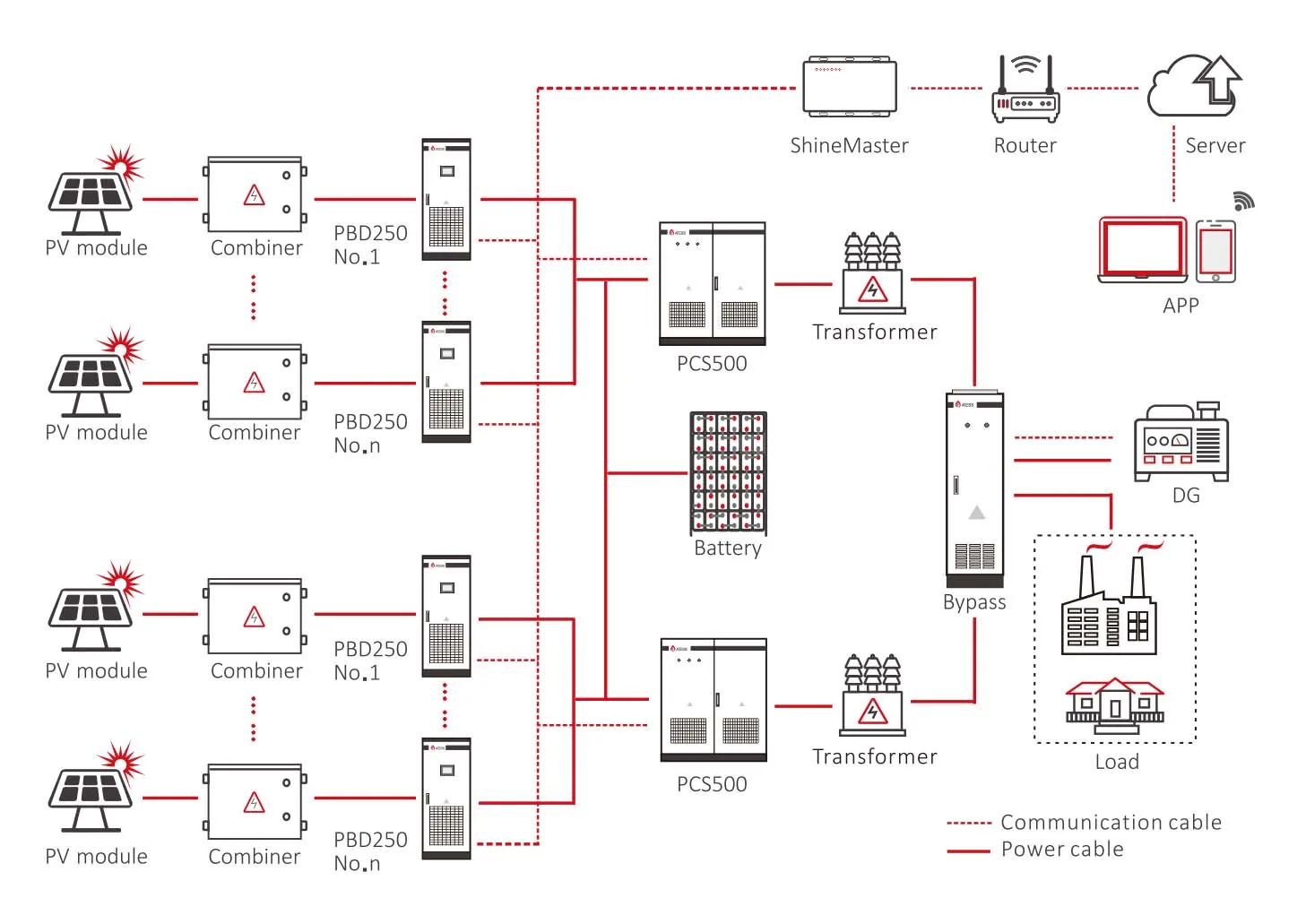

System Block Diagram
Components Included

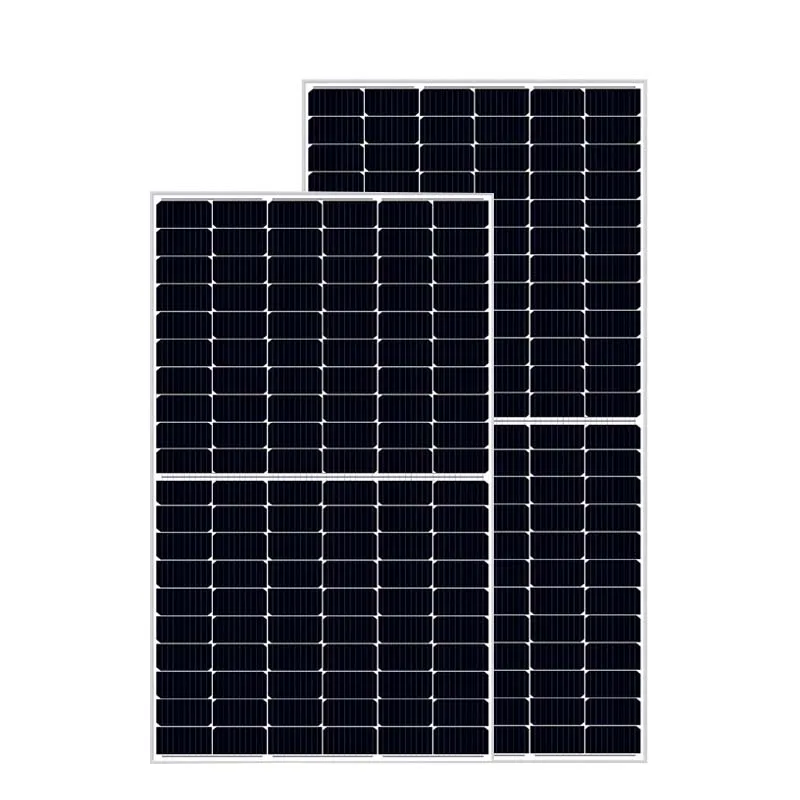

Half Cut Solar Panel
*Highest conversion efficiency of 21.5%
*0~+5W positive power tolerance
*PID Protection
*Higher performance under low light.
*MBB cell technology.
*Maximum system voltage:1500V *Junction box:IP68
*Frame:Aluminum alloy
*Cell amount:72*2pcs
Application level:Class A
*12Years product warranty,25 Years power output guarantee.
*0~+5W positive power tolerance
*PID Protection
*Higher performance under low light.
*MBB cell technology.
*Maximum system voltage:1500V *Junction box:IP68
*Frame:Aluminum alloy
*Cell amount:72*2pcs
Application level:Class A
*12Years product warranty,25 Years power output guarantee.
*Lightning protection
*Optional string monitoring function
*IP65 environment compatibility
*Flexible design, 8,16 inputs optional
*RS485 communication interface

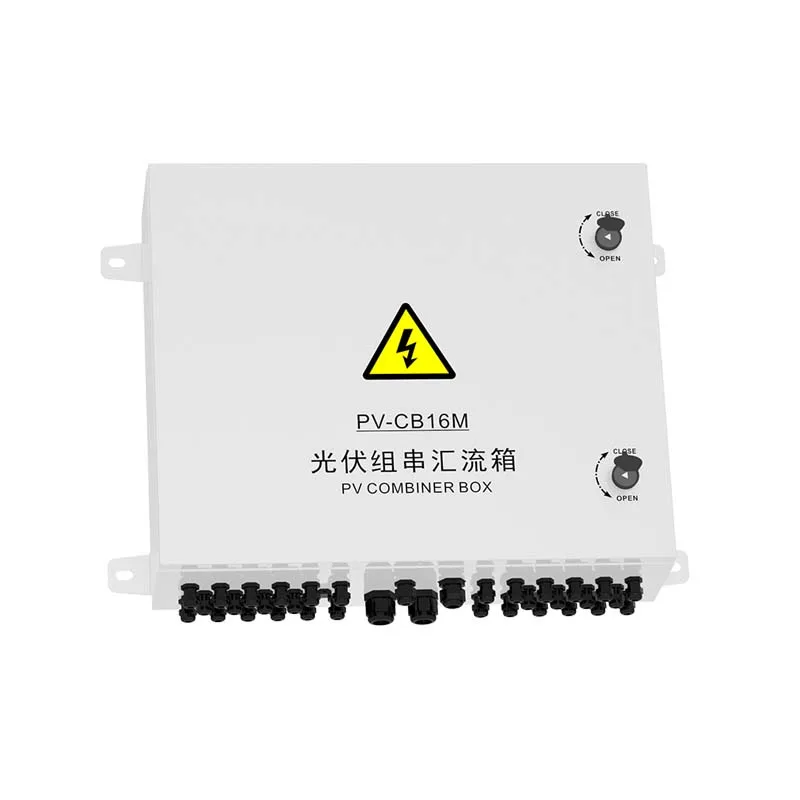

*Input fuse for over current protection *PV combiner box is an accessory for multiple PV string connection, it is with smart
controller inbuilt for monitoring, along with comprehensive protections including fuse and SPD
*Optional string monitoring function
*IP65 environment compatibility
*Flexible design, 8,16 inputs optional
*RS485 communication interface
*Input fuse for over current protection *PV combiner box is an accessory for multiple PV string connection, it is with smart
controller inbuilt for monitoring, along with comprehensive protections including fuse and SPD

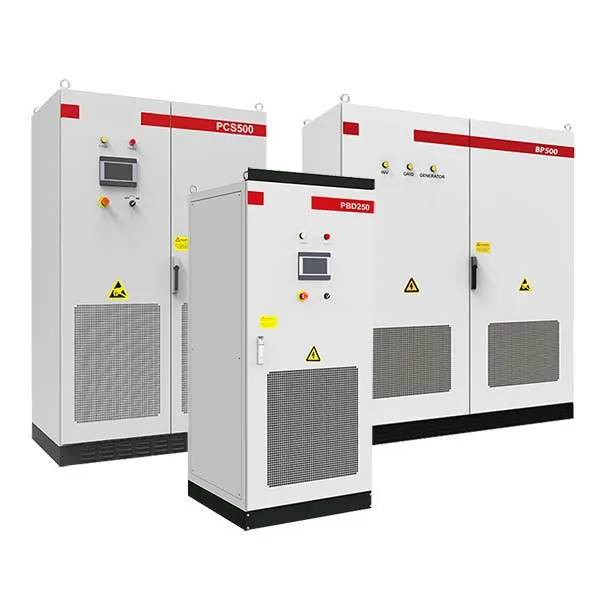

*PBD250:Solar Charge Controller
*PCS50/100/250/500/630:
Bi-directional battery inverter
*Bypass50/100/250/500:
bypass cabinet is designed to be used together with bidirectional battery inverter and PV inverter to realize seamless transfer
between on and off grid mode automatically.
*PCS50/100/250/500/630:
Bi-directional battery inverter
*Bypass50/100/250/500:
bypass cabinet is designed to be used together with bidirectional battery inverter and PV inverter to realize seamless transfer
between on and off grid mode automatically.
*Up to 32 inverters connection
*Multi-function and high performance *Local webserver for easy configuration *Support external sensor to realize zero-export
function.

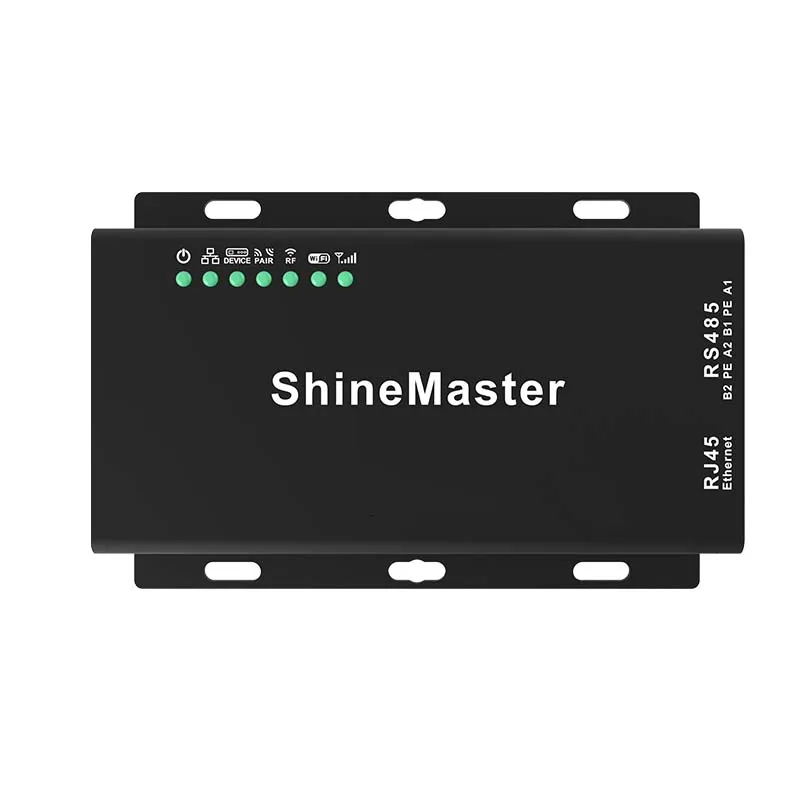

*Datalogger for overall system monitoring, collect operation data from different units via Modbus RS485 and communicate with the
server via internet
*Multi-function and high performance *Local webserver for easy configuration *Support external sensor to realize zero-export
function.
*Datalogger for overall system monitoring, collect operation data from different units via Modbus RS485 and communicate with the
server via internet
*Easy installation and maintenance

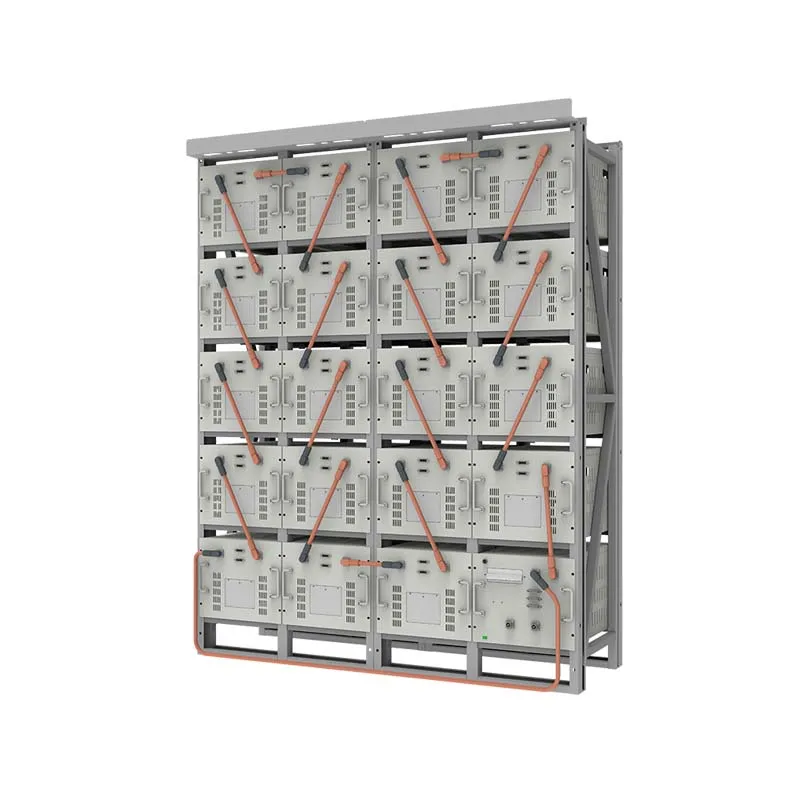

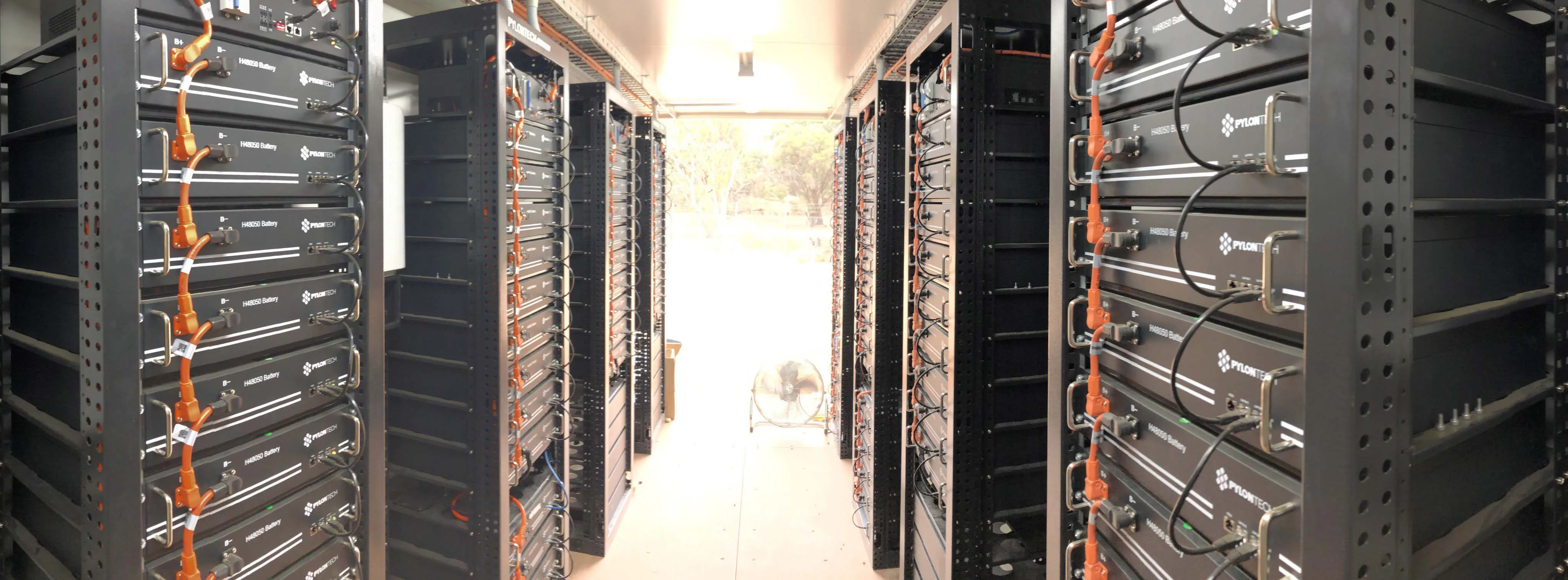

*LFP high-capacity Li-Ion battery with aluminum shell,over 130wh/kg
*Self-developed 3-level BMS, complex protection, safe and reliable
*Long cycle life, 6000 cycles *Outdoor battery cabinet with IP54 protection level, indoor battery rack with IP20 protection
level,inbuild lithium-ion battery and BMS.
*Standard 5Years Warranty.
*LFP high-capacity Li-Ion battery with aluminum shell,over 130wh/kg
*Self-developed 3-level BMS, complex protection, safe and reliable
*Long cycle life, 6000 cycles *Outdoor battery cabinet with IP54 protection level, indoor battery rack with IP20 protection
level,inbuild lithium-ion battery and BMS.
*Standard 5Years Warranty.

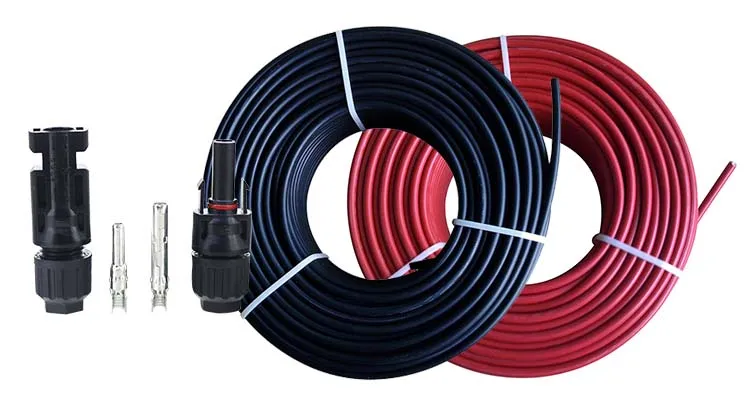

*Black/Red color 4/6/10 mm2 PV cable
*Universal compatible PV connectors
*With CE TUV certificate
*15Years Warranty
*Universal compatible PV connectors
*With CE TUV certificate
*15Years Warranty

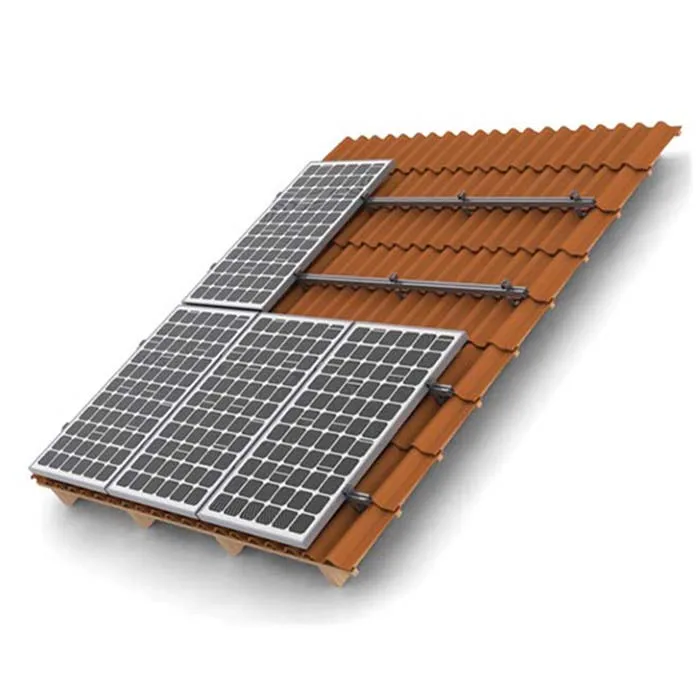

*Customized for roof&ground etc. *Adjustable angle from 0~65 degree
*Compatible with all type solar panel
*Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
*Mid & End Clamps: 35,40,45,50mm
*L Foot Asphalt Shingle Moount & Hanger Bolt Optional
*Cable Clip & Tie Optional
*Ground Clip & Lugs Optional
*25Years Warranty
*Compatible with all type solar panel
*Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
*Mid & End Clamps: 35,40,45,50mm
*L Foot Asphalt Shingle Moount & Hanger Bolt Optional
*Cable Clip & Tie Optional
*Ground Clip & Lugs Optional
*25Years Warranty
Micro-grid 250-5000KW/KWH Complete ESS Container Configuration | ||||||
System Model | LF250KW/KWH-ESS | LF500KW/KWH-ESS | LF1MW/MWH-ESS | |||
Half Cut 550W Solar Panel | 480pieces | 960pieces | 1920pieces | |||
PV Combiner Box | 5pieces 8 input 1output | 10pieces 8 input 1output | 20pieces 8 input 1output | |||
Solar Charge Controller | 1Piece PBD250 | 2Piece PBD250 | 4Pieces PBD250 | |||
Bi-directional Battery Inverter | 1piece PCS 250 | 1piece PCS 500 | 2pieces PCS 500 | |||
Bypass cabinet | 1piece Bypass 250 | 1piece Bypass 500 | 1piece Bypass 1000 | |||
LFP Battery Bank | 250KWH | 500KWH | 1MWH | |||
PV Cables | 4000m | 8000m | 12000m | |||
MC4 Connector | 240pairs | 480pairs | 960pairs | |||
Mounting System | Customized based on your installation site | |||||

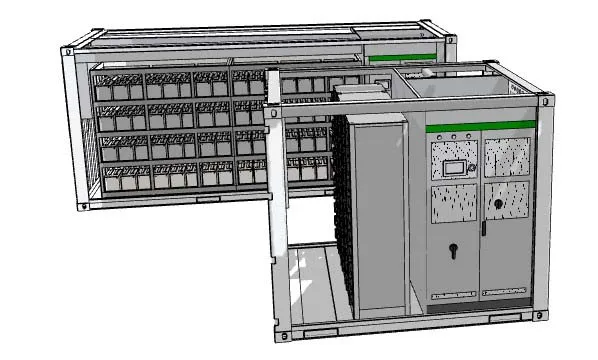

Container Size | 10/20/40ft | |||||
System Model | LF2MW/MWH-ESS | LF3MW/MWH-ESS | LF5MW/MWH-ESS | ||
Half Cut 550W Solar Panel | 3840pieces | 5760pieces | 9600pieces | ||
PV Combiner Box | 40pieces 8 input 1output | 60pieces 8 input 1output | 100pieces 8 input 1output | ||
Solar Charge Controller | 8Piece PBD250 | 12Piece PBD250 | 20Piece PBD250 | ||
Bi-directional Battery Inverter | 4pieces PCS 500 | 6pieces PCS 500 | 10pieces PCS 500 | ||
Bypass cabinet | 2pieces Bypass 1000 | 3pieces Bypass 1000 | 5pieces Bypass 1000 | ||
LFP Battery Bank | 2MWH | 3MWH | 5MWH | ||
PV Cables | 24000m | 36000m | 60000m | ||
MC4 Connector | 1920pairs | 2880pairs | 4800pairs | ||
Mounting System | Customized based on your installation site | ||||
Container Size | 10/20/40ft | ||||
Packing and Delivery

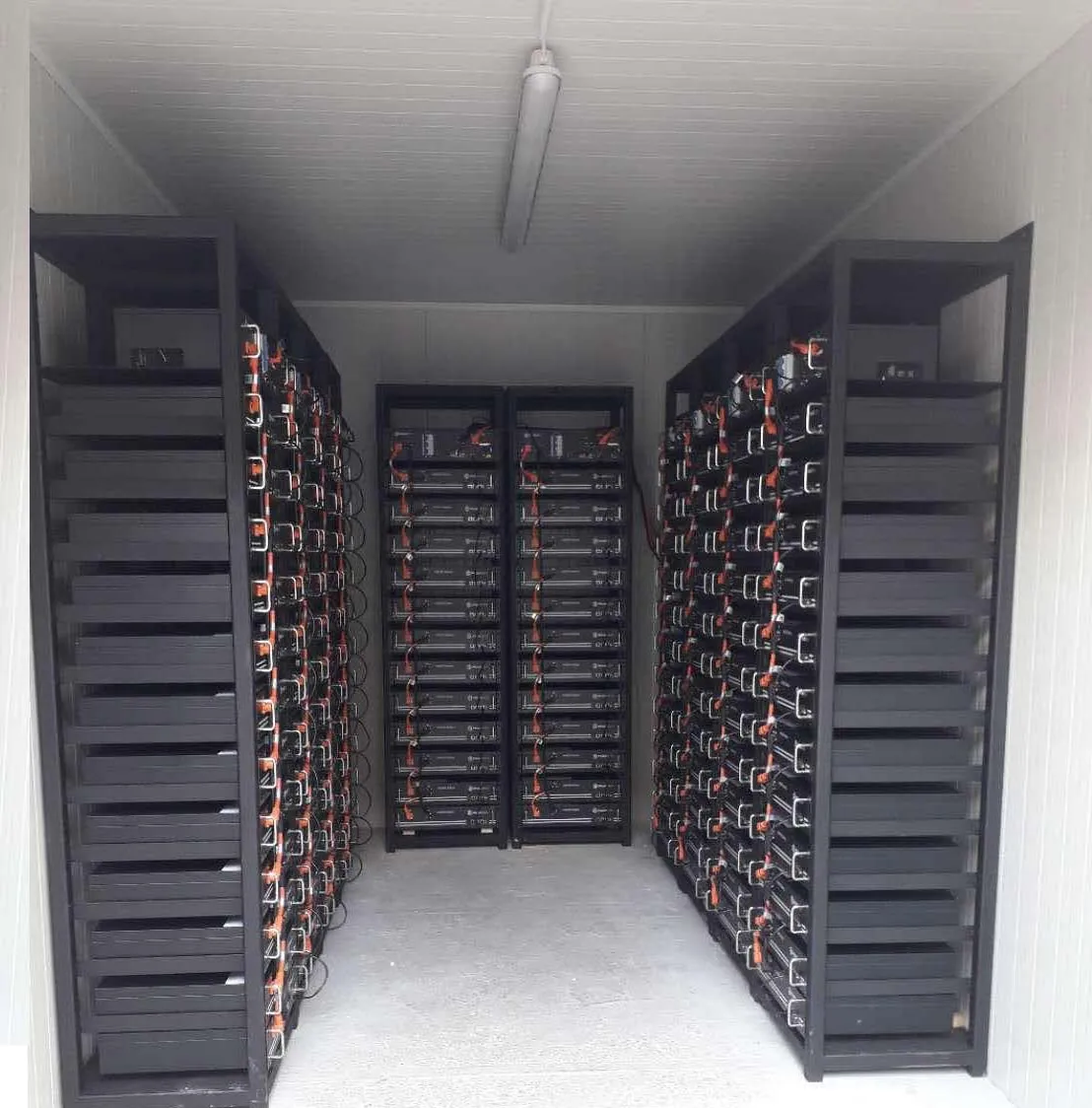

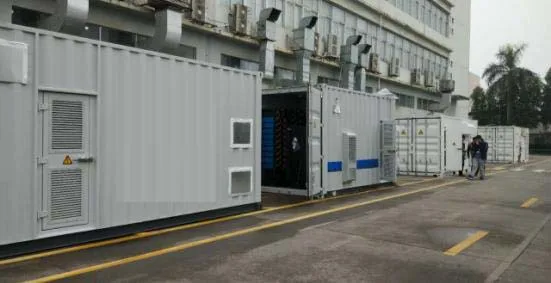

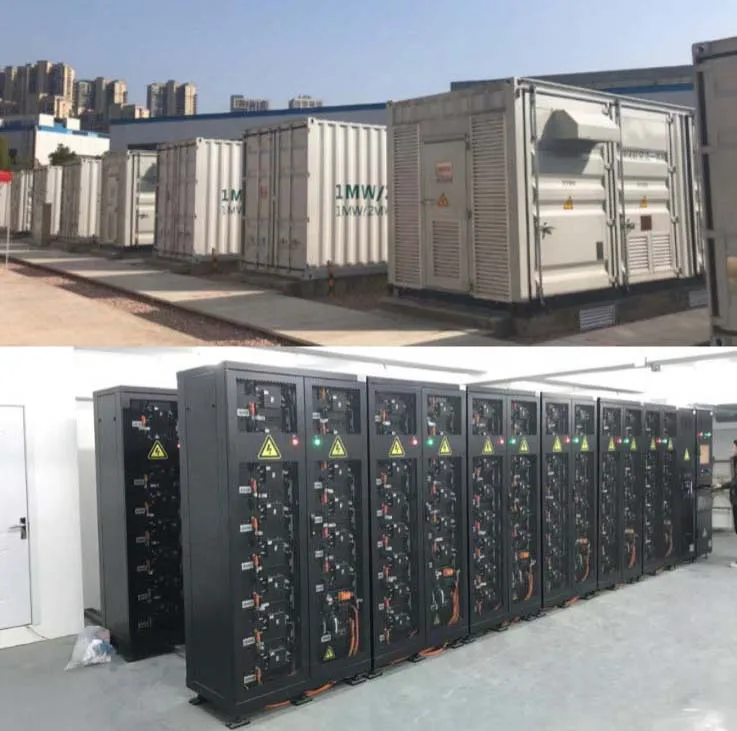

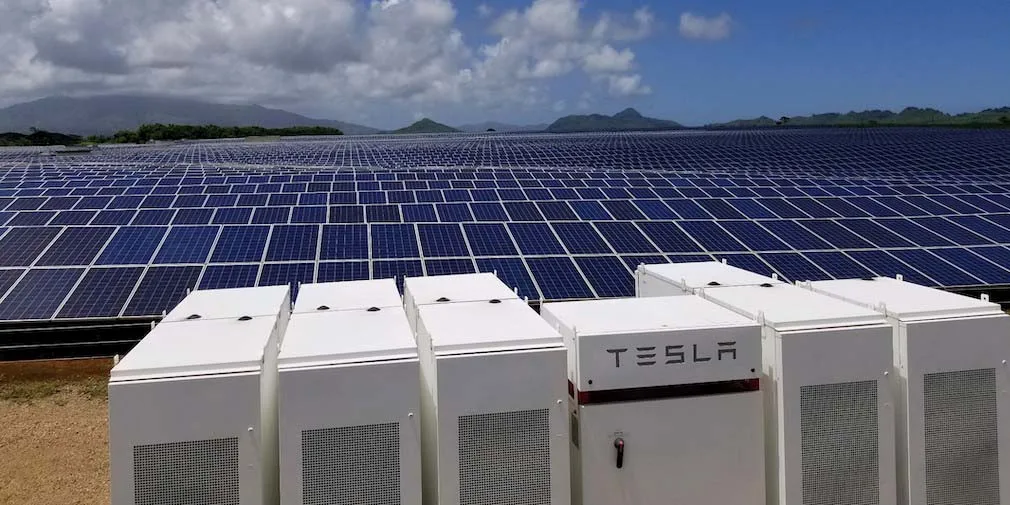

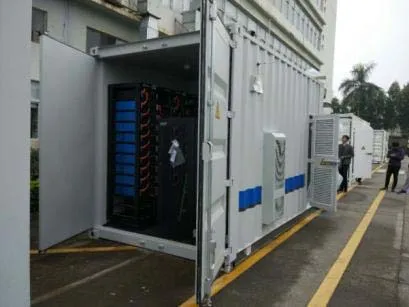

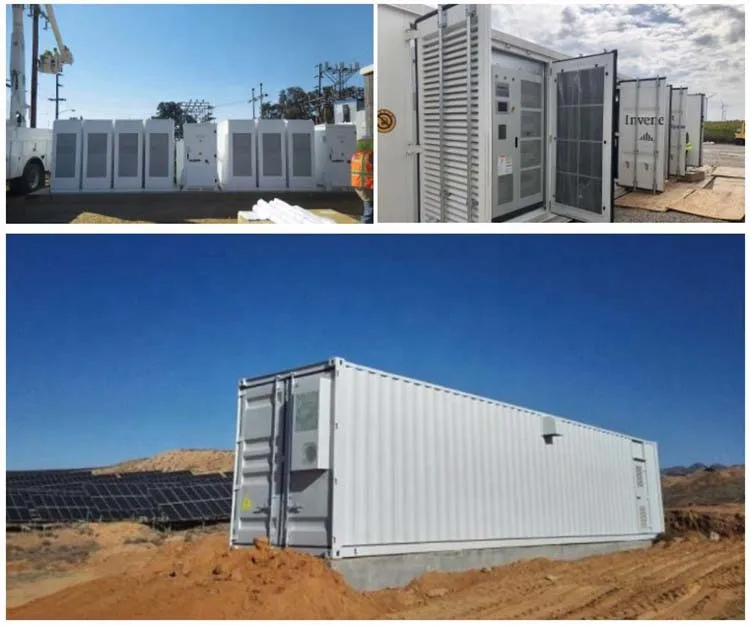

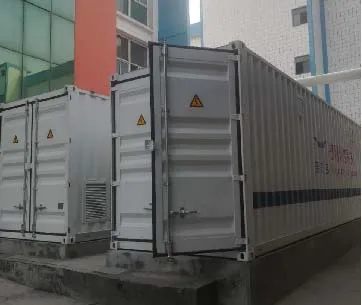

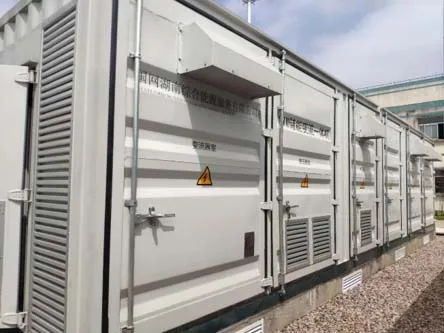

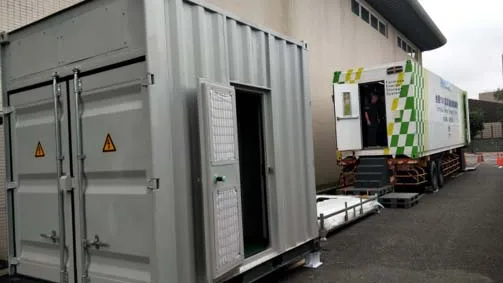

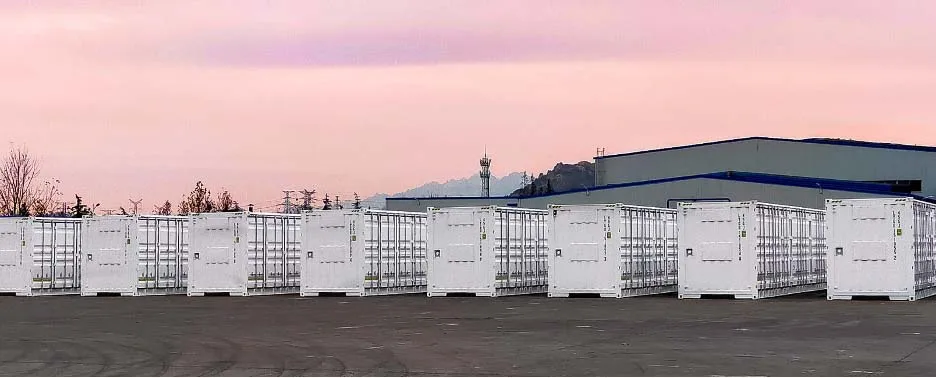

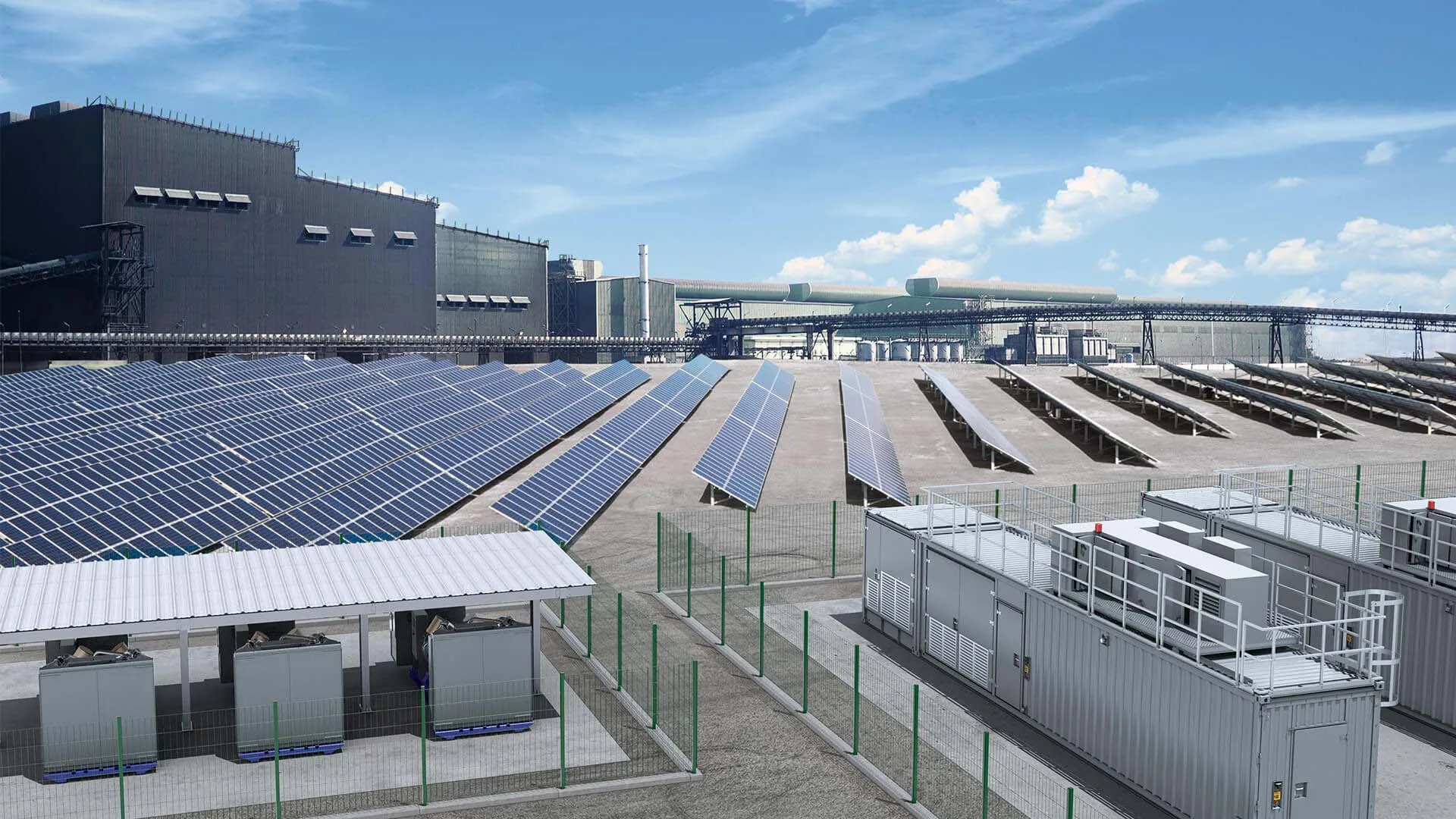

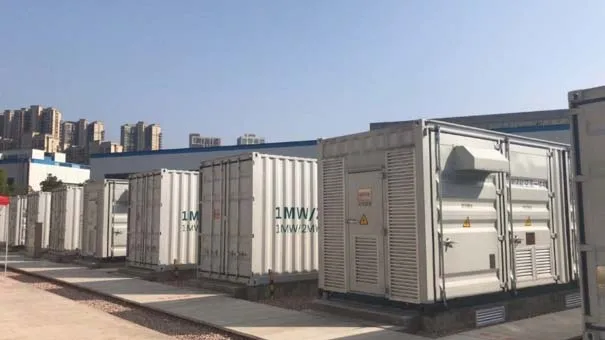

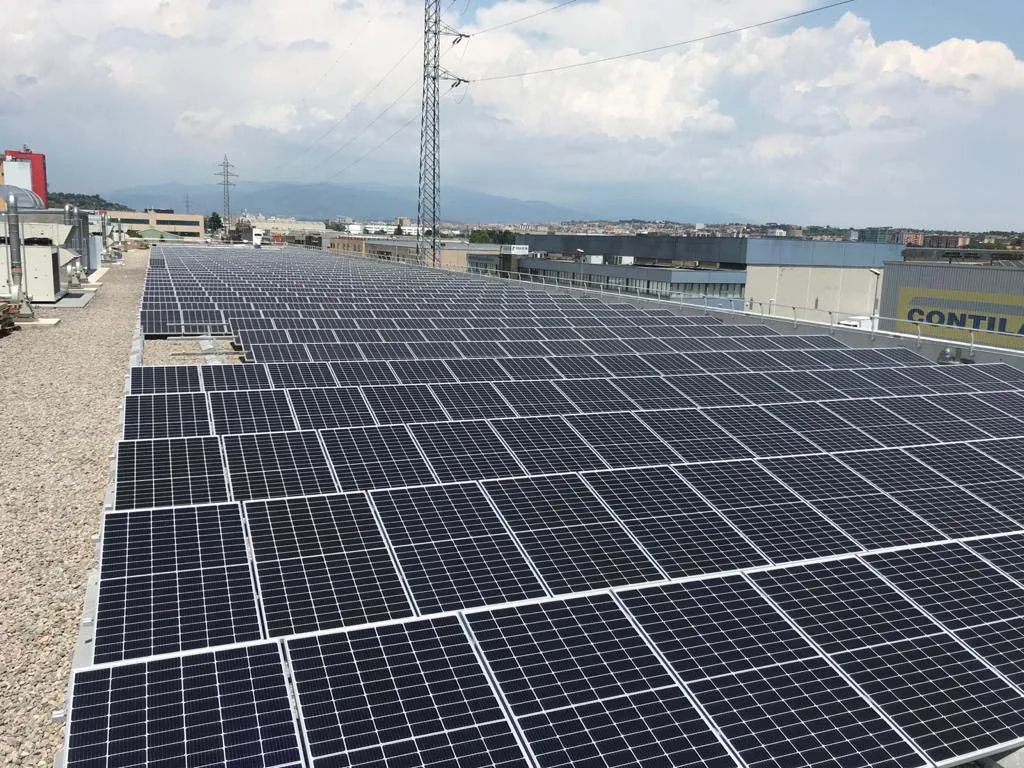

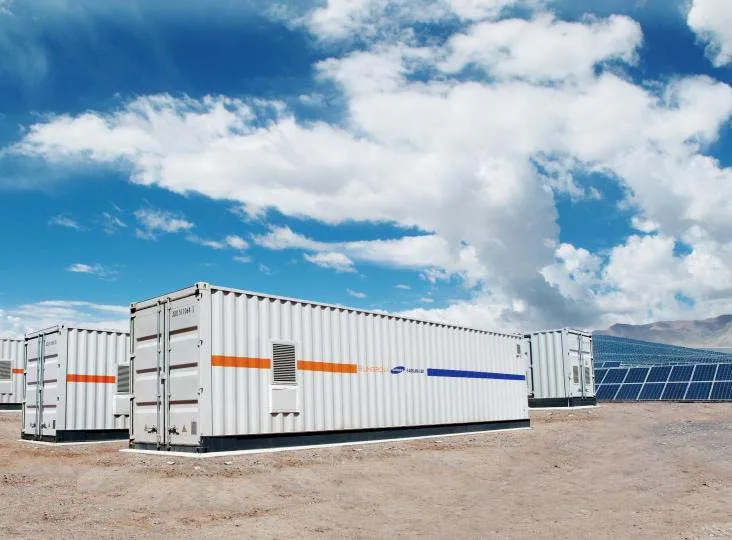

Project Cases
