LC1535 Manufacturer Supply Single Point Load Cell Aluminum C3 60kg 300kg High Accuracy for Electronic Scale
- Category: >>>
- Supplier: Lascaux Microelectronic Device (tianjin) Co. Ltd.
Share on (1600879816472):
Product Overview
Description
Point Load Cell
● Aluminum Alloy Material Structure
● Robust and Stable Performance
● Compact structure, easy to install
● Robust and Stable Performance
● Compact structure, easy to install

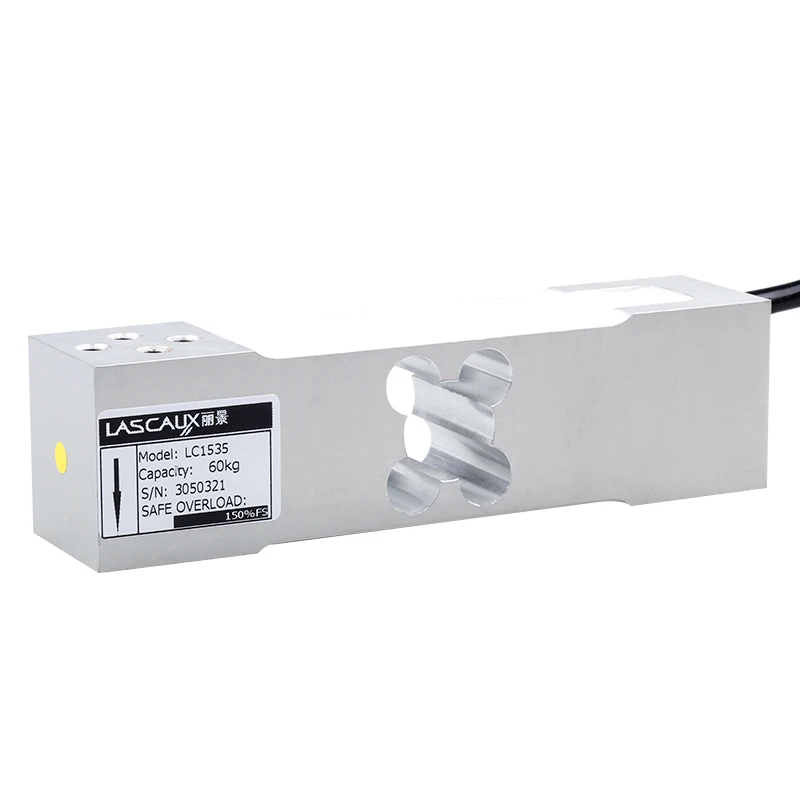

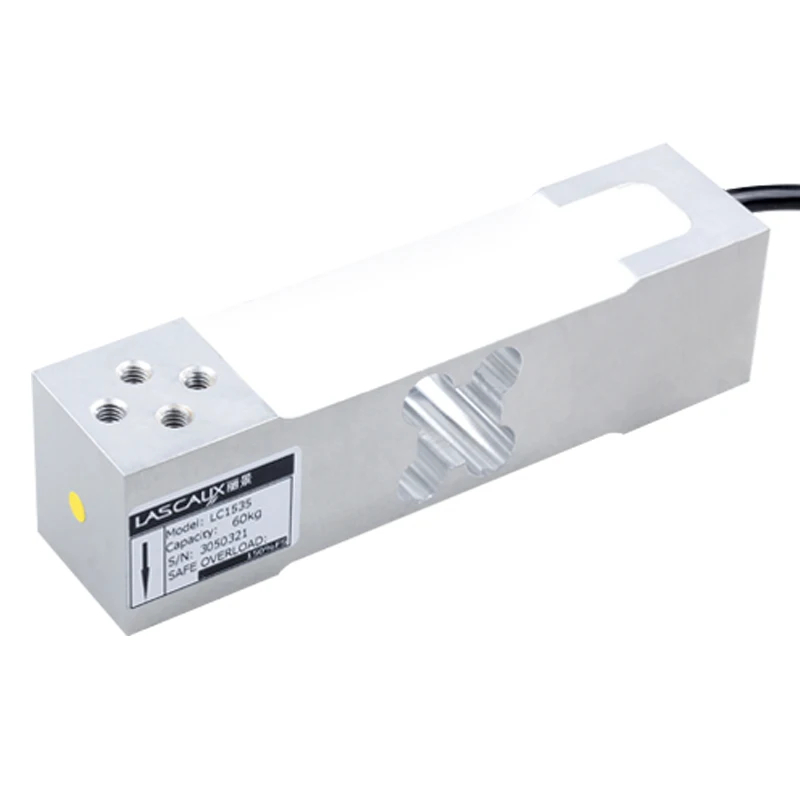

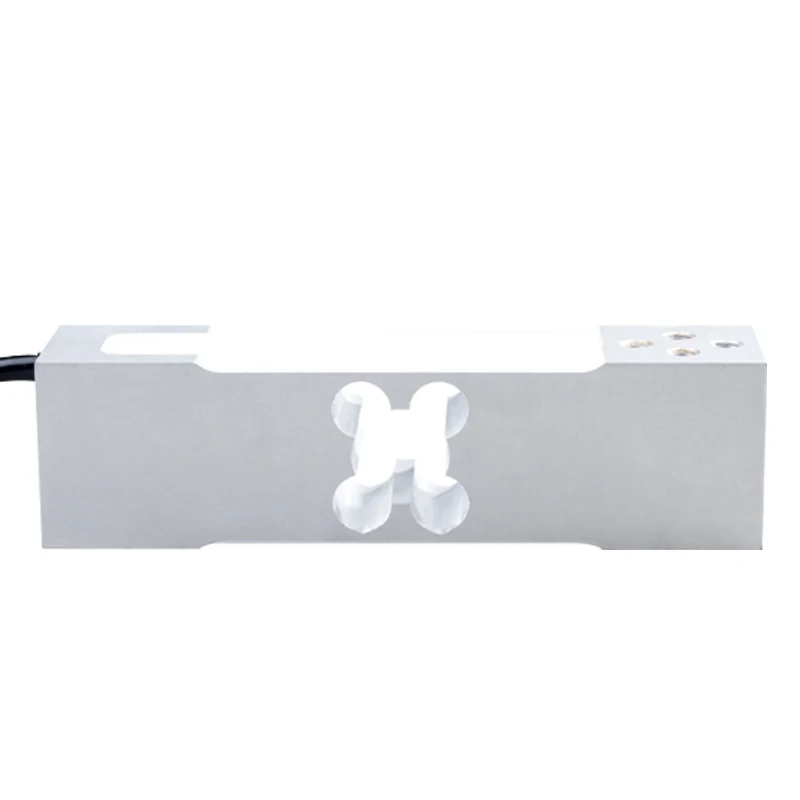

LC1535 Single Point Load Cell
Description:
2. High comprehensive precision, high stability
3. Compact structure, easy to install
4. Small size with low profile
5. Anodized Aluminum Alloy
6. The four deviations has been adjusted
7. Recommended Platform size: 400mm*400mm
Specifications: | ||||
Rated Load | kg | 60,100,150,200,250,300 | ||
Rated Output | mV/V | 2.0±0.2 | ||
Zero Balance | %R.O. | ±1 | ||
Creep after 30 minutes | %R.O. | ±0.02 | ||
Comprehensive Error | %R.O. | ±0.02 | ||
Compensated Temp. Range | ℃ | -10~+40 | ||
Operating Temp. Range | ℃ | -20~+70 | ||
Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 | ||
Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 | ||
Recommended Excitation Voltage | VDC | 5-12 | ||
Input impedance | Ω | 410±10 | ||
Output impedance | Ω | 350±5 | ||
Insulation resistance | MΩ | ≥5000（50VDC） | ||
Safe Overload | %R.C. | 150 | ||
Ultimate Overload | %R.C. | 200 | ||
Material | Aluminum | |||
Degree of protection | IP65 | |||
The length of the cable | m | 2 | ||
Recommended Platform size | mm | 400*400 | ||
Tightening Torque | N·m | 10 | ||

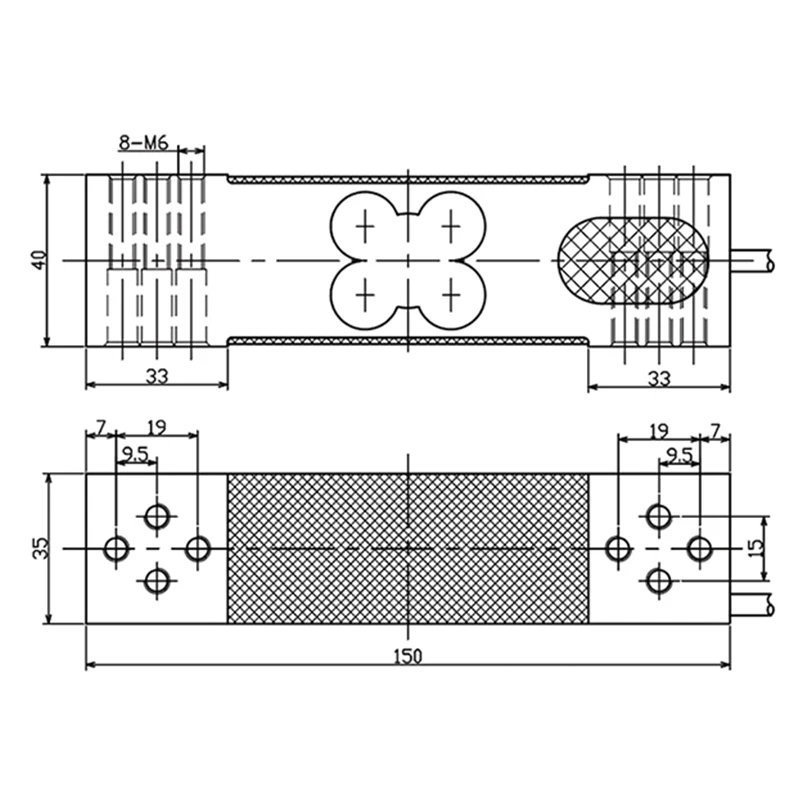

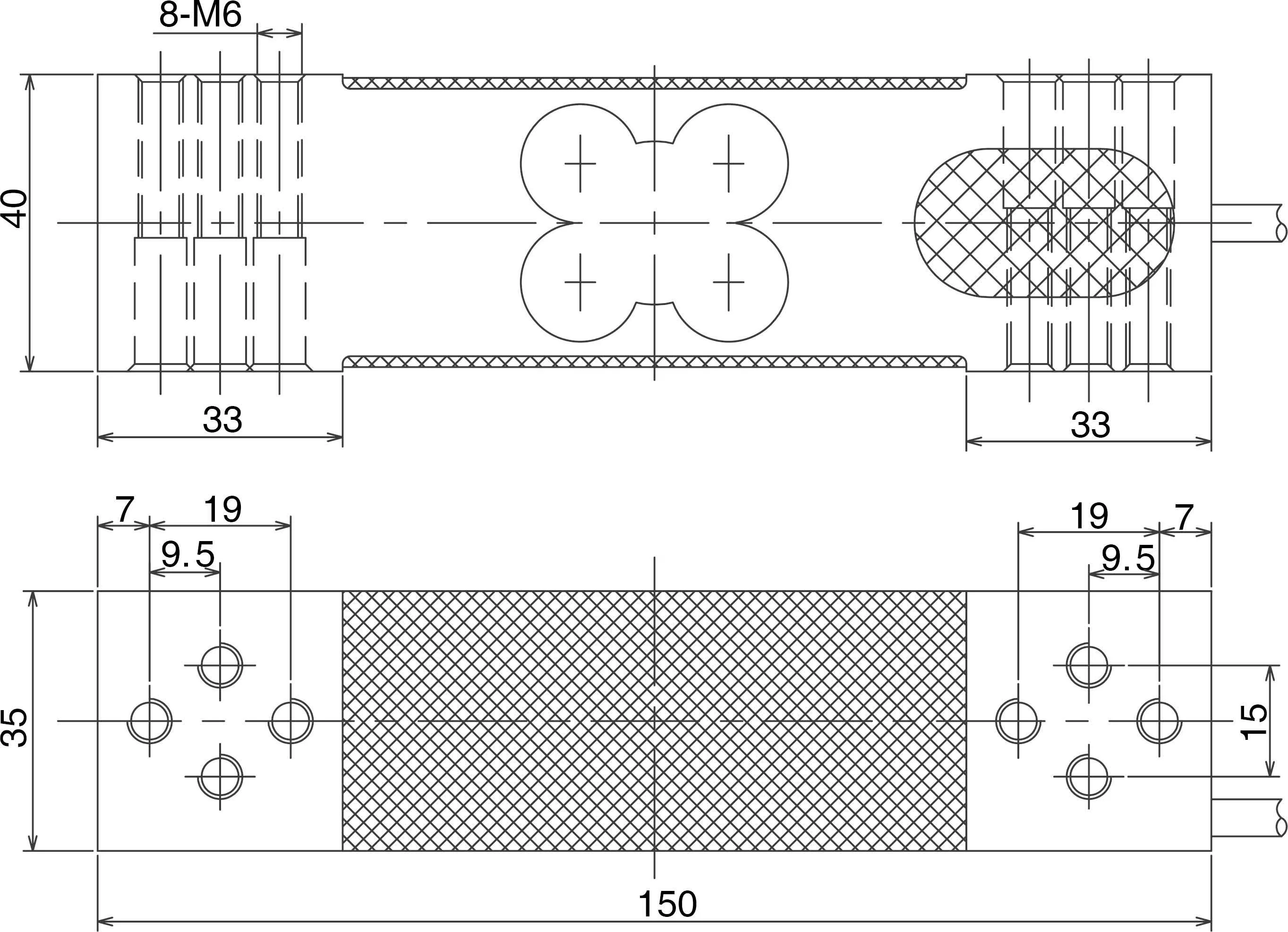

Dimension（in mm）： | ||||
Applications:
Be suitable for the fields of Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Low profile platform scales,Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control
