Round Square Rectangular ERW Tube mills
Products of Tube Mill Production Line

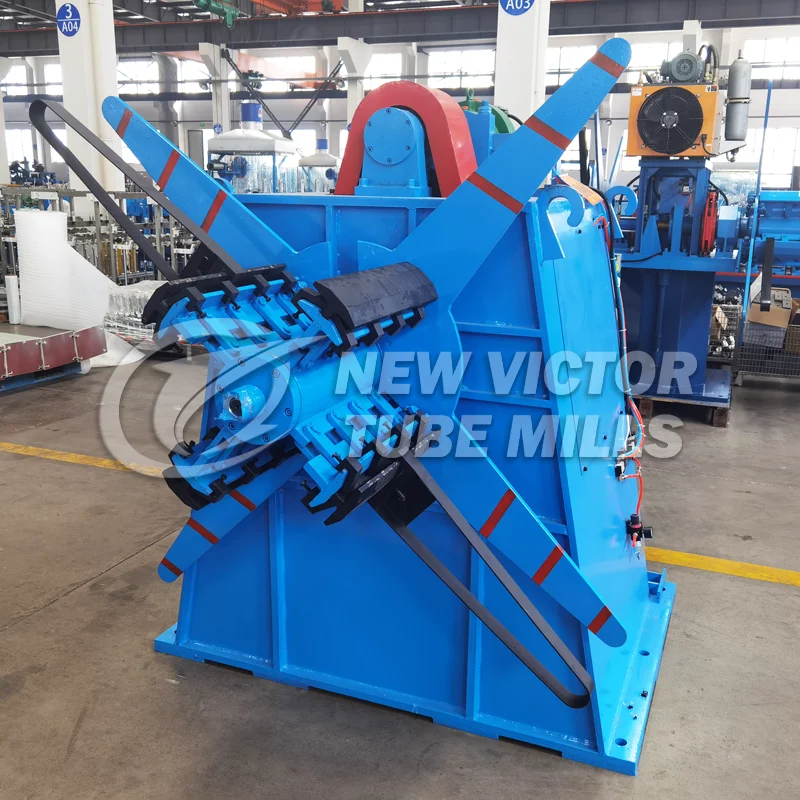

1. TUBE MILL ENTRY SECTION
2. HORIZONTAL LOOP ACCUMULATOR
3. TUBE FORMING AND SIZING SECTION
4. FLYING SAW CUT OFF EQUIPMENT
5. CONVEYOR TABLE

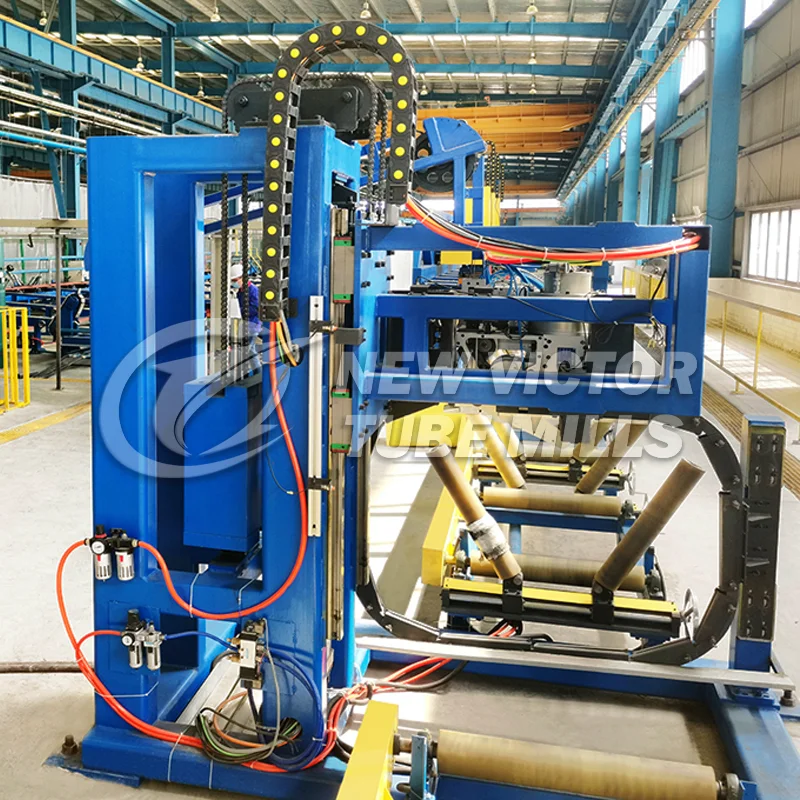

6. AUTOMATIC STACKING & PACKAGING MACHINE
Features of ERW tube mill machine:
Durable and non-deformed machine base
Use thick steel to weld together as a whole to tempering more than 4 hours twice to make sure that the machine can be used in long term without deformation.
Stable transmission system

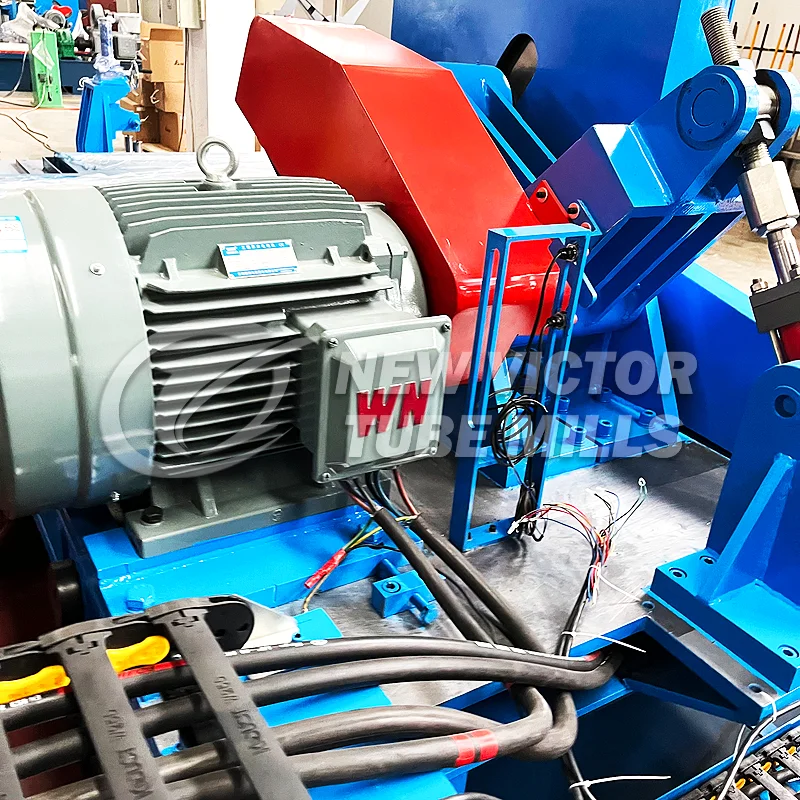

Spiral bevel gear, drum gear coupling and carburization and quenching for gear teeth makes the driving system stable, efficient
and wearable, with higher loading capacity and lower noise
and wearable, with higher loading capacity and lower noise
Long bearing life
Equipped with greasing nozzles for the bearing lubrication, the bearing life is largely improved.
Automatic roller quick change system
Online and automatic roller quickly change system, change roller in 10 minutes, resume production in 20 minutes.

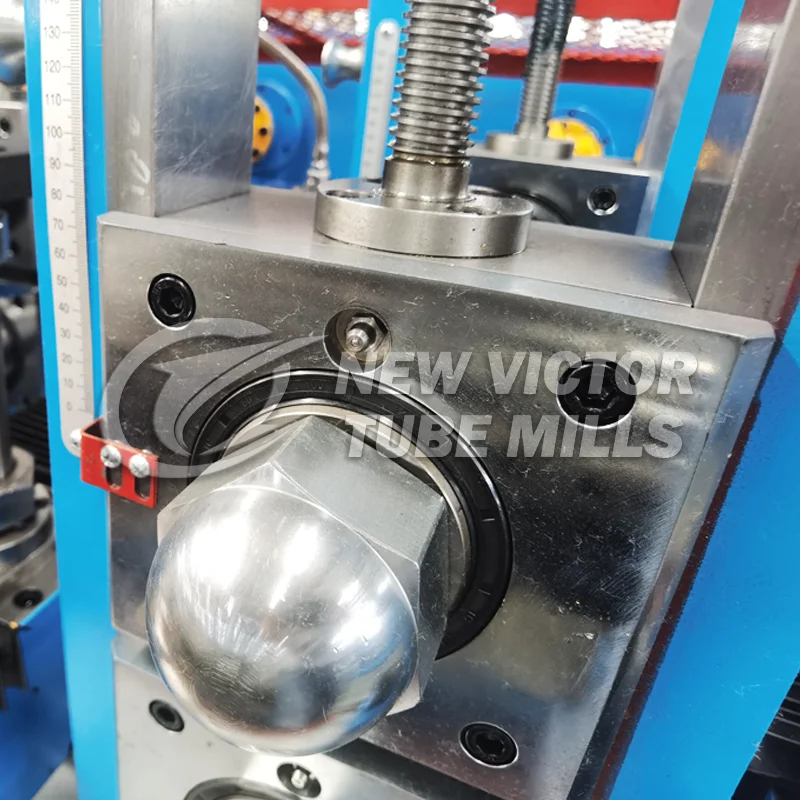

Roller Quick Change System

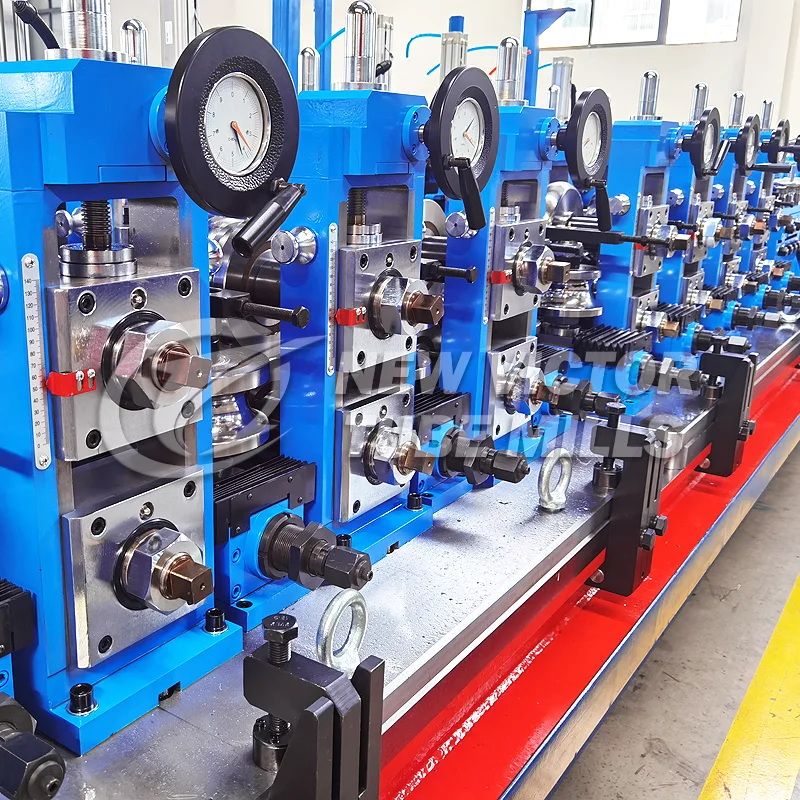

Roller Quick Change Type Tube Mill Machine
Roller Quick Change Type Pipe Mill Machine
Advantages of Roller Quick Change System
with this system, you can change the roller in 10 minutes and resume production in 20 minutes. one machine can easily produce pipes pf many sizes.
ROLLER QUICK CHANGE SYSTEM
Product Paramenters
Model | Tube O.D. (mm) | Wall Thickness (mm) | Square/Rectangle (mm) | Wall Thickness (mm) | Speed (m/min) | Main motor (KW) |
VZH-12 | 4 ~ 12 | 0.2 ~ 0.5 | -- | -- | 30 ~ 120 | 15 |
VZH-16 | 6 ~ 16 | 0.2 ~ 0.8 | -- | -- | 30 ~ 120 | 22 |
VZH-20 | 7 ~ 20 | 0.2 ~ 1.0 | -- | -- | 30 ~ 120 | 30 |
VZH-25 | 9 ~ 25.4 | 0.25 ~ 1.2 | -- | -- | 30 ~ 120 | 37（22*2） |
VZH-32 | 10 ~ 32 | 0.25 ~ 1.5 | 8*8 ~25.4*25.4 10*6 ~ 31.8*19.1 | 0.25 ~ 1.2 | 30 ~ 120 | 45（30*2） |
VZH-32z | 0.5 ~ 2.0 | 0.5 ~ 1.5 | 30 ~ 100 | 55（37*2） | ||
VZH-40 | 12.7 ~ 40 | 0.3 ~ 1.8 | 10*10 ~31.8*31.8 20*10 ~ 40*20 | 0.3 ~ 1.5 | 30 ~ 110 | 75 |
VZH-40z | 0.6 ~ 2.0 | 0.6 ~ 1.5 | 30 ~ 100 | 45*2 | ||
VZH-50q | 16 ~ 50.8 | 0.4 ~ 1.5 | 12.7*12.7 ~40*40 20*10 ~ 50*25 | 0.4 ~ 1.2 | 30 ~ 110 | 90 |
VZH-50 | 0.5 ~ 2.0 | 0.5 ~ 1.5 | 30 ~ 90 | 45*2（110） | ||
VZH-50z | 0.7 ~ 2.5 | 0.7 ~ 2.0 | 30 ~ 80 | 55*2 | ||
VZH-63q | 19.05 ~ 63.5 | 0.6 ~ 2.0 | 15*15 ~50*50 20*10 ~ 60*30 | 0.6 ~ 1.5 | 30 ~ 90 | 132（55*2） |
VZH-63 | 0.7 ~ 3.0 | 0.7 ~ 2.5 | 30 ~ 80 | 75*2（132） | ||
VZH-63z | 0.8 ~ 3.5 | 0.8 ~ 3.0 | 20 ~ 70 | 90*2 | ||
VZH-76q | 25.4 ~ 76.2 | 0.8 ~ 2.5 | 20*20 ~60*60 30*15 ~ 80*40 | 0.8 ~ 2.0 | 30 ~ 90 | 160（75*2） |
VZH-76 | 0.8 ~ 3.5 | 0.8 ~ 3.0 | 30 ~ 80 | 90*2 | ||
VZH-76z | 0.8 ~ 4.0 | 0.8 ~ 3.5 | 20 ~ 70 | |||
VZH-90q | 30 ~ 90 | 0.8 ~ 3.0 | 25*25 ~70*70 30*20 ~ 80*40 | 0.8 ~ 2.5 | 30 ~ 90 | 180（90*2） |
VZH-90 | 0.8 ~ 3.5 | 0.8 ~ 3.0 | 30 ~ 80 | 110*2（132*2） | ||
VZH-90z | 1.0 ~ 4.0 | 1.0 ~ 3.5 | 20 ~ 70 | |||
VZH-100q | 31.8 ~ 101.6 | 1.0 ~ 3.0 | 25*25 ~80*80 30*20 ~ 100*50 | 1.0 ~ 2.5 | 30 ~ 90 | 200（110*2） |
VZH-100 | 1.0 ~ 3.75 | 1.0 ~ 3.25 | 30 ~ 80 | 110*2 | ||
VZH-100z | 1.0 ~ 4.25 | 1.0 ~ 3.5 | 20 ~ 70 | 132*2 | ||
VZH-114q | 35 ~ 114.3 | 1.0 ~ 3.0 | 30*30 ~90*90 40*20 ~ 120*60 | 1.0 ~ 2.5 | 20 ~ 80 | 110*2 |
VZH-114 | 1.2 ~ 4.5 | 1.2 ~ 4.0 | 20 ~ 70 | 132*2 | ||
VZH-114z | 40 ~ 114.3 | 1.2 ~ 5.0 | 1.2 ~ 4.5 | 15 ~ 60 | ||
VZH-127q | 40 ~ 127 | 1.2 ~ 3.5 | 40*40 ~100*100 60*30 ~ 120*80 | 1.2 ~ 3.0 | 20 ~ 70 | 132*2 |
VZH-127 | 1.5 ~ 5.0 | 1.5 ~ 4.5 | 15 ~ 60 | 160*2 | ||
VZH-127z | 50 ~ 127 | 1.5 ~ 5.5 | 1.5 ~ 5.0 | 10 ~ 45 | 160*2 | |
VZH-140q | 50 ~ 141.3 | 1.2 ~ 4.0 | 50*50 ~110*110 60*40 ~ 150*75 | 1.2 ~ 3.5 | 15 ~ 60 | 160*2 |
VZH-140 | 1.5 ~ 5.5 | 1.5 ~ 5.0 | 10 ~ 50 | 180*2 | ||
VZH-140z | 60 ~ 141.3 | 2.0 ~ 6.0 | 2.0 ~ 5.5 | 10 ~ 40 | 180*2 | |
VZH-168q | 60 ~ 168.3 | 1.5 ~ 5.0 | 60*60 ~130*130 80*40 ~ 160*80 | 1.5 ~ 4.5 | 10 ~ 50 | 180*2 |
VZH-168 | 2.0 ~ 6.0 | 2.0 ~ 5.5 | 10 ~ 50 | 200*2 | ||
VZH-168z | 76.2 ~ 168.3 | 2.5 ~ 8.0 | 2.5 ~ 7.0 | 10 ~ 40 | 200+132*2 （132*4） | |
VZH-219q | 89.1 ~ 219.1 | 2.0 ~ 6.0 | 70*70 ~160*160 100*50 ~200*100 | 2.0 ~ 5.5 | 10 ~ 50 | 110*2+132*2 |
VZH-219 | 3.0 ~ 8.0 | 3.0 ~ 7.0 | 10 ~ 40 | 132*2+132*2 | ||
VZH-219z | 4.0 ~ 10.0 | 4.0 ~ 9.0 | 10 ~ 40 | 132*2+160*2 | ||
VZH-273 | 114.3 ~ 273 | 4.0 ~ 10.0 | 90*90 ~200*200 120*60 ~260*130 | 4.0 ~ 9.0 | 10 ~ 40 | 160*2+160*2 |
VZH-273z | 4.5 ~ 12.0 | 4.5 ~ 11.0 | 10 ~ 35 | 180*4 |
Classic Case
VZH-168 in Palestine
OD precision can be controlled within ±0.02mm, oval tolerance to be ±0.02mm also, straightness ≤0.8mm/m.
The production line also designed to be high strength, CNC high precision for the roller stands of forming section, sizing section and straightening section, strict precision assembling also.
The production line also designed to be high strength, CNC high precision for the roller stands of forming section, sizing section and straightening section, strict precision assembling also.
High speed ERW tube mill lines in Cambodia
High speed ERW tube mill lines installed in Cambodia with online Zinc spraying for galvanized pipes of construction, guardrail, shelf and etc. Speed can reach 40-120M/min for diameter range 15~50mm.
Meanwhile for the plastic covered galvanized pipes of water, gas and natural gas transportation, highly stable welding seam, no leakage, to be qualified above 99%.
The roller quick change system enables roller changes in 10 minutes and resumes production in 20 minutes.
