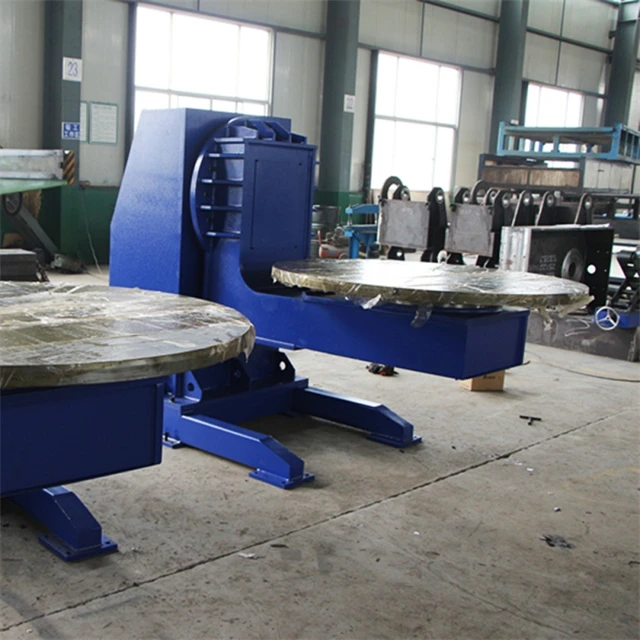

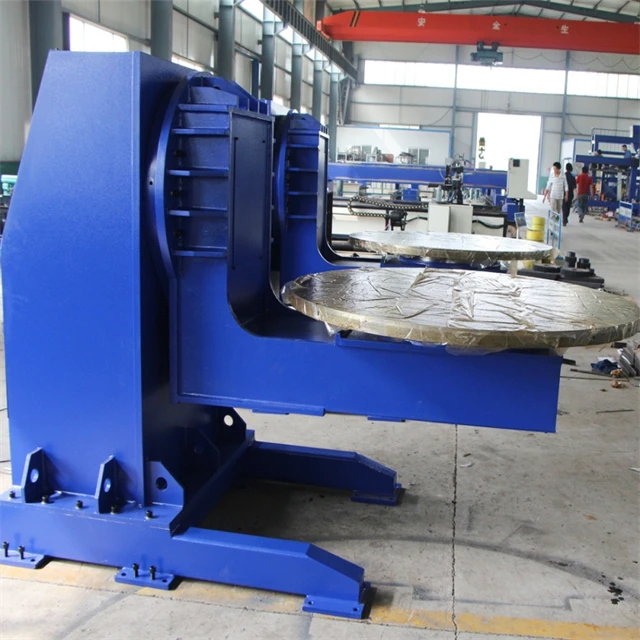

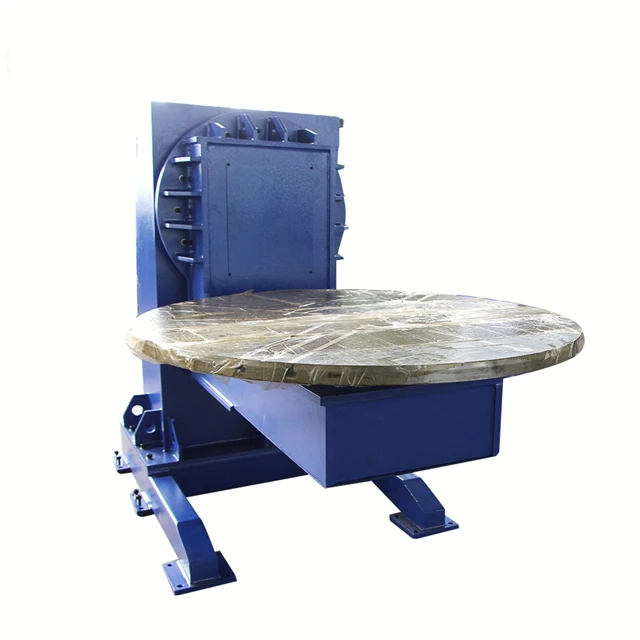

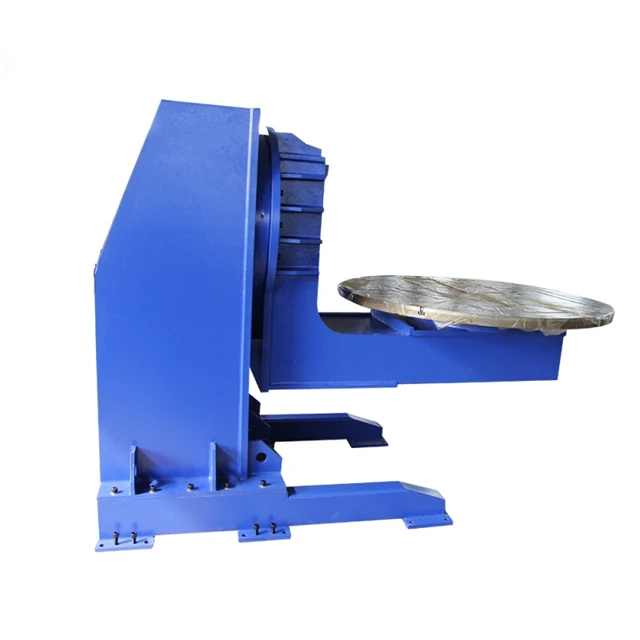

L Type Positioner for Industrial Welding Robot Such as ABB YASKAWA KUKA FANUC
- Category: >>>
- Supplier: Shandong Ouka Intelligent Equipment Co. Ltd.
Share on (1600879842167):
Product Overview
Description
Product Overview
L Type Positioner for Industrial Welding Robot Such as ABB YASKAWA KUKA FANUC
PRODUCT SPECIFICATIONS
Brief Introduction:

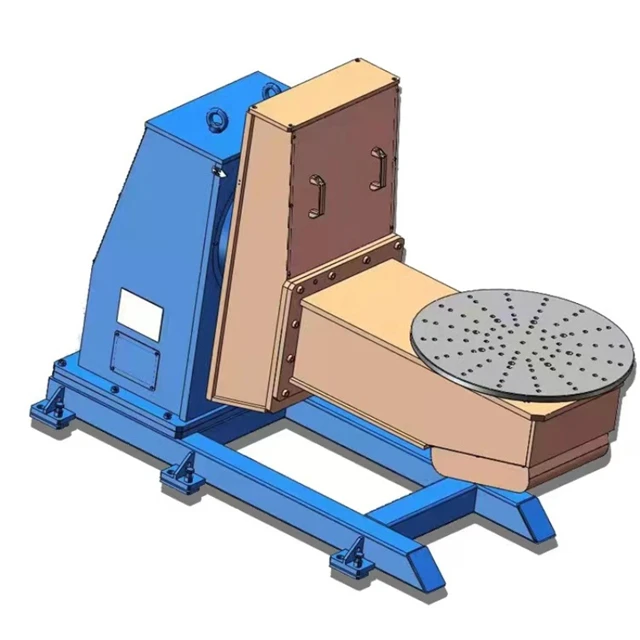

The mechanical part of the equipment is mainly composed of flipping mechanism and frame. The workpiece flipping is driven by the servo motor. Each set of servo motor is equipped with a set of precision RV reducer, which can achieve precise positioning
.

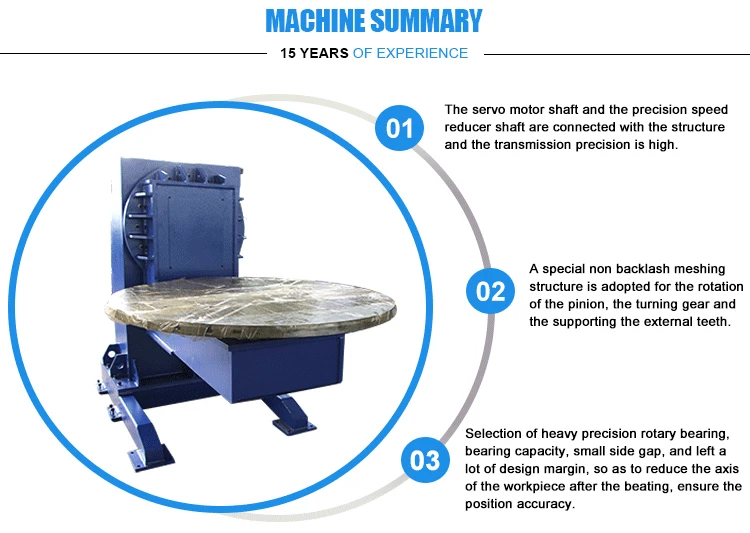

Main features of the equipment are as follows：
* Servo motor shaft and precision reducer shaft hole adopt direct connection structure, with high transmission accuracy；
* The flip pinion and the supporting outer tooth adopt a special side gap engagement structure
* Choose heavy precision rotary support, high bearing capacity, small side gap, and leave a large design margin, so as to reduce the axis beat after the workpiece, to ensure the position accuracy
Main features of the equipment are as follows：
* Servo motor shaft and precision reducer shaft hole adopt direct connection structure, with high transmission accuracy；
* The flip pinion and the supporting outer tooth adopt a special side gap engagement structure
* Choose heavy precision rotary support, high bearing capacity, small side gap, and leave a large design margin, so as to reduce the axis beat after the workpiece, to ensure the position accuracy
Model | LHB-5 |
Maximum bearing weight of a single work station | ≤500kg |
Flipping speed | 42°/sec |
Angle of rotation | ±360 |
Rotation Speed | 45°/sec |
Servo-motor power of Flip | 3kw |
Rotary servo-motor power | 2kw |
Repeat positioning accuracy | ±1.5arc/min |
Panel diameter | 800mm |
Details Images
Company Profile
Since established, Shandong Ouka Intelligent Equipment Co., Ltd.. has focused on introducing and cultivating high-tech talents and takes it as development strategy at present, many professionals have been brought together who specialize in researching and developing of CNC welding and cutting equipment. technical strength is always cherished as core competitiveness of our company.
With constant efforts of all staffs, our products have been sold well in domestic market and exported to many countries in theworld, including Australia, Indonesia, India, Burma, Iran, Spain, Brazil, Peru, Russia, Azerbaijan, KZ, UZ, Sri Lanka, etc. During establishing the national brand of Ouka, we always hold the responsibility of culture communication between china and the world.
With constant efforts of all staffs, our products have been sold well in domestic market and exported to many countries in theworld, including Australia, Indonesia, India, Burma, Iran, Spain, Brazil, Peru, Russia, Azerbaijan, KZ, UZ, Sri Lanka, etc. During establishing the national brand of Ouka, we always hold the responsibility of culture communication between china and the world.
Recommend Products
Product packaging
FAQ
1.When the machine can’t work well, What should I do?
(1)Engineer is online for 24-hours, they can check the problems and then give you solutions in two hours.
(2)our machine is with one’s year warranty, If any problems of machine parts under “normal use”, new machine parts will be sent by air In free.
(3)Please rest assured that operation CD and manual will be offered along with the machine, making you can operate the machine easily. Professional engineering and technical personnel. We will provide you with reasonable and valuable Suggestions andsolutions according to your requirements, the engineering feasibility and economic benefit, etc.
Provide knowledge of equipment operation and maintenance, Allows you to accurately grasp the characteristics of the machine. one year warranty, life-long maintenance services through email or telephone. Please feel free to use it. Supply all kinds of accessories and replacements.
2. Does your company accept the customized offer, we have a special need.
(2)our machine is with one’s year warranty, If any problems of machine parts under “normal use”, new machine parts will be sent by air In free.
(3)Please rest assured that operation CD and manual will be offered along with the machine, making you can operate the machine easily. Professional engineering and technical personnel. We will provide you with reasonable and valuable Suggestions andsolutions according to your requirements, the engineering feasibility and economic benefit, etc.
Provide knowledge of equipment operation and maintenance, Allows you to accurately grasp the characteristics of the machine. one year warranty, life-long maintenance services through email or telephone. Please feel free to use it. Supply all kinds of accessories and replacements.
2. Does your company accept the customized offer, we have a special need.
Ouka CNC is a company that focuses on research and manufacture of modular CNC machines. We have very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long
as you have a certain amount of needs.
3. What certificate the machine in your company get?
We’ve passed the ISO9001 Quality System Approval and CE Certification.
4. Does your company accept CIF price?
CIF price includes the shipping cost of the CNC machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such a need. CIF price also includes marine premium which is 2‰ of 1.1*total amount.
5. What are your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. The exported CNC machine is all be packed by a wooden case which can be fixed into a 40 HQ.
6.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.
7. Does MC have a maintenance manual and operation manual?
Each CNC machine leaving the factory will be along with a related series or model the English instructions including maintenance manual and operation manual. Attached documentation may also include CNC controller instruction, parts instruction you bought(like
a rotary table, oil cooler).
as you have a certain amount of needs.
3. What certificate the machine in your company get?
We’ve passed the ISO9001 Quality System Approval and CE Certification.
4. Does your company accept CIF price?
CIF price includes the shipping cost of the CNC machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such a need. CIF price also includes marine premium which is 2‰ of 1.1*total amount.
5. What are your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. The exported CNC machine is all be packed by a wooden case which can be fixed into a 40 HQ.
6.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.
7. Does MC have a maintenance manual and operation manual?
Each CNC machine leaving the factory will be along with a related series or model the English instructions including maintenance manual and operation manual. Attached documentation may also include CNC controller instruction, parts instruction you bought(like
a rotary table, oil cooler).
