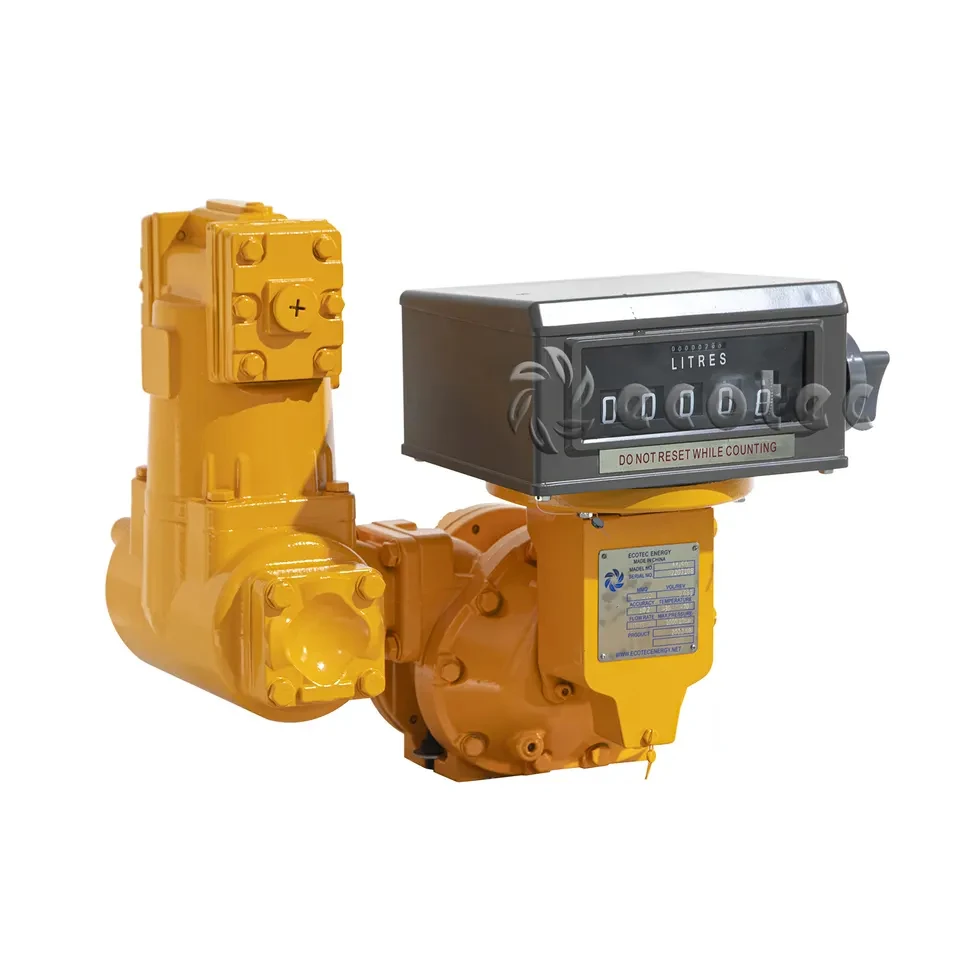

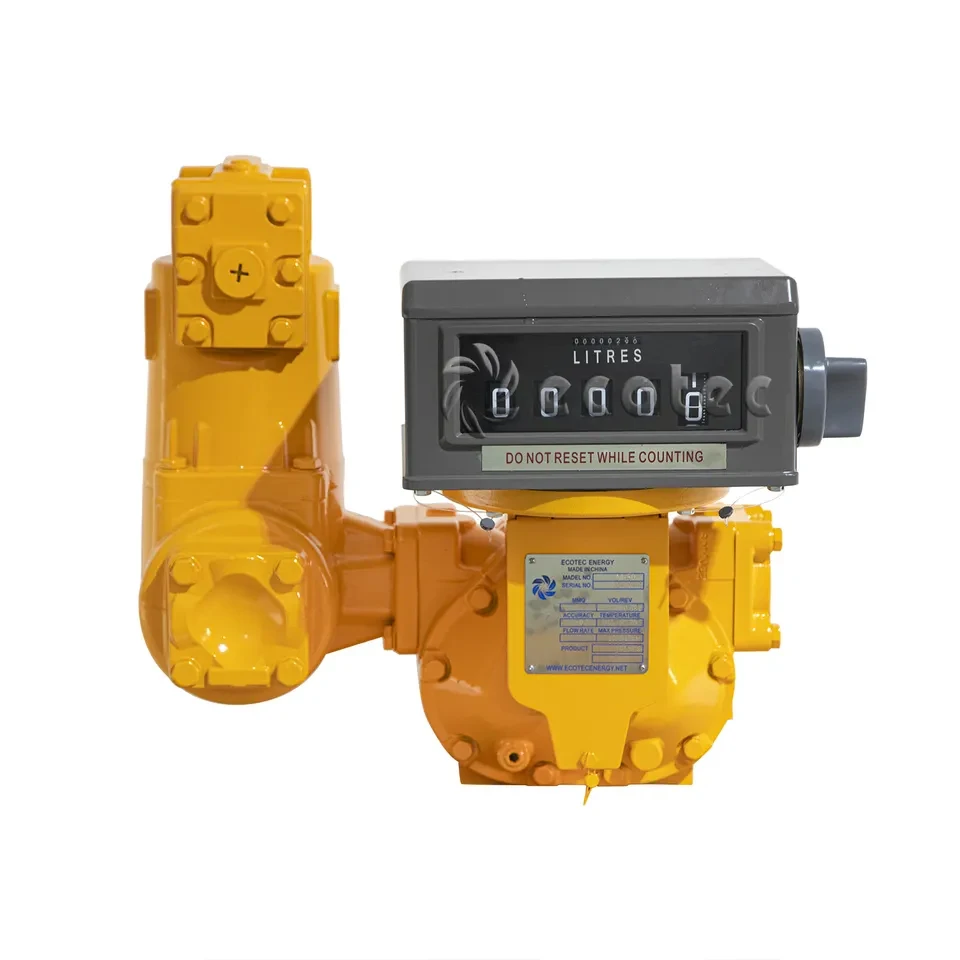

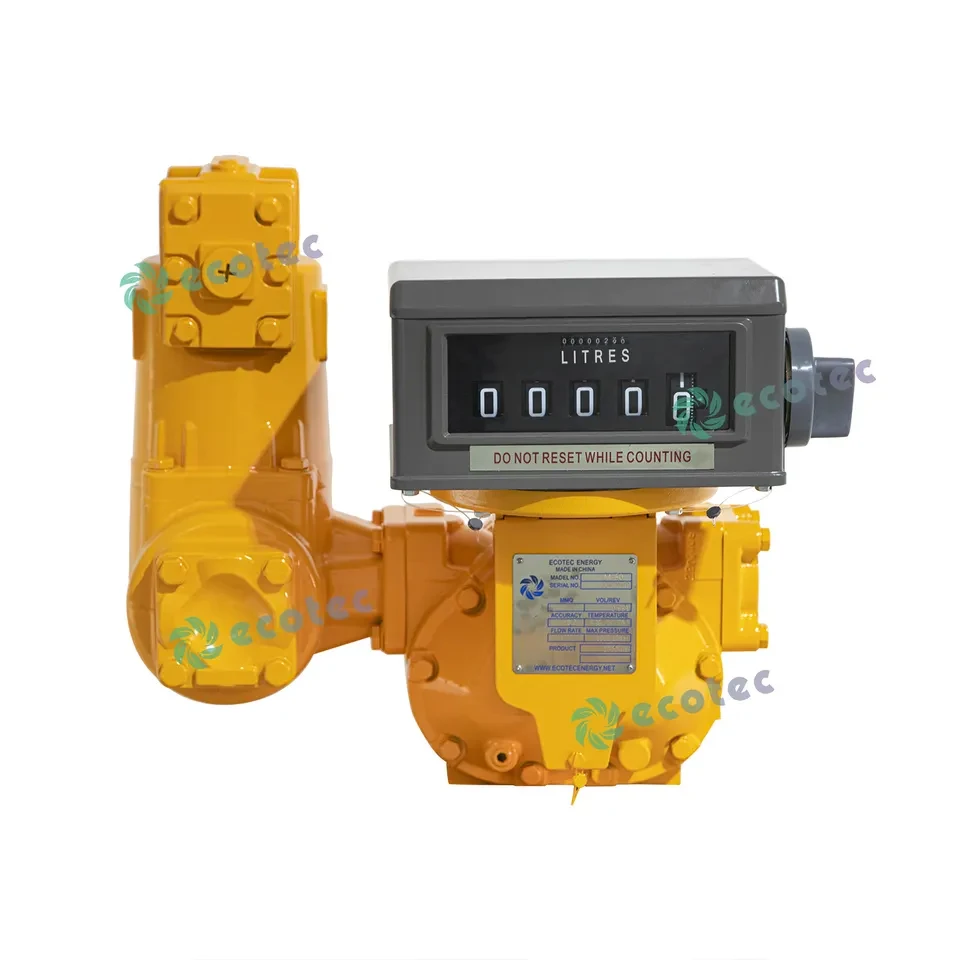

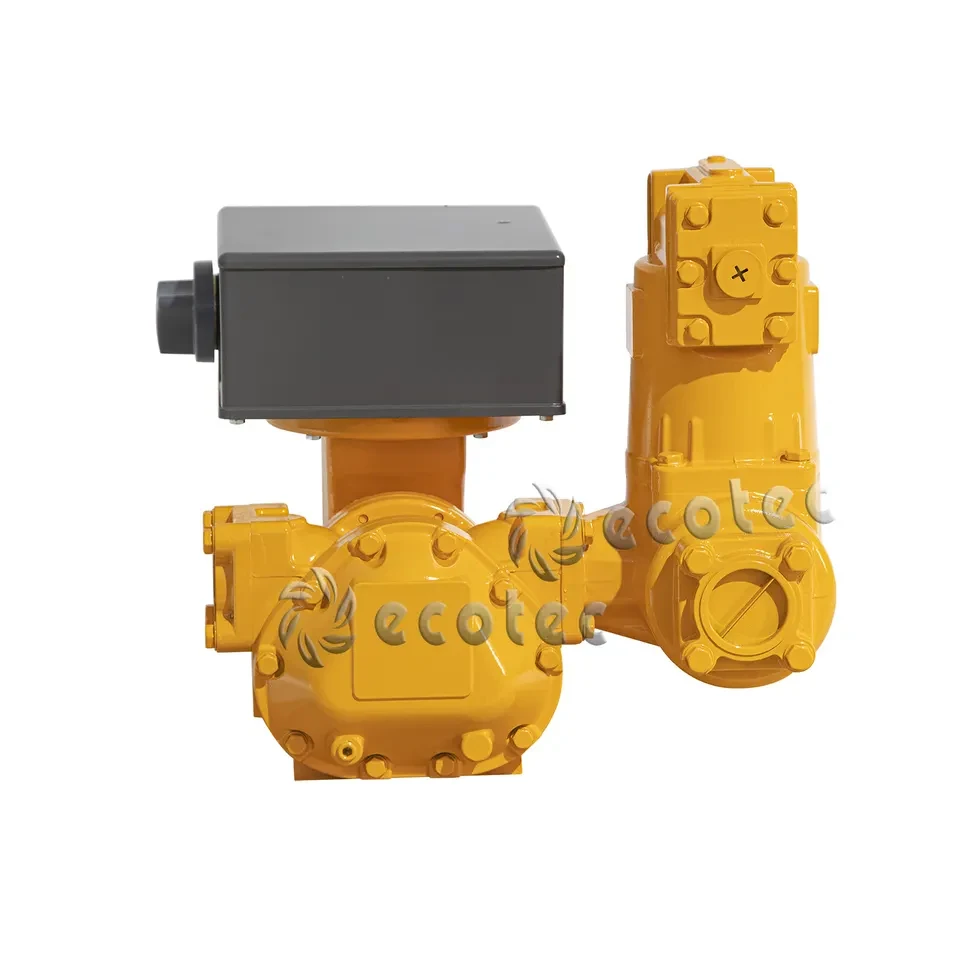

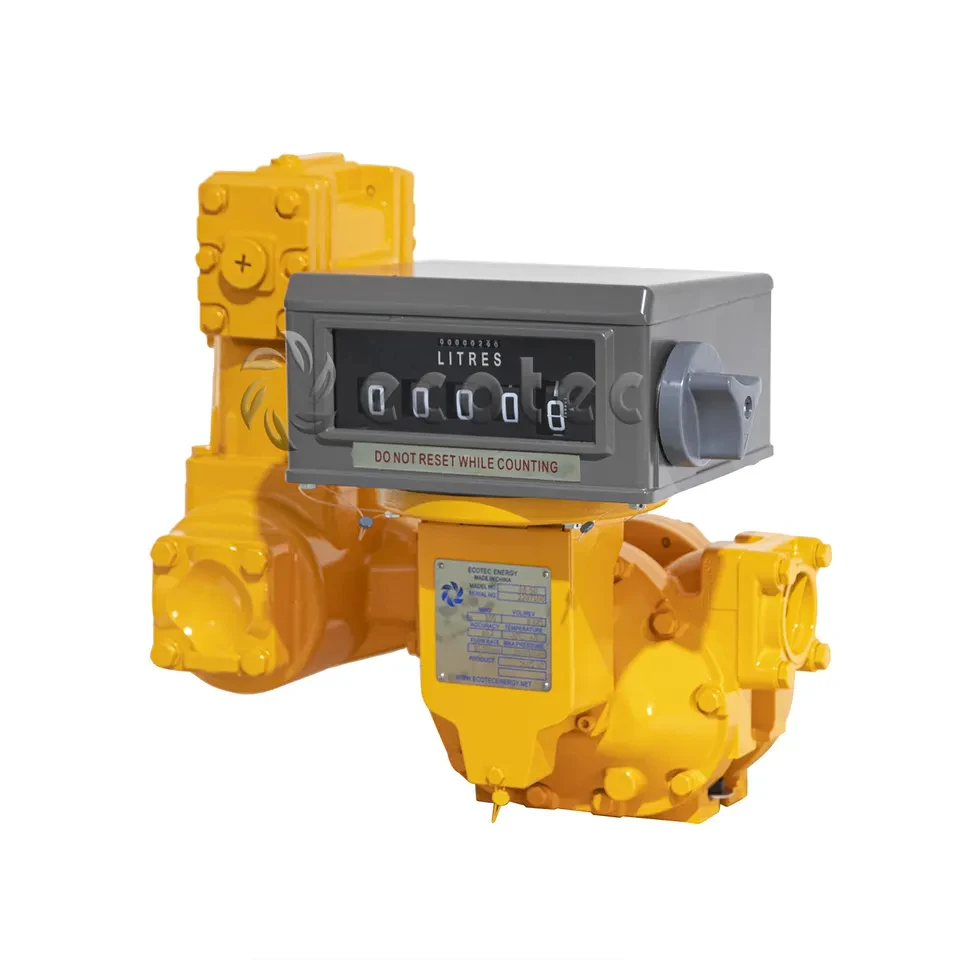

Portable 2 Inch LC Flow Meter Big Flow Meter for Fuel Station
- Category: >>>
- Supplier: Zhejiang Ecotec Energy Equipment Co. Ltd.Zhejiang Ltd.
Share on (1600879891506):
Product Overview
Description
Products Description
* Excellent stepless adjusting mechanism allows a micro adjustment on the meter;
* •High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow;
* Low maintenance, no metal-to-metal contact in measuring chamber, long life service;
* Low pressure loss, a true gravity flow meter;
* Accuracy regardless of pressure fluctuations, temperature variation, viscosity.
* •High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow;
* Low maintenance, no metal-to-metal contact in measuring chamber, long life service;
* Low pressure loss, a true gravity flow meter;
* Accuracy regardless of pressure fluctuations, temperature variation, viscosity.
Product Paramenters
Model | M-40-1 | M-50-1 | M-80-1 | M-100-1 | M-150-1 | ||||
Size | 40mm / 1" | 50mm / 2 " | 80mm / 3 " | 100mm / 4 " | 150mm / 6 "and 100mm / 4 " for option | ||||
Flow Range | 25-250L/min | 55-550L/min | 115-1150L/min | 170-1700L/min | 300-3000L/min | ||||
Volume Per Revolution | 0.309L | 0.681L | 1.839L | 5.102L | 14.87L | ||||
Max.Pressure | 10Bar | ||||||||
Accuracy | ±0.2% | ||||||||
Repeatability | ≤0.07% | ||||||||
Standard Measurement | Liter / US Gallon /IMP Gallon | ||||||||
Dimension | 51×46×49cm | 51×46×49cm | 58×50×61cm | 76×64×72cm | 80×65×79cm | ||||
Net Weight | 23kg | 26kg | 40kg | 70kg | 130kg | ||||
Gross eight | 25kg | 28kg | 47kg | 93kg | 180kg | ||||
Details Images
Company Profile
Ecotec team are all with experience for over 10 years. We can package service from Design, Manufacturing, Delivery and after-sale
service, we have exported to over 60 countries now, and have agent in Africa, Middle East, Asia and South American countries.
Here Eectec Energy are on the position to offer the below products:
1. Fuel station: Fuel dispenser, Pump, Meter, fuel accessoires, Ablue and contrainer stations
2. LPG station: LPG dispenser, LPG pump, LPG meter, LPG Tank, LPG skid and other LPG station equipment
3. CNG station: CNG dispenser, CNG compressor, CNG cylinder and skid type CNG station
4. LNG Station: LNG dispenser, LNG pump, LNG pumping skid, LNG vaporizor etc
5. Valves for petroleum industrial: Ball valve, Gate Valve, Global valve, Check valve with differnet standard
6. Station Automation system: Station Retail system, Cell phone APP system, Tank Gauging system
7. Auto Parts: Tyre inflator, Wheel Balancer, Car Washing Machine etc
service, we have exported to over 60 countries now, and have agent in Africa, Middle East, Asia and South American countries.
Here Eectec Energy are on the position to offer the below products:
1. Fuel station: Fuel dispenser, Pump, Meter, fuel accessoires, Ablue and contrainer stations
2. LPG station: LPG dispenser, LPG pump, LPG meter, LPG Tank, LPG skid and other LPG station equipment
3. CNG station: CNG dispenser, CNG compressor, CNG cylinder and skid type CNG station
4. LNG Station: LNG dispenser, LNG pump, LNG pumping skid, LNG vaporizor etc
5. Valves for petroleum industrial: Ball valve, Gate Valve, Global valve, Check valve with differnet standard
6. Station Automation system: Station Retail system, Cell phone APP system, Tank Gauging system
7. Auto Parts: Tyre inflator, Wheel Balancer, Car Washing Machine etc
