Huidu HD D16 Full color Led Lease display Asynchronous Control Card WiFi Mobile App Video Controller
- Category: >>>
- Supplier: Shenzhen Ledstore Technology Co.Ltd
Share on (1600879892923):
Product Overview
Description
Hello, boss! Welcome to our shop. What can I do for you?
Dear customer :
Thank you for your visit to Shenzhen Ledstore technology Co.Ltd Alibaba International station! Nice to meet you~
We are a LED display control solution integration provider, located in Shenzhen,specializing in the production of LED video processor and LED control system supporting products.
The company has a professional R & D team, most of them have more than 15 years of LED industry experience.
We are confident to provide you with free LED display professional consultation and the best LED control solutions.
If you are looking for LED display and supporting products, welcome to consult.
Our team is always at your service.
Thank you very much＼(◎o◎)／！
The company has a professional R & D team, most of them have more than 15 years of LED industry experience.
We are confident to provide you with free LED display professional consultation and the best LED control solutions.
If you are looking for LED display and supporting products, welcome to consult.
Our team is always at your service.
Thank you very much＼(◎o◎)／！
After Sales Service
★ 24 hours around clock & 12 months warranty
★ life-long technical support for the product Quality Control
★ 5 times testing during production
★ our product have got CE FCC ROSH certification
Shenzhen Ledstore technology Co.Ltd
Product Description
Supporting computer control software HDPlayer, mobile phone control software LedArt and HD technology clouds management platform.
HD-D16 can play offline with on-board 4GB storage space which is for storing program file
Key Features
● Standard Wi-Fi module, mobile App wireless management;
● Support 256~65536 grayscale;
● Support Video, Picture, Animation, Clock, Neon background;
● Support word art, animated background, neon light effect;
● U-disk unlimited expansion program, plug in broadcast;
● No need set IP, HD-D16 could be identified by controller ID automatically;
● Support 4G/Wi-Fi/ and network cluster management remote management;
● Support 720P video hardware decoding, 60HZ frame rate output.
Application Scenario

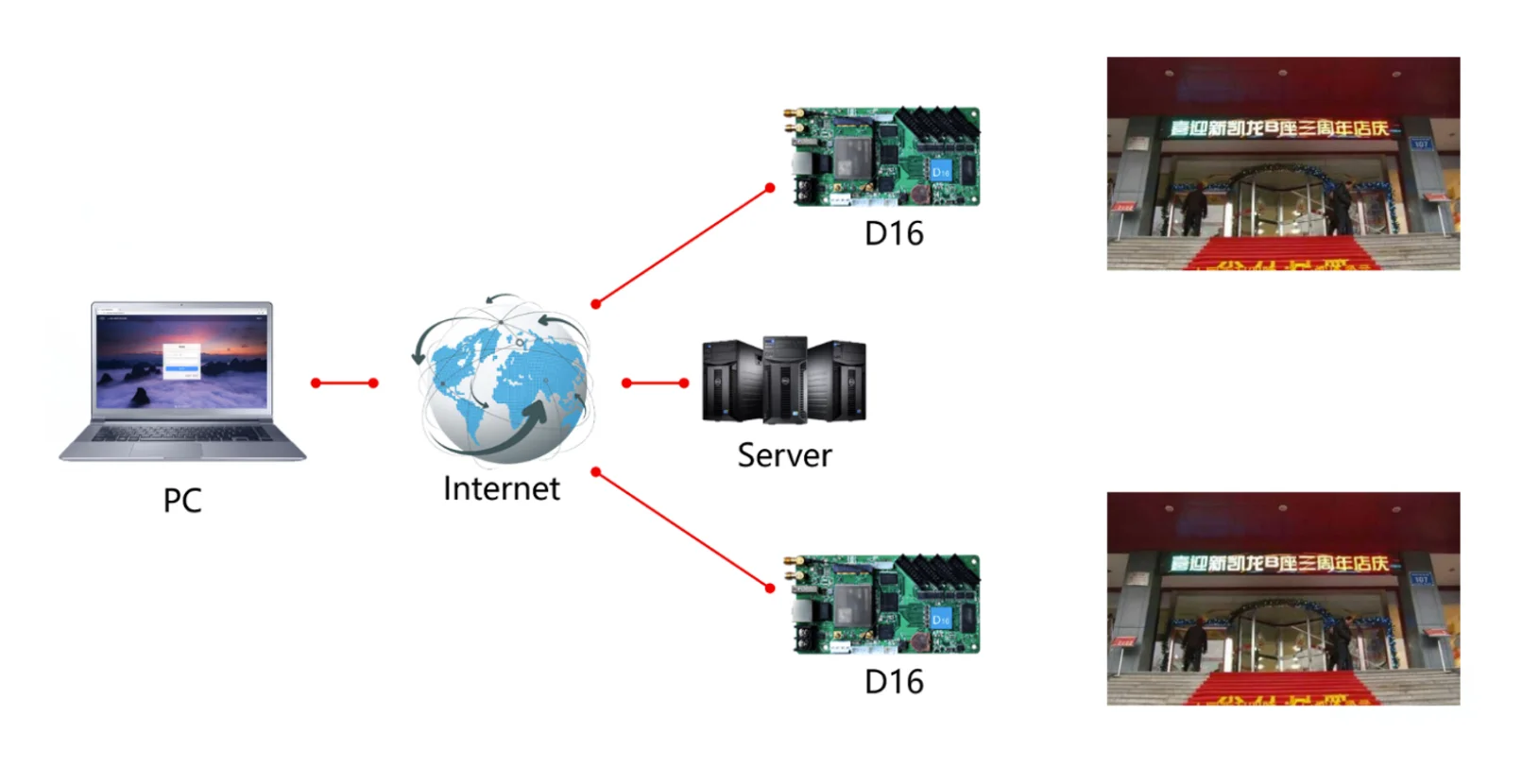

1.The internet cluster management diagram is as follows:

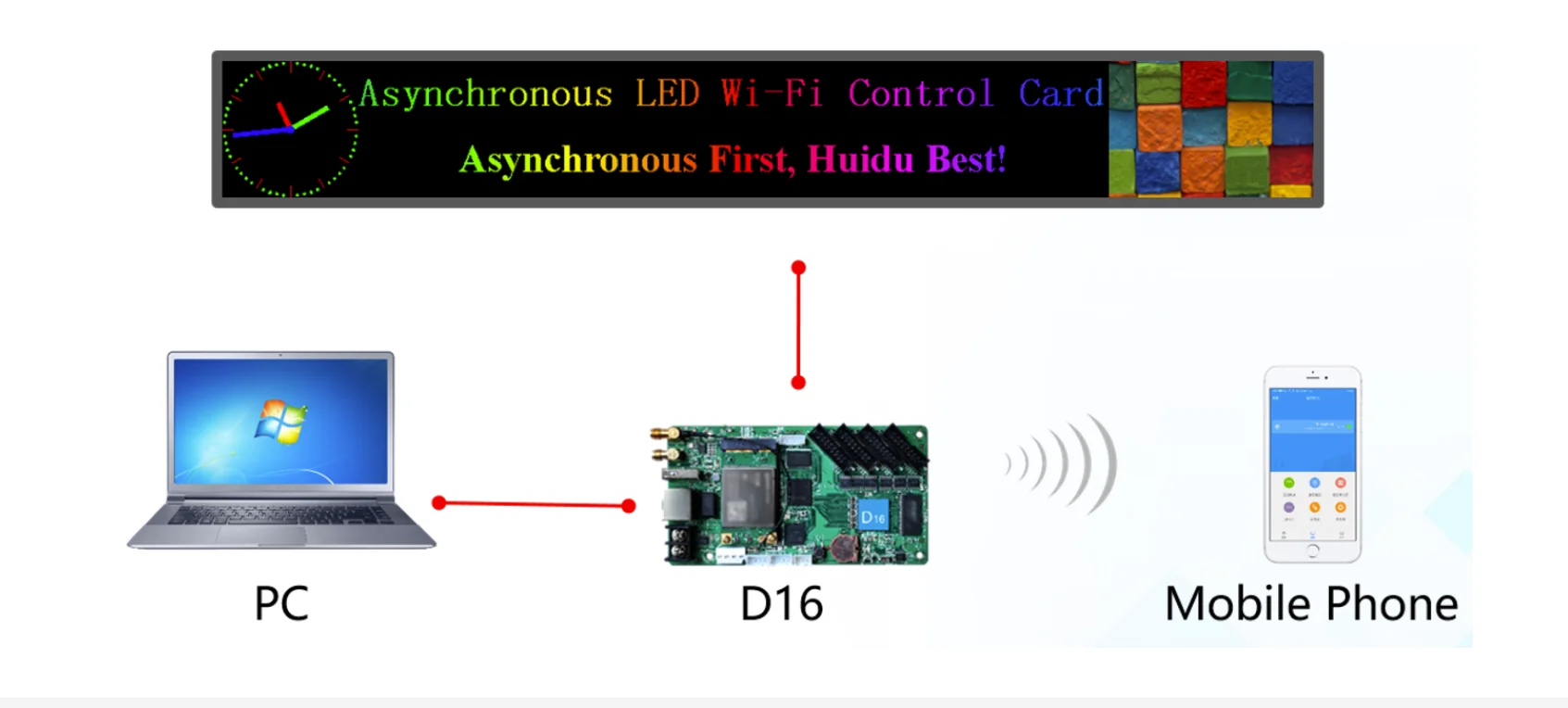

2. The control card can be connected directly with the computer Wi-Fi to update the programs, as shown below:

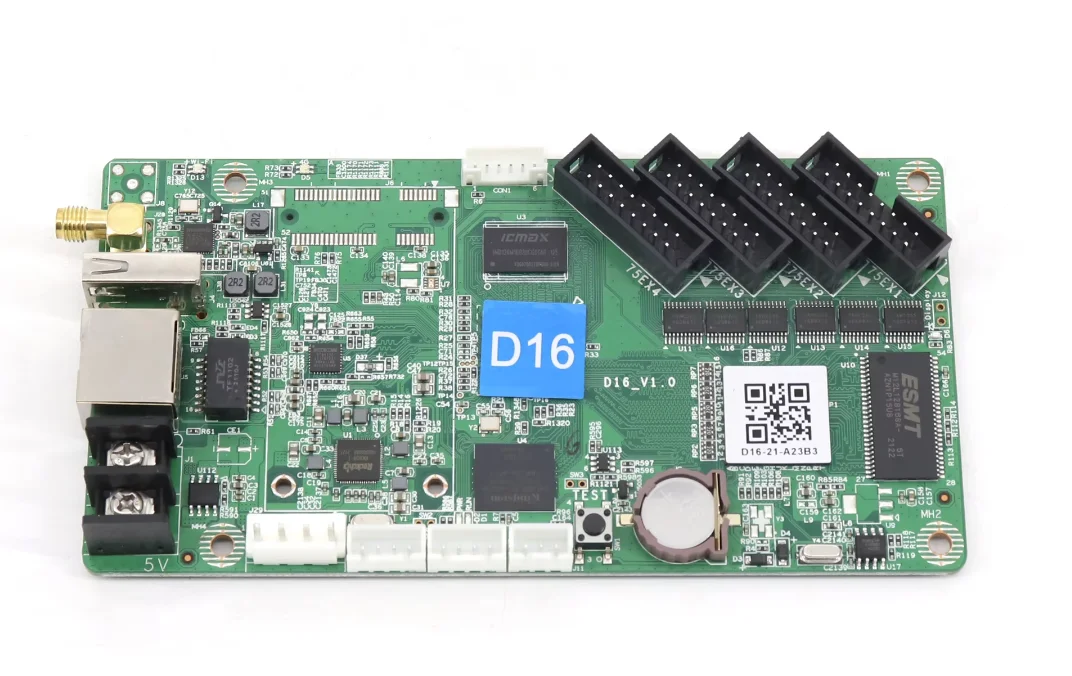

appearance

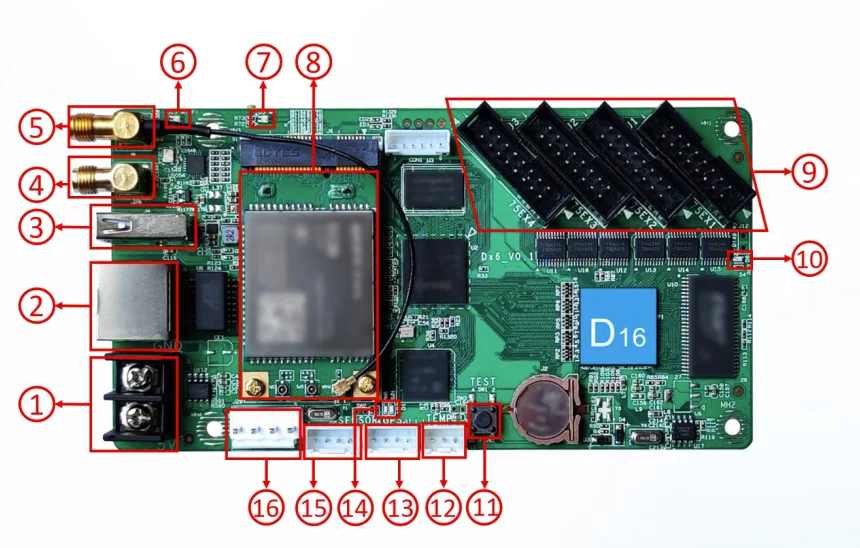

Interface Description
① Power terminal, connect 5V power;
② RJ45 network port and the computer network port , router or switch connected to the normal working state is orange
light is always on, green light flashes;
③ USB port: connect to the USB device for update program;
④ Wi-Fi Antenna connector socket: weld antenna socket of Wi-Fi;
⑤ 4G Antenna connector socket: weld antenna socket of 4G(Optional);
⑥ Wi-Fi indicator light: display Wi-Fi work status;
⑦ 4G indicator light: display 4G network status;
⑧ 4G module: Used to provide control card to access the Internet (Optional);
⑨ HUB75E port: connect LED screen by cable,;
⑩ Display light (Display), normal working state is flashing;
⑪ Test button: for test the brightness and contrast of the display screen;
⑫ Temperature Sensor port: for connect to Temperature;
⑬ GPS port: for connect to GPS module, use for time correction and fixed position;
⑭ Indicator light: PWR is the power indicator, the power supply normal indicator is always on; RUN is the indicator, the
normal working indicator flashes;
⑮ Sensor port: for connectexternal sensor, Such as environmental monitoring, multi-function sensors, etc.;
⑯ Power port: Foolproof 5V DC power interface,the same function as 1.
Parameter specification
Function | Parameters |
Module type | Static to 1-64 scan modules |

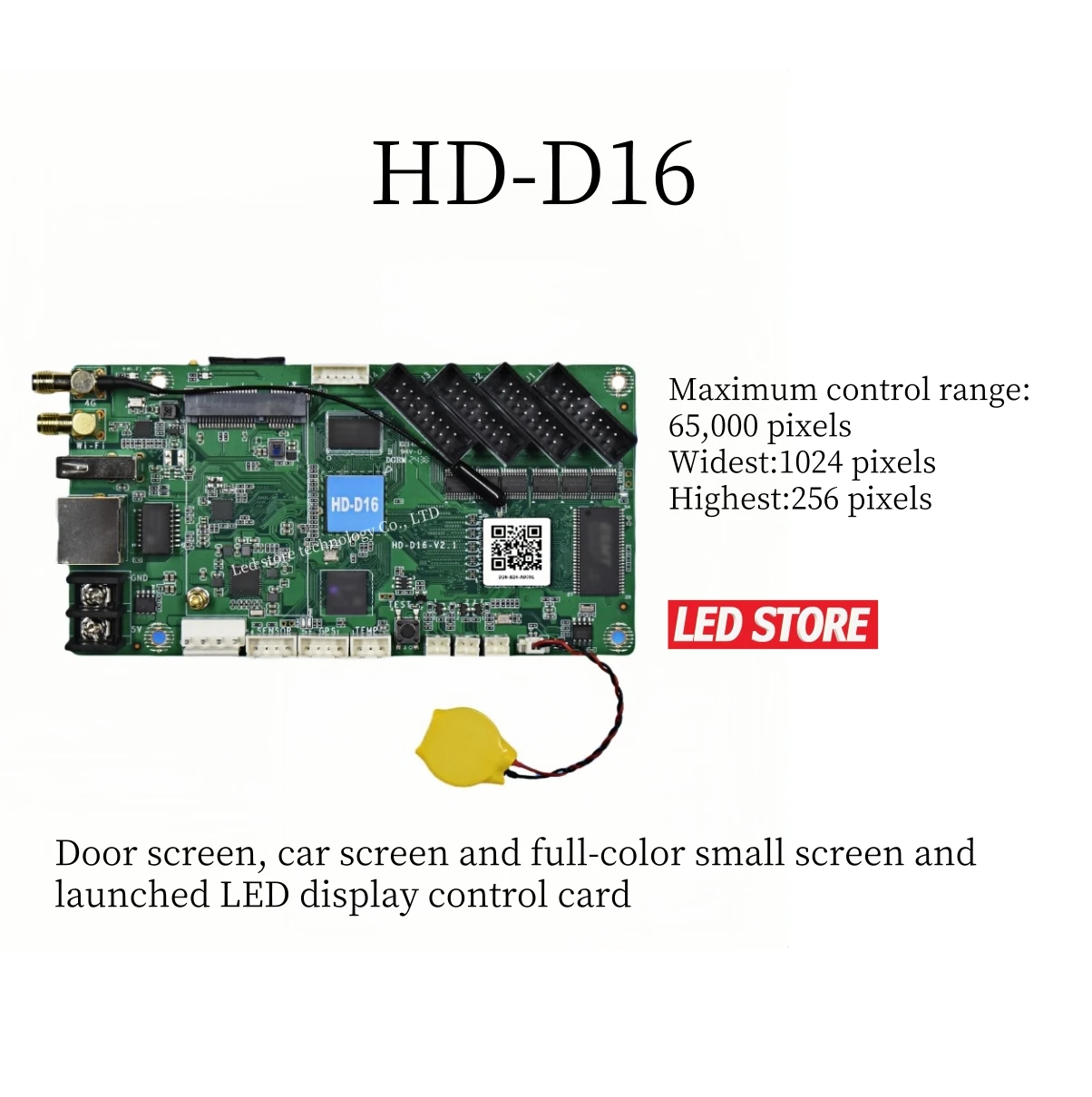

Control Range | 1024*64, Widest: 1024, Highest:256 |
Gray Scale | 256~65536 |
Video Formats | 60Hz frame rate output, support 720P video hardware decoding, direct transmission, no trans-coding waiting. AVI, WMV, MP4, 3GP,ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc. |
Animation Formats | SWF,FLV ,GIF |
Image Formats | BMP,JPG,JPEG,PNG etc. |
Text | Support text message editing, inserting picture; |
Time | analog clock, digital clock and a variety of dial clock functions |
Other function | Neon, animations function; Clockwise/counter-clockwise count; support temperature and humidity; Adaptive brightness adjustment function |
Memory | 4GB memory, more than 4 hours’ program support. Indefinitely expanding memory by U-disk; |
Communication | U-disk/Wi-Fi/LAN/4G(Optional) |
Port | 5V Power *1, 10/100M RJ45 *1, USB 2.0 *1, HUB75E *4 |
Power | 5W |
Product size
Huidu HD-D16 size:142*75 (unit mm)
Precaution
1）To ensure that the control card is stored during normal operation, make sure the battery on the control card is not loose;
2）In order to ensure the long-term stable operation of the system; please use the standard 5V power supply voltage.
Logistics & Payment
FAQ
FAQ
Q.Are you a manufacturer?
A: Yes, we are a professional manufacturer of display power supply and LED control system.
A: LED display control card is the core component of LED graphic display, which is responsible for receiving the screen display information from the serial port of the computer, placing the frame memory, and generating the serial display data and scanning control timing required by the LED display according to the partition drive. The effect of the LED display screen is related to it.
Q.What are the categories of LED display control card?
A: Can be divided into single and double color control card, colorful control card, full color control card three categories
Q.What should you pay attention to when using LED display control card?
A: Different brands of control cards and corresponding installation software are different. The same brand is also divided into different models, the function is very different. Small area of monochrome screen commonly used simple non-partition control card, cost-effective; And the area is slightly larger can use the partition control card, the price is higher.
A: Different brands of control cards and corresponding installation software are different. The same brand is also divided into different models, the function is very different. Small area of monochrome screen commonly used simple non-partition control card, cost-effective; And the area is slightly larger can use the partition control card, the price is higher.
Q. What are the connection methods of LED display control card?
A: Control card and computer connection methods are: network port (TCP/IP), serial port (RS232, RS485), U disk conduction, GPRS wireless connection, Zigbee wireless connection and other main ways.
Q.How to choose LED display control card?
A: First of all, understand the specifications and dimensions of the LED display, calculate the number of points, know the effect you need, is synchronous, or asynchronous, do not need secondary development; Then, determine synchronous asynchronous, determine the effect, determine the point range, determine the price range, * determine the card; Control card selection is appropriate, not necessarily high price, good quality is suitable. *, the software is not suitable for yourself and the customer.
Q.:What is your current lead time?
A: usually no more than 10 days; and some products are in stock for quick delivery
A: Control card and computer connection methods are: network port (TCP/IP), serial port (RS232, RS485), U disk conduction, GPRS wireless connection, Zigbee wireless connection and other main ways.
Q.How to choose LED display control card?
A: First of all, understand the specifications and dimensions of the LED display, calculate the number of points, know the effect you need, is synchronous, or asynchronous, do not need secondary development; Then, determine synchronous asynchronous, determine the effect, determine the point range, determine the price range, * determine the card; Control card selection is appropriate, not necessarily high price, good quality is suitable. *, the software is not suitable for yourself and the customer.
Q.:What is your current lead time?
A: usually no more than 10 days; and some products are in stock for quick delivery
Q.How can i pay for the order? Is safe enough?
A: Yes, we provide a written guarantee order until you confirm receipt of the goods.
