Hot Sale Wholesale Laser Cladding Machine Customized Available CNC Laser Cladding Machine
- Category: >>>
- Supplier: Sunrise Mechatronic Technology Co. Ltd.
Share on (1600879911219):
Product Overview
Description

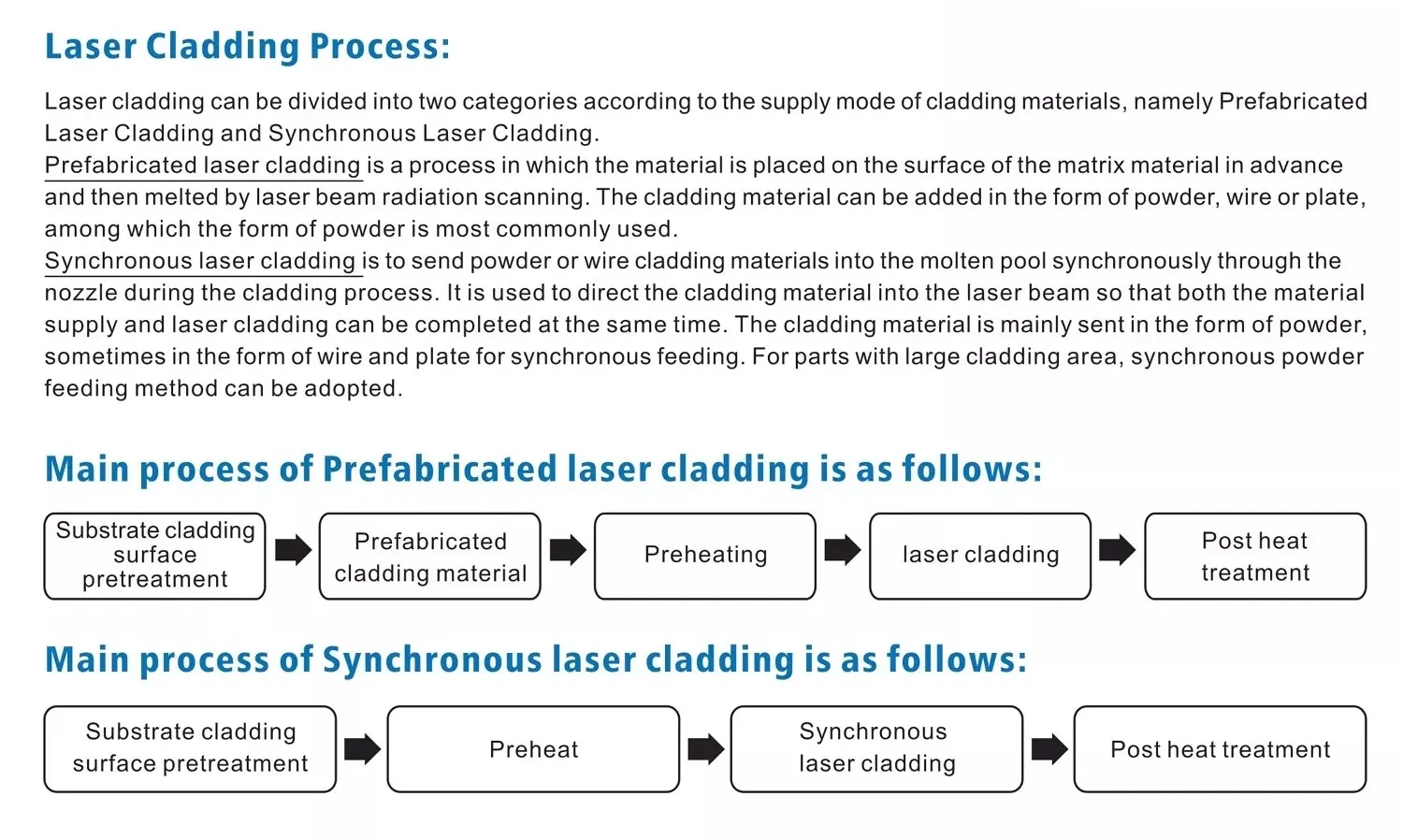

What is Laser Cladding
Hot Sale Wholesale Laser Cladding Machine Customized Available CNC Laser Cladding Machine
Laser cladding is a new surface modification technology. It forms a metallurgical bond on the surface of the base by adding cladding material on the surface of the base material and using a high energy density laser beam to melt it together with the thin layer on the surface of the base material. Adding cladding layer.
Features of laser cladding
The cladding layer is metallurgically combined with the matrix, which can significantly improve the wear resistance, corrosion resistance, heat resistance, oxidation resistance or electrical properties of the surface of the matrix material, so as to achieve the purpose of surface modification or repair, and meet the specific performance requirements of the material surface. At the same time, it can save a lot of material costs.
Advantages of laser cladding:
1. Wear-resistant and corrosion-resistant. It can cladding a layer of corrosion-resistant, wear-resistant and high-performance alloy layer on the surface of ordinary carbon steel workpieces to improve the service life of the workpiece.
2 High cladding quality. Small deformation, good mechanical repeatability, dense interface structure, small grain, no holes, no inclusion cracks and other defects
3. Local fine cladding on the surface of the workpiece can be achieved.

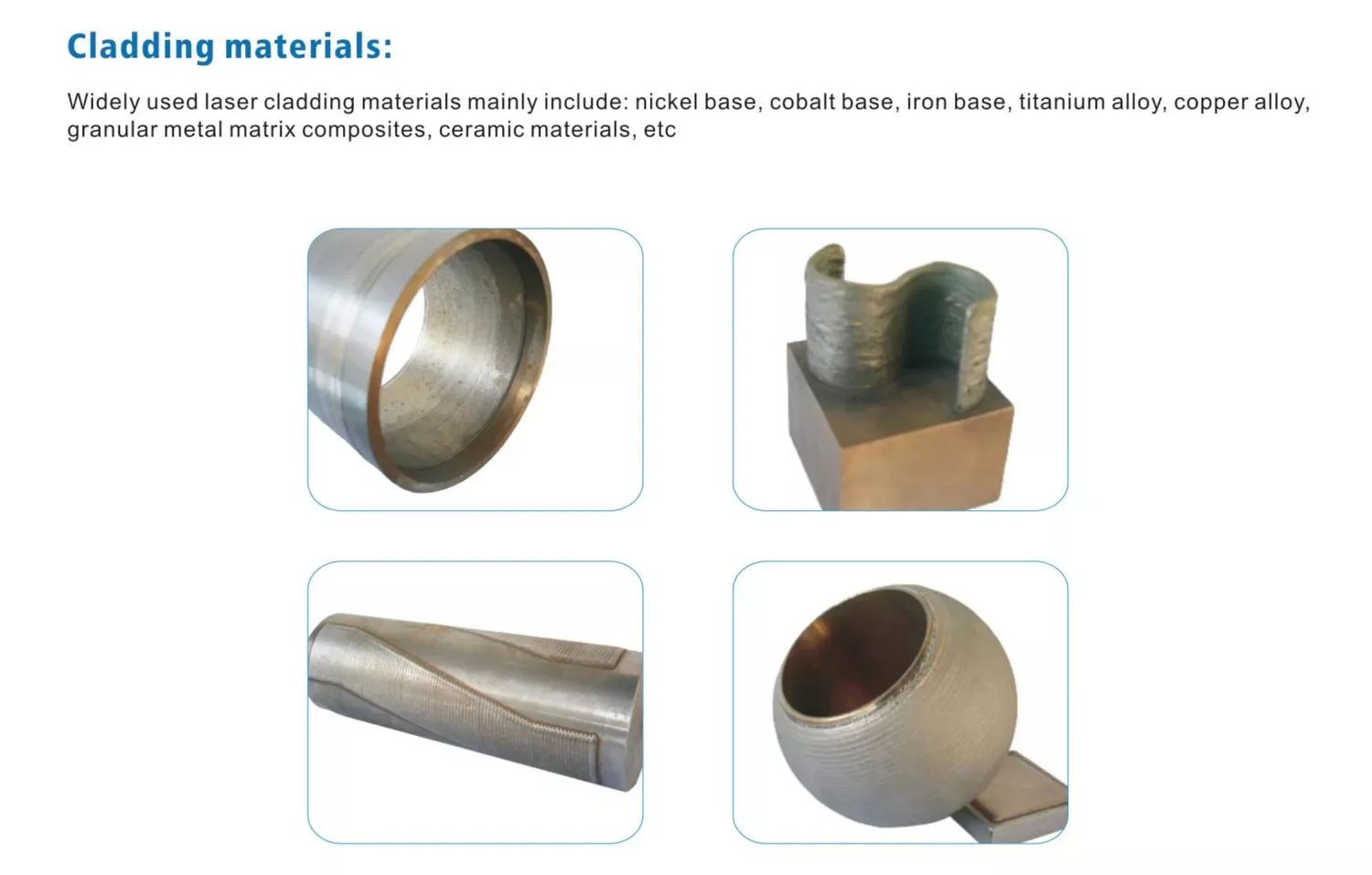

4. The powder material system has high adaptability, and most conventional and special metal powder materials can be cladded to the surface of metal parts.
Advantages of laser cladding:
1. Wear-resistant and corrosion-resistant. It can cladding a layer of corrosion-resistant, wear-resistant and high-performance alloy layer on the surface of ordinary carbon steel workpieces to improve the service life of the workpiece.
2 High cladding quality. Small deformation, good mechanical repeatability, dense interface structure, small grain, no holes, no inclusion cracks and other defects
3. Local fine cladding on the surface of the workpiece can be achieved.
4. The powder material system has high adaptability, and most conventional and special metal powder materials can be cladded to the surface of metal parts.
Main Components
Laser source
Laser power: 10~ 3000W continuously adjustable, QBH interface, core diameter 600um, length 20m.
Laser head
1. Collimation focal length: 100mm, focusing focal length: 300mm2. Applicable wavelength: 900-1100nm
3. The powder feeding nozzle contains a water-cooled base
4. Optical fiber interface: QBH
Chiller
Dual temperature control provides cooling water for lasers, machining heads, optical fibers, etc.PLC general control system
The laser, water cooler and protective gas are integrated and controlled by PLC . The light can be controlled and turned off through the robot interface programming.
Powder feeding cartridge
Powder cartridge volume: 1.5 litersPowder feeding particle size: 20~ 200μm
Powder feeding speed: 0~ 2 (6) (10) rev/min, stepless speed regulation
Powder feeding repeatability: ≤ ± 2%
Application
Blade disc
External spline
Stem
Large bearing
Hydraulic column
Stamping die
Knives
Major shaft
CNC milling machine spindle

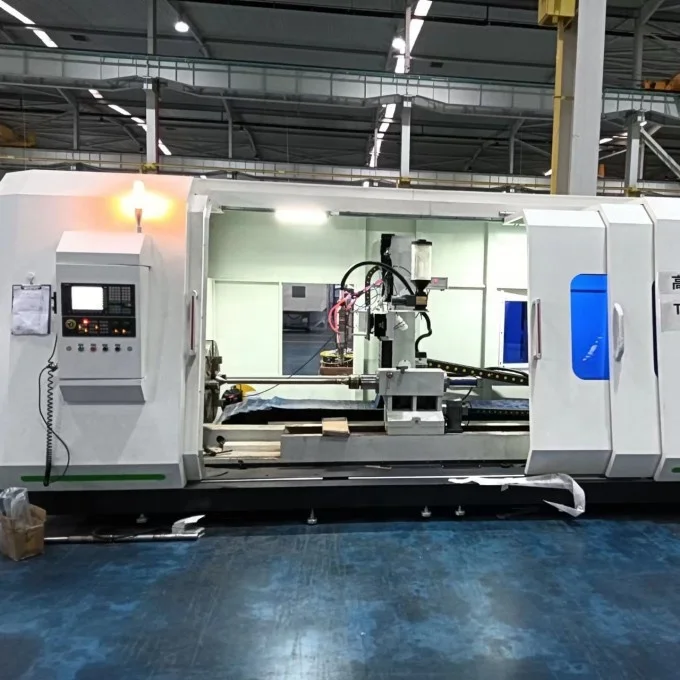

Product display
Content | Parameters |
Laser | 0.5-20kW, fiber, semiconductor, disc, etc. |
Robot | Holding weight 16- 150kg, wingspan 1600-3700mm, KUKA, ABB, FANUC, YASKAWA, etc. |
Laser Processing Head | 0.8-50mm round, square spot, size can be customized, coaxial, paraxonic powder feeder |
Powder Feeder | Airborne, gravity conveying, powder feeding accuracy≤土2%，powder feeding amount 10-150g/min, single unit, double units |
Cooling-water Machine | Single temperature, dual temperature, cooling capacity according to laser selection |
Optional Accessories | Inner hole cladding head, temperature closed loop, on-ine detection, distance detection,ofline programming, molten poolmonitoring, etc. |
Input Voltage | 360-480V Three- Phase Five-Wire System @50 60Hz |
Main Component | Laser, cooling unit, powder feeding mechanism, processing table, etc. |
Laser se lection | CO2 laser, solid state laser, fiber laser, semiconductor laser |
