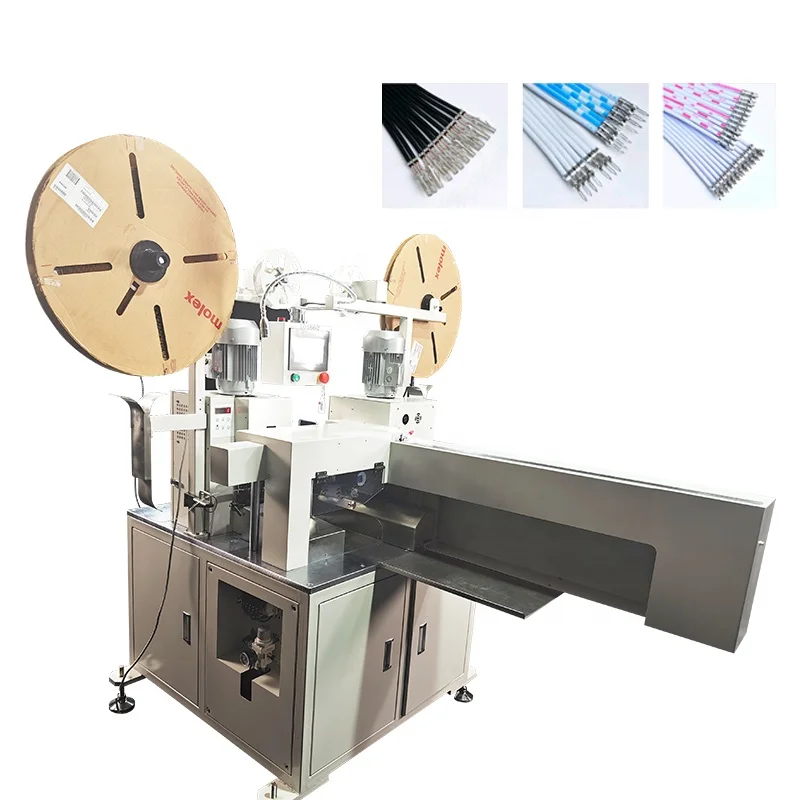

TR PX1 Fully Automatic High speed Electronic Wire Crimping Machine 800pcs/h Cable Terminal Stripping Crimping Machine
- Category: >>>
- Supplier: Dongguan Turing Automation Technology Co. Ltd.
Share on (1600879936181):
Product Overview
Description
Product Description

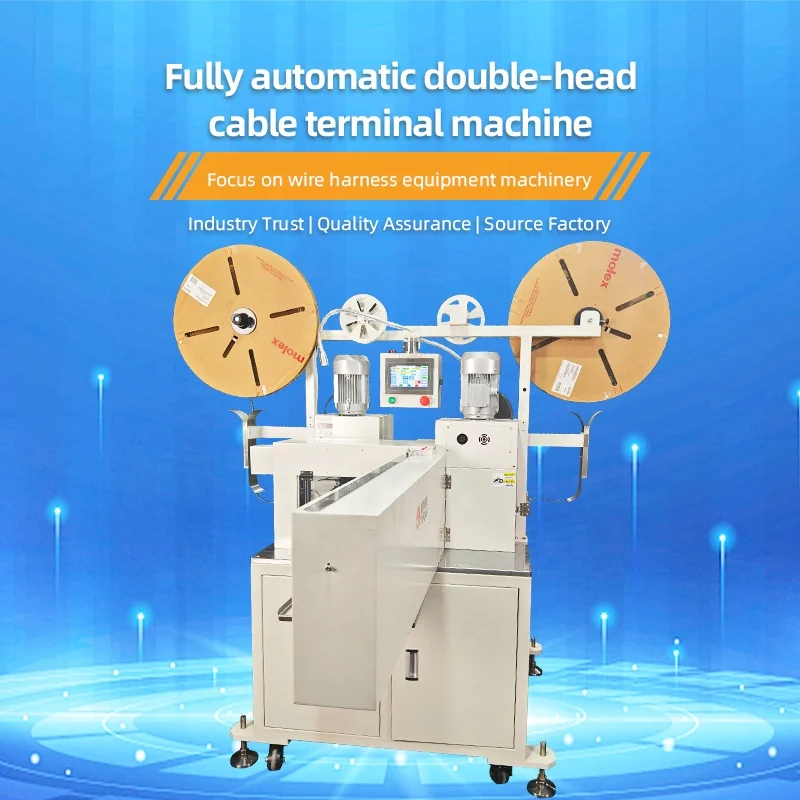

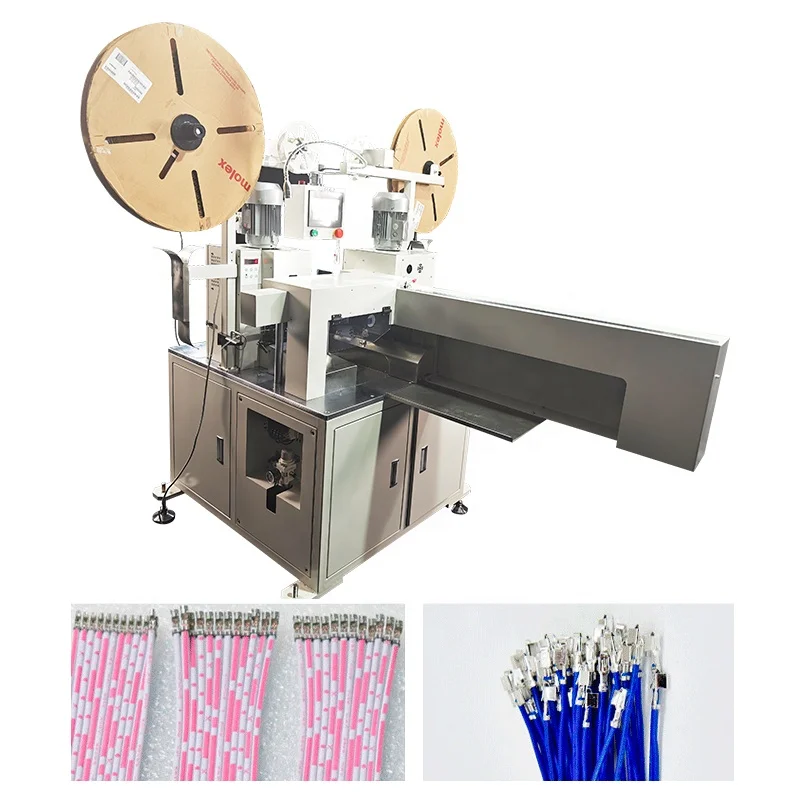

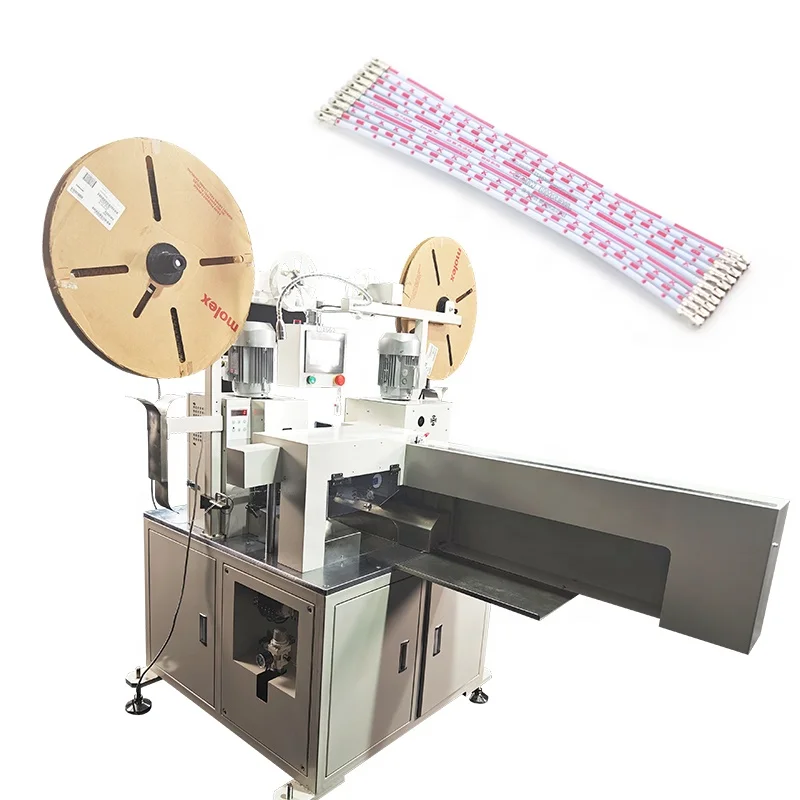

TR-PX1 Fully Automatic High-speed Electronic Wire Crimping Machine 800pcs/h Cable Terminal Stripping Crimping Machine
Feature
Good stability: The crimping end uses an eccentric shaft and cam structure, the terminal pressing force is balanced, and the terminals are pressed neatlyHigh precision: servo motors are used to control cutting, line stripping, pressure end positioning, and precise positioning;

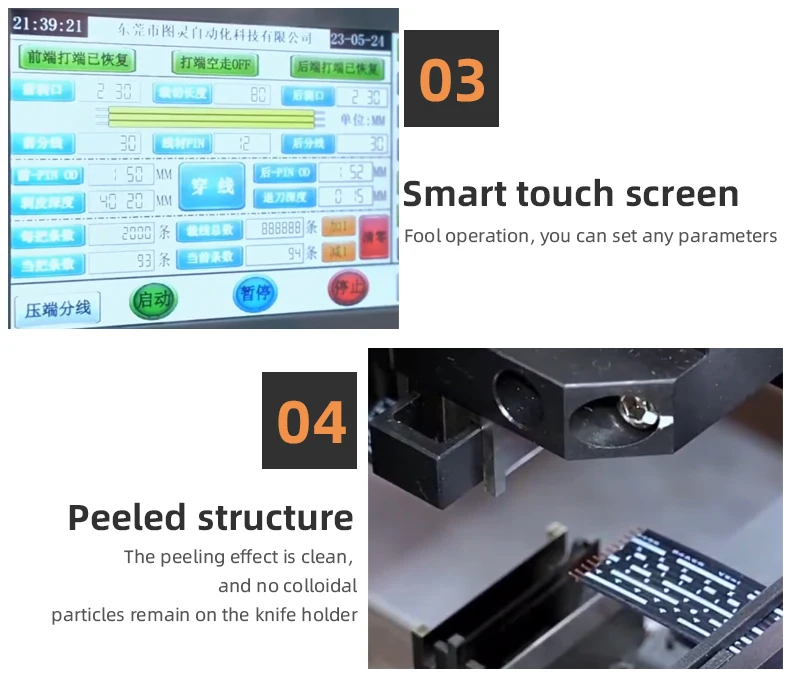

Simple operation: touch screen operation, easy parameter setting and operation, one person can operate several devices
Advantage

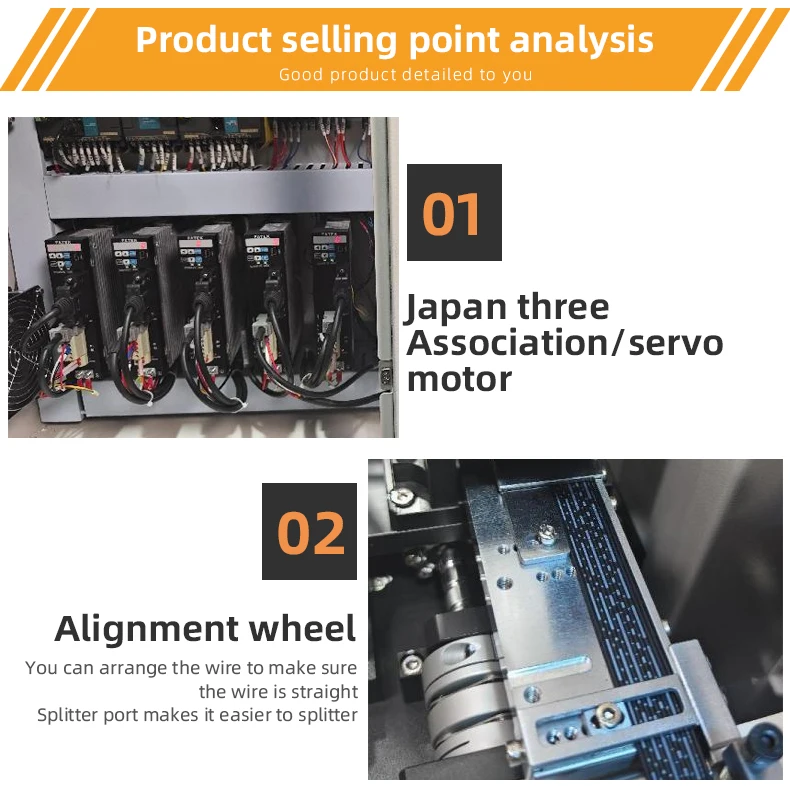

6 servo (Sanxie) 1 stepper motor (Lesai), adjustable branching claw, own patented mold, pneumatic components are all Japanese SMC, screw rod and slide rail are all made of silver, and spare parts are all made of QBQ processing (not easy to rust), the large plate is thick enough, and the feet are extended (to ensure the stability of the machine operation)
Product Name | TR-PX1 Fully automatic high-speed cable double-head crimping machine |
Crimping Machine Size | 1920x1520x1750(mm) |
Equipment weight | 500KG |
Working pressure | 0.4-0.6Mpa, dry |
Working voltage | AC220V 50HZ |
Rated current | 15A |
Placement environment | The ground is flat and firm, dry, without sunlight |
Speed | 1007 No. 24 8P wire 700 pcs/H (depending on the wire) |
Configuration | Two 57 open loop motors, one 57 closed loop motors |
Spare parts | One 86 motor, 3 open-loop drives, one closed-loop drive, six cylinders |
Control | Yonghong PLC |
Servo motor | Yonghong servo motor (6 sets) |
Stepper motor | Leisai (1 set) |
Pneumatic | The whole machine is SMC brand |
Testing | Pressure management device can be added |
Efficiency | 800PCS/h (12P cable), the machine can work 24 hours |
Cut length | 45-1000mm (length can be specified) |
Front stripping length | 0 -8mm |
Rear peeling length | 0-8mm |
Wire type | AWG30#-18# cable type, 26#-18# electronic wire |
Maximum line width | 28mm |
Maximum P number | 24P |
Die change | Die can be changed |
