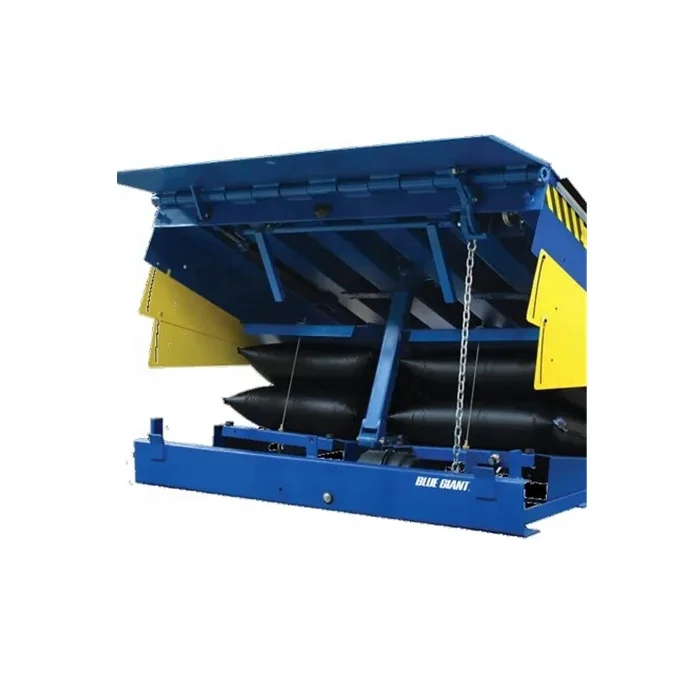

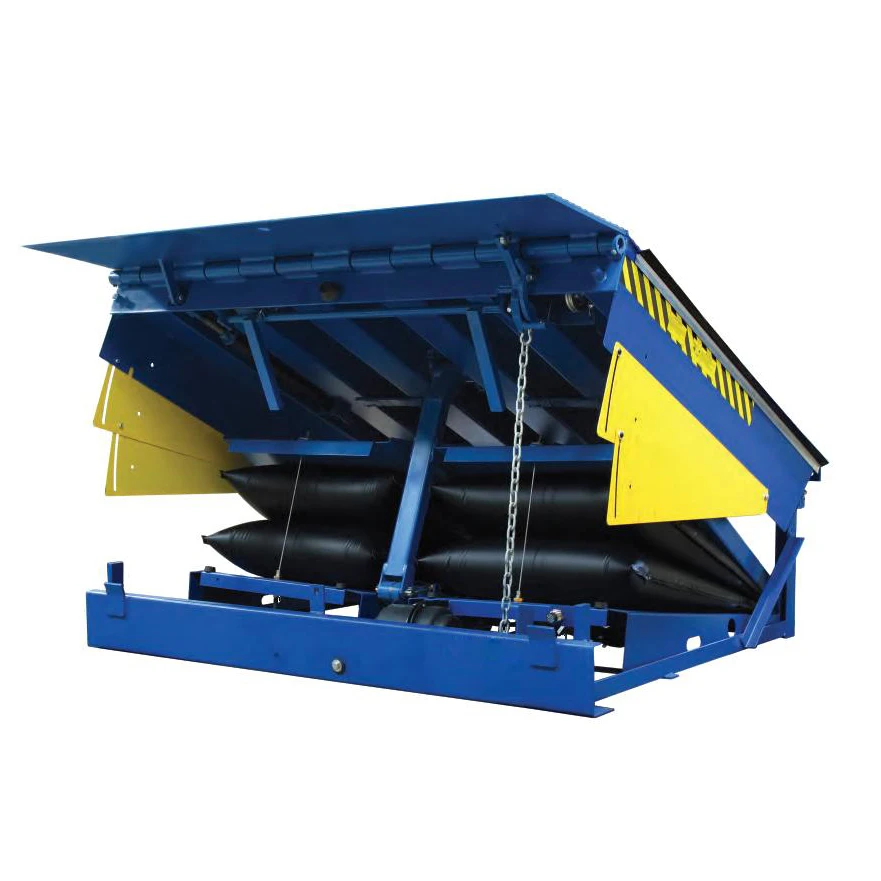

Air-powered Dock Leveler

Spieth Air-Powered Dock Levelers offer benefits similar to hydraulic levelers and are designed to prevent potential stump-out problems. There are no legs or rollers required so you can sense a free-fall situation. You’ll also find easy access to the leveler pit for quicker maintenance.

• Smooth transition design includes a constant-radius rear hinge, two-point crown control on the front lip hinge and an optimized lip chamfer to reduce jolts to your lift truck operators, product and equipment.


• Vacant dock drop-off protection - Exclusive Safe-T-Lip barrier helps keep forklifts from running off the open dock and can stop 10,000 lb (4535 kg) forklifts traveling at 4 mph (6.4 kg/hr).


• Exclusive Safe-T-StrutTM maintenance support system protects personnel during clean out and inspection and provides lockout/tag out capability. The unique through-the-lip design keeps the strut in place when the leveler is raised to the highest position or is impacted by lift truck.


• Advanced, low-pressure lifting system - Cylindrical air tower is wear resistant for longest life.


• Low maintenance - Lifting system requires no scheduled maintenance. Lip mechanism requires no adjustment. Access to leveler pit is easy for quick clean-out and inspection.


• Reliable components - Blower motor is mounted inside the air tower for protection from the environment and wash-down applications. Simple design, few moving parts.


• Seal beneath and around the dock leveler - PitMasterTM Under-leveler Seal is an available option that helps prevent energy loss, improve dock cleanliness and increase employee comfort.


• 12-month money-back satisfaction guarantee standard with all Rite-Hite products.


• Up to 20 year money back warranty based on the Dock Leveler Investment Guide.

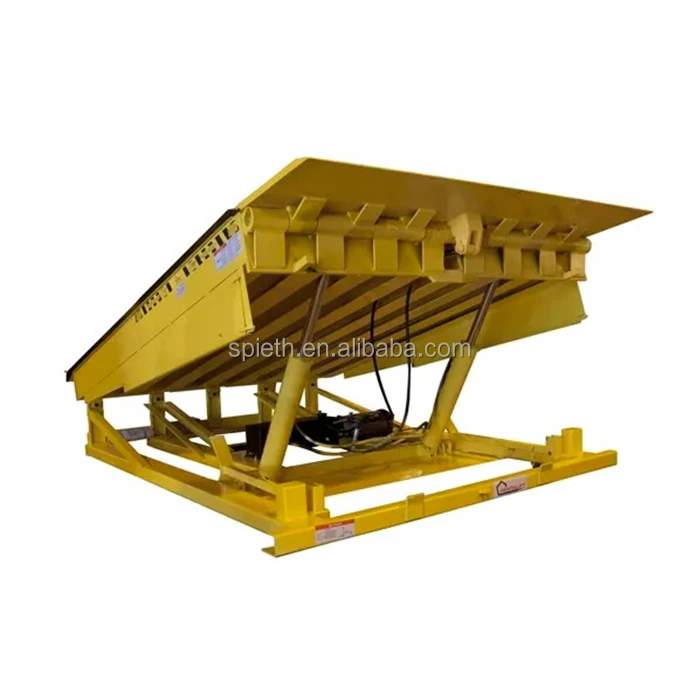

Hydraulic Dock Levelers

Spieth hydraulic dock levelers are designed to handle the fast pace of busy loading docks. Advanced hydraulic technology and standard features like regenerative hydraulics, premier lug-style lip hinges, Lambda beam structure and unique open-frame designs keep productivity high and maintenance costs low.

Hydraulic Dock Levelers Hightlights

• Operated via a remote-mounted single push-button control for sequenced deck and lip operation


• Operating range is up to 12” (305mm) above and 12” (305mm) below the dock leveler


• Comes complete with a 1HP, Totally Enclosed Non-Ventilated (TENV) power pack system


• A hydraulic velocity fuse that limits the loaded ramp’s free fall to within 3“ (76mm)


• Yieldable lip safely collapses if struck while in the extended position


• Full operating range toe guard protection (painted safety yellow as specified by ANSI Z535.1)


• Stationary side toe guards with high-visibility OSHA safety striping


• The integral maintenance strut supports the deck and lip for safe maintenance and inspection procedures

HEAVY CAPACITY HYDRAULIC DOCK LEVELER

The Blue Giant Heavy Capacity Hydraulic Dock Leveler is a high-performance system for demanding applications. Perfect for greater-capacity material handling, it comes complete with a 1HP, Totally Enclosed Non-Ventilated (TENV) power pack system and has an industry-wide reputation for strength and endurance.

Available in rated capacities of 50,000 to 80,000lbs  (22,727 to 36,364kgs).

THE I-BEAM ADVANTAGE: ASSURED MOTION FLOAT

The Heavy Capacity hydraulic dock leveler has an innovative design that enables it to tilt up to 4" (102mm) on either side when under load, allowing full width contact between the lip and truck bed. This unique feature, Assured Motion Float, prevents damage to forks, tires, steering system and load, thereby prolonging the working life of the dock leveler and improving cost of ownership.

PRODUCT HIGHLIGHTS

• Minimum of 6 I-beams provide solid under-deck support


• Larger and higher-capacity units are fortified by 8 I-beams


• Continuous one-piece headboard system intensifies the strength of the deck’s front structure


• Single lip hinge pin enables a stronger distributed load

Spieth (Xiamen)Technology Co., Ltd devotes itself to the design ,manufacture and trade of warehouse storage systems. Our products including : various pallet racking, longspan shelving, cantilever racks, rivet shelving, drive in racks, mezzanine and platform, canton flow rack, stacking racks, cold room racks, wire mesh decking, wire mesh containers and other related storage equipments.

1. Q: Are you manufacturer or trading company?

     A: We are manufacturer. Our factory has been specializing in warehouse storage equipments for              years. We warmly welcome you to visit our factory at anytime.

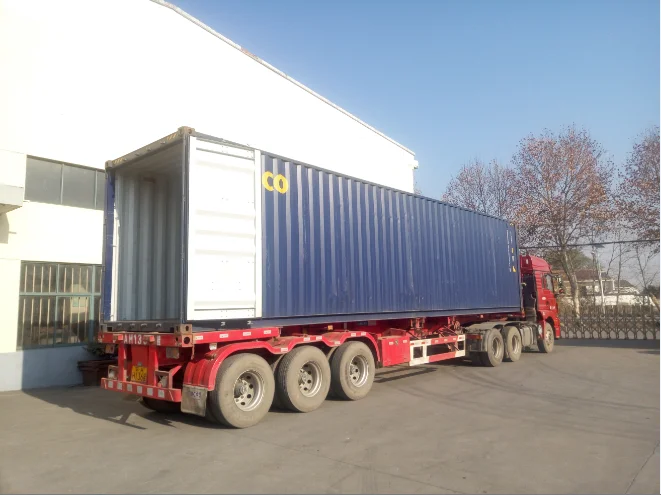

 2. Q: What is your delivery time?

     A: Usually: 1*20' GP container, around 15 days; 1*40'GP container, around 20days; For some                  urgent orders, will adjust as your requirement accordingly.

 3. Q: What is the term of payment?

     A: Regularly, 30%TT in advance,70% against the copy of B/L.

 4. Q: Do you offer custom design?

     A: Custom design is surely available. we have very rich experience in customizing shelves.

 5. Q: Do you offer samples available?

     A: Yes, samples are available. Sample lead time 3-5days generally.
