433 Mhz Wireless Remote Control AC220V 2CH Universal Rf Relay Receiver and Transmitter For Garage door and Gate Motor Control
- Category: >>>
- Supplier: Shenzhen Qinli Electronic Technology Co. Ltd.
Share on (1600879976804):
Product Overview
Description
Product Description
433 Mhz Wireless Remote Control AC220V 2CH Universal Rf Relay Receiver and Transmitter For Garage door and Gate Motor Control

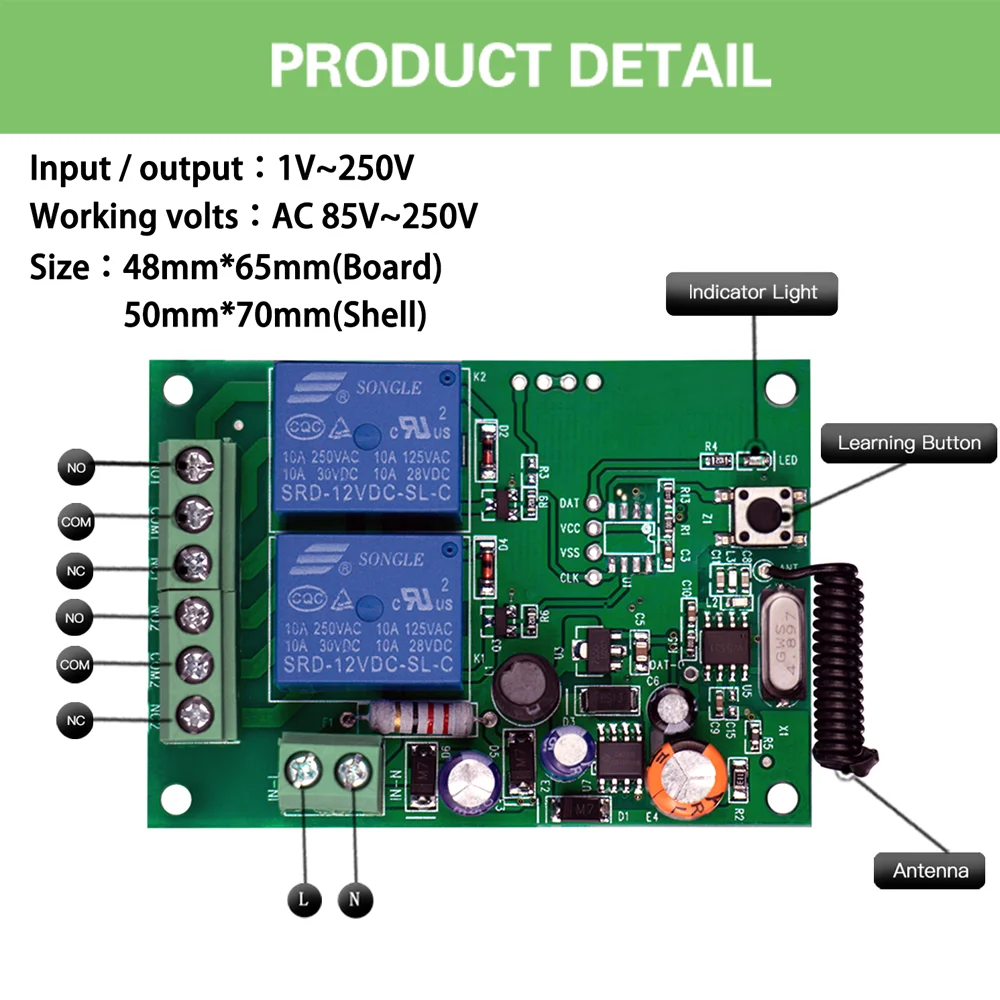

Relay Receiver Board Parameter
Working voltage : AC 85V~250V
Input vlotage : 1~250V
Output vlotage : 1~250V
Quiescent Current : <5MA
Max current : 10A
Max load: 2200W
RF frequency : 433MHz
Pin : NO / COM / NC

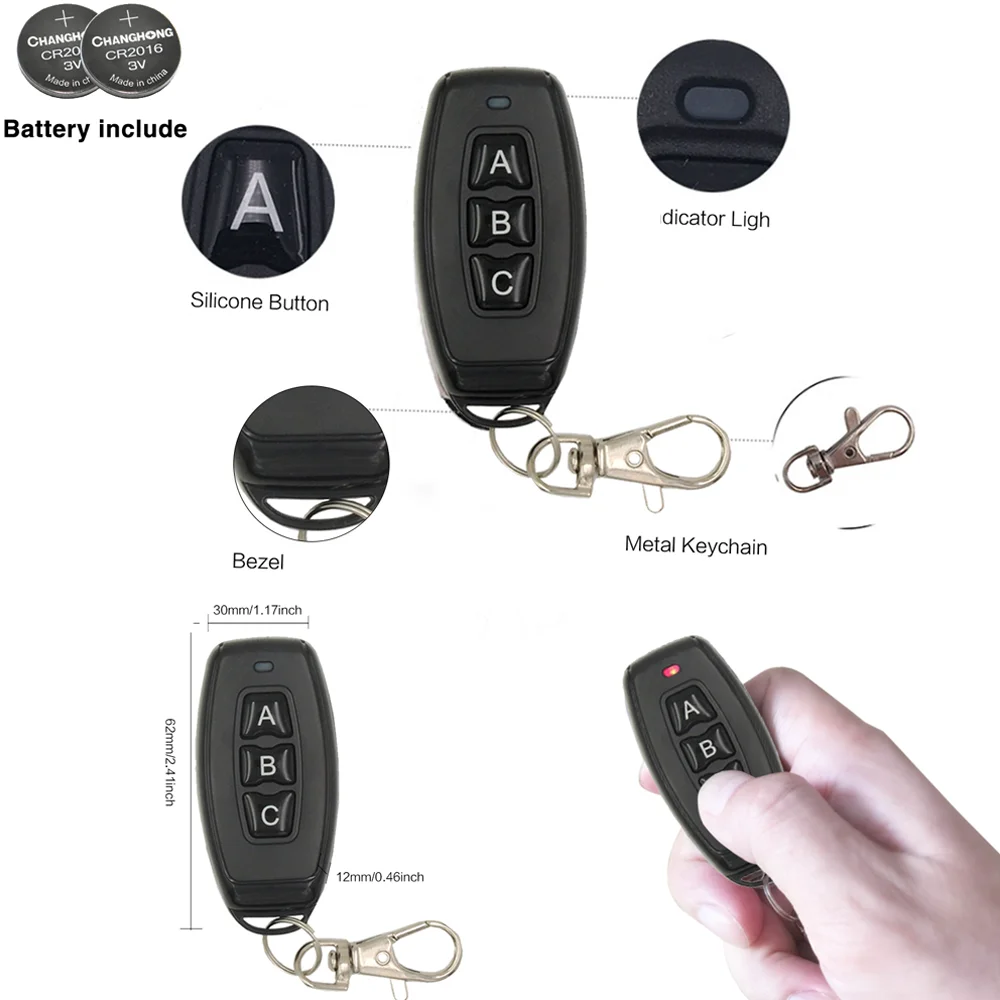

Remote control battery : 2*CR2016
Remote size : 60mm*27mm
Working temperature : -30~+80 Celsius
Receiving Sensitivity : >97dbm
Amount of storage remote controls : 20 pieces
Support encoding : 1527 Learning code /2262 fixed code
RF Operating mode : ASK superheterodyne wireless reception
Receiving range : Open space is more than 50 meters
Remote operating mode :Toggle Mode / Latched Mode
Product Application Area
Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.
Remote control garage door \\ Electric door \\ house door \\ shutter door \\ expansion door \\ gate door \\ road gate
Remote control Electric curtain \\ Water pump \\ Fan \\ Lamp \\ LED light \\ bulb \\ ventilation device \\ Signal transmission
Remote control motor positive and negative rotation \\ motor switch \\ DIY
Working Modes
Toggle mode:
Press A button,the relay will work;press A button again,this relay will stop.

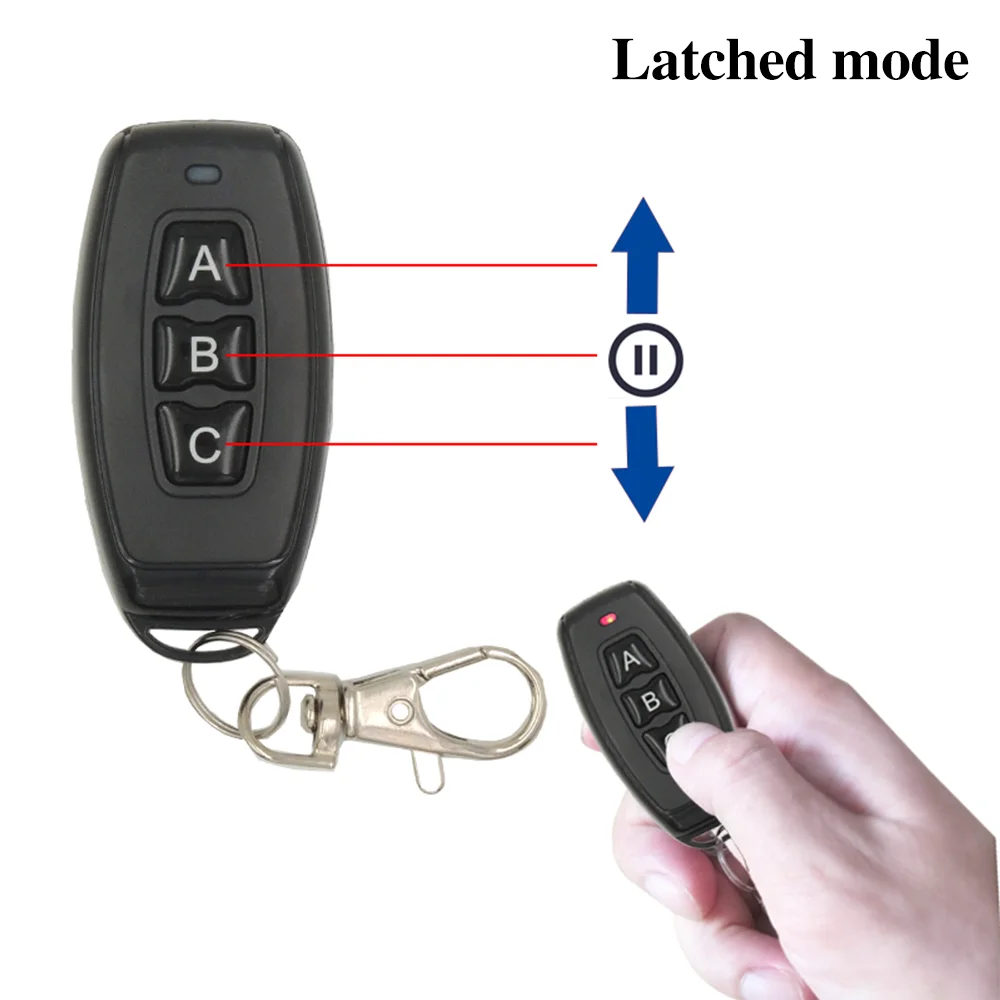

Latched mode:
Press A button,the relay will on;press C button ,this relay will off,press B button,this relay will stop.

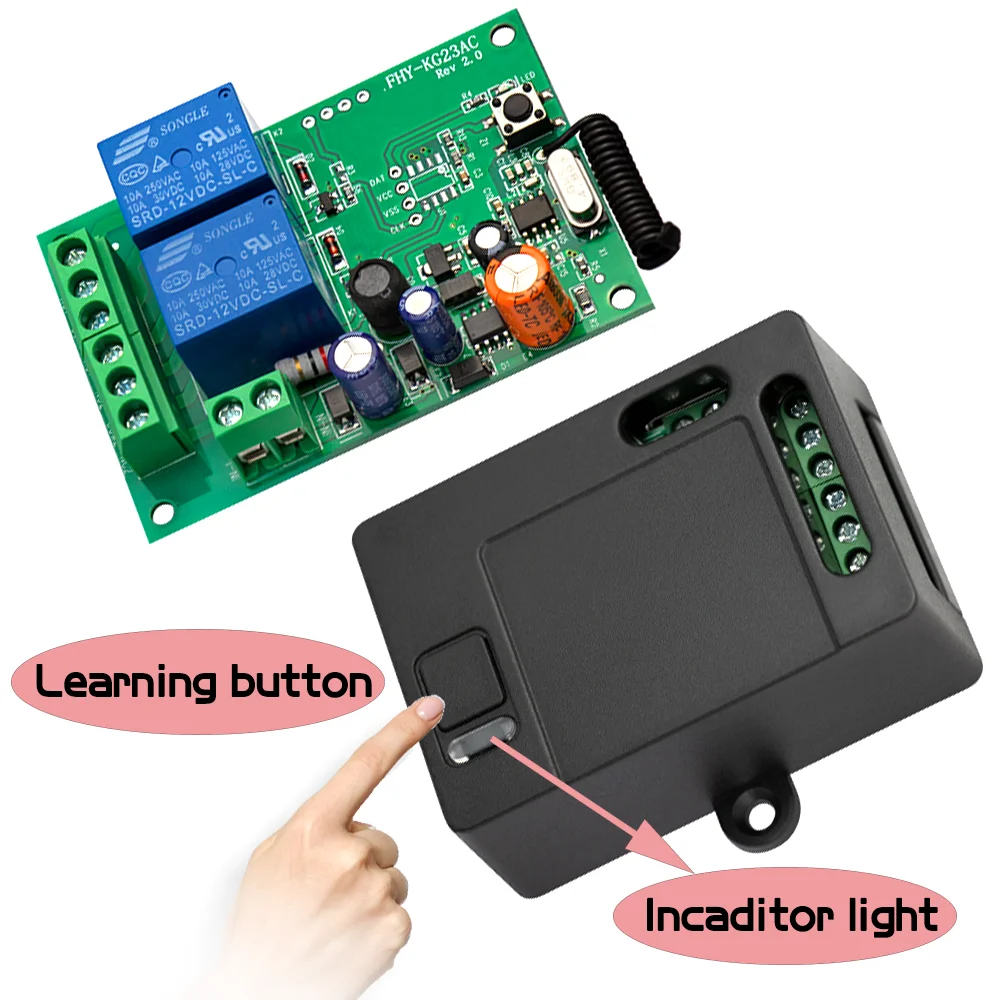

How to Set up
Toggle mode:
Press learning button 2 times,press A button once,press B button once,succeed.
Latched mode:
Press learning button 3 times,press A button once,press C button once,press B button once,succeed.
Clean data:
Press learning button 8 times,the data will be cleaned.
(If you want to change modes,you need to clean the data first.)
Toggle mode:
Press A button,the relay will work;press A button again,this relay will stop.
Latched mode:
Press A button,the relay will on;press C button ,this relay will off,press B button,this relay will stop.
How to Set up
Toggle mode:
Press learning button 2 times,press A button once,press B button once,succeed.
Latched mode:
Press learning button 3 times,press A button once,press C button once,press B button once,succeed.
Clean data:
Press learning button 8 times,the data will be cleaned.
(If you want to change modes,you need to clean the data first.)
