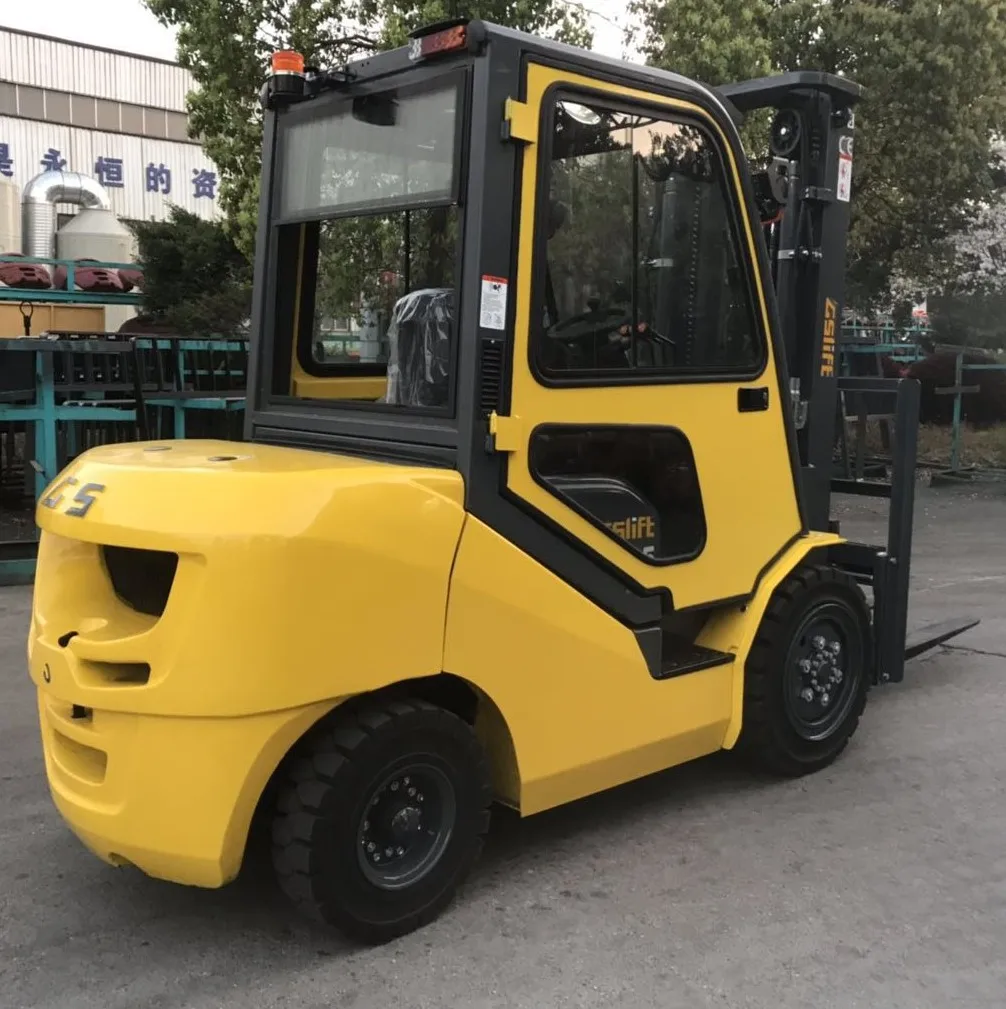

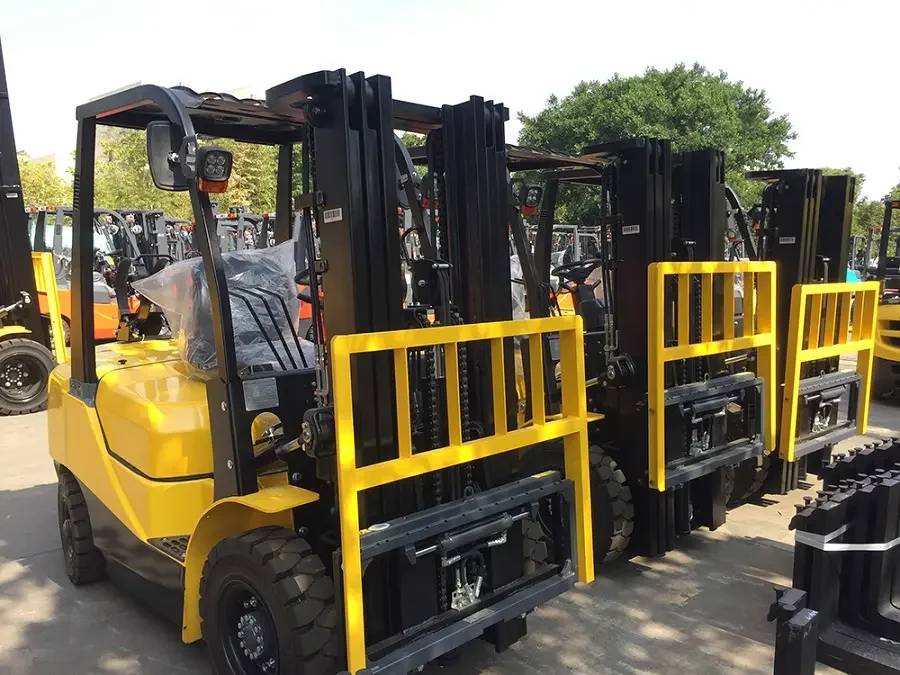

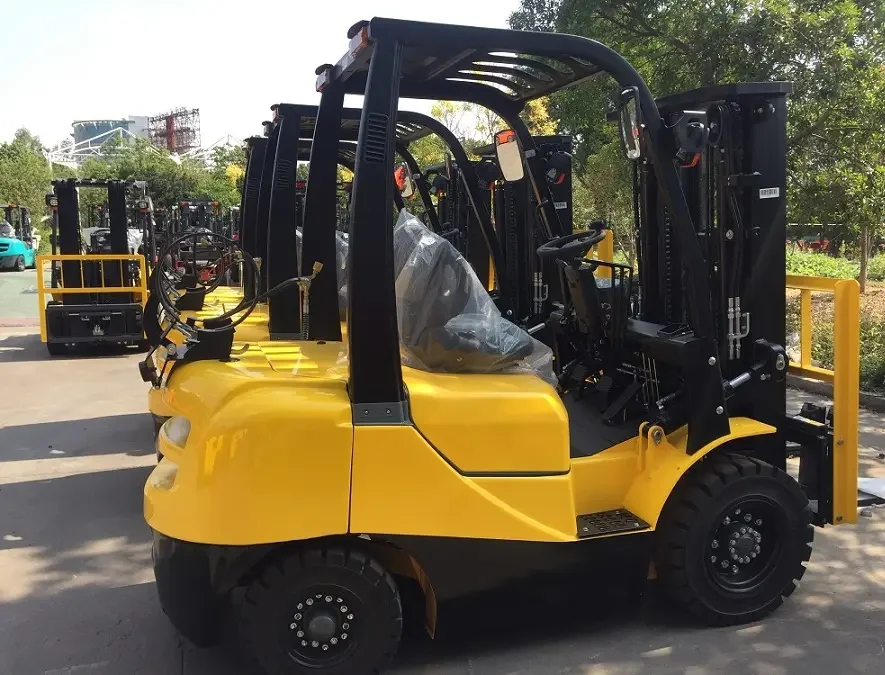

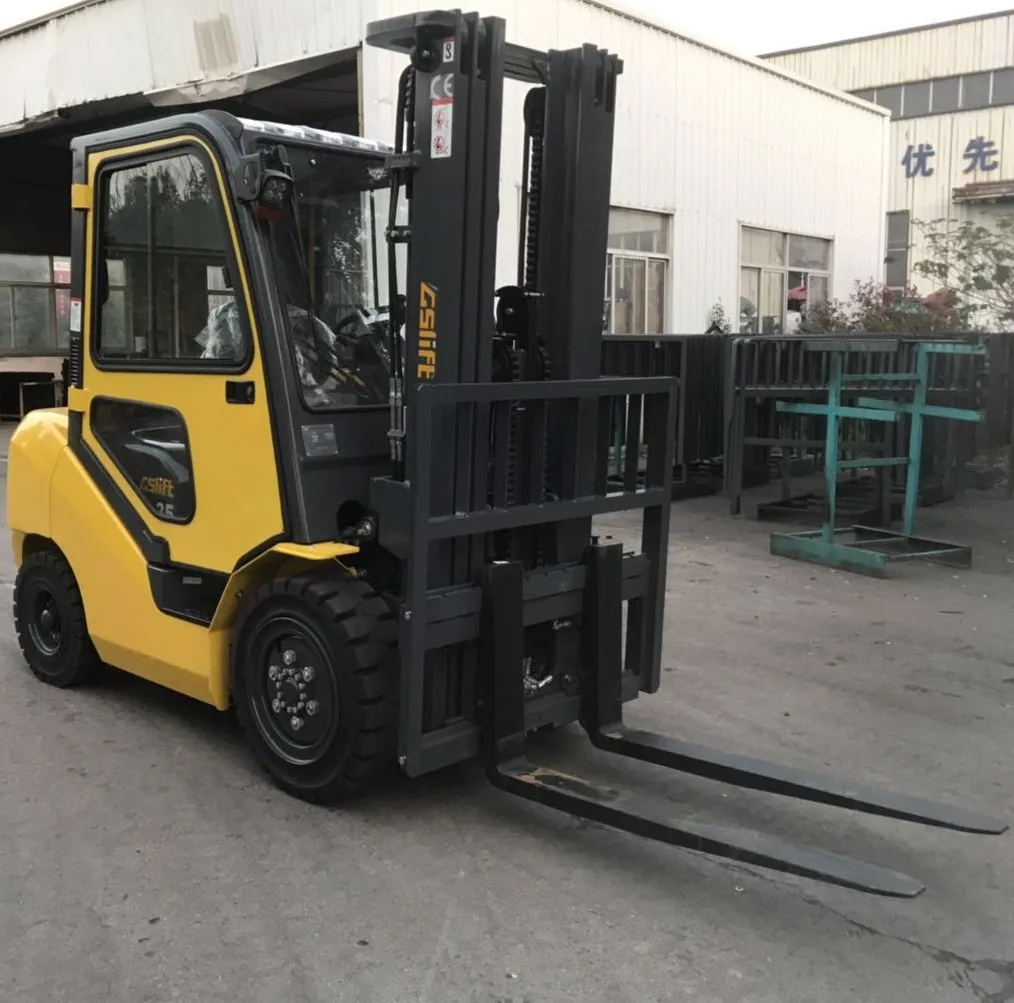

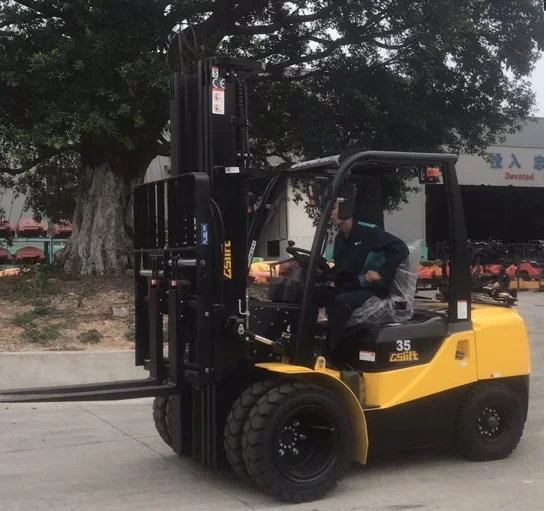

Euro 5 emission standard 3.5ton LPG forklift truck with CE
- Category: >>>
- Supplier: Hangzhou Xinli Machinery Co. Ltd.
Share on (1600879985010):
Product Overview
Description
Product Description
New 3.5 Ton LPG Forklift with Chinese/Japanese Engine
1. Robust and Reliable Diesel Engine
2. Ergonomically design and seat
3. Wide-view Mast
4. Solid Overhead Guard
5. Fully Integrated Frame and Suspension Chassis
6. Easy to maintain and repair
7. Super low and on-slip step
8. Multiple Options Available for Choice
9. CE/EPA/GOST certificate
10. One-year Warranty after date of B/
Details
General | 1 | Model | FY35 | |
2 | Power Type | Gasoline/LPG | ||
3 | Rated Capacity | kg | 3500 | |
4 | Load Centre | mm | 500 | |
Characteristic & Dimension | 5 | Lift Height | mm | 3000 |
6 | Fork Size (L×W×T) | mm | 1070×125×50 | |
7 | Mast Tilt Angle (F/R) | Deg | 6°/12° | |
8 | Front Overhang (Wheel center to fork face) | mm | 480 | |
9 | Ground Clearance（Bottom of mast） | mm | 135 | |
10 | Length to face of fork(Without fork) | mm | 2770 | |
11 | Overall Width | mm | 1225 | |
12 | Mast Lowered Height | mm | 2115 | |
13 | Mast Extended Height(With backrest) | mm | 4160 | |
14 | Overhead Guard Height | mm | 2090 | |
15 | Turning Radius (outside) | mm | 2480 | |
Performance | 16 | Travel Speed (No load) | km/h | 19 |
17 | Lifting Speed (Full load) | mm/s | 420 | |
18 | Max.Gradeability (No load/Full load) | % | 20 | |
Chassis | 19 | Front Tire | mm | 28x9-15-12PR |
20 | Rear Tire | mm | 6.50-10-10PR | |
21 | Wheelbase | mm | 1700 | |
22 | Self weight | kg | 4500 | |
Power & Transmission | 23 | Battery Voltage/Capacity | V/Ah | 12/80 |
24 | Engine Model | K25 | ||
25 | Manufacture | NISSAN | ||
26 | Rated output/r.p.m. | kw | 37.4/2300 | |
27 | Rated torque/r.p.m. | N·m | 176.5/1600 | |
28 | No.of Cylinder | 4 | ||
29 | Bore×Stroke | mm | 89×100 | |
30 | Displacement | cc | 2488 | |
31 | Fuel Tank Capacity | L | 60 | |
32 | Transmission Type | Hydraulic | ||
33 | Stage (FWD/RVS) | 1/1 |

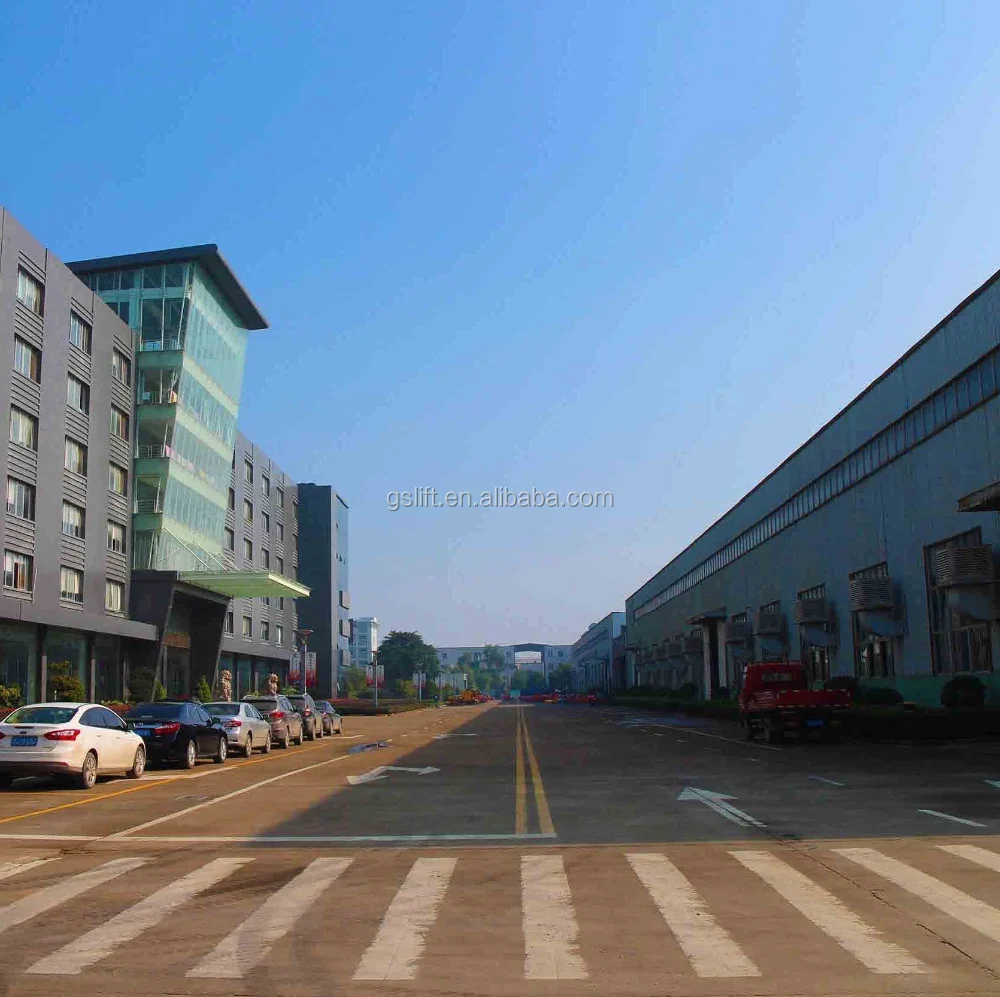

Factory Overview

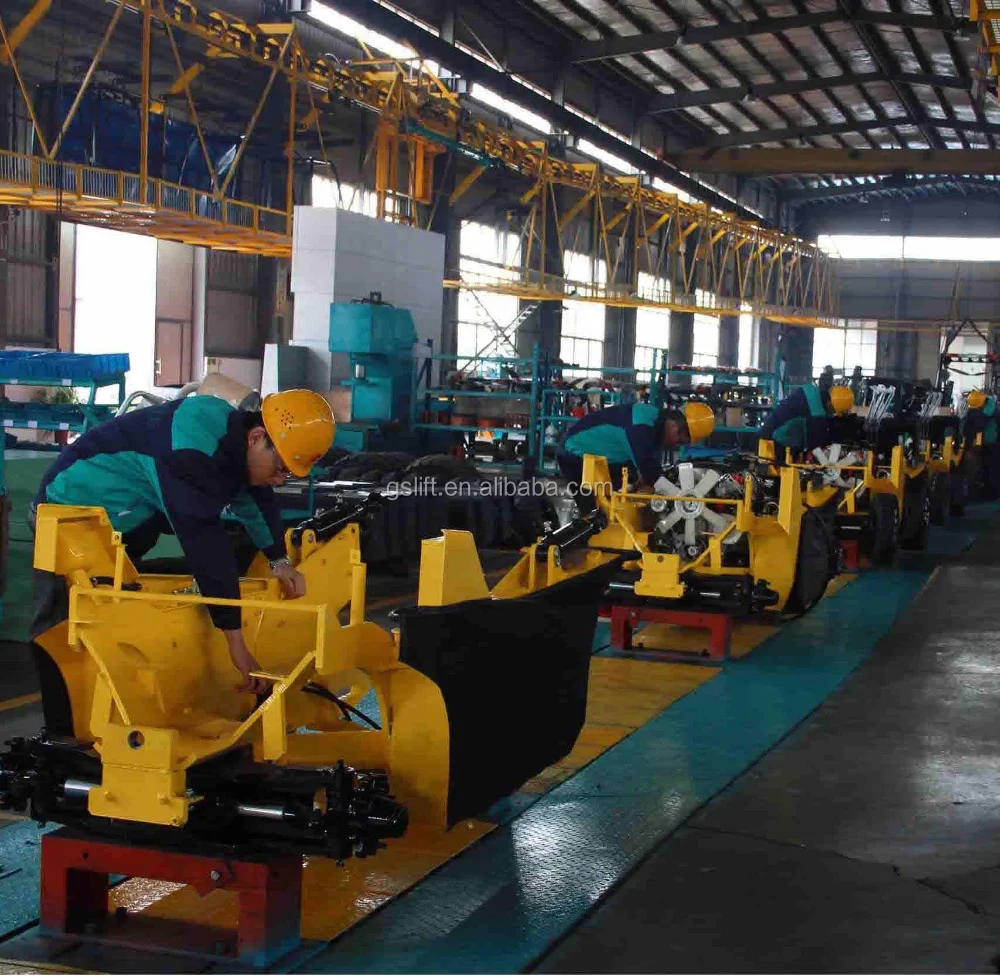

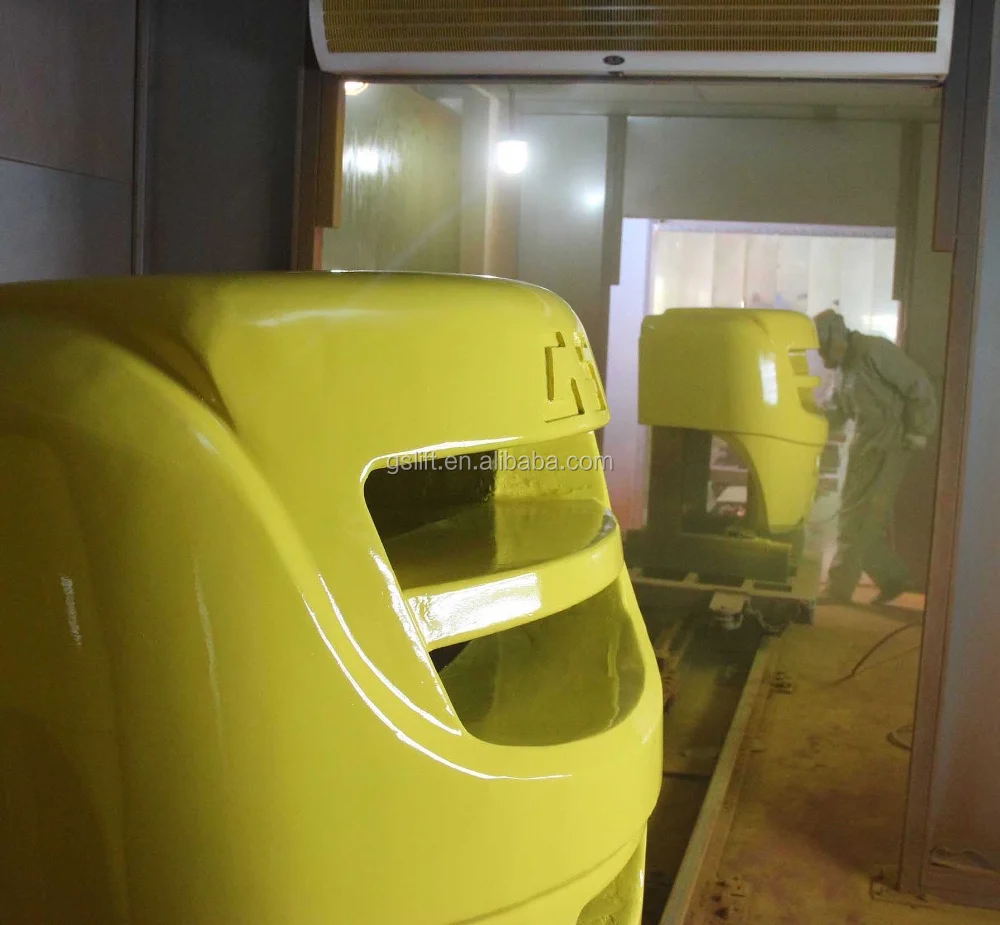

Production Line

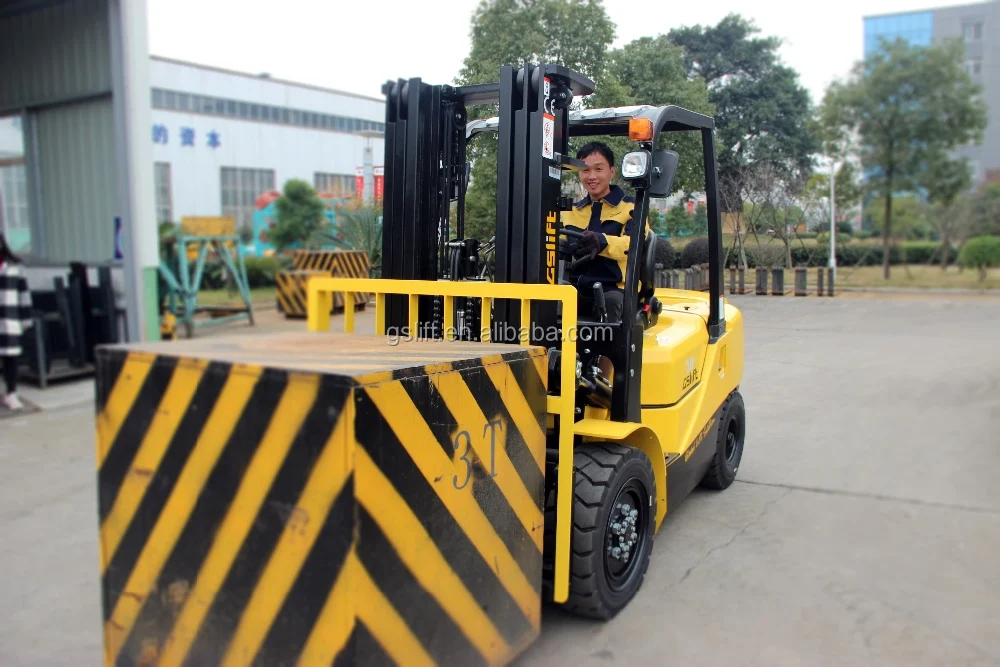

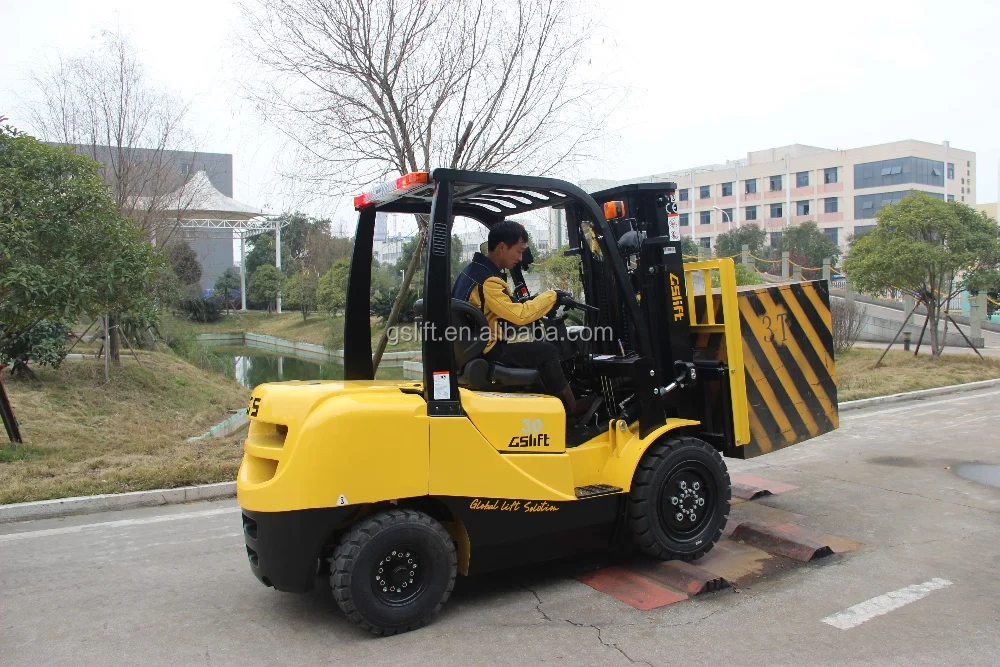

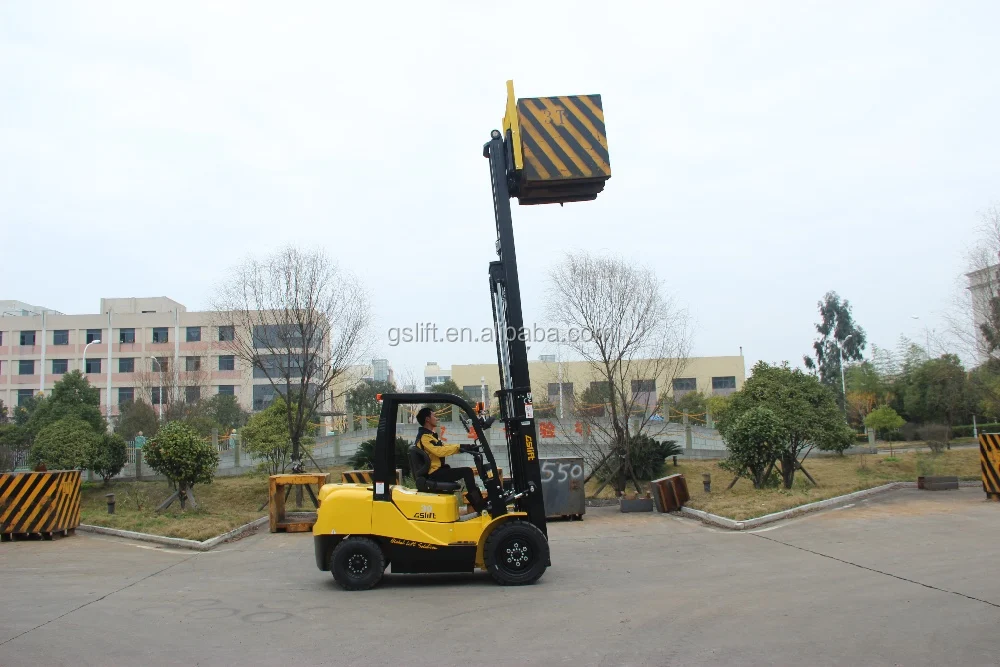

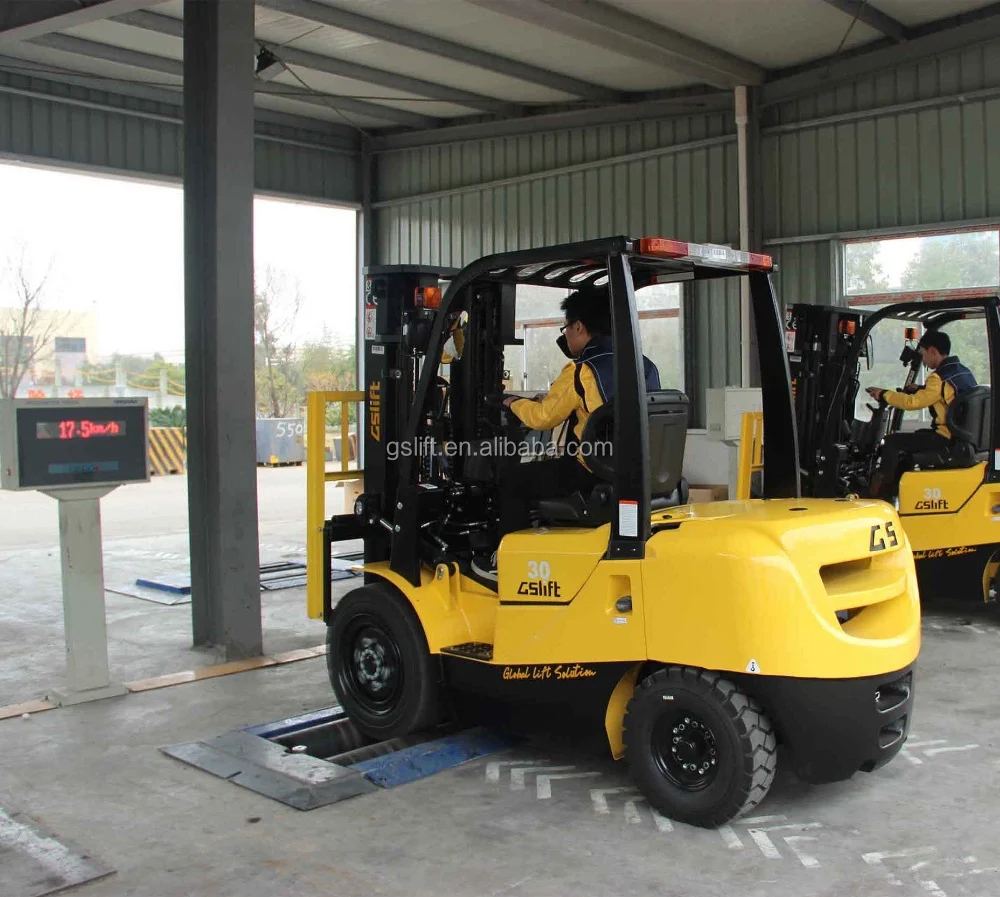

Testing Line
