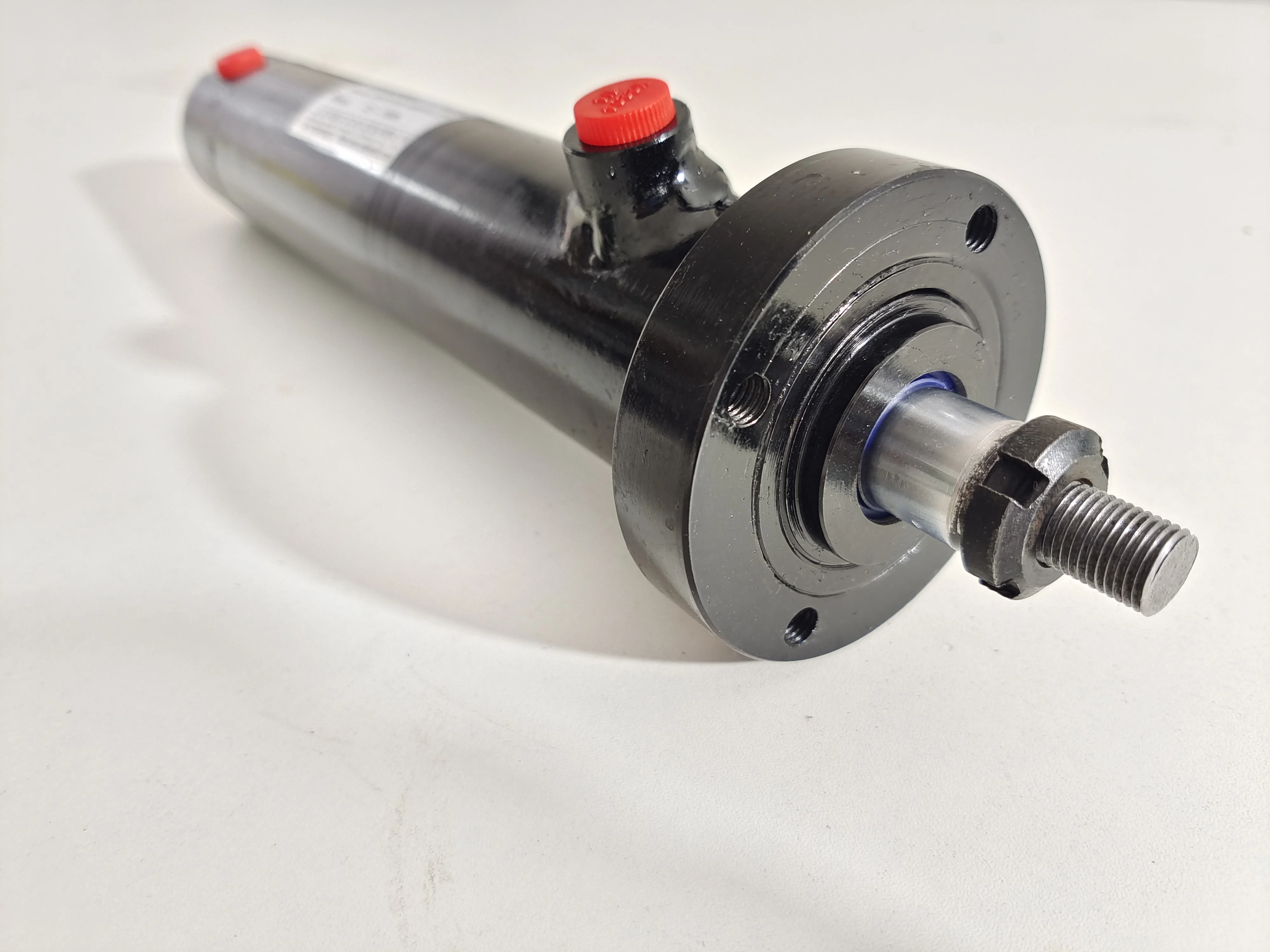

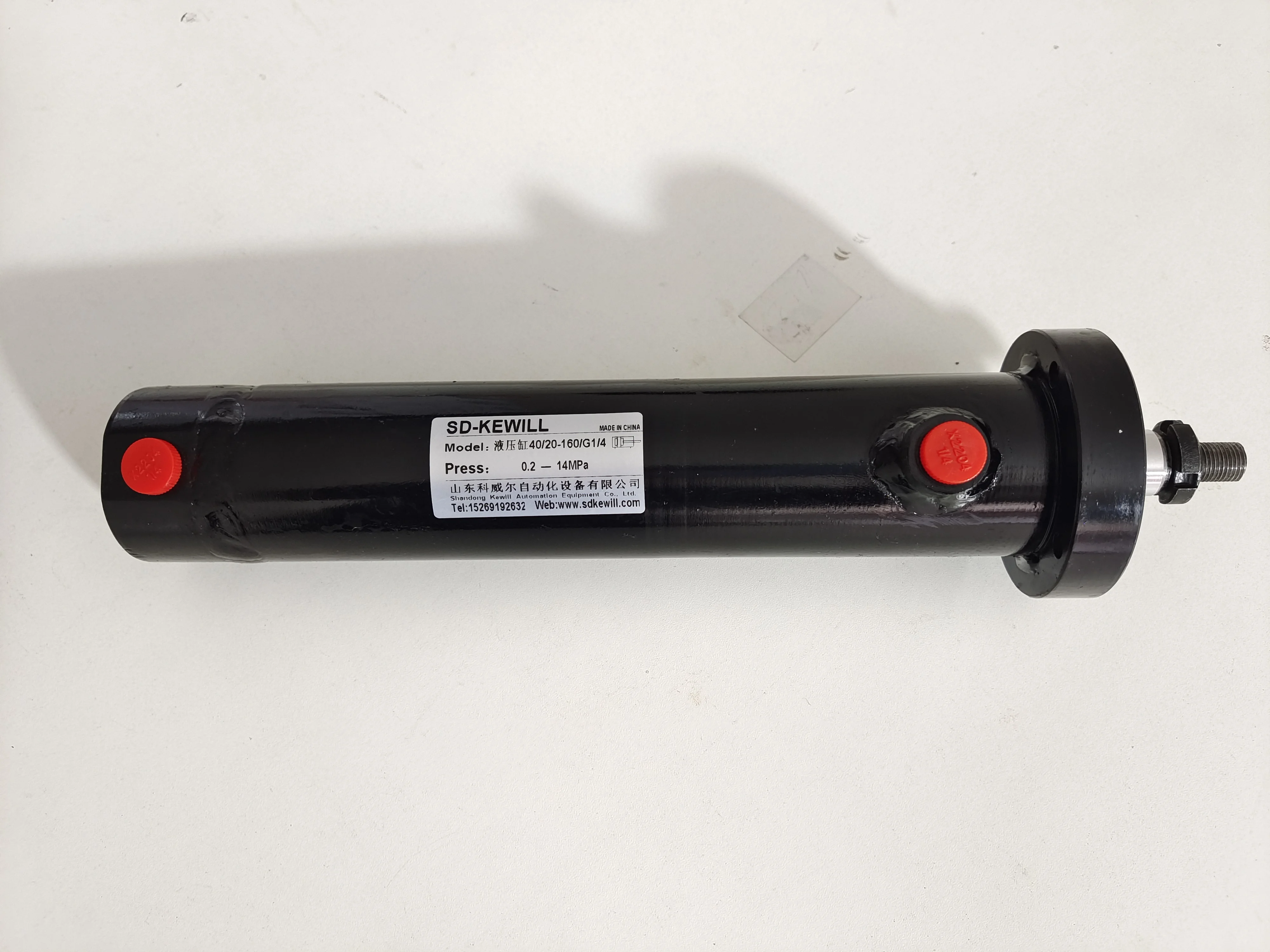

Flange type with chrome plated rod double acting cheap welded cylinders more stable running hydraulic piston cylinder
Flange type with chrome plated rod double acting cheap welded cylinders more stable running hydraulic piston cylinder
Flange type with chrome plated rod double acting cheap welded cylinders more stable running hydraulic piston cylinder
Flange type with chrome plated rod double acting cheap welded cylinders more stable running hydraulic piston cylinder
Flange type with chrome plated rod double acting cheap welded cylinders more stable running hydraulic piston cylinder
Flange type with chrome plated rod double acting cheap welded cylinders more stable running hydraulic piston cylinder
Flange type with chrome plated rod double acting cheap welded cylinders more stable running hydraulic piston cylinder

Flange type with chrome plated rod double acting cheap welded cylinders more stable running hydraulic piston cylinder

Share on (1600880696783):


Price:

Quantity:


Product Overview

Description





Double Action Hydraulic Cylinder Output Force
Bore diameter
mm (inch)
Rod diameter
mm (inch)
210bar
Push force KN
210bar
Pull force KN
32
18
17
12
40
28
26
13
50
36
41
20
63
45
65
32
80
55
106
56
90
63
134
68
100
70
165
84
110
80
200
94
125
90
258
124
140
80
323
218
150
105
371
189
160
110
422
223
180
125
534
277
200
140
660
336
220
160
798
376
250
180
1031
496
280
200
1293
633
320
220
1698
891


Specification


HSG Hydraulic Cylinder Technique Parameter
Way of action
Double acting /Single acting
Pressure level/Mpa
0-16MPa
16-21MPa
21-25MPa
25-40MPa
Cylinder D. range
Φ40~Φ1500mm
Travel range
0~≤15m
Ambient temperature
-20℃~+80℃， +80℃~+350℃
Work medium
Anti-wear hydraulic oil,           Water glycol fire resistant hydraulic oil
Cylinder head form
Extermalthread connection,      Internal card key connection,        Flangeconnection
Installation form
Earring connection,         Pin connection,        Flange connection

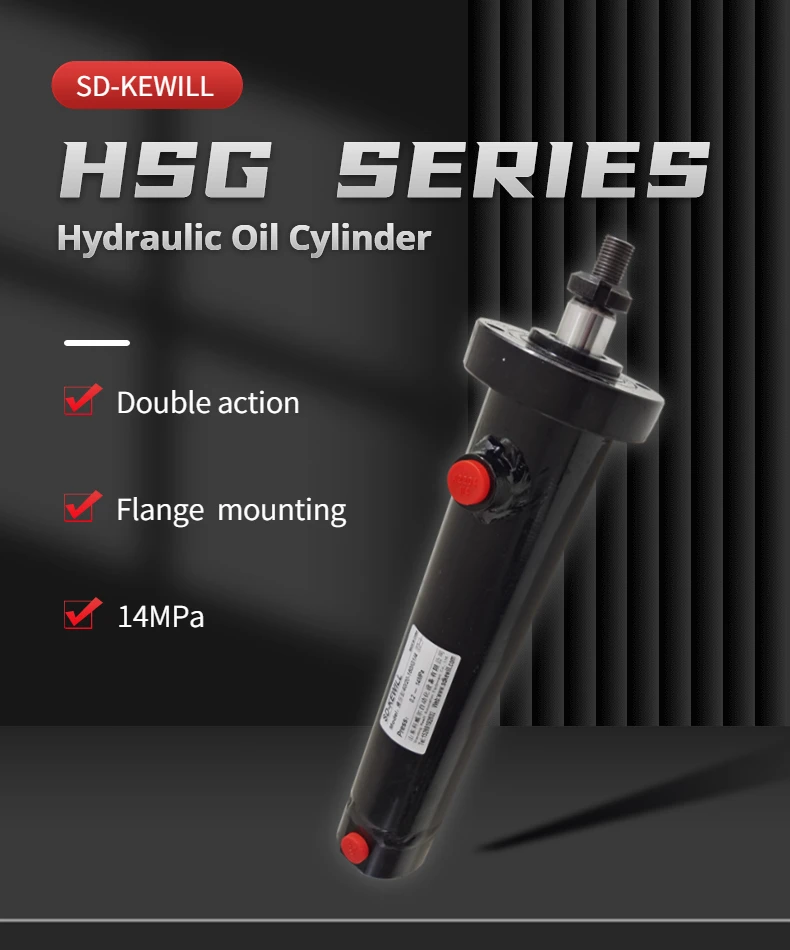

Product Description


HSG series single rod double acting hydraulic cylinder is an actuator for reciprocating linear motion in hydraulic system.
It has the characteristics of simple structure, reliable operation,convenient assembly and disassembly easy maintenance various installation and connection methods. and can be equipped with buffer devices.
According to the different connection methods of the piston rod there are 4 categories and 45 types of specifications and models.






Packing & Delivery

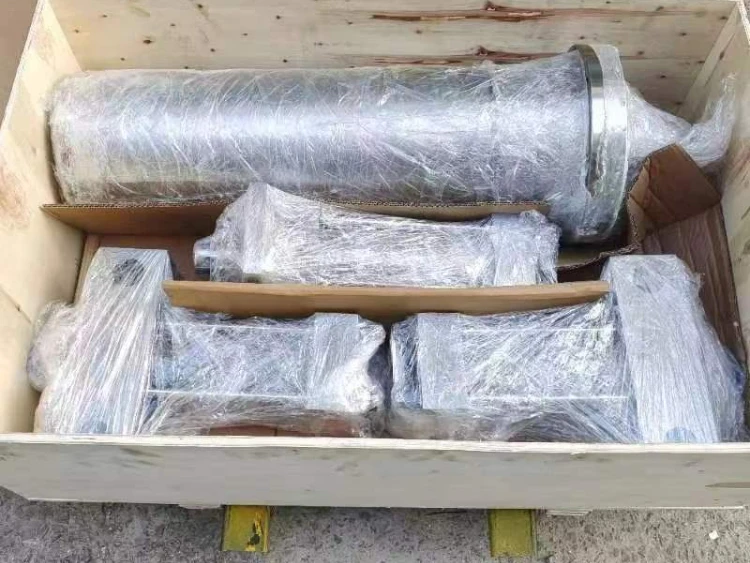

standard export packing cartoon packages / wooden box packages.
