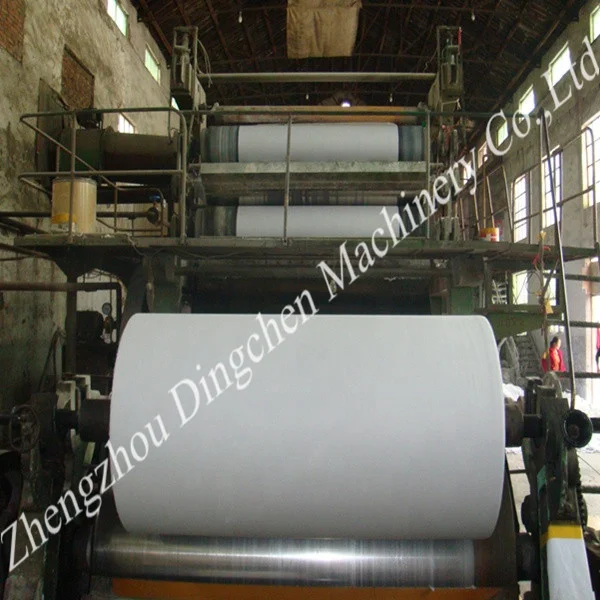

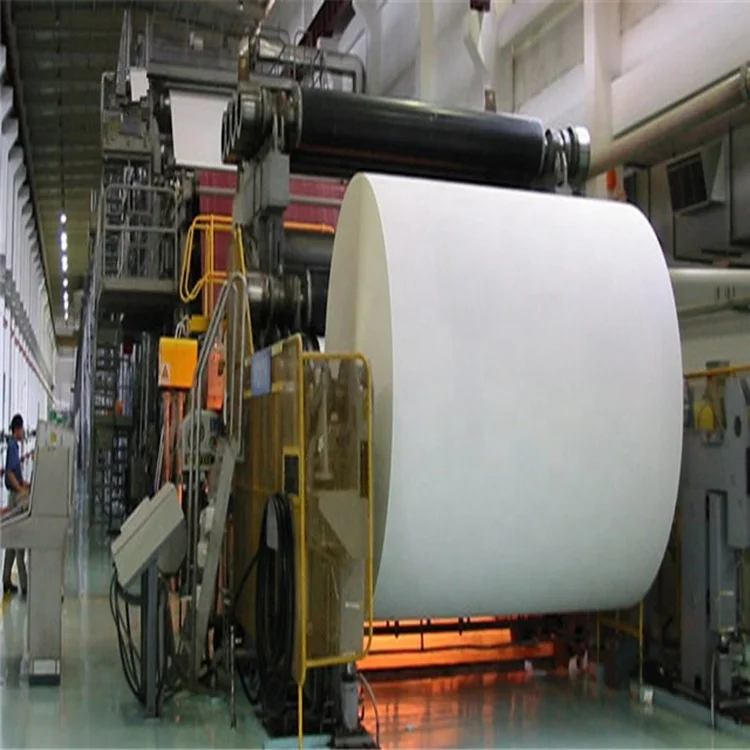

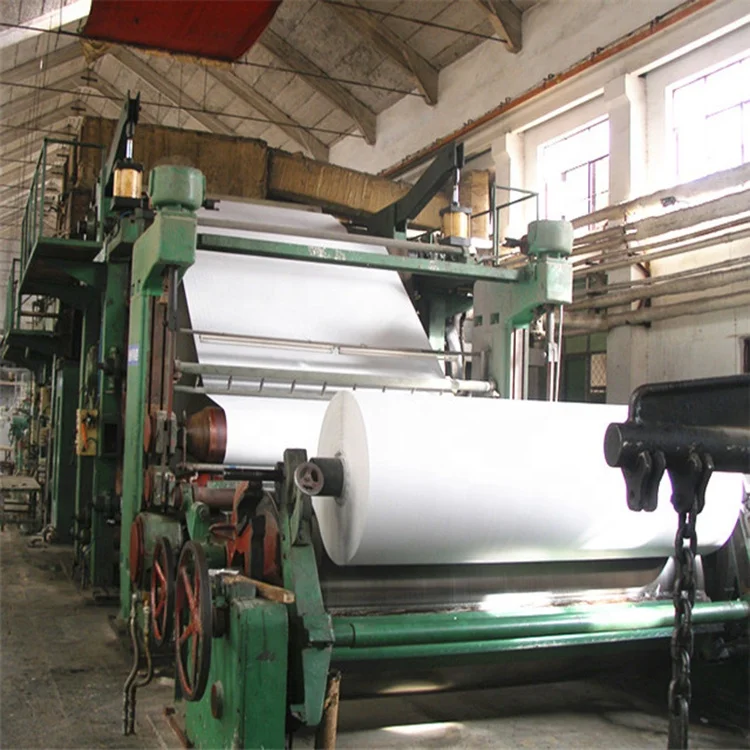

Good quality tissue paper mill paper making machinery and equipment
- Category: >>>
- Supplier: Zhengzhou Dingchen Machinery Co. Ltd.
Share on (1600880863428):
Product Overview
Description
Product Description
Technical parameter:
Raw material:white paper cuttings or virgin pulp
Output paper:Toilet Tissue paper roll
Output paper weight: 12-25g/m2
Capacity: 25 tons per day(24hours)
Crepe ratio:20%
Net paper width: 2850mm
Drive way: Alternating current frequency converter speed control, sectional drive.
Layout type:left or right hand machine.

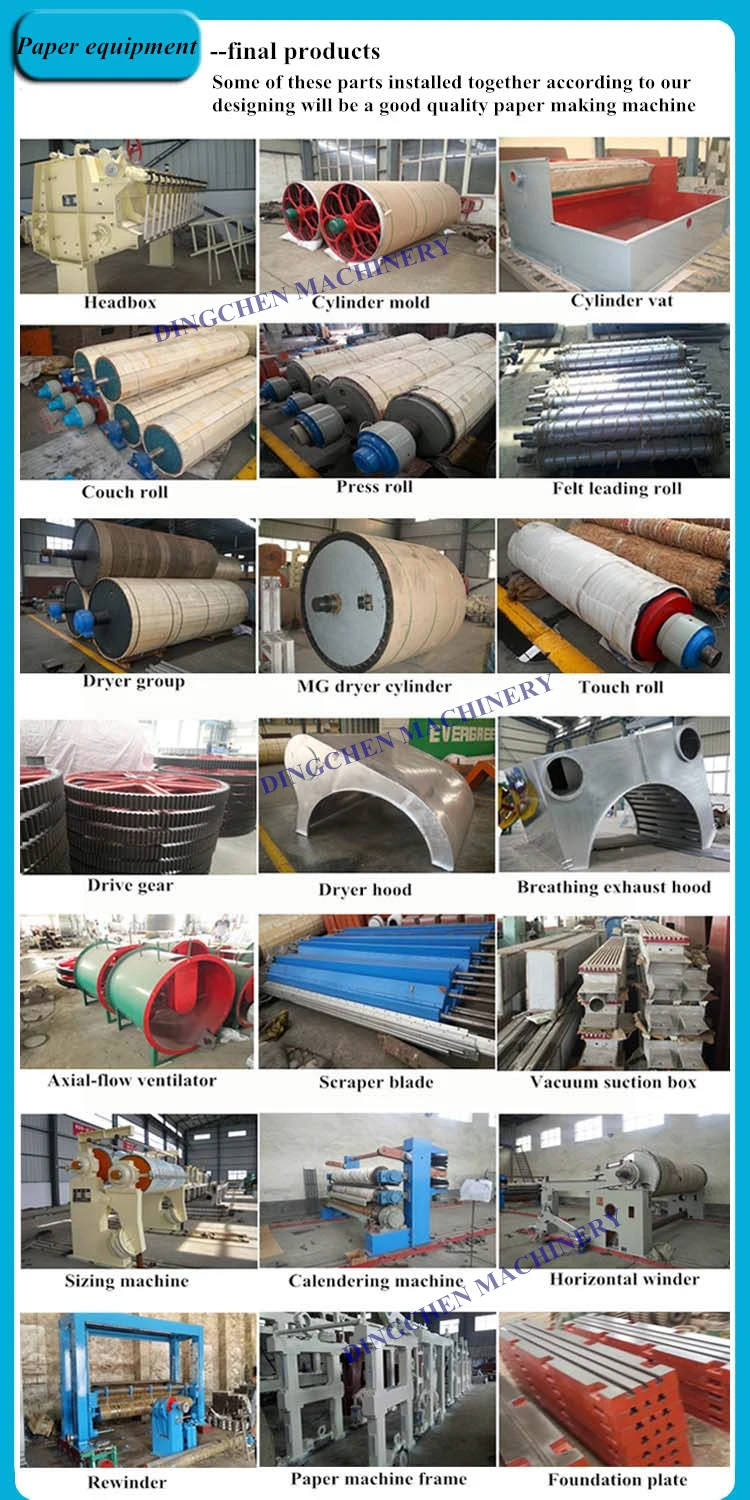

The main equipments:
| NO. | Name | Function |
| 1 | Stainless steel cylinder mold | Extract the pulp fiber to felt |
| 2 | Alloy dyer cylinder | Dry the wet paper |
| 3 | Exhaust hood of dryer cylinder | To cover the dryer and collect the hot & moist air |
| 4 | Φ600 Axial-flow ventilator | To ventilate and pull out the hot & moist air in the exhaust hood |
| 5 | Roots vacuum pump | To provide the vacuum force for the suction box |
| 6 | Vacuum suction box | To absorb the water in the wet paper |
| 7 | Air compressor | To provide the compressed air for the pneumatic device |
| 8 | Frequency conversion controlling cabinet | To control the running speed of the machine |

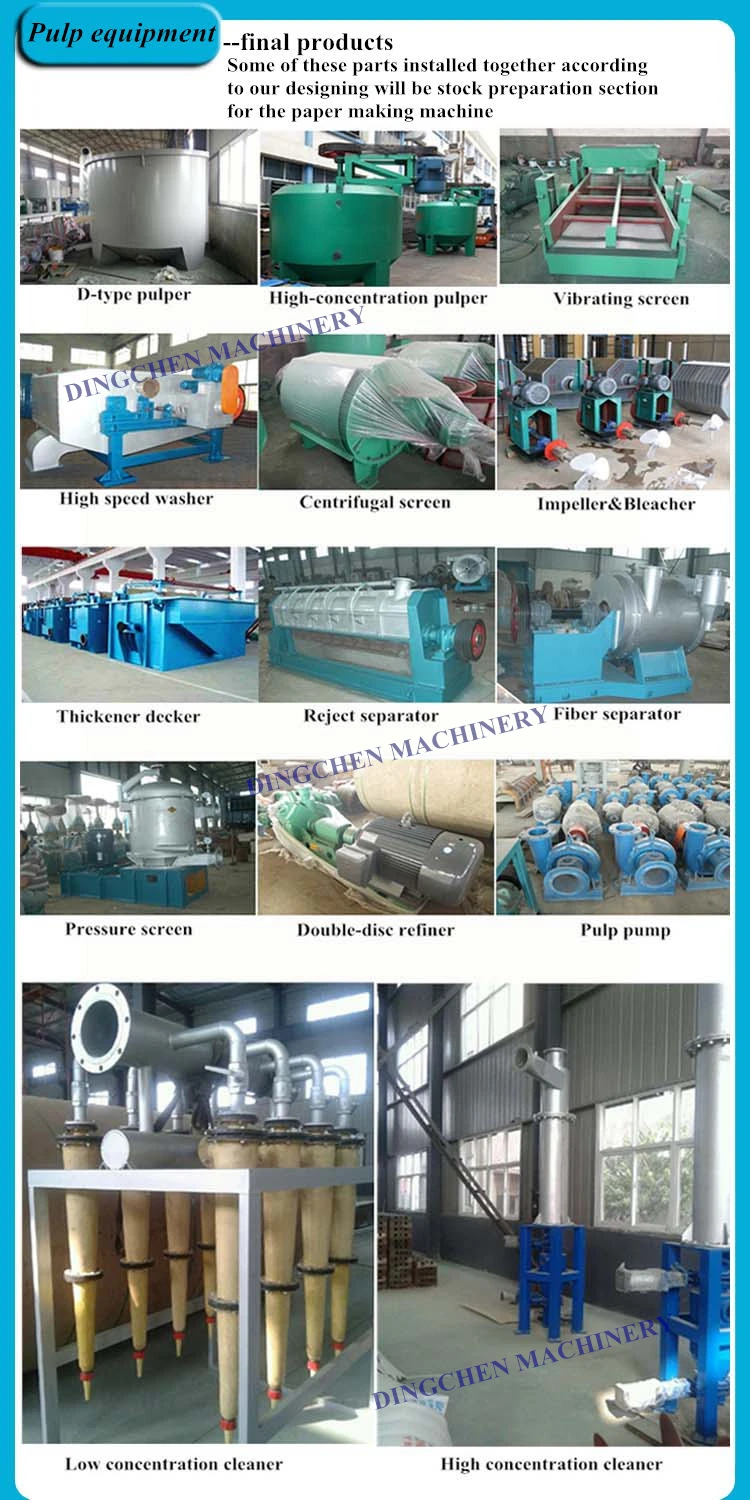

| 9 | 3m3 High concentration hydra-pulper | break the recycle paper into pulp |
| 10 | 1.8m2 High frequency vibrating screen | To separate and remove the small impurity in the pulp |
| 11 | Φ700mm impeller | To stir the pulp and make sure the pulp and water mixed well |
| 12 | 0.5m2 pressure screen (Slotted screen) | To make the pulp more finer |
| 13 | 35m3 Bleacher (include drive part) | To whiten the pulp through bleaching |
| 14 | Φ330mm pulp refiner | To make the pulp much finer and smoothe |
| 15 | Low concentration sand remover | To remove the sand and impurity in the water and pulp |
| 16 | Pulp pump | To provide the pulp for the needed machine |
| 17 | Electrical operation cabinet | To control the machines run or stop |
| 18 | 1T Boiler (burning coal ) | To provide the hot steam for the dryers |
Company Information
Zhengzhou Dingchen Machinery Co., Ltd is a professional machine manufacturer located in central China, focusing on the R&D and production of pulp and paper machines. The company has over 30 years of experience in pulp and paper machine production.

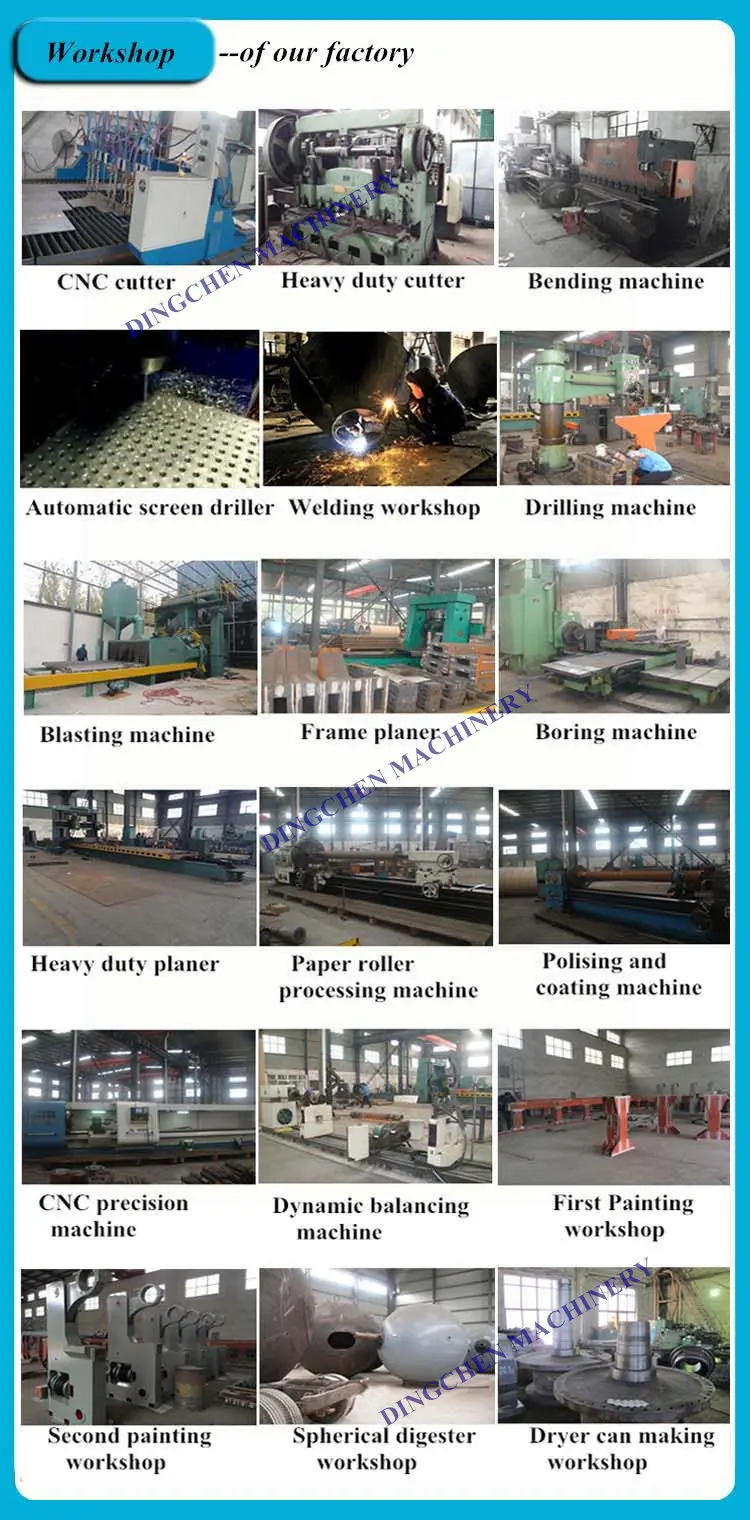

We have abundant technical forces and advanced production equipments, our goal is to ensure our customers have a good experience with our machine and service. Quality is our foundation and great service is always our mission.

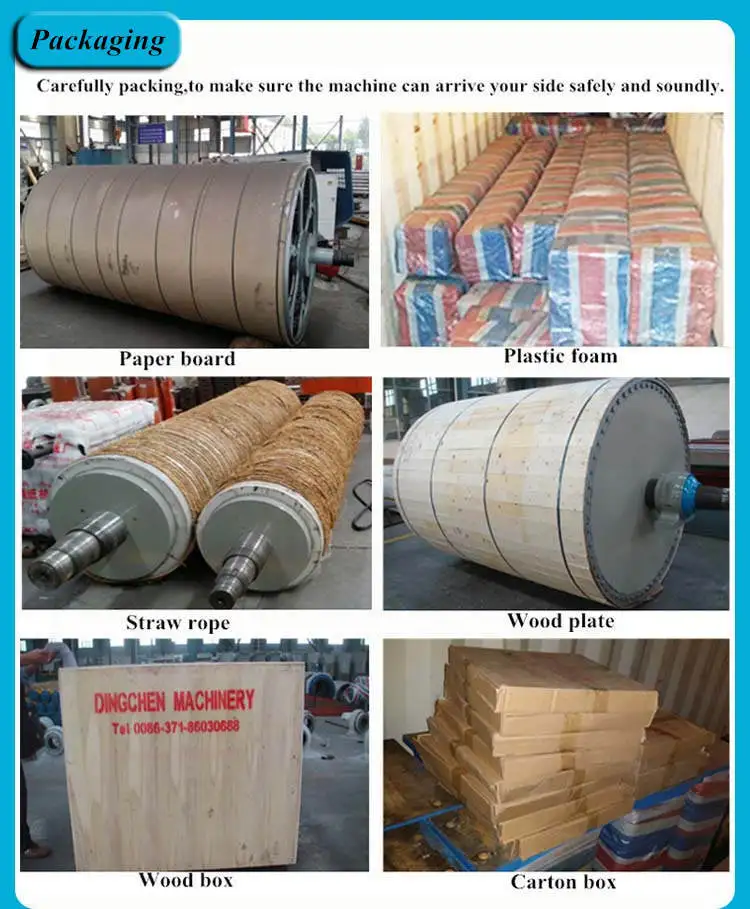

Packaging & Shipping
