60m10bar 20bar 4inch Fiber Braid Rubber Fuel Suction and Discharge Oil Hose with Wire Helix
- Category: >>>
- Supplier: Hengshui Yousisheng Rubber And Plastic Products Trade Co. Ltd.
Share on (1600880864848):
Product Overview
Description
R1 Click here R2 Click here 4SP Click 4SH Click here R13 click here R5 click here
Product Description
SAE100 R13 ISO 3862 R13
| Brand name | Yousisheng (YSS) |
| Interial hose | Synthetic rubber, extruded whole without jionts, of uniform thickness |
| Covering | Antiabrasive synthetic rubber, resistanct oils, fuels, atrmospheric. |
| Reinforcement | 4 high tensile steel wire spiral up to size 1'', 6 spiral for size 1-1/4'' to 2'' |
| Working pressure | 350 bar /5075psi |
| Impulse times | ≥ 400 000 times |
| Operating temperature | -40 to 100 ℃ |
| Recommended fluid | Mineral and biological oils, glacol waterbased, water lubricants |
| Flame resistance | U.S. MSHA Approved & CHN MA Approved |

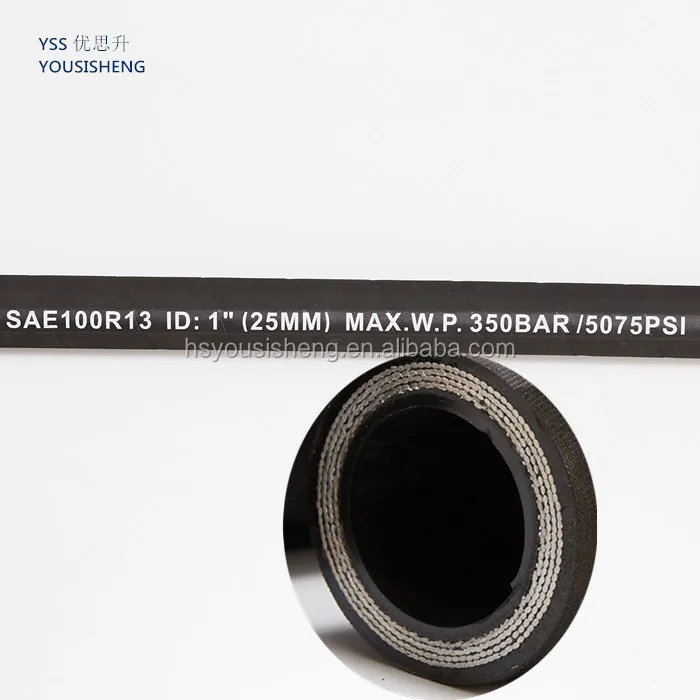

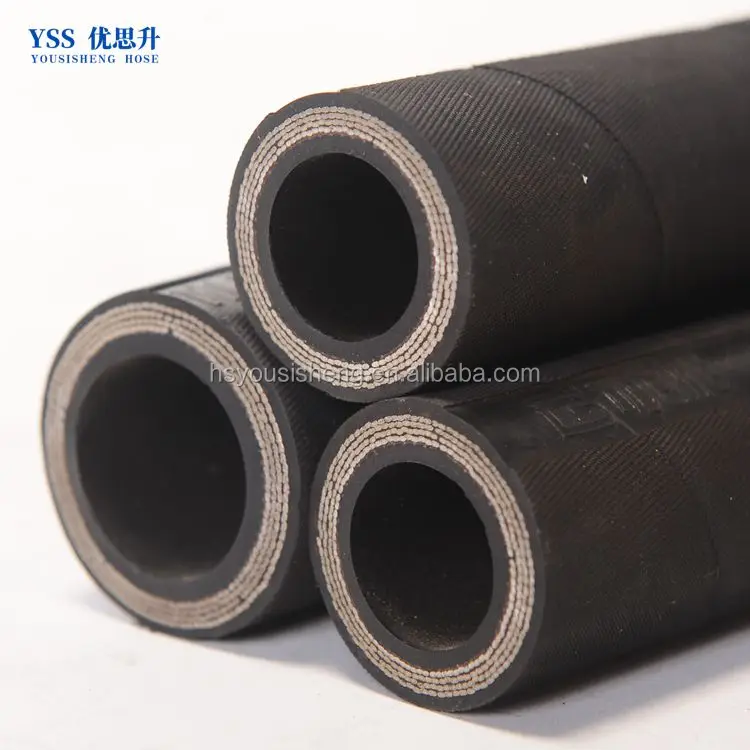

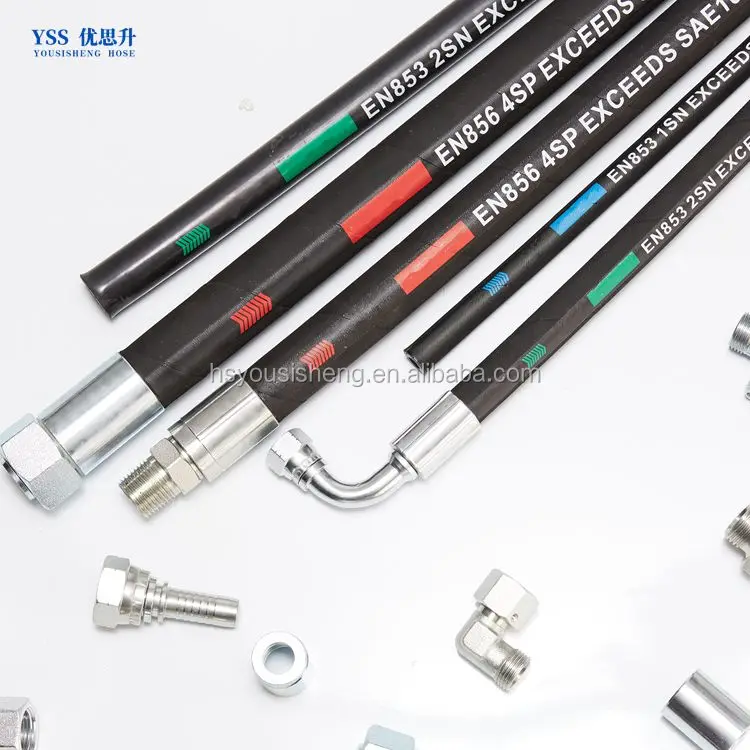

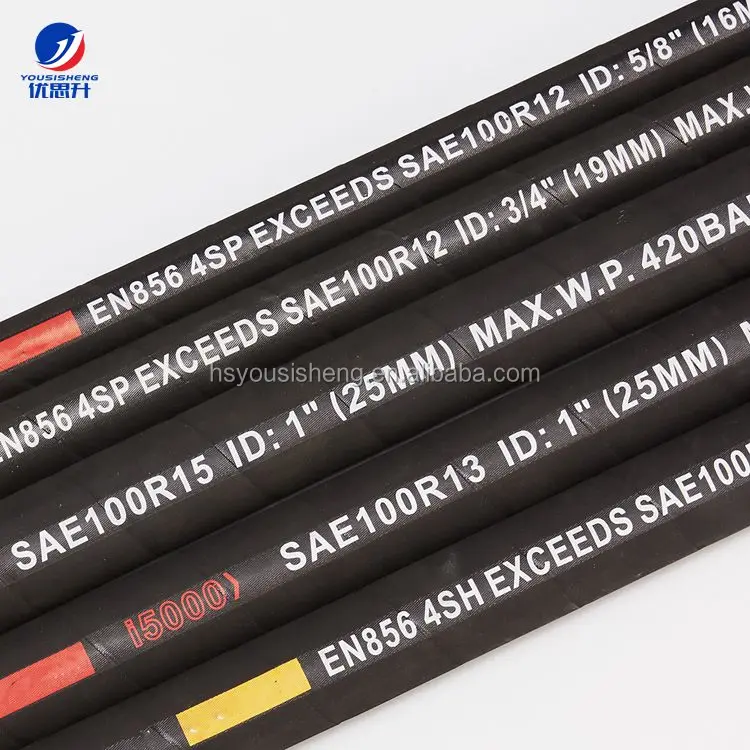

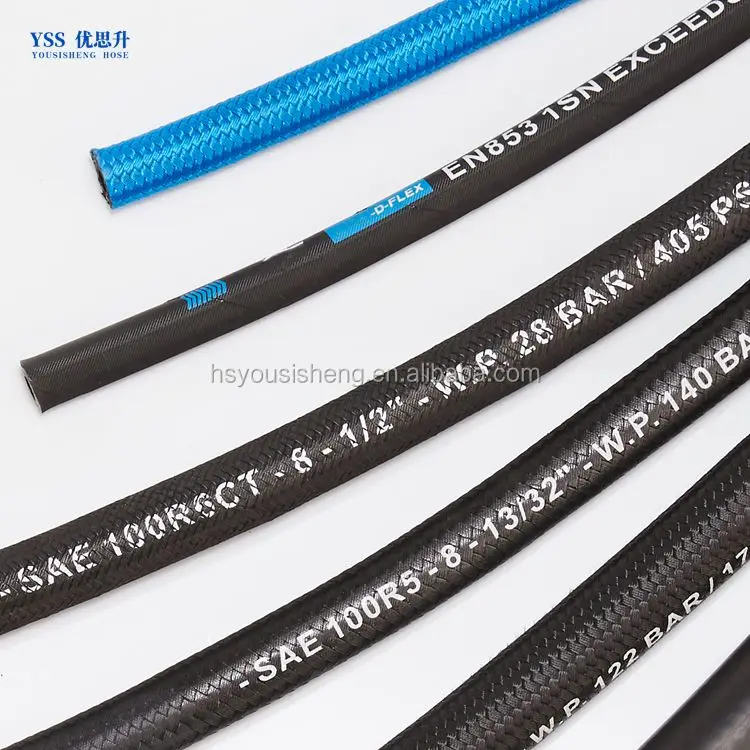

Detail photos
Production &research
Capacity:
1,000,000 meters per month (12 million meters per year)
Yousisheng technology team has developed and customized more than 120 kinds of products for customers. And we will continue to maintain an active R&D atmosphere, provide new hydraulic hose solutions for cutomers, and provide a wide range of reliable product lines.
