Canal-forming Machine canal Lining Machine with U-shaped Groove
$6,099.00-6,699.00
NC1800 concrete slip form paver concrete hand roller pavers outdoor cement vibrator
- Category: >>>
- Supplier: Xuzhou Xinlu Intelligent Technology Co. Ltd.
Share on (1600880916273):
Product Overview
Description
Product Overview

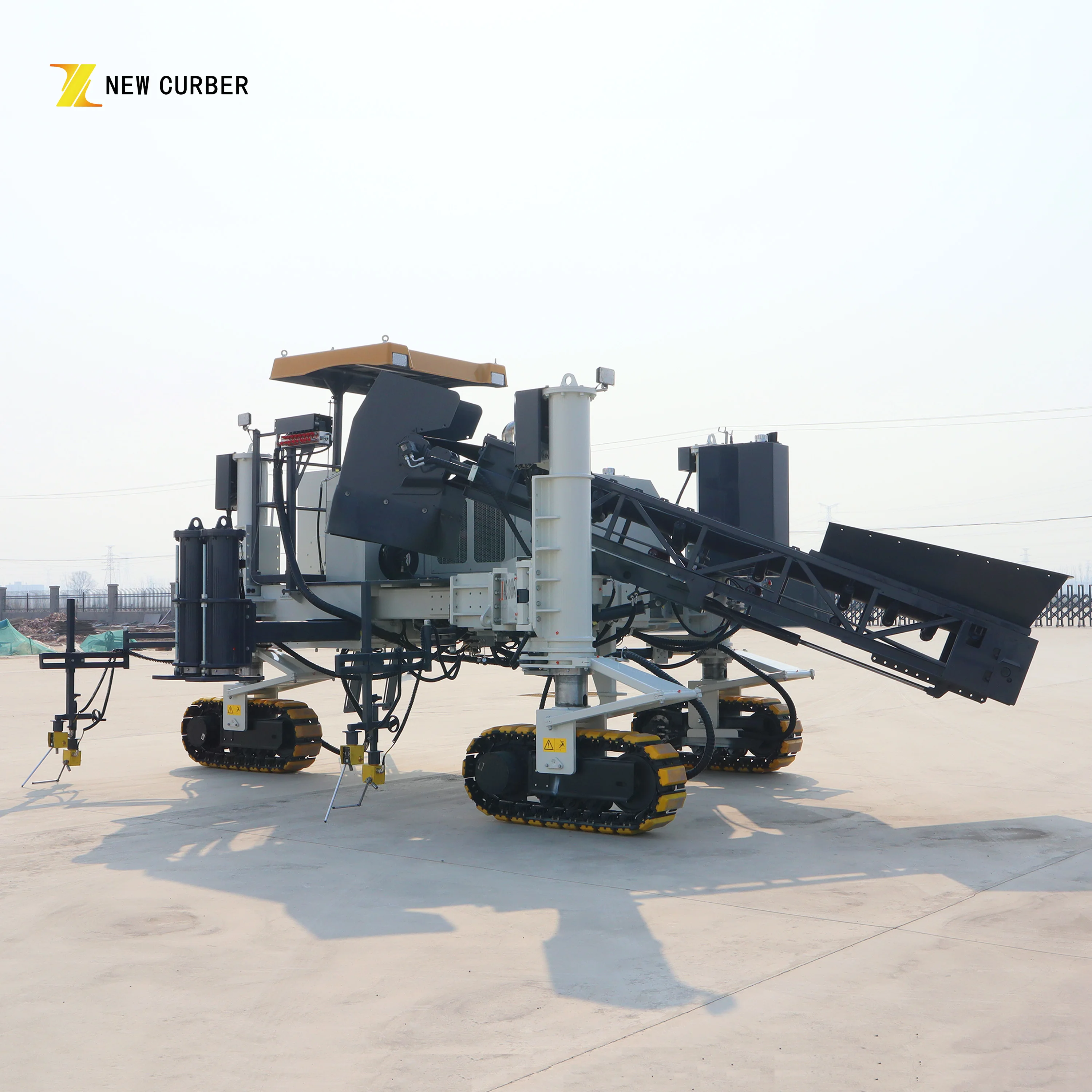

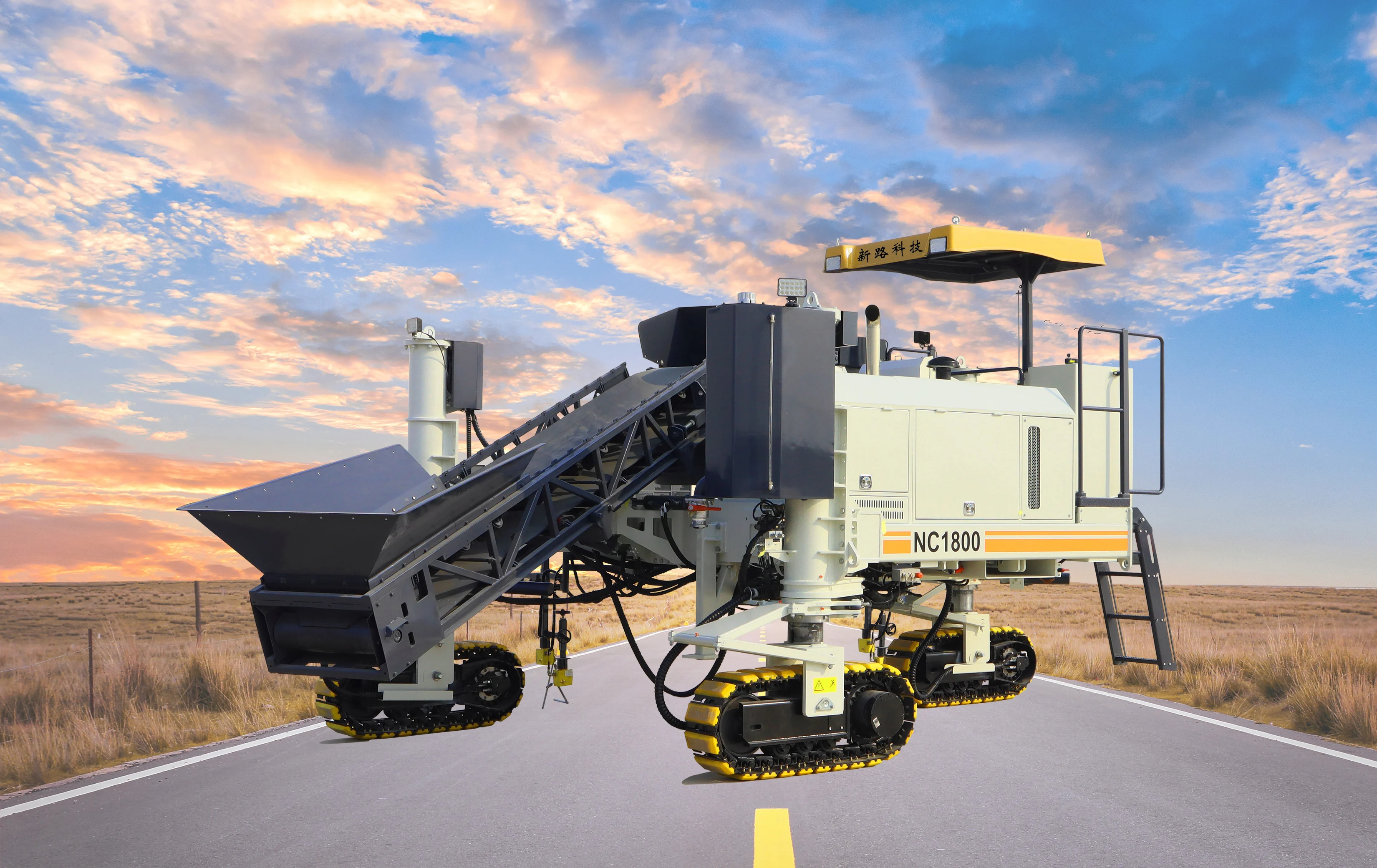

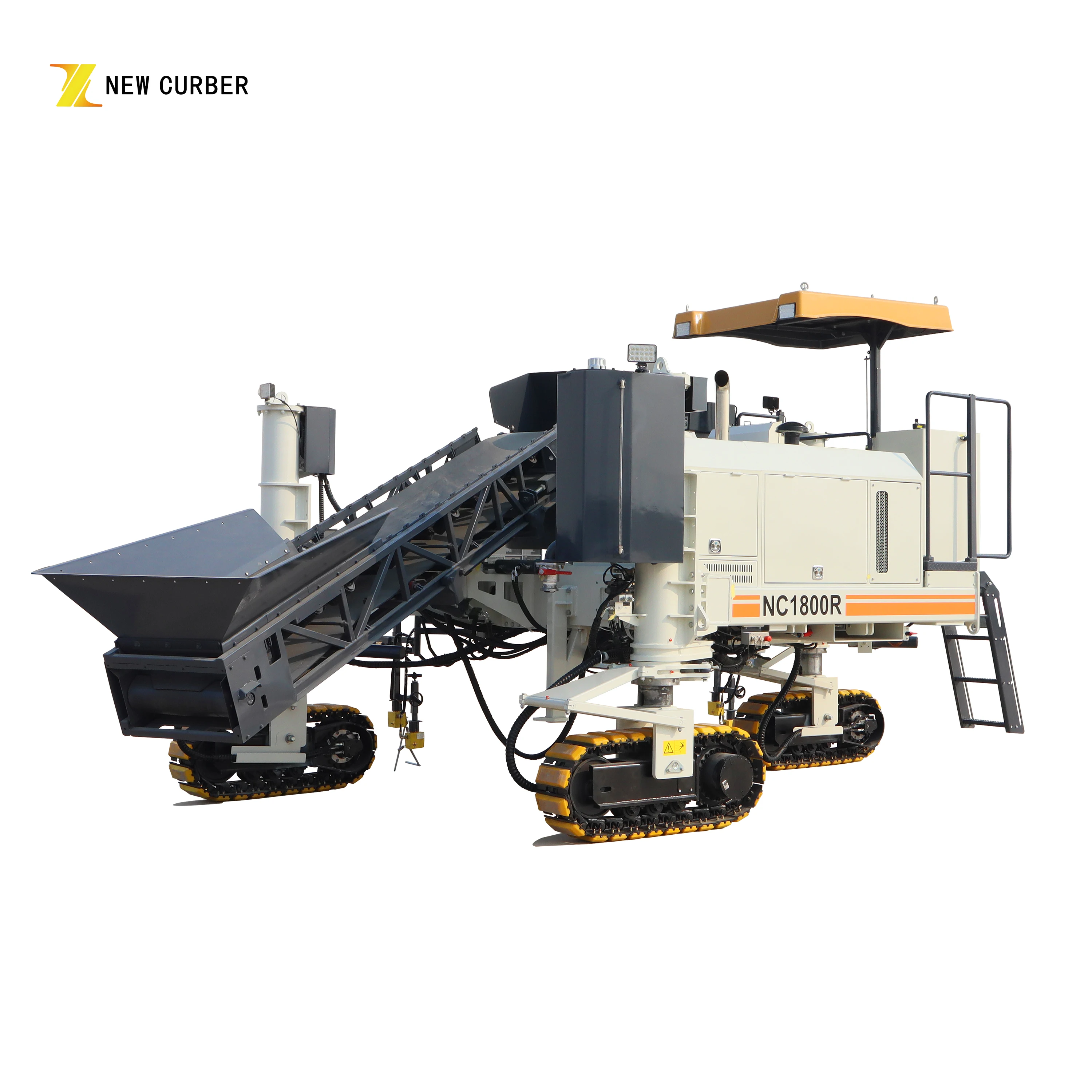

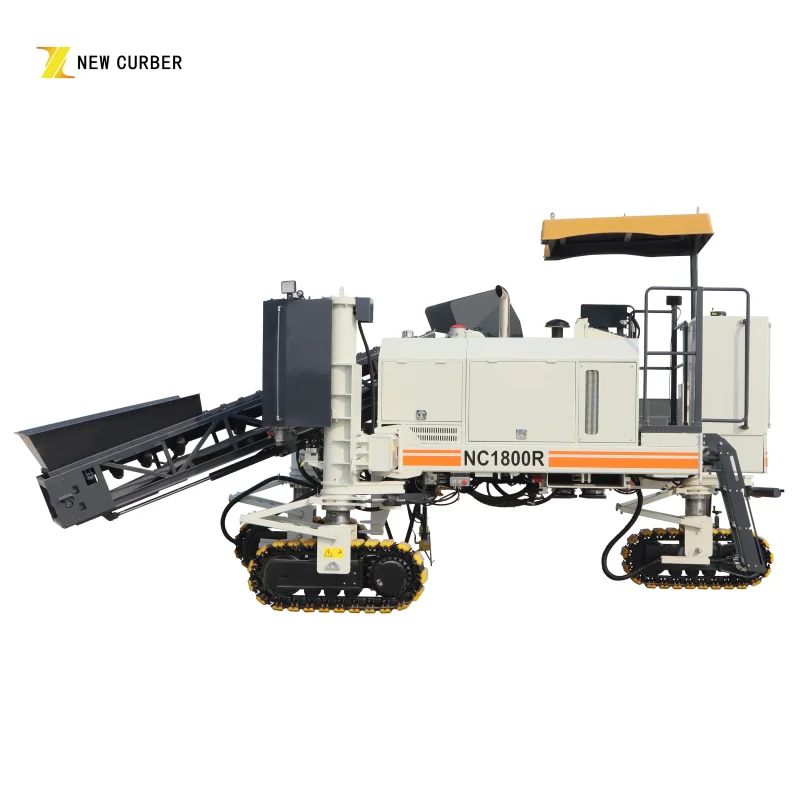

NC1800 concrete slip form paver
NC1800 multifunctional slipform paver is a multi-purpose cement concrete construction equipment independently developed by our company. It can achieve various mold configuration modes, and is widely used in the construction fields of road drainage ditches, drainage channels, curbs, shoulder stones, concrete guardrails, cement concrete structures and farmland water conservancy ditches, replacing the traditional process and significantly improving the construction quality and speed of cement concrete structures.
The machine has a large power reserve, full electronic control, full hydraulic power drive, proportional control, three-track walking, and is equipped with automatic steering and automatic leveling control system. It can complete the vibration, paving, extrusion and other technological processes of cement concrete structures at one time.
The machine has a large power reserve, full electronic control, full hydraulic power drive, proportional control, three-track walking, and is equipped with automatic steering and automatic leveling control system. It can complete the vibration, paving, extrusion and other technological processes of cement concrete structures at one time.
Product Specifications
No | Item | Item | Data | |
1 | Basic performance parameters | Maximum side paving height | 1800mm | |
Maximum paving width | 3000mm | |||
Paving speed | 0~15m/min | |||
Travel speed | 0~28m/min | |||
2 | Powertrain | Engine model | QSB3.9-C130-30 (china) | |
Rated power/speed | 97kW/2300r/min | |||
Diesel tank capacity | 360L | |||
3 | Walking system | Three tracks (front two and rear one), hydraulic independent drive, proportional control two-speed motor, large speed ratio planetary gear reducer, paving speed closed-loop control, PID adjustment | ||
Track width | 300mm | |||
Track length | 1600mm | |||
Climbing capacity | ≥ 25% | |||
4 | Outrigger steering lifting device | Three-track steering device is equipped with displacement sensor, precise proportional control, crab walking, cooperative steering, and small turning radius; Outrigger lifting hydraulic proportional control | ||
Minimum turning radius | 4600mm | |||
Outrigger hydraulic lifting stroke | 1120mm | |||
Outrigger mechanical adjustment stroke | 500mm | |||
5 | Outrigger swing sliding device | Hydraulic adjustment right front outrigger internal and external swing, left front outrigger extension, rear outrigger extension | ||
The inner and outer swing amplitude of the right front outrigger | 680mm | |||
Telescopic stroke of left front outrigger | 1100mm | |||
Telescopic stroke of rear outrigger | 710mm | |||
6 | Hydraulic system | Load sensitive multi-pump hydraulic system, proportional control walking, outrigger steering lifting, vibrating rod | ||
Hydraulic oil cooling | Large radiator, forced air cooling | |||
Hydraulic oil filter | Equipped with oil suction filter and filtering accuracy of 10 μ m Return oil filter | |||
Hydraulic tank capacity | 410L | |||
6 | Electrical control system | Humanized design of operation console, human-computer interactive control screen, clear graphical identification symbols, 24V voltage power supply system Configure two longitudinal slope sensors, one transverse slope sensor and two steering sensorsThe longitudinal slope, cross slope and steering adopt electronic automatic control, and the sensor and controller adopt CAN bus communication Equipped with Internet of Things platform, construction management and monitoring system, and optional remote control device | ||
7 | Auger conveyor | Twister speed | 0~70r/min | |
The size of the auger feeding device long, | 3700mm | |||
The blade diameter | 340mm | |||
8 | Vibrating compaction system | Hydraulic vibrator interface | 8 | |
Vibrating rod frequency | 0~200Hz | |||
9 | High-pressure flushing device | Hydraulic driven high pressure ceramic plunger pump | ||
water tank capacity | 310L | |||
10 | Mold and mold fixture | Hydraulic horizontal stroke of mold fixture | 1000mm | |
Hydraulic vertical stroke of mold fixture (double oil cylinder) | 360mm | |||
Mechanical vertical stroke of mold fixture | 240mm | |||
11 | Overall dimension and weight (transportation status) | Transport dimension (long × wide × High) | 7260*3000*3000mm | |
Operating Weight | 15500Kg | |||
Company Profile
Xuzhou Xinlu Intelligent Technology Co., Ltd.
Xuzhou Xinlu Intelligent Technology Co., Ltd. was established in 2019, and was awarded "National High-tech Enterprise" in 2022, which was supported by the Ministry of Communications of China as a key enterprise in the transportation industry.
The company has passed I S O 9 0 0 1 quality management system and I S O 1 8 0 0 1 occupational health and safety management system certification. The Construction Specification for Slip-form Paving of Multifunctional Curb Structures, which was formulated in the lead, was issued by China Construction Machinery Industry Association in April 2022 and implemented in July of the same year.
Now the company covers an area of 72,000 square meters, with standardized industrial workshops, R&D test centers and comprehensive office and living quarters, and has the production organization and processing and manufacturing capacity of more than 300 sets of high-end cement concrete slipform pavers per year.
The main products are N C series lateral cement concrete slipform paver, N R series middle cement coagulation slipform paver soil and supporting equipment, The products sell well all over the country, showing high attendance rate in high altitude, high temperature and high humidity areas, and are widely praised by customers. We will continue to uphold the core values of "Honesty is gold, service is heart", carry forward the enterprise spirit of "Innovation drives the future and strives to forge a new road".
Now the company covers an area of 72,000 square meters, with standardized industrial workshops, R&D test centers and comprehensive office and living quarters, and has the production organization and processing and manufacturing capacity of more than 300 sets of high-end cement concrete slipform pavers per year.
The main products are N C series lateral cement concrete slipform paver, N R series middle cement coagulation slipform paver soil and supporting equipment, The products sell well all over the country, showing high attendance rate in high altitude, high temperature and high humidity areas, and are widely praised by customers. We will continue to uphold the core values of "Honesty is gold, service is heart", carry forward the enterprise spirit of "Innovation drives the future and strives to forge a new road".
Company's Gate Office Building In the Foot of the Car
Workshop 1 Warehouse Workshop 2
Our Team
All Hands After-sales Service Department Production workers
Technology Department Sales Department R&D Department
Our Advantages
Performance characteristics
1. One machine can be used for multiple purposes. By replacing various molds and accurately adjusting and controlling the vehicle status, the precise slipform paving of road drainage ditches, drain channels, curbs, shoulder stones, concrete guardrails and farmland water conservancy ditches can be achieved.
2. Three-track walking, hydraulic independent drive, proportional control two-speed motor, large speed ratio planetary gear reducer, paving speed closed-loop control, PID adjustment, to ensure the stability of paving speed and improve the quality of slipform paving; The three-track steering device is equipped with a displacement sensor, which can be used for crab walking and cooperative steering. The turning radius is small, ensuring that the equipment is in place quickly.
3. Powerful engine; The hydraulic system adopts load sensitive variable control to supply oil according to the actual load size and speed, with low fuel consumption, energy saving and environmental protection.
4. Humanized design of the operating platform, human-computer interactive control screen and clear graphical identification symbols make the operation of the paver simple and easy; It is equipped with Internet of Things platform, construction management and monitoring system, and optional remote control device.
5. The steering lifting adopts hydraulic proportional control, and is equipped with two longitudinal slope sensors, one transverse slope sensor and two steering sensors. The sensor and controller use CAN bus communication to improve the response speed and stability of the equipment, ensure accurate linear control, and realize overlay paving.
6. According to the working conditions, the right paving and middle paving can be realized; Hydraulic adjustment of the inner and outer swing of the right front outrigger and the extension and retraction of the left front outrigger and the rear outrigger make it more adaptable; The mould fixing device adopts hydraulic horizontal and vertical two-way adjustment, which can quickly replace various moulds.
7. The swing, inclination and expansion of the auger feeding device are hydraulically adjusted, which is easy to operate and suitable for various working conditions; Large storage space can realize the secondary mixing of cement concrete.
2. Three-track walking, hydraulic independent drive, proportional control two-speed motor, large speed ratio planetary gear reducer, paving speed closed-loop control, PID adjustment, to ensure the stability of paving speed and improve the quality of slipform paving; The three-track steering device is equipped with a displacement sensor, which can be used for crab walking and cooperative steering. The turning radius is small, ensuring that the equipment is in place quickly.
3. Powerful engine; The hydraulic system adopts load sensitive variable control to supply oil according to the actual load size and speed, with low fuel consumption, energy saving and environmental protection.
4. Humanized design of the operating platform, human-computer interactive control screen and clear graphical identification symbols make the operation of the paver simple and easy; It is equipped with Internet of Things platform, construction management and monitoring system, and optional remote control device.
5. The steering lifting adopts hydraulic proportional control, and is equipped with two longitudinal slope sensors, one transverse slope sensor and two steering sensors. The sensor and controller use CAN bus communication to improve the response speed and stability of the equipment, ensure accurate linear control, and realize overlay paving.
6. According to the working conditions, the right paving and middle paving can be realized; Hydraulic adjustment of the inner and outer swing of the right front outrigger and the extension and retraction of the left front outrigger and the rear outrigger make it more adaptable; The mould fixing device adopts hydraulic horizontal and vertical two-way adjustment, which can quickly replace various moulds.
7. The swing, inclination and expansion of the auger feeding device are hydraulically adjusted, which is easy to operate and suitable for various working conditions; Large storage space can realize the secondary mixing of cement concrete.
Certifications
Successful Project

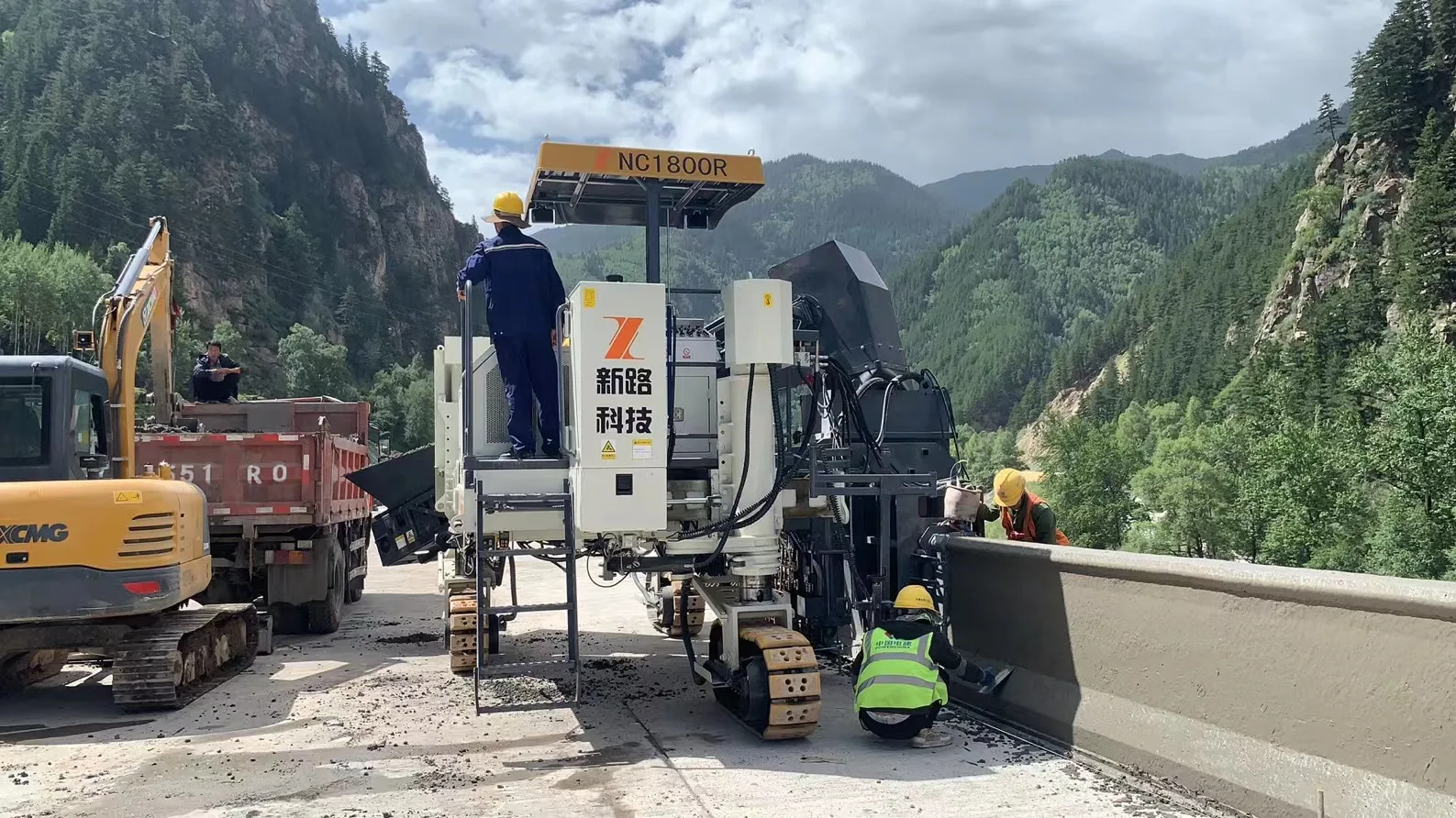

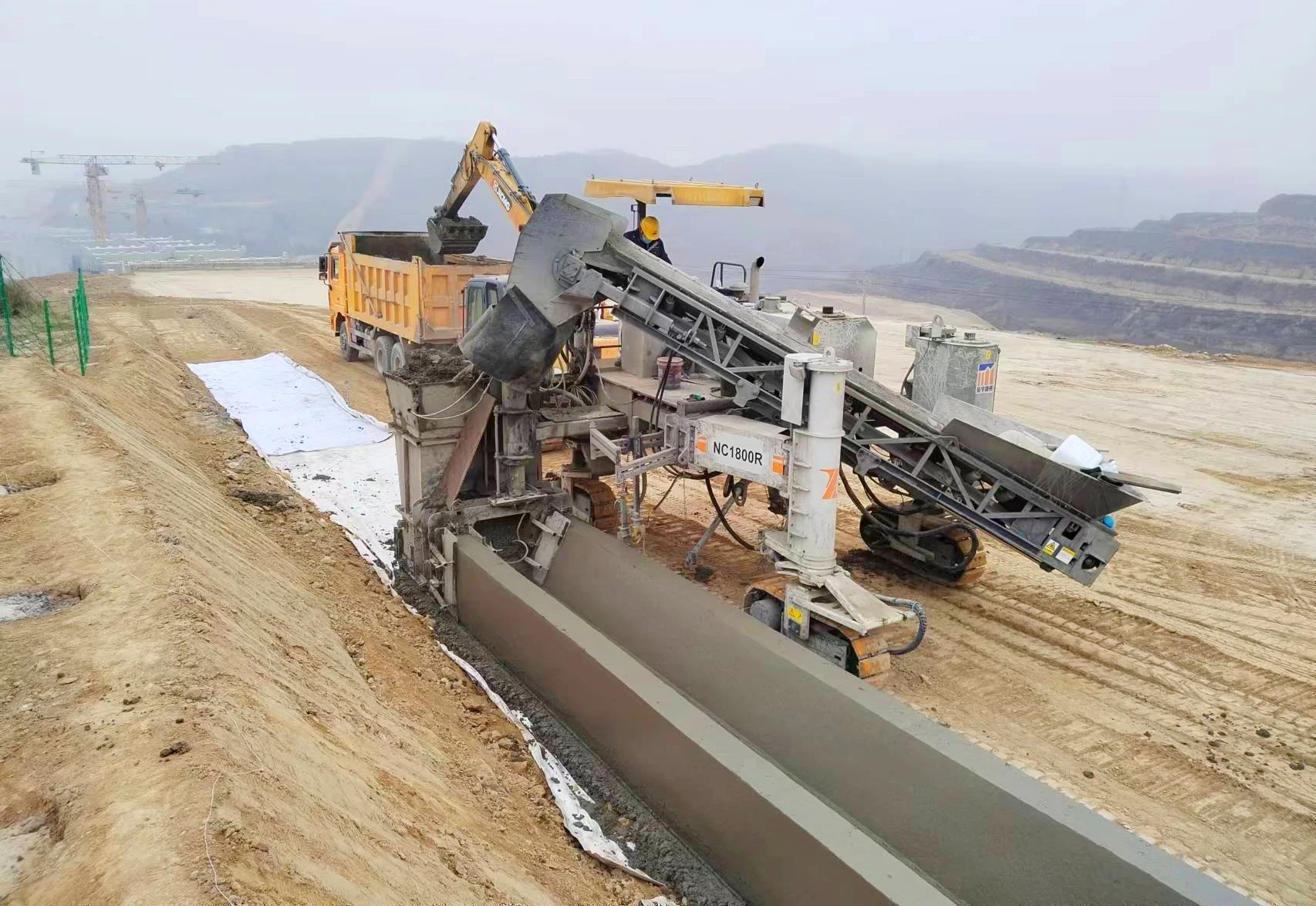

H1.6m Concrete guardrail Road rainwater and sewage diversion New Jersey guardrail slipform
ditch construction
1.62m high drainage ditch H1.4m Concrete guardrail 1.65m high retaining wall
Sales And Service Network
Similar Products
FAQ
Q1.What is the main function of slipform paver?
Ans.: It is applied to the construction fields of road drainage ditch, drain channel, curbstone, shoulder stone, concrete
guardrail, cement concrete structure, farmland water conservancy channel, etc。
Ans.: It is applied to the construction fields of road drainage ditch, drain channel, curbstone, shoulder stone, concrete
guardrail, cement concrete structure, farmland water conservancy channel, etc。
Q2.What is the warranty of our machine?
Ans.:
Product warranty form
1. Engine: 12 months, according to the three-guarantee instructions of the engine manufacturer;
2. Electrical control system: six months; Except for force damage
3. Electrical circuit: six months
4. Electrical accessories (battery light horn, etc.): one month
5. Hydraulic pump: 12 months
6. Hydraulic valve block: 12 months
7. Hydraulic motor: 12 months
8. Hydraulic pipeline: six months
9. Water pump: six months
10. Structural parts: 12 months
Vulnerable parts:
1. Stir up the bearing: three months, normal wear is not subject to three guarantees
2. Mixing blade: three months
3. Vibrating rod: six months
Q3.What is the lead time and shipping method?
Ans.:Usually the lead time is 3-7 days, and we send the machine by sea.
Q4.What kinds of payment terms do we accept?
Ans.:T/T or L/C at sight...
Ans.:
Product warranty form
1. Engine: 12 months, according to the three-guarantee instructions of the engine manufacturer;
2. Electrical control system: six months; Except for force damage
3. Electrical circuit: six months
4. Electrical accessories (battery light horn, etc.): one month
5. Hydraulic pump: 12 months
6. Hydraulic valve block: 12 months
7. Hydraulic motor: 12 months
8. Hydraulic pipeline: six months
9. Water pump: six months
10. Structural parts: 12 months
Vulnerable parts:
1. Stir up the bearing: three months, normal wear is not subject to three guarantees
2. Mixing blade: three months
3. Vibrating rod: six months
Q3.What is the lead time and shipping method?
Ans.:Usually the lead time is 3-7 days, and we send the machine by sea.
Q4.What kinds of payment terms do we accept?
Ans.:T/T or L/C at sight...
