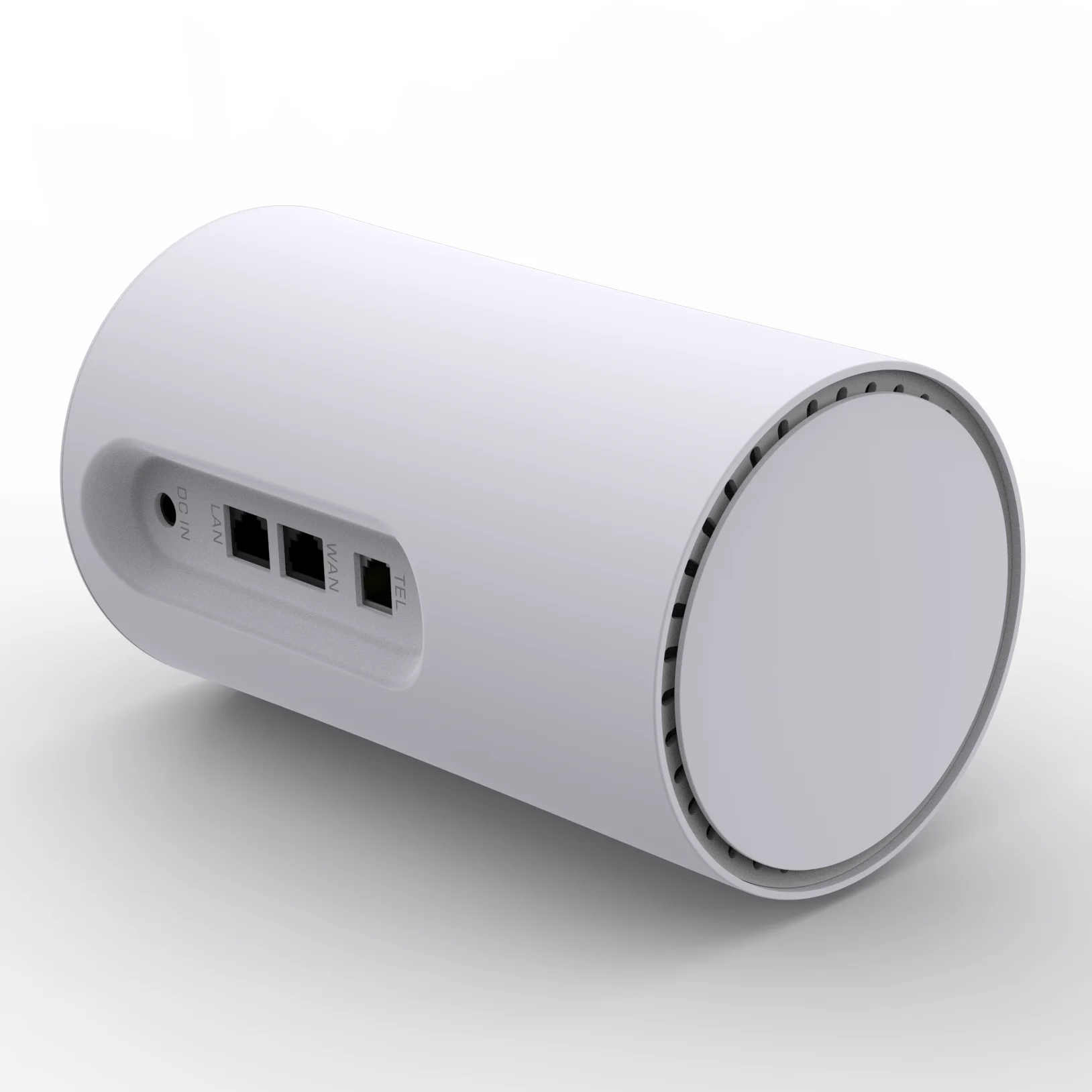

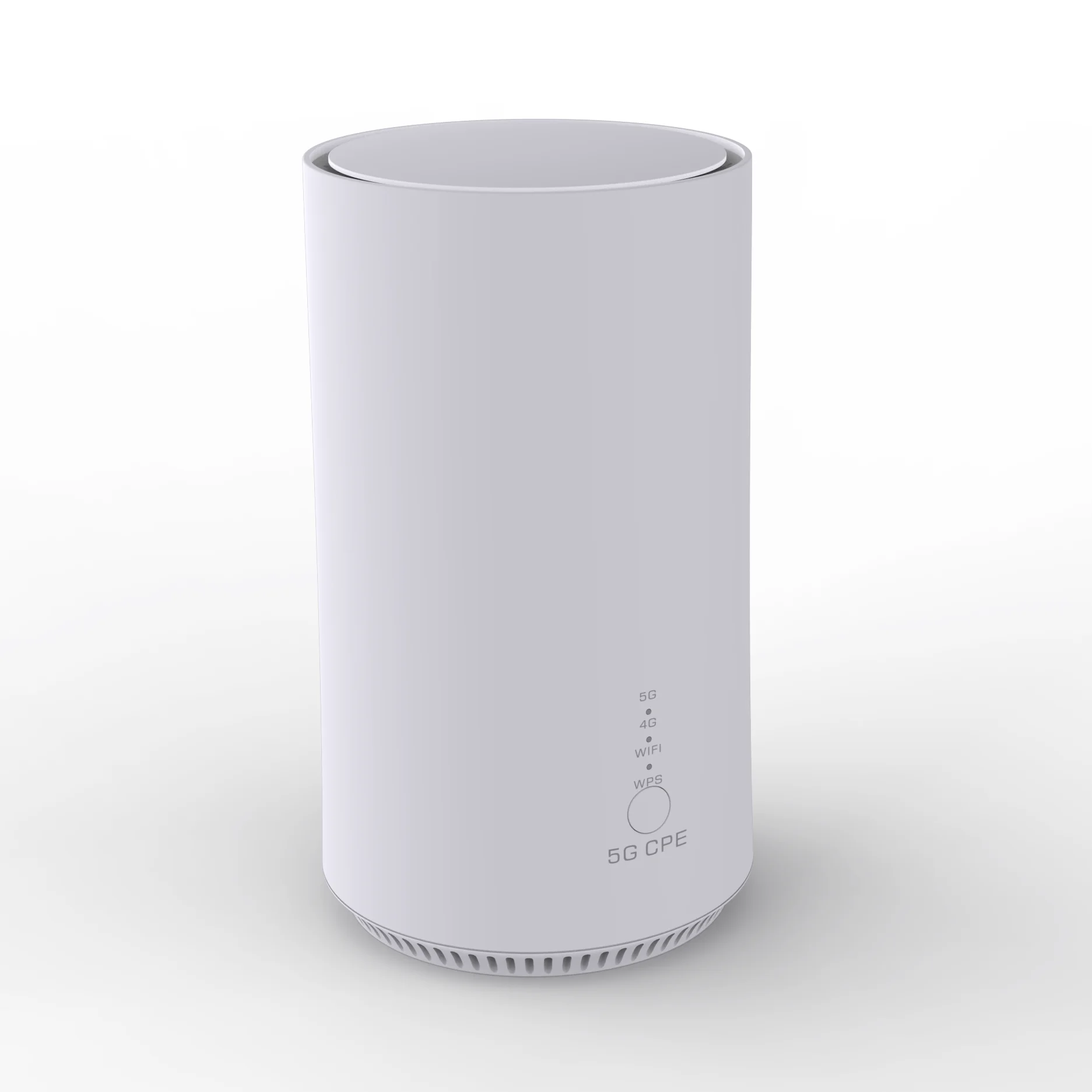

HIR300 IEEE802.11ac/ax wifi6.1800Mbps wireless WIFI smart modem home internet router CPE
- Category: >>>
- Supplier: Shenzhen Ex-Link Technology Co. Ltd.
Share on (1600880917205):
Product Overview
Description
HIR300 IEEE802.11ac/ax wifi6.1800Mbps wireless WIFI smart modem home internet router CPE
HIR300 5G CPE is a wireless high-speed complete solution developed based on 5G cellular technology and Wi-Fi 6 /WIFI 6E home network technology. It uses a 64-bit quad-core CPU to provide dynamic data processing for the reference design, a high-performance firewall-router, and high-performance virtual private network (VPN) security acceleration, this 5G internet router cpe suit for home and enterprise use.
Product Description
◆Wireless Mobile Broadband 3G/4GLTE/5G Connection. Supports 3G /4G /5G global frequency bands.
◆Compliant with IEEE802.11a/b/g/n/ac/ax, AX1800, 2*2 MIMO WIFI 6E, support tri-band 2.4GHz/5GHz./6Ghz
◆Supports Multiple VPN tunnels for data encryption.
◆ABS plastic material shell .Novel and fashionable appearance.
* Support VOLTE voice function (option)
CPU | Qualcomm SDX62,ARM Cortex-A7,1.8GHz |
Memory | NAND FLASH 4Gb,LP DDR 4X4Gb |
interface | 2*LAN gigabit Ethernet ports.1*USB3.1port, 1*RJ11 VOLTE (Optional) |
indicator | Power,5G,WIFI |
SIM card | Supports 1*SIM slot,1.8V/3V.Or1*eSIM card.(Optional) |
Watchdog | Built-in watchdog feature. |
WIFI user | Supports more than 50 users to share WIFI access to the Internet |
WLAN | ◆IEEE802.11a/b/g/n/ac/ax,AX1800 wifi6.Max bandwidth 1800Mbps ◆Supports 2.4G/5GHz WIFI6.Supports BT5.2 ◆Supports Dynamic Frequency Selection (DFS,radar detection). ◆Supports 20MHz/40MHz channel bandwidth for 2.4GHz and 20MHz/40MHz/80MHz/160MHz channel bandwidth for 5GHz. ◆Supports 2x2 Multi-User Multiple-Input Multiple-Output (MU-MIMO). |
Wireless Mode | Supports AP or station mode. |
Wireless Security | Supports WPA,WPA3,WPAI, WEP, TKIPen cryption. |
Antenna | 4*4G/5G internal antenna,4*4 MIMO,with 50Ω impedance |
Protocol | Supports PPTP, L2TP, IPSEC VPN, GRE,TCP, UDP, DHCP, HTTP, DDNS, TR-069,HTTPS,SSH etc protocol. |
Bridge | Supports 4G/5G bridge mode feature. |
5G NR Frequency bands
•Version E
5G NSA：n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n48/n77/n78/n79
5G SA：n1/n3/n5/n7/n8/n20/n26/n28/n38/n40/n41/n48/n77/n78/n79
LTE FDD:B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32
LTE-TDD：B38/B39/B40/B41/B42/B43/B46*/B48
WCDMA: B1/B5/B8
Version A
5G NSA：n2/n5/n7/n12/n14/n25/n26/n30/n38/n41/n48/n66/n71/n77/n78/n79
5G SA：n1/n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n71/n77/n78/n79
LTE FDD：B1/B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71
LTE-TDD：B38/B41/B42/B43/B46*/B48
WCDMA： B1/B2/B4/B5
Details Images

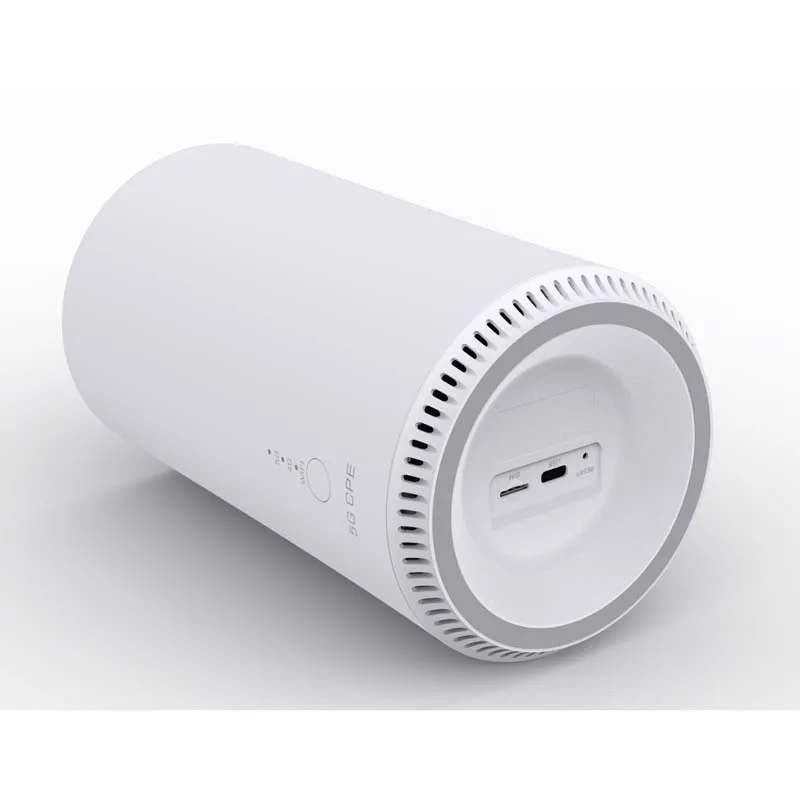

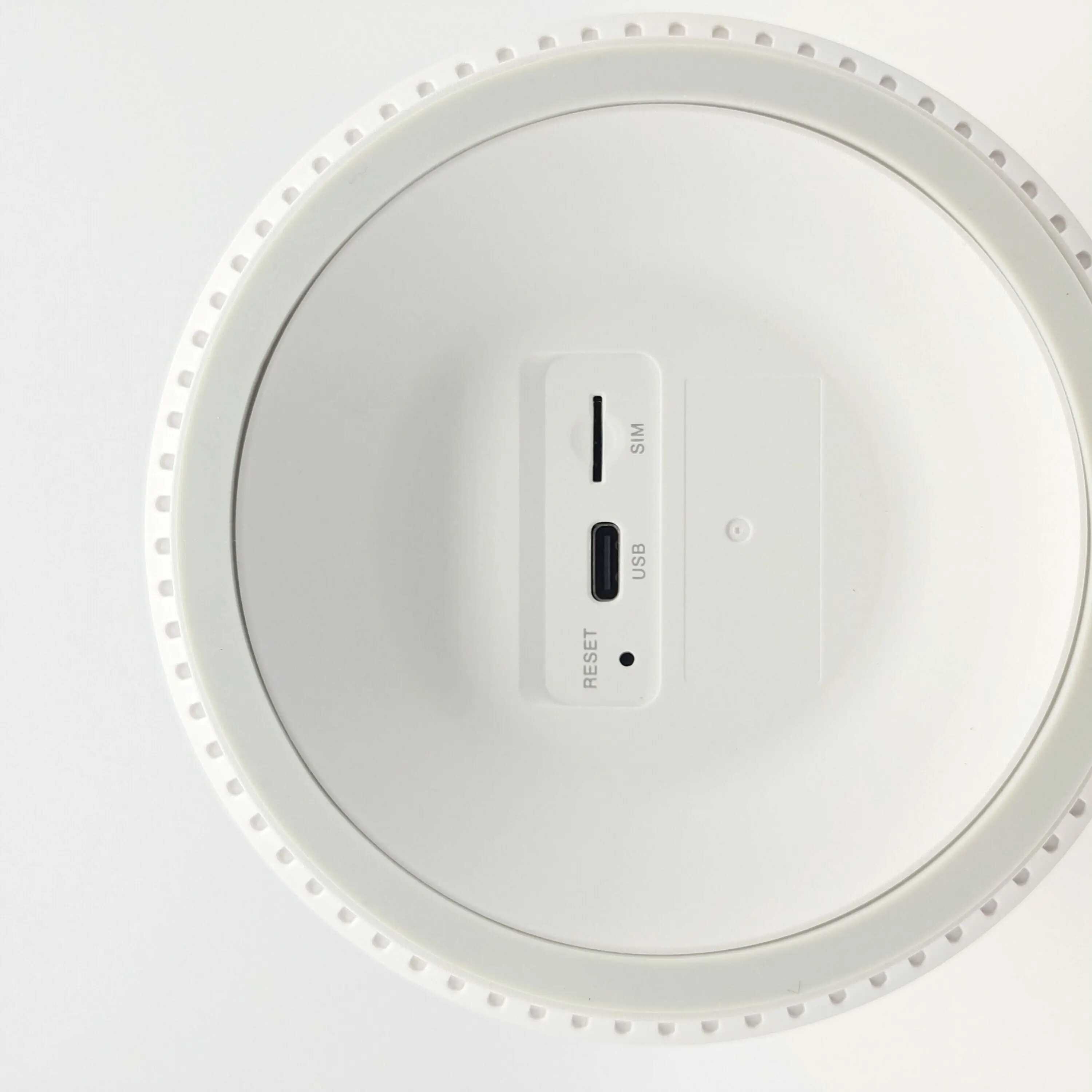

SIM slot and usb port
1 Gigabit wan +1 LAN +RJ11
Support Volte function
support WIFI 6 /WIFI 6E
Product Usage

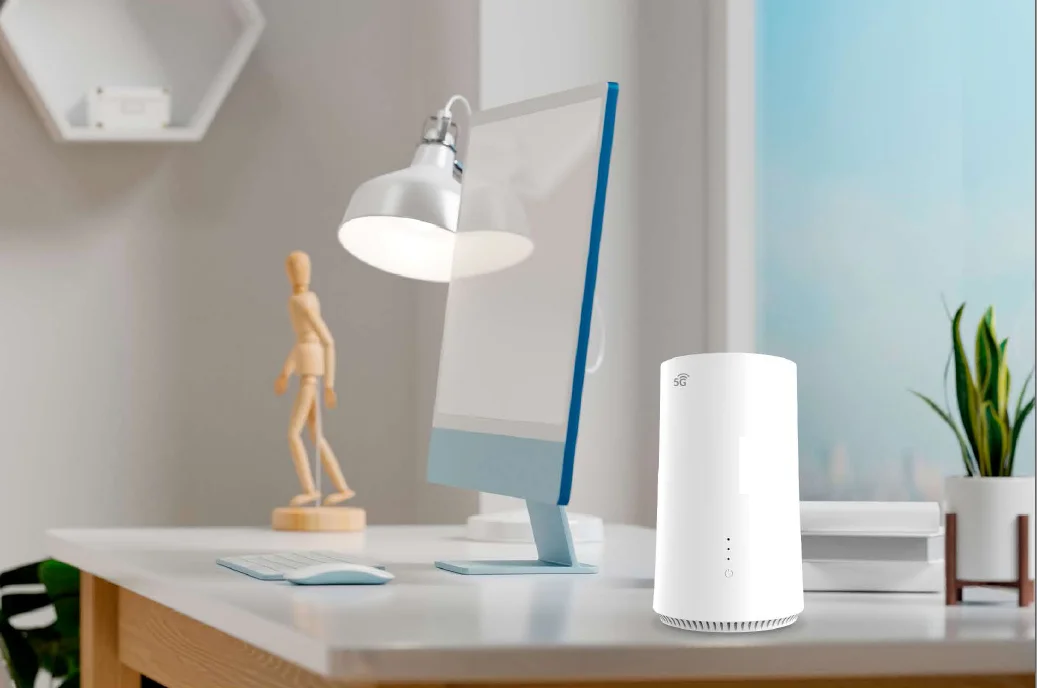

5G internet router CPE use in house

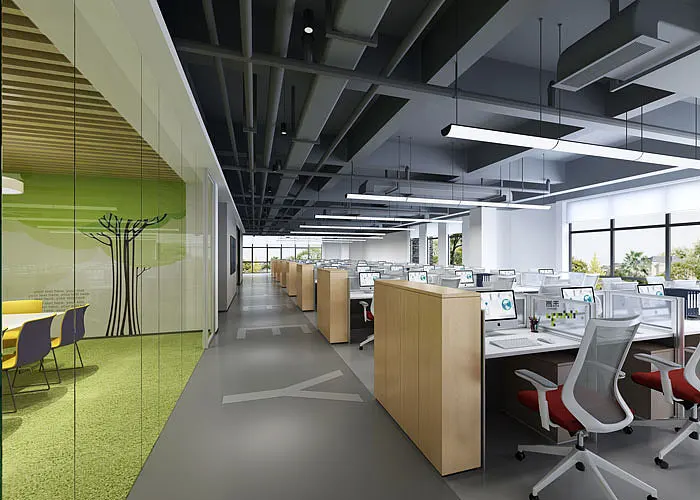

5G Router WIF 6E for enterprise use
