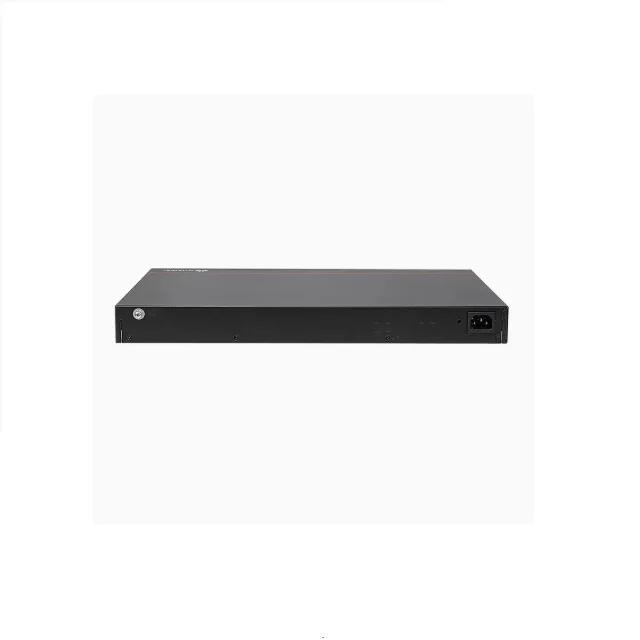

CloudEngine S5735 L24P4S A V2 24 Port 10/100/1000BASE T 4*GE SFP Ports PoE Switch
- Category: >>>
- Supplier: Tianjin Ruiwu Technology Co. Ltd.
Share on (1600880937569):
Product Overview
Description
S5735-L24T4XE-A-V2 CloudEngine S5735-L-V2 Series Switches
Customer satisfaction is our eternal service tenet!!!
Products Description
CloudEngine S5735-L Series Switches
CloudEngine S5735-L series switches are ideal for scenarios such as enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-L switches
stand out with compelling features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. They support multiple Layer 3 routing protocols and provide high performance and service processing capabilities.
CloudEngine S5735-L series switches are ideal for scenarios such as enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-L switches
stand out with compelling features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. They support multiple Layer 3 routing protocols and provide high performance and service processing capabilities.
Specification
Technical specifications of the S5735-L8T4S-A1 | ||
Item | Specification | |
Dimensions without packaging (H x W x D) [mm(in.) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.84 in. x 7.1 in.) | |
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250.0 mm x 187.0 mm (1.72 in. x 9.84 in. x 7.36 in.) | ||
Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 370.0 mm x 380.0 mm (3.54 in. x 14.57 in. x 14.96 in.) | |
Chassis height [U] | 1 U | |
Weight without packaging [kg(lb)] | 1.38 kg (3.04 lb) | |
Weight with packaging [kg(lb)] | 2.02 kg (4.45 lb) | |
Typical power consumption [W] | 21.2 W | |
Typical heat dissipation [BTU/hour] | 72.34 BTU/hour | |
Maximum power consumption [W] | 26.3 W | |
Maximum heat dissipation [BTU/hour] | 89.74 BTU/hour | |
MTBF [year] | 71.82 year | |
MTTR [hour] | 2 hour | |
Availability | >0.99999 | |
Noise at normal temperature (acoustic power) [dB(A)] | 43 dB(A) | |
Number of card slots | 0 | |
Number of power slots | 0 | |
Number of fans modules | 1 | |
Redundant power supply | Not supported | |
Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) (0 m to 1800 m altitude, non-industrial optical modules) | |
-5°C to +55°C (23°F to 131°F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km) | ||

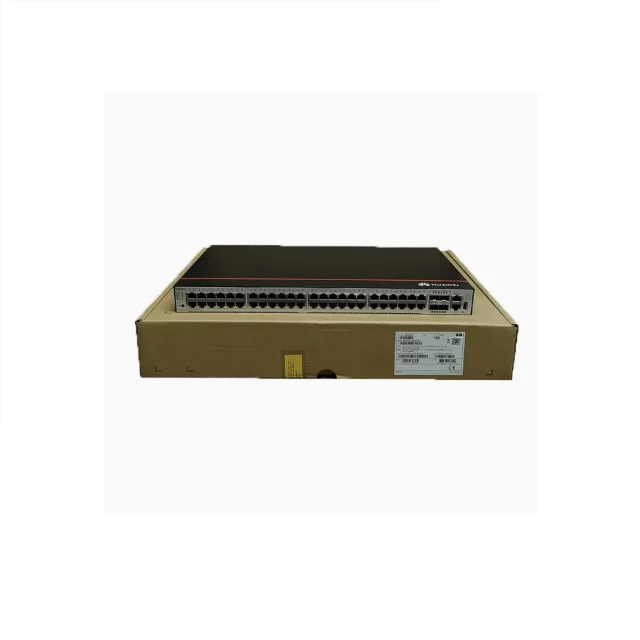

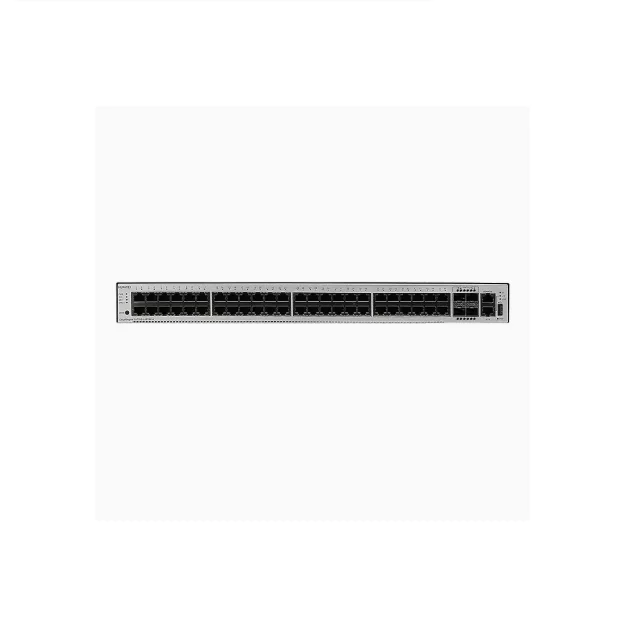

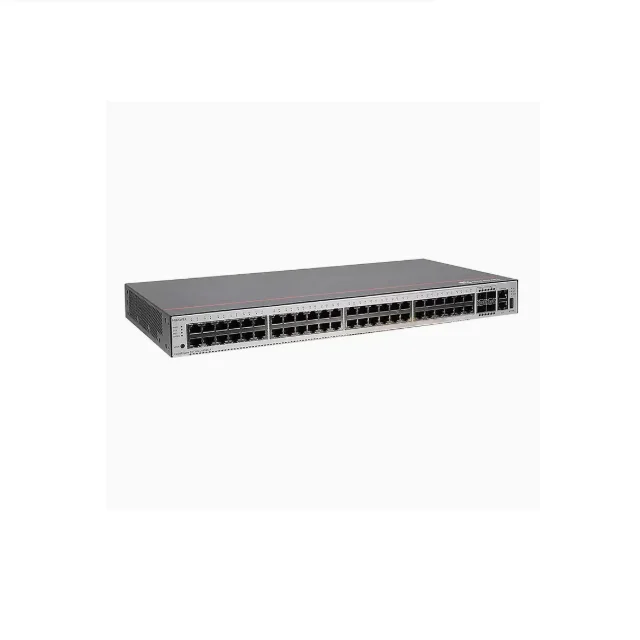

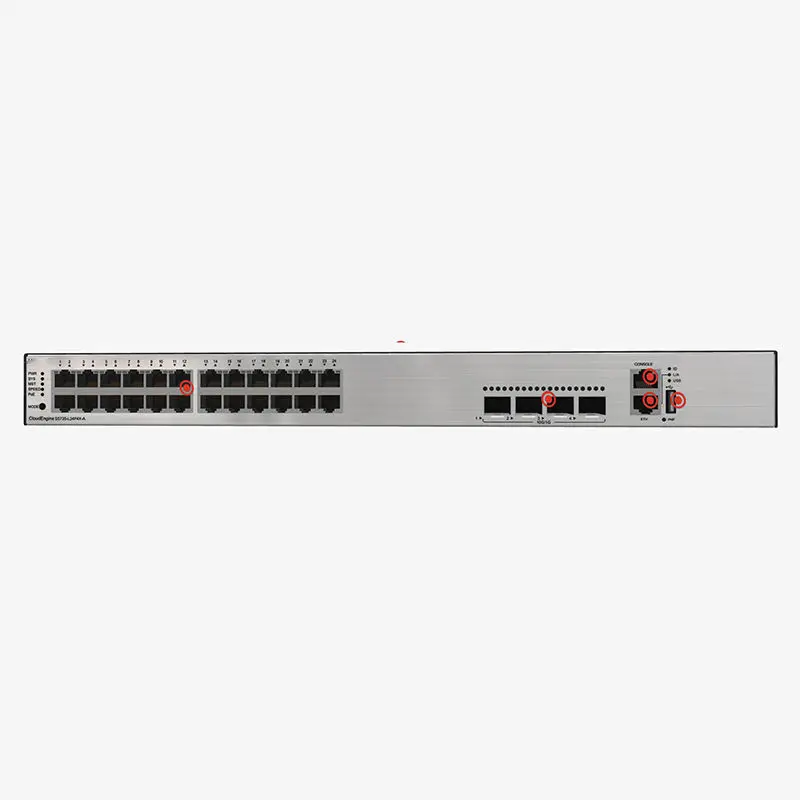

Details Images
