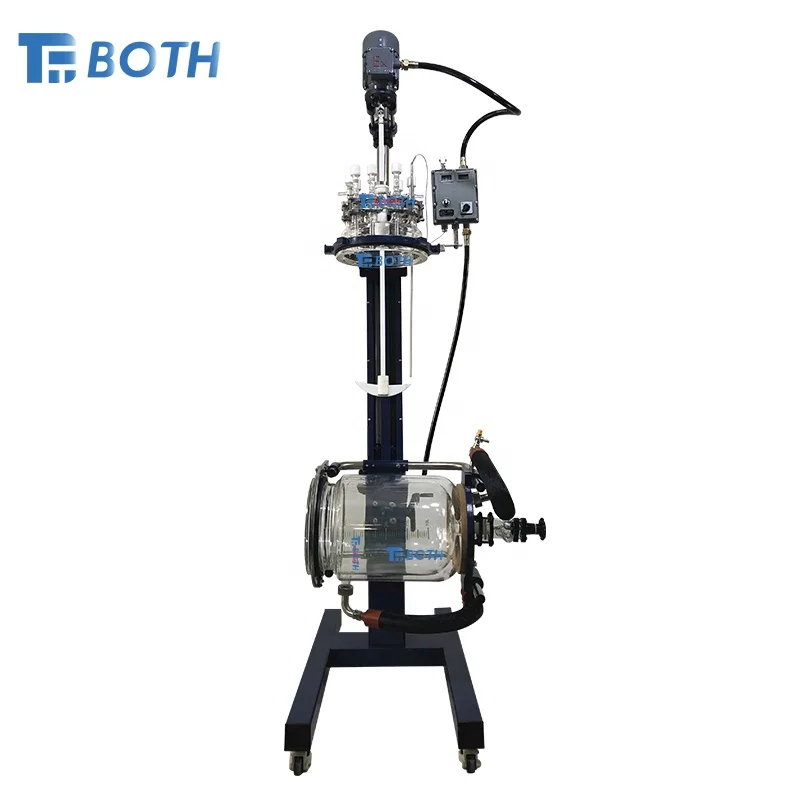

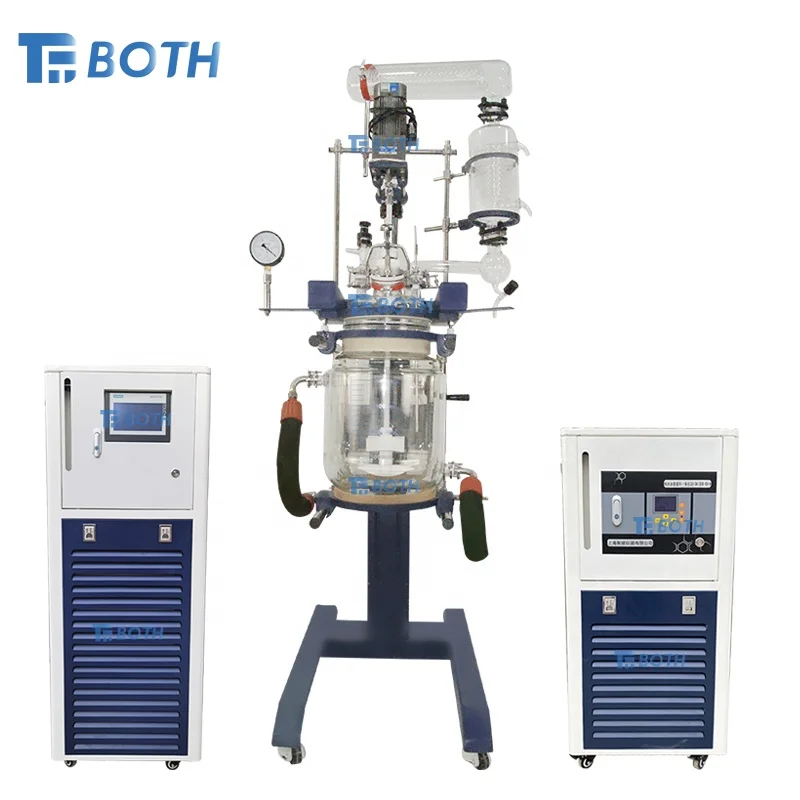

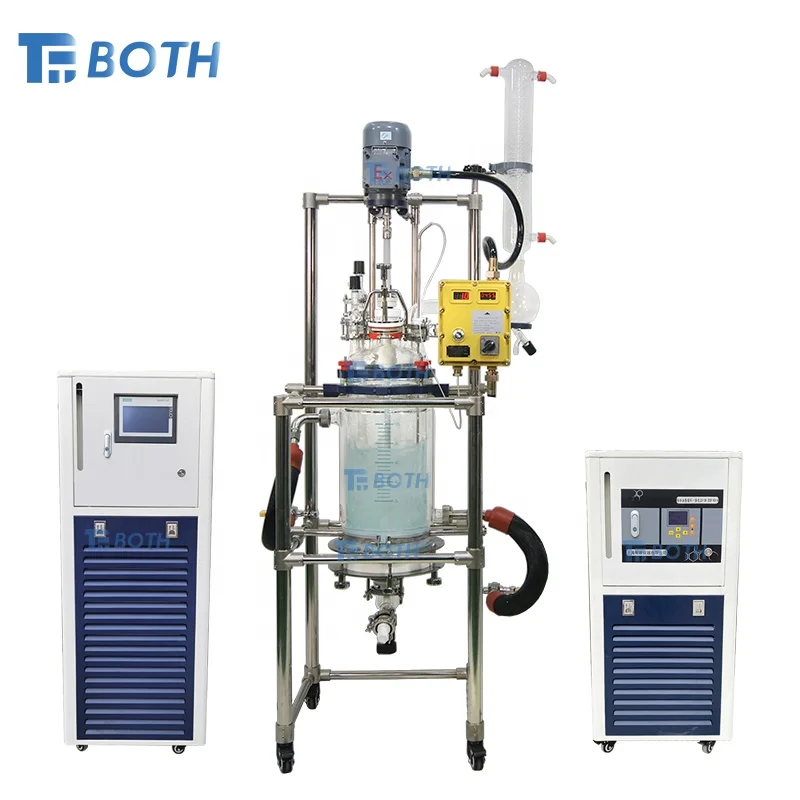

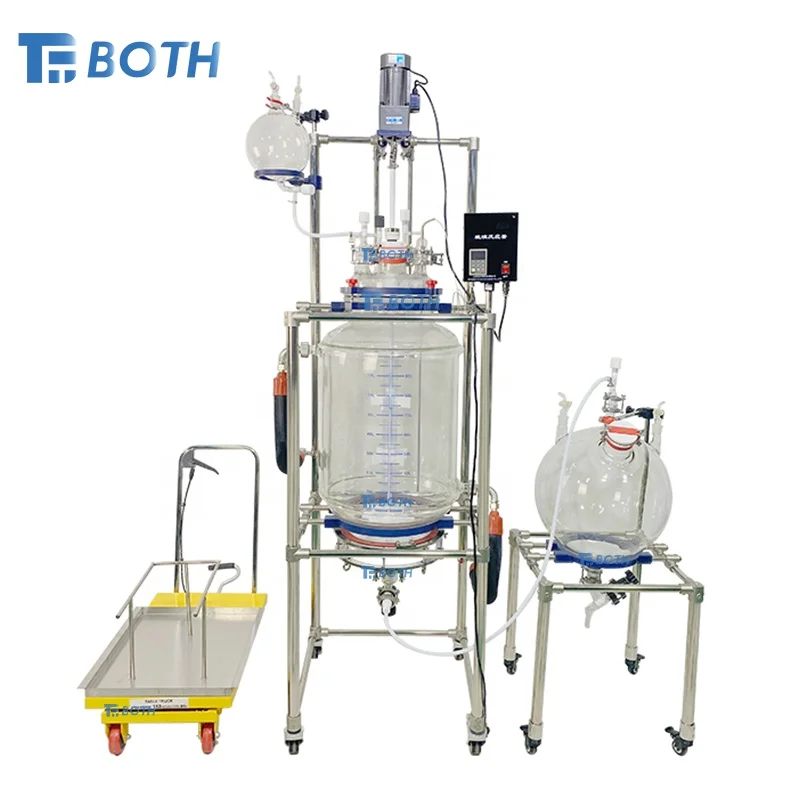

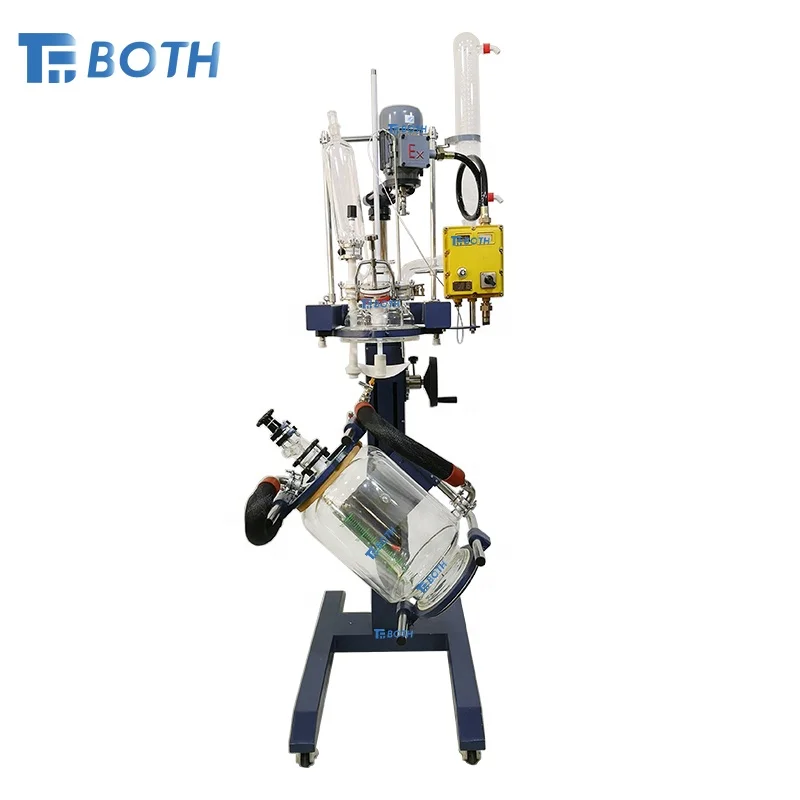

10L 20L 50L Chemical Lab Equipment High Quality Stirred Tank Jacketed Glass Reactor
- Category: >>>
- Supplier: Both Instrument & Industrial Equipment (shanghai) Co. Ltd.
Share on (1600881001981):
Product Overview
Description
Product Description
Gioglass Jacketed Glass Reactor is mainly applied in Bio-chemical, Pharmaceutical & Fine-Chemical Fields. It can be jointed with vacuum pump, chilling circulator , heating circulator is widely used in the process like Combination, Reaction, Separation,Concentration, etc It is adopted in the industry of chemical products, advanced material synthesis experiment, etc.
Model* | GNR-10 | GNR-20 | GNR-30 | GNR-50 | GNR-100 | GNR-150 | GNR-200 | ||||||
①Optional | GNR-10T | GNR-20T | GNR-30T | GNR-50T | / | / | / | ||||||
GNR-10LT | GNR-20LT | GNR-30LT | GNR-50LT | / | / | / | |||||||
Glass Material | High Borosilicate Glass 3.3 | ||||||||||||
Frame Structure | "#" or “H” Type Structure Frame | "#" Type Structure Frame | |||||||||||
Wetted Parts | Glass and PTFE without Any Metal Pollution | ||||||||||||
Reactor Capacity | 10L | 20L | 30L | 50L | 100L | 150L | 200L | ||||||
Jacket Type* | Sooth Wall inside of Thermal Jacket | ||||||||||||
②Optional | Ring Baffles inside of Thermal Jacket | / | |||||||||||
Thermal Jacket Volume | 3L | 6L | 9L | 15L | 30L | 45L | 60L | ||||||
Stirring Motor* | AC Induction Motor with Gear Reducer | ||||||||||||
120W | 120W | 120W | 250W | 250W | 400W | 400W | |||||||
50 ~ 600 RPM | |||||||||||||
③Optional | Ex DIIBT4 Explosion Proof Motor | ||||||||||||
180W | 180W | 180W | 250W | 370W | 750W | 750W | |||||||
50 ~ 600 RPM | |||||||||||||
Integrated Control & Display | Current Stirring Speed/Materials Temperature | ||||||||||||
Stirring Rod | Unibody SUS304 Coated by PTFE Stirring Rod and Impeller | ||||||||||||
Stirring Impeller | PTFE Anchor Type, Pitched Paddle Type, Frame Type | ||||||||||||
Sealing for Agitator | PTFE + Ceramic Bearing Double Sealing | ||||||||||||
Glass Lid* | 265# | 340# | 340# (465# Customized) | ||||||||||
7 Openings:●Dropping Feeding Funnel: 40/40 ● Solid Materials Feeding: 95# Flange Neck ●Stirrer: 60# Flange Neck ● Liquid-Feeding:DN25 ● Temperature Probe: DN25 ●Condenser Reflux: S50/20 ●Pressure Release/Vacuum Port/Gas-inlet: 34/34 or /Spray Cleaning: DN25 or PH measurement: 50# Flange Neck or Customized Ultrasonic Neck | |||||||||||||
④Optional | / | 8 Openings:●Dropping Feeding Funnel: 40/40 ● Solid Materials Feeding: 95# Flange Neck ●Stirrer: 60# Flange Neck ●Liquid-Feeding DN25 ● Temperature Probe: DN25 ●Condenser Reflux: S50/20 ●Pressure Release/Vacuum Port/Gas-inlet: 34/34 ●Spray Cleaning: DN25 or PH measurement: 50# Flange Neck or Ultrasonic Neck | |||||||||||
Constant Pressure Drop Feeding Funnel* | Single Layer Dropping Feeding Funnel with PTFE Needle Valve and Equalizing Arm | ||||||||||||
2000 ml | |||||||||||||
⑤Optional | 1) Jacketed Glass Feeding Funnel 2) Powder Feeding Funnel 3) Peristaltic Pump or Other Metering Pumps Feeding | ||||||||||||
Temperature Probe | PT100 with PTFE Layer +/-1°C | ||||||||||||
Condenser | Double Cooling Coil Condenser | ||||||||||||
Cooling Area | 0.4 M² | 0.4 M² | 0.4 M² | 0.4 M² | 0.9 M² | 1.5 M² | 1.5 M² | ||||||
Operating Temperature | .-90°C to +230°C | ||||||||||||
ΔT - Thermal Shock Resistance | 90°C (Double Wall), 60 °C(Triple Wall) | ||||||||||||
Operating Pressure | Full Vacuum to Atmospheric Pressure | ||||||||||||
Operating Jacket Pressure | Up to +0.5 bar (0.05 MPa) | ||||||||||||
Power Supply | 220~240V, 50Hz/60Hz or Customized | ||||||||||||

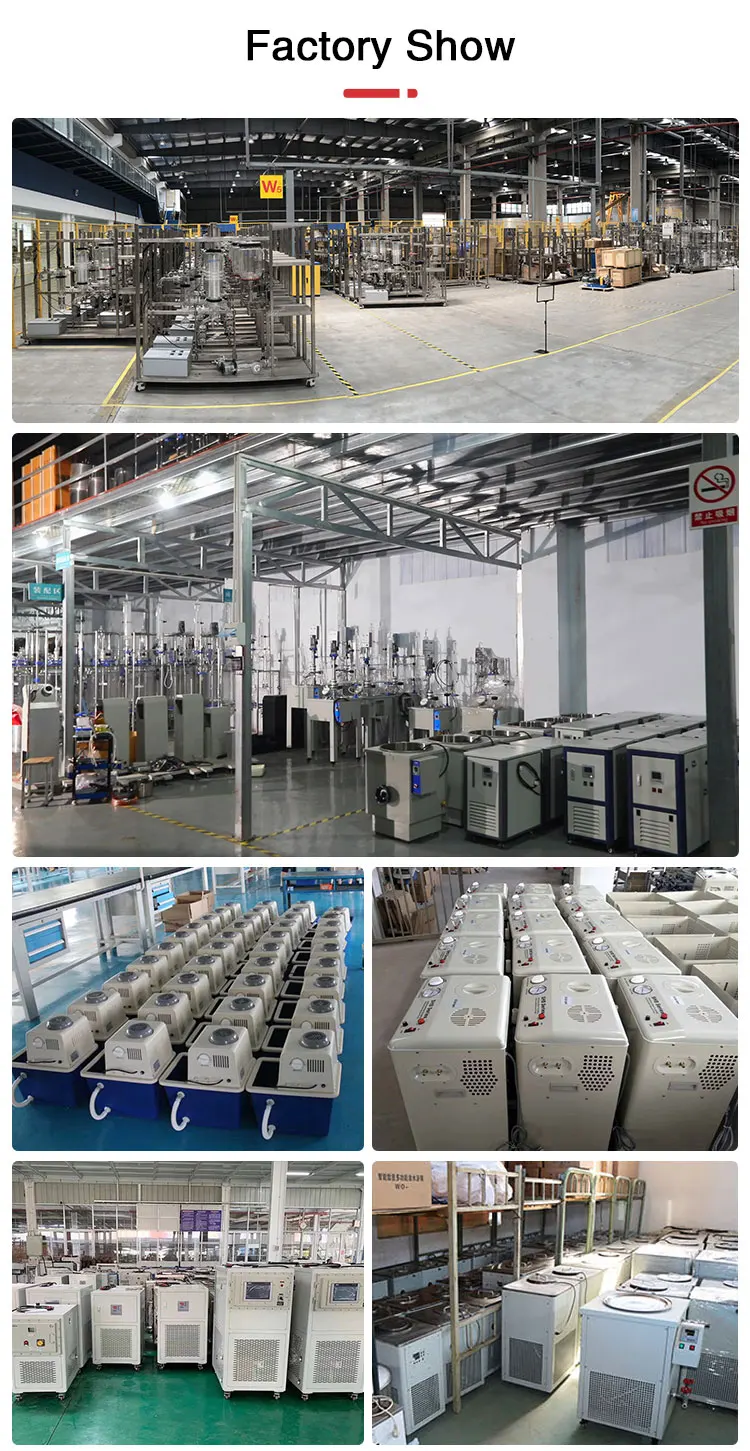

Company Profile
Packing & Delivery
FAQ
Q1. What is your products range?
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if thegoods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if thegoods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
