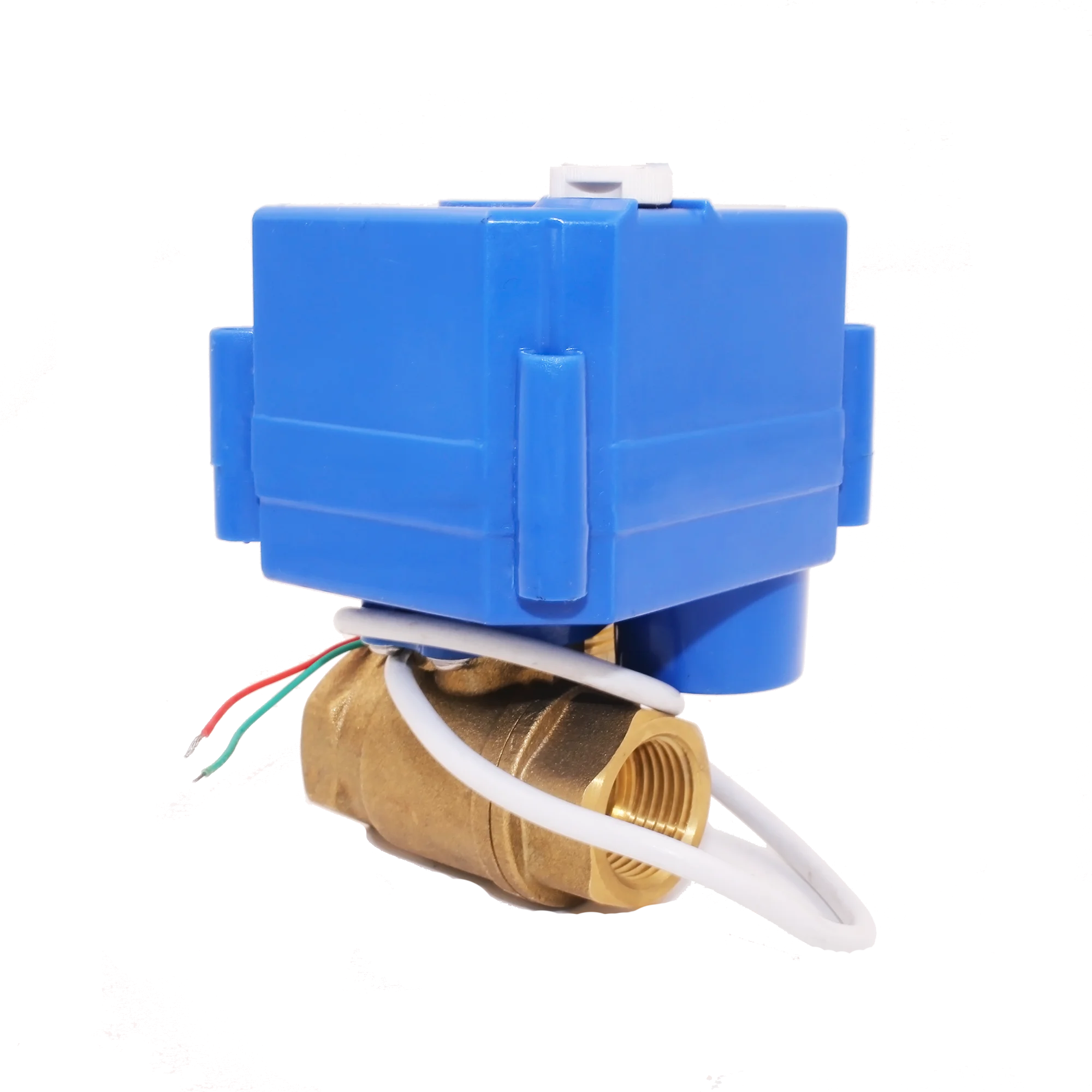

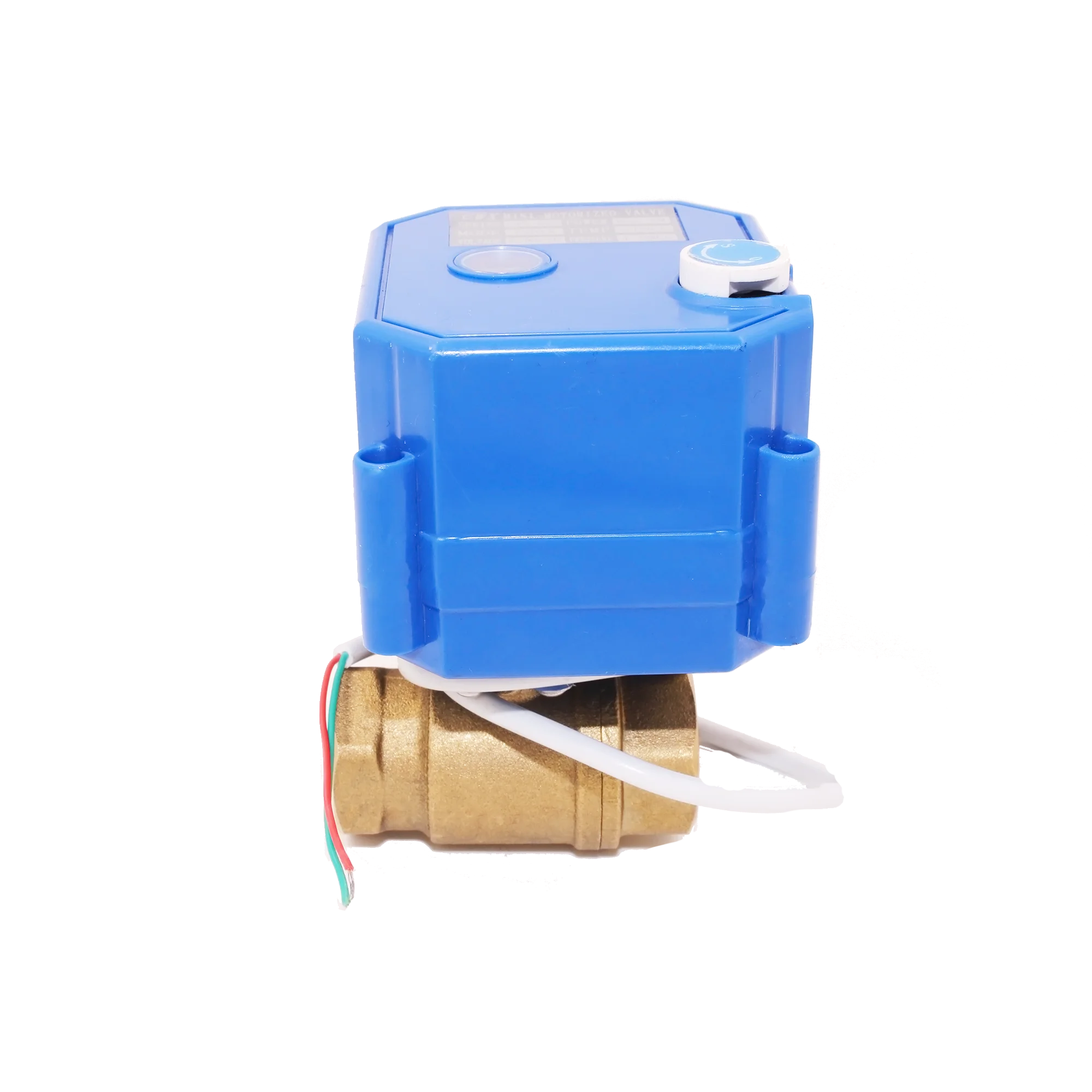

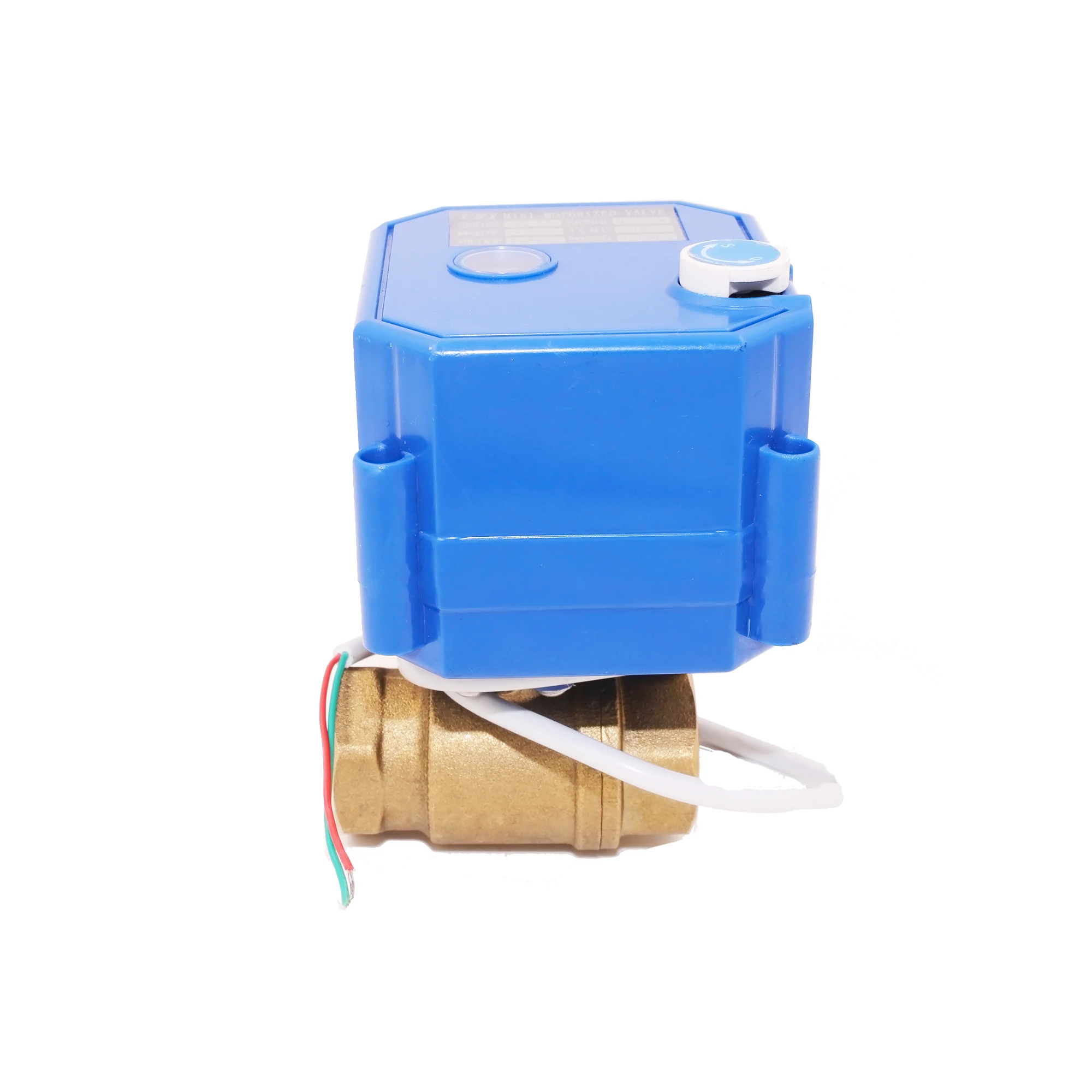

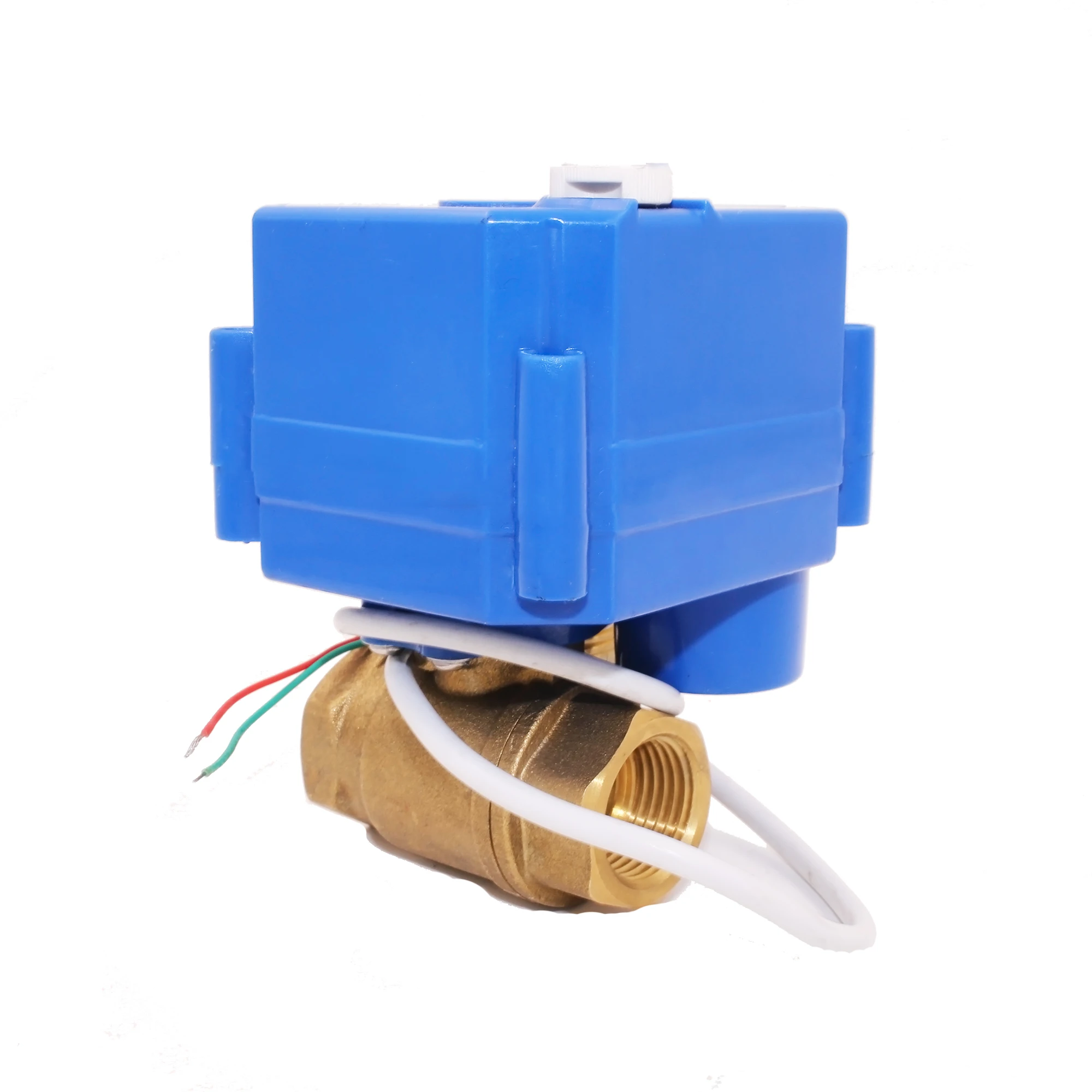

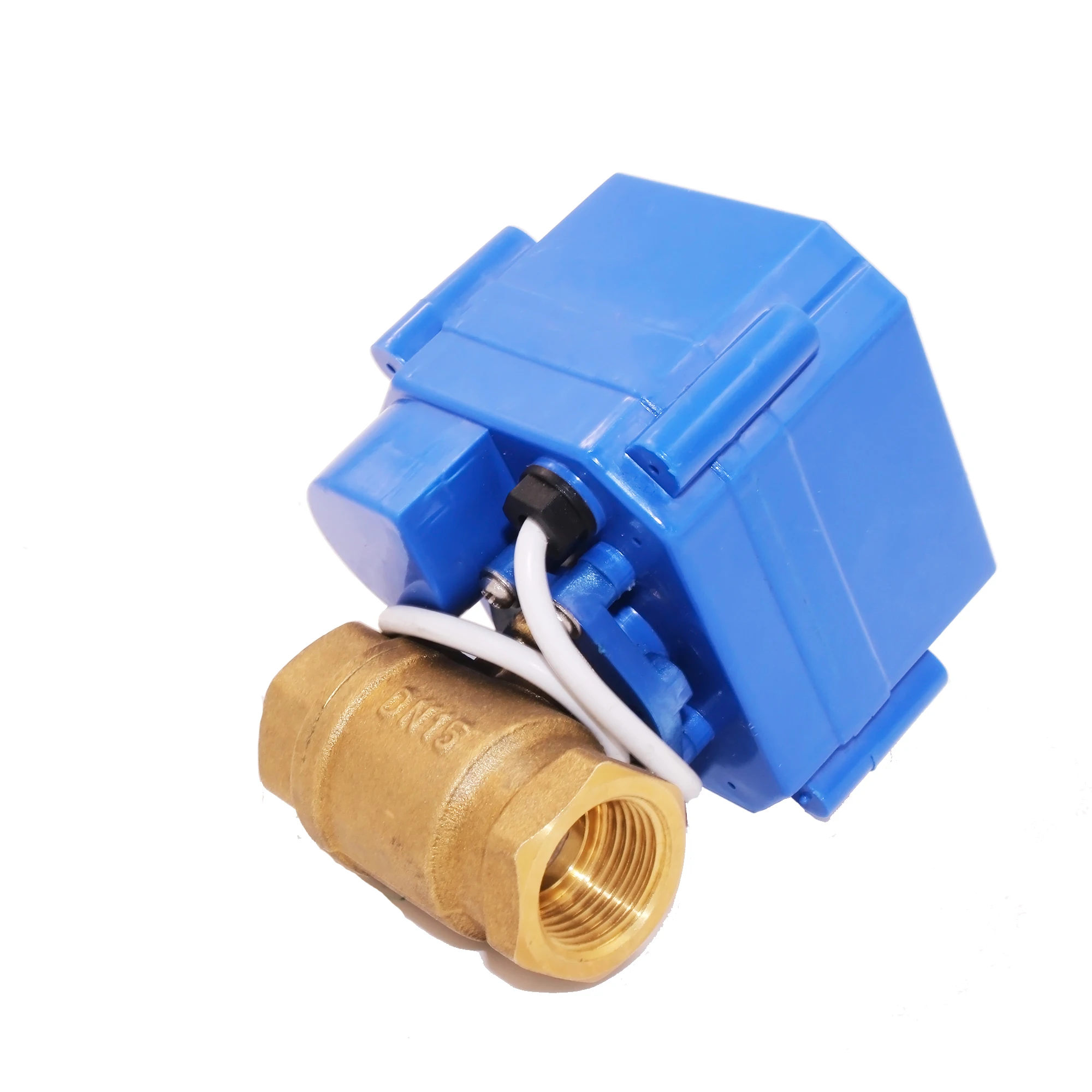

CWX 25S Miniature ball valve DN25 stainless steel material is a hot sell

Product Overview

Description



Material	Connection	Sizes	d	L	H
Brass	Both female thread full-port	DN8	8	46	31
		DN15	15	57	38
		DN20	20	71	45
		DN25	23.5	72	49
	Both female thread reduce-port	DN10	8	46	31
		DN20	15	66	38
		DN25	20	72	47
		DN32	25	86	60
	Vertical three-way	DN15	12	63	49
		DN20	15	66	53
	Female-male thread	DN15	15	63	38
		DN20	15	66	38
	Both male thread	DN15	15	68	38
SS304/316	Both female thread	DN8	8	46	31
		DN10	8	46	30.5
		DN15	15	55	38
		DN20	15	63	39
		DN20	20	71	45
		DN25	20	75	47
		DN25	25	72	49
UPVC	Both female thread	DN15	15	60	47
		DN20	20	72	51







1.POM  material gear box

2.Manual Override, the valve can be operated when power failure

3.Min dimension and position indicator

4.good sealing performance, IP65 enclosure







1.Heat energy meters, fire work, save water system

2.Auto control system, industrial mini auto control equipment

3.Water saving equipment, drinking water equipment

4.Air-conditioning fan coin(HVAC)







Product model	Rated voltage	Working current	Output torque	Open/close time	Control mode	Working pressure	Power	Medium temperature	Size	IP Garde	Special function
CWX-25S	DC3-6V DC12V A/DC9-24V AC220V AC85-265V	Max80mA	Max2.5NM	<8s	CR01 CR02 CR03 CR04 CR05	Max1.0Mpa	<2W	0-90℃	DN8-32 Two-way     DN8-20 Three-way	IP65	Wireless switch control (within 200 meters)
