Item

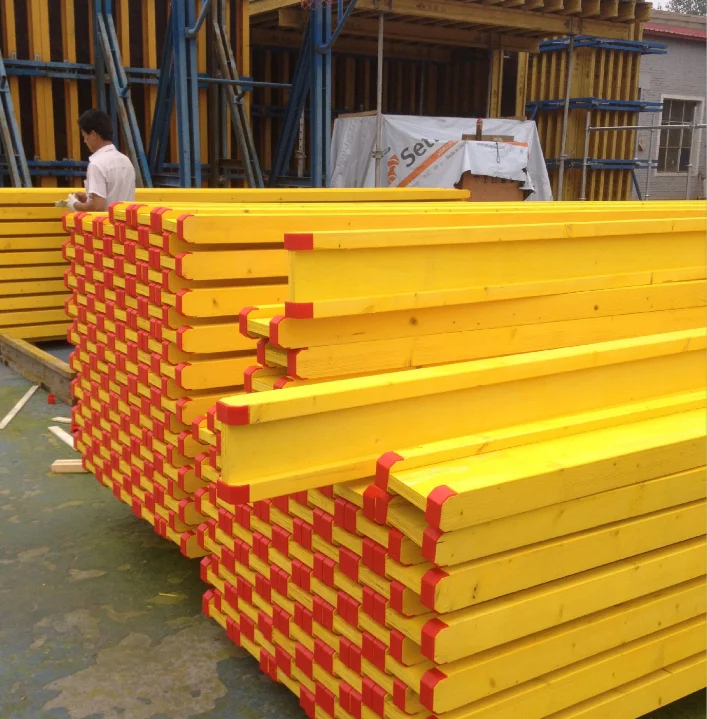

H20 Timber Beam

Wing Material

Imported spruce solid wood, finger-jointed and glueing according to DIN 68140-1

Web Material

Multilayer poplar plywood

Head Protection

Without head protection

Glueing

(PRF) Finger-jointed between wings and web pursuant to approval notice Z-9.1-146

Moisture Content

less than 12% at the time of delivery

Surface Protection

The complete beam is waterproofed using a water-repellent color glaze

Color

Yellow or as customer's request

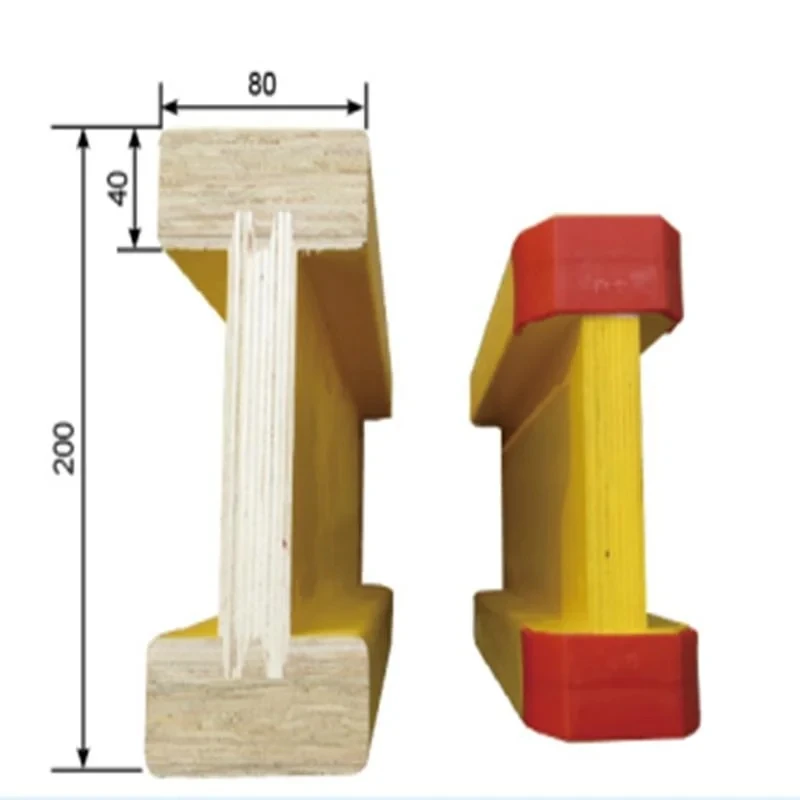

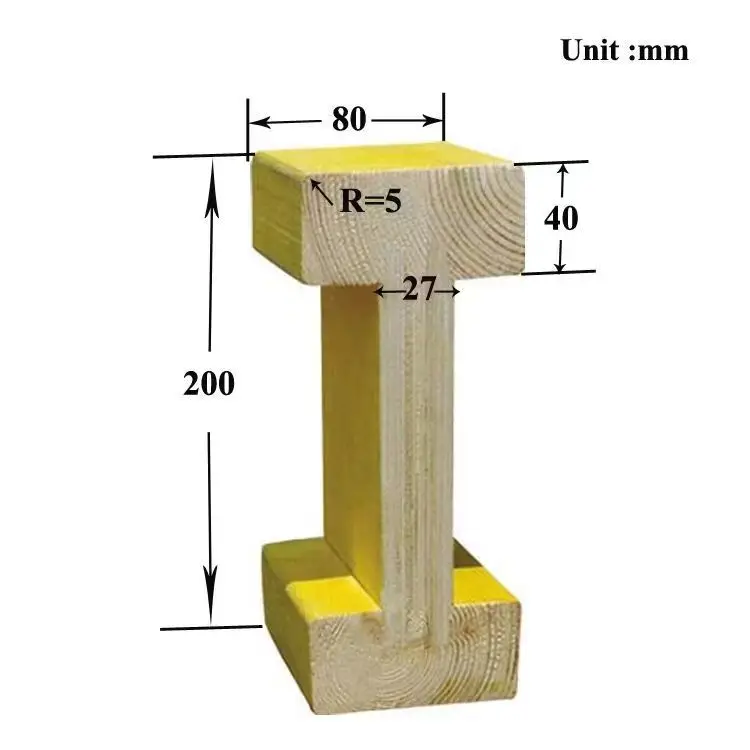

Wing Size

80x40mm

Web Size

30mm thickness

Weight

Approx 4.6kg/Meter

Standard lengths

 1.25/ 2.45/ 2.65/ 2.9/ 3.3/ 3.6/ 3.9/ 4.9/ 5.9meter

Mechanical Specification

Modulus of elasticity : E 11,000 N/mm2

Shear modulus : G 600 N/mm2

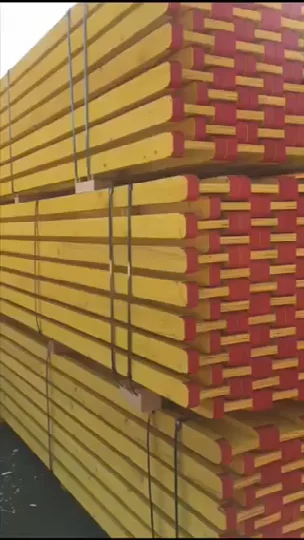

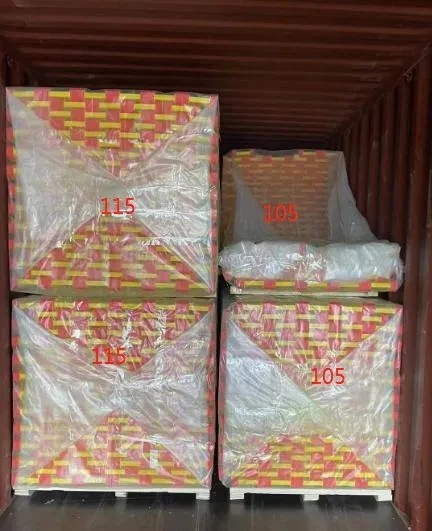

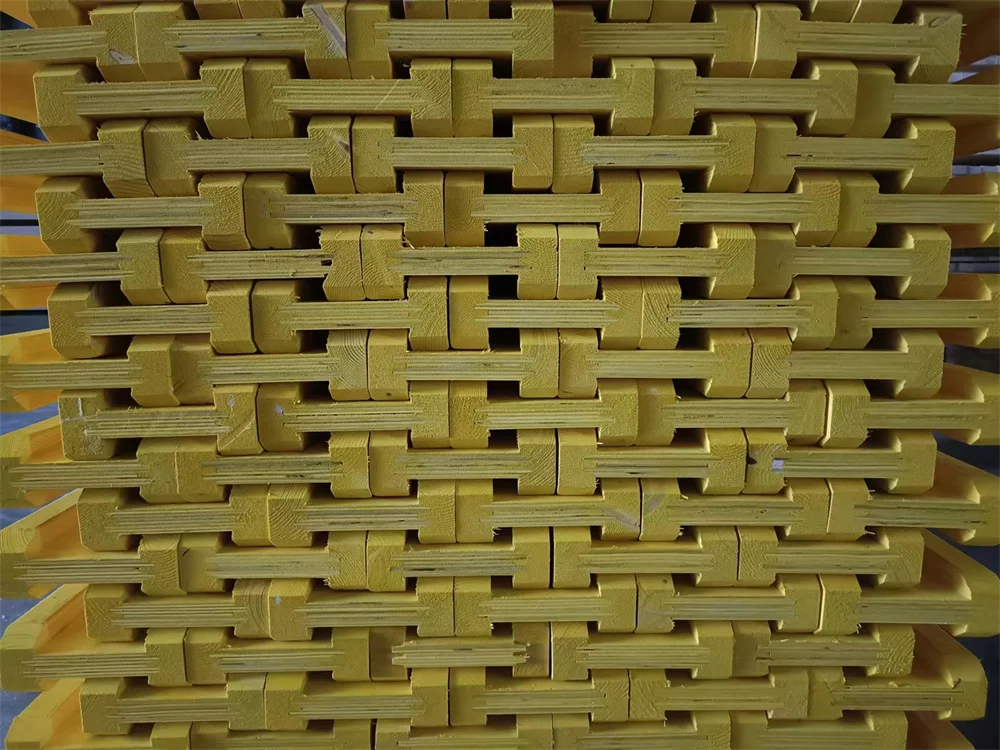

Packing

Pallet or in bulk

100PCS/pallet

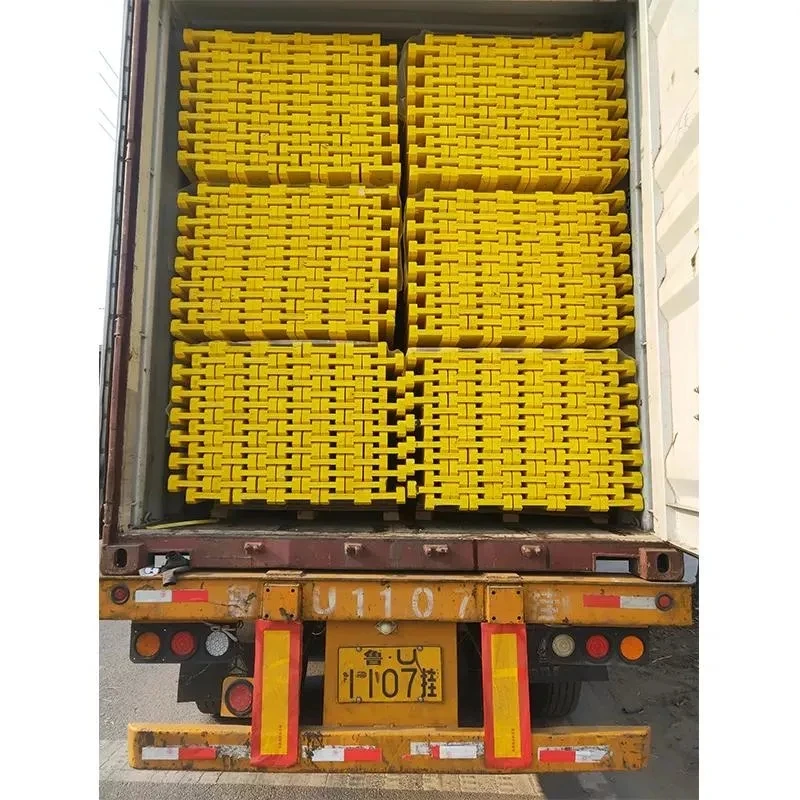

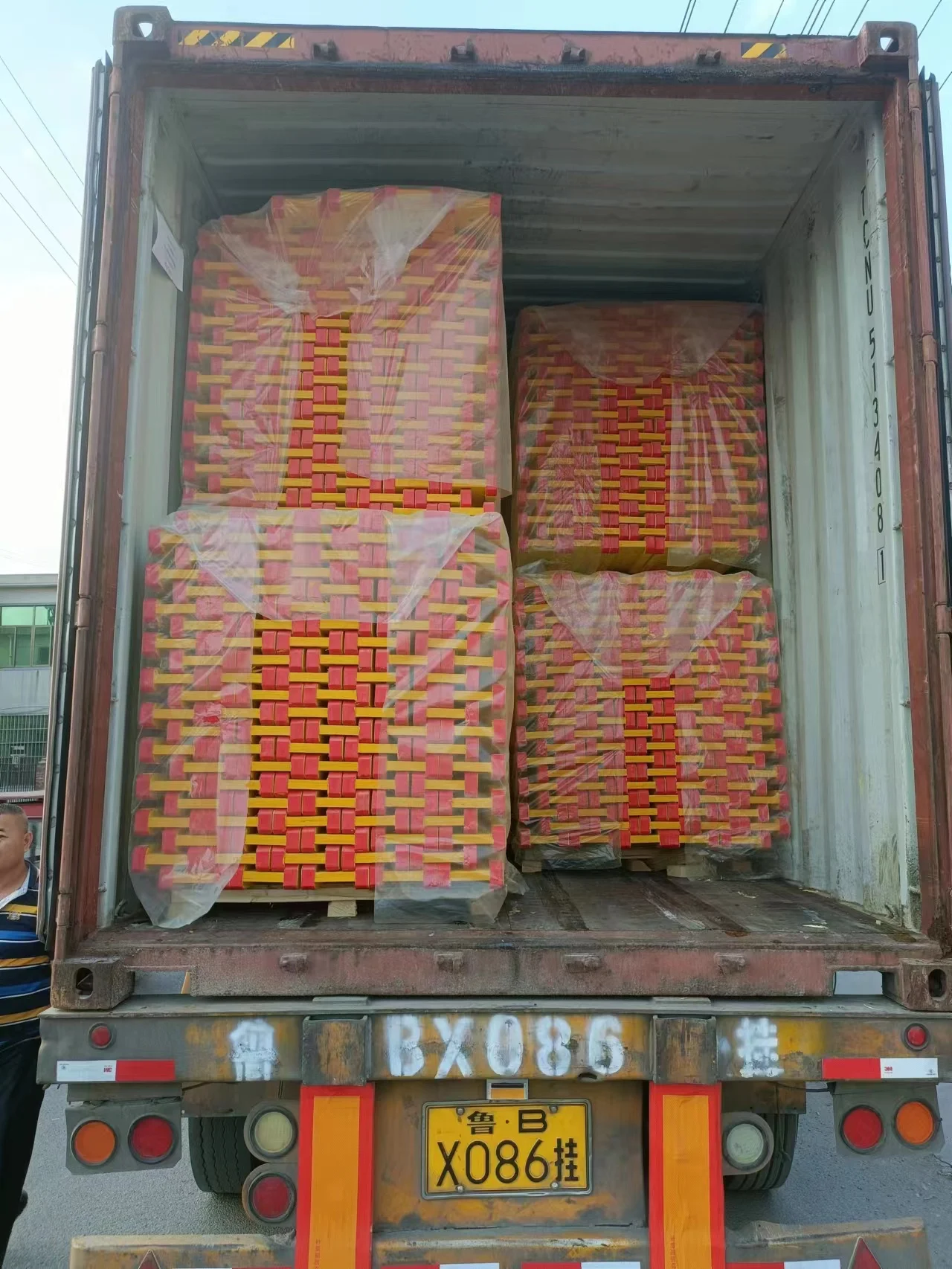

 Load Quantity

When L=2.9M, it can be 4640M/40HQ(16pallets)
When L=3.9M, it can be 4680M/40HQ (12pallets)

 Capacity

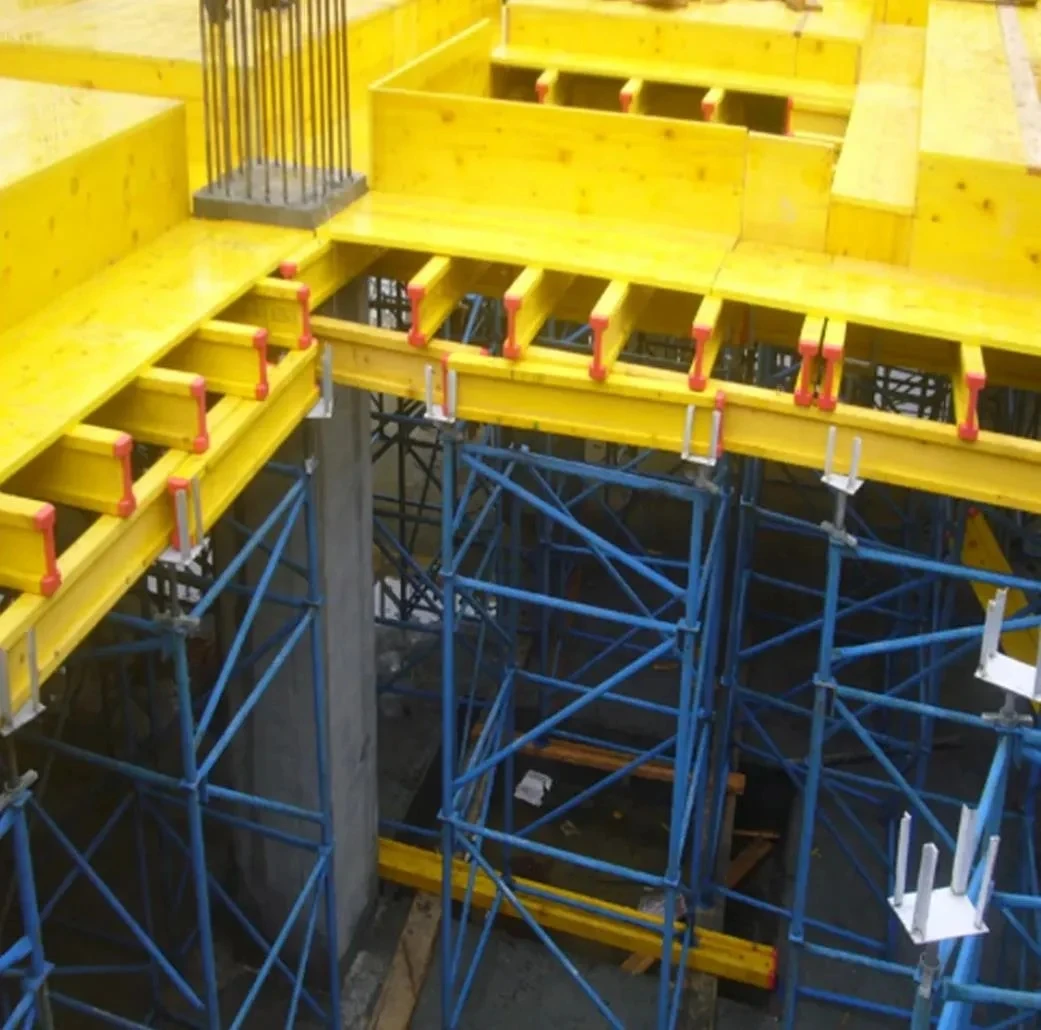

Application

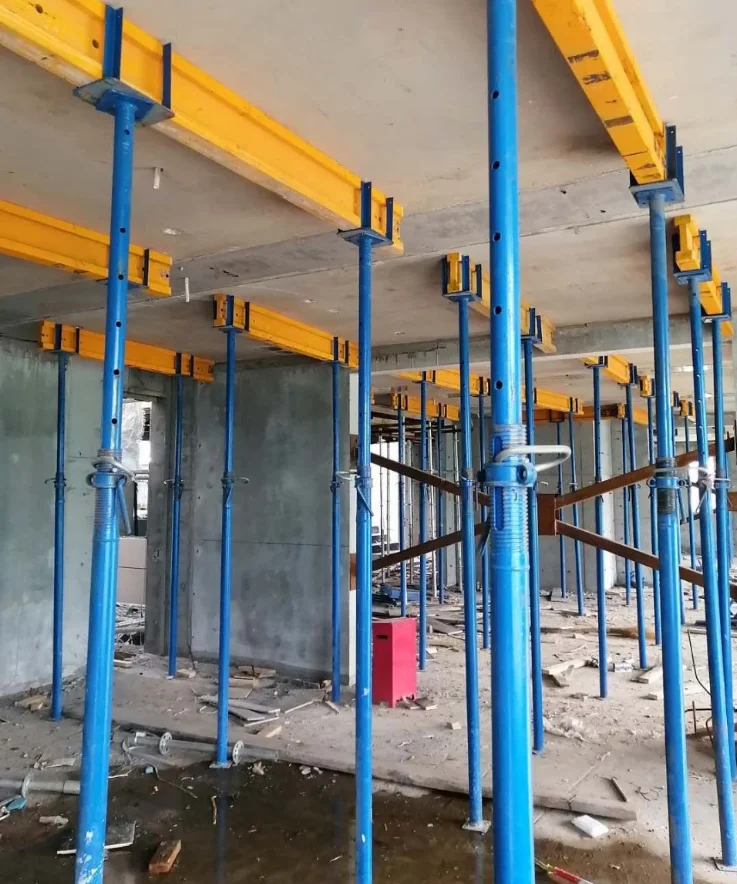

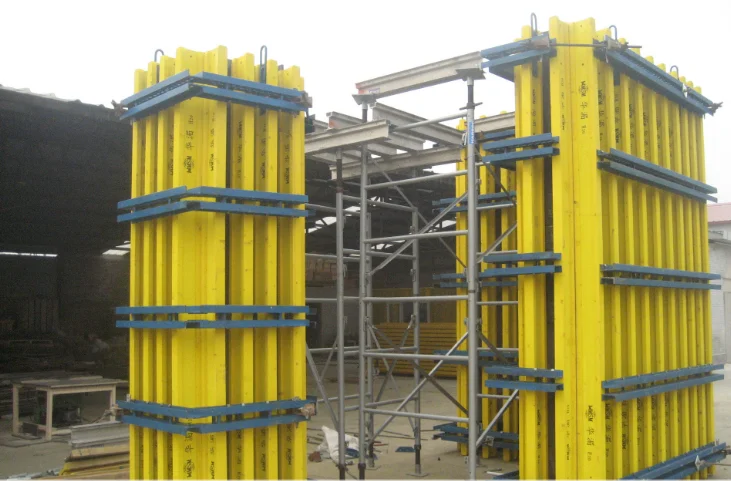

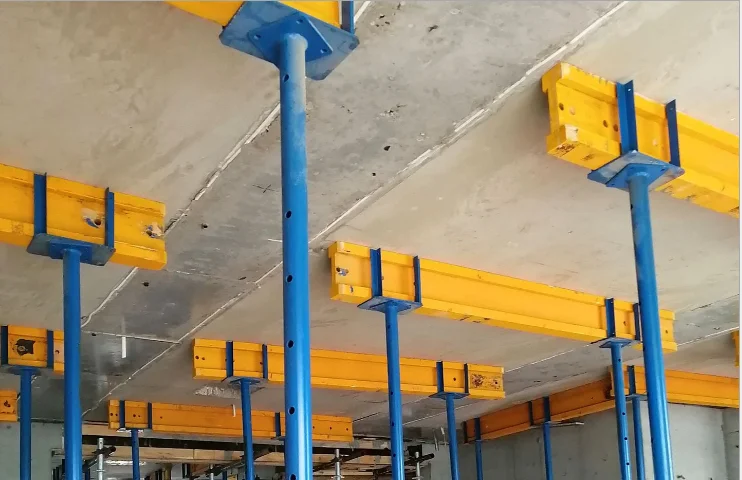

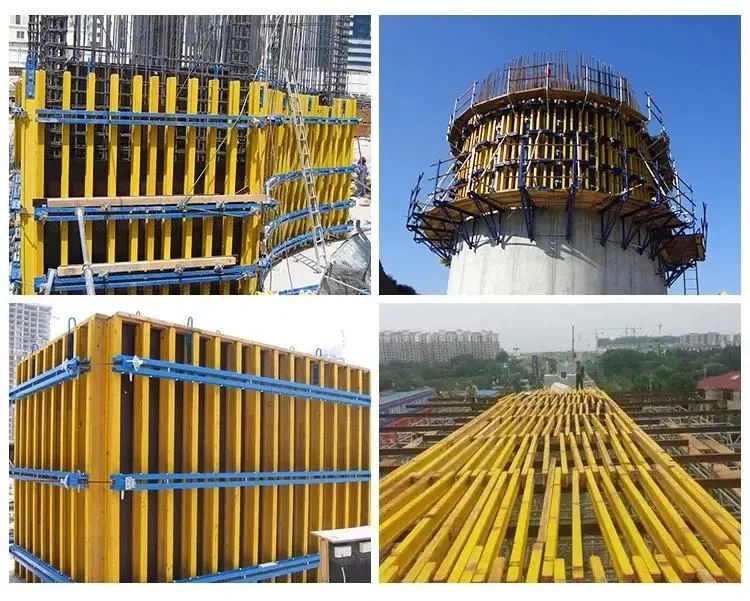

Level formwork system, Vertical formwork system, Adjustable formwork system, Curve formwork system, Irregular formwork, etc.
