300g plastic material vacuum loader machine industrial plastic pellets auto hopper loader for injection moulding machine
- Category: >>>
- Supplier: Guangdong Xiaojuren Machinery Co. Ltd.
Share on (1600882394855):
Product Overview
Description
Model | HAL-300G | HAL-400G | HAL-700G | HAL-800G | ||
Motor type | Carbon Brush | Induction | Carbon Brush | Induction | ||
Motor Specification | 1.2-1.5KW 1φ | 1HP 3φ | 1.5HP 1φ | 1.5HP 3φ | ||
Conveying Capacity(Kg/h) | 200 | 330 | 400 | 550 | ||
Static Wind Pressure(mm/h2o) | 1300 | 1800 | 1500 | 2200 | ||
Reservoir Volume(L) | 7.5 | 7.5 | 7.5 | 7.5 | ||
Material Diameter(mm) | φ38 | φ38 | φ38 | φ38 | ||
Hose Specification(mm) | φ38mmx3.5m 1Pcs | φ38mmx4m 1Pcs | φ38mmx4m 2Pcs | φ38mmx4m 2Pcs | ||
Machine Size (mm) | 206*330*454 | 206*330*670 | 365*295*540 | 445*375*625 | ||
Packing Size (mm) | 380×380×600 | 430x440x730 | 700*340*580 | 740*410*710 | ||
Approx.Net Weight(kg) | 14 | 27 | 25 | 51 | ||
Model | HAL-1.5HP | HAL-3HP | HAL-5HP | HAL-7.5HP | HAL-10HP | ||
Motor(HP/KW) | 1.5/1.1 | 3/2.2 | 5/3.75 | 7.5/5.5 | 10/7.5 | ||
Conveying Capacity(Kg/h) | 450 | 590 | 820 | 1000 | 1300 | ||
Conveying Distance(m) | 5 | 5 | 6 | 6 | 6 | ||
Static Wind Pressure(mm/h2o) | 2800 | 2800 | 3200 | 4200 | 4500 | ||
Reservoir Volume(L) | 7.5 | 12 | 25 | 40 | 40 | ||
Material Diameter(mm) | φ38 | φ51 | φ51 | φ63 | φ63 | ||
Hose Specification(mm) | φ38mmx8m 1Pcs | φ51mmx10m 1Pcs | φ51mmx10m 1Pcs | φ63mmx15m 1Pcs | φ63mmx15m 1Pcs | ||
Dimension(cm) | Main Frame | 42x37x120 | 42x37x120 | 50x45x123 | 58x60x170 | 58x60x170 | |
Hopper | 43x32x52 | 43x32x52 | 40x30x102 | 40x30x102 | 40x30x102 | ||
Approx.Net Weight(kg) | Main Frame | 65 | 68 | 90 | 135 | 140 | |
Hopper | 6 | 6 | 10 | 12 | 12 | ||

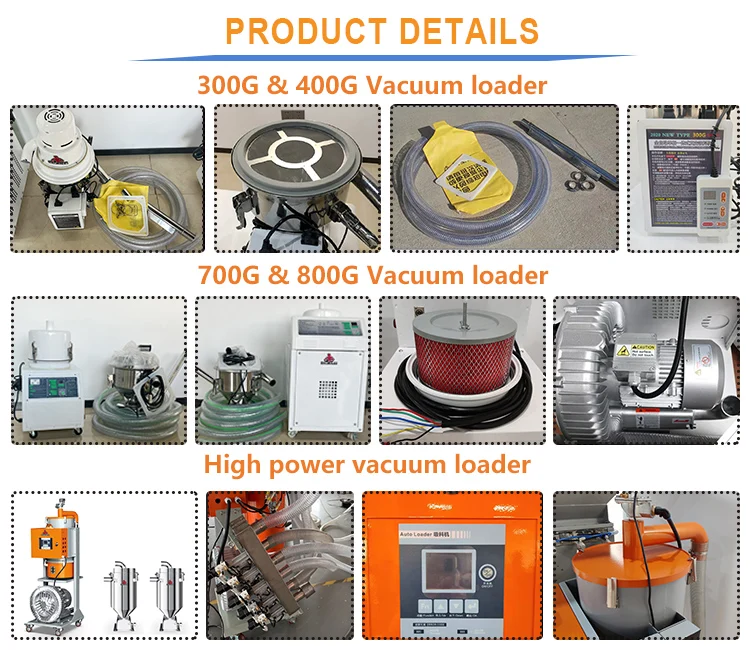

Auto vacuum loader :

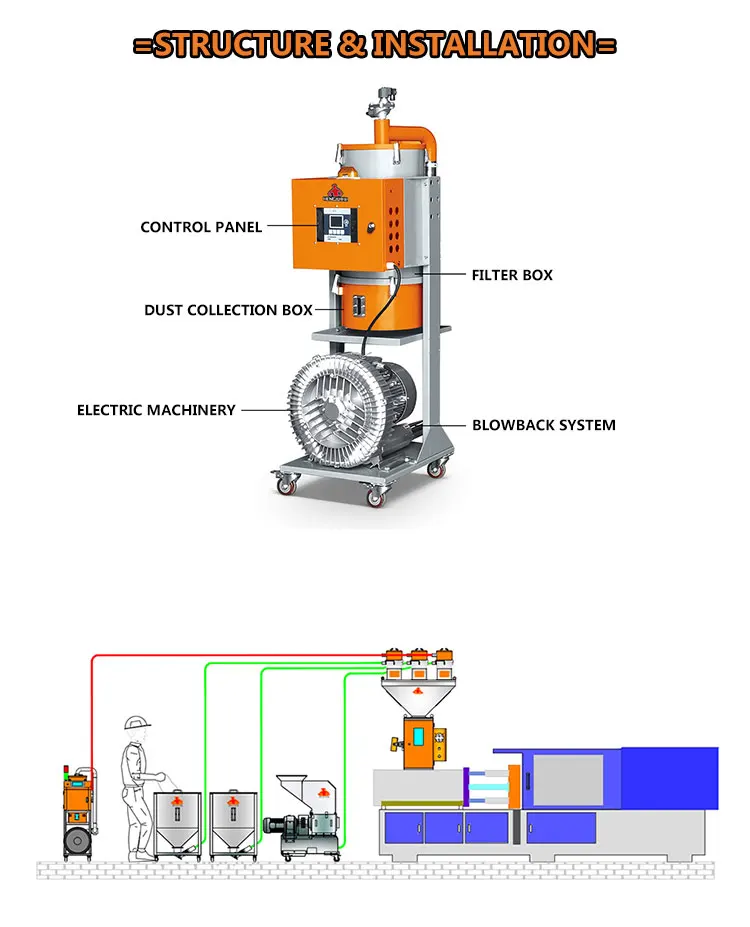

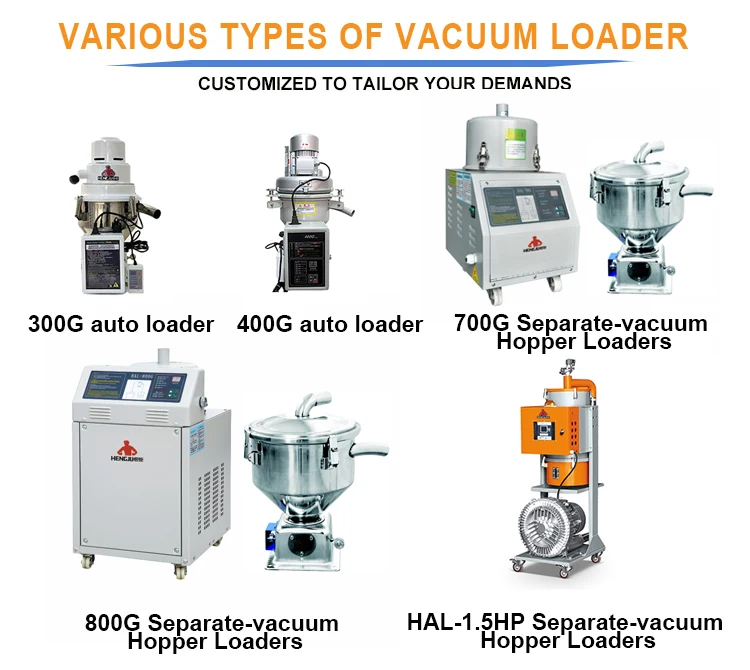

Plastic vacuum loader are mainly used in the plastic processing industry to absorb plastic raw materials and then transport them to injection molding machines, extruders, blow molding machines and other processing equipment for production use. According to different usage requirements, the designed models include 300G, 400G, 700G, 800G and high-power suction machines, which can efficiently absorb materials and improve production efficiency.
Features :

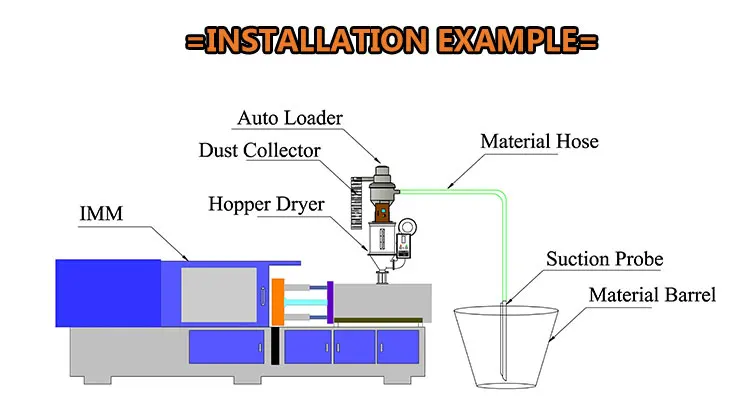

1. 300G and 400G loaders are with small size and light weight, can be directly mounted on hopper dryer or other containers for auto loading material.

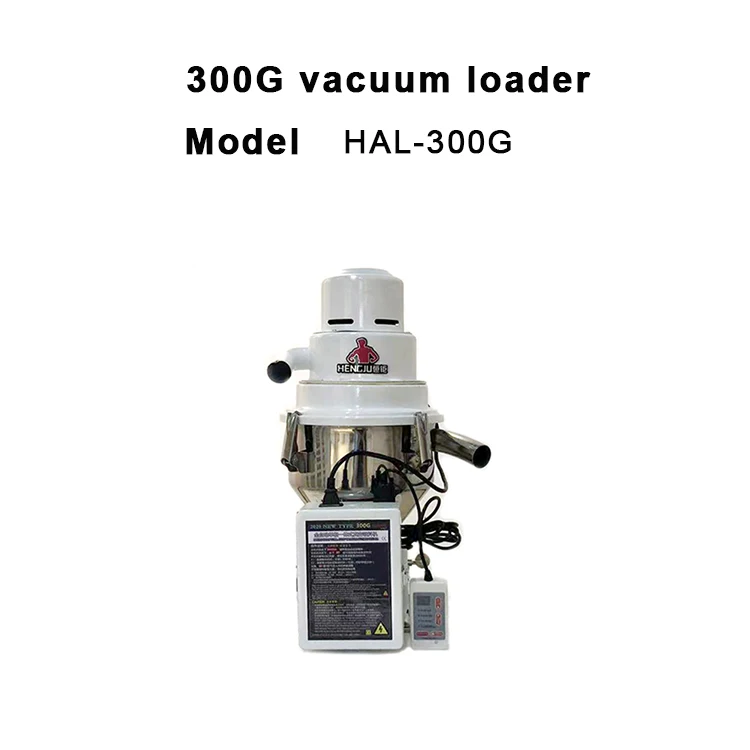

2. 300G equipped with high-speed rectifier motor with delicate size and strong suction force.

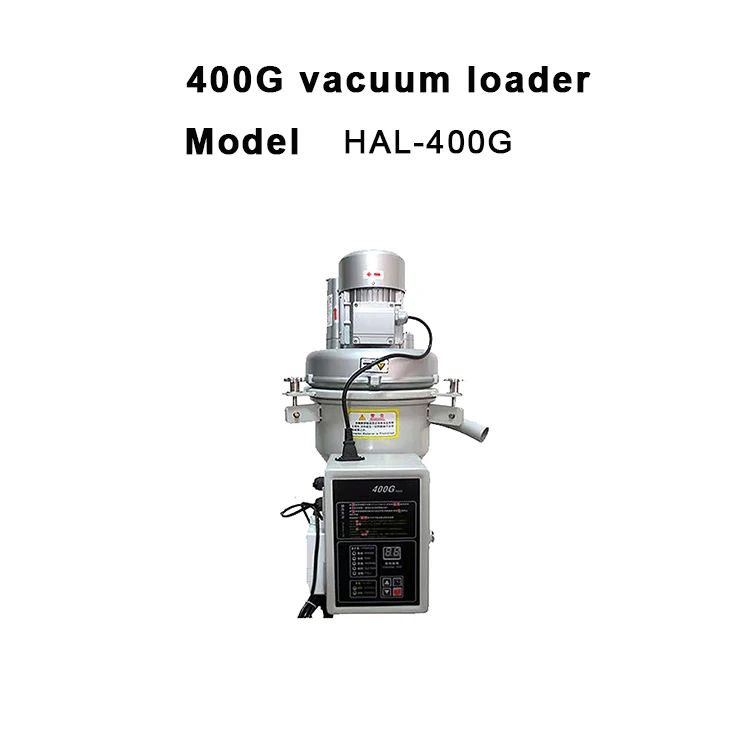

3. 400G and 800G loaders are with induction high pressure blower--with low noise and long service time.

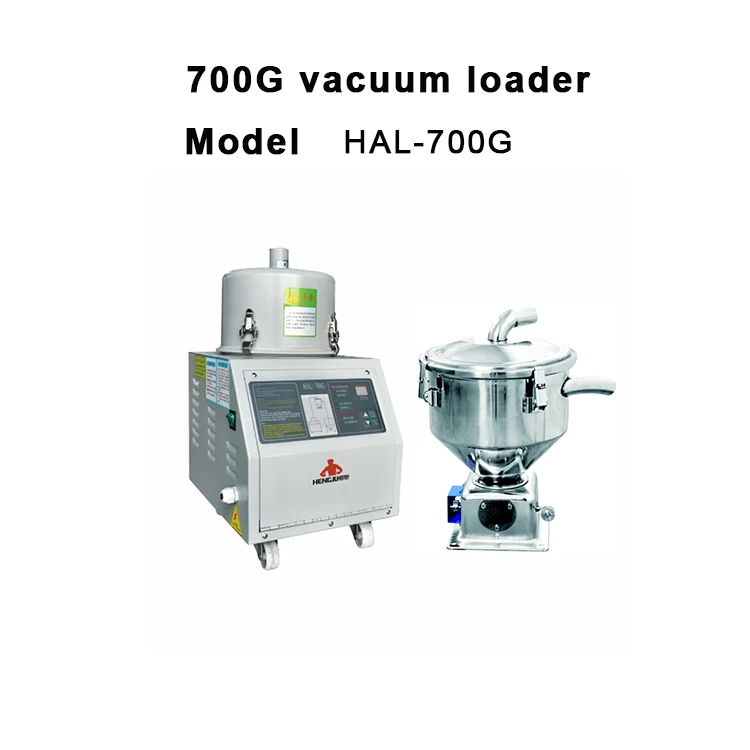

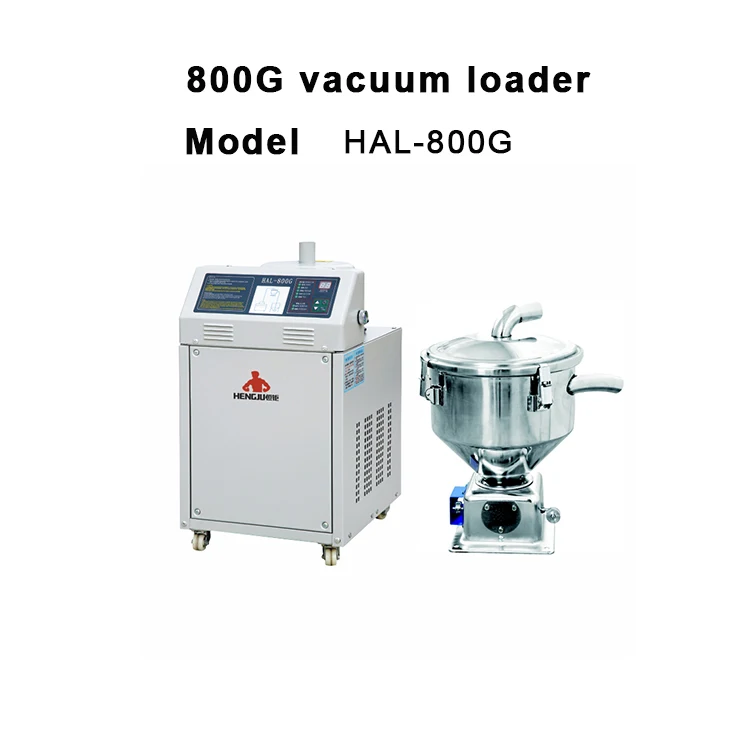

4. 700G and 800G loaders are with seperate loading unit and hopper receiver. Independent filter for easy cleaning.
5. Microcomputer controlled. Alarm for overload and short of material.
6. Equipped with filter and dust bag, it can filter and remove dust from raw materials.

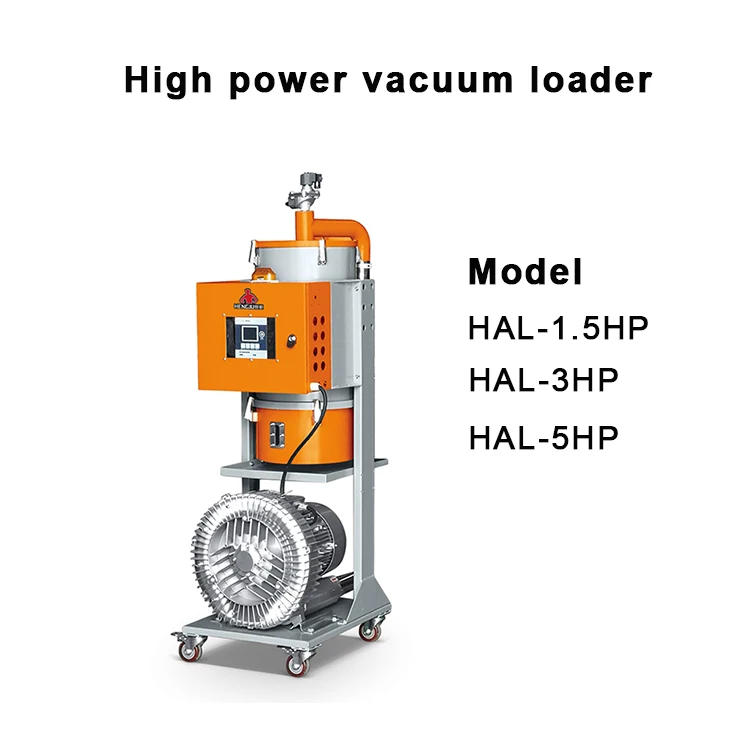

7. The high-power plastic auto loader can be used for multiple purposes with multiple hoppers. It adopts high-power motor and special fan to improve material suction speed and production efficiency.
2. 300G equipped with high-speed rectifier motor with delicate size and strong suction force.
3. 400G and 800G loaders are with induction high pressure blower--with low noise and long service time.
4. 700G and 800G loaders are with seperate loading unit and hopper receiver. Independent filter for easy cleaning.
5. Microcomputer controlled. Alarm for overload and short of material.
6. Equipped with filter and dust bag, it can filter and remove dust from raw materials.
7. The high-power plastic auto loader can be used for multiple purposes with multiple hoppers. It adopts high-power motor and special fan to improve material suction speed and production efficiency.
Company introduction:
Since its establishment, Hengju has been focusing on the research and development of dehumidifying & drying, dosing & mixing and central conveying systems to make products closer to customer’s demand and customize complete automation solutions for customers.
Hengju Machinery can provide you with complete plant automation solutions and central chiller plant design. We have 15 years of industry experience and 8,000 square meters of self-built workshops, providing services for hundreds of companies, tailor-made solutions, free design renderings, and 24-hour online communication services.
Relying on strong professional technology and stable quality, we have won high comments from customers at home and abroad.Covering industries include auto parts, chemical industry, pelletizing, new energy, new materials, etc., and excellent performance in bio-degradable plastics such as PLA, PBAT, and pipe/sheet/cable extrusion and other fields!
