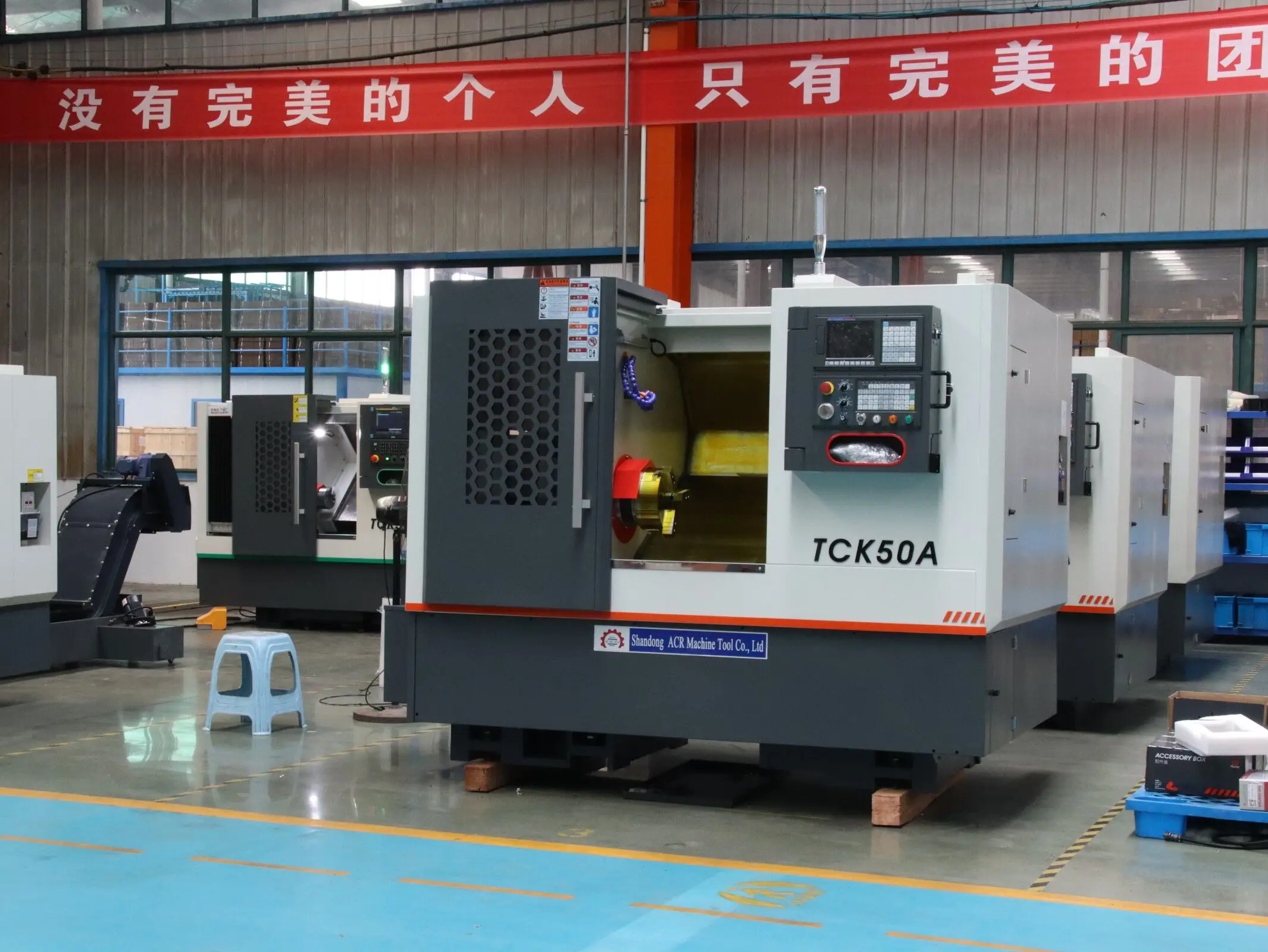

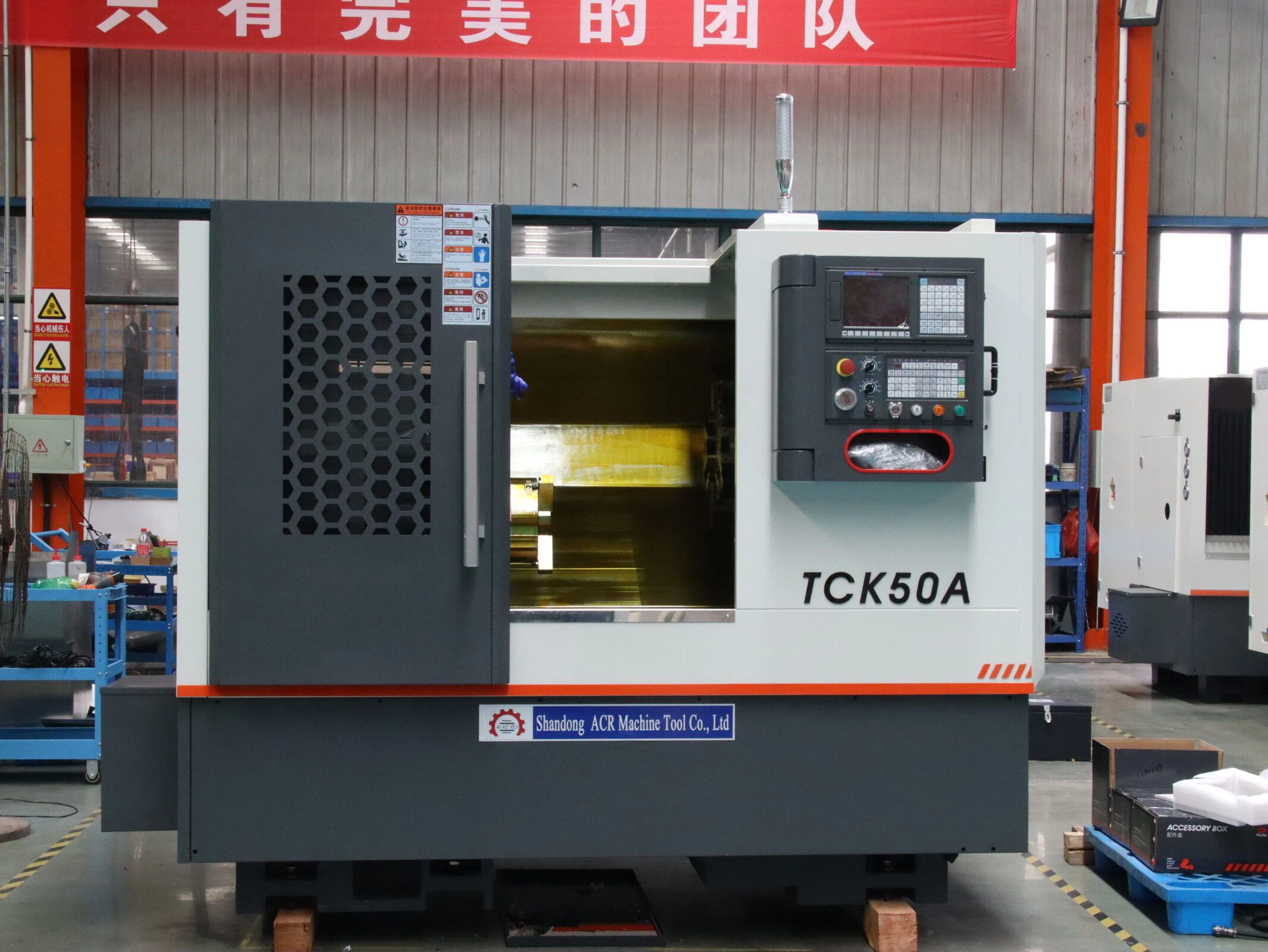

2023 hot sale good price cnc turning center live tool TCK50AX350/500/800 cnc machining milling turning
- Category: >>>
- Supplier: Shandong ACR Machine Tool Co. Ltd.
Share on (1600882649970):
Product Overview
Description
2023 hot sale good price cnc turning center live tool TCK50AX350/500/800 cnc machining milling turning
Specifications | Unit | TCK50A |
Max. swing dia. over bed | mm | 560 |
Max. swing dia. over slide | mm | 260 |
Max. processing length | mm | 350/500/800 |
Max. bar capacity | mm | 55/55/75 |
Max. processing diameter of plate type work piece | mm | 400/320 |
Spindle nose | A2-6/8 | |
Diameter of spindle through hole | mm | 66/66/86 |
Spindle speed range | r/min | 0-3000 |
Spindle shift mode | Stepless speed regulation | |
Motor power of spindle | kw | 11/11/15 |

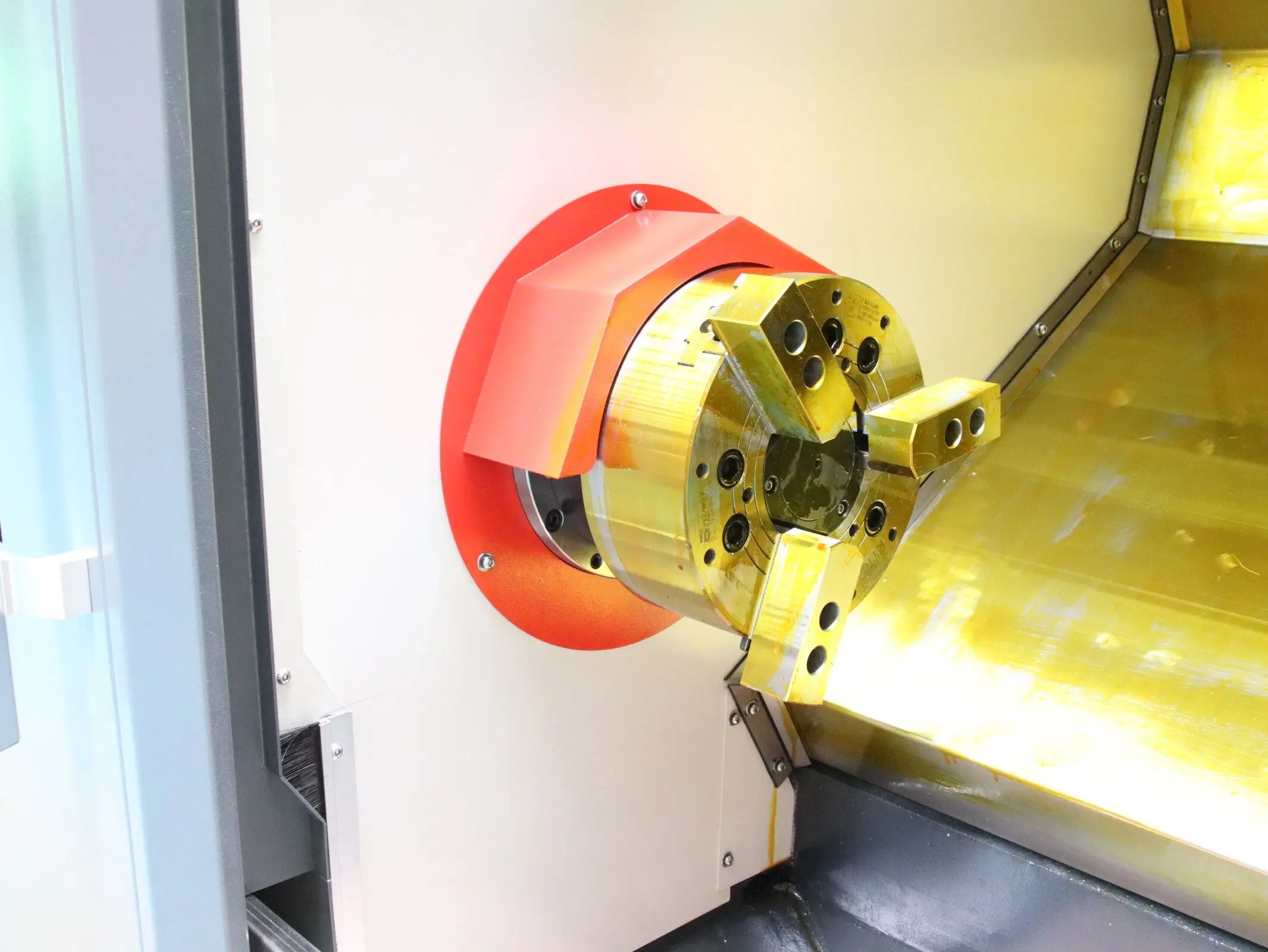

Chuck type | Hydraulic chuck | |
Chuck size | lnch | 10/12 |
X axis rapid traverse | m/min | 24 |
Z axis rapid traverse | m/min | 24 |
X axis servo motor torque | N.m | 7.5/7.5/10 |
Z axis servo motor torque | N.m | 7.5/7.5/10 |
X axis travel | mm | 240 |
Z axis travel | mm | 400/540/900 |
Guide way type | linear guide rail | |

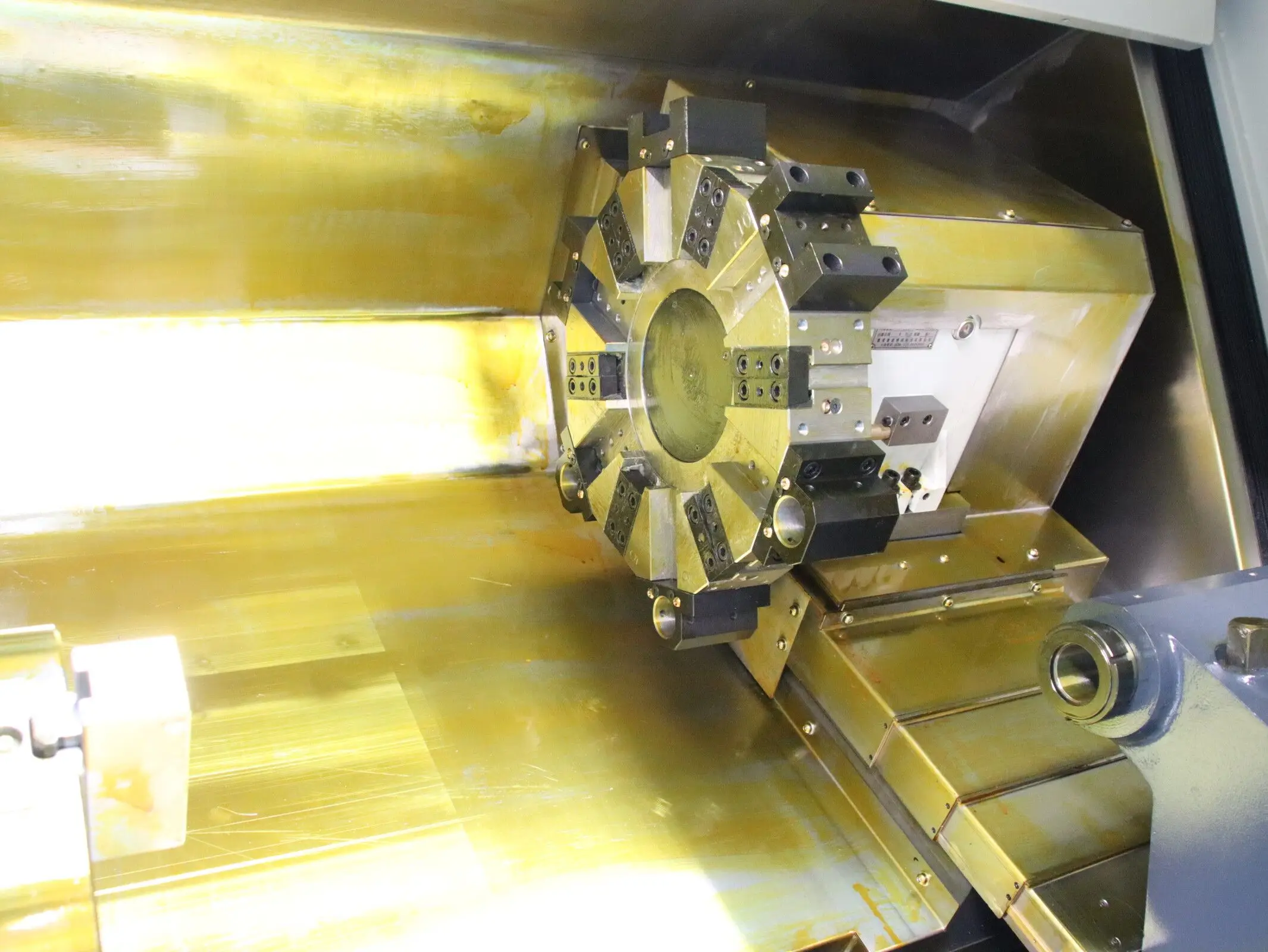

Tool post type | 8/12Station | |
Tool shank size (square cutting tool/boring cutting tool) | mm | 25x25/Ø32 |
Tail stock type | hydraulic | |
Tail stock quill dia | mm | 70/88 |
Tail stock quill trave | mm | 88 |
Tail stock quill taper | MT5# | |
Total rated power | KW | 14/14/18 |
Total rated current | A | 30 |
Net weight | kg | 3200/3600/4500 |
Machine dimension(L×W×H) | mm | 2700/2700/3300×2000X2000 |
FAQ
1:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7.If the above products do not meet your requirements, we can customize them according to customer requirements!
