Features:
1. Built-in adapter allows wide AC voltage range 85Vac-265Vac.
2. Built-in high capacity lithium batteries, provides long backup time to loads.
3. Suitable for most digital device.
4. Power over Ethernet (POE) (Except DC1018C) can transmit the data and power at the same time to simplify wire set.
5. 5V USB output, can provide charging for mobile phone, PSP, PDA, IPOD, MP4…ETC.
6. Intelligent circuit design with over-charging, over-discharging and short circuit protections.

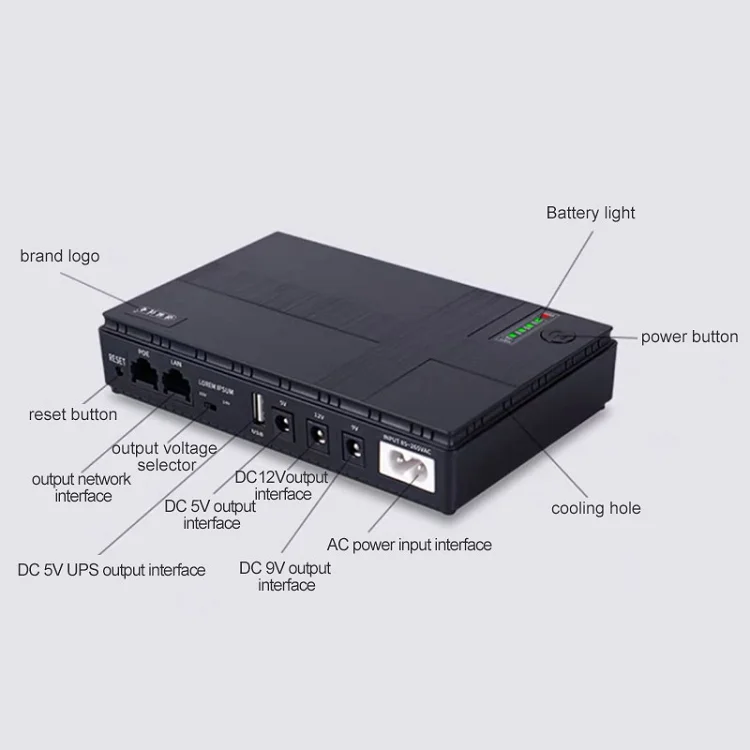

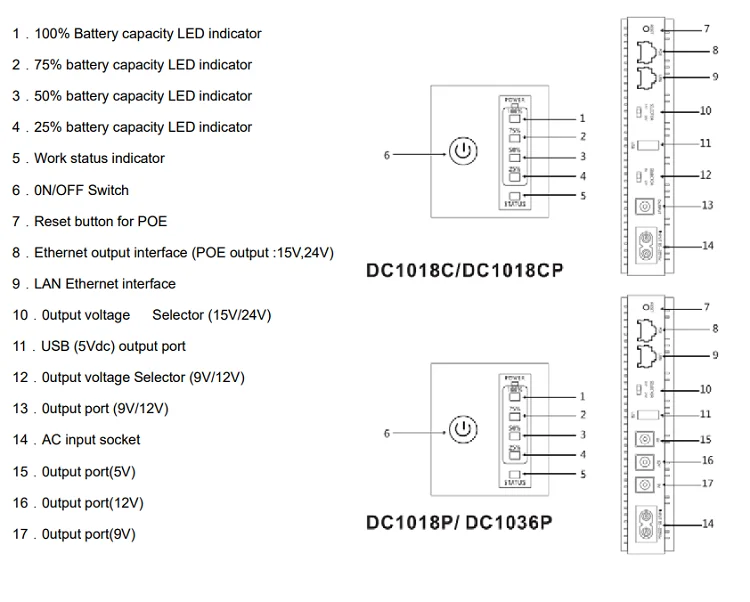

Panel Information:



| Specification | ||||
| Model | DC101BC | DC101BCP | DC1018P | DC1038P |
| Input | 85-285Vac/50·80Hz | |||
| Output | USB5V/2A | USB5V/2A | USB5V/2A | USB 5V/2A |
| DC 9V/1A | DC9Vf1A | DC 5V/2A | DC 5Vf2A | |
| DC12V/1A | DC 12V/1A | DC 9V/1A | DC 9V/2A | |
| POE 15VI0.6A | DC 12V/1A | DC12Vf2A | ||
| POE 24V/0.6A | POE 15V/0.6A | POE 15V/0.6A | ||
| POE24V/0.6A | POE 24V/0.6A | |||
| Output power(Max) | 18W | 18W | 18W | 36W |
| Quantity & Capacity of battery | 2600mAh*4(lithium battery)or 2000mAh*4(LifePO4) | |||
| Operate temperature | -10℃ 40℃ | |||
| Humidity | 0%-90%RH | |||
| Dimension(mm) | 160*105*33mm | |||
| Net weight(kg) | 0.38kg | 0.4kg | 0.41kg | 0.42kg |
Full Protections Guarantee:

Our services:
1. OEM&ODM services acceptable.
2. Lots of cooperated agent for shipping by sea or by air.
3. 1year warranty, if it is quality problem, we will provide the parts for free.
Little hint:
1. In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2. Exceed the warranty period, improper operation and man-made damage, we will still give help and support, we will provide spare parts at a cost price.
3. According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional machine.

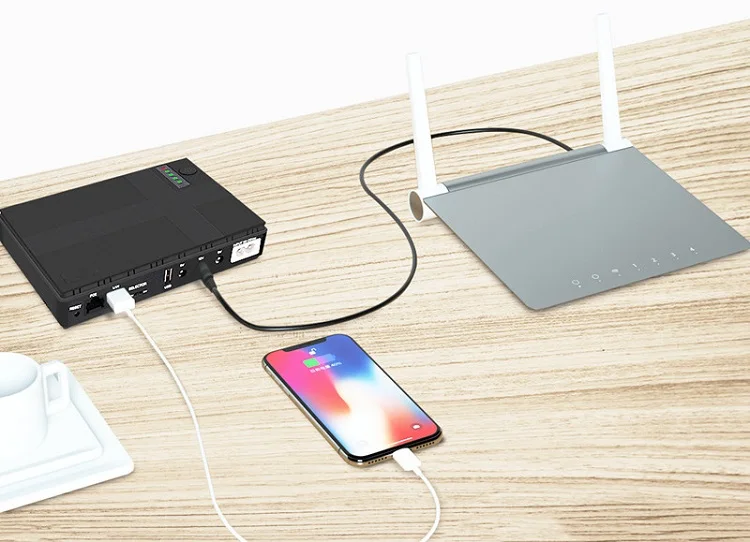

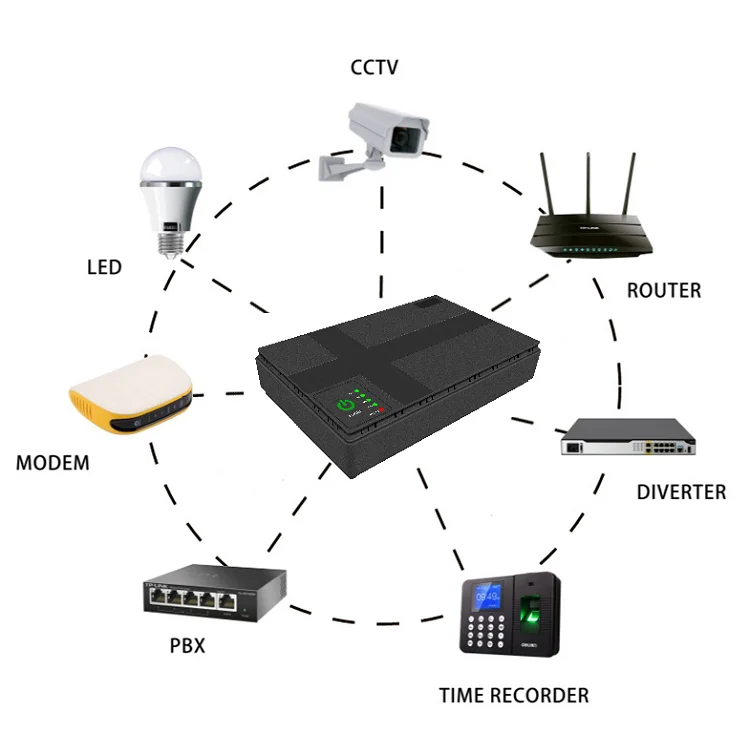

Applications:
