Complete 5kw 6kw 8kw 10kw 15kw 20kw Grid Tied Lithium Battery Three Phase Energy Storage System ESS 10kw Hybrid Solar System
- Category: >>>
- Supplier: Shenzhen Infinite Power Technology Co. Ltd
Share on (1600883200825):
Product Overview
Description
Complete 5kw 6kw 8kw 10kw 15kw 20kw Grid Tied Lithium Battery Three Phase Energy Storage System ESS 10kw Hybrid Solar System
Model | HT-8H-10W1P-1P-5S2P |
550W Solar Panels | Accept Customization |
MPPT controller & Inverter | 1 Set |
Battery Rack | 1 Pieces |
Battery Type | Wall-wounted |
PV/DC Cable | 100 Meters |
Protection board | 1 Set |
Connector & Cables | 1 Set |
Installation Tools | 1 Set |
Mounting Structure | Customized with roof or ground |
What is the hybrid grid solar home system?
The hybrid grid solar home system is one of the main types of solar energy system. The hybrid grid solar home system refers to the fact that solar power systems often operate independently of the grid, which is typically used in home, remote areas, power free areas and farms. The solar home systems are typically composed of photovoltaic modules, solar controllers, inverters, batteries, and loads. Hybrid grid power generation systems convert solar energy into electrical energy when there is sunlight, and use solar energy control inverters to supply power to the load while charging the battery. When there is no sunlight, the battery supplies power to the AC load through the inverter.
Solar Panels
The precise size and production capabilities of individual solar panel array which is the first ingredient will depend on the amount of available sunlight in the region, the usable space of roof, and energy consumption needs.
Solar Lithium ion LiFePO4 Batteries
A solar battery is needed to allow home to continue to run after the sun goes down. In the solar home system, the solar storage battery will charge throughout the day as solar panels generate excess electricity. The excess energy produced by your solar panels is automatically stored in the batteries to power your home day and night. The battery capacity is depending on your load power needs, then to choose the single battery, high voltage battery or a battery bank.
Solar Hybrid Inverters
In order to convert the direct current (DC) collected by solar panel array into the alternating current (AC) for running most of common household appliances and electronics, solar home system needs a solar inverter to convert the DC to AC. In the off-grid solar home system, it will need the off grid solar inverters.
Solar Panels
* PID Free PV Module
* 450W Positive Power Output Guarantee
* 25 Years Power Output Guarantee
* 100% Double Full EL Inspection
* 450W Positive Power Output Guarantee
* 25 Years Power Output Guarantee
* 100% Double Full EL Inspection
MPPT Controller & Inverter
* 5KW Off-grid Inverter
* Output: Single Phase
* 120V(L/N/PE)
Solar Battery
* Battery would provide the stable DC power for Inverter DC Input
* Deep Cycle Battery
* Lifepo4 Type
* 48V 200AH (5KWH/pc)
* Battery Racket Customization
* Battery Racket Customization

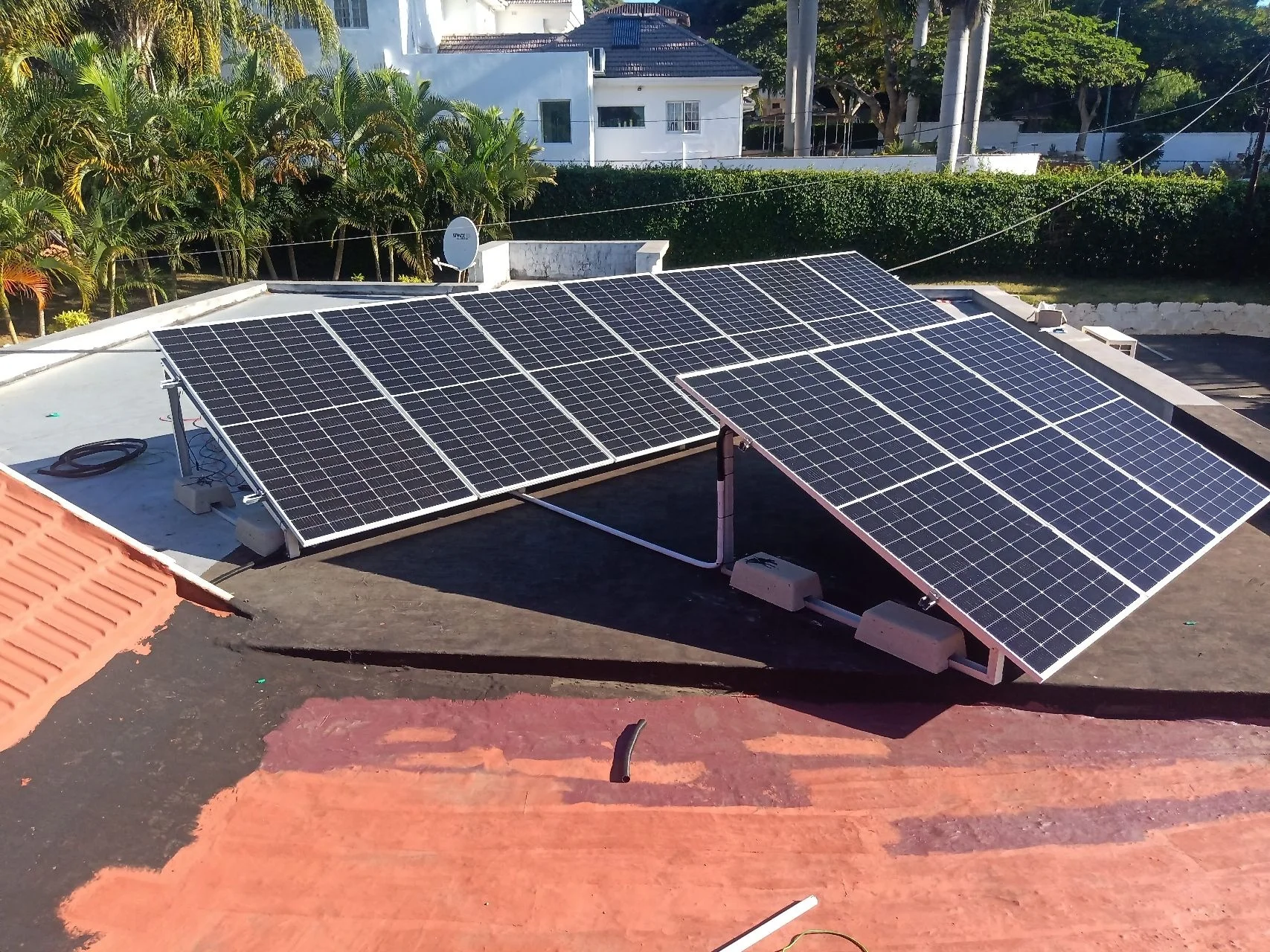

Mounting Structure
Customized for :
Rooftop(Flat/Pitched), Ground , Car Parking Lot Adjustable tile angle from 0 to 65 degree
Compatible with all solar modules.
Rooftop(Flat/Pitched), Ground , Car Parking Lot Adjustable tile angle from 0 to 65 degree
Compatible with all solar modules.
Accessories
Cables:
* Grid to circuit breaker 5m
* Ground wire 20m
* Battery to circuit breaker 6m
* Circuit breaker to inverter 0.3m
* Load output to circuit breaker 0.3m
* Circuit breaker to inverter

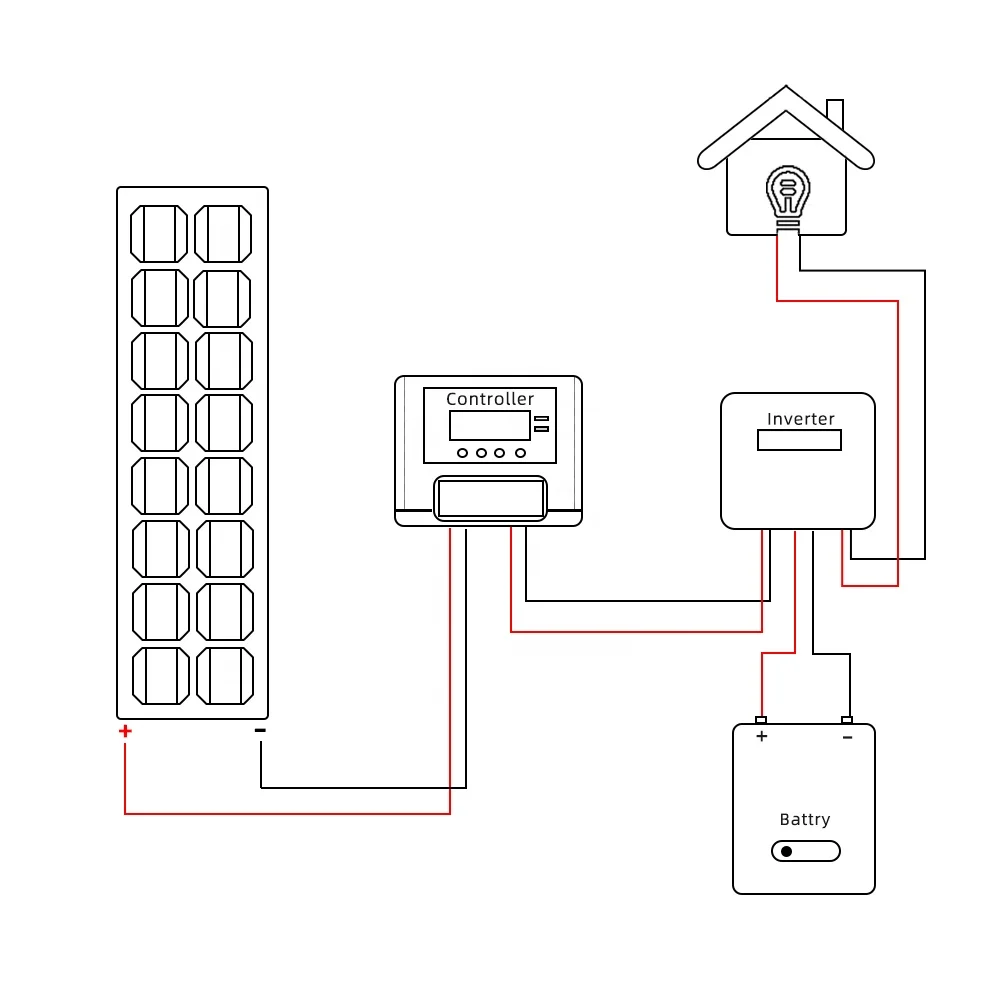

How does the hybrid solar home system work?
The solar panel absorbs sunlight and generates DC power,then the inverter converts the DC to AC. The whole solar home system will preferentially supply the energy to the household load, and the excess electricity will supply to the battery.
The advantages of hybrid solar home system.
Long-term and reliability of investment
People's investment in energy storage systems has developed with the development of power grids, our solar home system could help you save the electricity bills, with over 6000 times long cycle lifes will create long-term benefits and reliability for the next 10 years. Whereas peak solar energy generation occurs during midday, peak home energy consumption typically happens in the mornings and evenings. By pairing your solar home system with a battery, you can access low-cost clean electricity when you need it most and avoid higher utility rates.
Saving operating costs
The off grid solar home system could help power consumers who install energy storage in homes and commercial to save money. Energy storage can reduce the cost of providing frequency regulation and backup services, and save consumers money by storing low-cost energy. By using stored energy during short interruptions with the solar home system, your family can avoid power outages and continue normal daily power using.
Improve reliability and flexibility
The off grid solar home system can provide backup power during outages. The same concept of a backup power supply for a single device (such as a smoke alarm that plugs into a home but also has a backup battery) can be extended to the entire building or even the entire power grid.
The off grid solar home system provides flexibility for the home loads to ensure uninterrupted power supply to consumers from day and night and anywhere. This flexibility is crucial for improving the reliability and resilience of solar energy storage systems. As the cost of disruption continues to rise, the solar home system will also help to increase the value of enhancing reliability and resilience.
Integrate diversified resources
The solar home system can store excess energy through sunlight and transmit it when the opposite occurs to smooth the transmission of variable or intermittent resources such as solar energy.
The solar home system can also support efficient power supply for inflexible base load resources. When demand changes rapidly and flexibility is required, the solar home system can be injected or extracted as needed to accurately match the load.
Reducing environmental impact
Using lithium ion phosphate batteries, the solar home system is the safest way to provide you with enough energy. The solar home system can provide green energy which is cleaner through low-carbon and carbon-free resources.
Question 1: Are you a factory or a trader?
Answer 1: We are a manufacturer of Solar storage batteries, and we can also provide solutions for the entire solar system.
Answer 1: We are a manufacturer of Solar storage batteries, and we can also provide solutions for the entire solar system.
Question 2:What is the warranty period, and how many years?
Answer 2: The warranty period for batteries and inverters is 5-10years, and the warranty period for photovoltaic panels is 25 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. We have the professional engineers team can provide you the best solutions.
Question 4:How to become your agent?
Answer 4: Contact us through Alibaba/email, and we can talk about details to confirm.
Question 5: Do you support OEM/ODM?
Answer 5: Of course, we can do OEM/ODM services for our partners.
Question 6 : Should I choose a on grid system，hybrid on/off grid system，or off grid system？
Answer 6：Well，if you just need the system for your home use,choose the off grid system or hybrid system，and off grid system is much cheaper. And if you want to sell the power to the power grid，then you need to choose the hybrid system or on grid system.
Question7:How to choose the solar home system?
Answer7:Firstly, please help us to confirm the following questions:
What is your monthly electricity consumption kWh?
What appliances does your house have? Or can you show me the electricity bill?
How many hours do you want the battery to backup?
After getting your confirm, our professional engineers team will custom and design a most suitable and most economical solar home system for you.
Question8:How to install the solar home system？
Answer8:It is easy to install the solar home system, please follow the guiding brochure step by step. And if you have any questions,our engineers could also teach you on line.
Answer 2: The warranty period for batteries and inverters is 5-10years, and the warranty period for photovoltaic panels is 25 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. We have the professional engineers team can provide you the best solutions.
Question 4:How to become your agent?
Answer 4: Contact us through Alibaba/email, and we can talk about details to confirm.
Question 5: Do you support OEM/ODM?
Answer 5: Of course, we can do OEM/ODM services for our partners.
Question 6 : Should I choose a on grid system，hybrid on/off grid system，or off grid system？
Answer 6：Well，if you just need the system for your home use,choose the off grid system or hybrid system，and off grid system is much cheaper. And if you want to sell the power to the power grid，then you need to choose the hybrid system or on grid system.
Question7:How to choose the solar home system?
Answer7:Firstly, please help us to confirm the following questions:
What is your monthly electricity consumption kWh?
What appliances does your house have? Or can you show me the electricity bill?
How many hours do you want the battery to backup?
After getting your confirm, our professional engineers team will custom and design a most suitable and most economical solar home system for you.
Question8:How to install the solar home system？
Answer8:It is easy to install the solar home system, please follow the guiding brochure step by step. And if you have any questions,our engineers could also teach you on line.
