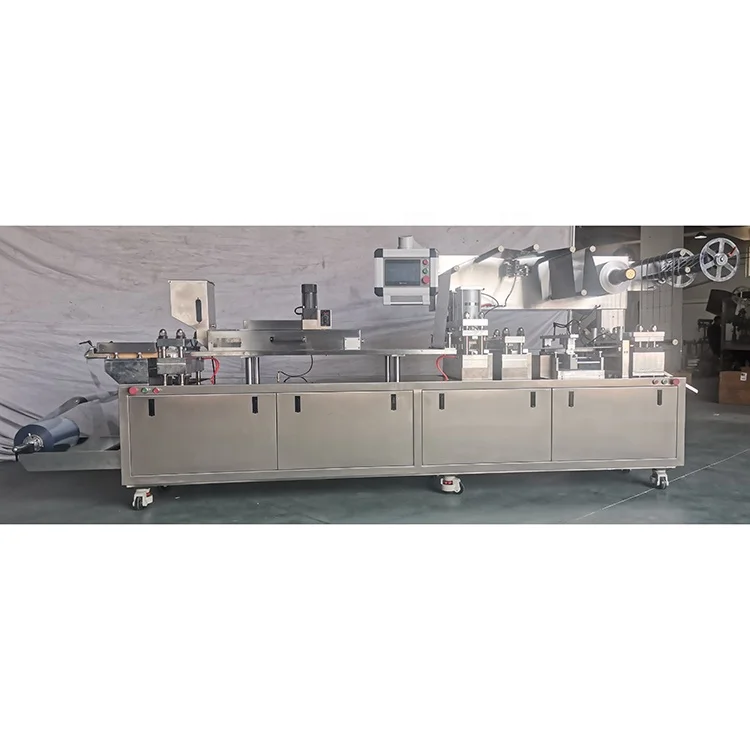

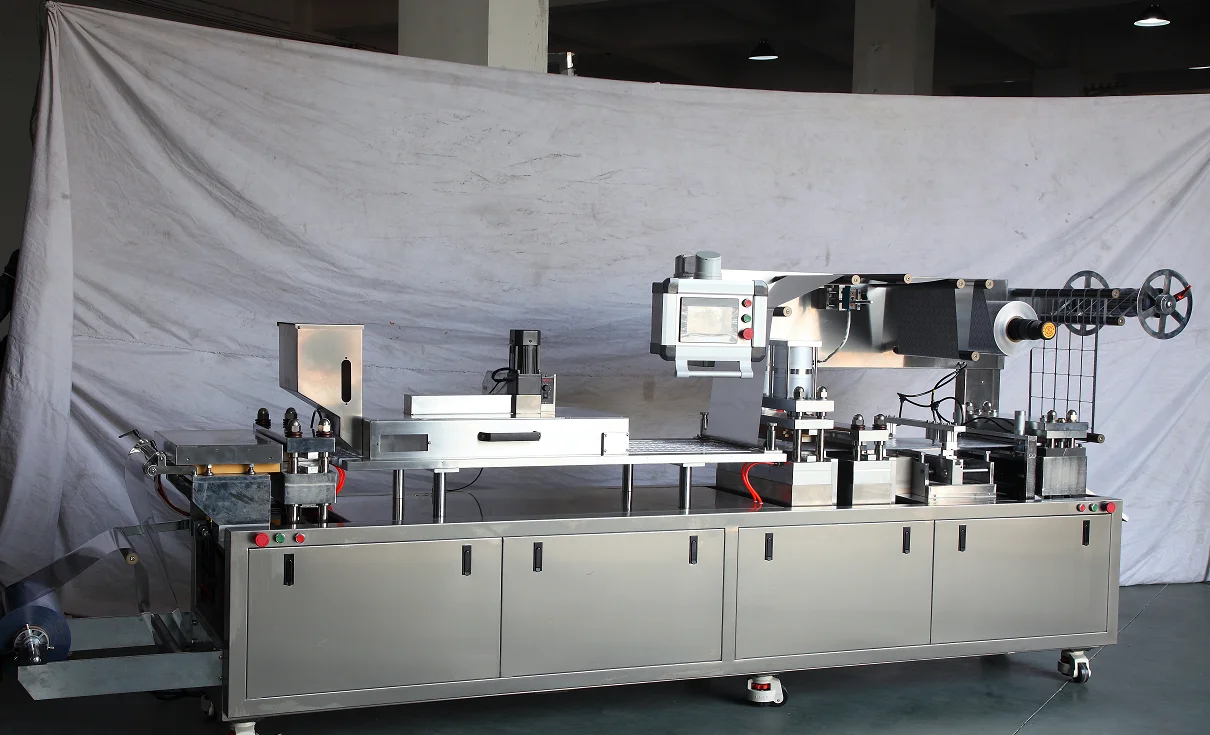

DPP420 Automatic High Speed Eyemark Servo Motor Camera Inspection Blister Packing Machine For Tablet Capsule Liquid Jam Sauce
- Category: >>>
- Supplier: Wenzhou Youngstar Machinery Co. Ltd.
Share on (1600883522751):
Product Overview
Description
Specification
Model | DPP420S | DPP420S-2 |
Photocell (eye marking) System | Sealing foil eye marking system | Forming and sealing two sides eye marking system |
Cutting Frequency | 10-35 time/min | |
Max.Forming Area And Depth | 390*150*26mm | |
Travel Range | 40-160mm | |
Air Pressure | 0.4-0.7Mpa | |
Air Supply | ≥ 0.35 m3/min | |
Total Power | 380V/220V 50Hz 9.7kw | 380V/220V 50Hz 22kw |
Main Motor Power | 2.2kw | |
Material Width | 0.25-0.5*420mm(PVC) 0.02-0.035*420mm(ALU FOIL) | |
Mould Cooling | Tap water or circulating water | |
Overall Dimensions(L*W*H) | 4000*950*1600mm | 5700*590*2000 |
Weight | 1800kg | 2000kg |
Product Description
Usage
It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Al-al, Al-plastic or paper-plastic packing in healthcare, food, cosmetics, medical equipment industry etc.
PICTURES:

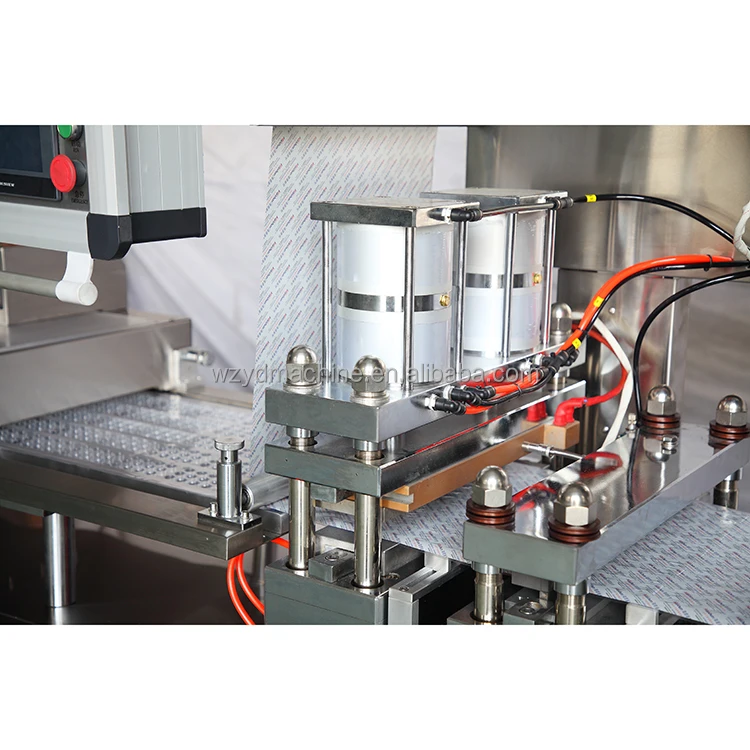

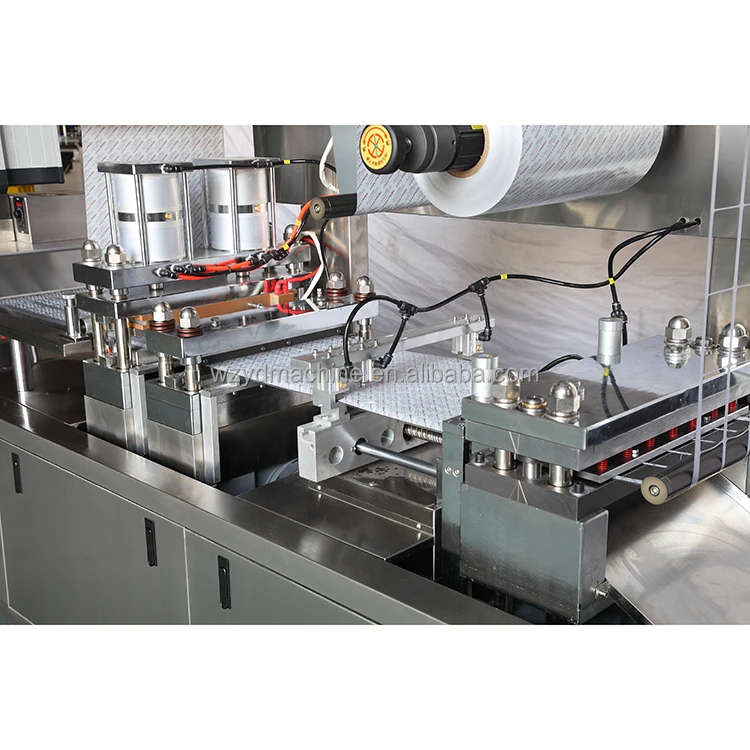

HEAT-SEALING PERFORATION TRACTION

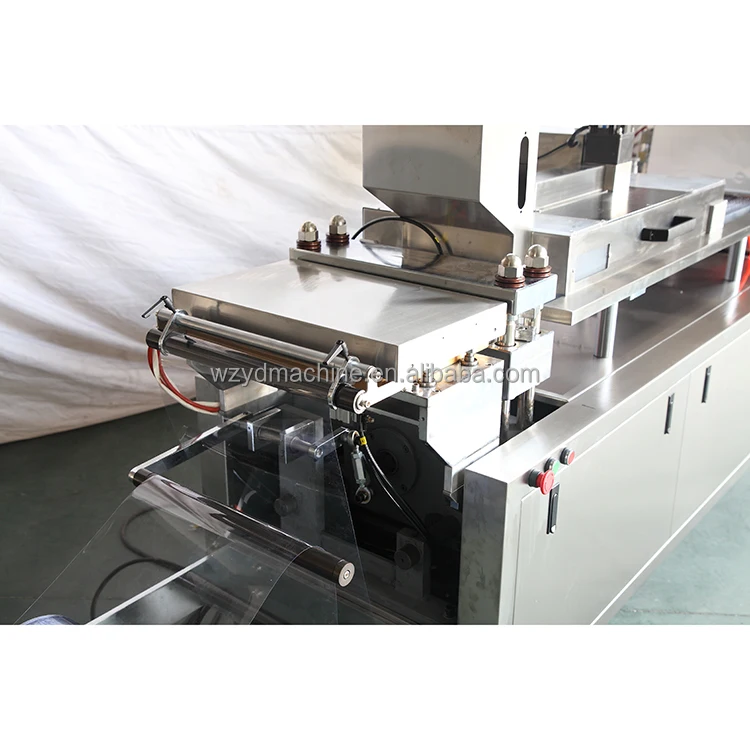

Heating and forming station
UNIVERSAL FEEDER
SERVO MOTOR TRACTION

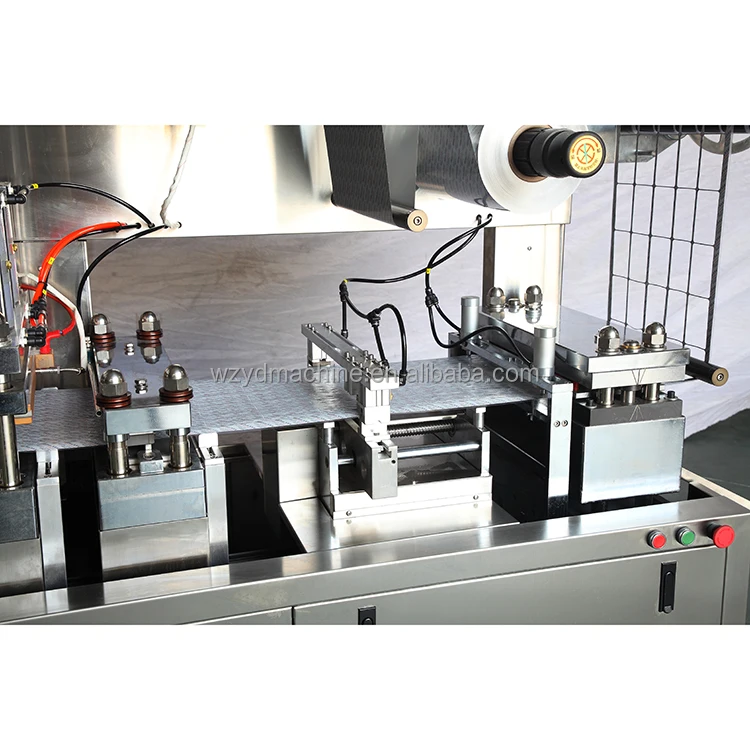

Cutting station
PLC control, touch screen operation

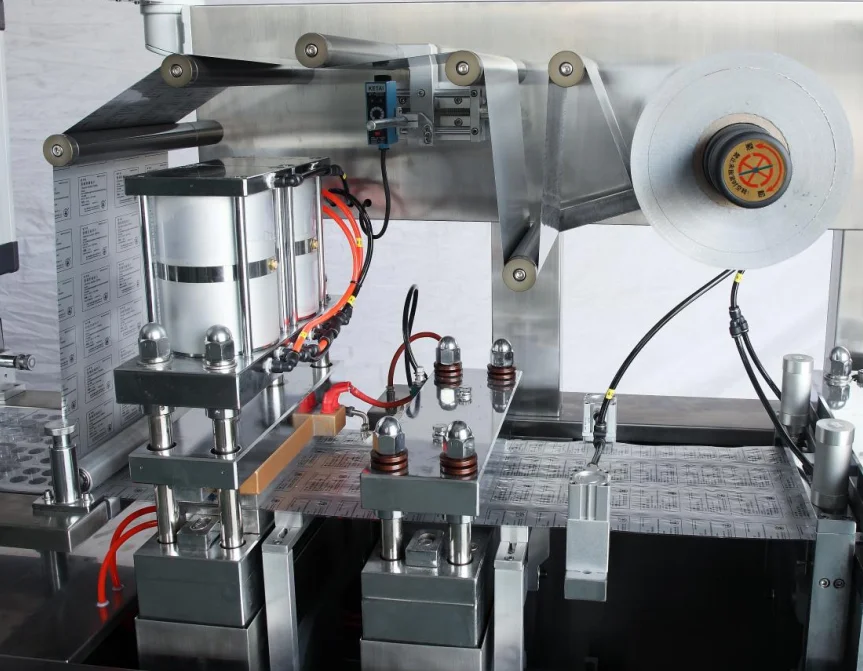

Eye marking sensor
