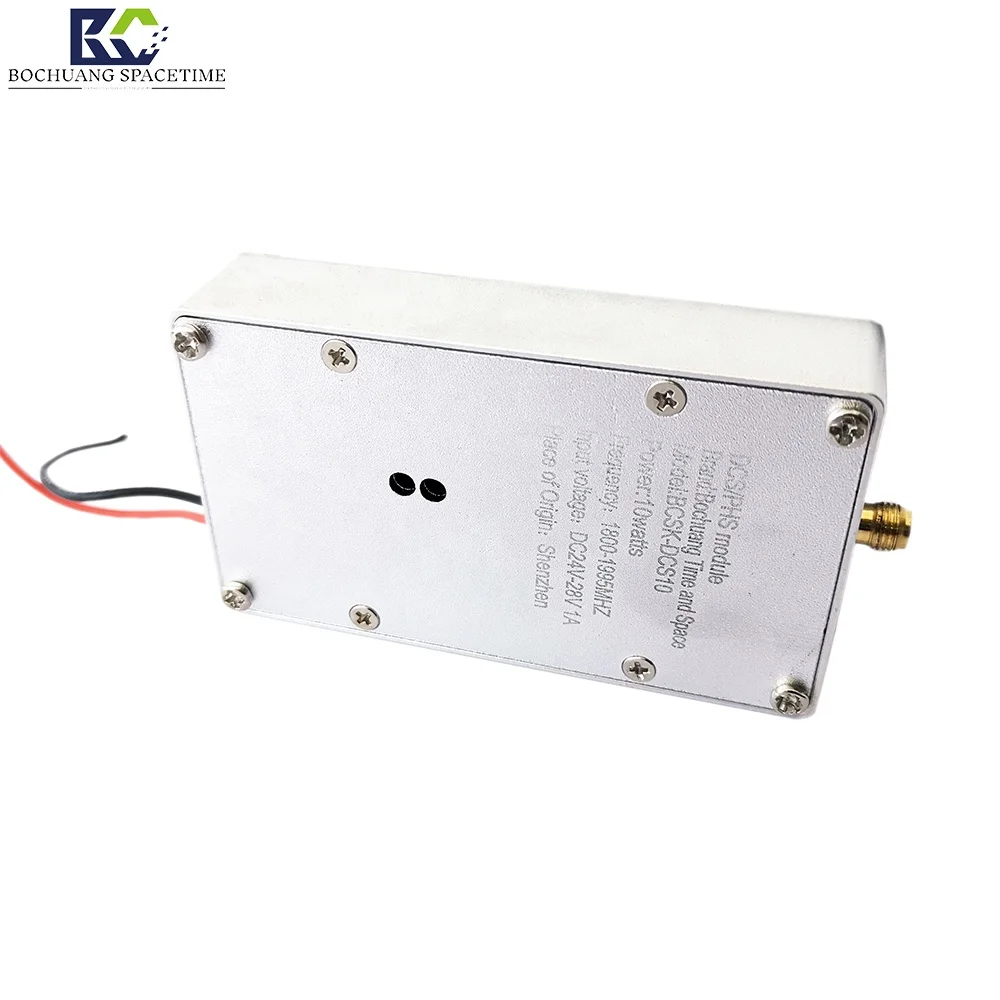

DCS/PHS 1800 1995MHZ 10W 100W signail blocker gprs catcher gsm controller interceptor circuit professional power amplifier modul

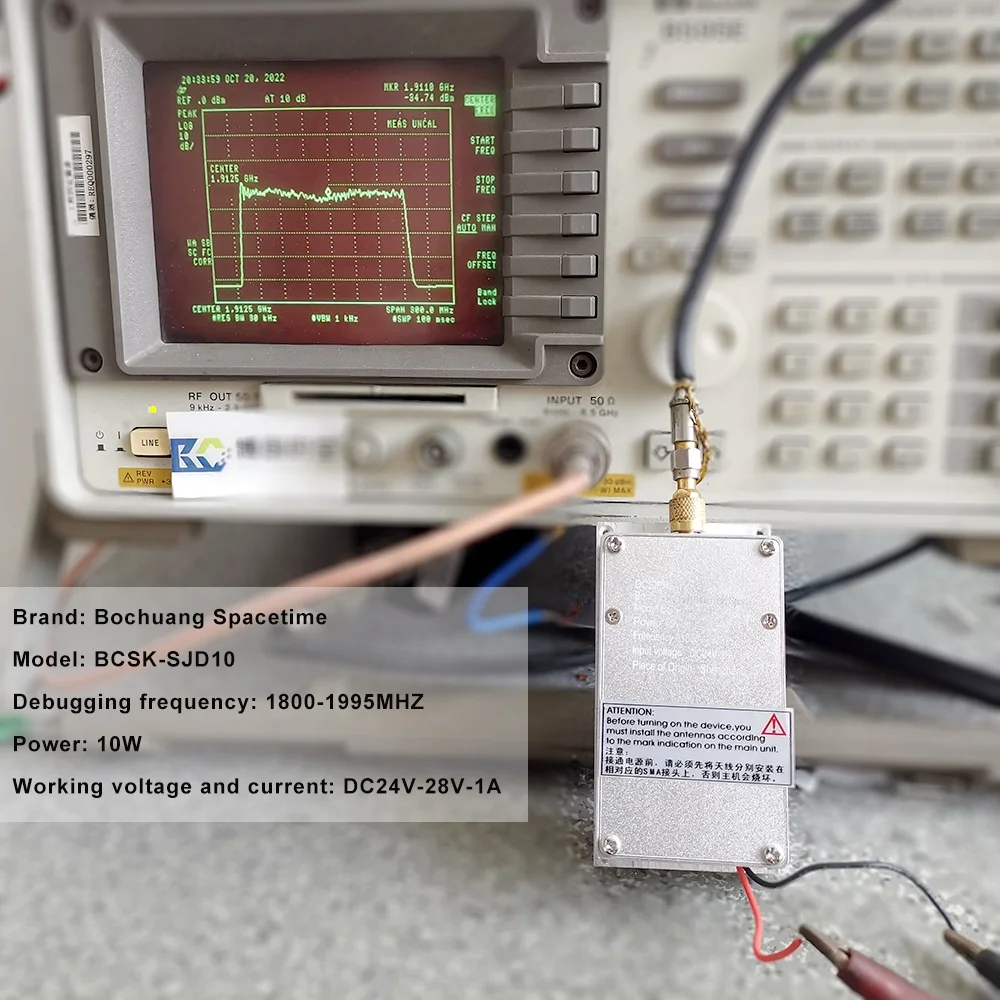

Model

BCSK-SJD10

power

10W-100W (optional)

Transmission frequency

A:1800MHZ-1885MHZ

INPUT VOLTAGE

DC24V-28V

output current

1A-(Different power, different current)

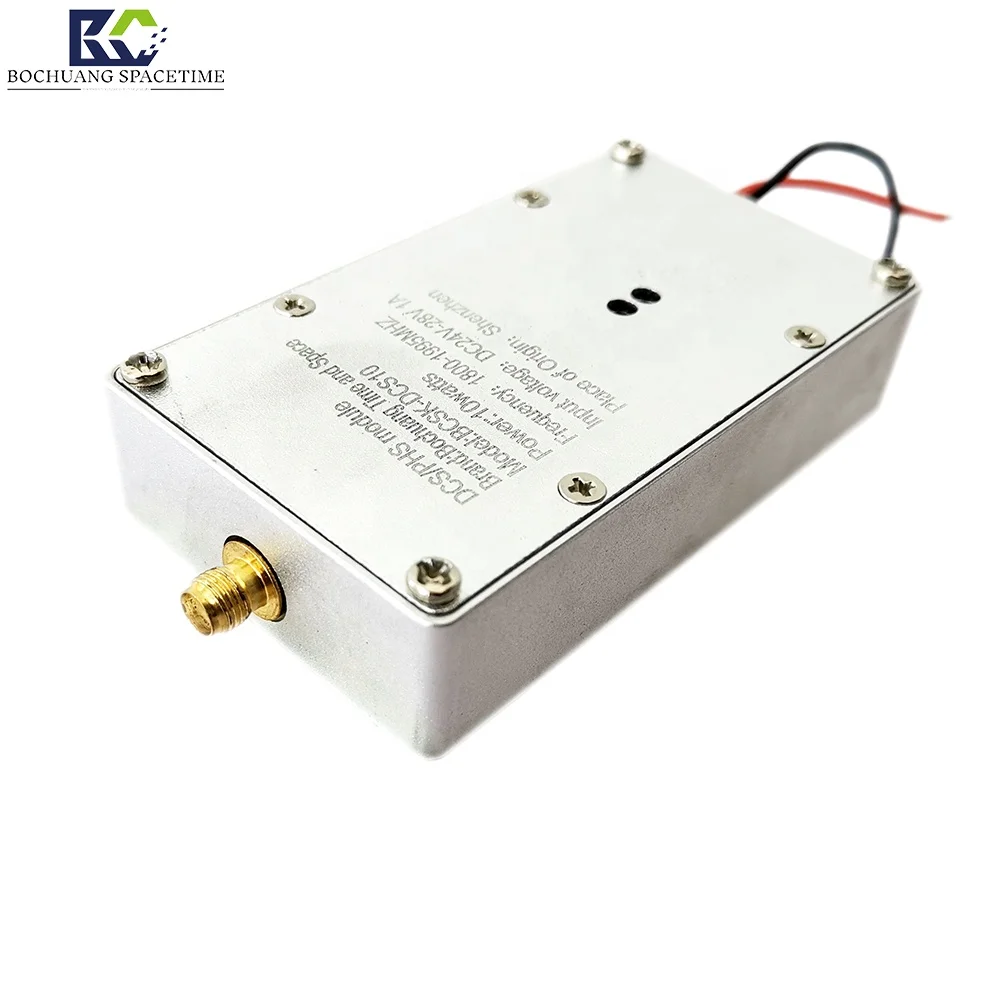

output interface

RFSMA (female)

Connector Impedance

50Ω

Optional frequency

CDMA/GSM/3G/4G/5G/315M/433M/868M/915M/1.5G/2.4G/5.2G/5.8G……

Warm prompt

The red line represents the positive pole of the power supply, the black line represents the negative pole, and the yellow line
represents the control line (which can be used in parallel with the red line). Before powering on, please connect the output
connector to a 50 Ω impedance antenna, otherwise the module will be burned out!
