Настраиваемый быстрый многофункциональный вентилятор кофейный стаканчик бумажный стаканчик логотип печатная машина
- Category: >>>
- Supplier: Wenzhou Dingyu Machinery Co. Ltd.
Share on (1600884138299):
Product Overview
Description
Products Description

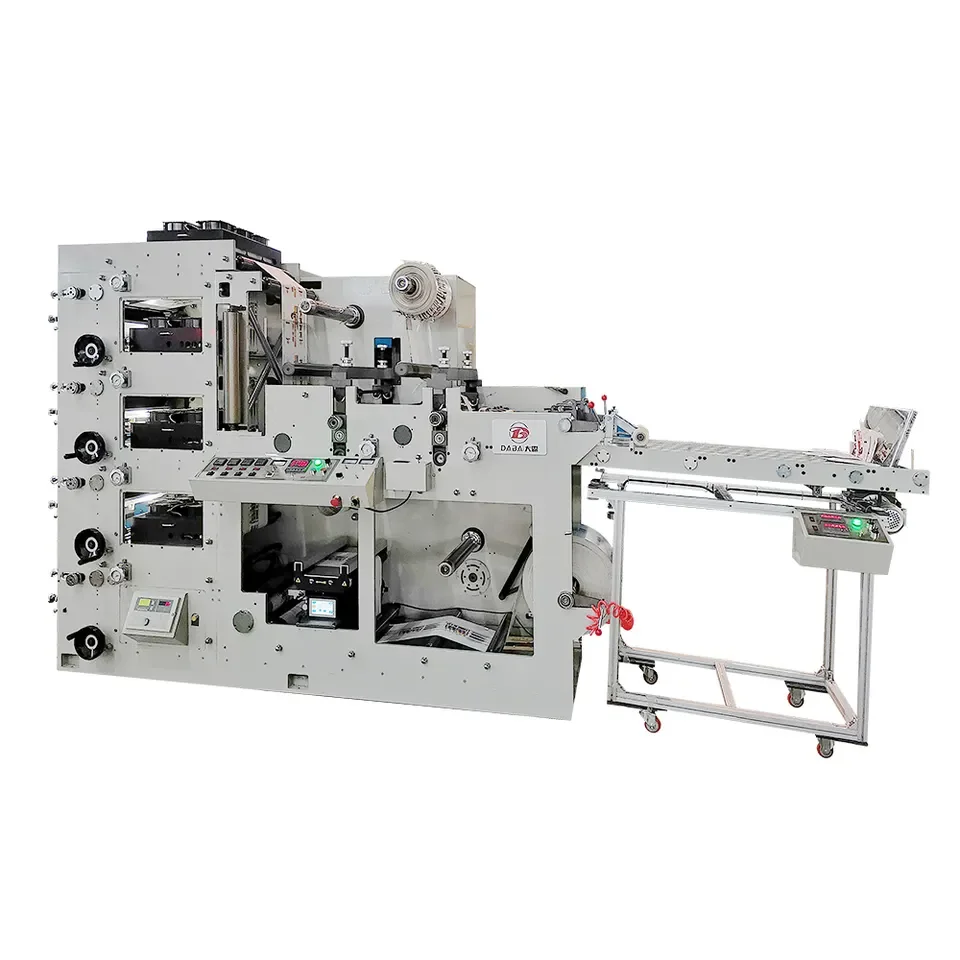

DBRY320 4 Color Narrow Web Paper Cup Fan Printing Machine With In-line Die Cutting
* 1. Slightly slower than wide web paper cup printing die-cutting machines.
* 2. suitable for small production volume customers.
* 3.The price is much lower than the wide web printing die-cutting machine
* 2. suitable for small production volume customers.
* 3.The price is much lower than the wide web printing die-cutting machine
Machine Parameter | ||
Model | DBRY320-4C | |
Printing speed | 70m/min | |
Printing color quantity | 4 | |
Max. unwinding width | 350mm | |
Max. Printing width | 320mm | |
Min. Printing width | 60mm | |
Max. unwinding diameter | 600mm | |
Max. rewinding diameter | 600mm | |
Precision of chromatography | ±0.10mm | |
Machine weight | 2700KG | |
Application and Sample
Details Images
Unwinding Unit
Suitable for 180-380g/mm paper material.
corona treatment(optional configuration）
Suitable for pe coated paper materials
Printing Unit
four colors printing unit
water based ink
Infrared dryer （optional configuration）
UV dryer is for option
In-line die cutting unit
low price：The total price is only about $27,000
Unwinding Unit
1.1 Unwinding
Auto tension control–No roll-followers or external sensors to be adjusted or maintained. Support a stable unwinding tension
1.2Corona treatment(Optional)
Auto tension control–No roll-followers or external sensors to be adjusted or maintained. Support a stable unwinding tension
1.2Corona treatment(Optional)
Web guide system
EPC system to ensure the printing material the lateral position before feeding to the printing station.
Ultrasonic Web Guide System,transparent products can be easily detected. The precision is ±0.1mm.
Splice Table
IR Dryer

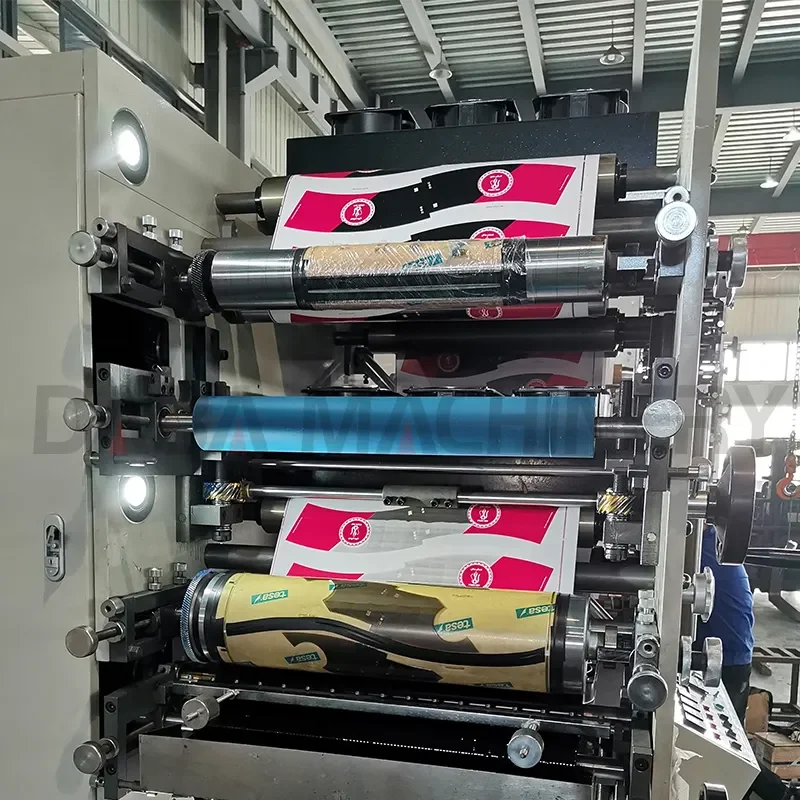

Flexo Printing Unit
four colors printing unit
Turn Bar Horizontal Adjuster
quick change air shaft. Feeding by motor.
Turn Bar Vertical Adjuster
quick change air shaft. Feeding by motor.
Water Based Ink
Control Panel
Waste Matrix Remove Unit

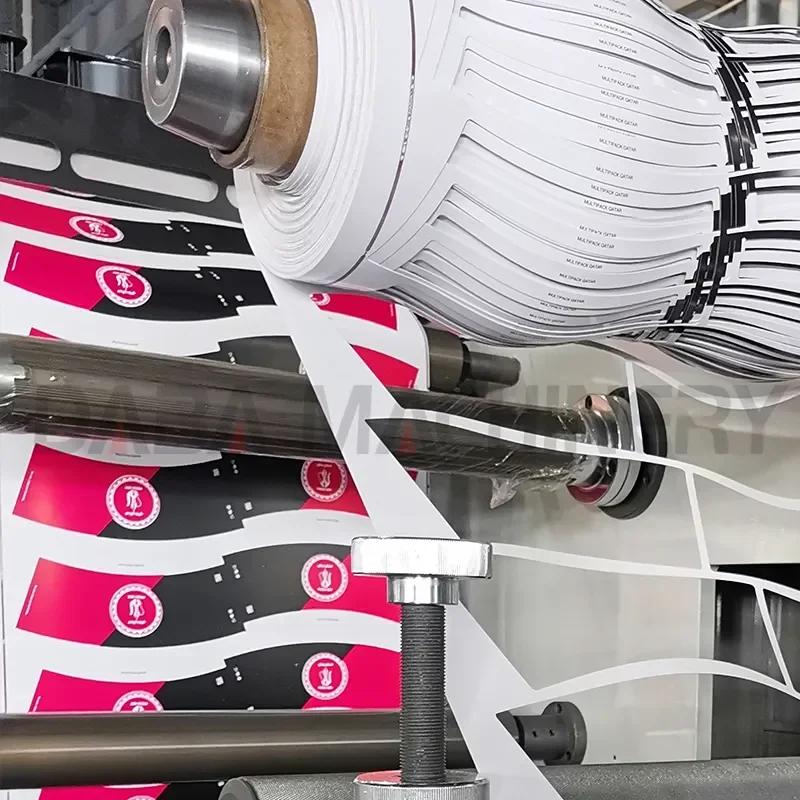

Die Cutting Unit
With 8 pcs rotary knives Automatic magnetic powder tension control Special blades can be customized according to the product

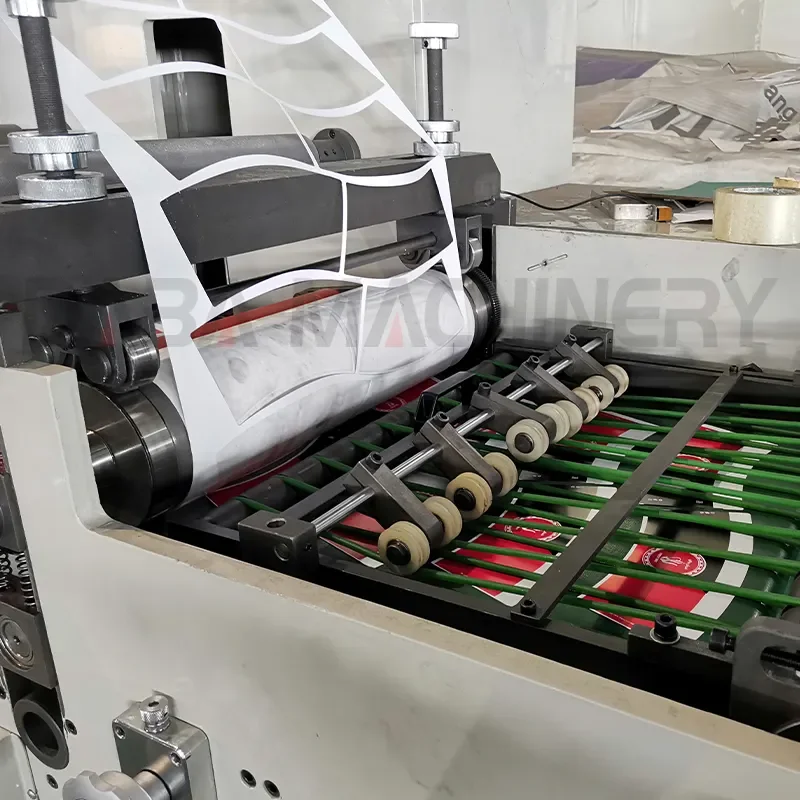

Sheet Conveyer and Stacking Table
In Factory Photo
Services
1.Purchase Service
DABA COMPANY have a specialize and efficiency working team.If you are new onthe printing and packing area Some samples of your
products could be shew to uswill be appreicate we will give you specialized suggestion of whole work
2.Shipping Service
DABA COMPANY have a spcialized and independent department which just for
shipping the buyer's goods.The workers are knowing T/T,L/C Items well.All Exporteddocuments could be made perfectly
DABA COMPNAY cooperate with the most famous shipping company in China also.
They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all DABA Company machines.DABA Comapnywill dispatch technician to The Buyer's factory to
installation and preoperation ofmachines But the buyer need to surpply the round trip tickets food hotel cost.
4.Clients Training Services
DABA Company advise The buyer could send own technican come to DABA factoryto learn how to operate machines.DABA Company
technician will teach and train thelerners hand by hand till he can operate machine by himself.
Obviouslly,Traning within Installation period is acceptable.
5.After Sales Service
DABA Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with
machines.Any parts broken Just a pictures or a videos.The new free parts will reachwithin 3-7 Express working days.
DABA COMPANY have a specialize and efficiency working team.If you are new onthe printing and packing area Some samples of your
products could be shew to uswill be appreicate we will give you specialized suggestion of whole work
2.Shipping Service
DABA COMPANY have a spcialized and independent department which just for
shipping the buyer's goods.The workers are knowing T/T,L/C Items well.All Exporteddocuments could be made perfectly
DABA COMPNAY cooperate with the most famous shipping company in China also.
They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all DABA Company machines.DABA Comapnywill dispatch technician to The Buyer's factory to
installation and preoperation ofmachines But the buyer need to surpply the round trip tickets food hotel cost.
4.Clients Training Services
DABA Company advise The buyer could send own technican come to DABA factoryto learn how to operate machines.DABA Company
technician will teach and train thelerners hand by hand till he can operate machine by himself.
Obviouslly,Traning within Installation period is acceptable.
5.After Sales Service
DABA Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with
machines.Any parts broken Just a pictures or a videos.The new free parts will reachwithin 3-7 Express working days.
Contact
Packaging
Company Profile
FAQ
Q: What's your delivery date?
A: Usually finish the production within 30days after your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T, 30% in advance and 70% balanced against B/L copy.
We accept L/C at sight. We accept Cash.
Q: How many days will you finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, however, if require overseas service, you need pay salary to our technician 100USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
Q: How many worker do we need running those machines?
A: For flexo printing, slitting, die-cutting machine, only need one person for each.
Q: What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100USD one day per person.
A: Usually finish the production within 30days after your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T, 30% in advance and 70% balanced against B/L copy.
We accept L/C at sight. We accept Cash.
Q: How many days will you finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, however, if require overseas service, you need pay salary to our technician 100USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
Q: How many worker do we need running those machines?
A: For flexo printing, slitting, die-cutting machine, only need one person for each.
Q: What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100USD one day per person.
