Electric Wire Rope Pulling Mining Winch 5 Ton 10 Ton 15 Ton
- Category: Winches >>>
- Supplier: Henan,Nybon,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Electric Wire Rope Pulling Mining Winch 5 Ton 10 Ton 15 Ton
This series electric winch is is made up of motor, brake, drum, wire rope, electrical appliance, base ect ; Electric winch is mainly used for Vertical lifting, Horizontal pulling, Mooring, Anchoring, slipway, mine,Hydro power station,etc.It is suitable for various bridges, ports, docks, ships and other projects and large-scale plant and equipment installation projects.
We can customize according to customer requirement.
1. Which driven method do you require?
2. What is your application?
3. What capacity winch you need?
4. How long wire rope need?
5. Do you have speed requirement?
We can customize according to customer requirement.
1. Which driven method do you require?
2. What is your application?
3. What capacity winch you need?
4. How long wire rope need?
5. Do you have speed requirement?
Load Capacity:0.5-200t
Wire Rope Capacity:20-3600m
Working Speed:5-20m/min(Single Speed and Daul Speed)
Power supply:220v-690V,50Hz/60Hz,3Phase
Type | Rated Load (kN) | Rated Speed (m/min) | Rope Capacity (m) | Rope Diameter (mm) | Motor Type | Motor Power (kW) | ||||||
JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | ||||||
JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | ||||||
JM5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | ||||||
JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | ||||||
JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | ||||||
JM16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 | ||||||
JM20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 | ||||||
JM25 | 250 | 9 | 700 | 48 | YZR280M-8 | 55 | ||||||
JM32 | 320 | 9 | 700 | 56 | YZR315S-8 | 75 | ||||||
JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | ||||||
JK Type Electric Winch
Load Capacity:0.5-60t
Load Capacity:0.5-60t
Wire Rope Capacity:20-500m
Working Speed:20-35m/min(Single Speed and Daul Speed)
Power supply:220v-690V,50Hz/60Hz,3Phase
Basic Parameters | Rated Load | Average Speed of Rope | Capacity of Rope | Rope Diameter | Electromtor Power | Overall Dimension | Total Weight | |||||||
Model | KN | m/min | m | mm | KN | mm | kg | |||||||
JK0.5 | 5 | 22 | 190 | 7.7 | 3 | 620×701×417 | 200 | |||||||
JK1 | 10 | 22 | 100 | 9.3 | 4 | 620×701×417 | 300 | |||||||
JK1.6 | 16 | 24 | 150 | 12.5 | 5.5 | 945×996×570 | 500 | |||||||
JK2 | 20 | 24 | 150 | 13 | 7.5 | 945×996×570 | 550 | |||||||
JK3.2 | 32 | 25 | 290 | 15.5 | 15 | 1325×1335×840 | 1011 | |||||||
JK5 | 50 | 30 | 300 | 21.5 | 30 | 1900×1620×985 | 2050 | |||||||
JK8 | 80 | 25 | 160 | 26 | 45 | 1533×1985×1045 | 3000 | |||||||
JK10 | 100 | 30 | 300 | 30 | 55 | 2250×2500×1300 | 5100 | |||||||
Successful Project
Customer Praise
Exhibition
Certifications
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Machining Equipment
Company Profile
Nybon Machinery is a leader in providing overhead cranes,gantry crane,jib cranes,ship cranes,electric winches,hydraulic
winches,diesel winches,electric hoist and relative components for shipyard,automotive,material handling, specialty machinery, and workshop solutions. Our diverse portfolio also includes a wide range of lifting products for industrial, commercial and specialty applications.
winches,diesel winches,electric hoist and relative components for shipyard,automotive,material handling, specialty machinery, and workshop solutions. Our diverse portfolio also includes a wide range of lifting products for industrial, commercial and specialty applications.
NYBON, JUST FOR YOUR TRUST!

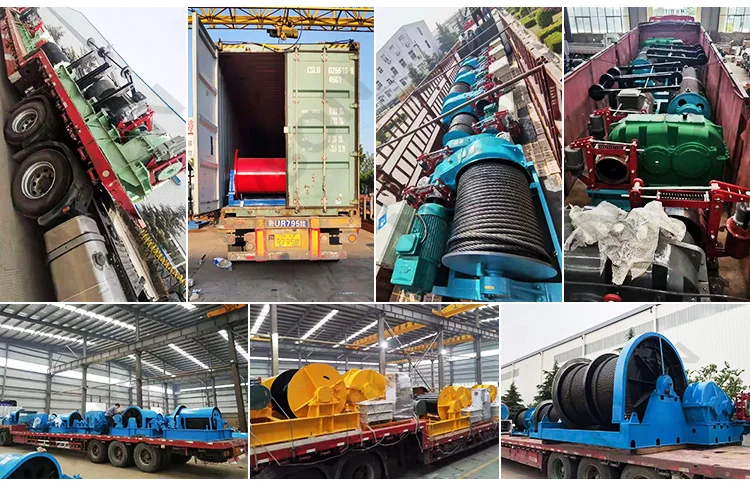

Delivery
FAQ
Q.Can i have a price?
After getting your parameters,we will offer you a accurate price.
Q.Can I customize products?
Yes,we can offer OEM and ODM services
Q.What’s your delivery period?
Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q.Do you have engineer oversea installation service?
Yes; We have;
Q.What kinds of products do you have?
All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist;
Radial/Flat Gate Hoist; Steel Gate; etc.
Q.Do you offer after-sales service?
We have after-sales team to support you.
Q.How long will it take to ship to my country?
For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide these details so that I can quote the most cost-effective option.
After getting your parameters,we will offer you a accurate price.
Q.Can I customize products?
Yes,we can offer OEM and ODM services
Q.What’s your delivery period?
Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q.Do you have engineer oversea installation service?
Yes; We have;
Q.What kinds of products do you have?
All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist;
Radial/Flat Gate Hoist; Steel Gate; etc.
Q.Do you offer after-sales service?
We have after-sales team to support you.
Q.How long will it take to ship to my country?
For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide these details so that I can quote the most cost-effective option.
Dear friends, in order to offer you the suitable winches, please provide the following parameters:
1. What place Do you use it?
2. Use for lifting or dragging?
3. Is explosive-proof needed?
4. Load and Rope capacity?
5. Power voltage ?
1. What place Do you use it?
2. Use for lifting or dragging?
3. Is explosive-proof needed?
4. Load and Rope capacity?
5. Power voltage ?
