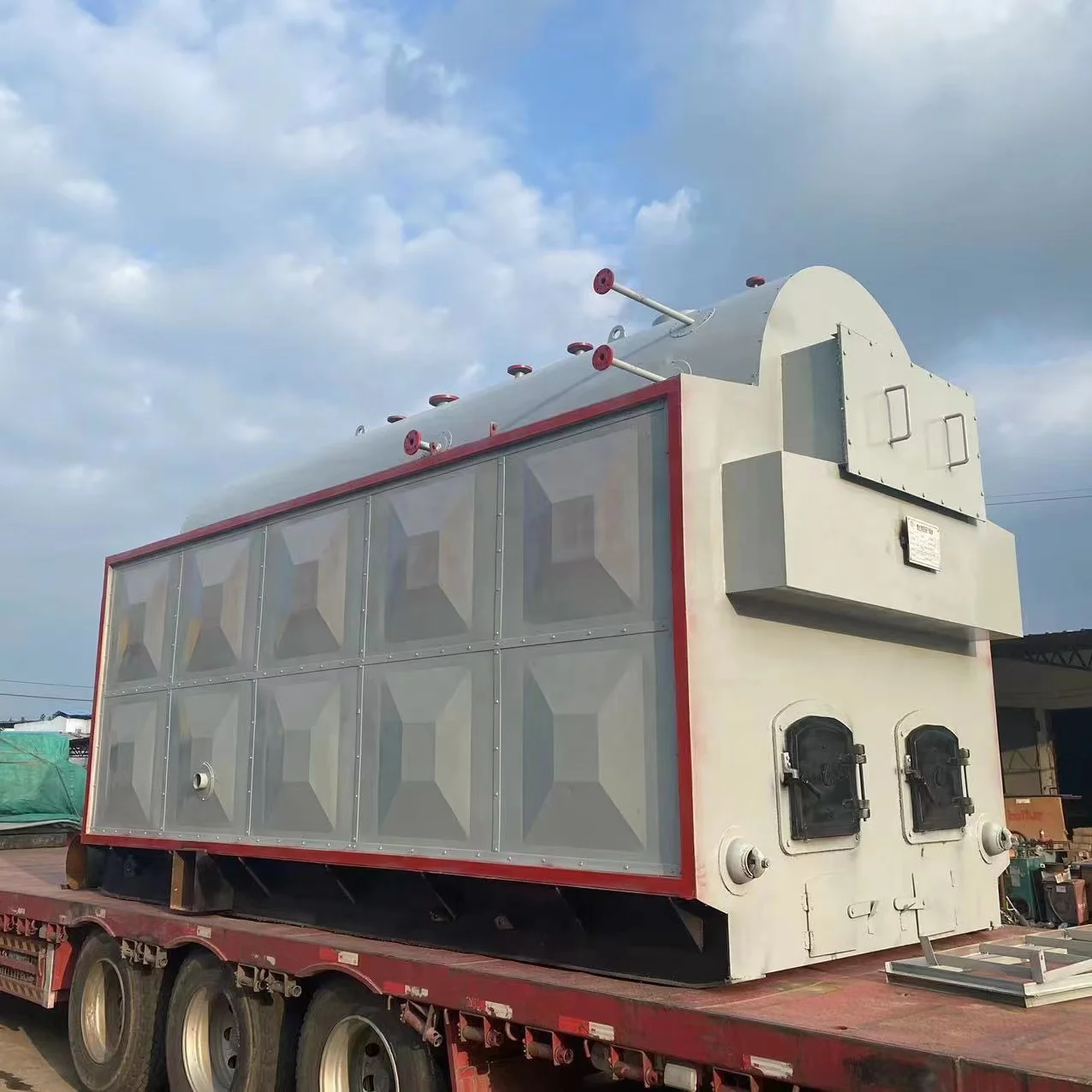

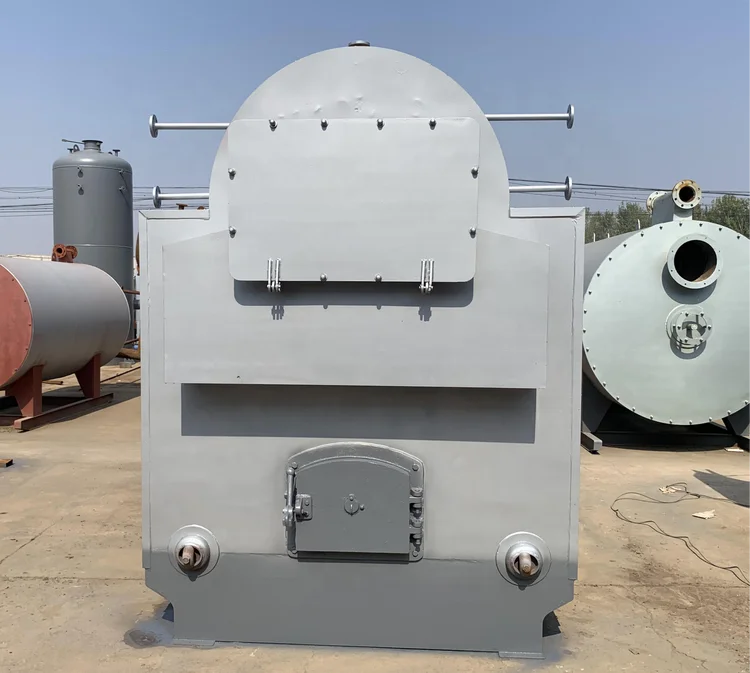

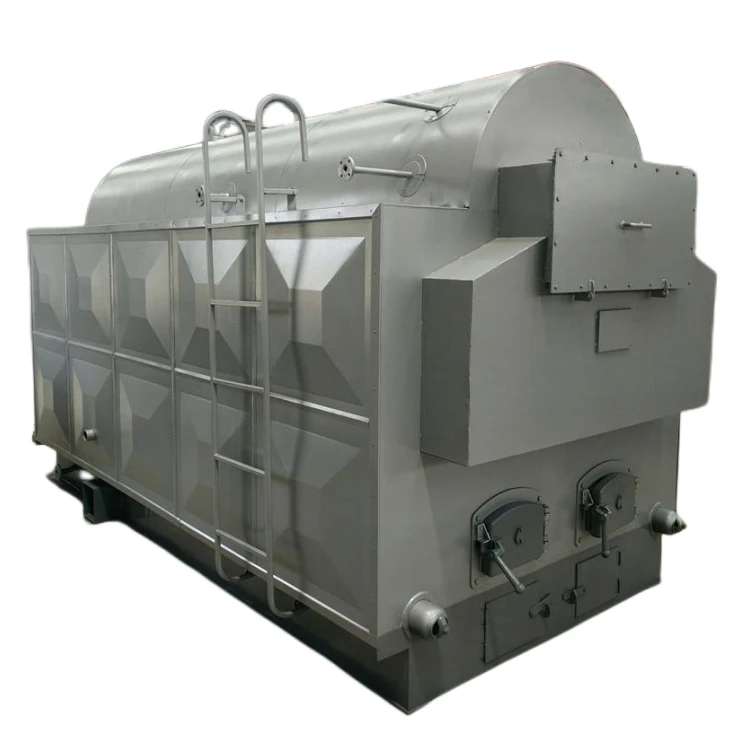

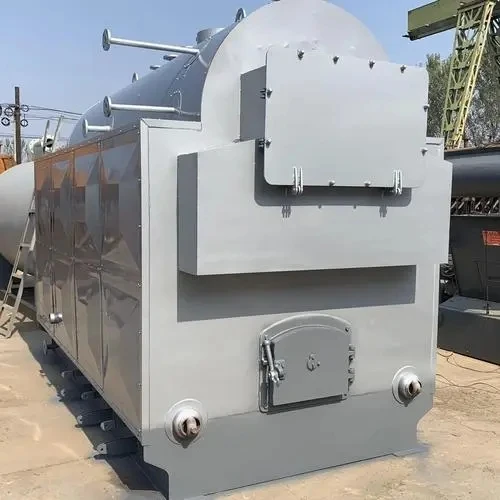

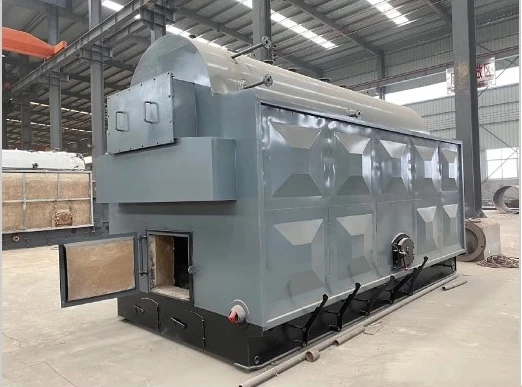

Price Manual Boiler Steam Out 1ton to 10ton Fire Tube Dual Fuel Wood fuel Steam Boiler Used For Food Processing Plant
- Category: >>>
- Supplier: Xinxiang Xinda Boiler Container Co. Ltd.
Share on (1600884213075):
Product Overview
Description
Products Description
Industrial DZH Series Horizontal Hand Fixed Grate Coal Fuel Steam Boilers
Model:DZH Type Moving Grate Stoker Boiler
Structure:WaterTube Fire Tube Three Pass
Rated Steam Capacity:1-10 ton/hr
Rated Steam Pressure:0.7/1.0/1.25/1.6/2.5 Mpa
Rated Steam Temperature:170/184/194/204/225 C
Application:Textile Mill, Food & Beverage, Chemical, Rubber, Printing Plant, Paper Mill, Wood Processing
Model:DZH Type Moving Grate Stoker Boiler
Structure:WaterTube Fire Tube Three Pass
Rated Steam Capacity:1-10 ton/hr
Rated Steam Pressure:0.7/1.0/1.25/1.6/2.5 Mpa
Rated Steam Temperature:170/184/194/204/225 C
Application:Textile Mill, Food & Beverage, Chemical, Rubber, Printing Plant, Paper Mill, Wood Processing

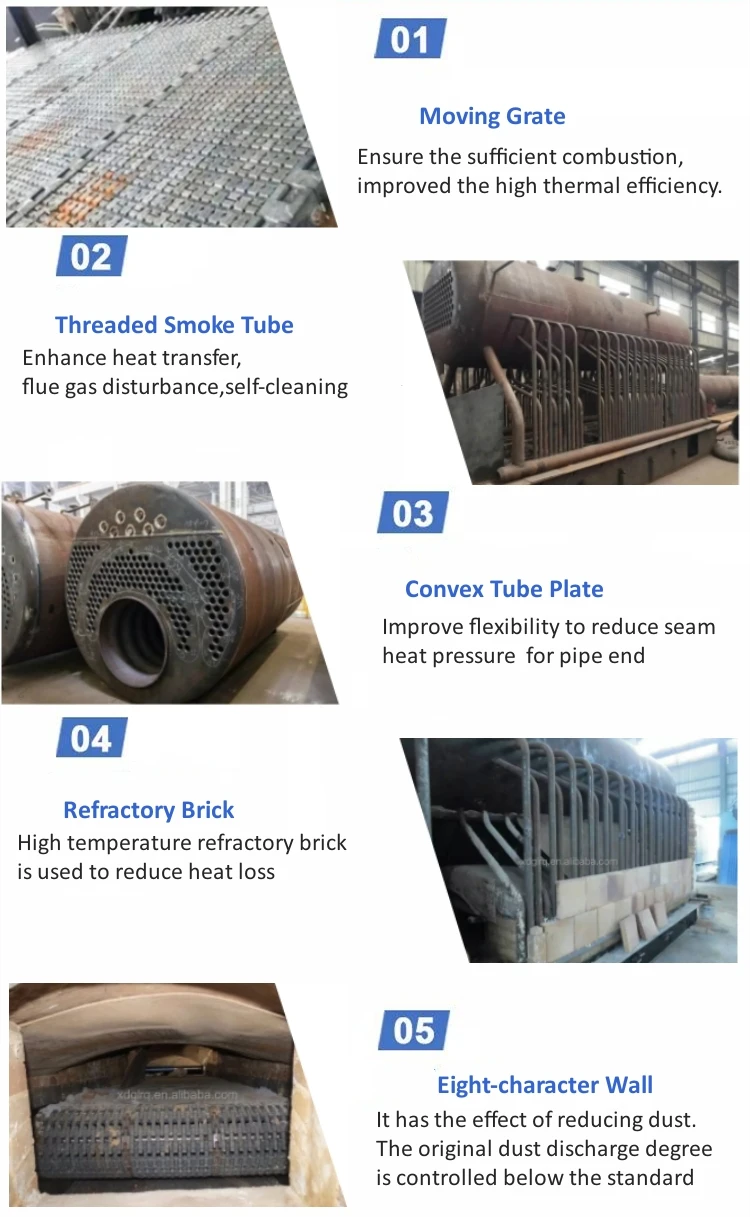

Boiler advantage
Technical Parameters
Boiler Model | DZH1-1.0 | DZH2-1.25 | DZH4-1.25 | DZH6-1.25 | DZH8-1.25 | ||||
Rated steam capacity(T/H) | 1 | 2 | 4 | 6 | 8 | ||||
Rated steam pressure(Mpa) | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | ||||
Rated steam temperature(℃) | 184 | 194 | 194 | 194 | 194 | ||||
Thermal efficiency(%) | >82 | ||||||||
Fuel type | Biomass, wood,coal | ||||||||
Fuel consumption(Kg/h) | 187 | 375 | 758 | 1125 | 1508 | ||||
Max transportation weight(t) | 15.2 | 23.8 | 27 | 40 | 45 | ||||
Fuel
DZH industrial low pressure horizontal automatic biomass steam boilers are suitable for coal and many kinds of biomass fuels, such as charcoals, biomass pellets, wood pellets, wood chips, wood shavings, sawdust, wood waste, wood residues, wood cuttings, wood strips, rice husks, rice stalks, straws, paddy stalks, corncobs, cornstalks, cotton stalks, bagasses, peanuts shell, coconuts shell, walnuts shells, oil palm shell, grain shell, olive residues, leaves, barks, crop wastes, etc.
Application

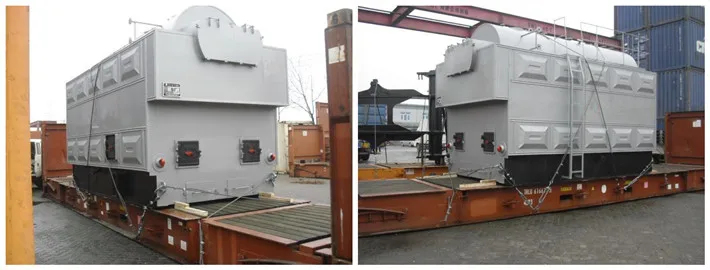

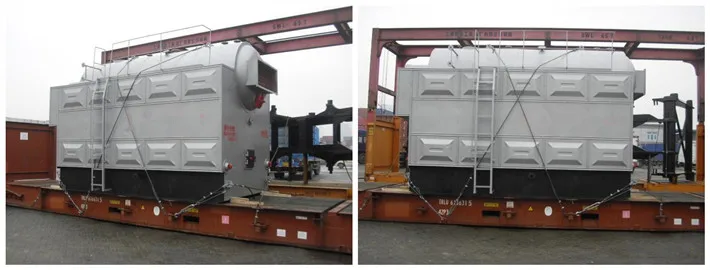

Product packaging

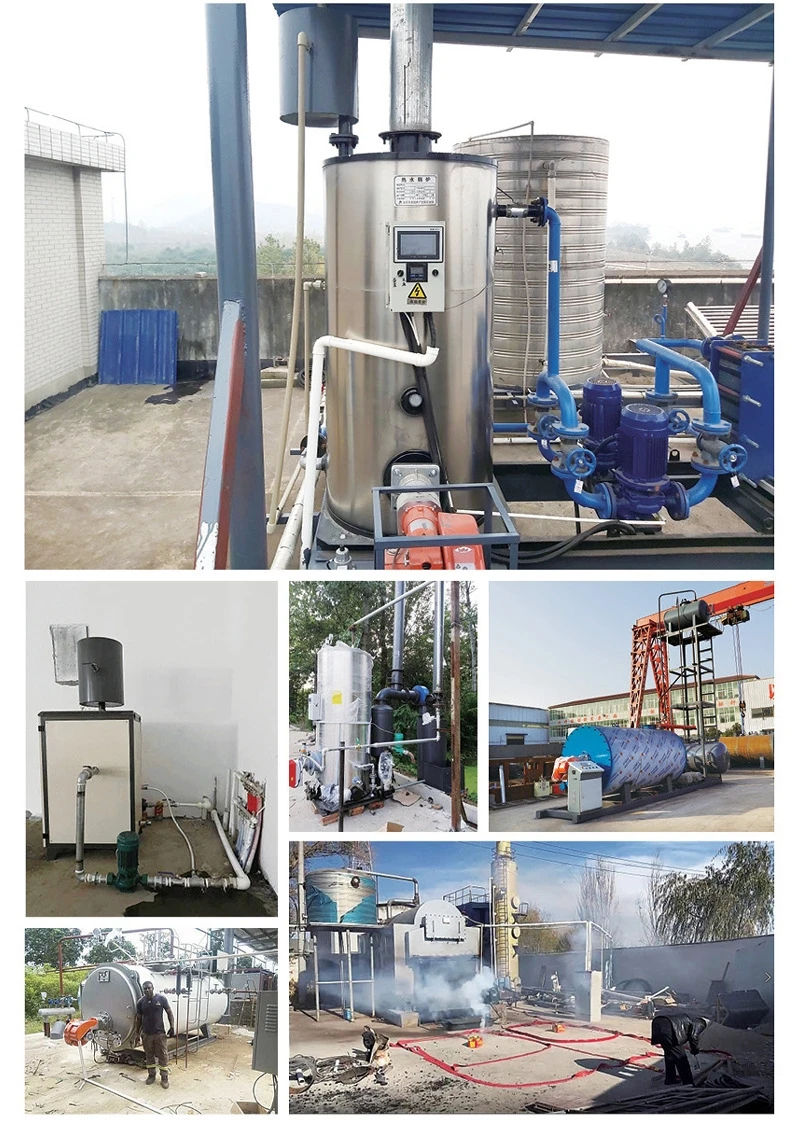

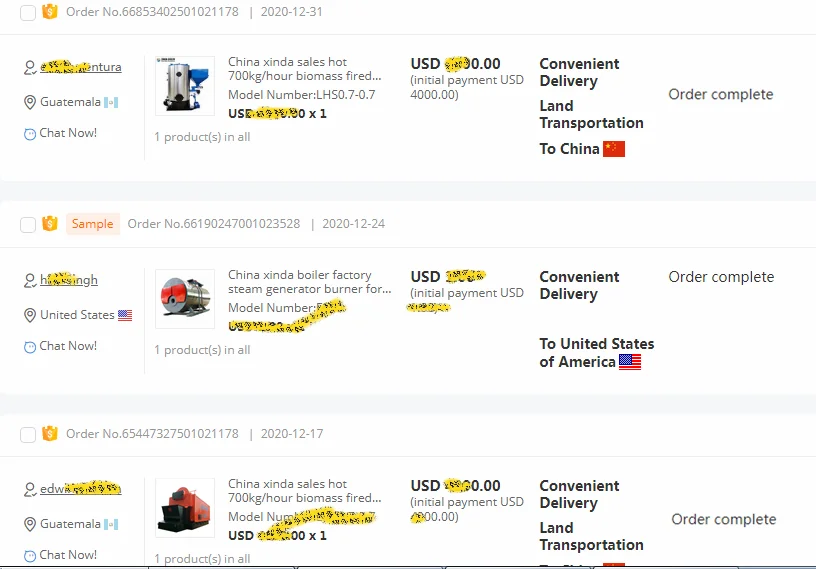

Successful Cases
Customer Evaluation
