Description

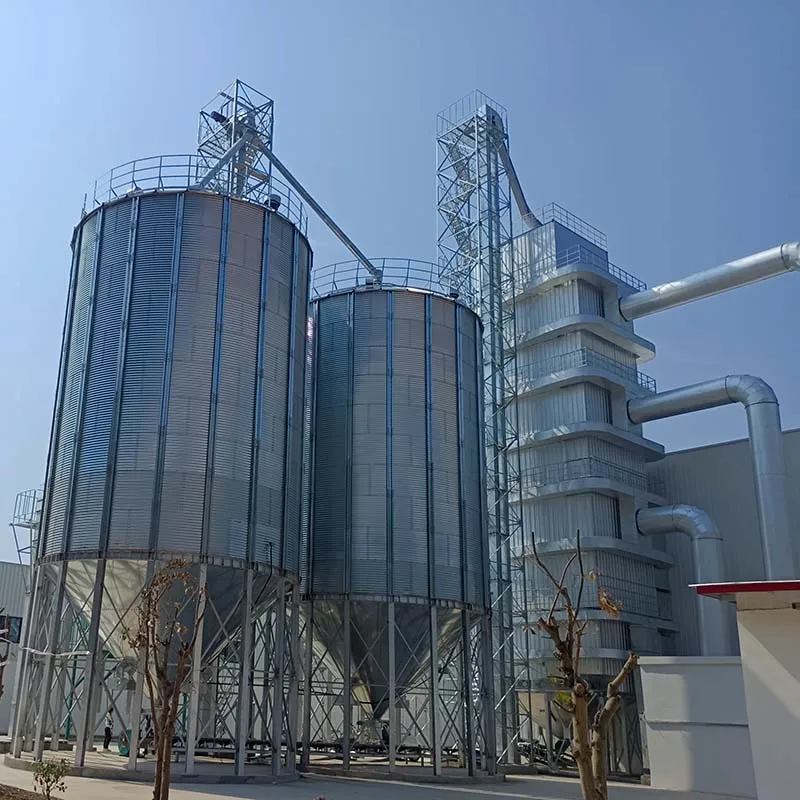

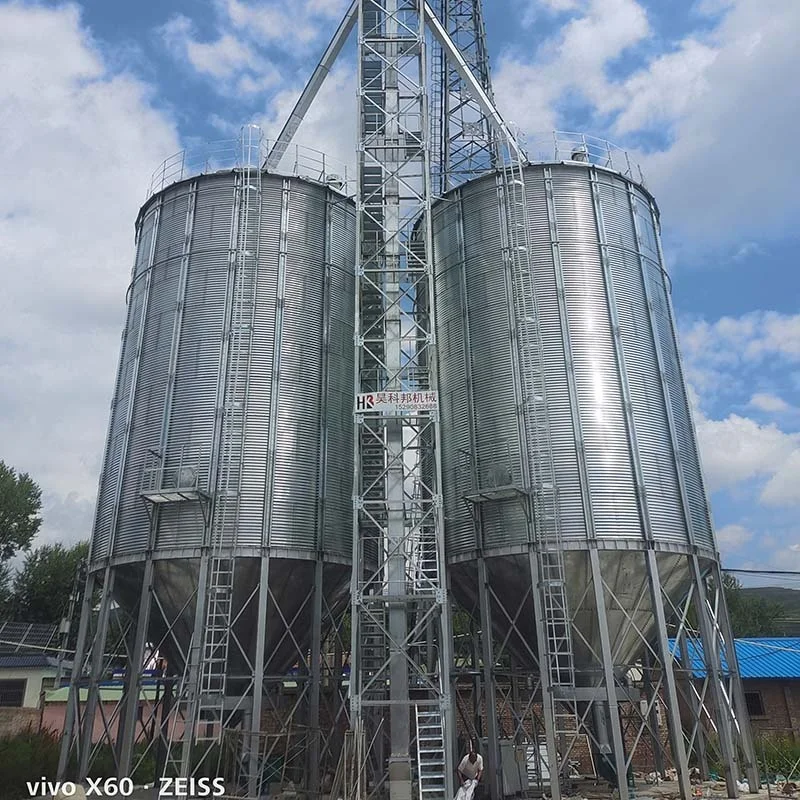

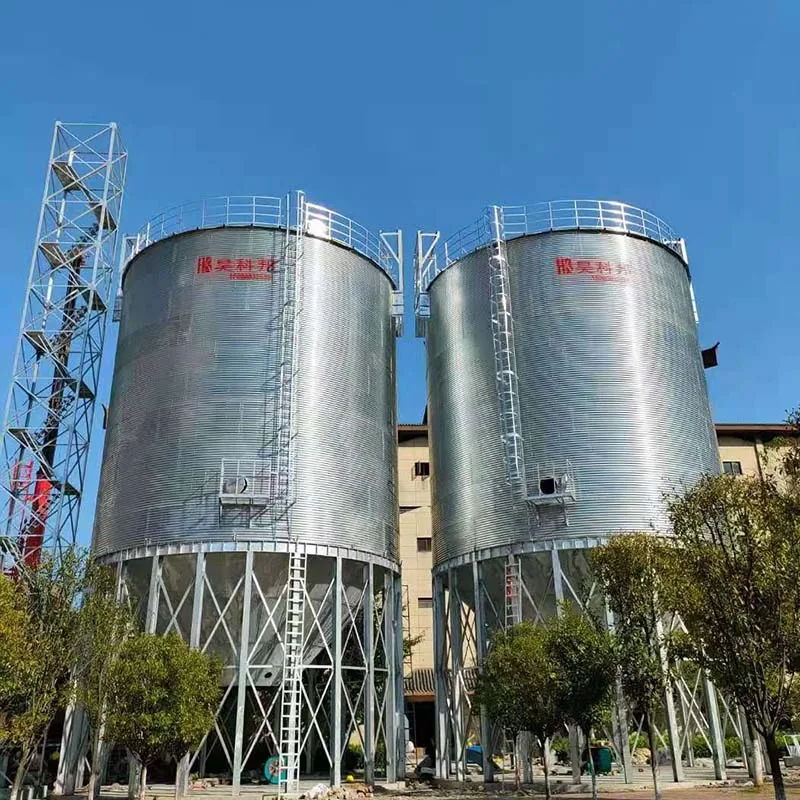

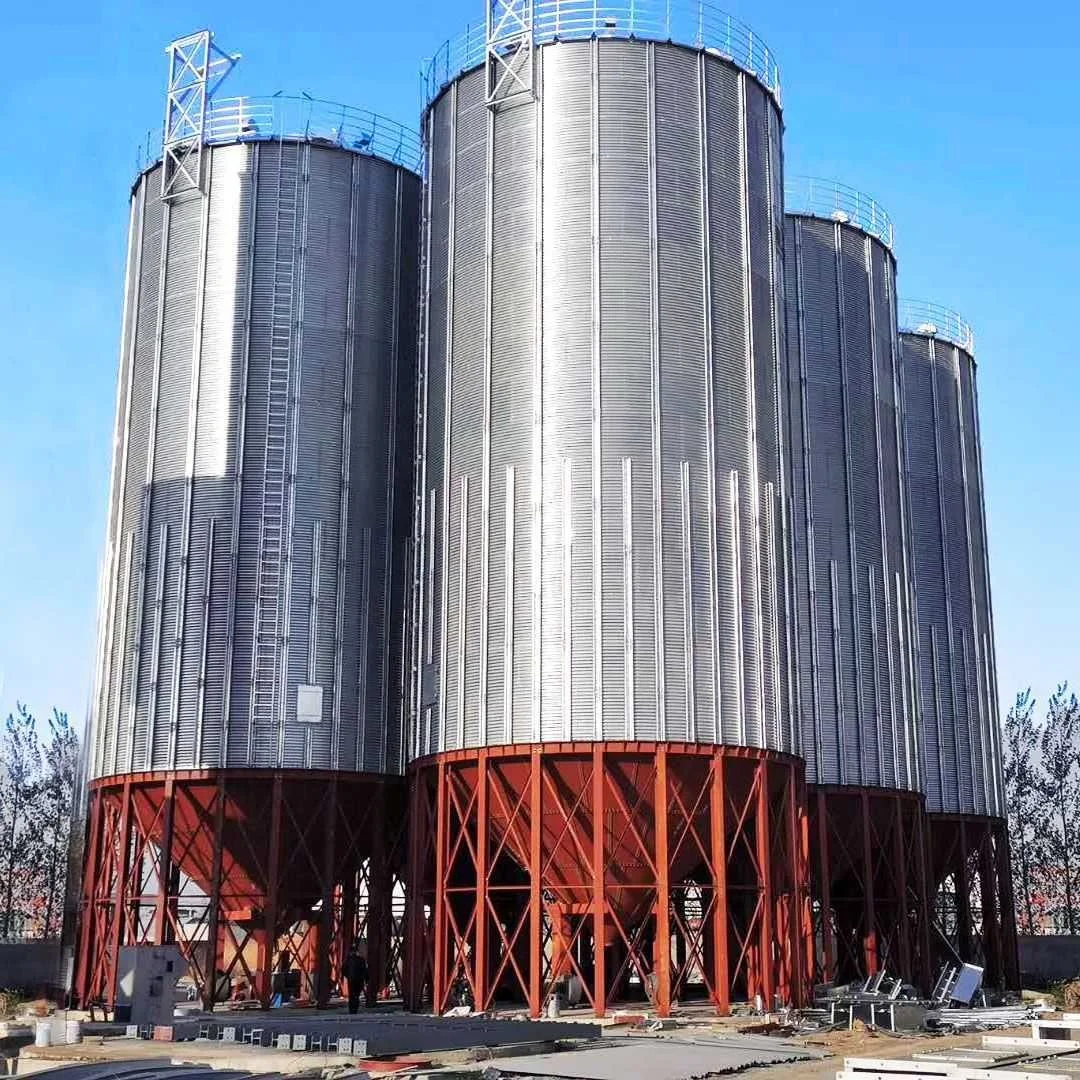

1000 Ton Grain Storage Steel Maize Soybeans Silo

Product Description

As the name implies, grain silo is for storing grain. The selection of grain silo should be conducive to food security storage, be advanced to a certain extent, be conducive to the realization of mechanization,and be suitable for the implementation of advanced grain storage technology.

Application

HKB Grain Silo is widely used for grains storage such as wheat, corn, soybean, paddy, rice, soybean meal, barley, malt, sunflower seeds, rapeseeds, peanuts, flour, and other powder materials, oat, special grain, and seeds, etc.

Feature

1. Assembly, easy to ship and save freight.

2.Hot-dip galvanized plates (275g/m2-600g/m2), very WATERPROOF &RUST-PROOF.

3. Hopper bottom has a low-cost price.

4. Flat bottom has a large capacity from 1500T-20000T.

5. Silos can store grain safely and save labor costs and space.

Technical Parameter

1000 Ton 45° Hopper Bottom Steel Silo Technical Parameter
Project	Layer Number	V(m³)	C(t)	Dia(m)	H(m)
TCZK10013	13	1379	1034	10.084	23.61
TCZK11010	10	1346	1009	11.000	20.95
TCZK11909	9	1481	1111	11.917	20.55
TCZK12809	9	1749	1312	12.834	21.27
Contact us for more specifications

Professional team to answer your questions online

Deatails

	The roof beam is made of C-shaped steel, the upper part is connected with the tio ring of the silo, the lower part is connected with the pillar of the silo,and the beam is horizontally connected by angle steel to form the framework of the silo top.
The coaming of the silo is made of 275g/m2 galvanized steel plate. The coaming is gradually thicjened from top to bottom according to the stress of each layer.

Accessory Equipment

	Ventulation System Including fan and out ring air suxt, inner air duct, silo top induced draft fan and natural ventulation window auciliary ventilation, which can take the maximum amount of indoor heat and ensure the quality of grain.
Clean up the system Cylinder promary cleaning screen Long screen body, goog cleaning effect. Fully enclosed frame, good sealing and dust proof performance. Small power, high output, stable and reliable operation. Self balancing vibrating screen Adiopt cibration motor, vibration damping rubber sprong and other preferred parts, with low noise and stable operation.
	Temperature measurement system The temperature measuring cable is suspended on the temperature measuring beam of the silo top framework, and the temperature sensors are distributed on the electricityon the cable.
Dedusting system In the process of grain circulation and cleaning, there will be a lot of dust, which is not conducive to the quality of grain, further processing and encironmental sanitation. Dust remocal equipment can effectivel quppress dust.
	Fumigation system The generator delivers the gas to the silo through the pipeline, and the upper opening of the silo wall is connected with the pipeline back to the generator to form a circulation in the silo.

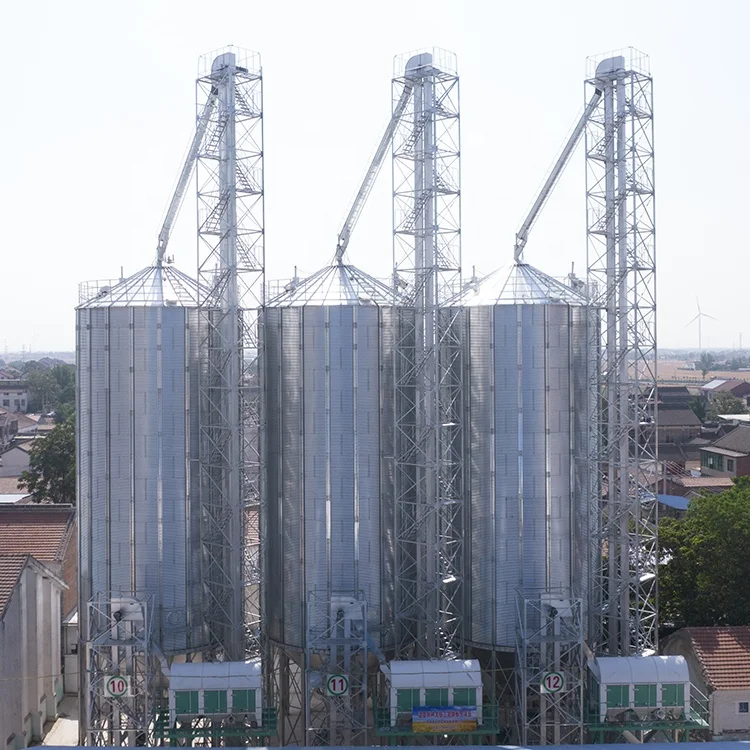

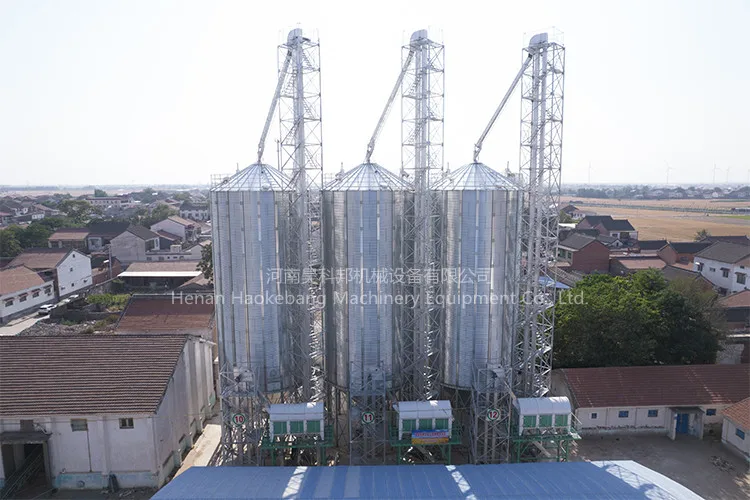

Case

Our Service



Pre-sale:

• Selection of equipment model.


• Design and manufacture products according to the special requirements of customers.


• Train technical staff for customers.


• The company sends engineering and technical personnel to the user's site to plan the site and design the best process and scheme for free.

On sale:

• Product acceptance.


• Assist clients in drawing up construction plans.

After sale:

• Assign special after-sales service personnel free of charge and arrive at the scene to guide customers to install and debug.


• Equipment installation and commissioning.


• On-site training operators.


• After the complete set of equipment is installed, the full-time technical staff will assist the customer to smoothly produce on-site for free until the user is satisfied.
